Keychron K1 V5

2023年1月13日

当ページのリンクには広告が含まれています。

このキーボードの概要

このキーボードのキー配列・サイズは【JIS, US】【80%TKL】です。

Keychron K1

Differences between Keychron K1 SE and K1

	K1SE	K1
Case Material	Reinforced aluminum top case Plastic Bottom Case	Full Aluminum Body
Hot-swappable or not	acceptable	not allowed
tilt leg	ant	nashi (Pyrus pyrifolia, esp. var. culta)

あわせて読みたい

Keychron K1SE 80%TKL
メカニカル方式（Low Profile）
US

1of13

仕様詳細

trade (brand) name: Keychron K1(V5)

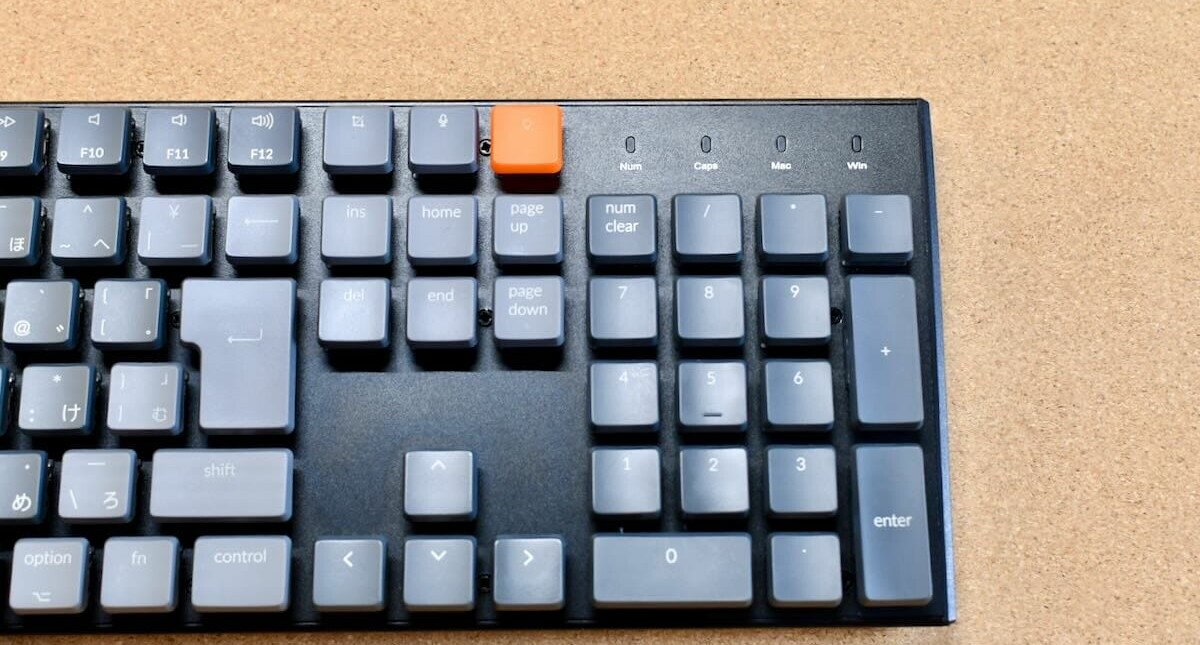

Total number of keys: Numeric Keyless: 87 keys (US)/91 keys (Japanese)

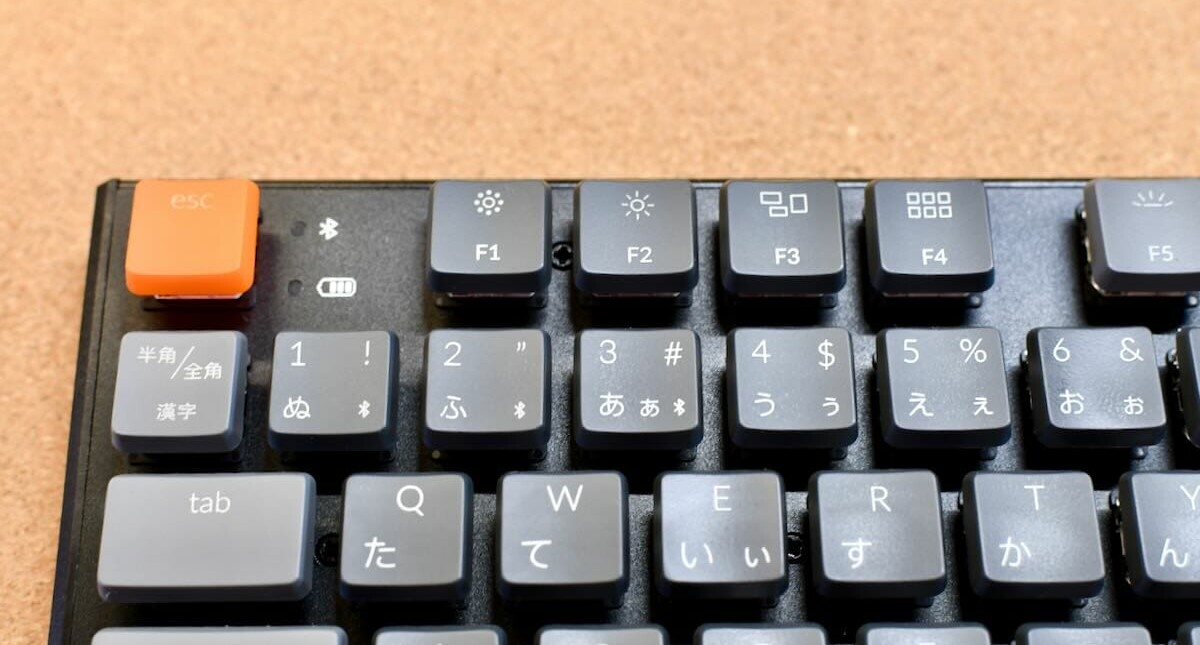

multimedia key: 12 keys
Main body material: Aircraft Grade Aluminum
Keycap Material: ABS
backlight: 18 types, 4 levels of adjustable RGB or White LED
Supported Systems: Windows/Android/Mac/iOS
battery: 2000mAh rechargeable lithium polymer
Bluetooth operating time: RGB: max. 110 hours (with LED OFF), max. 38 hours (with LED ON), White LED: max. 190 hours (with LED OFF), max. 36 hours (with LED ON)

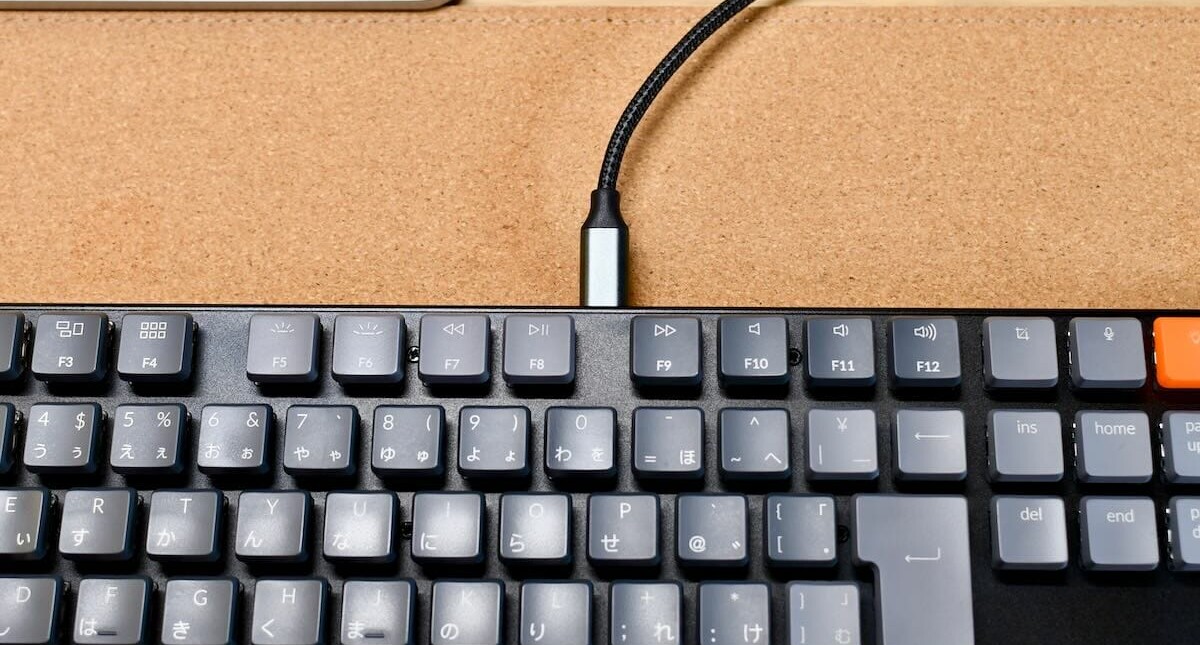

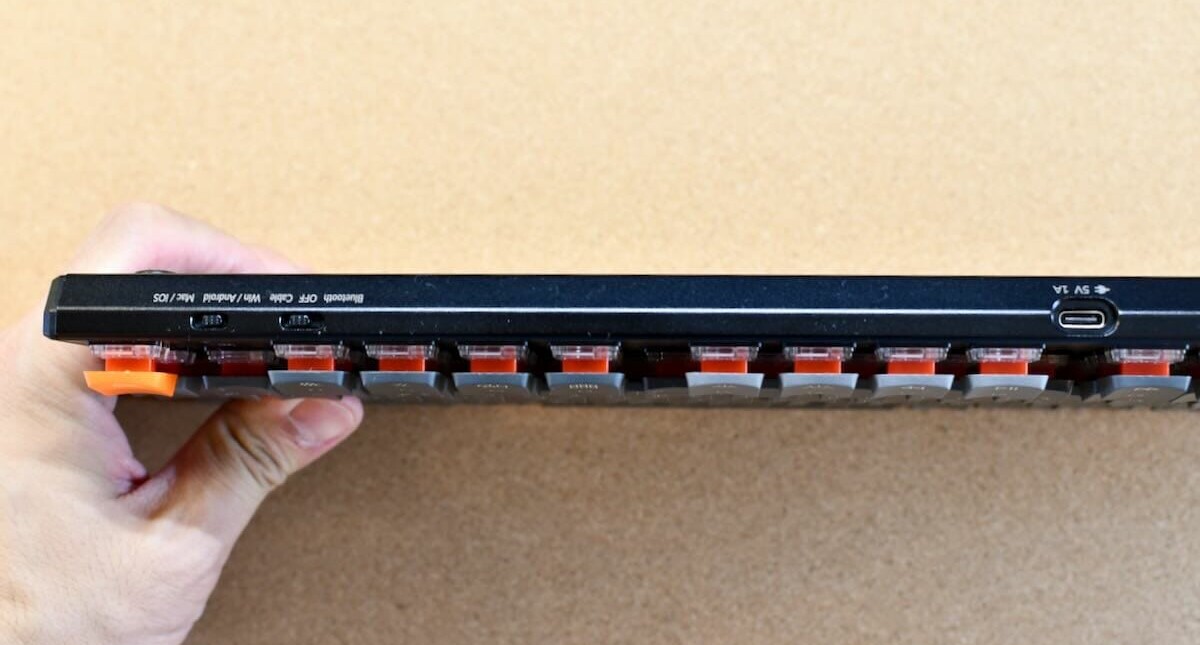

connection: Bluetooth and USB TYPE-C
Bluetooth version: 5.1

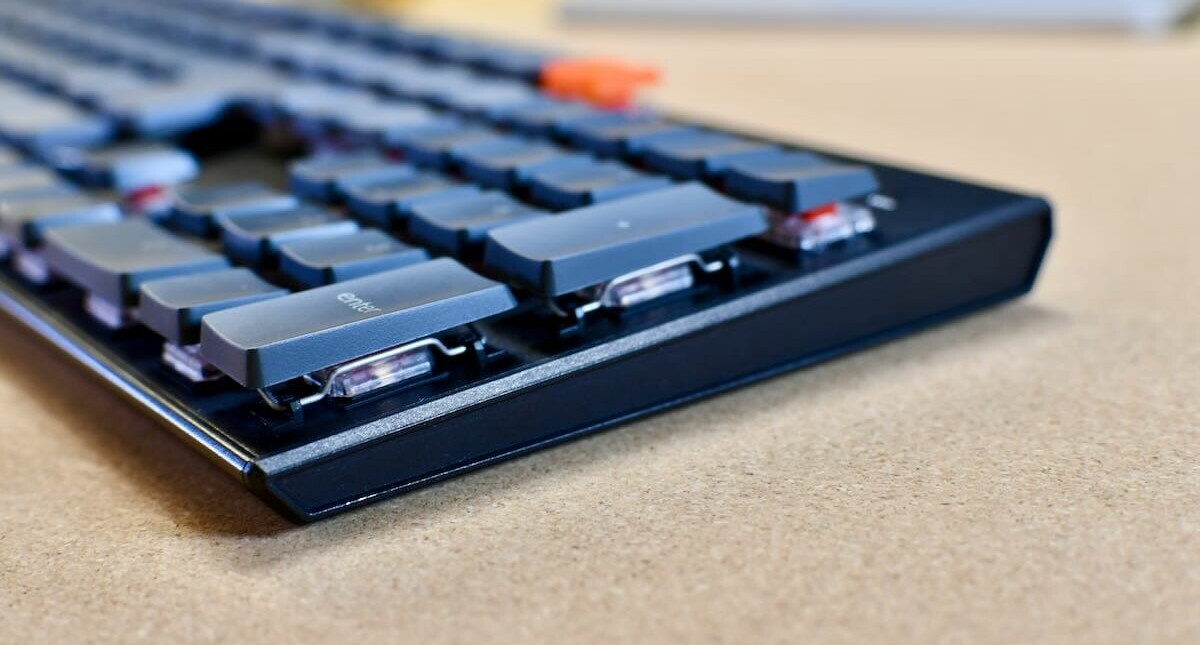

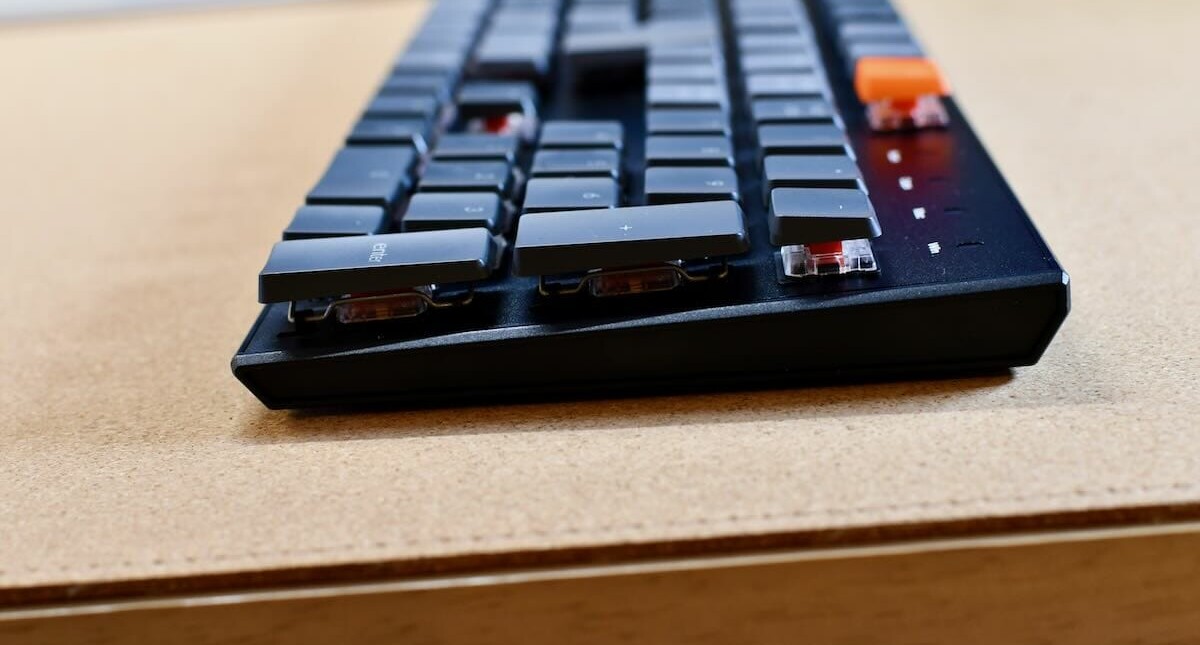

Size: 335 x 120mm, height 17mm (keycap front)/22mm (keycap rear)
weight: Approx. 650g
contents: K1 keyboard x 1, USB-A to USB Type-C cable x 1, Keycap puller x 1, User manual x 1

タップできる目次

[blog_parts id="41919"]

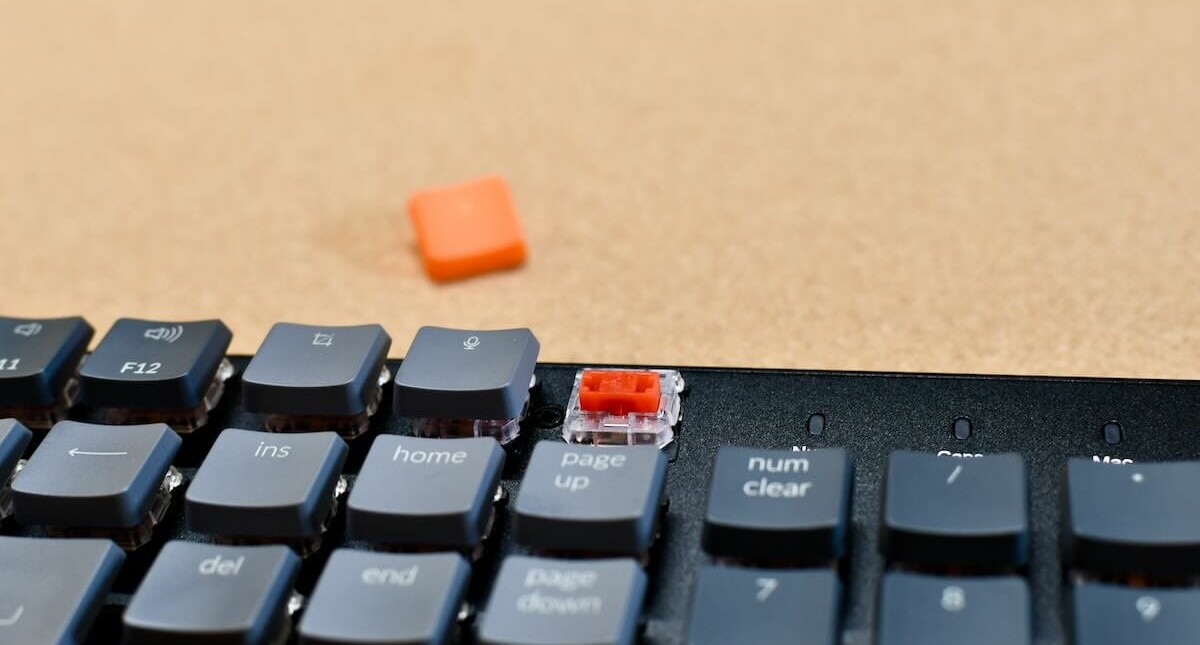

Selectable axis types

Gateron Low-profile Switches 1.0

Switch	Blue	Red	Brown
Feel	Clicky.	Linear	Tactile
Color	Blue	Red	Brown
Lubed.	None	None	None
Pressure	50±15g	45±15g	55±15g
Spring	unknown	unknown	unknown
Total Travel	2.5±0.5mm	2.5±0.5mm	2.5±0.5mm

sound sample

Gateron Low Profile Red

Gateron Low Profile Blue

Gateron Low Profile Brown

Keychron Lowprofile Optical Swithces

スクロールできます

	Red Switches	Blue Switches	Brown Switches	White Switches	Yellow Switches	Green Switches
key load	40±10gf	48±10gf	57±10gf	30±10gf	57±10gf	67±10gf
Movement to operation	1.1±0.3mm	1.1±0.3mm	1.1±0.3mm	1.1±0.3mm	1.1±0.3mm	1.1±0.3mm
Overall movement	2.5±0.3mm	2.5±0.3mm	2.5±0.3mm	2.5±0.3mm	2.5±0.3mm	2.5±0.3mm
reaction	linear	clicky	tactile	linear	early bump tactile	early bump tactile
sound	quiet	clicky	gentle	quiet	gentle	gentle
