FILCO Majestouch MINILA-R Convertible

FILCO®︎
河村 亮介
当ページのリンクには広告が含まれています。
このキーボードの概要
Brand
Price
JIS/US ,
Keyboard Size
Key Profile
Key Sounds , , ,
How to Connect ,
Battery
Hotswap
Normal or Split

Comment

  • Compact size keyboard, almost the same size as HHKB
  • Very many color variations x axis types to choose from.

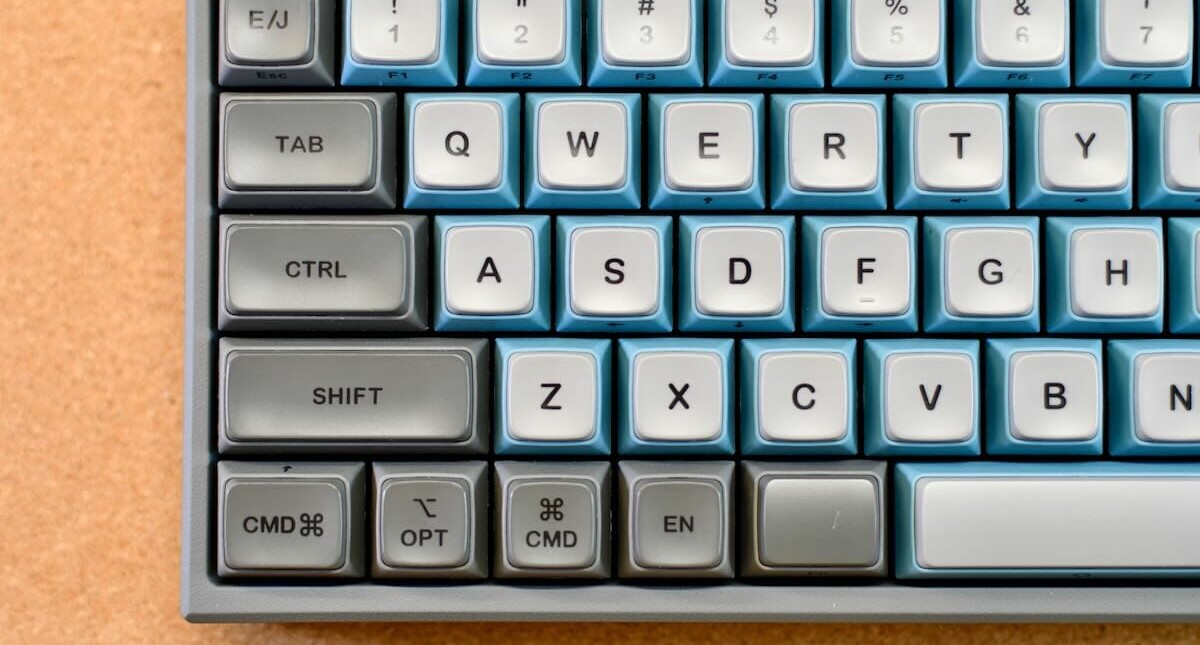

  • In Mac-only mode, the DIP switches can be used together to set a layout close to the original keyboard (when DIP1/4/5 are turned on).

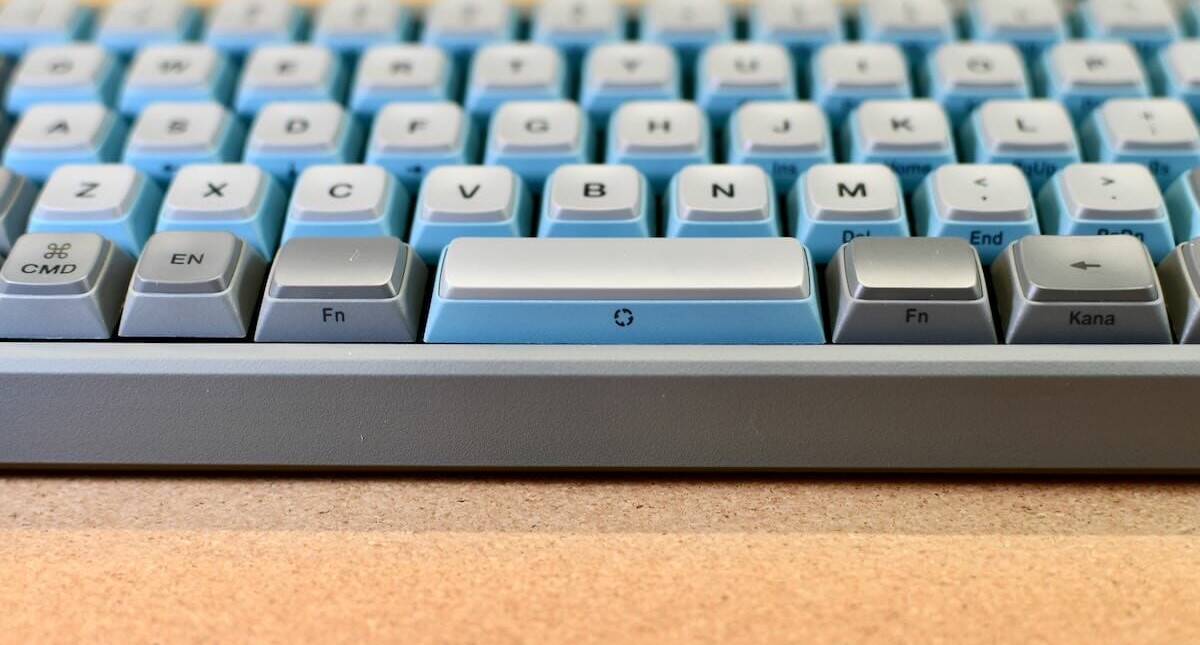

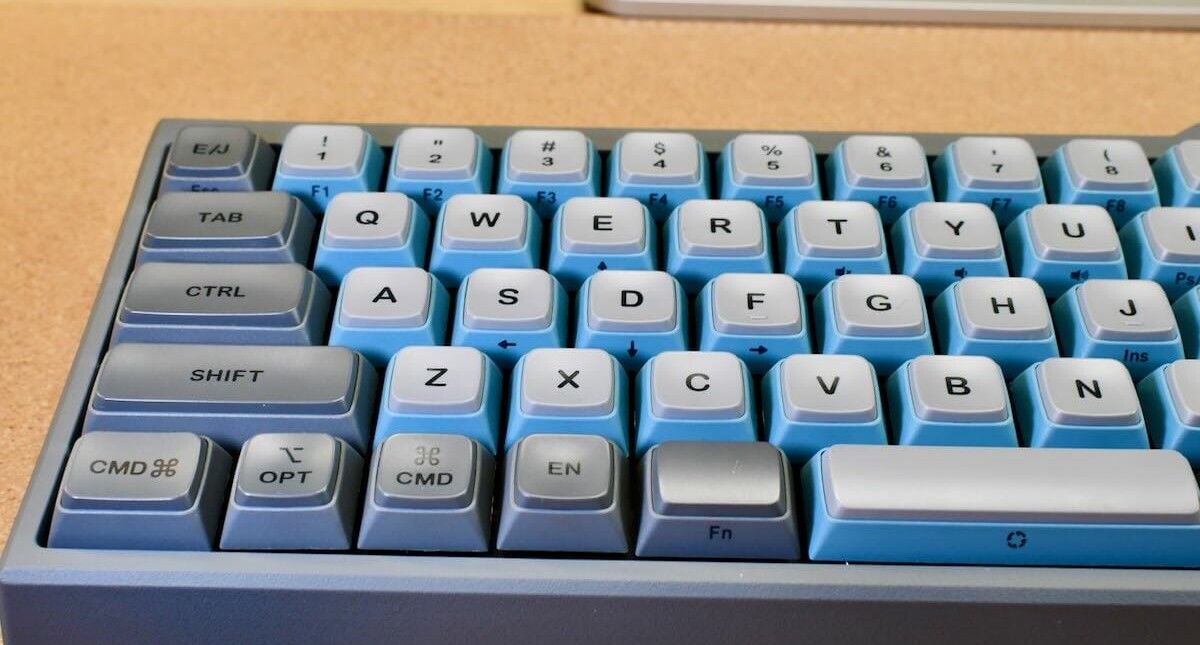

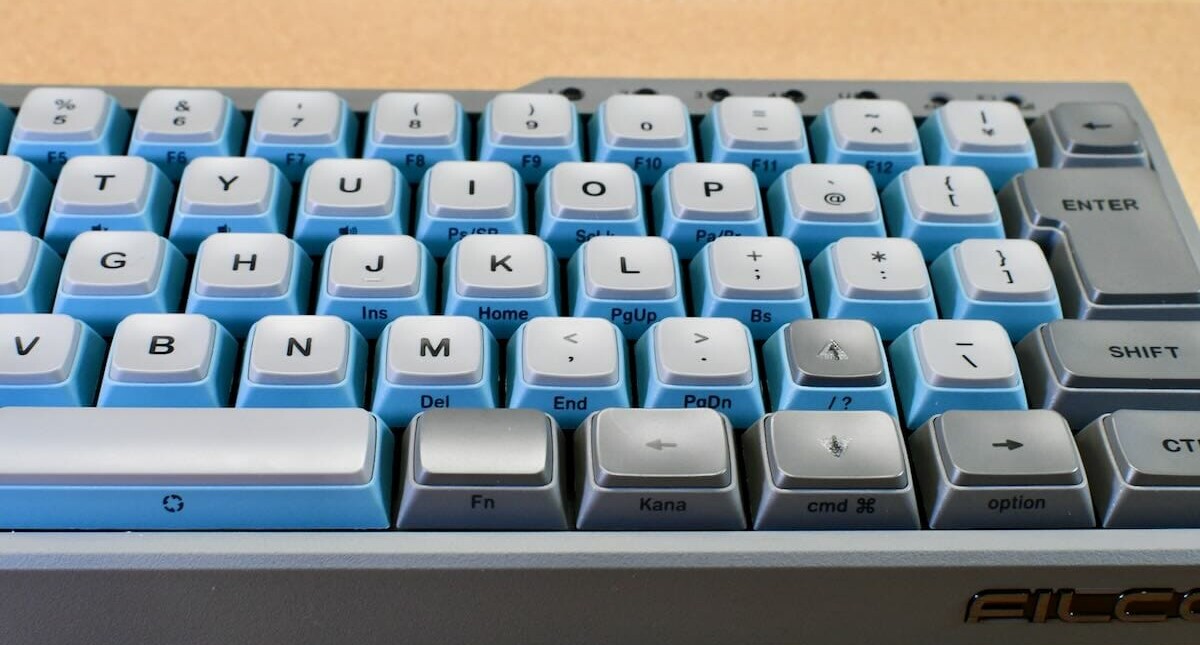

  • Thumb function keys are very easy to use once you get used to them
  • (Mac) Alphanumeric-kana conversion is shifted by one key from the normal key. Control + (Mac)The alphanumeric-kana conversion is shifted by one key from the normal key. Space to make it smoother.

このキーボードのキー配列・サイズは【, 】【 】です。


似ているキーボードを探す▷▷


キーボードサイズについて知りたい▷▷

仕様詳細

Body size

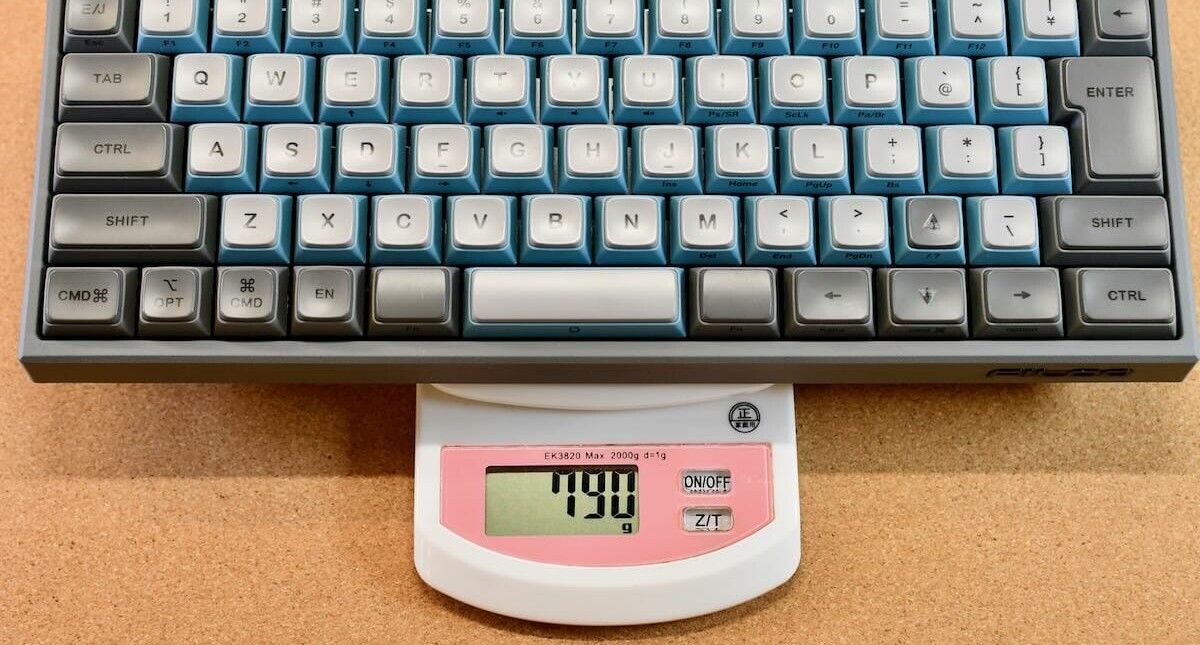

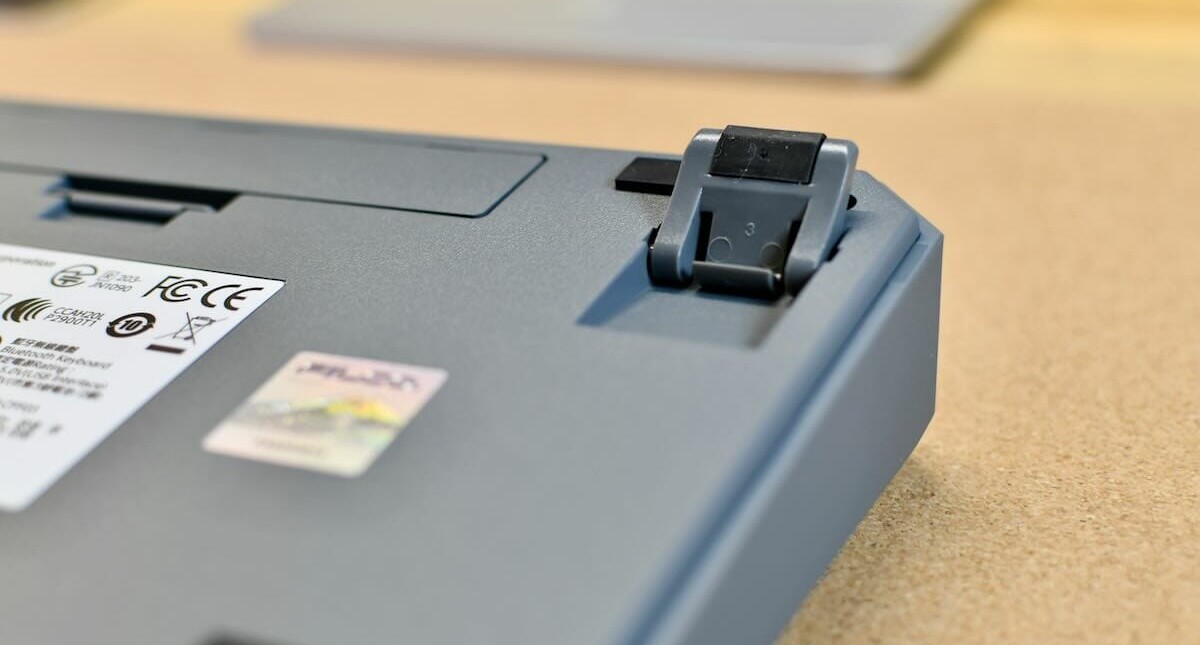

W297 x D124 x H40mm (46mm when using stand) / 680g

coloring

  • Milk｜FFBTR6XXX/XXX
  • Strawberry｜FFBTR6XXX/XXX
  • Matte black｜FFBTR6XXX/XXX
  • Sky blue｜FFBTR6XXX/XXX
  • Sky blue｜KOBO-SGY08-X-XXX
  • KOBO-ASG08-X-XXX
  • Camouflage｜KOBO-CAM08-X-XXX
  • Lacquer / Celadon style silver openwork｜KOBO-SIJ08-XXX-XXX
  • Lacquer/Jet Black｜KOBO-BLACK08-X-XXX
  • Lacquer/Ginga (blue)｜KOBO-GXB08-X-XXX
  • Lacquer/Galaxy (Fri.) ｜KOBO-GXG08-X-XXX
  • Lacquer / Shibuki lacquer (black) ｜KOBO-SBKB08-X-XXX

interface

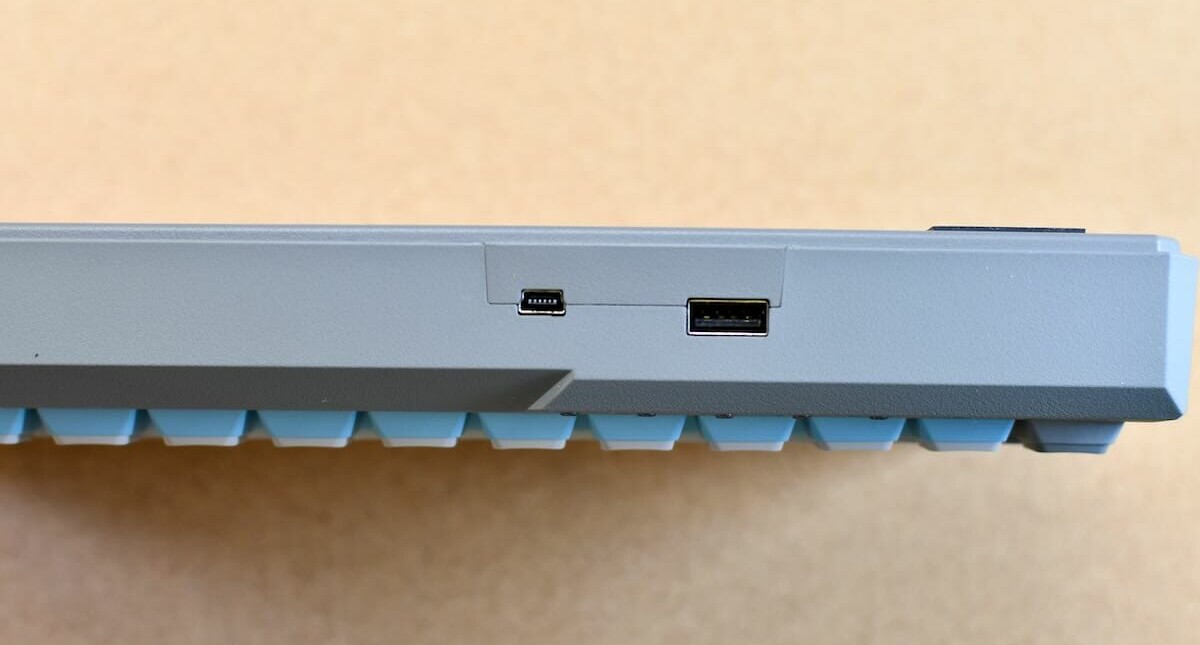

USB2.0 / Bluetooth 5.1 HID profile

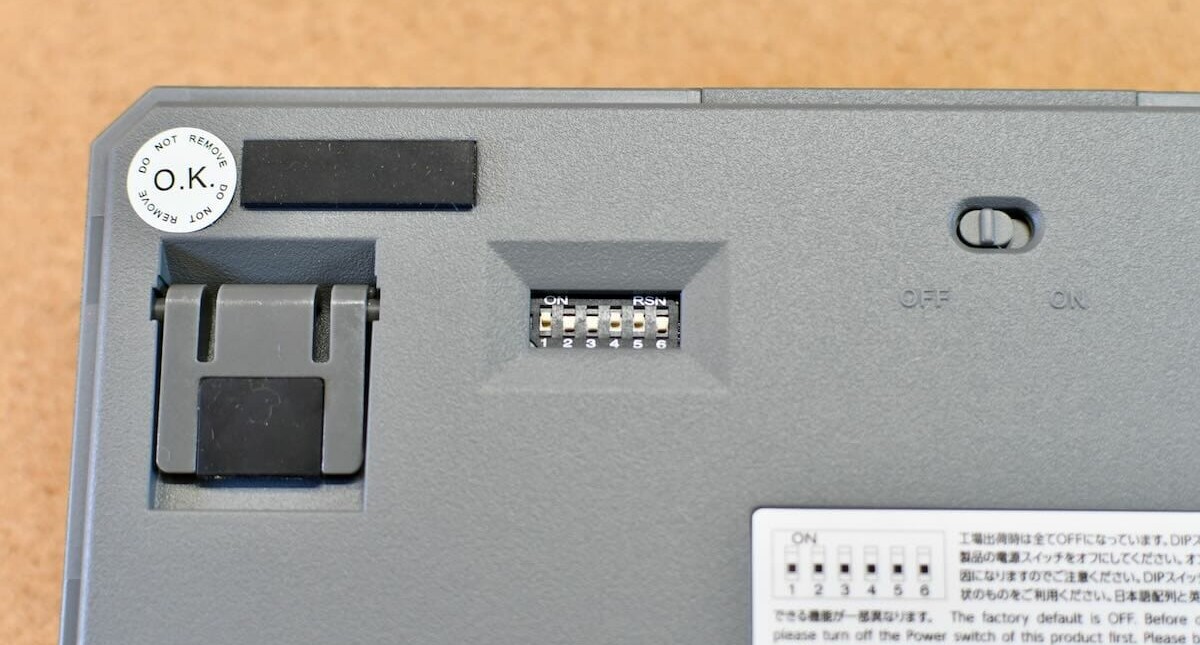

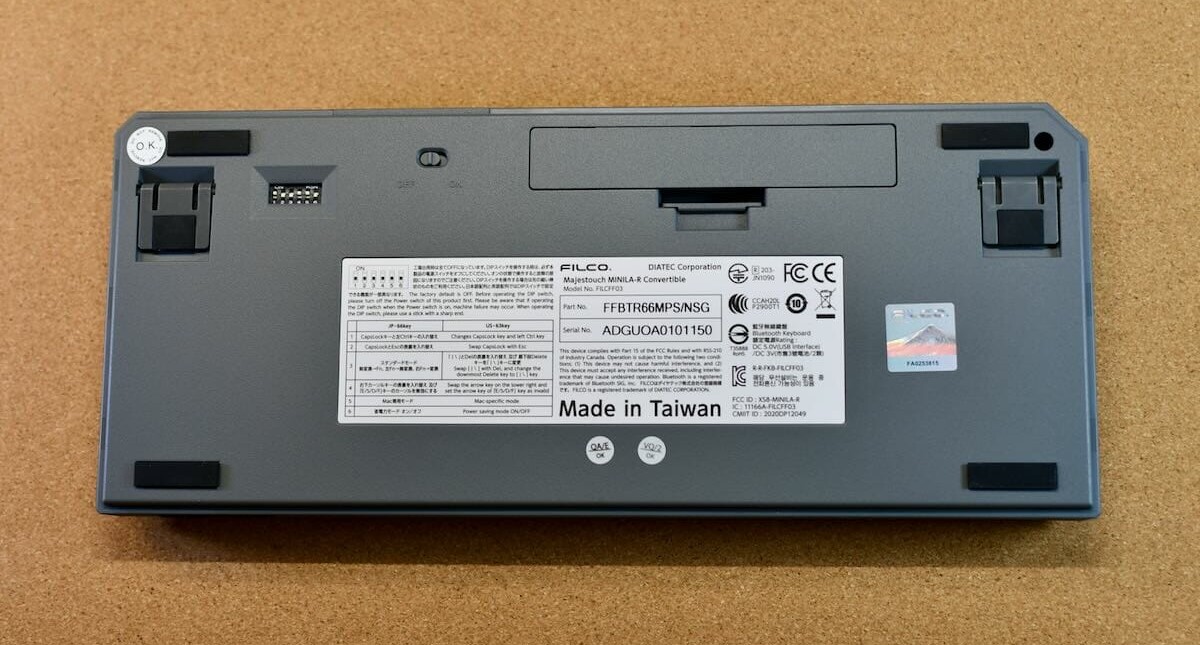

DIP switch

SW1CapsLock and Left Ctrl swap
SW2CapsLock and ESC swapped front and back
SW3Standard mode (conversion/no conversion)
SW4Swap the front and back of the lower right cursor key.
SW5Mac-only mode
SW6Power saving mode on/off
JP array
SW1CapsLock and Left Ctrl swap
SW2CapsLock and ESC swapped front and back
SW3Front and back of “¥｜” and Del are swapped.
SW4Swap the front and back of the lower right cursor key.
SW5Mac-only mode
SW6Power saving mode on/off
US array

Some combinations of DIP switches not listed in the manual are possible

The MINILA-R manual is available Click here

included thing

  • USB cable (1.8m)
  • 2 AA dry cell batteries for trial use
  • Replacement keycap
  • Dedicated Keepers
  • User’s Manual and Warranty Card

Other Special Notes

RoHS2 (Revised RoHS Directive) compliant

Supported models

  • OS: Windows XP SP2 or later / Vista / 7 / 8 / 8.1/10 / 11
  • Computer with USB port for wired connection
  • For wireless connection, a computer that supports the Bluetooth HID profile
  • Bluetooth connection requires a PC equipped with Bluetooth functionality compatible with Bluetooth 5.1 or a Bluetooth receiver adapter. However, in rare cases, connection may not be possible due to compatibility issues. Not all Bluetooth receiver adapters are compatible.
  • *An operable mouse is required for Bluetooth connection setup.
  • *Mac mode is not guaranteed to work on all macOS.

Information reference: https: //www.diatec.co.jp/shop/MINILA-R/

タップできる目次

Discount Code: ryo10

to save 10% off your purchase.

Go Lofree Shop▷▷▷

Discount Code: ryo10

to save 10% off your purchase.

Go NuPhy Shop▷▷▷

Click here for a list of coupon codes ▷▷▷

Find a keyboard layout you like.

100%.

96%.

80%.

75%.

70%.

65%.

60%.

40%.

This site is operated on a performance-based compensation advertising basis, and we may receive revenue from product purchases made through this site. Please be aware that some of the keyboards on this site are presented as advertisements (PR). This alert information conforms to the provisions of Article 5, Item 3 of the Revised Act Against Unjustifiable Premiums and Misleading Representations, which came into effect on October 1, 2023.

FILCO Majestouch MINILA-R Convertible Model List

Here are the model numbers of the FILCO Majestouch MINILA-R.

Click on the model number name to see details in the official Amazon store.

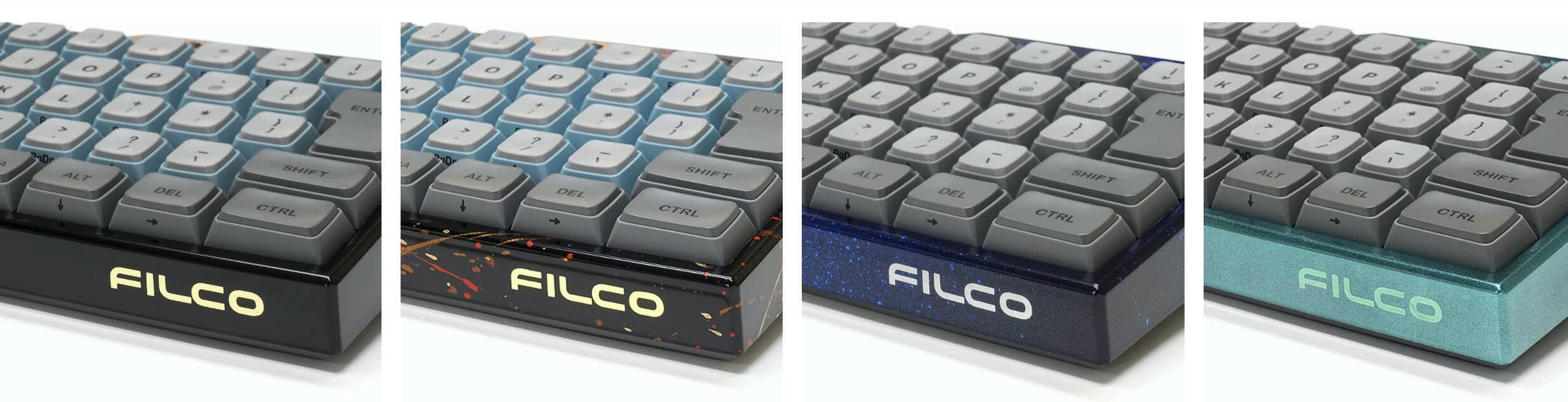

limited model

5825a7f5faf0c261992e66a45b8d8cdb
Image reference: Amazon
  • Lacquer / Celadon glazed silver openwork｜KOBO-SIJ08-X-XXX
  • Lacquer/Jet Black｜KOBO-BLACK08-X-XXX
  • Lacquer/Ginga (blue)｜KOBO-GXB08-X-XXX
  • Lacquer/Galaxy (Fri.) ｜KOBO-GXG08-X-XXX
  • Lacquer / Shibuki lacquer (black) ｜KOBO-SBKB08-X-XXX

→For more information, please visit FILCO Amazon’s official online store.

MINILA-R Convertible Workshop ▷▷▷

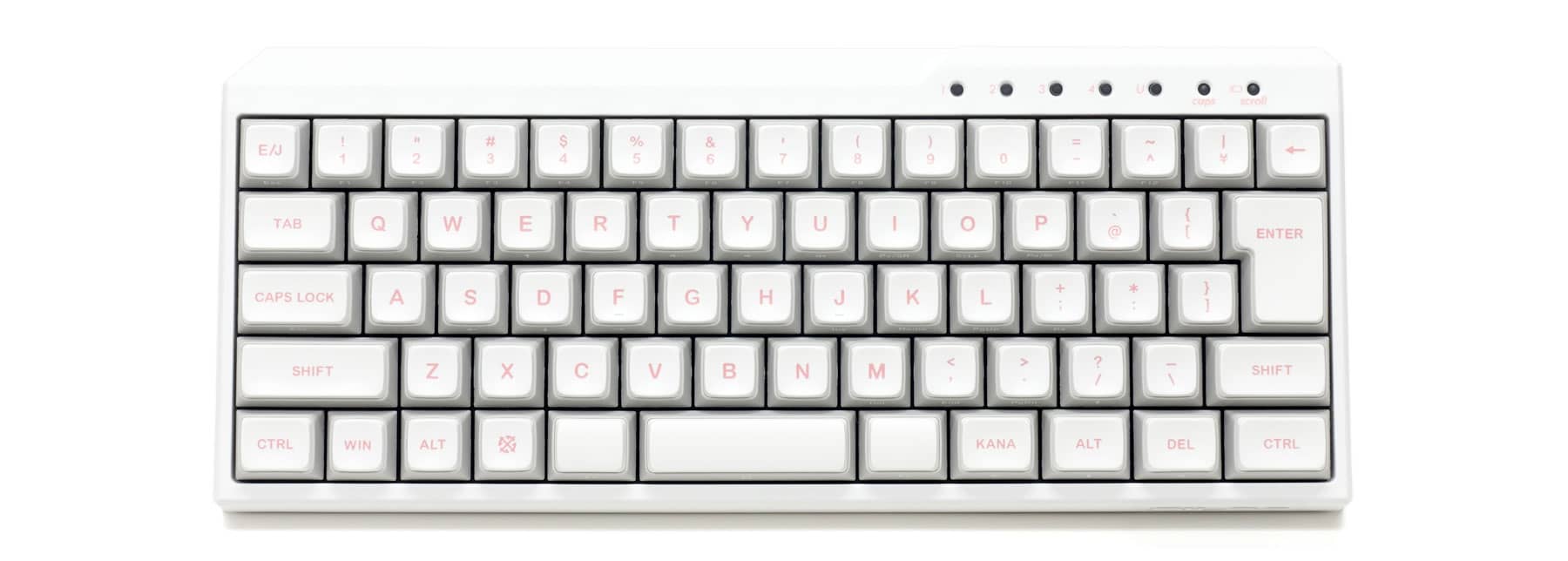

Milk

FFBTR66MPSNWT 01
MX Brown shaftMX Blue axisMX Black shaftMX Red AxisMX SILENT Silent axis
Japanese-style arrayFFBTR66M/NWT–––FFBTR66MPS/NWT
English-language arrayFFBTR63M/EWT––FFBTR63MRL/EWTFFBTR63MPS/EWT

Release date: January 6, 2023 (scheduled)

For more information ▷ ▷

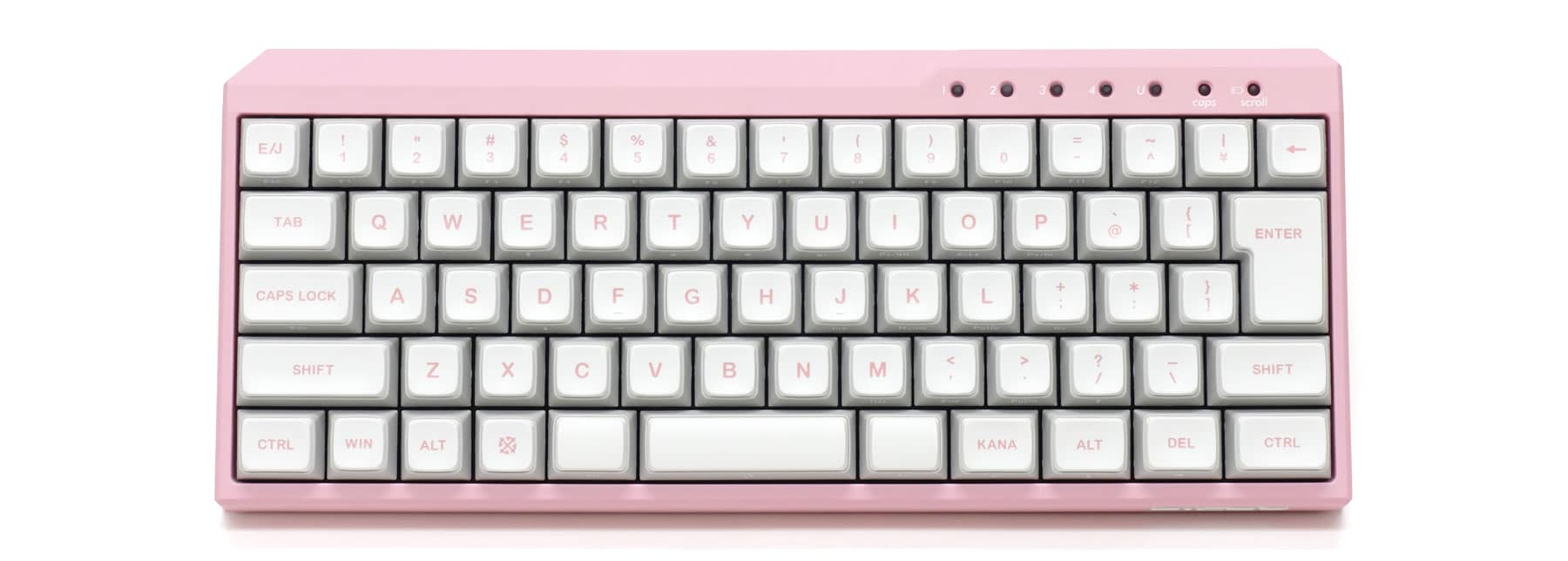

Ichigo｜ICHIGO

FFBTR66MNPK 01 1
MX Brown shaftMX Blue axisMX Black shaftMX Red AxisMX SILENT Silent axis
Japanese-style arrayFFBTR66M/NPK–––FFBTR66MPS/NPK
English-language arrayFFBTR63M/EPK––FFBTR63MRL/EPKFFBTR63MPS/EPK

Release date: January 6, 2023 (scheduled)

Click here for more information ▷▷▷

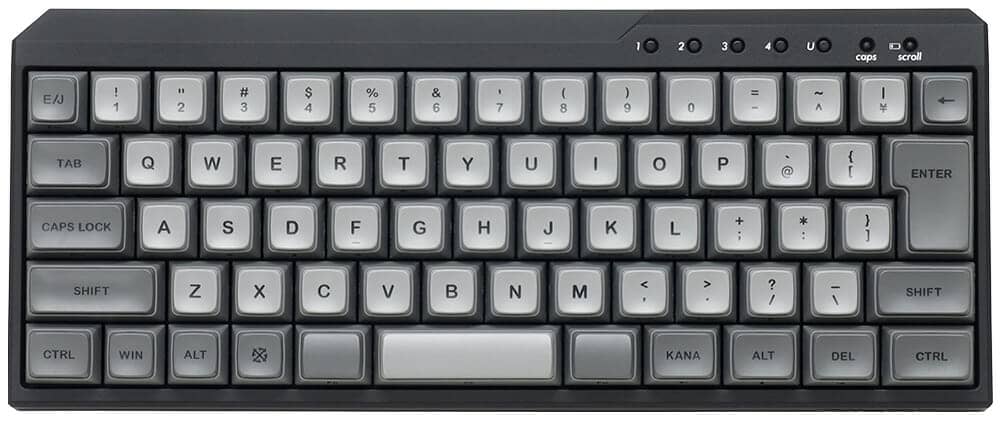

Matte Black

NMB
Image reference: Diatech, Inc.
MX Brown shaftMX Blue axisMX Black shaftMX Red AxisMX SILENT Silent axis
Japanese-style arrayFFBTR66M/NMBFFBTR66MC/NMB–FFBTR66MRL/NMBFFBTR66MPS/NMB
English-language arrayFFBTR63M/EMBFFBTR63MC/EMBFFBTR63ML/EMBFFBTR63MRL/EMBFFBTR63MPS/EMB
Click for more information

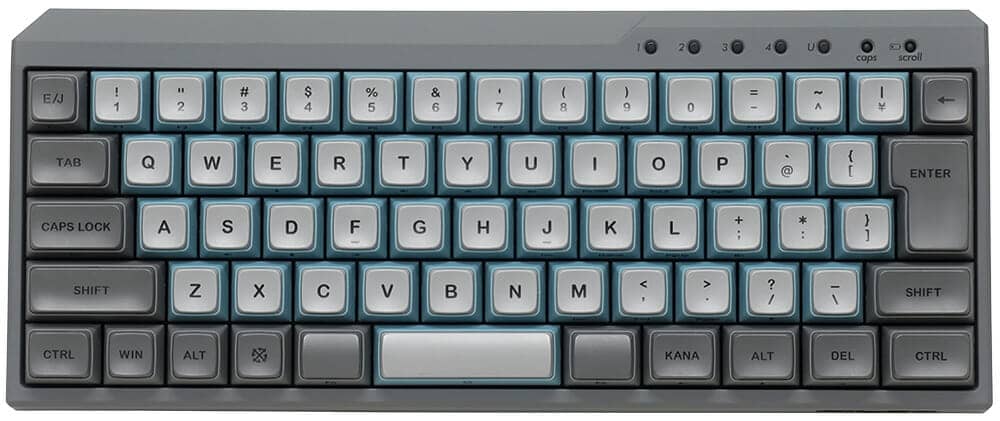

Sky Gray

NSG
Image reference: Diatech, Inc.
MX Brown shaftMX Blue axisMX Black shaftMX Red AxisMX SILENT Silent axis
Japanese-style arrayFFBTR66M/NSGFFBTR66MC/NSG–FFBTR66MRL/NSGFFBTR66MPS/NSG
English-language arrayFFBTR63M/ESGFFBTR63MC/ESGFFBTR63ML/ESGFFBTR63MRL/ESGFFBTR63MPS/ESG
Click for more information

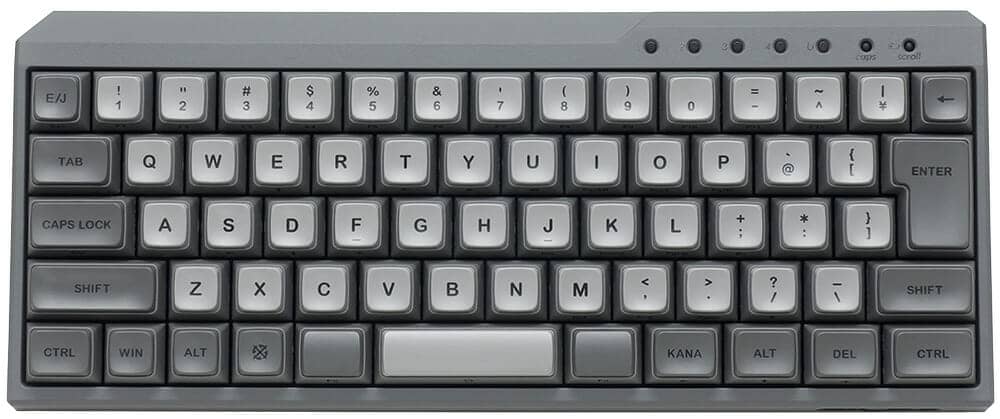

Sky Gray（online store only)

SGY NMB
Image reference: Diatech, Inc.
MX Brown shaftMX Blue axisMX Black shaftMX Red AxisMX SILENT Silent axis
Japanese-style arrayKOBO-SGY08-M-NMBkobo-sgy08-mc-nmb–kobo-sgy08-mrl-nmbkobo-sgy08-mps-nmb
English-language arrayKOBO-SGY08-M-EMBkobo-sgy08-mc-embkobo-sgy08-ml-embkobo-sgy08-mrl-embkobo-sgy08-mps-emb
English-language arrayKOBO-SGY08-M-EAGkobo-sgy08-mc-egkobo-sgy08-ml-egkobo-sgy08-mrl-egkobo-sgy08-mps-eg
Click for more information

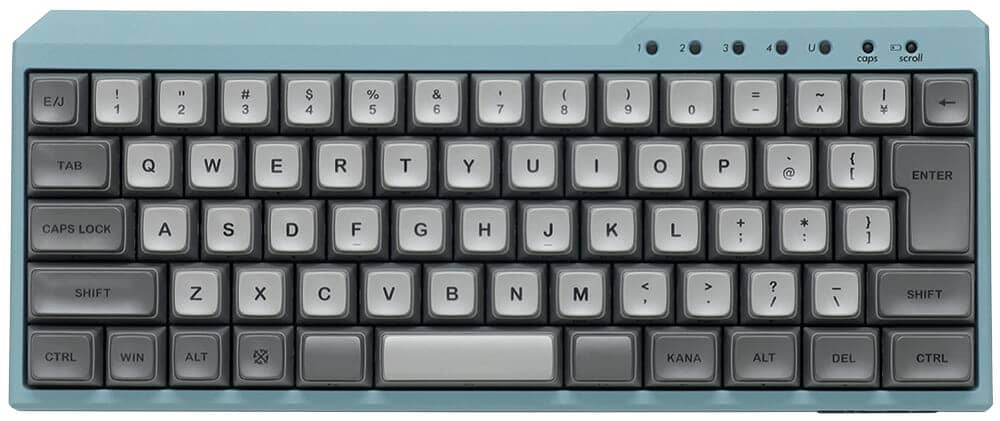

Asagi

ASG NMB
Image reference: Diatech, Inc.
MX Brown shaftMX Blue axisMX Black shaftMX Red AxisMX SILENT Silent axis
Japanese-style arraykobo-asg08-m-nmbkobo-asg08-mc-nmb–kobo-asg08-mrl-nmbkobo-asg08-mps-nmb
English-language arraykobo-asg08-m-embkobo-asg08-mc-embkobo-asg08-ml-embkobo-asg08-mrl-embkobo-asg08-mps-emb
Japanese-style arraykobo-asg08-m-nsgkobo-asg08-mc-nsg–kobo-asg08-mrl-nsgkobo-asg08-mps-nsg
English-language arraykobo-asg08-m-esgkobo-asg08-mc-esgkobo-asg08-ml-esgkobo-asg08-mrl-esgkobo-asg08-mps-esg
English-language arrayFFBTR63M/EAGFFBTR63MC/EAGFFBTR63ML/EAGFFBTR63MRL/EAGFFBTR63MPS/EAG
Click for more information

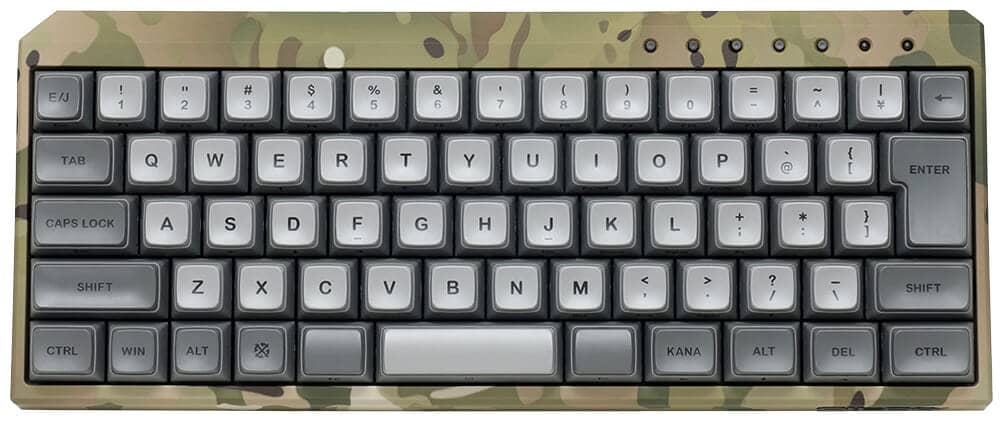

Camouflage

CAM NMB
Image reference: Diatech, Inc.
MX Brown shaftMX Blue axisMX Black shaftMX Red AxisMX SILENT Silent axis
Japanese-style arrayKOBO-CAM08-M-NMBkobo-cam08-mc-nmb–kobo-cam08-mrl-nmbkobo-cam08-mps-nmb
English-language arrayKOBO-CAM08-M-EMBkobo-cam08-mc-embkobo-cam08-ml-embkobo-cam08-mrl-embkobo-cam08-mps-emb
Japanese-style arraykobo-cam08-m-nsgkobo-cam08-mc-nsg–kobo-cam08-mrl-nsgkobo-cam08-mps-nsg
English-language arraykobo-cam08-m-esgkobo-cam08-mc-esgkobo-cam08-ml-esgkobo-cam08-mrl-esgkobo-cam08-mps-esg
English-language arrayKOBO-CAM08-M-EAGkobo-cam08-mc-egkobo-cam08-ml-egkobo-cam08-mrl-egkobo-cam08-mps-eg
Click for more information

Axis type

Cherry MX Axis

スクロールできます
MX Silent Sound Red SwitchesMX Red SwitchesMX Blue SwitchesMX brown SwitchesMX Black SwitchesMX Silent Black SwitchesMX Speed Silver Switches
key load45cN±15cN45cN60cN±15cN55cN60cN60cN±20cN45cN
Movement to operation1.9±0.6mm2.0mm2.0±0.6mm2.0mm2.0mm1.9±0.6mm1.2mm
Overall movement3.7-0.4mm4.0mm4.0-0.5mm4.0mm4.0mm3.7-0.4mm3.4mm
reactionlinearlinearclickytactilelinearlinearlinear
soundVery quietquietclickygentlequietVery quietquiet
Tactile Gray AxisGreen Switchesclear axis
key load80cN80cN60cN
Movement to operation2.0mm2.2mm1.9±0.6mm
Overall movement4.0mm4.0mm3.7mm
reactiontactileclickytactile
soundgentleclickygentle

Cherry MX Switches ｜Keystroke Sound Sample

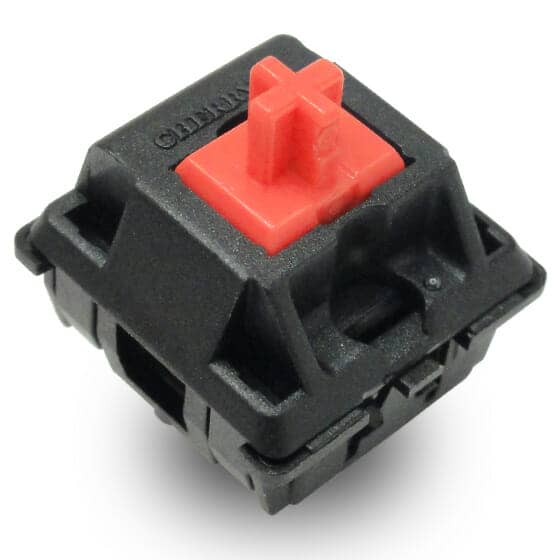

CMX MPS
Image reference: Diatech, Inc.

Adopted by FILCO Majestouch MINILA-R

Cherry MX Silent Red

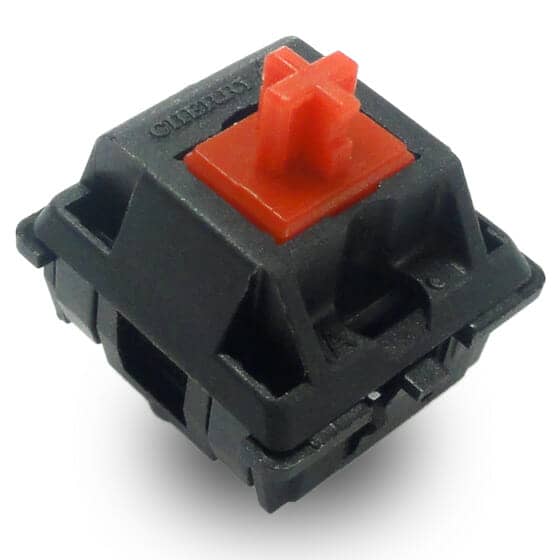

CMX MRL
Image reference: Diatech, Inc.

Adopted by FILCO Majestouch MINILA-R

Cherry MX Red
CMX MC
Image reference: Diatech, Inc.

Adopted by FILCO Majestouch MINILA-R

Cherry MX Blue
CMX M
Image reference: Diatech, Inc.

Adopted by FILCO Majestouch MINILA-R

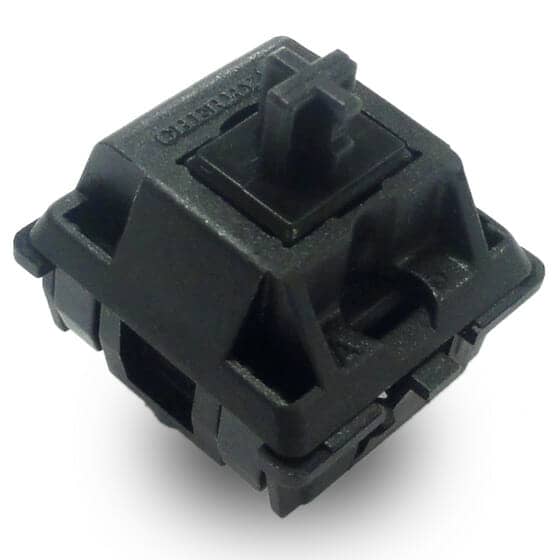

Cherry MX Brown
CMX ML
Image reference: Diatech, Inc.

Adopted by FILCO Majestouch MINILA-R

Cherry MX Black

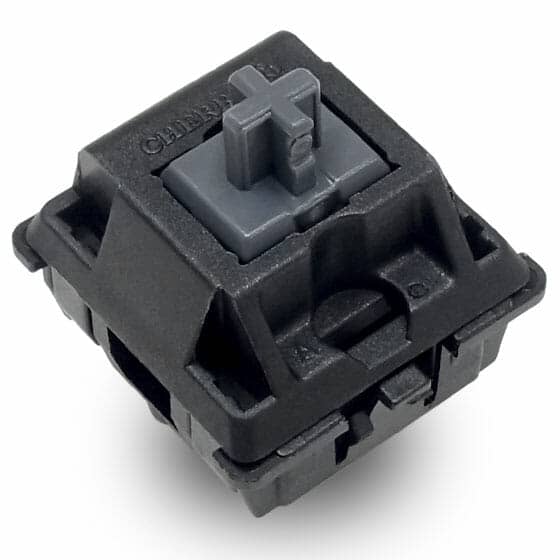

CMX MBS
Image reference: Diatech, Inc.
Cherry MX Silent Black

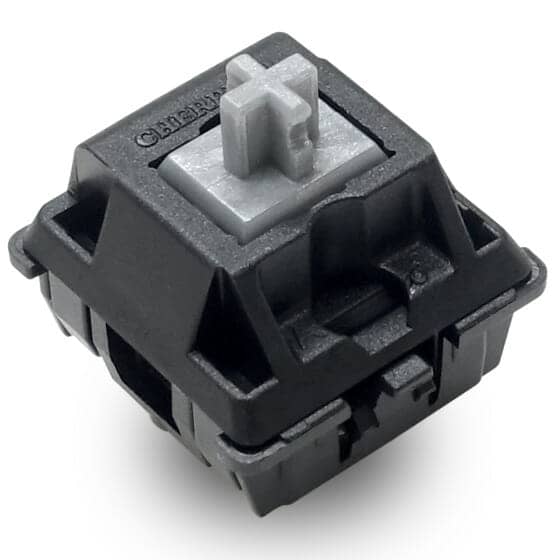

CMX MSS
Image reference: Diatech, Inc.
Cherry MX Speed Silver

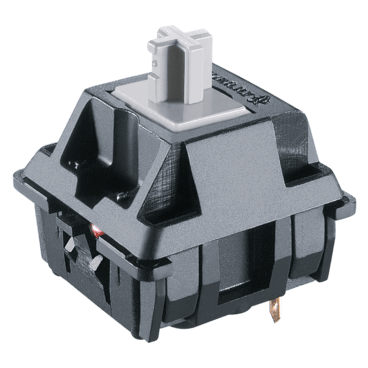

cc248d18a209e5a07b10647a46a8beb0
Image reference: cherryMX.de
Cherry MX Gray
4653139476d24d77b520202a86b86705
Image reference: cherryMX.de

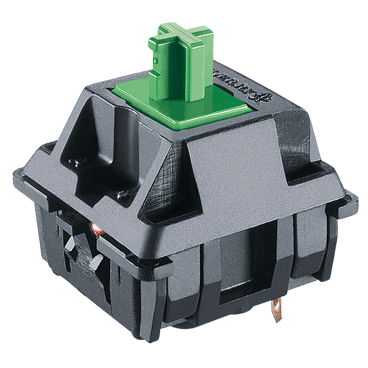

Cherry MX Green
18ffb91f3362cc18a694a0599d328eb3
Image reference: cherryMX.de
Cherry MX Clear
