Lofree Block

  • Copied the URL !
このキーボードの概要
Brand
Layout
Size
Connection ,
Hot-Swap

Comment

  • Less is More, Less is Better” is the design concept.
  • Despite its classic appearance, it features an LED display and a gasket-mounted structure for comfortable keystrokes.

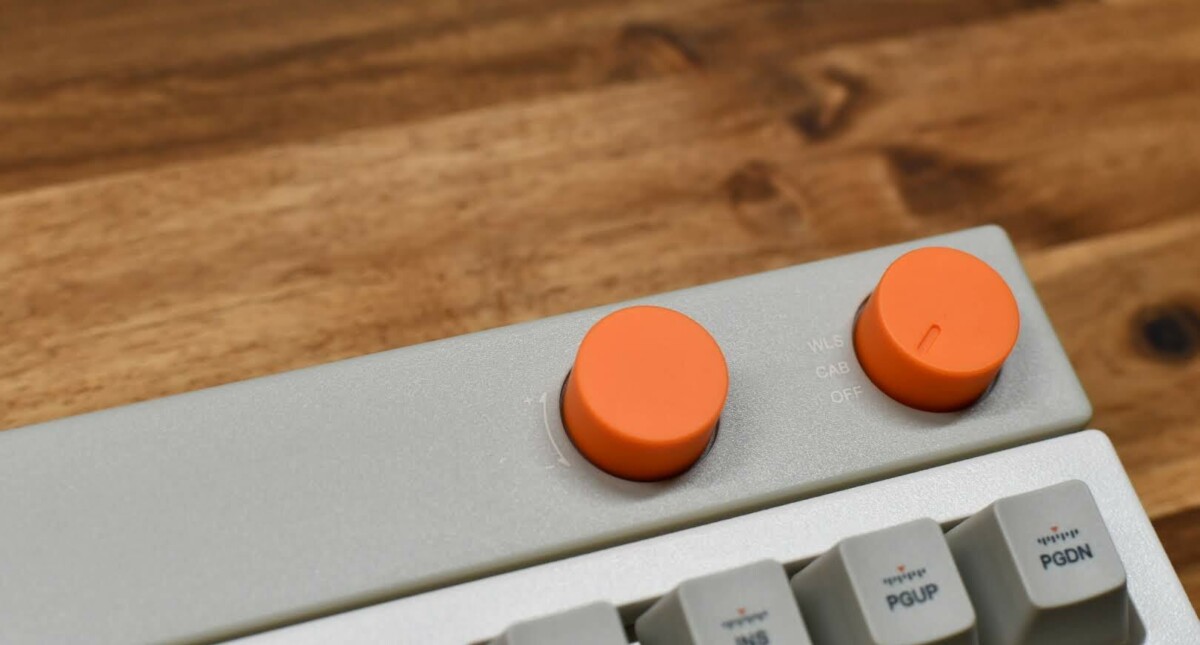

  • The Hermes orange-colored knob is a volume control and a three-contact power switch/wired/wireless switching mode knob.

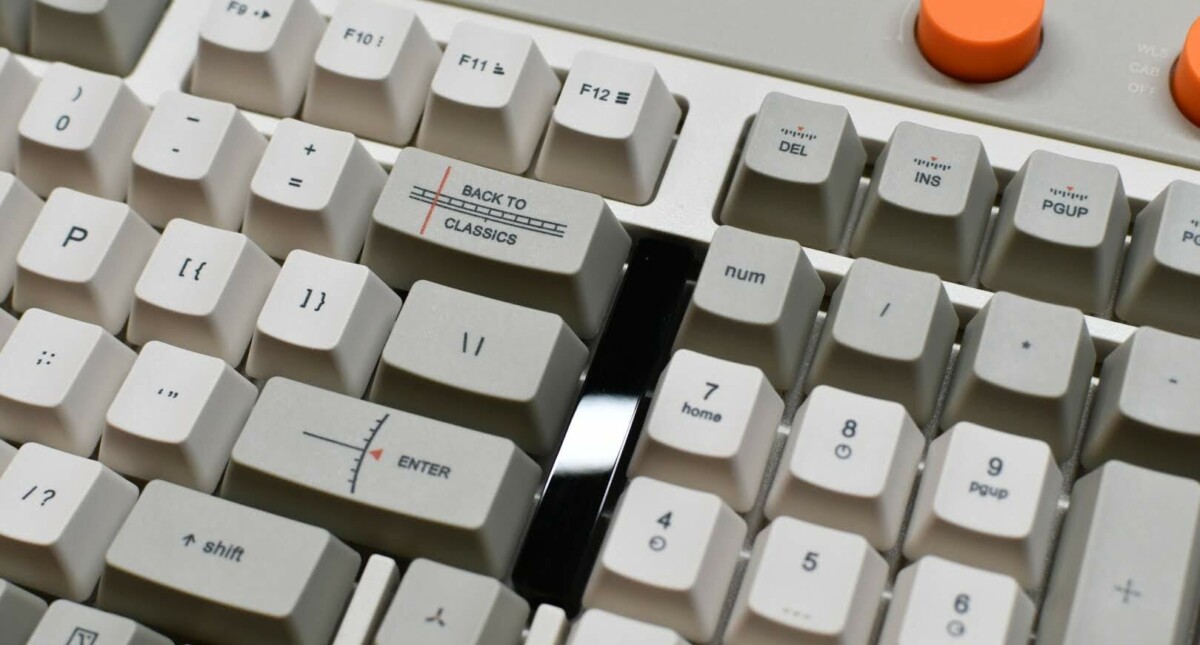

  • LED indicators show battery level, CAPSLOCK status, and where in the BT ch is being used
  • 14 types of backlight effects
  • Keyswitches are equipped with TTC Full-POM switches
  • Hot-swappable
  • QMK/VIA not supported
  • Supports three connection modes: BT5.0/2.4GHz / wired connection

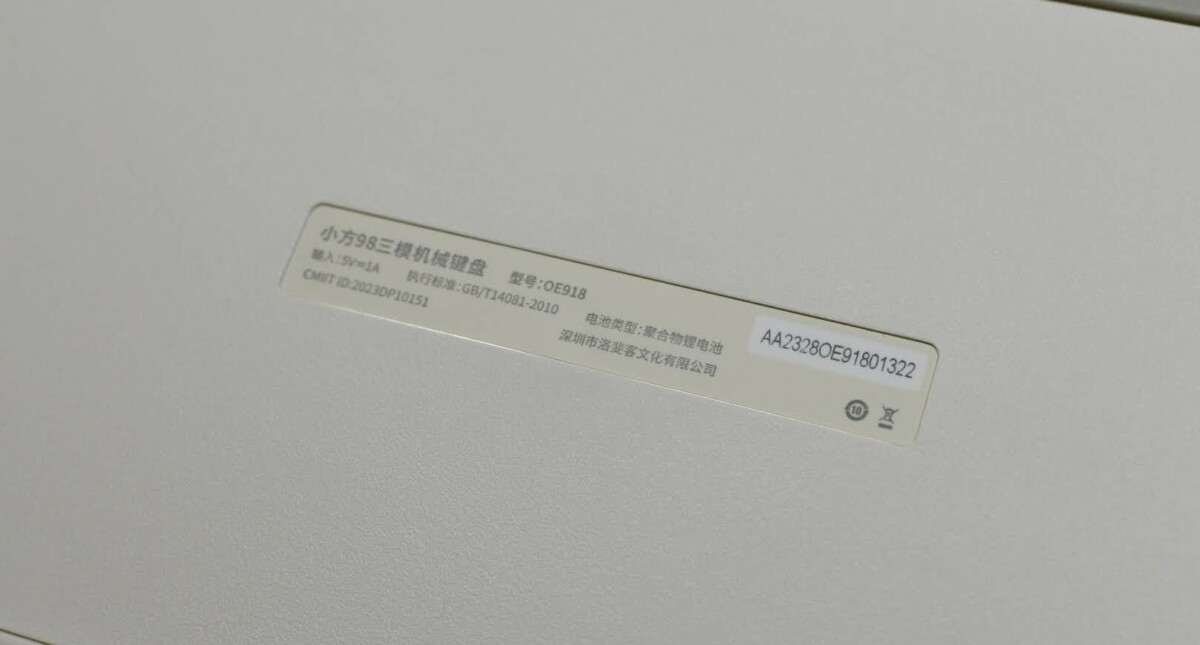

  • Technical approval obtained on January 29, 2024

This site has partnered with Lofree, and we encourage you to use the coupon code below to receive a 10% discount on the price of the product.

Coupon Code: ryo10

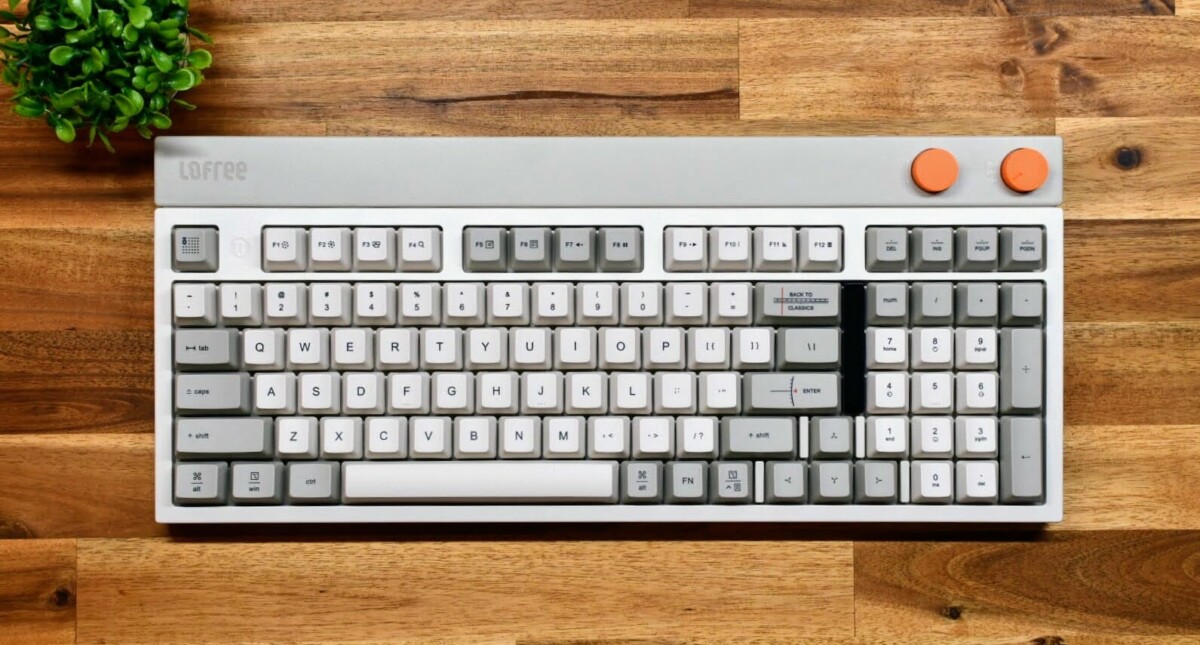

Structure of lofree block

このキーボードのキー配列・サイズは【】【】です。


似ているキーボードを探す▷▷


キーボードサイズについて知りたい▷▷

仕様詳細

GENERAL

  • Switch Type: BLOCK Switch, Full POM by TTC
  • Structure: Gasket

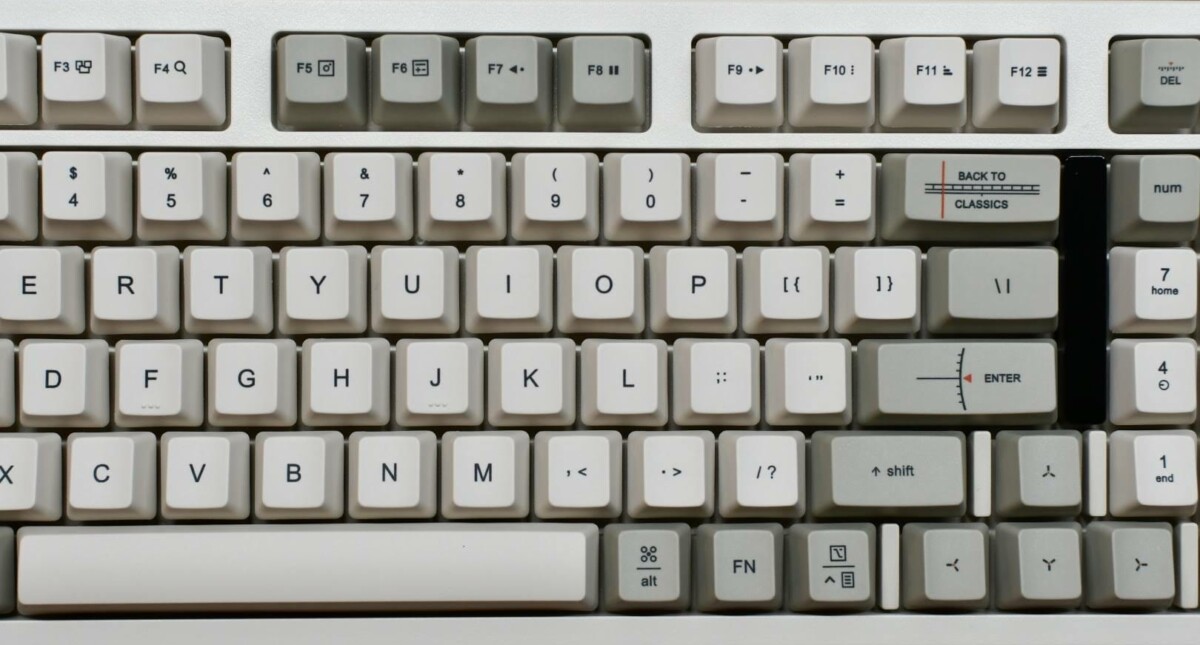

  • Number of Keys: 98
  • Number of Multifunction Keys: 13
  • Knob: Volume & Connection
  • Hot-swappable Support: Yes
  • N-key Rollover Support: Yes
  • Backlight: White-LED
  • Backlight Modes: 14
  • Compatible System: macOS/Windows/Android/iOS

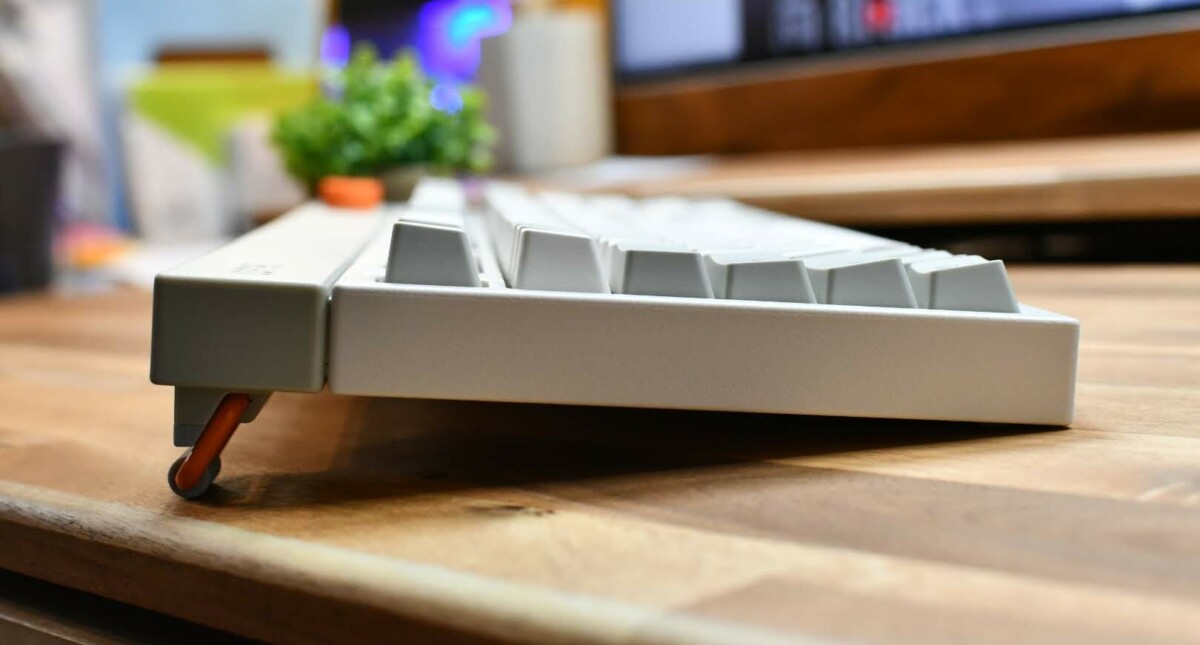

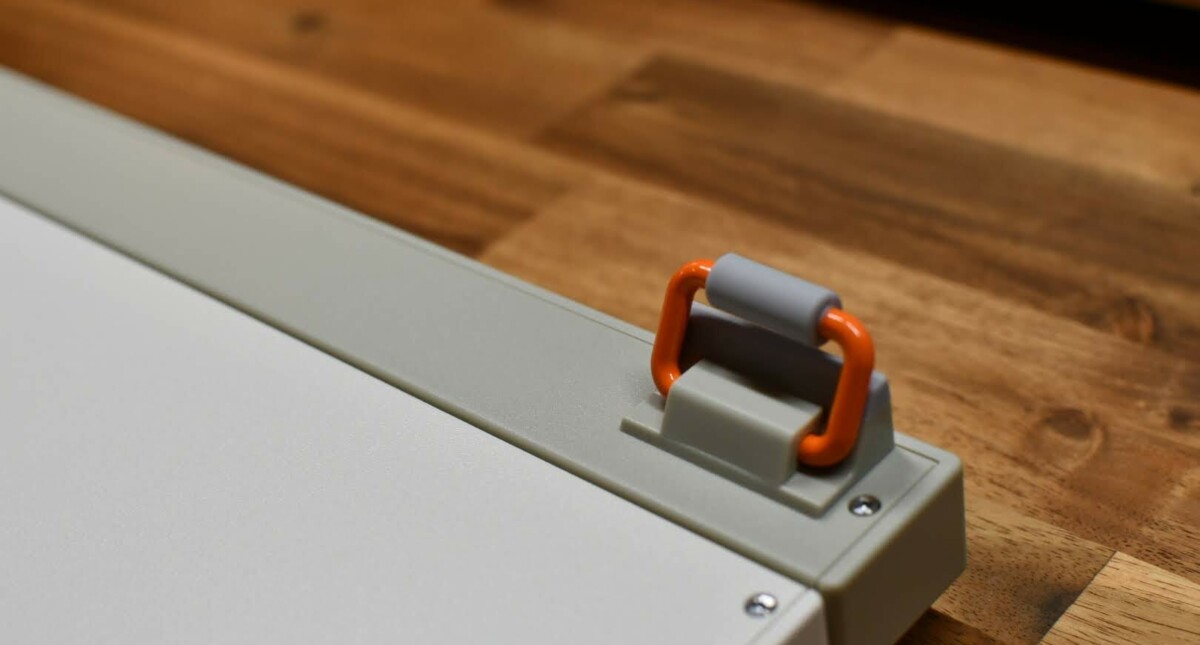

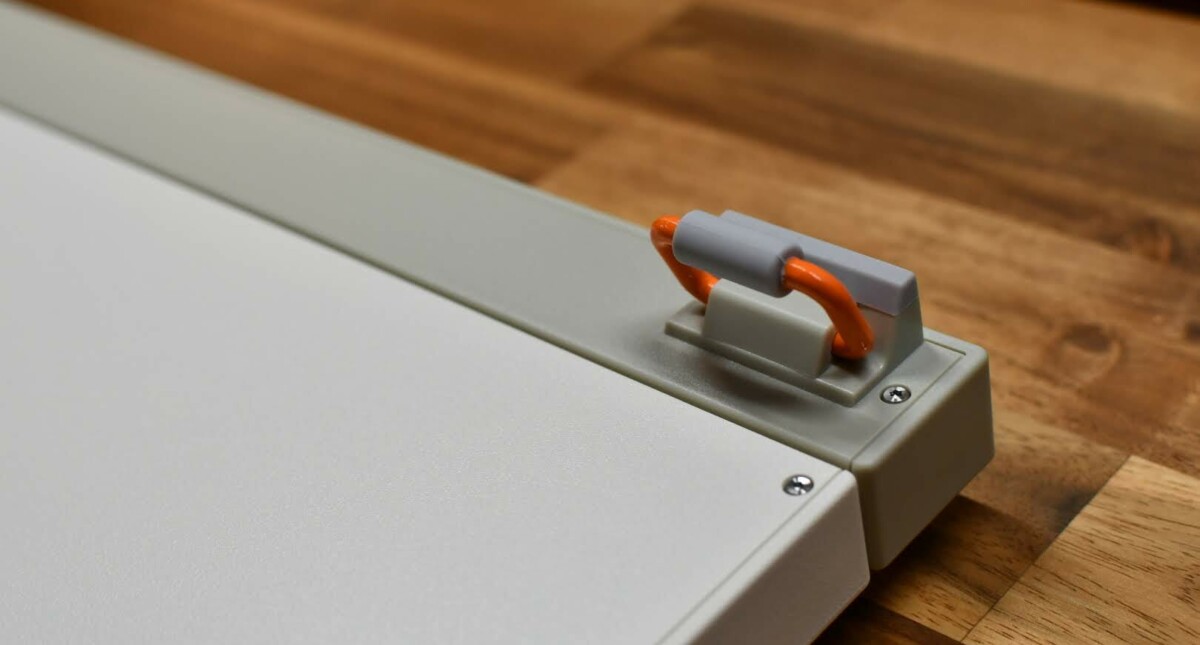

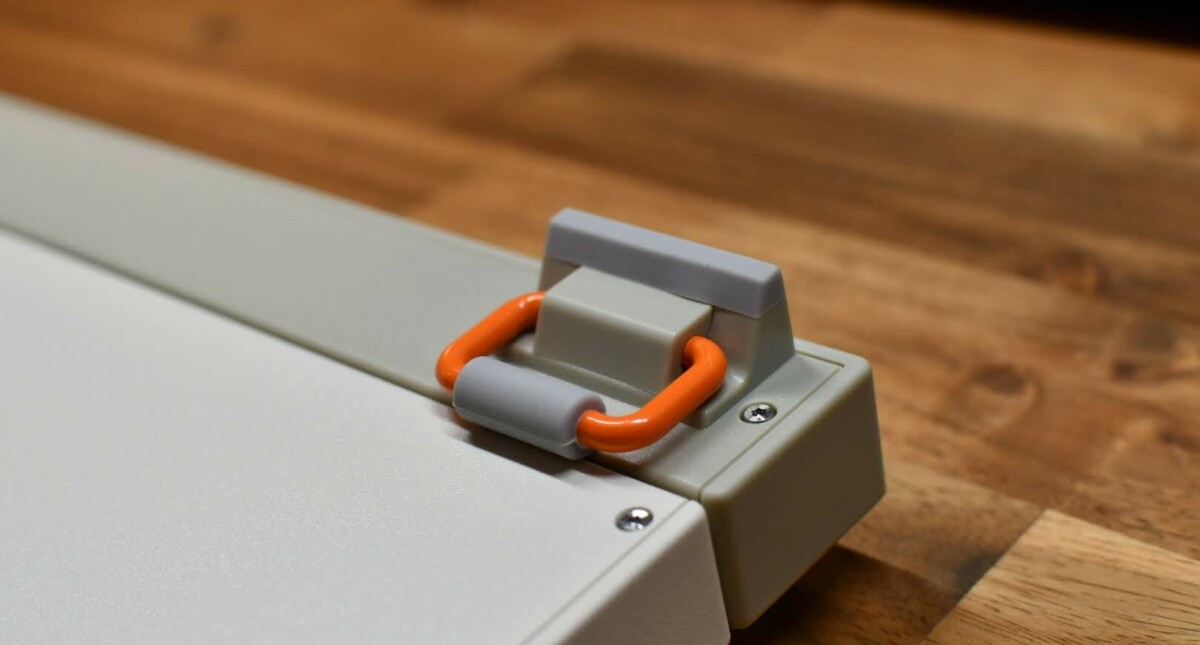

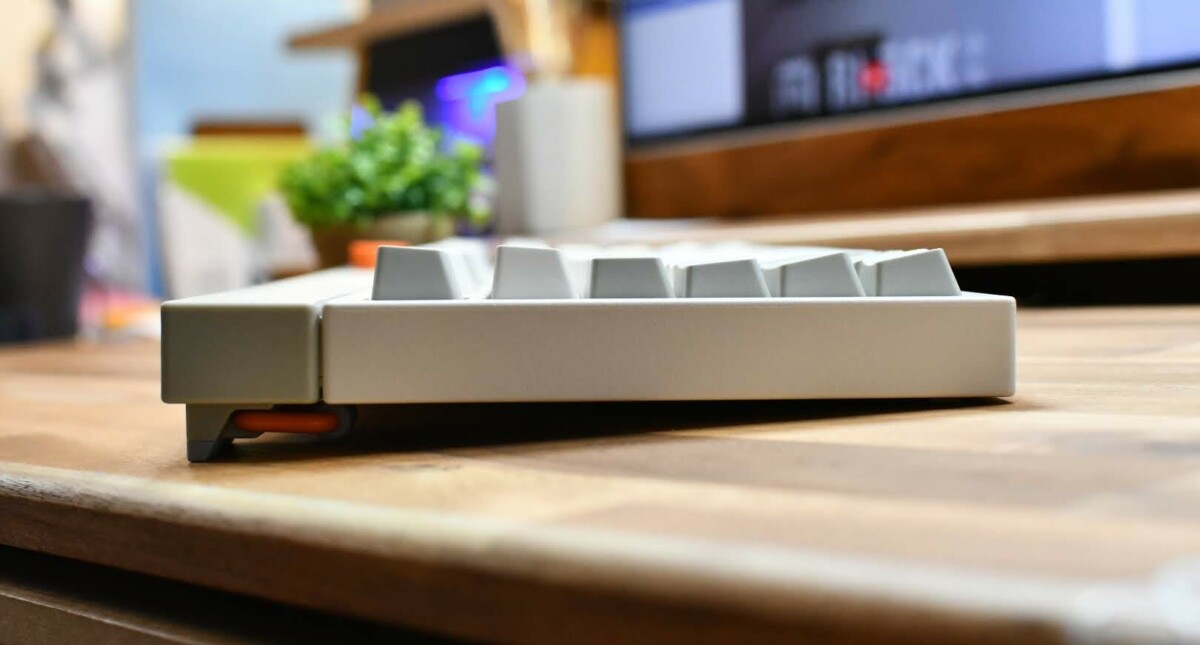

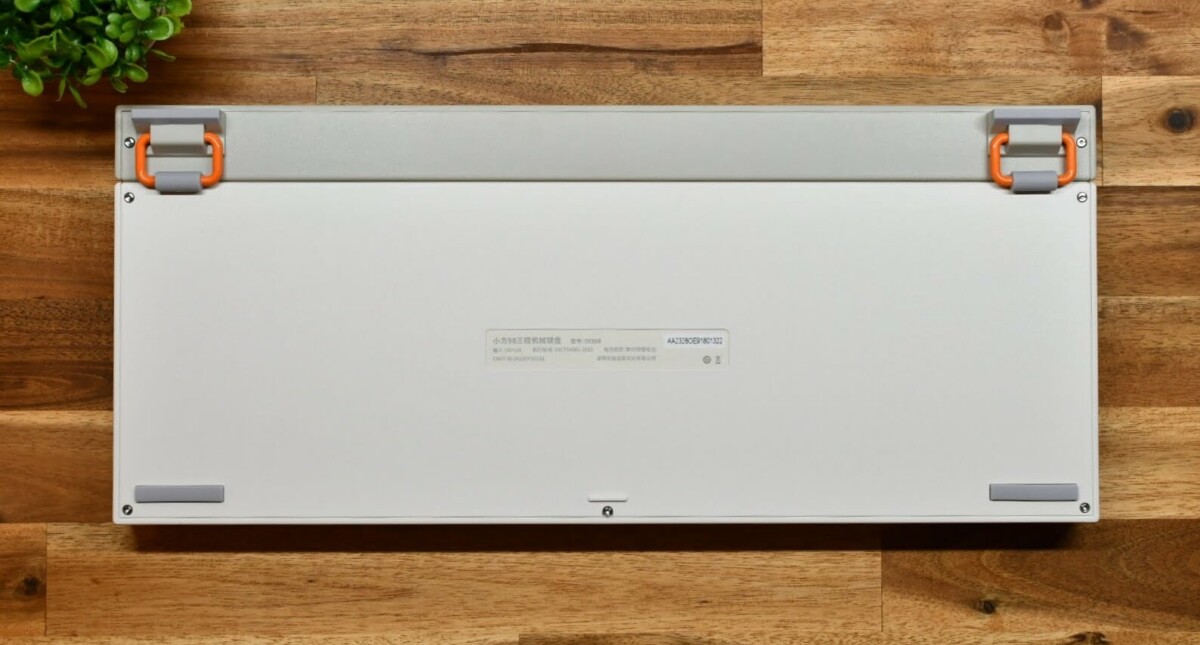

  • Angle: 4º/ 8º

Connection

  • Mode: Bluetooth 5.0, 2.4Ghz or Wired(Type C)

Material

  • Case: ABS
  • Keycap: Dye-Sub PBT

Battery

  • Battery Life: 2000mAh
  • Charging Time: 2.5 hours
  • Working Time (all lights on): 10 hours (lab test result)
  • Working Time (all lights off): Up to 80 hours (lab test result)

Size and Weight

  • 384 x 126.5 x 19.5 mm
  • 1090g

Information reference: https: //www.lofree.co/products/lofree-block-wireless-mechanical-keyboard-1

タップできる目次

Selectable axis types

The TTC Block switch is the standard feature, and other switches cannot be selected.

TTC Block Switch

  • Total travel: 3.8 mm
  • Pre-travel: 1.6 mm
  • Actuation force: 43gf
  • Bottom force: 50gf
  • Spring length: 22mm
  • Stem/top housing/bottom house: POM
block switches
