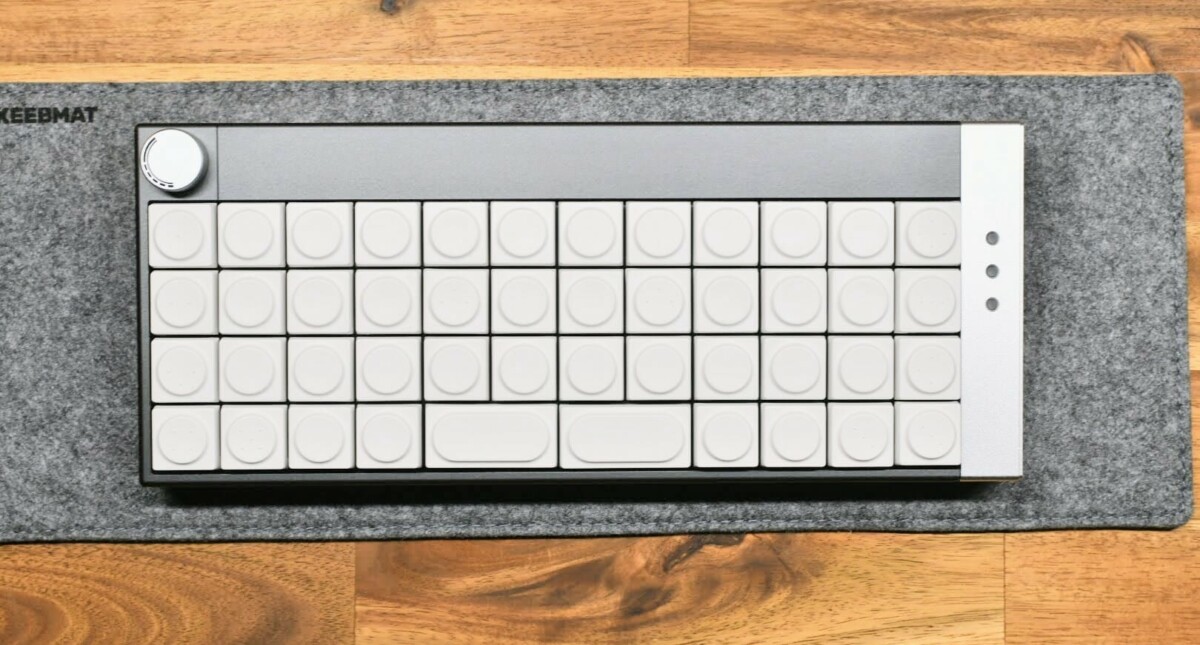

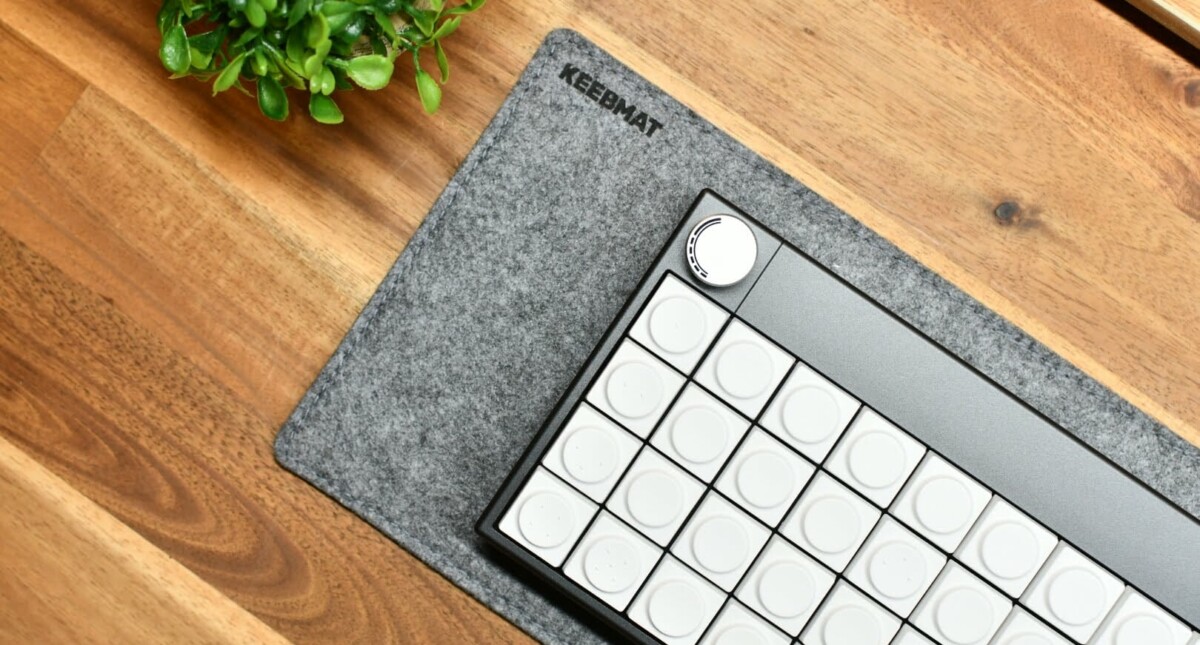

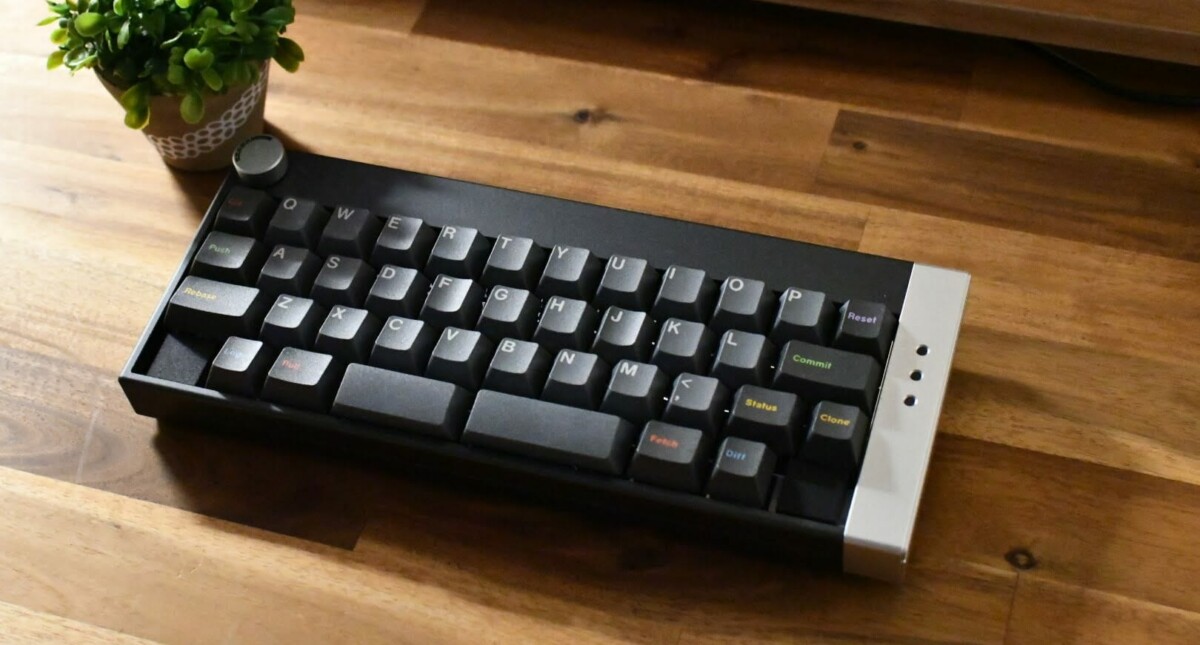

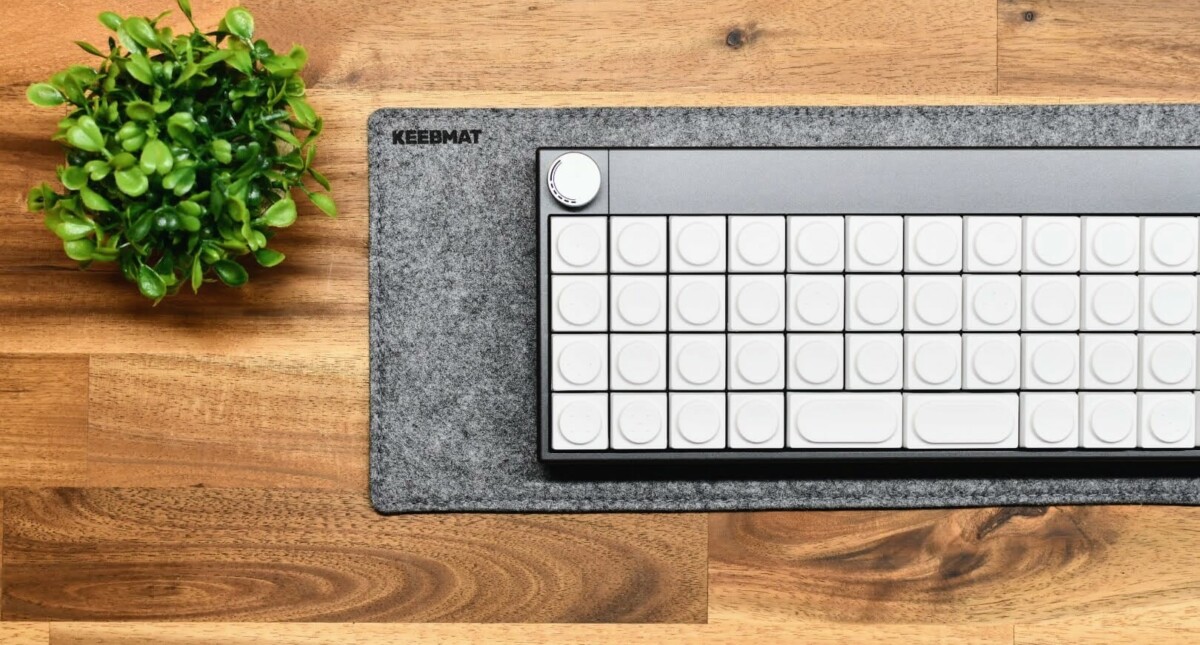

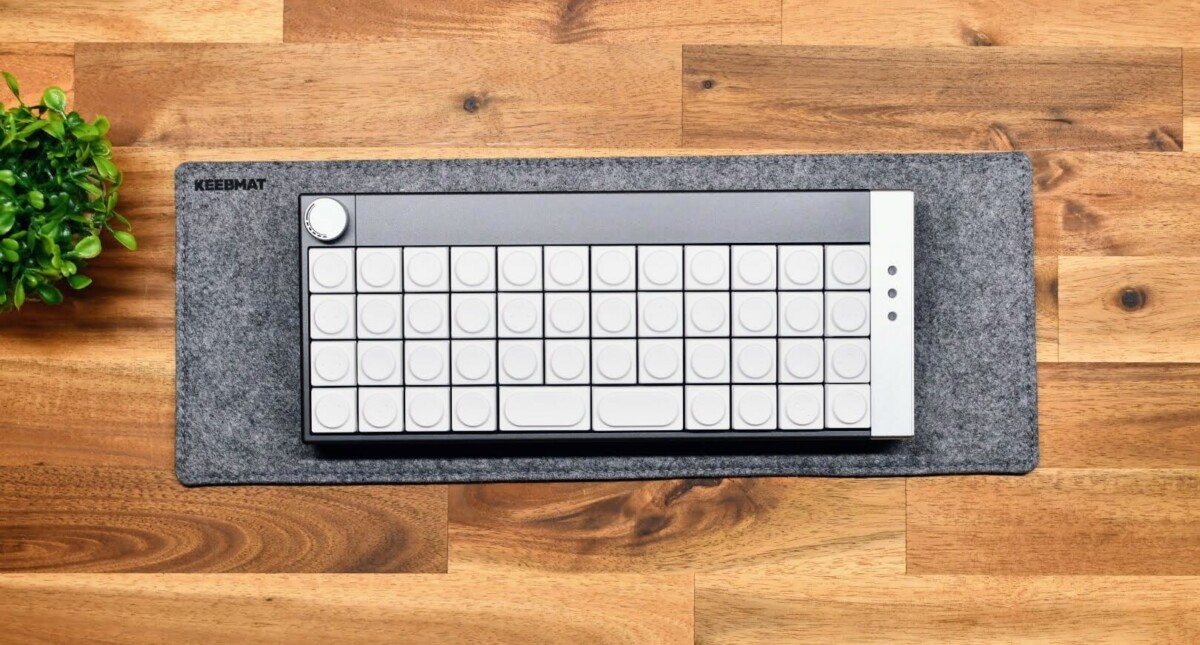

TPS40

当ページのリンクには広告が含まれています。
このキーボードの概要
Brand
Price
JIS/US
Keyboard Size
Key Profile
Key Sounds
How to Connect ,
Battery ,
Hotswap
Normal or Split

Comment

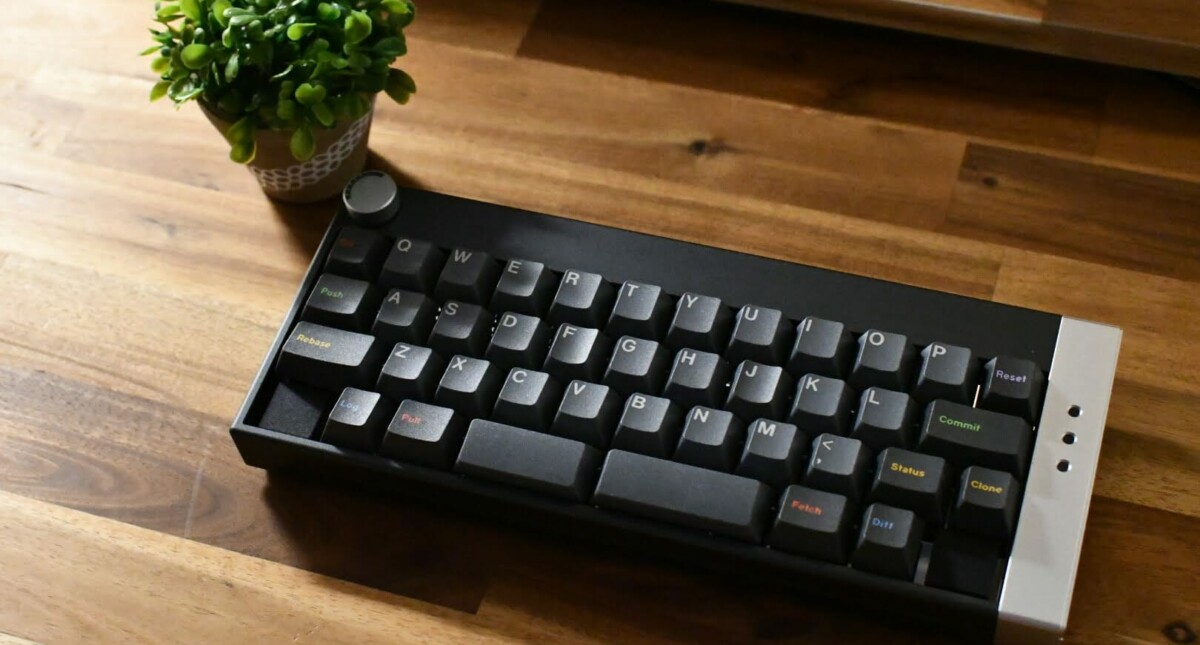

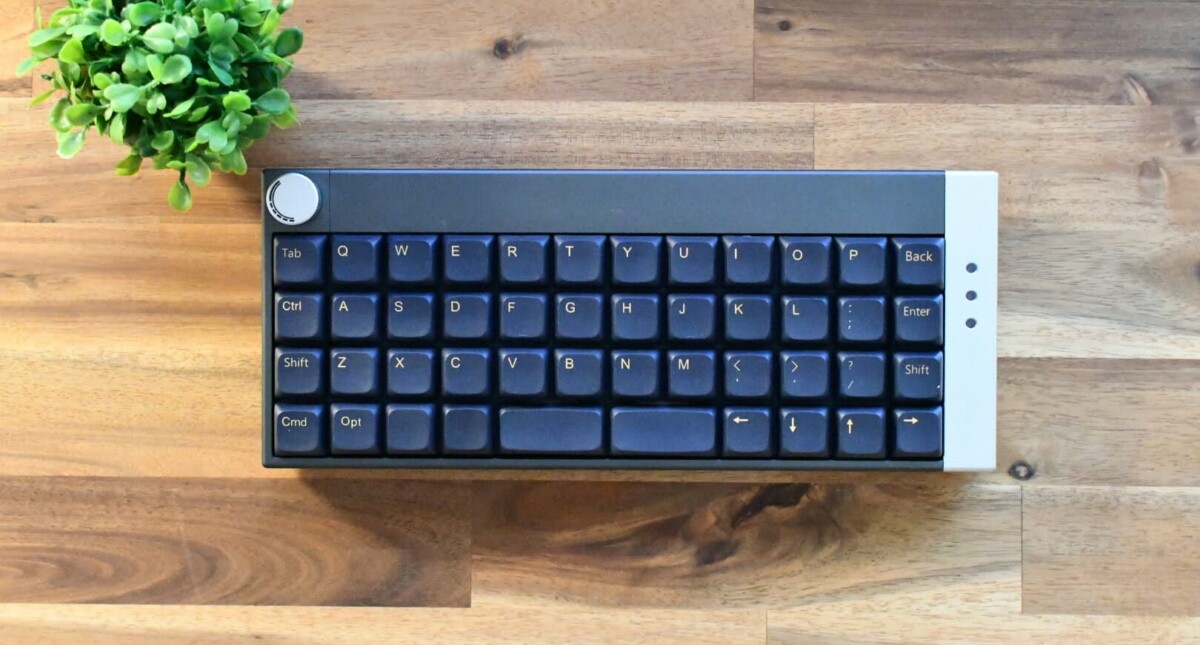

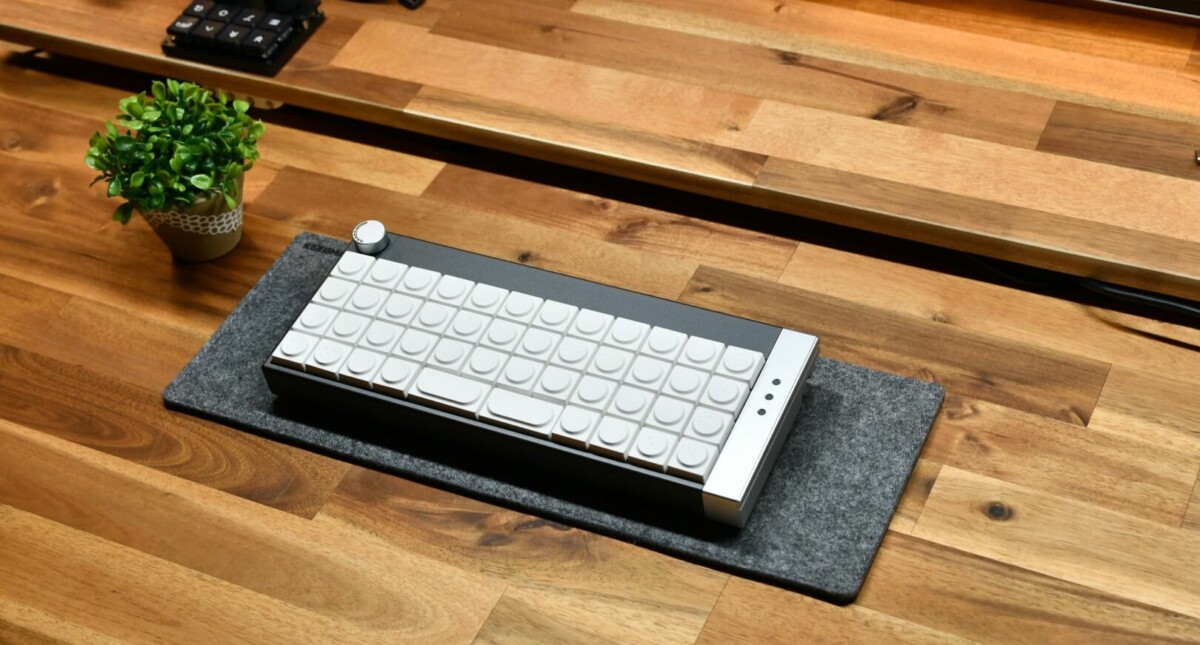

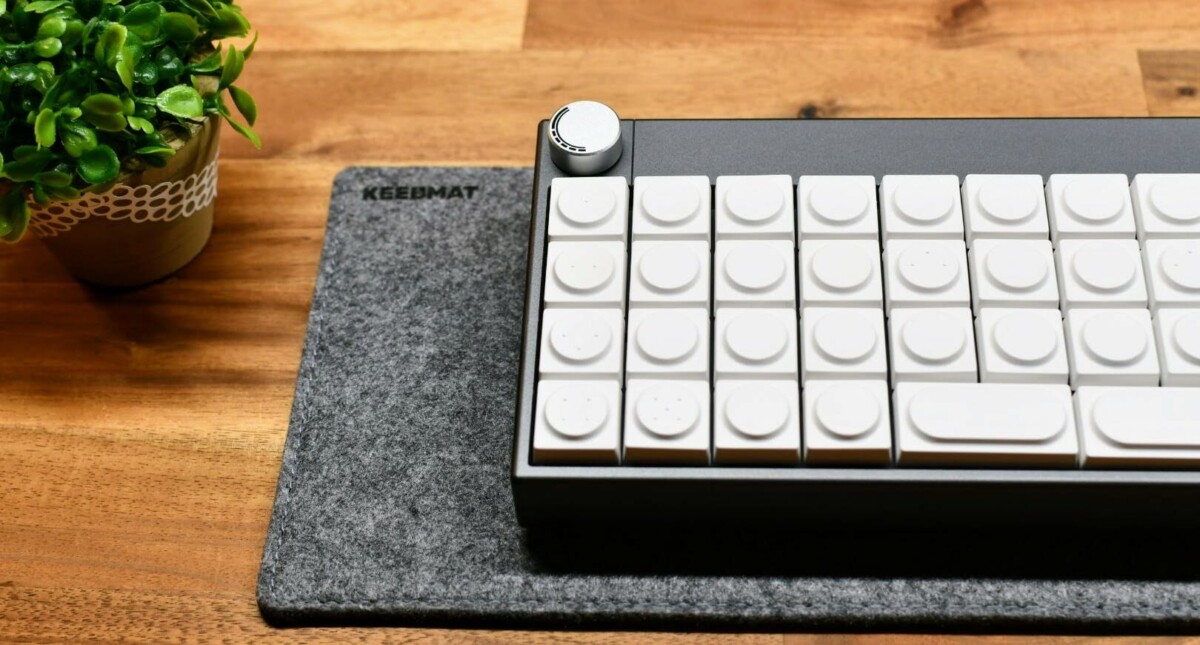

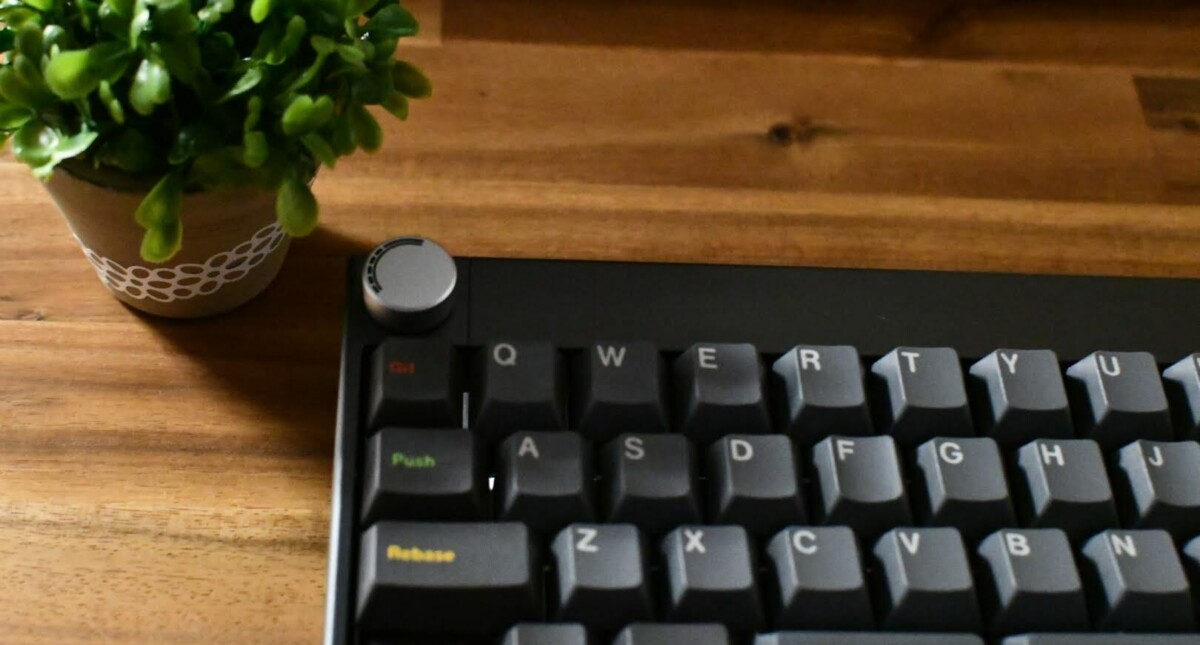

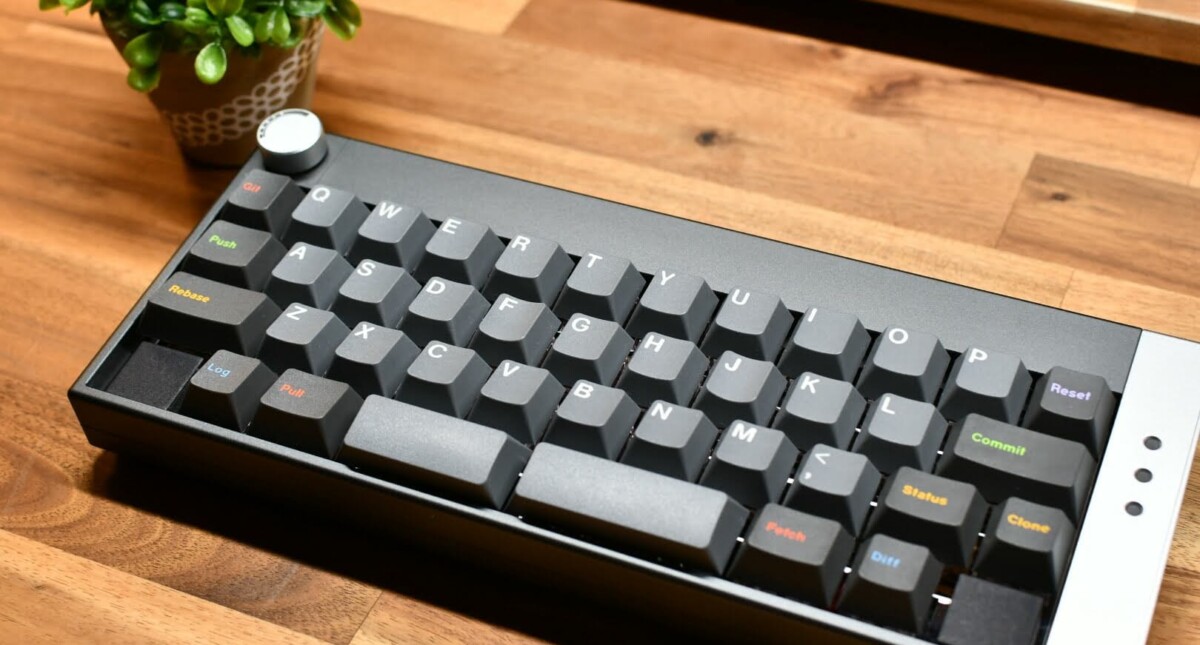

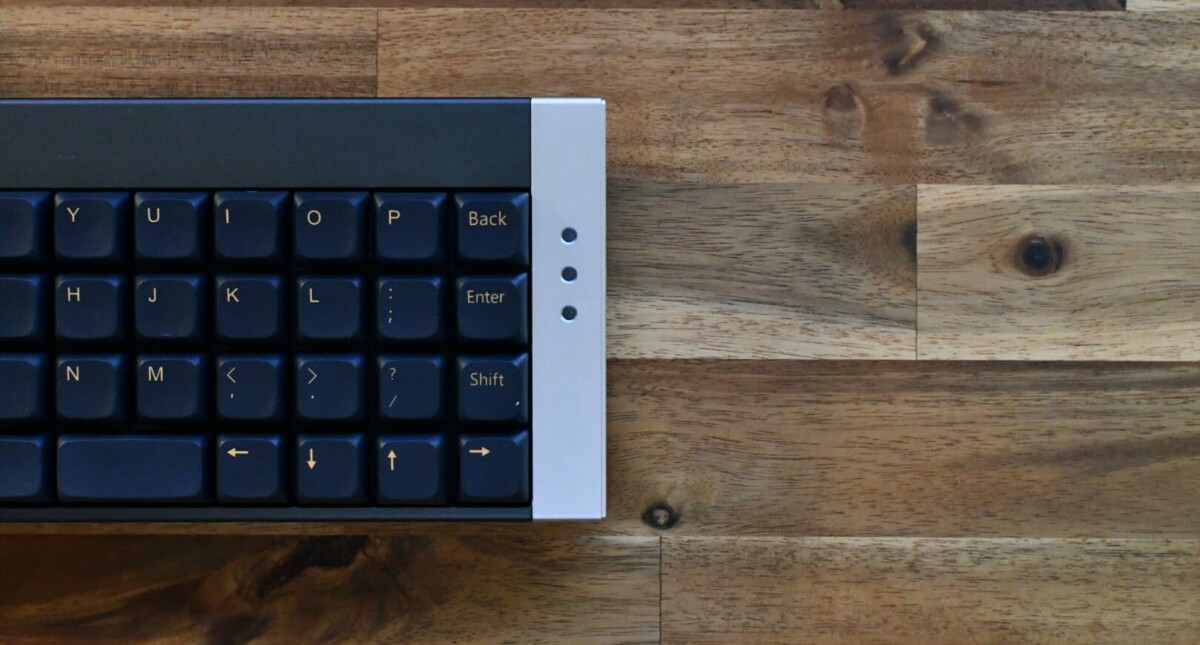

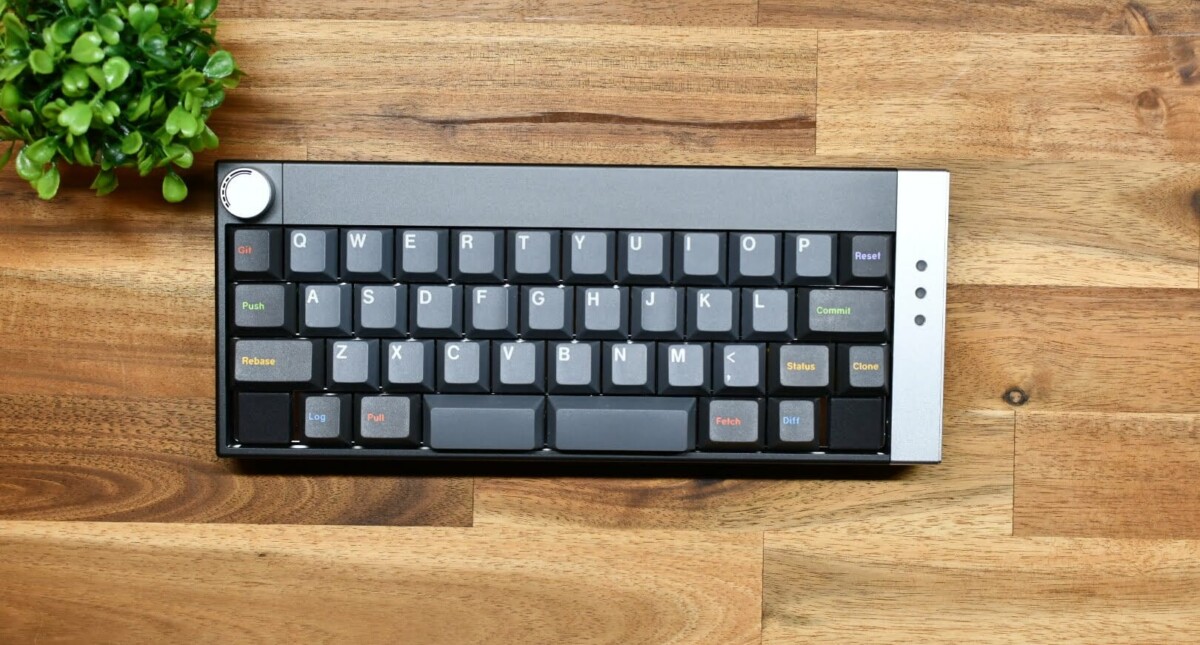

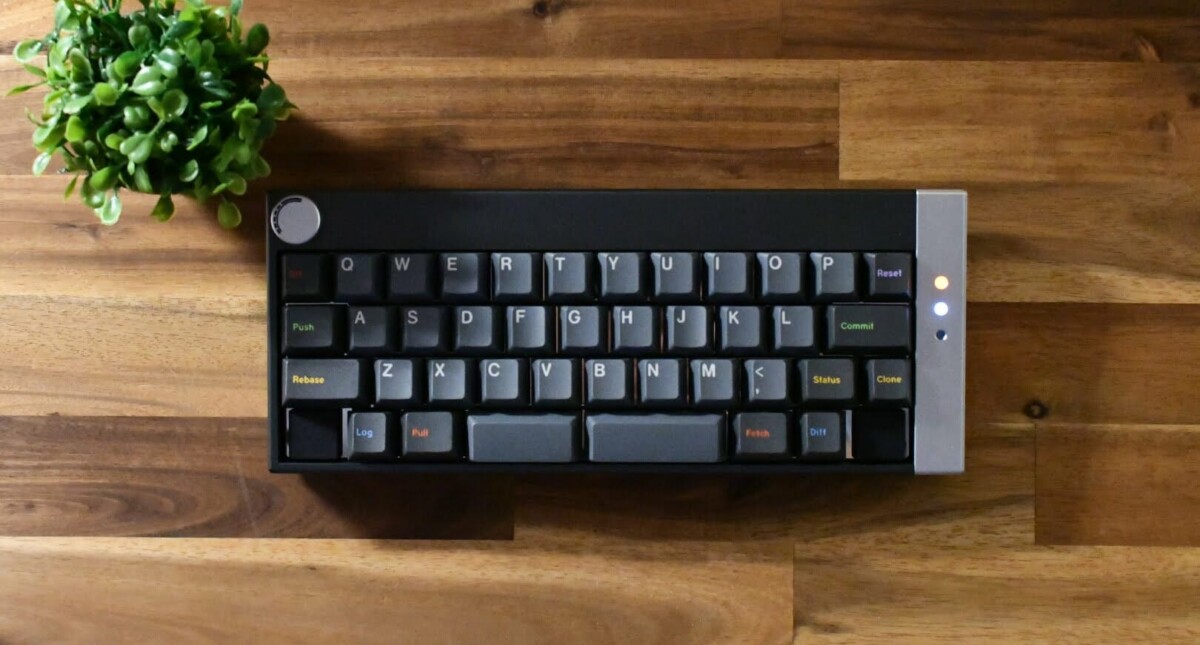

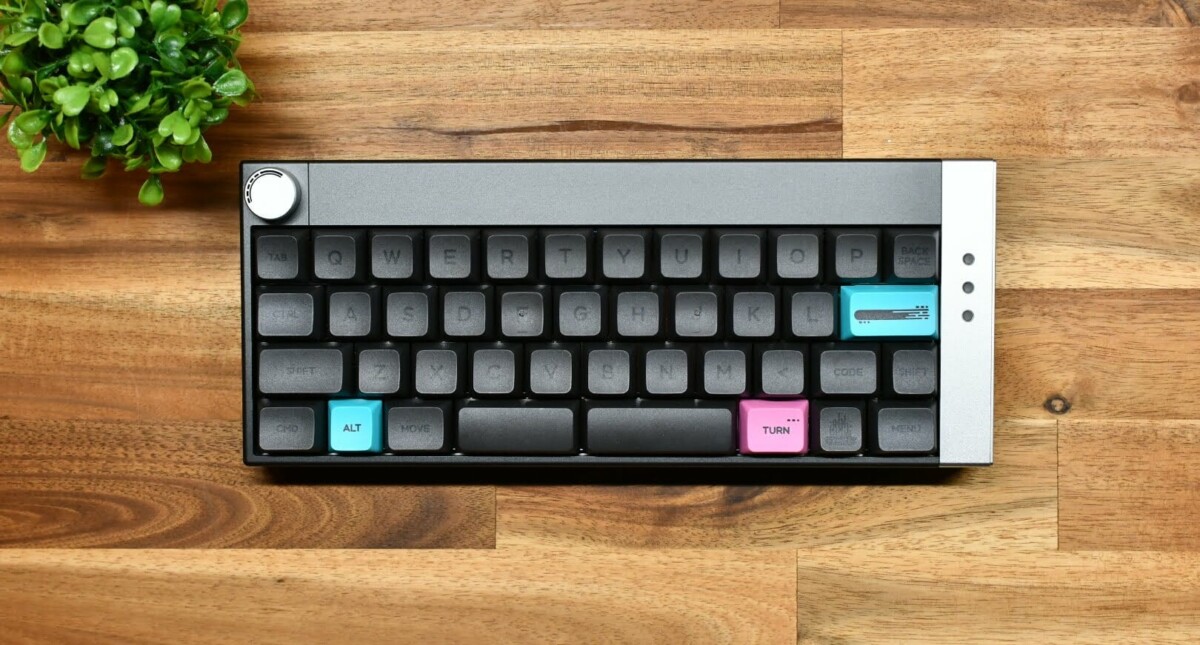

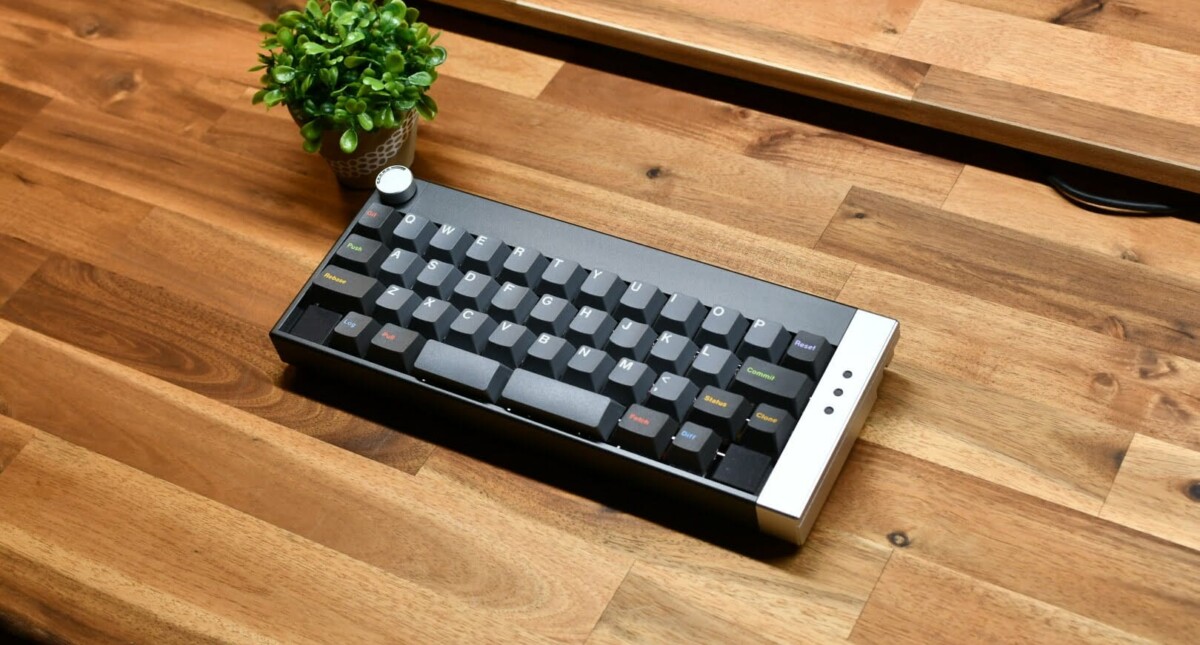

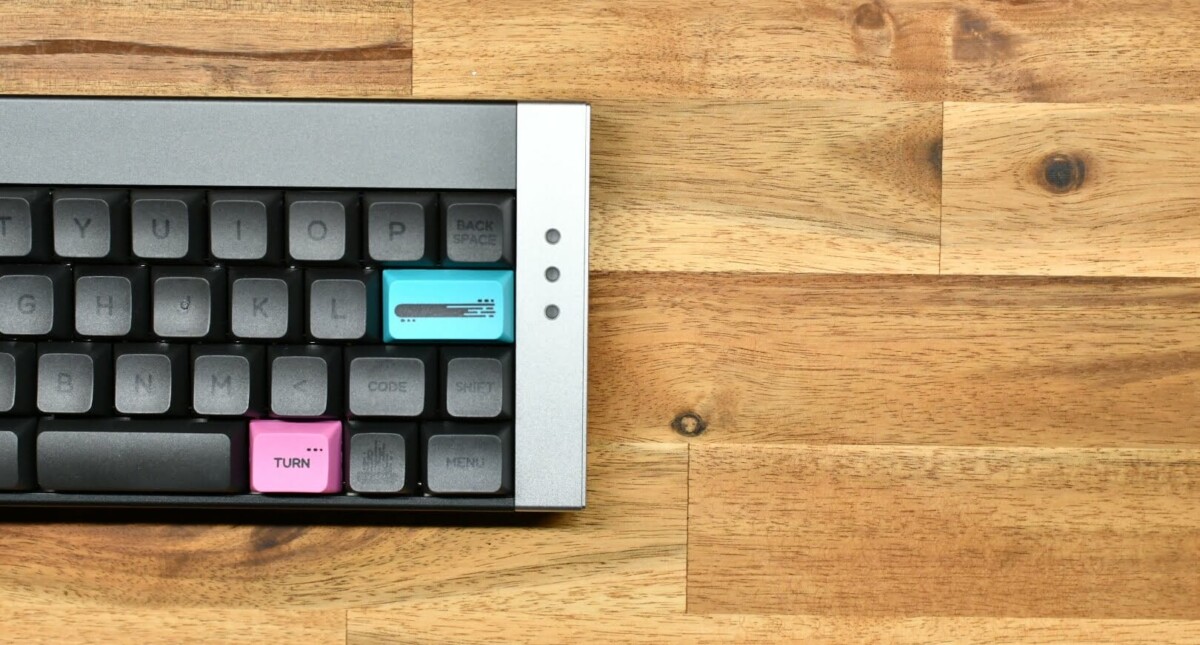

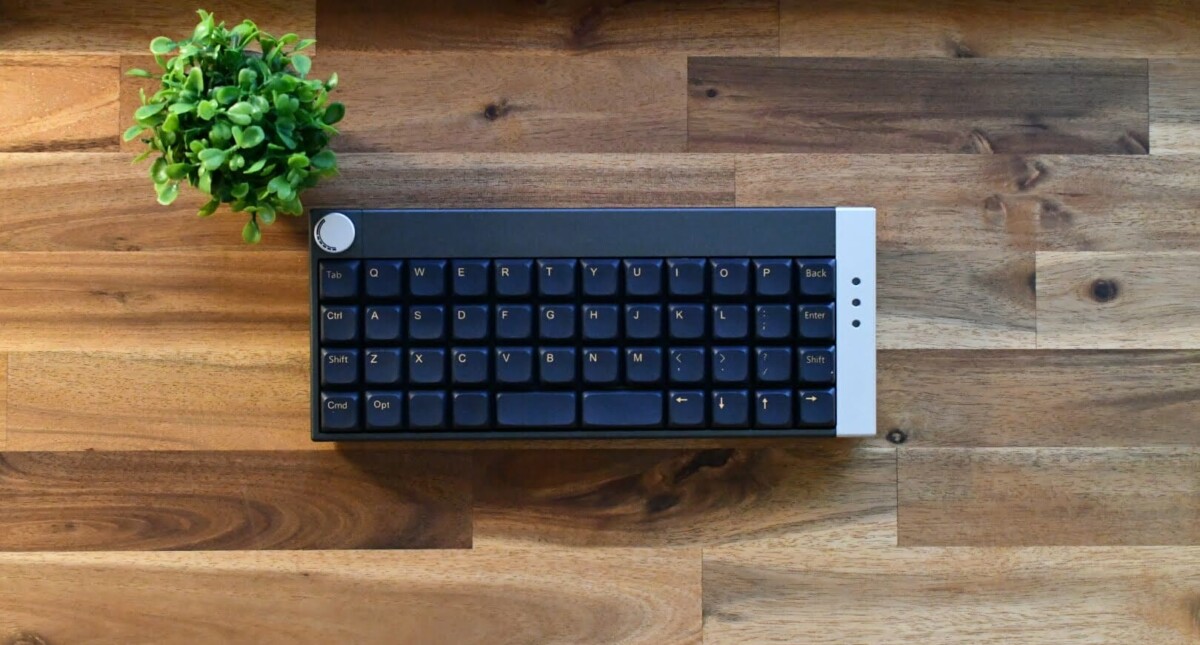

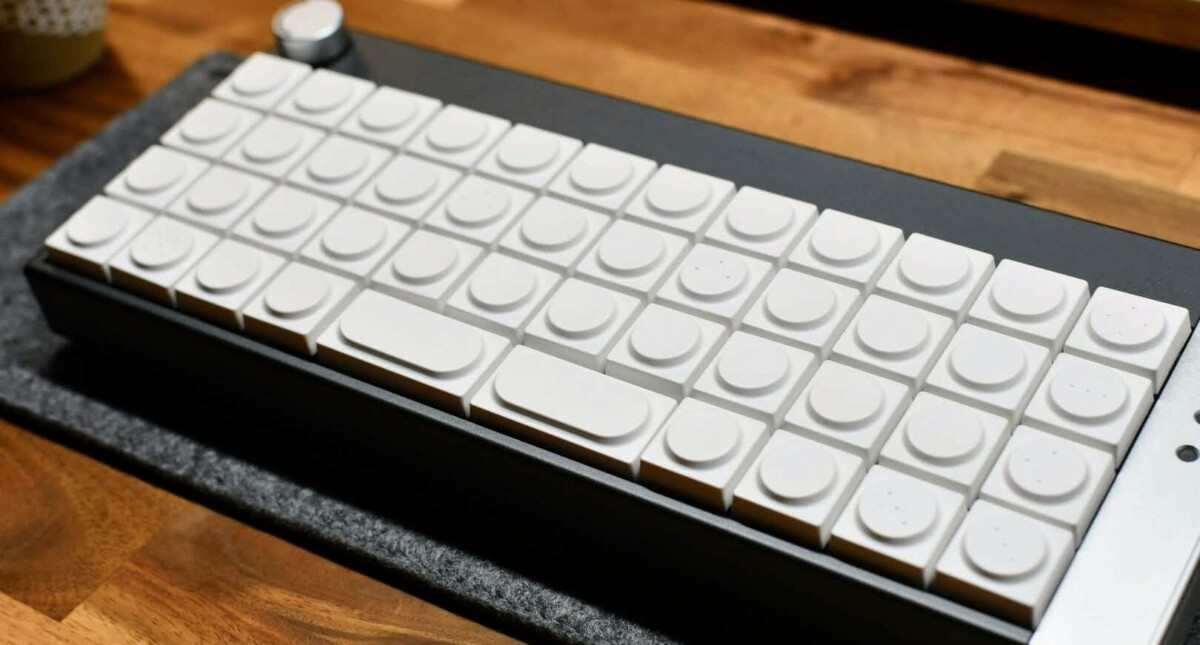

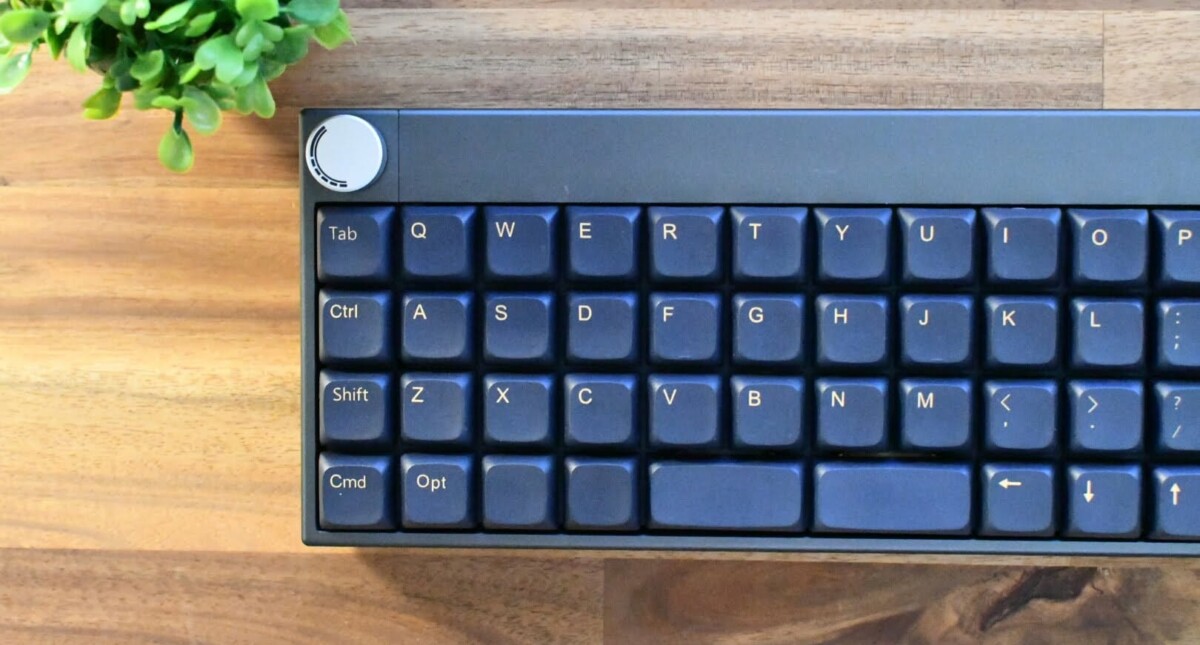

  • 40% layout keyboard by DEADLINE STUDIO
  • In Japan, Yusha Kobo will be the vendor (until May 21, 2023).
  • Daisy and Planck layouts are selectable
  • Many reports of problems such as no build guide, no distribution of via.json on the official website, no wireless connection or high latency, etc.
  • Here is the via.json that is being pulled on github
  • No manual is provided.
  • The quality of the product itself is high, but the impression is that the rest of the product is nowhere near as good.
  • Click here for the official website

このキーボードのキー配列・サイズは【】【 】です。


似ているキーボードを探す▷▷


キーボードサイズについて知りたい▷▷

Buy here: https://deadline.space/products/tps40-keyboard

仕様詳細

Selectable case colors

  • WHITE/SILVER
  • GREY/SILVER
  • SILVER/SILVER
  • BLACK/BLACK
  • BLUE/SILVER
  • CREAM/SILVER
  • RED/PVD BRASS SILVER
  • PC/SILVER

Selectable arrays

  • Daisy.
  • Planck.

Kit List

  • Top case x 1
  • Bottom case x 1
  • Right module x 1
  • Right inner box x 2
  • Right button x 1
  • Right light clip x 1
  • PC diffuser x 3
  • Knob x1
  • Titanium stone wash shrapnel x 1 pc.
  • PVD brass plate x 1
  • Knob board x 1
  • Module board x1
  • Hot-swappable PCB x 1
  • 3000mAh battery x 1
  • Poron middle pad x 1
  • Poron bottom pad x 1
  • Ipex switch pad x 1
  • Adhesive for base x several bottles
  • Several copper rods
  • Several screws
  • PCB Liner x 2

Specification Details

  • Housing: Aluminum/Brass/PC
  • Layout: Daisy/Plank
  • Typing angle: 5 degrees
  • Typing height: 20.5mm
  • Board: Hot-swap / Flex-cut / No RGB / 1.2mm / VIA / Bluetooth 5.0 / Knob
  • Mounting: Tray + Spacer
  • Retaining ring: default: titanium stonewash / option: carbon fiber
  • Plate: Default: PVD brass / Option: PC
  • Center pad: PORON
  • Switch pad: IXPE
  • Base pad: PORON

Information reference: https: //deadline.space/products/tps40-keyboard
