- A mechanical keyboard with 80% TKL layout that inherits the following features most highly acclaimed as the “successor to the Rainy75.”
- Body made of CNC aluminum alloy
- Shiny back weights

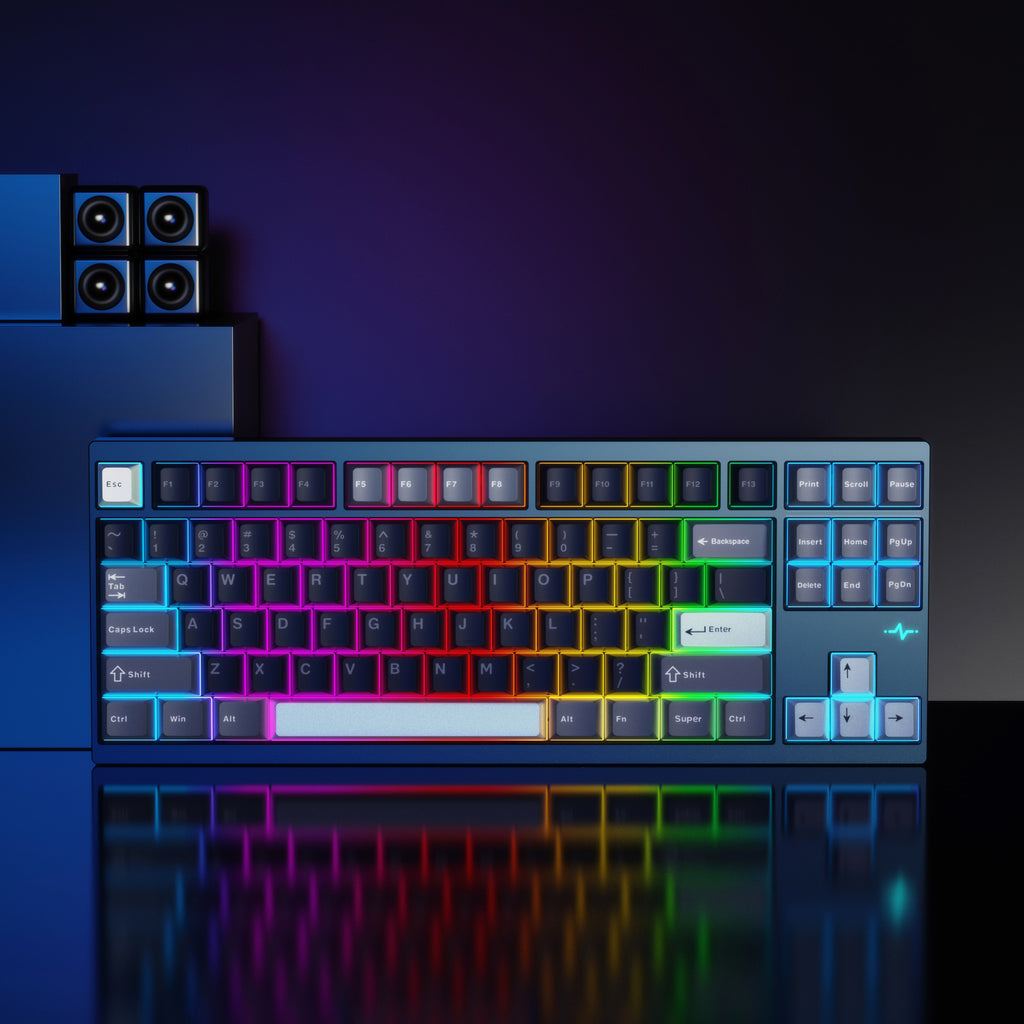

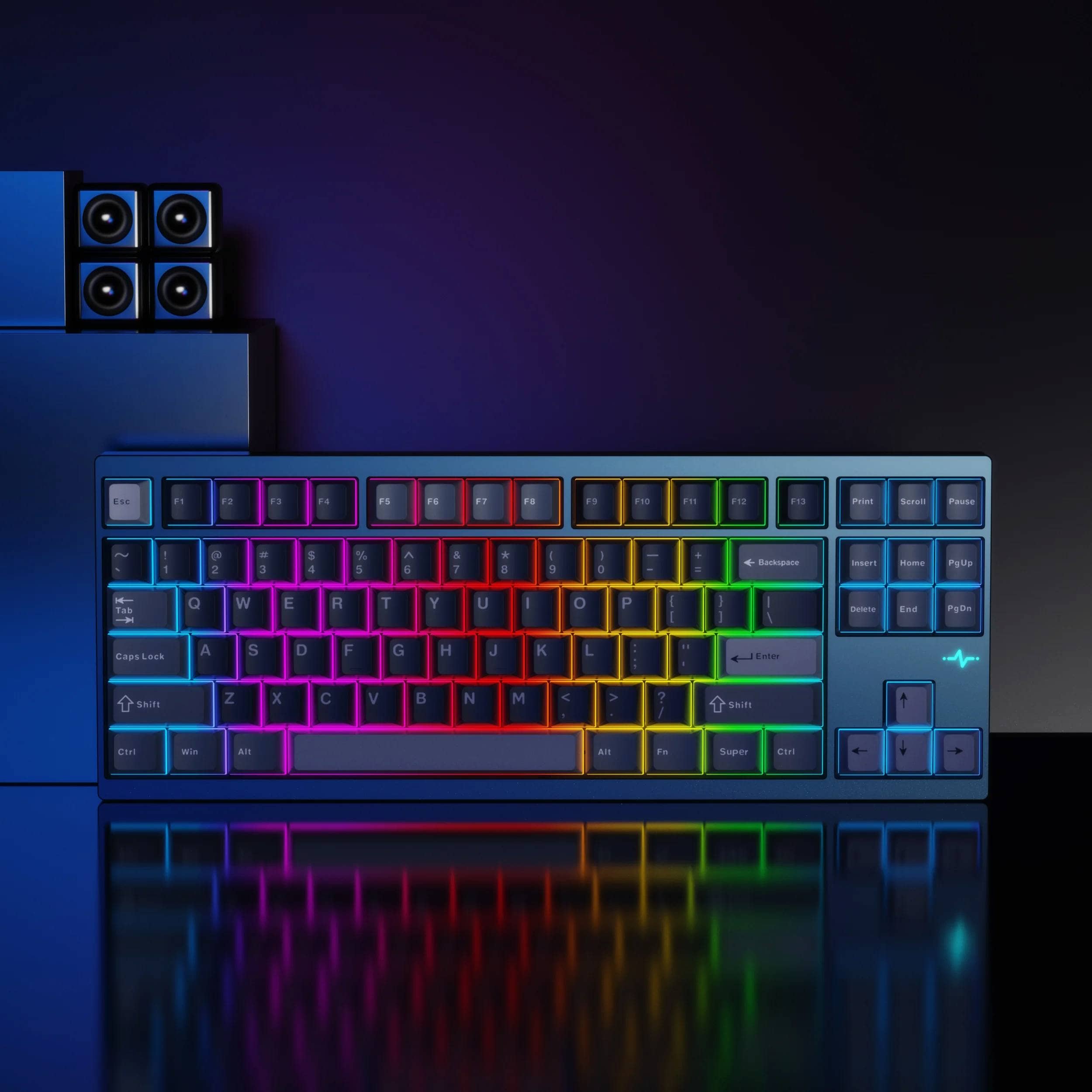

- RGB backlight and various body colors
- Multi-layout support (split space/CapsLock key style selection/ISO layout support)
- A total of 10 coloring options (Black/White/Navy/Silver/WarmSilver/Red/Blue/Pink/Purple/Yellow)

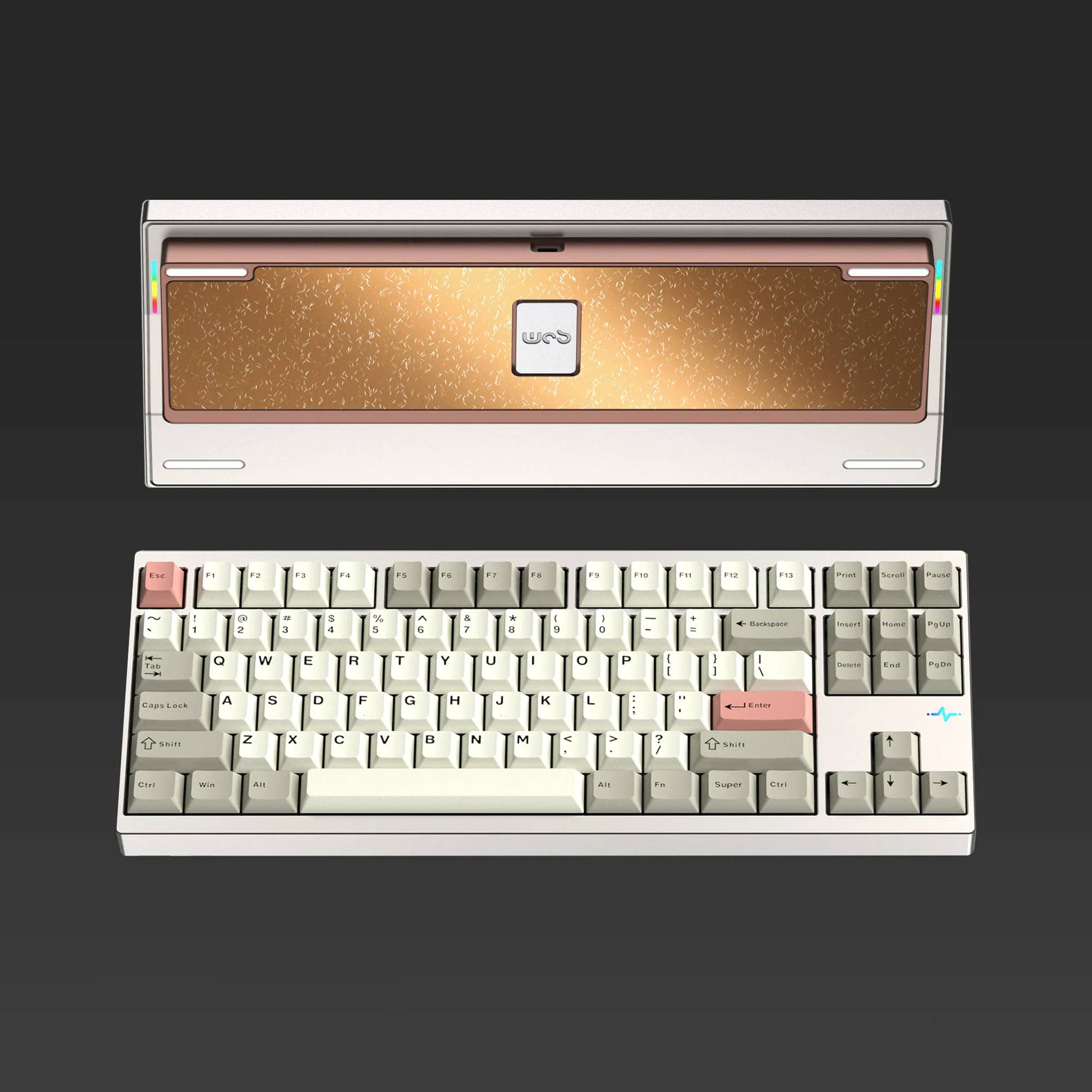

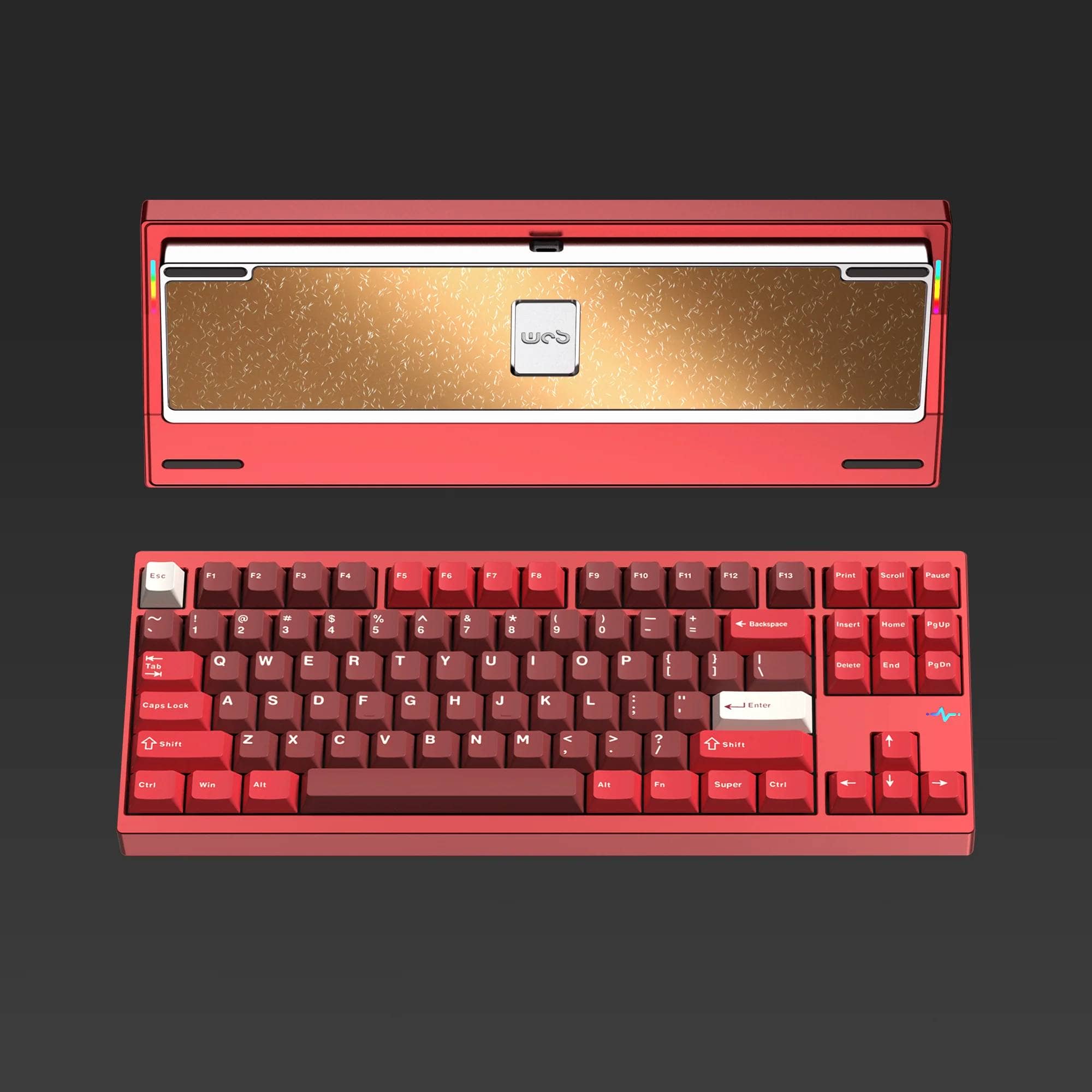

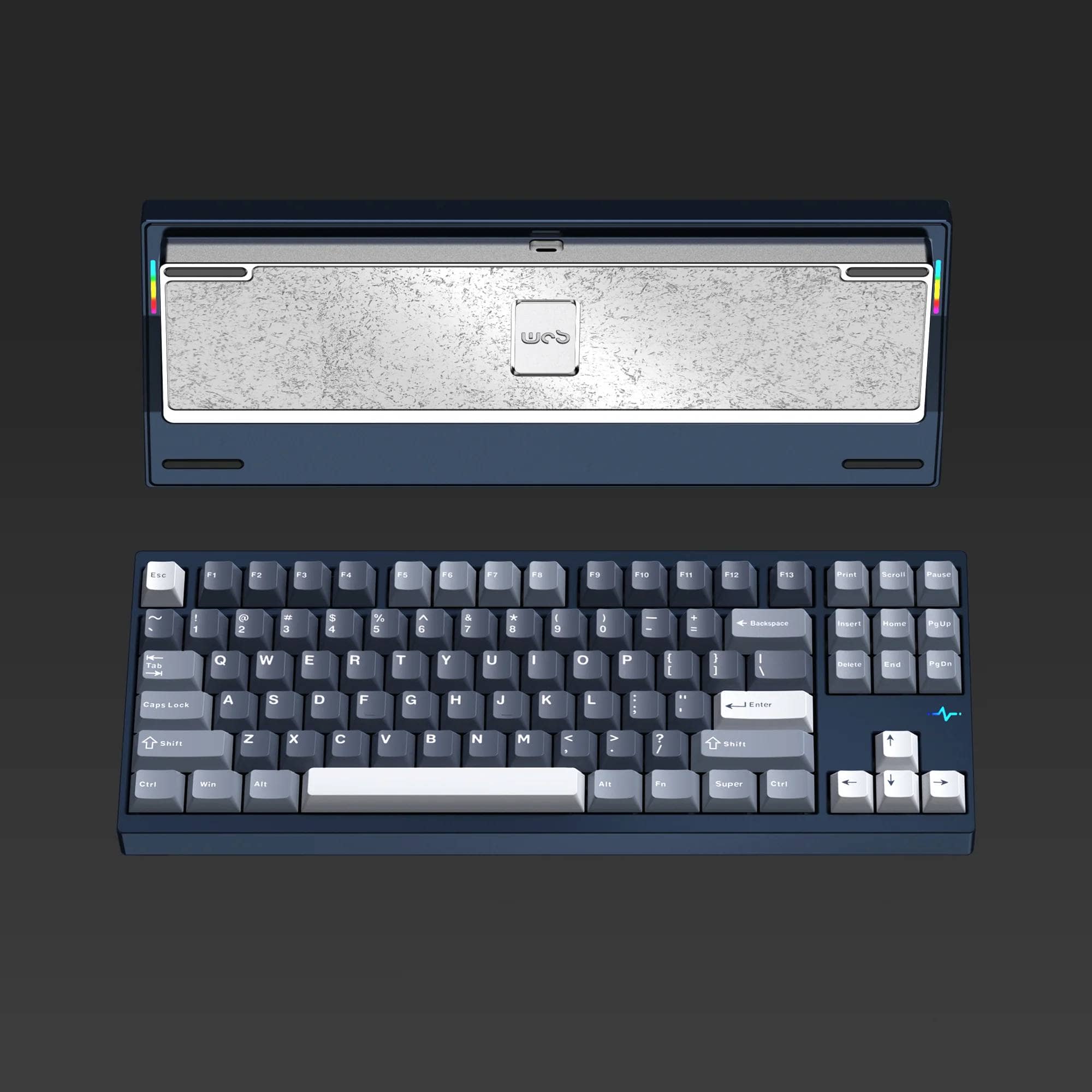

- Three-piece construction, top case, bottom case, and bottom weight case from top to bottom
- Bottom Case and Bottom Weight

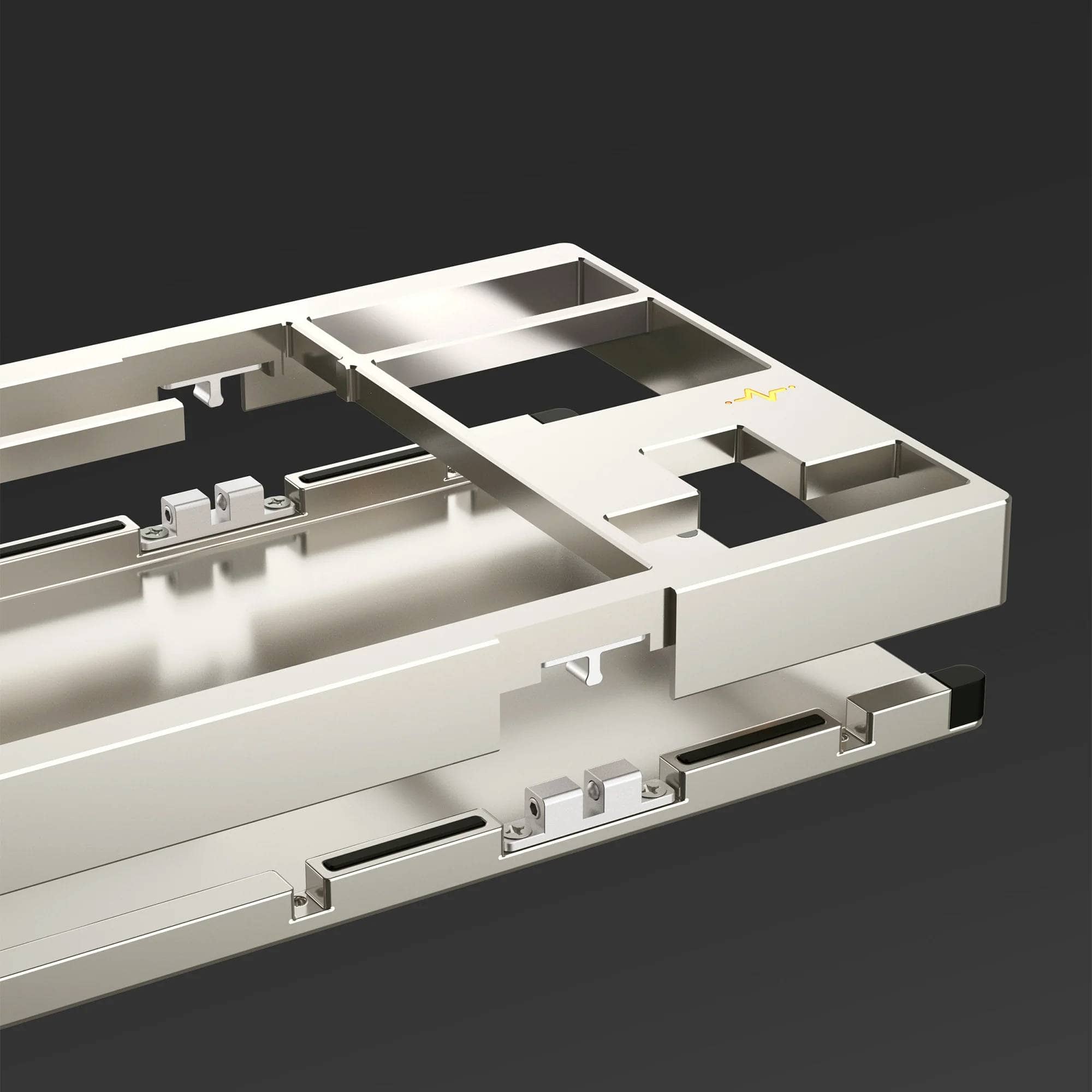

- The top frame is not screwed on and is joined to the bottom case using magnets.
- As for the mounting method, the board comes with a silicone cap that rides on the bottom case via its protrusion

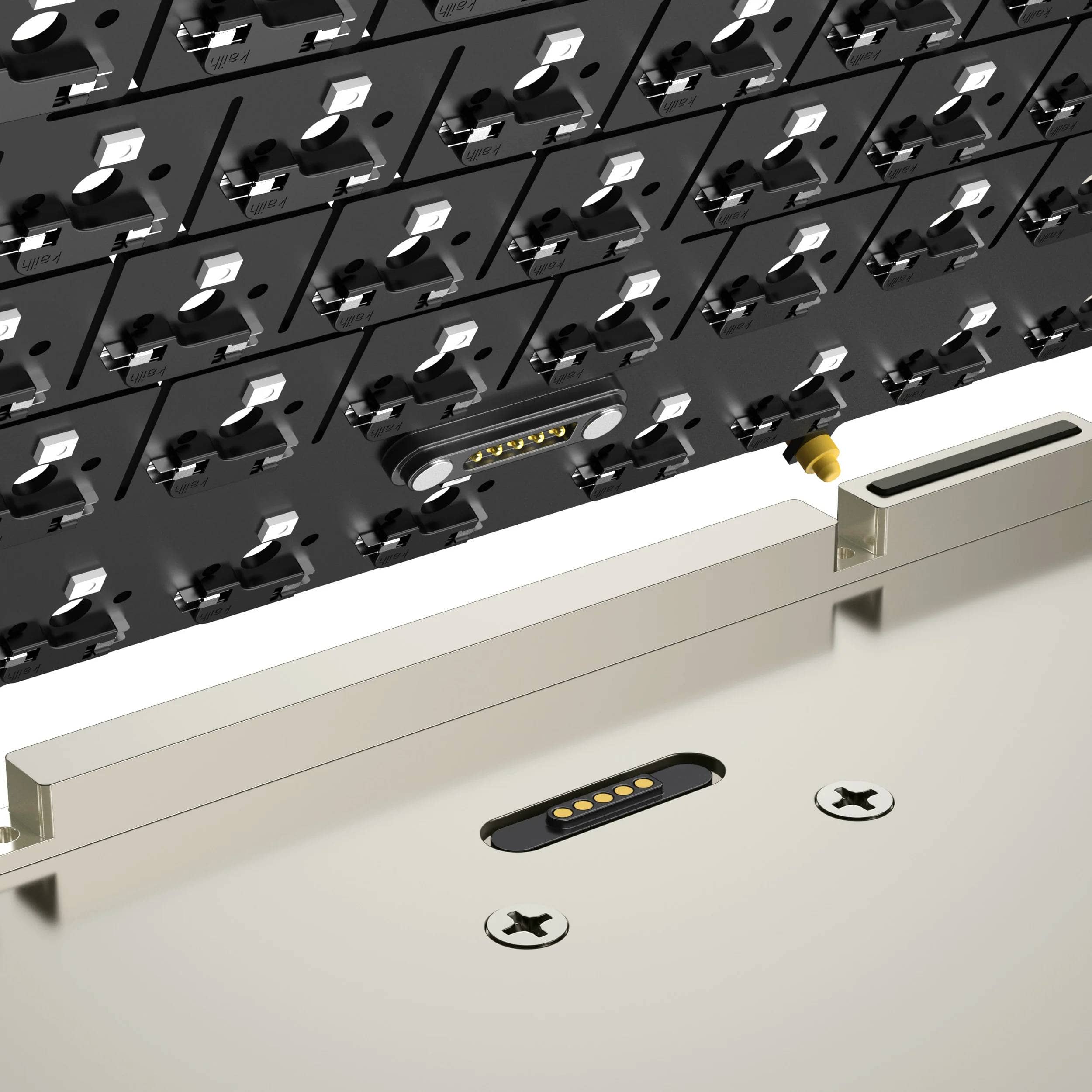

- Magnetic pogo pins, rather than cables, are used to connect the board to the daughter board, making it easy to replace the board.
- The bottom case and bottom weight, which is screwed to the bottom case, contain the daughter board and battery, and the battery will not move because a recess has been cut out to fit the size of the battery.
- The dongle for 2.4GHz connection is tucked into the logoed lid in the center of the bottom weight.
- The design has a high level of design, and the colored LEDs on the sides are designed to illuminate the desk.
- With five layers of sound-absorbing material, one can expect a thocky keystroke sound, akin to that of the Rainy75.
- The keyswitch used is Kailh Cocoa Linear Switch (45g).
- Keycaps are made of Cherry profile, double shot PBT, and sublimation printing for sublegend etc.
- VIA support allows keymap changes

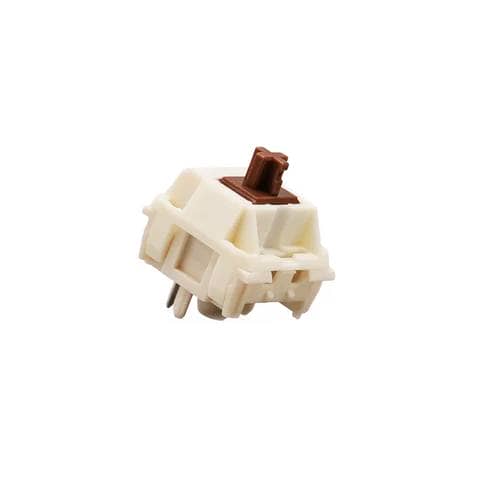

Kailh Cocoa Switch
| Name | Kailh Cocoa |
|---|---|
| Type | Linear |
| Top Housing Material | POM |
| Bottom Housing Material | PA66 |
| Stem Material | DuPont POM |
| Actuation Force | 45g±5g |
| Pre Travel | 2.0±0.4mm |
| Total Travel | 3.6±0.4mm |
| Mount | 5 pin |
| Factory Lube | Yes |
Crash80 Reboot Proのスペック詳細
| (data) item | (technical) specification |
|---|---|
| Quick Release | Galvanized Ball-Catch Quick Release (4 Pairs) |
| Battery Pin | Customized Magnetic POGO Pin |
| Frame | 6063 Aluminium |
| RGB | Available only in RGB Pro Version |
| Color | White, Black, Blue, Yellow, Purple, Pink, Silver, Warm Silver, Navy, Red |
| Finish | Electrophoresis (180 Grit) (White, Blue, Yellow, Purple, Pink) Anodized (220 Grit) (Silver, Warm Silver, Black,Navy, Red) |
| Battery Compartment | White Electrophoresis(Blue, Yellow, Purple, Pink) Gray Anodized(Silver) Brown Anodized(Warm Silver) Silver Anodized(Black,Navy) Warm Silver Anodized(Red) |
| Backplate | Ice Patten Stainless Steel(Blue, Yellow, Purple, Pink) Gray PVD Stonewash(Silver) Bronze PVD Stonewash(Warm Silver) Black PVD Stonewash(Black) Silver PVD Stonewash(Navy) Bronze PVD Stonewash(Red) |
| Switches | Kailh Cocoa Switch (45g) |
| Keycaps | PBT (Double Shot / Dye Sublimation) |
| Badge | Stainless Steel WOB LOGO |
| Connectivity | Wired / 2.4G / BT5.0 |
| RGB | South Facing A-RGB |
| Battery Capacity | 7500mAh |
| Positioning Plate | FR4 |
| Heartbeat Light | RGB Heartbeat Light |
| Acoustic Set | PORON Plate Foam 8x IXPE Switch Pad PET Film PCB Form (w/ PET Insulation) Poron Case Foam (w/ PET Insulation) |
| PCB | A1 Black PCB with Extra Film (Supports – Plate&PCB Stabs/Split space/ISO layout/Stepped Caps) |
| Driver | VIA Support |
| Stabilizers | WOB Customized Stabilizers |
| Weight | 2380g |
| Packaging | Customized Carrying Case |
| Accessory | Alternative Aluminium Positioning Plate * 1, Spare Screws * 8, Silicone Bumper * 2, Silicone Feet * 2, Cable / Manual / Cloth Bag / Switch Puller / IXPE Pad * 1 |
