A system that allows typing like a full-size keyboard with fewer keys.

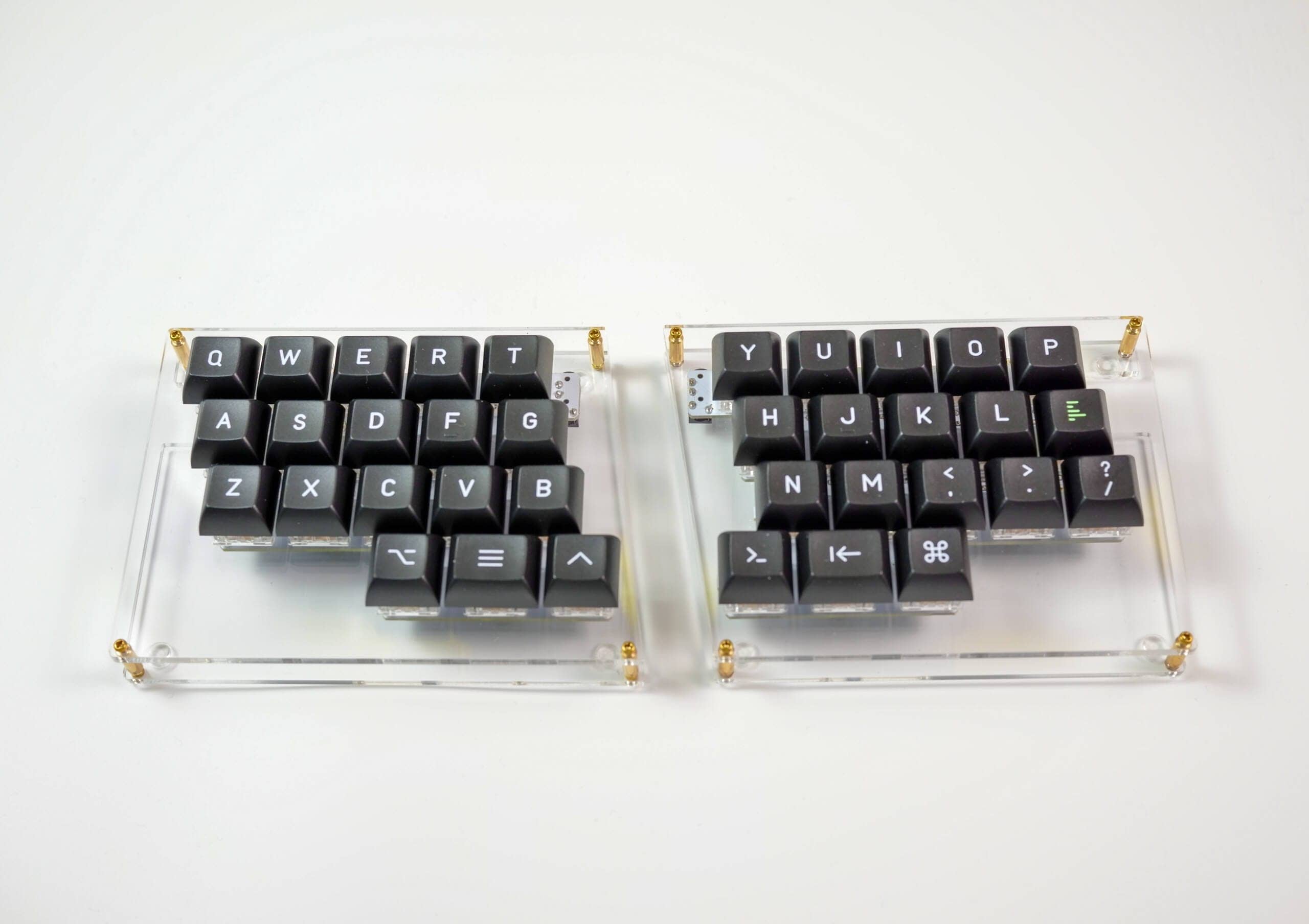

Typing on a keyboard with only 36 physical keys, just like a regular keyboard, can be achieved by having multiple “layers.
There are a total of four layers in Gravity36, and by starting from the default layer, “Layer 0,” and moving to each layer, it is possible to virtually press almost any key.

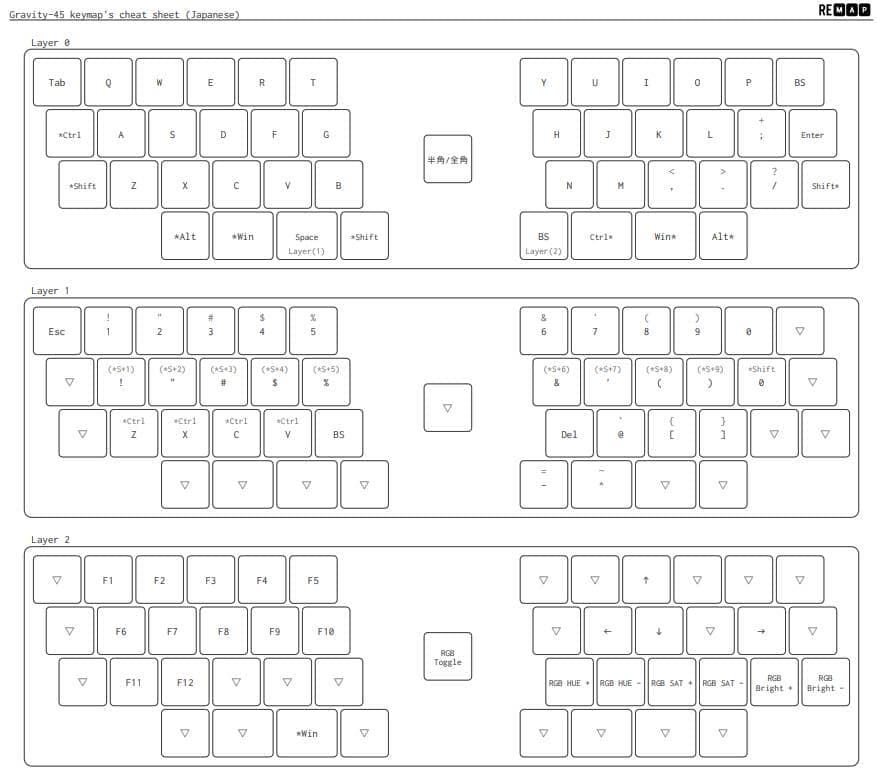

The following is a suggested keymap as a default.
You could use this as a basis for your own “convenient” key map.
About Key Map Creation
- Assumed to be used for general office work (Office-based software)
- A-Z keys and frequent symbol keys are placed on Layer0 (table layer)
- Grouping symbols, etc. with relevance
- Shift layer same as normal keyboard
- Set up for typing within 2 actions as much as possible, except for the Shift layer.
- As for the Sihft layer, it will be 3 actions, but set up for typing in a way that is not unreasonable.
- To reduce the number of keys, Ctrl+Space is used to switch between Japanese and English (IME on/off) for both Win/Mac.
- Combination keys are arranged so that shortcut keys can be operated with the left hand while the mouse is operated with the right hand
glossary
- MT(XX,00) Long press for “XX”, short press for “00
- LT (Number,00) Long press to move to “Number” layer only while pressing, short press to move to “00”.
How to change the keymap using Remap
- Connect the USB cable to the ProMicro on the left or right side of the Gravity36.

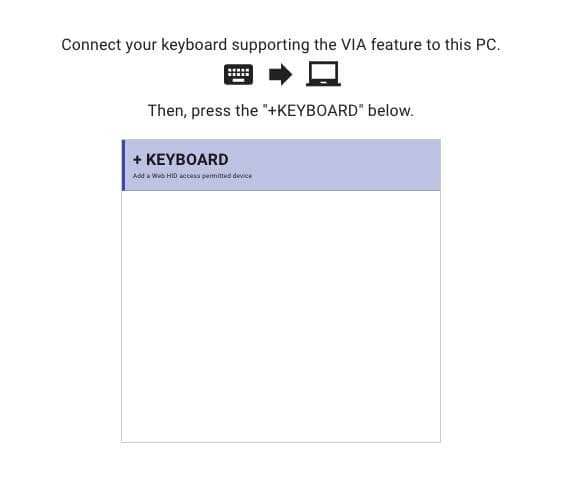

- Access Remap.
- Click on “Customize Your Keyboard.

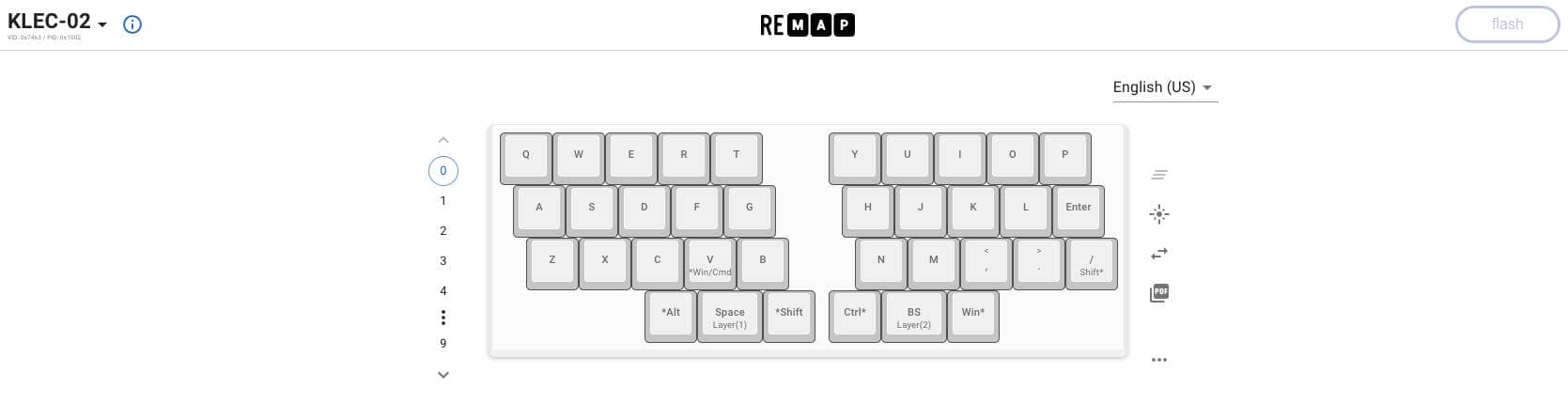

When this screen appears, you are ready to change the keymap.
How to change the keymap
For each key, drag and drop to the area where you want to change the key at the bottom, or edit the key directly.
When finished, press the “Flash” button in the upper right corner to complete the writing.
About settings such as MOD-TAP and simultaneous presses
For “Simultaneous Presses,” enter the Keycode you want to press at the same time from the settings screen for each key, and check the Modifiers keys you want to press together.
When you want to perform a simultaneous “copy” press in Windows with one action, set as follows.
MOD-TAP is a mechanism that changes the behavior of keys according to the time it is pressed.
One key can have two functions: a long press will function as Shift, a single press will type “.”, and so on.
To set, simply select the respective key from “HOLD/TAP” in each key setting.
How to load the default keymap
The default keymap is “Windows – Japanese”.
If necessary, select “Save/Restore a keymap” from the right side of the Remap keymap change screen to load the default keymap.
Select the keymap profile you wish to set
Press the “flash” button to reflect keymap changes.
KawamuraRemember to press the “flash” button to reflect the keymap changes!
