The NuPhy Gen80 is a mechanical keyboard with an 80% tenkeyless layout.
Up until now, NuPhy has released keyboards with relatively pop and playful designs, such as the “Air series” with its attractive thin low-profile design, and the “Halo series” that dares to emphasize the “kotokoto” feeling and pursues the fun of typing.
The new series of “Gem Series Gem Series” is a keyboard suitable as a “second keyboard” for those who have come to know the charm of mechanical keyboards and want to realize their various preferences. The Gem Series keyboards are suitable for those who have come to appreciate the appeal of mechanical keyboards and want to realize their own particular needs.
This article will introduce the charm of Gem80 using actual photos.
If you are considering purchasing or are interested in NuPhy, please read to the end!
- Layout: 80% tenkeyless layout, compact but without compromising functionality.
- Customizability: QMK/VIA support allows users to freely customize keyboard layout and functions
- Connectivity options: Bluetooth and 2.4GHz wireless connectivity for flexible use
- Battery: 4000mAh high capacity battery for long time use
- Hot-swappable: Switches can be easily replaced, no soldering required.
- Keystroke feel: “Thocky” keystroke feel Thocky” keystroke feel and is designed to make typing fun.
- Design: Beautiful aluminum top case and transparent look
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 1 Kawamura top R](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2022/07/Kawamura-top_R-150x150.jpeg?strip=all&lossy=1&quality=70&ssl=1)
Representative of GreenEchoes Studio
He launched his own media as a site operator and web writer, and now plans and manages multiple corporate media. He often types heavily in his work, and in his search for greater efficiency, he became addicted to the keyboard swamp and established “GreenKeys”.
[blog_parts id="41919"]
Conclusion: NuPhy Gem80 is recommended for a second custom keyboard.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 3 NuPhy Gem80 09](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-09.jpg?strip=all&lossy=1&quality=70&ssl=1)
- カスタムの幅が非常に広く一台で楽しみつくせる
- Thockyな打鍵感が素晴らしい
- 透明感のあるルックスが美しい
- 価値相応の価格設定となっている
- ベアボーンキットのため自身で組み立てが必要
The NuPhy Gem80 is a keyboard that we can recommend to anyone who is considering a second or later model to love.
Although soldering is not required, the fact that it is a barebone model makes it even more appealing when the timing is such that you have some knowledge of how the keyboard works and feel like “tinkering” with it yourself.
Recommended for the second unit! The reason for this is the Gem80’s high level of customizability.

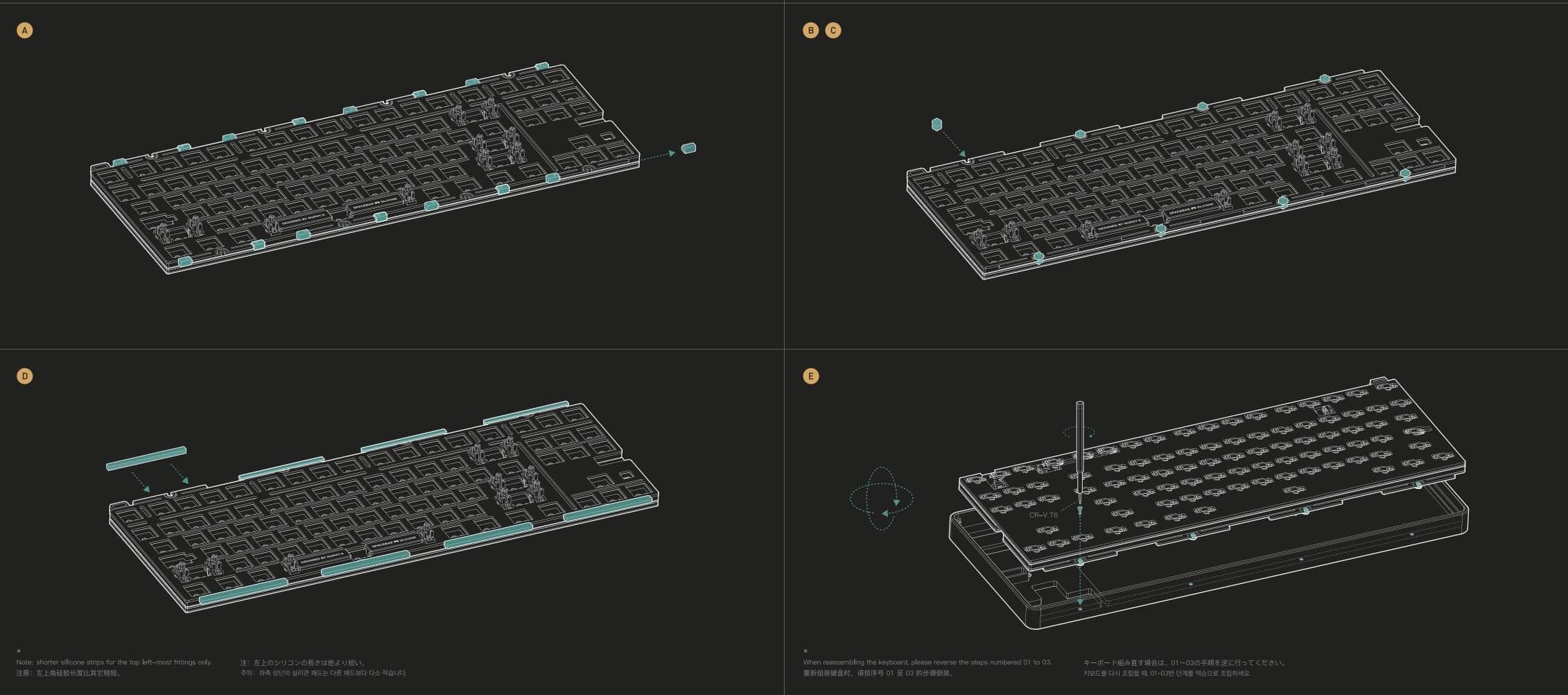

By changing the included mounting parts, not only can you experience four different keystroke sensations, but you can also purchase an optional switch plate to find “your own personalized combination.
Also, although the 80% TKL layout has the disadvantage of being “large,” the benefit of having a separate arrow key is greater than it appears, and the size of the key is a size that you will only find satisfying when you use it.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 4 1000005635 scaled](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/1000005635-scaled.jpg?strip=all&lossy=1&quality=70&ssl=1)

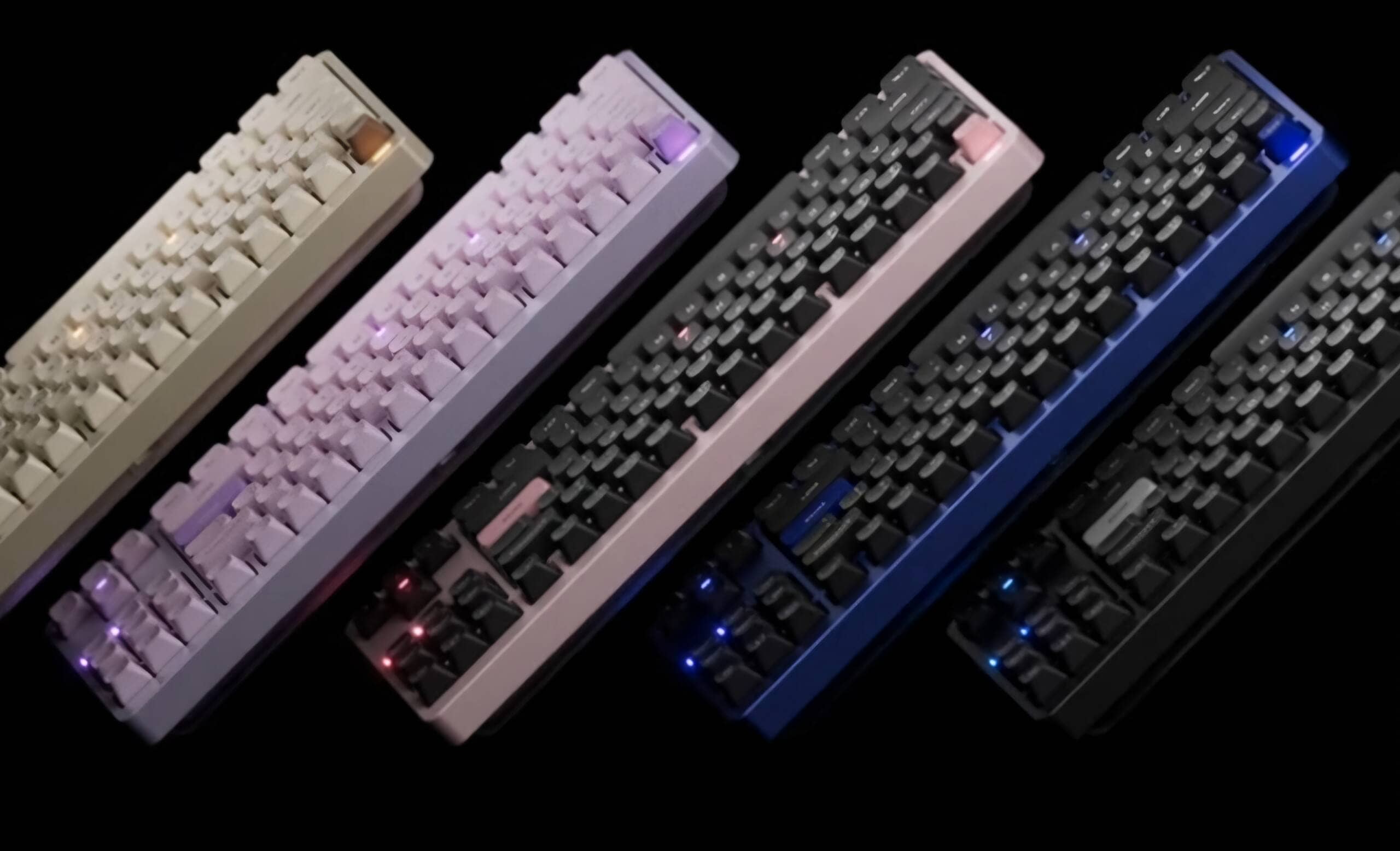

There are five different colors available, and the combination of exclusive keycaps will give it an even more sophisticated look.
If you are interested, why not consider purchasing one?
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 5 Coupon NuPhy 400](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/06/Coupon-NuPhy-400-200px.jpg?strip=all&lossy=1&quality=70&ssl=1)
Discount Code: ryo10
to save 10% off your purchase.
Japanese users, please click here (technical compliance).
Products only available at NuPhy Official
(Coupon code supported)
Product Specifications and Overview
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 6 NuPhy Gem80 10](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-10.jpg?strip=all&lossy=1&quality=70&ssl=1)
The specifications of the NuPhy Gem80 are as follows
Price | 38,280 yen (including tax) – 51,040 yen (including tax) |
---|---|
layout | ANSI 80%/TKL |
Number of keys | 88 |
Switch type | normal profile |
Stabilizer type | Plate mounting |
Mounting type | Gasket & Top |
Hot-swap support | Yes (3/5 pin MX style) |
N Key rollover support | Yes, sir. |
backlight | South facing RGB-LED |
backlight mode | 40 types |
Supported Systems | macOS/Windows/Linux/Android/iOS |
operating environment | -10 to 50°C |
MCU | ARM STM32F072 |
radio frequency (RF) | NRF52810 (Tri-mode) |
Wired Polling Rate | 1000Hz |
2.4GHz Polling rate | 1000Hz (tri-mode) |
Bluetooth 5.0 Polling rate | 125Hz (tri-mode) |
topcase | aluminum (Al) |
Bottom Case | PC |
Plate Material | Fr4 |
length | 141.3 mm |
range (e.g. of voice) | 358.1 mm |
Back Height | 36.7 mm |
Front Height | 21.5 mm |
weight | 1120 g |
Type Angle | 6° No variable |
Battery capacity | 4000mAh |
Operating hours (all lights on) | 24 to 45 hours (lab test results) |
Operating time (homing bar only) | 34~70 hours (lab test results) |
Operating time (with all lights off) | Up to 330 hours (lab test results) |
selling agency
NuPhy, based in Shenzhen, is the manufacturer and distributor.
In Japan, Sanyo Godo Kaisha is the authorized importer and distributor, providing support and sales.
included thing
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 7 NuPhy Gem80 52 1](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-52-1.jpg?strip=all&lossy=1&quality=70&ssl=1)
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 8 NuPhy Gem80 53](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-53.jpg?strip=all&lossy=1&quality=70&ssl=1)
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 9 NuPhy Gem80 54](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-54.jpg?strip=all&lossy=1&quality=70&ssl=1)
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 10 NuPhy Gem80 49](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-49.jpg?strip=all&lossy=1&quality=70&ssl=1)
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 11 NuPhy Gem80 51](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-51.jpg?strip=all&lossy=1&quality=70&ssl=1)
keyboard kit
- 1 x USB-C data cable
- 1 x 2.4G receiver (tri-mode)
- 1 x keycap/switch puller
- 3 x additional switches
- 5 x Silicon Set
- 1 x screwdriver
- 1 x additional food pad set

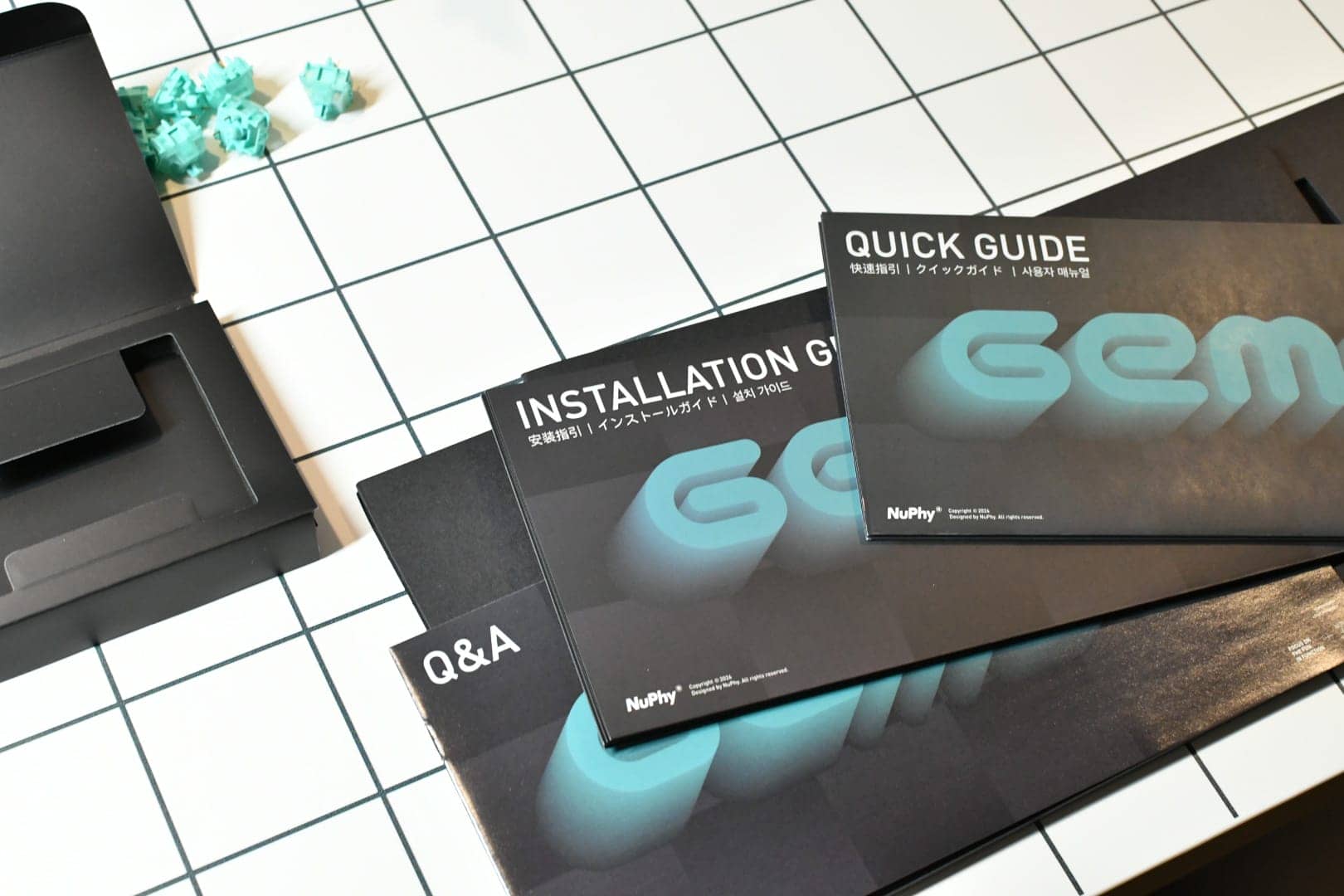

- 1 x Installation Guide
- 1 x Quick Guide
- 1 x Q&A
switch set
- 90 key switches purchased as a set
keycap
- Keycap set (137 keys/Gem mSA keycap set)
Gem80 exists in two types: a wired-only model and a tri-mode model that also supports wireless connections.
Only tri-mode models are available at NuPhy Japan.
Tri-mode models are also available for purchase on the home country website, but we recommend purchasing from a Japanese distributor rather than from the home country website because they do not meet the requirements for technical qualification for use in Japan.
However, as for those who “prefer the wired version,” the best option is to purchase from the home country site.
However, please keep in mind that international shipping costs to Japan will apply.
Information about NuPhy Gem80 Japanese layout (JIS layout)
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 12 Gem80 JIS](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/06/Gem80-JIS.jpg?strip=all&lossy=1&quality=70&ssl=1)
The Japanese-language model of the Gem80 was announced at the Computex event held in Taiwan in June 2024.
Because of the 80% layout, there is plenty of room next to the right shift, and the key corresponding to “Ro” can be seen as such.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 13 Kawamura top R](https://greenwaves.jp/keys/wp-content/uploads/2022/07/Kawamura-top_R-150x150.jpeg)
The Halo75 also has a JIS model, but the keys around the bottom right shift are quite cramped, so the Gem80 is a better choice if you want a Japanese layout.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 14 GPOQvpgbMAEsNXU](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/06/GPOQvpgbMAEsNXU-300x225.jpeg?strip=all&fit=320%2C180&lossy=1&quality=70&ssl=1)
At this time, the release date in Japan is unknown.
We will add information on this matter as soon as it becomes available.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 5 Coupon NuPhy 400](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/06/Coupon-NuPhy-400-200px.jpg?strip=all&lossy=1&quality=70&ssl=1)
Discount Code: ryo10
to save 10% off your purchase.
Japanese users, please click here (technical compliance).
Products only available at NuPhy Official
(Coupon code supported)
NuPhy Gem80 Review
Let’s review the Gem80 by looking at photos of the actual machine.
Gem80, which was provided for this project, was used in the following combination.
- Color: Cosmic Mocha
- Keyswitch: NuPhy Mint Linear
- Keycap: Cosmic Mocha
Keystroke Review
Appearance and Features
Let’s start with the exterior.
Thus, the “Cosmic Mocha” offered this time is the cleanest color in Gem80.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 16 NuPhy Gem80 09](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-09.jpg?strip=all&lossy=1&quality=70&ssl=1)
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 17 NuPhy Gem80 14](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-14.jpg?strip=all&lossy=1&quality=70&ssl=1)
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 18 NuPhy Gem80 13](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-13.jpg?strip=all&lossy=1&quality=70&ssl=1)
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 19 NuPhy Gem80 12 1](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-12-1.jpg?strip=all&lossy=1&quality=70&ssl=1)

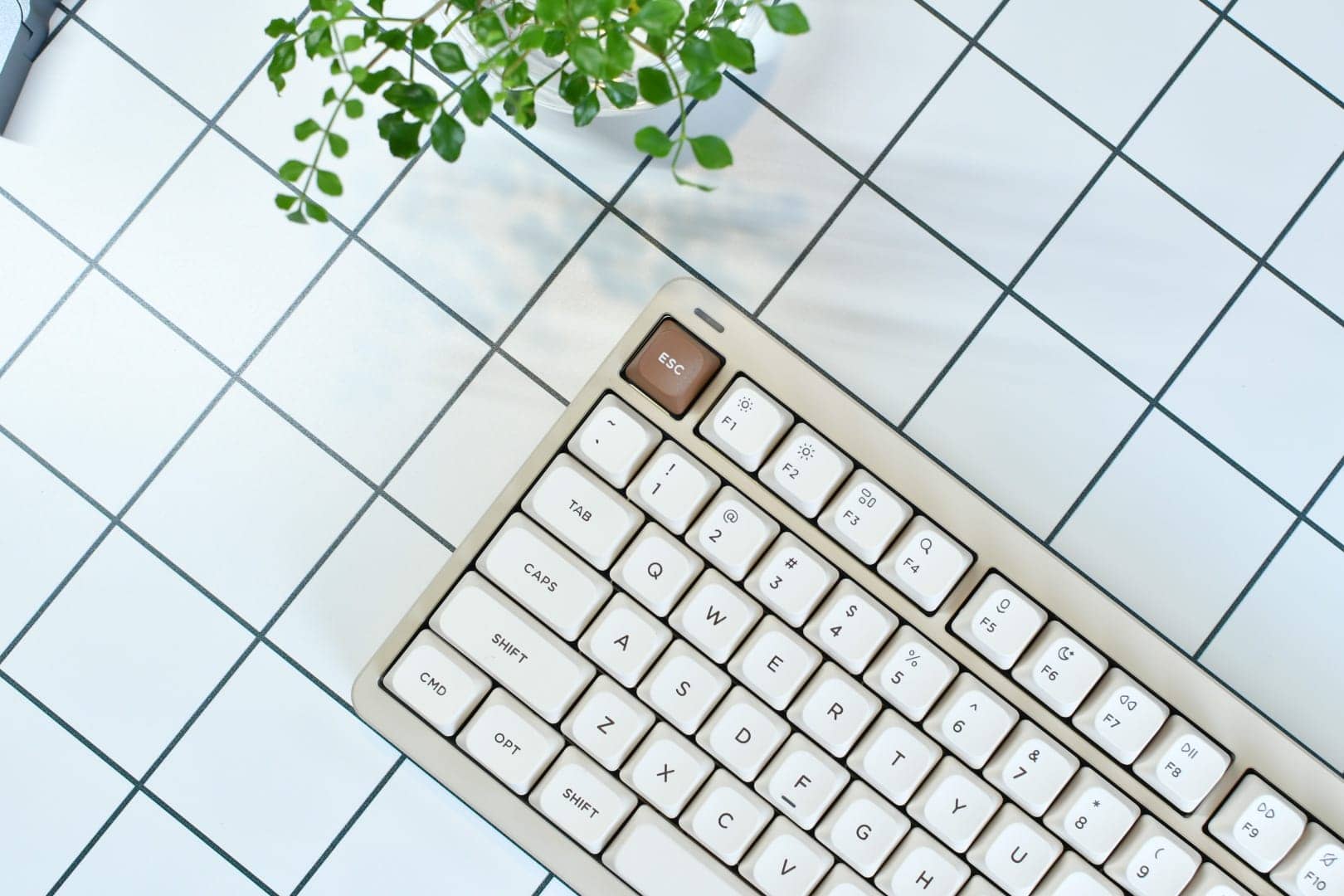

The beige-based coloring is gentle and will look great on a white desk.
The configuration is divided into a top case and a bottom case, with the top case made of aluminum.
The accent brown key does a very nice job, and the overall look is tighter.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 20 ef4fbaa90c61b2951313da2b68d1f66f scaled](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/ef4fbaa90c61b2951313da2b68d1f66f-scaled.jpg?strip=all&lossy=1&quality=70&ssl=1)

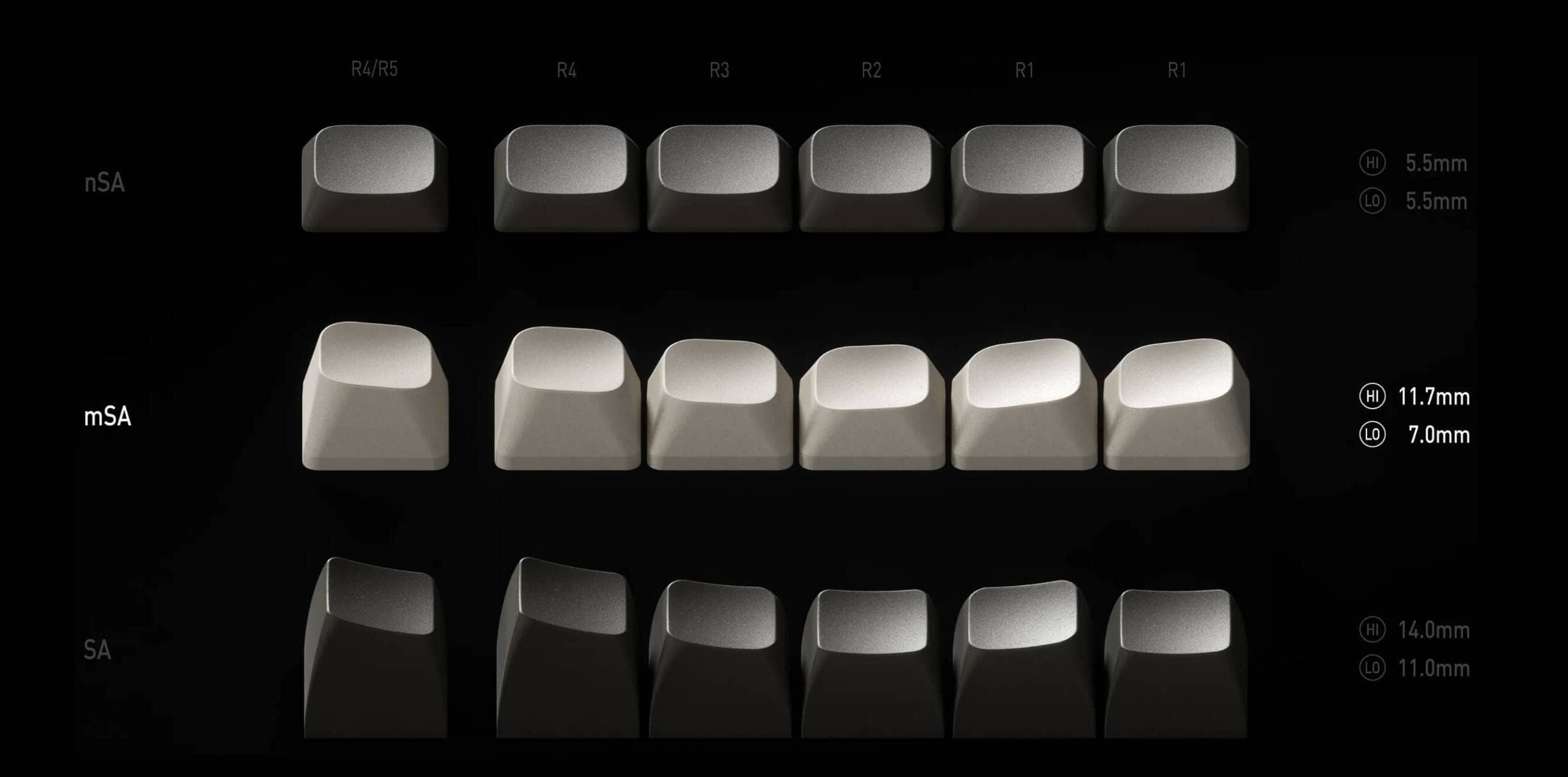

The keycaps use NuPhy’s proprietary key profile called “mSA,” which is slightly taller than the popular Cherry profile, but has an attractive “Sfercal design” with a depressed center that allows the fingertips to be sucked into the keytop.
It also features a “step sculpture” structure that varies in slope and height according to the row (R), making it easier to finger from the home position.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 21 NuPhy Gem80 07 1](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-07-1.jpg?strip=all&lossy=1&quality=70&ssl=1)

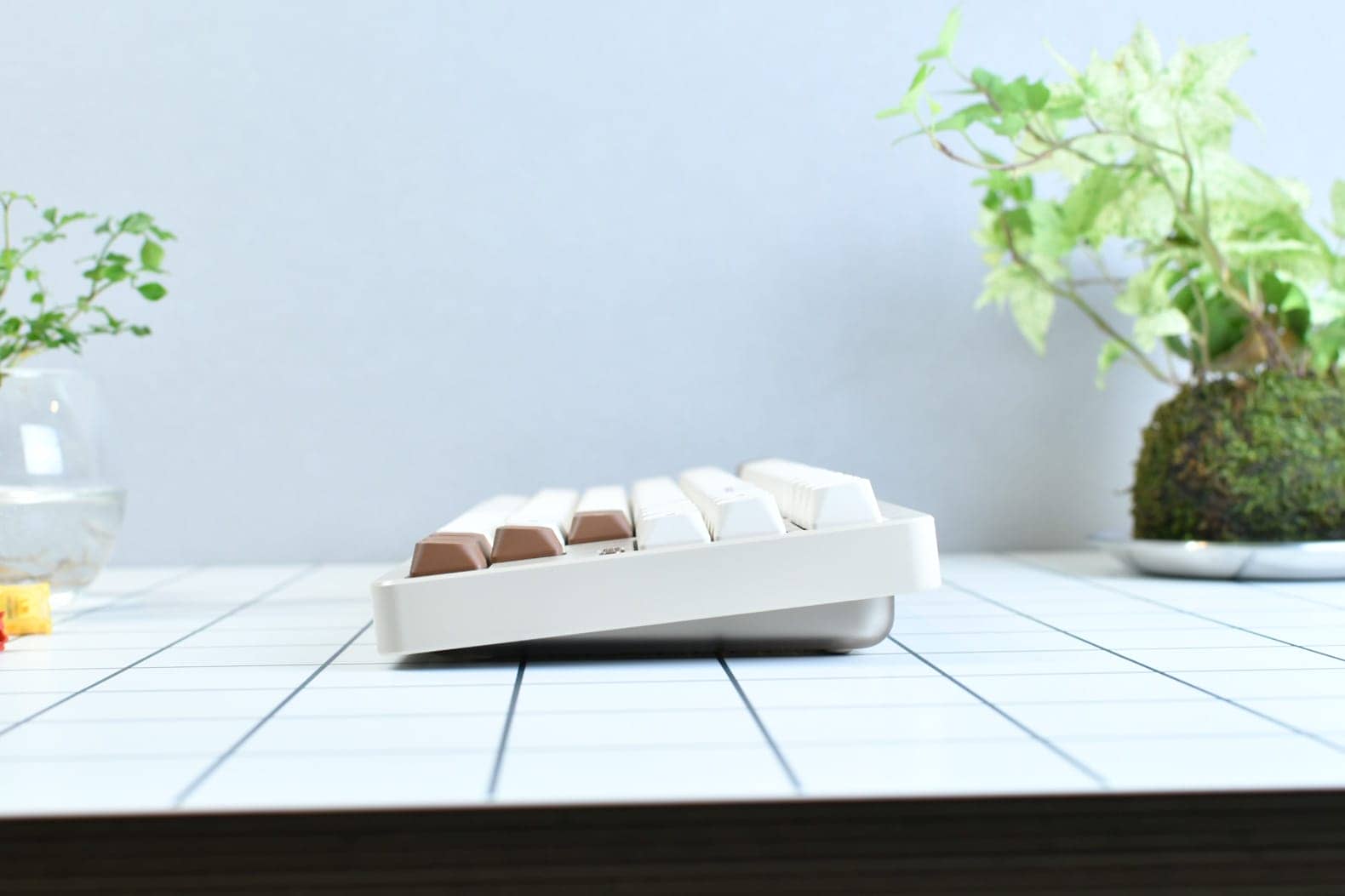

The tilt angle, which is important for typing, is fixed at 6 degrees and cannot be adjusted.
The height of the front side is slightly lower than a typical keyboard, but you can utilize the palm rest according to your preference.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 13 Kawamura top R](https://greenwaves.jp/keys/wp-content/uploads/2022/07/Kawamura-top_R-150x150.jpeg)
I found it easy enough to type without using it.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 23 NuPhy Gem80 02 1](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-02-1.jpg?strip=all&lossy=1&quality=70&ssl=1)

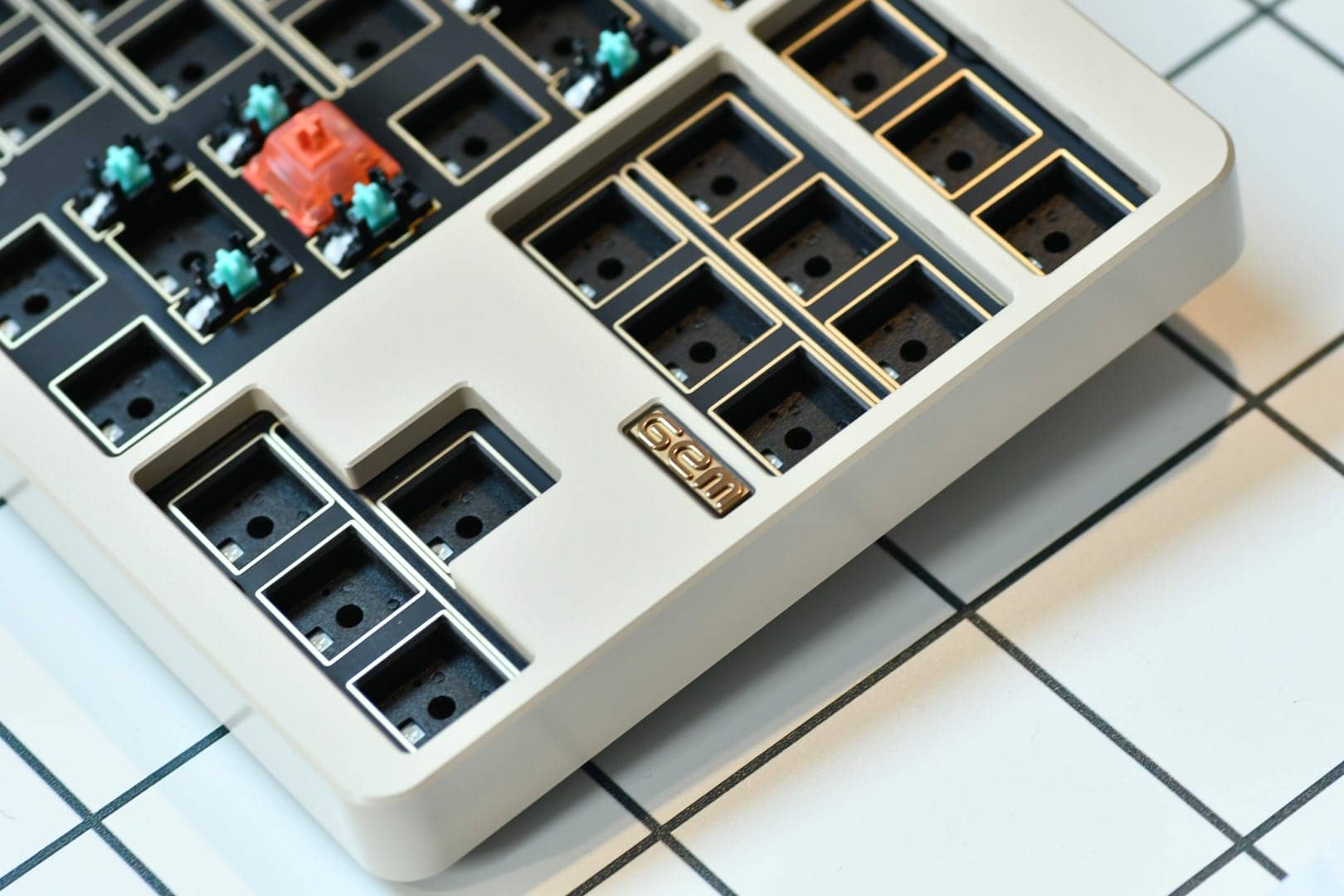

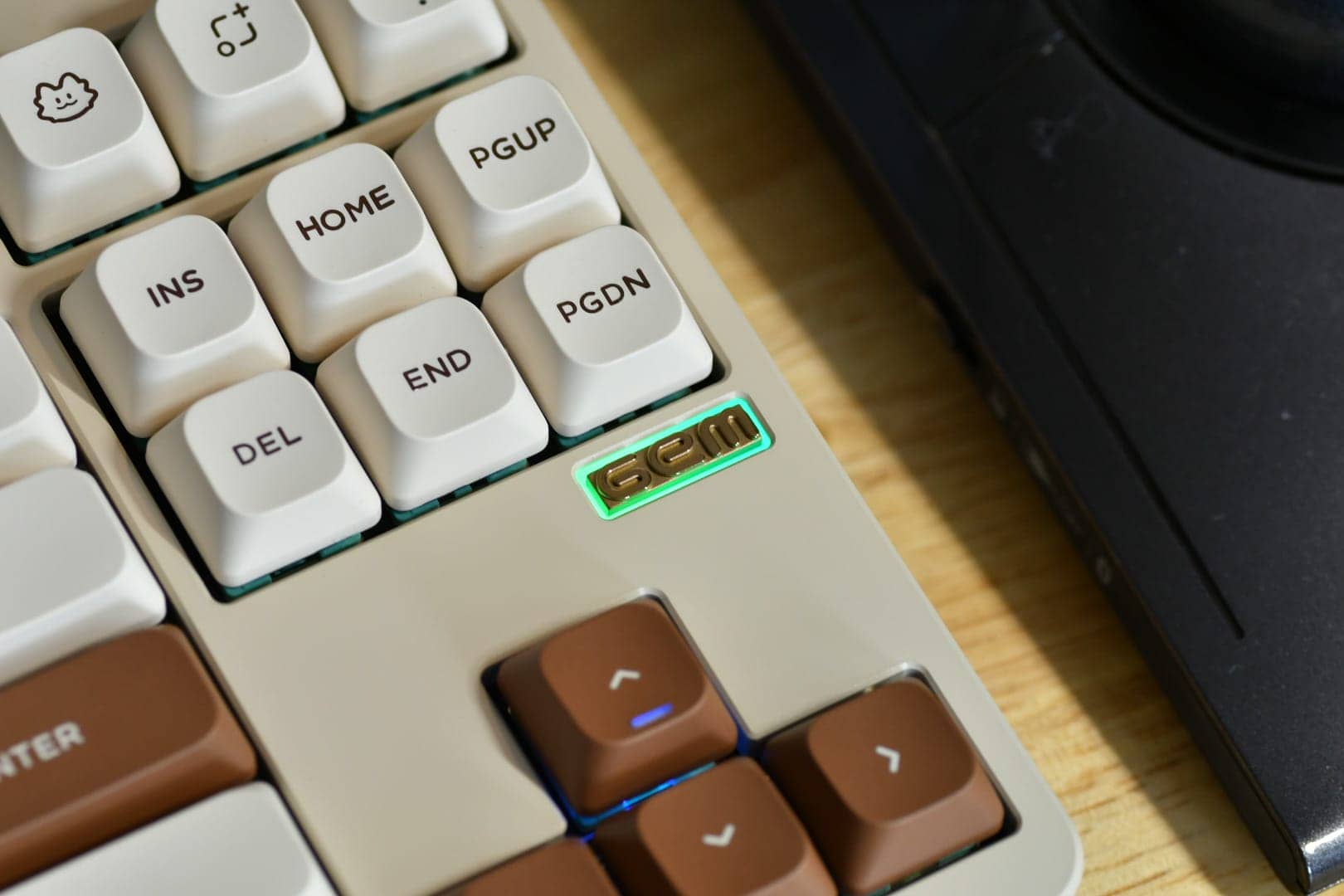

Above the arrow key is the “Gem” logo with LED diffuser.
The logo is made of metal and is to be fitted by the customer after purchase.
Since magnets are installed, they are magnetically attached to each other.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 24 NuPhy Gem80 42](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-42.jpg?strip=all&lossy=1&quality=70&ssl=1)
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 13 Kawamura top R](https://greenwaves.jp/keys/wp-content/uploads/2022/07/Kawamura-top_R-150x150.jpeg)
A great feature of this keycap is that only the homing key area is transparent to the LEDs, despite being made of PBT.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 26 d7c843146e257cf581f55f108f6bead3](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/d7c843146e257cf581f55f108f6bead3.jpg?strip=all&lossy=1&quality=70&ssl=1)
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 27 NuPhy Gem80 48 1](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-48-1.jpg?strip=all&lossy=1&quality=70&ssl=1)
The bottom is made of translucent polycarbonate, and the four corners are fitted with rubber nonslips of the same color.

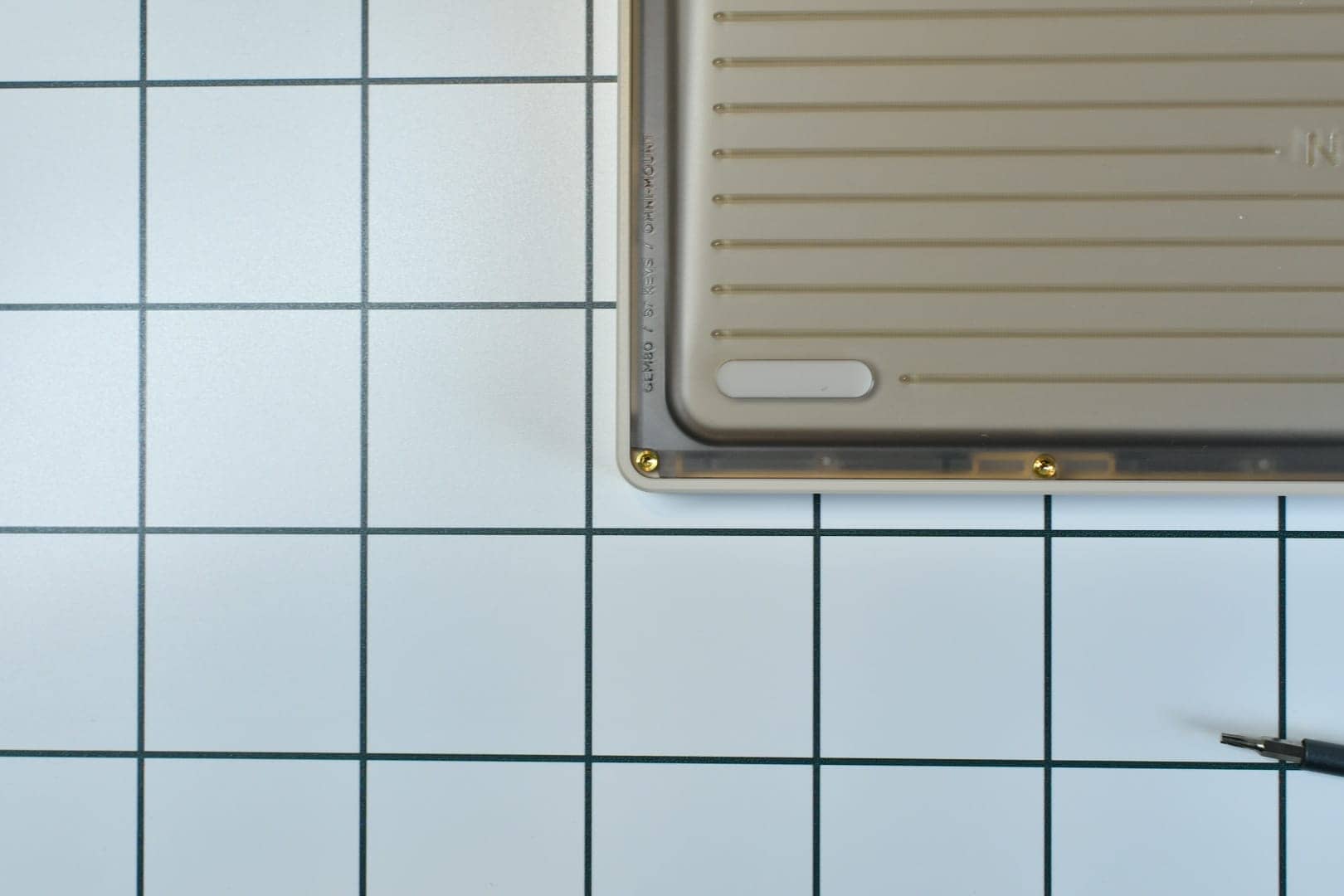

The connection to the top case is made with 10 screws on the bottom.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 28 NuPhy Gem80 16](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-16.jpg?strip=all&lossy=1&quality=70&ssl=1)
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 29 NuPhy Gem80 46 1](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-46-1.jpg?strip=all&lossy=1&quality=70&ssl=1)

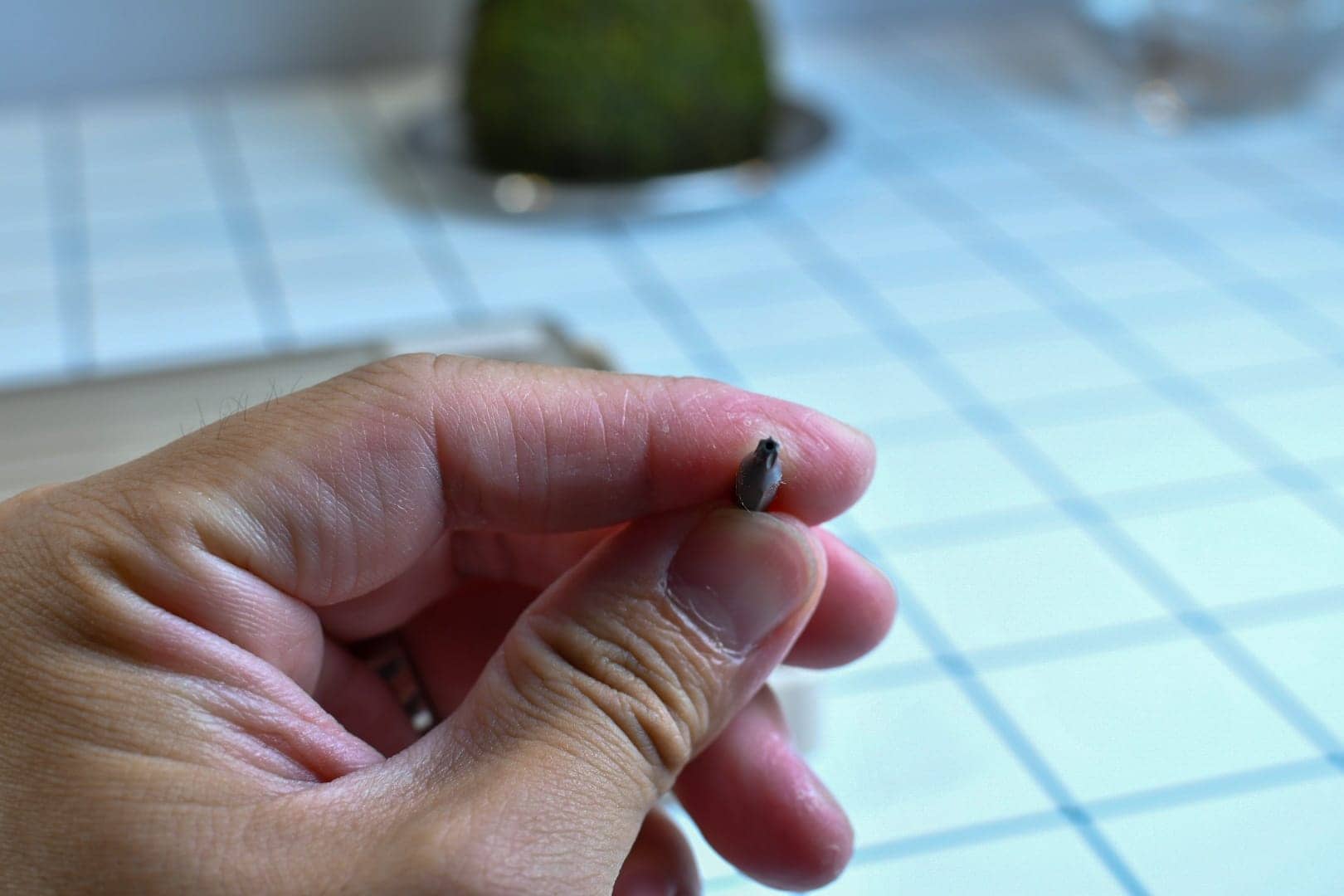

Although it is difficult to see in the photo, this screw is a special “star-shaped” screw and cannot be turned with a standard screwdriver.
It is disassembled using a special screwdriver that comes with the product.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 13 Kawamura top R](https://greenwaves.jp/keys/wp-content/uploads/2022/07/Kawamura-top_R-150x150.jpeg)
The screws must be removed when replacing the switch plate.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 31 NuPhy Gem80 27 1](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-27-1.jpg?strip=all&lossy=1&quality=70&ssl=1)
I see that every detail has been designed, including the item name/number of keys/mount name on the side of the bottom.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 32 NuPhy Gem80 03 1](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-03-1.jpg?strip=all&lossy=1&quality=70&ssl=1)
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 33 NuPhy Gem80 25](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-25.jpg?strip=all&lossy=1&quality=70&ssl=1)
The center of the back has “NuPhy Studio” stamped on it, which is very cool.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 34 NuPhy Gem80 04 1](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-04-1.jpg?strip=all&lossy=1&quality=70&ssl=1)

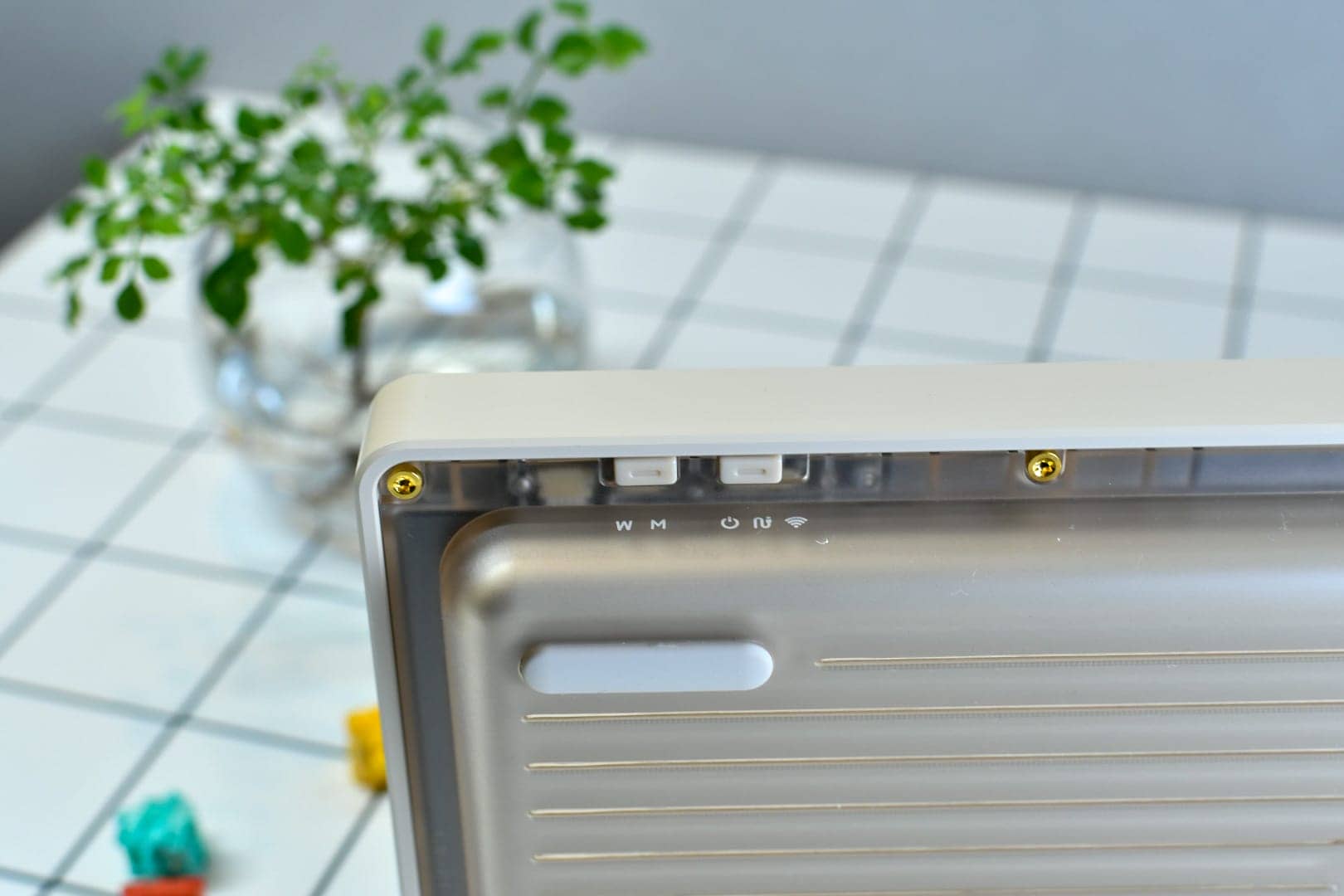

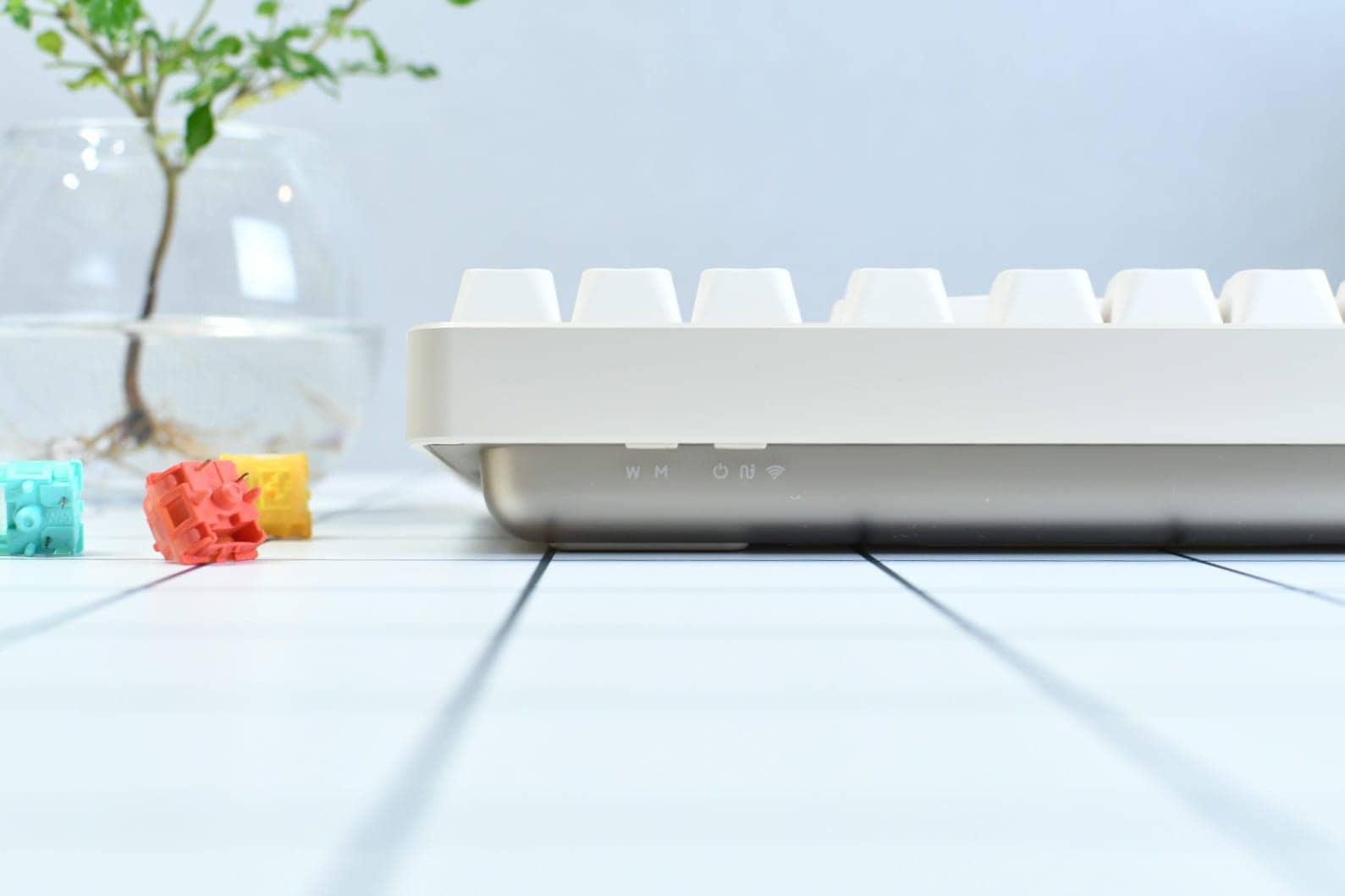

On the back are a 2-way Windows/Mac switch and a 3-way power-off/wired/wireless switch.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 35 NuPhy Gem80 26 1](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-26-1.jpg?strip=all&lossy=1&quality=70&ssl=1)
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 36 NuPhy Gem80 05 1](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-05-1.jpg?strip=all&lossy=1&quality=70&ssl=1)
I felt that the design was really detailed and well thought out, even slightly visible from the sides.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 37 NuPhy Gem80 06 1](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-06-1.jpg?strip=all&lossy=1&quality=70&ssl=1)

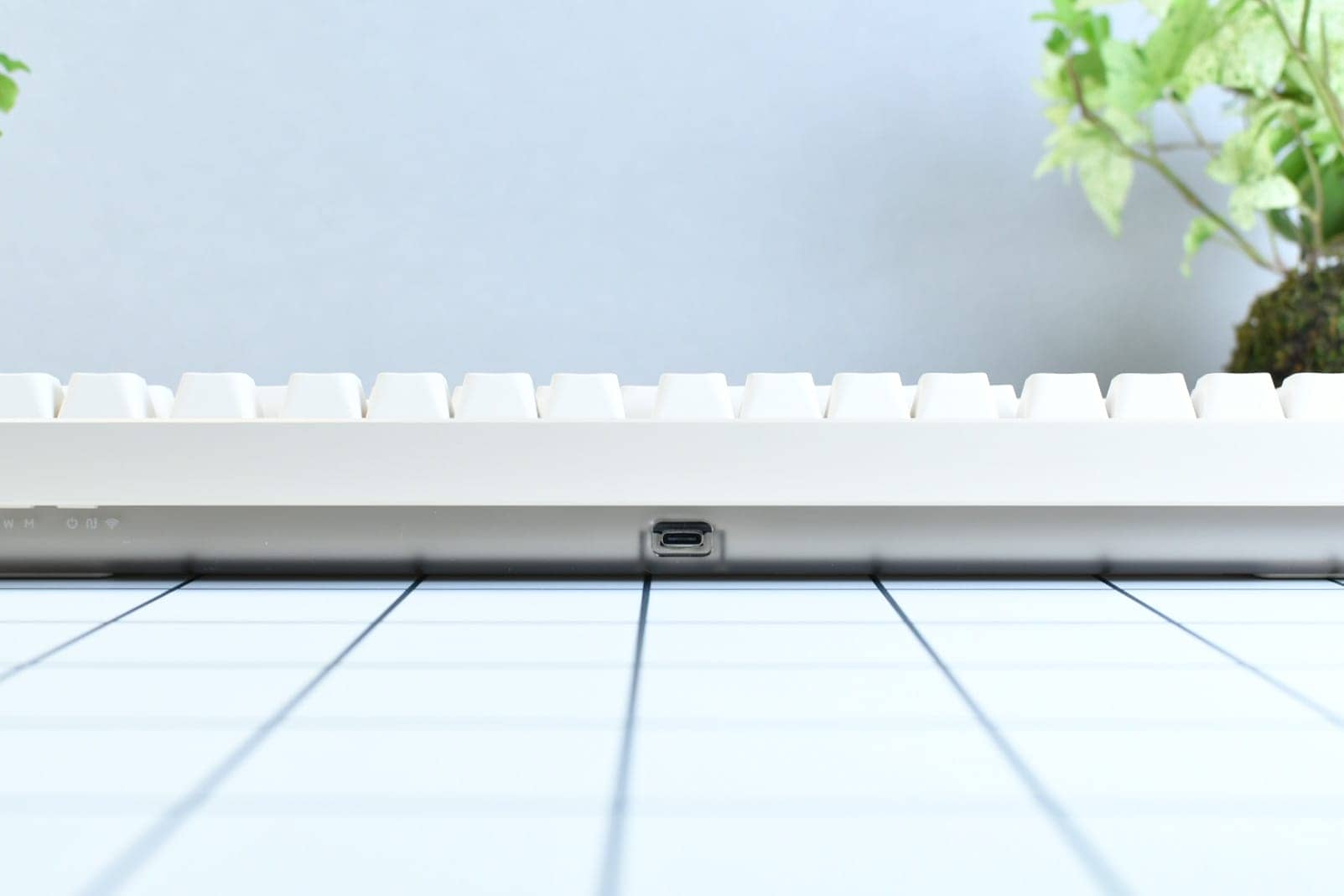

In the center of the rear panel is a USB Type-C connection.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 5 Coupon NuPhy 400](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/06/Coupon-NuPhy-400-200px.jpg?strip=all&lossy=1&quality=70&ssl=1)
Discount Code: ryo10
to save 10% off your purchase.
Japanese users, please click here (technical compliance).
Products only available at NuPhy Official
(Coupon code supported)

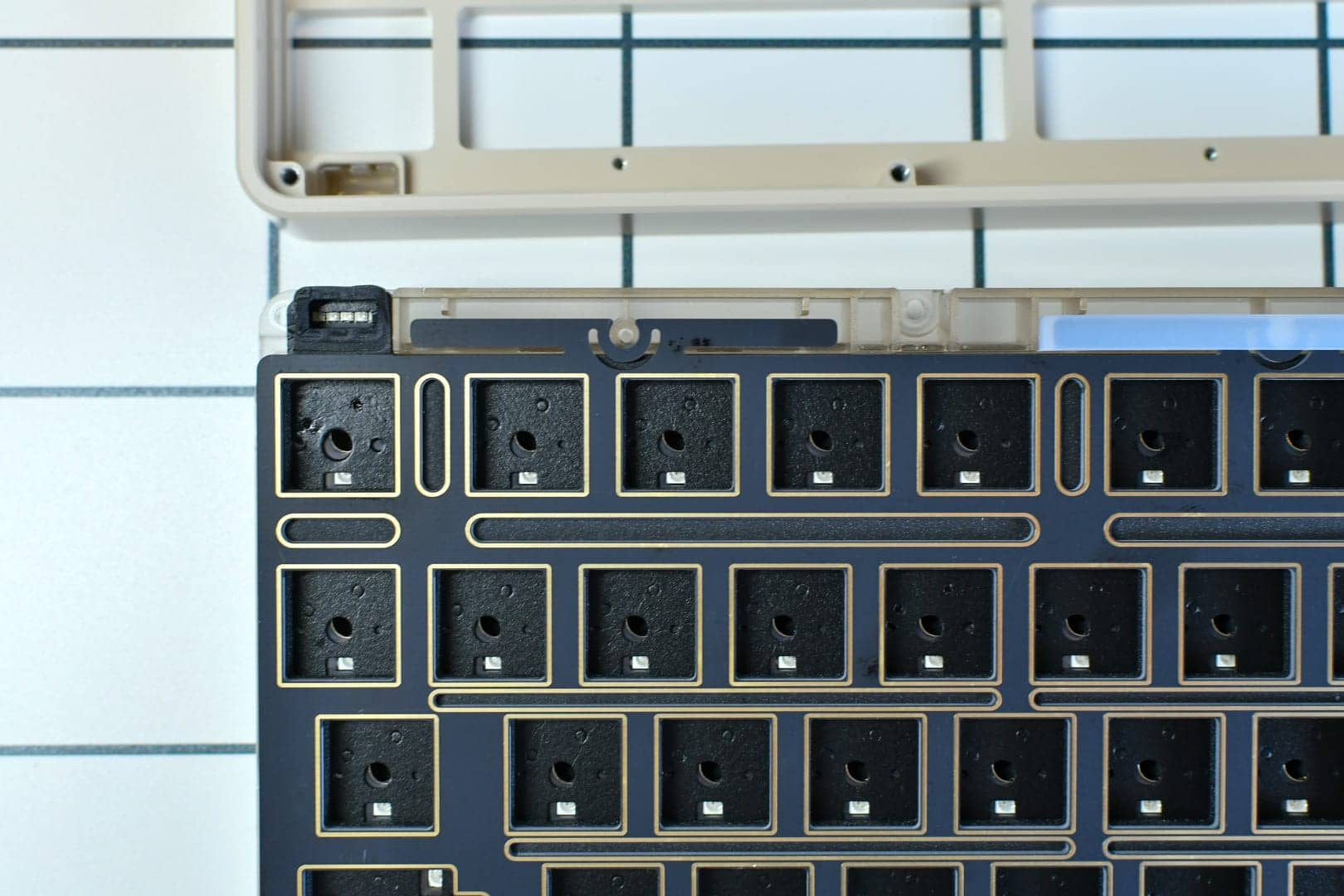

With the keyswitch removed
Let’s remove the keyswitch.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 39 NuPhy Gem80 54](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-54.jpg?strip=all&lossy=1&quality=70&ssl=1)

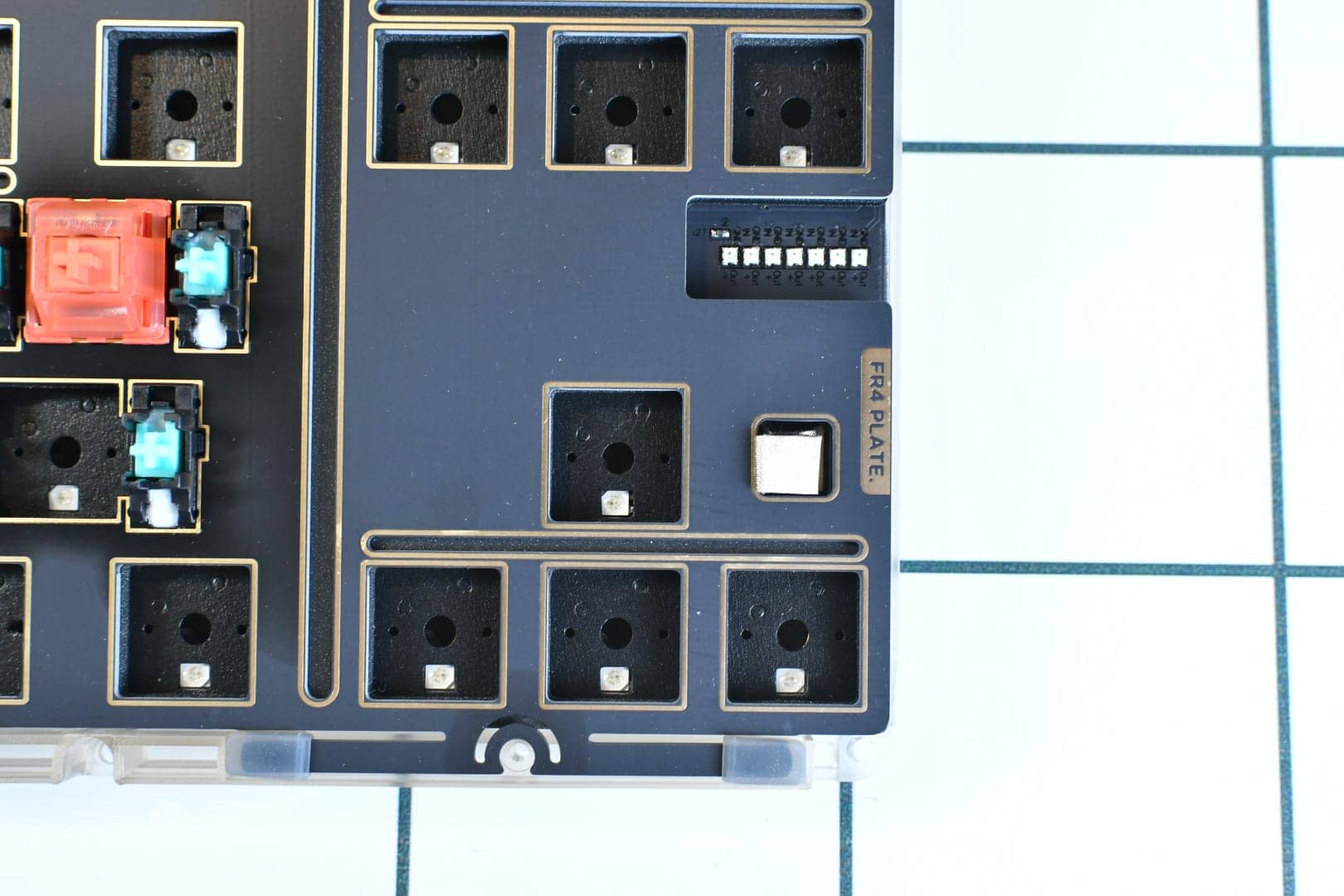

The default plate selected is “FR4”.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 40 6d8935b93f305f1c8b5b86dcb65c9cc0](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/6d8935b93f305f1c8b5b86dcb65c9cc0.jpg?strip=all&lossy=1&quality=70&ssl=1)
Other options include aluminum plate, polycarbonate plate (PC), and POM plate, which can be changed to suit your preference.

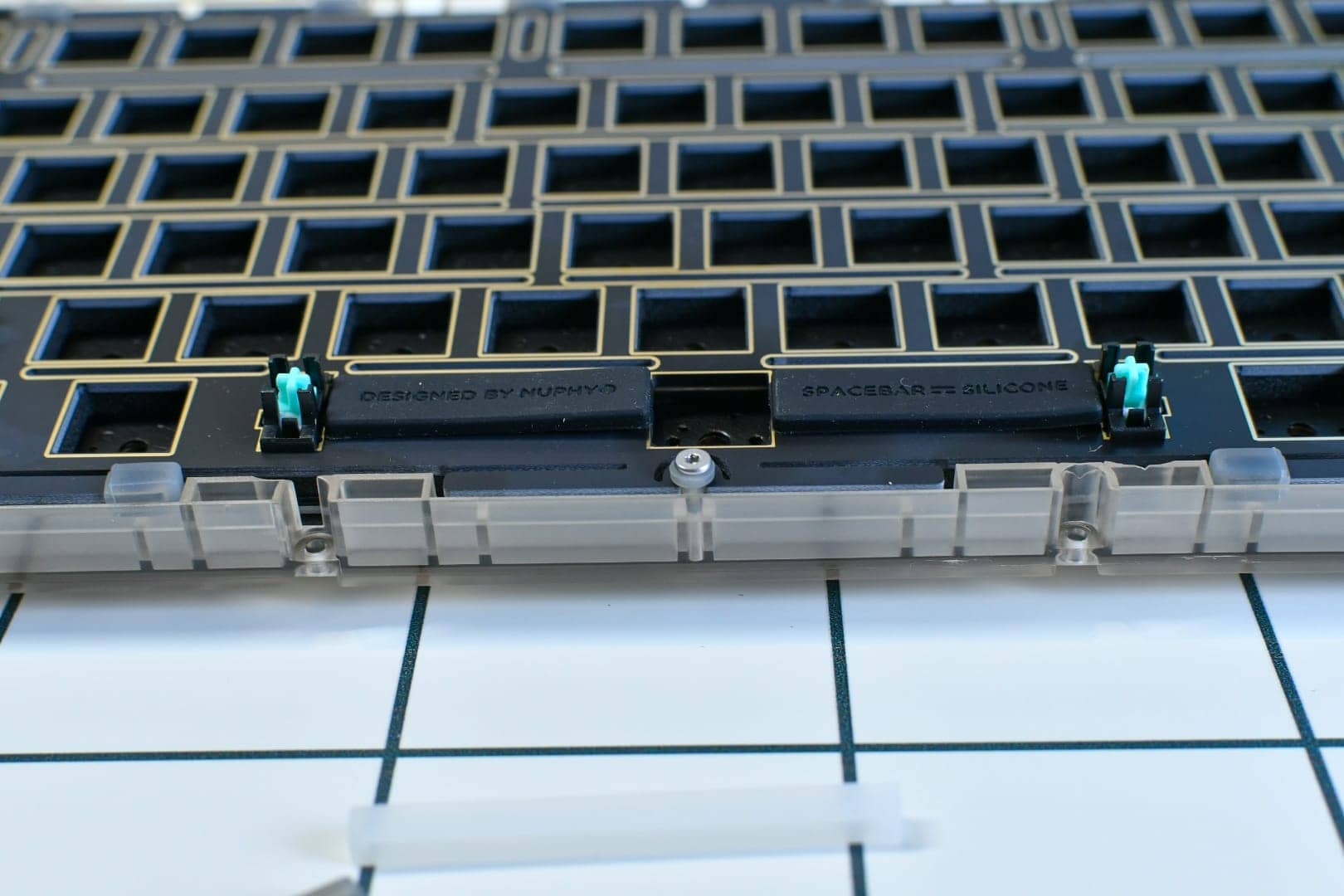

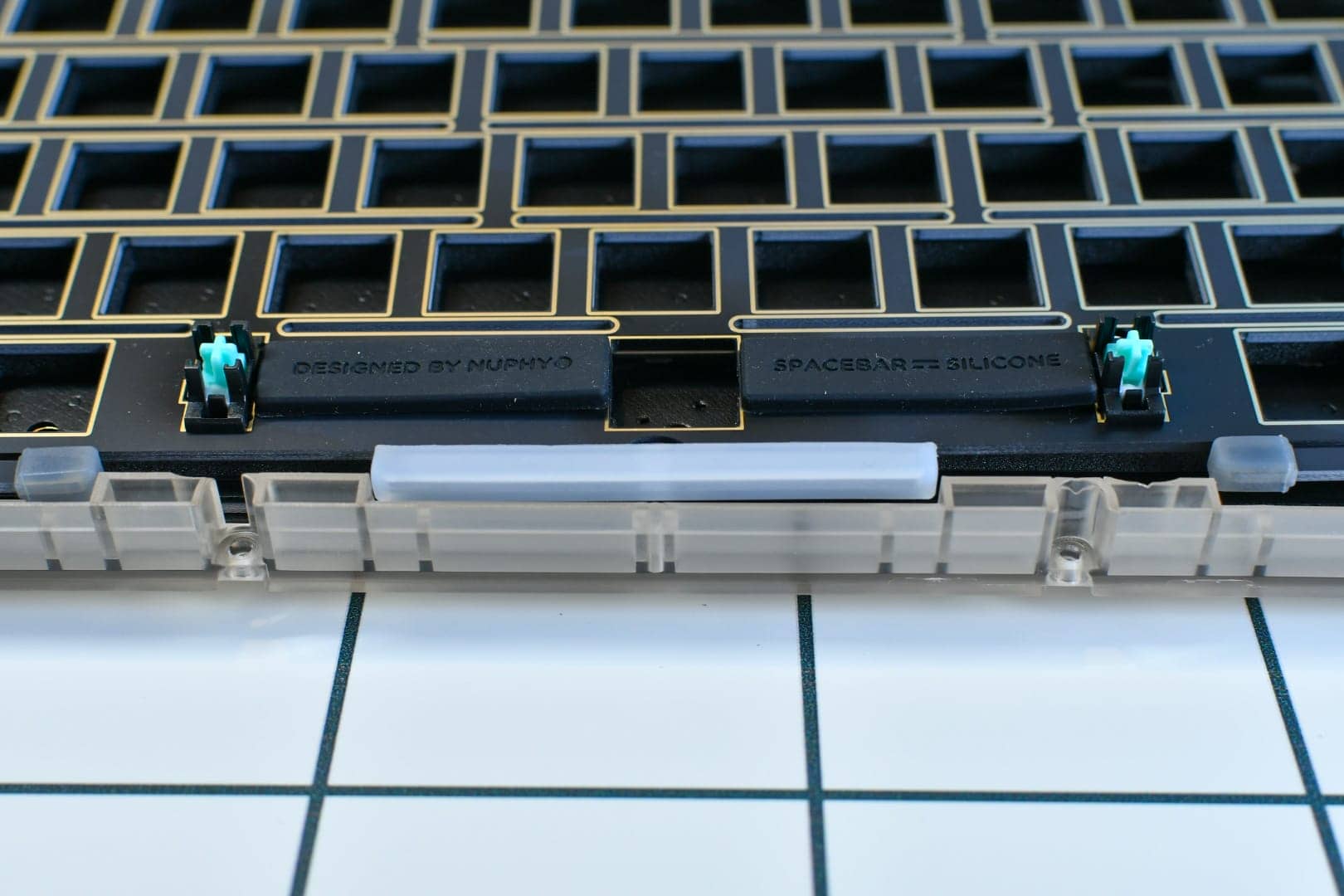

In addition, the space bar portion is embedded with sound-absorbing silicone, which, combined with the effect of NuPhy’s proprietary “Ghost Bar,” a space bar that suppresses hollow sounds, produces a very dead keystroke sound.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 41 NuPhy Gem80 41](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-41.jpg?strip=all&lossy=1&quality=70&ssl=1)
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 42 de6d87d8dad8c9f18f4205dd89037b0a](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/de6d87d8dad8c9f18f4205dd89037b0a.jpg?strip=all&lossy=1&quality=70&ssl=1)
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 13 Kawamura top R](https://greenwaves.jp/keys/wp-content/uploads/2022/07/Kawamura-top_R-150x150.jpeg)
Because the space bar is long and has a large space, it often has a poor sound when compared to other keys, but this key had almost no difference in sound compared to other keys.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 44 NuPhy Gem80 50](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-50.jpg?strip=all&lossy=1&quality=70&ssl=1)
LEDs are installed facing south.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 5 Coupon NuPhy 400](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/06/Coupon-NuPhy-400-200px.jpg?strip=all&lossy=1&quality=70&ssl=1)
Discount Code: ryo10
to save 10% off your purchase.
Japanese users, please click here (technical compliance).
Products only available at NuPhy Official
(Coupon code supported)
Key switch installed
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 46 NuPhy Gem80 18](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-18.jpg?strip=all&lossy=1&quality=70&ssl=1)
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 47 NuPhy Gem80 17](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-17.jpg?strip=all&lossy=1&quality=70&ssl=1)

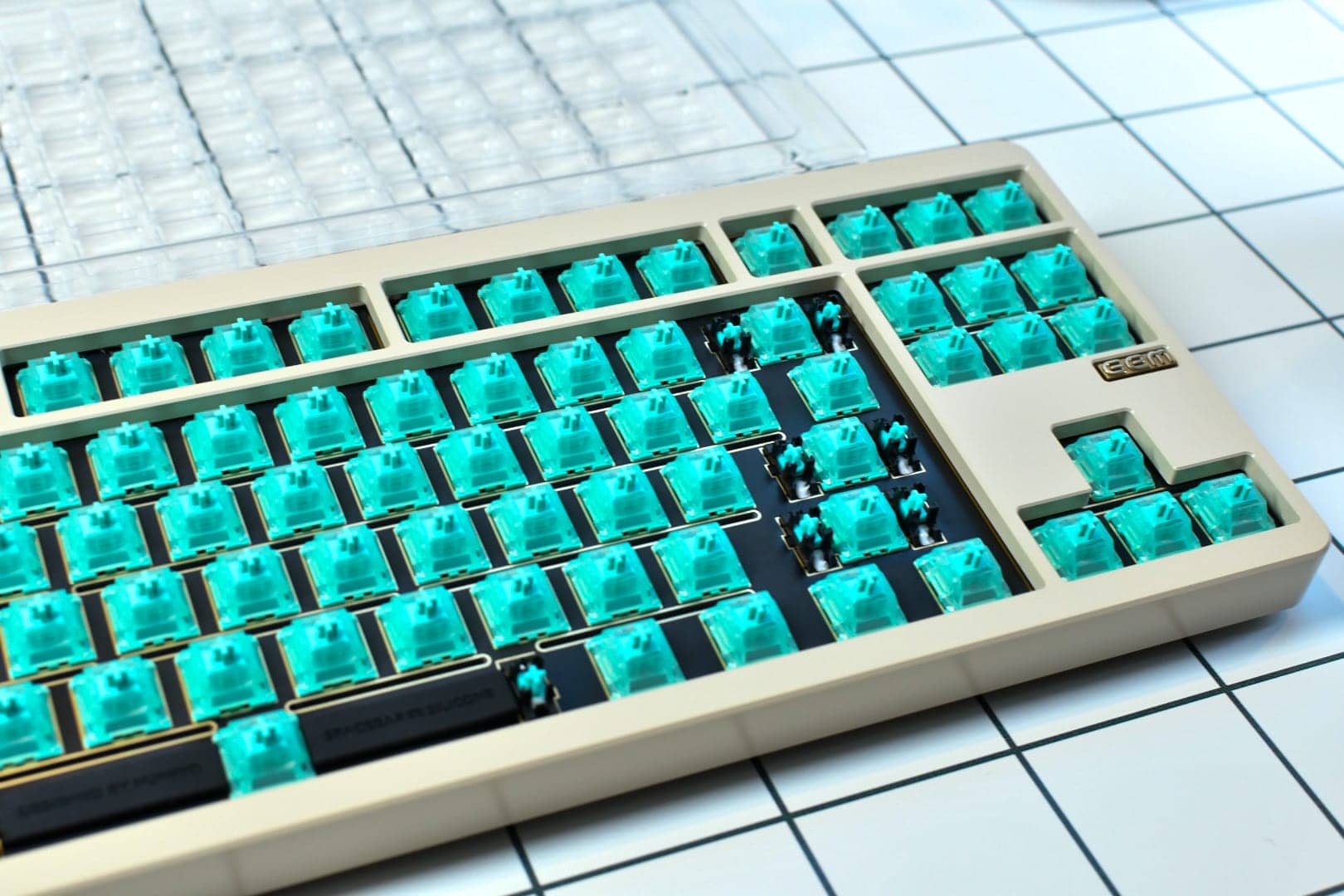

Let’s turn on the key switch.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 48 NuPhy Gem80 24 1](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-24-1.jpg?strip=all&lossy=1&quality=70&ssl=1)

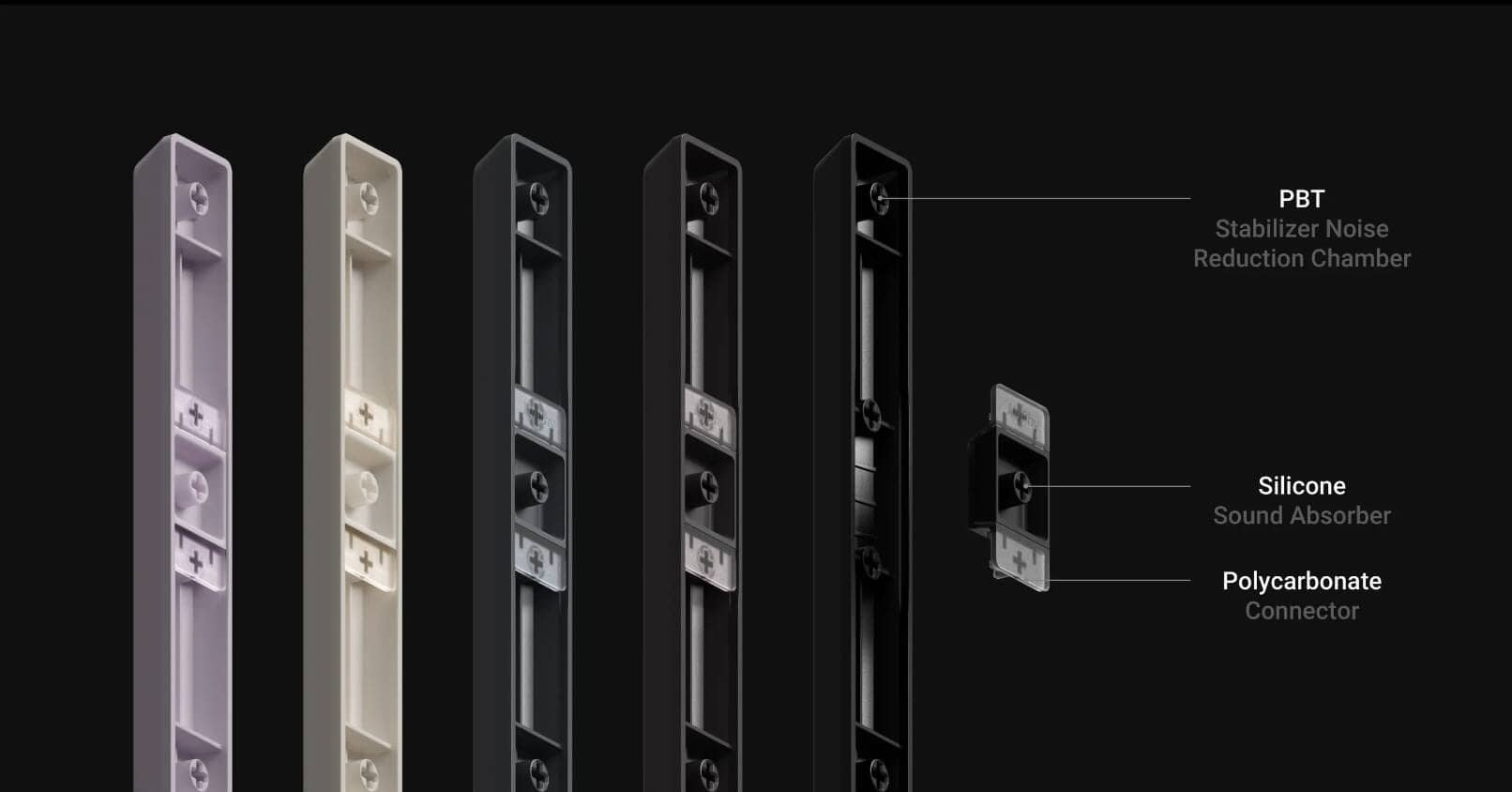

The stabilizer color and key switch color are the same, giving it a very uniform and beautiful appearance.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 49 NuPhy Gem80 22 1](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-22-1.jpg?strip=all&lossy=1&quality=70&ssl=1)
The plates have “slits” like this to ensure an even keystroke feel.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 50 NuPhy Gem80 20](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-20.jpg?strip=all&lossy=1&quality=70&ssl=1)
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 51 NuPhy Gem80 19](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-19.jpg?strip=all&lossy=1&quality=70&ssl=1)
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 52 NuPhy Gem80 11](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-11.jpg?strip=all&lossy=1&quality=70&ssl=1)
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 53 NuPhy Gem80 10](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-10.jpg?strip=all&lossy=1&quality=70&ssl=1)
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 54 NuPhy Gem80 08](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-08.jpg?strip=all&lossy=1&quality=70&ssl=1)
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 55 NuPhy Gem80 15 1](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-15-1.jpg?strip=all&lossy=1&quality=70&ssl=1)

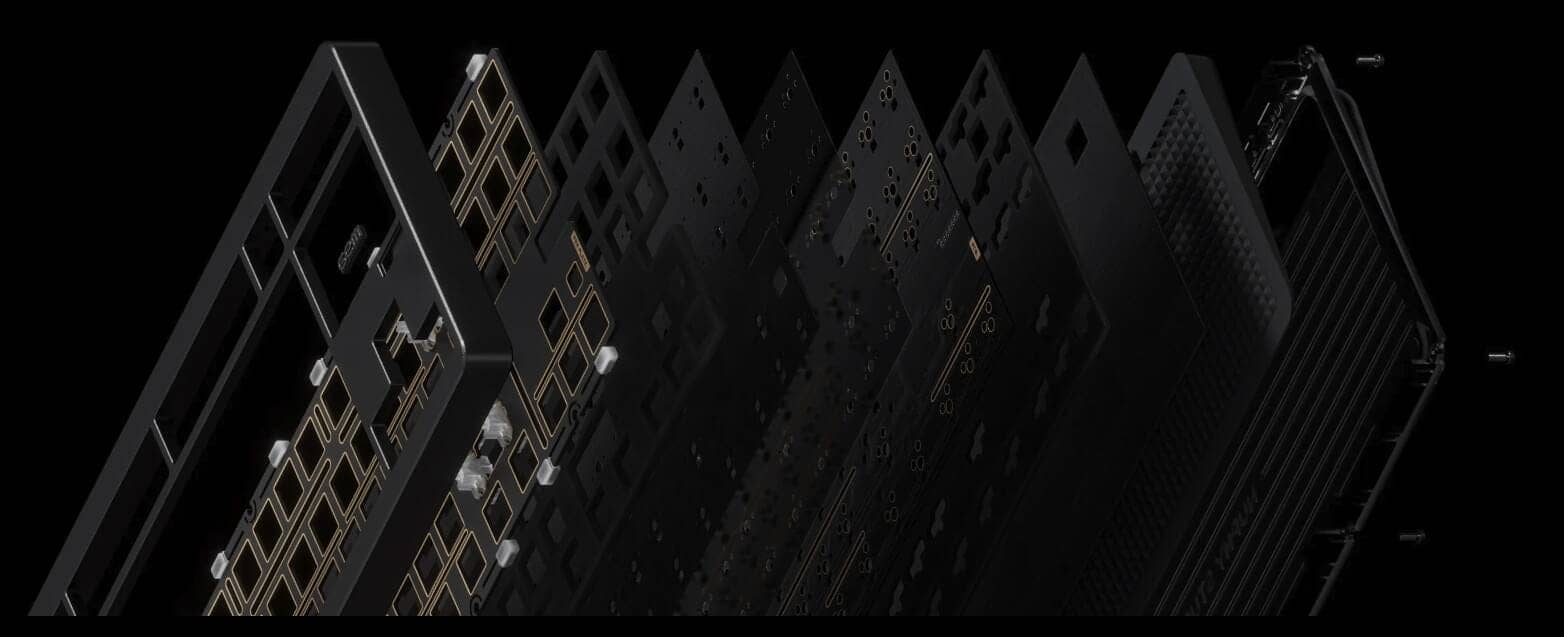

Disassembly and internal structure check
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 56 NuPhy Gem80 41](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-41.jpg?strip=all&lossy=1&quality=70&ssl=1)
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 57 NuPhy Gem80 40 1](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-40-1.jpg?strip=all&lossy=1&quality=70&ssl=1)

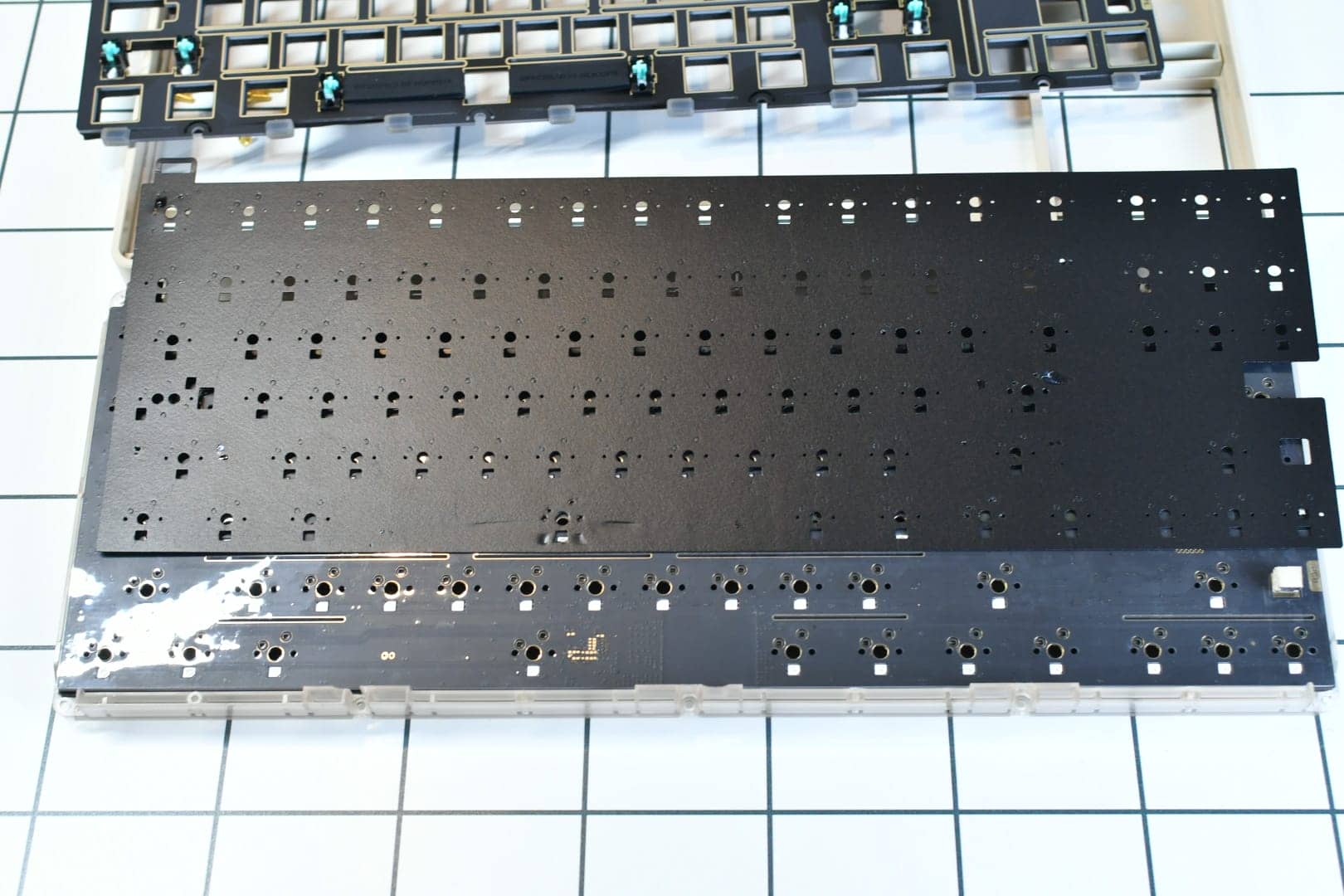

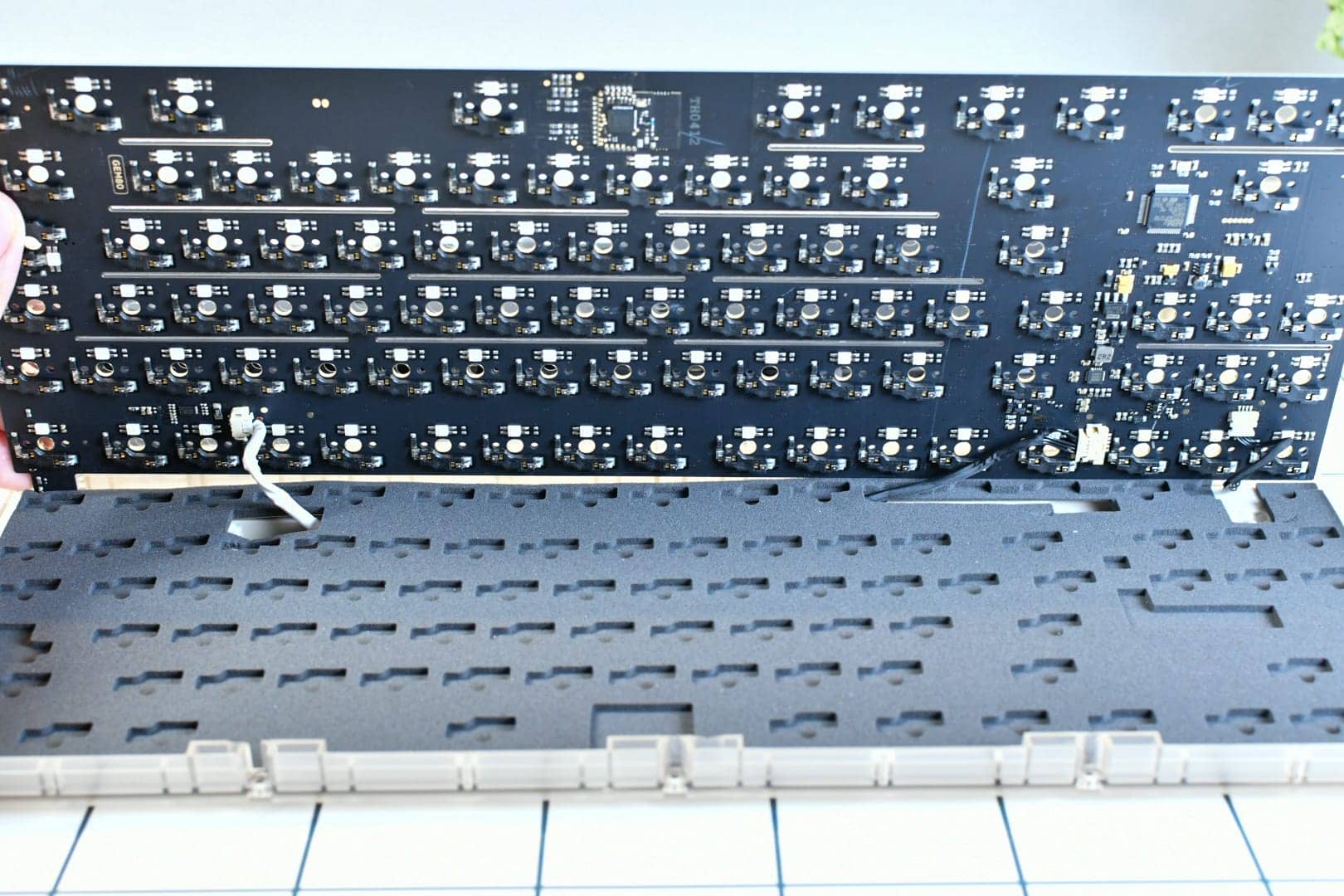

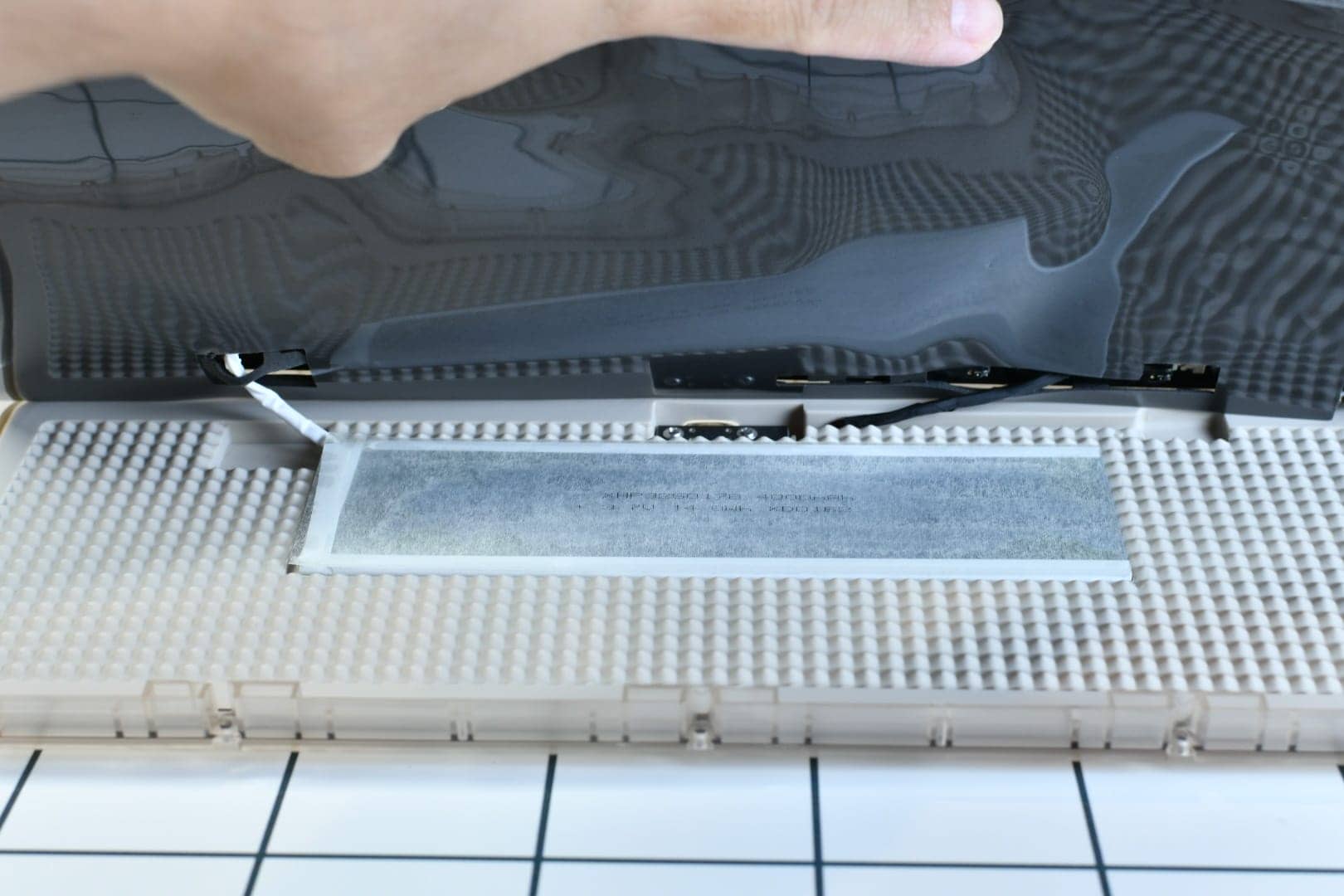

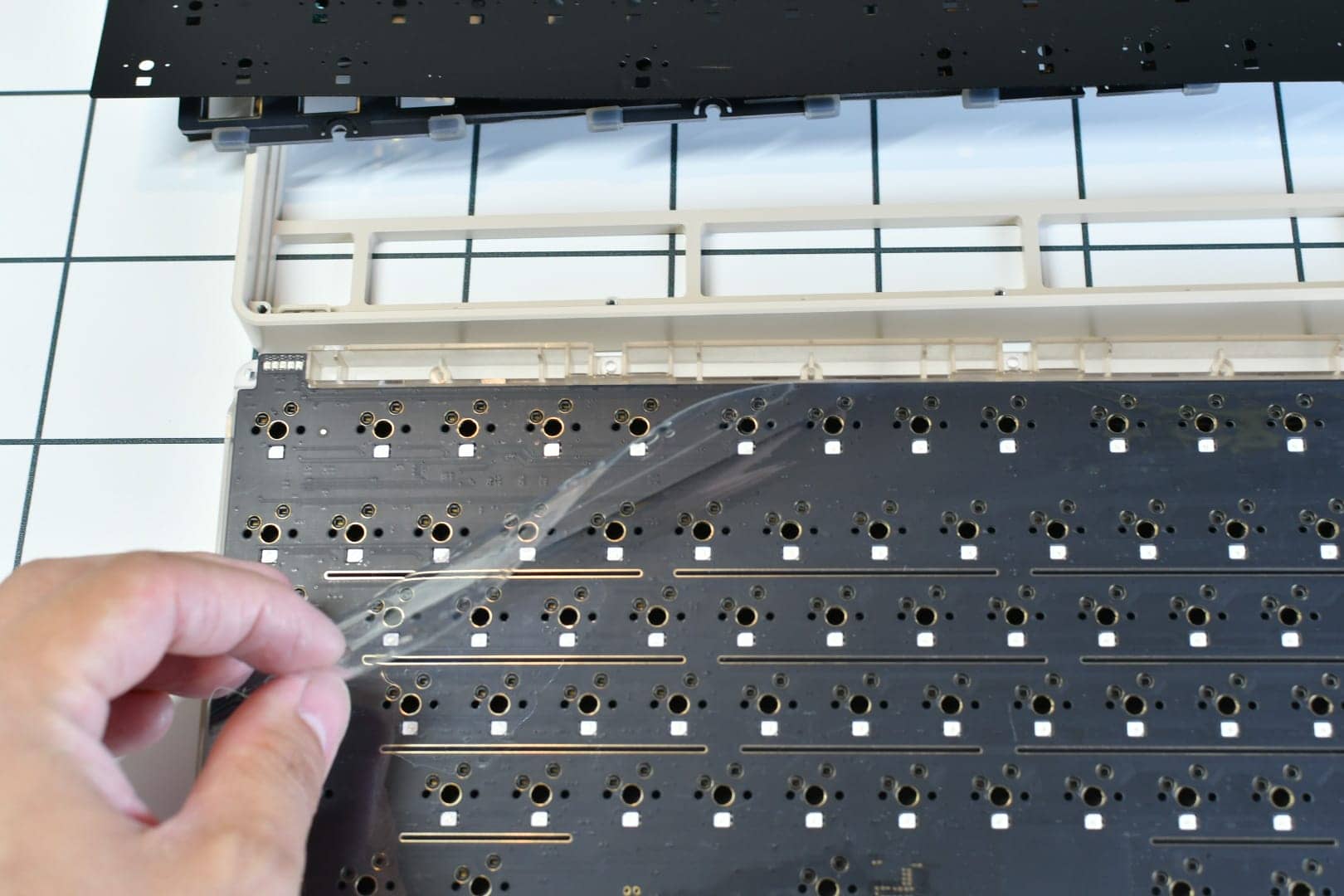

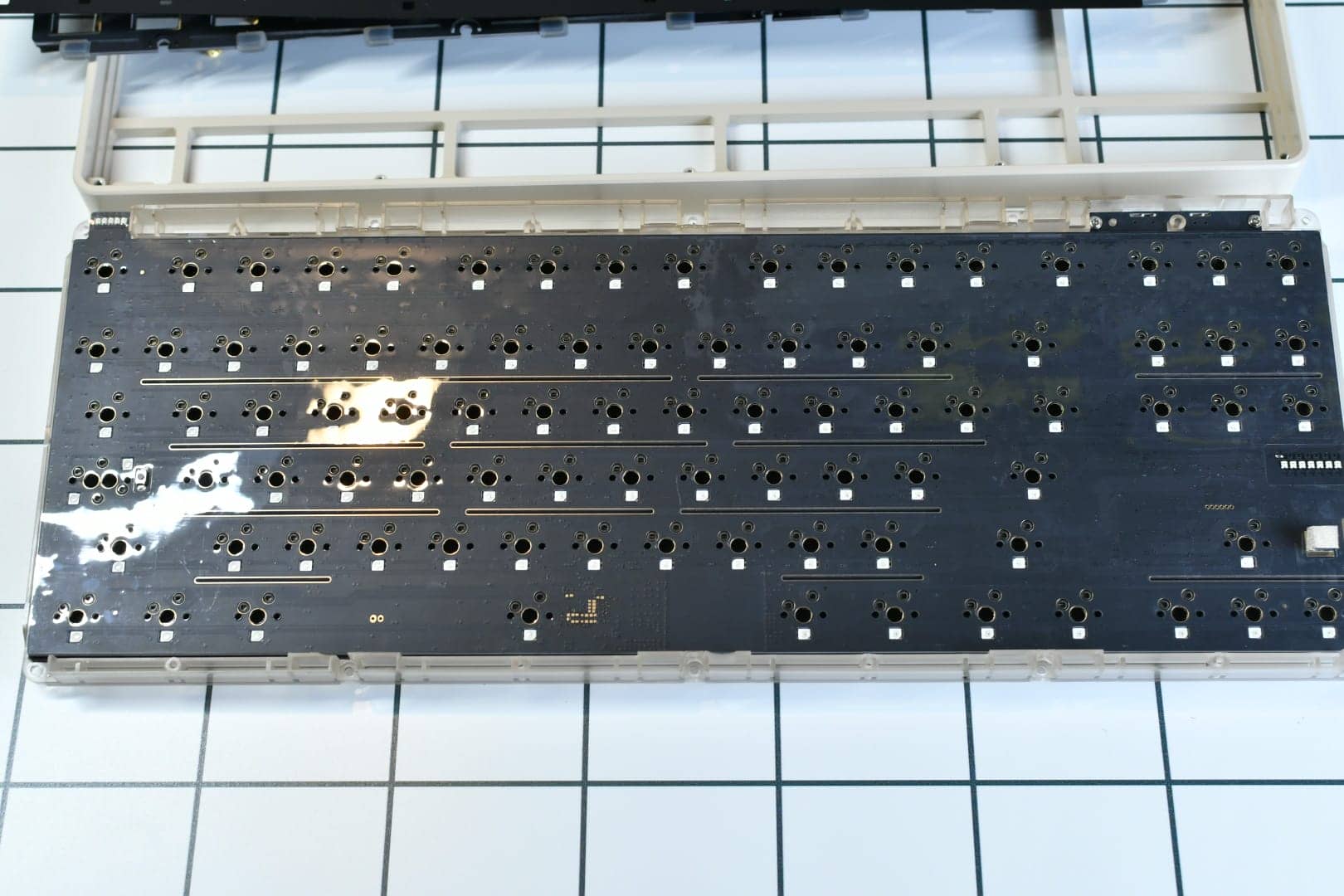

Removing the 10 screws on the bottom removes the top case and exposes the switch plate.

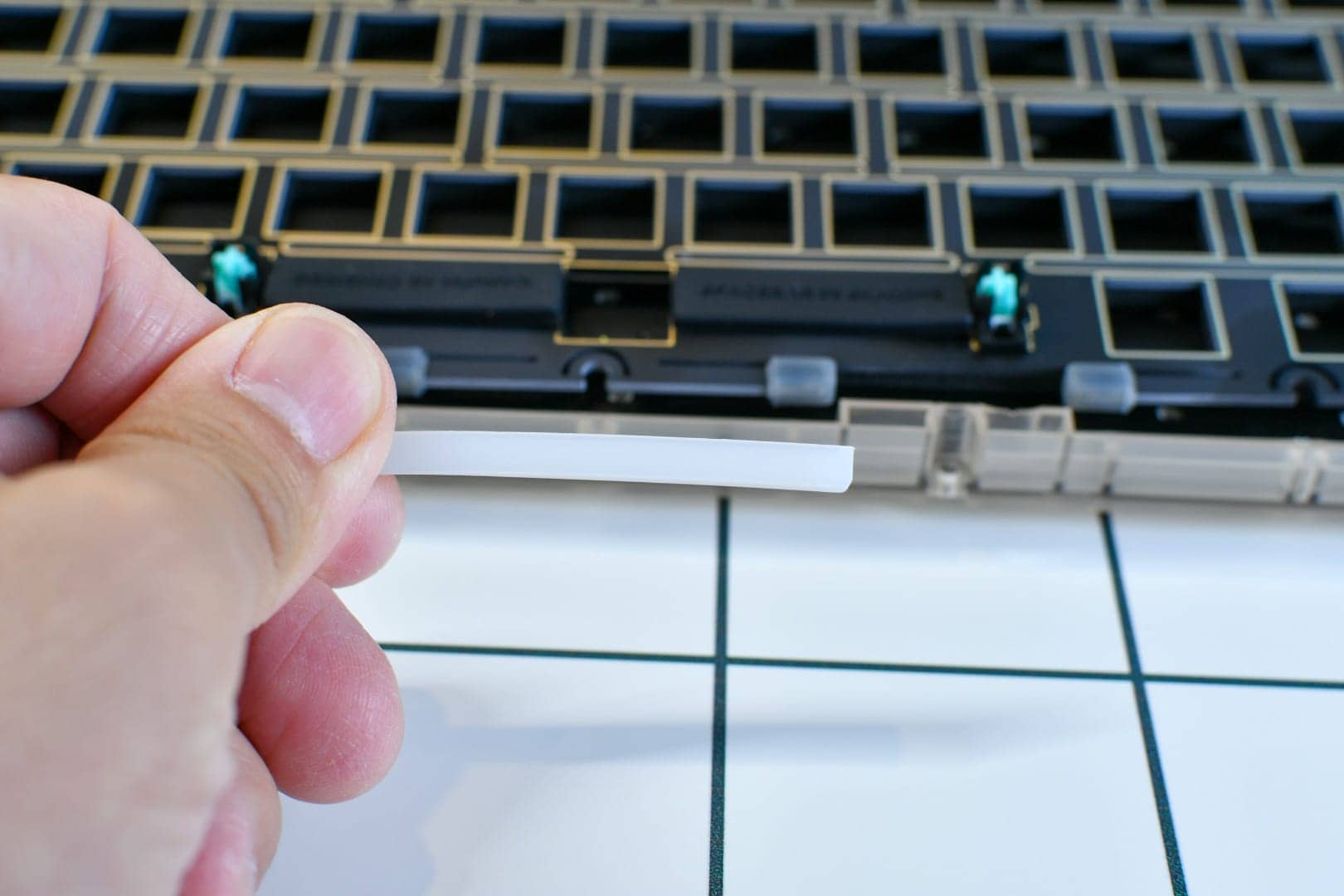

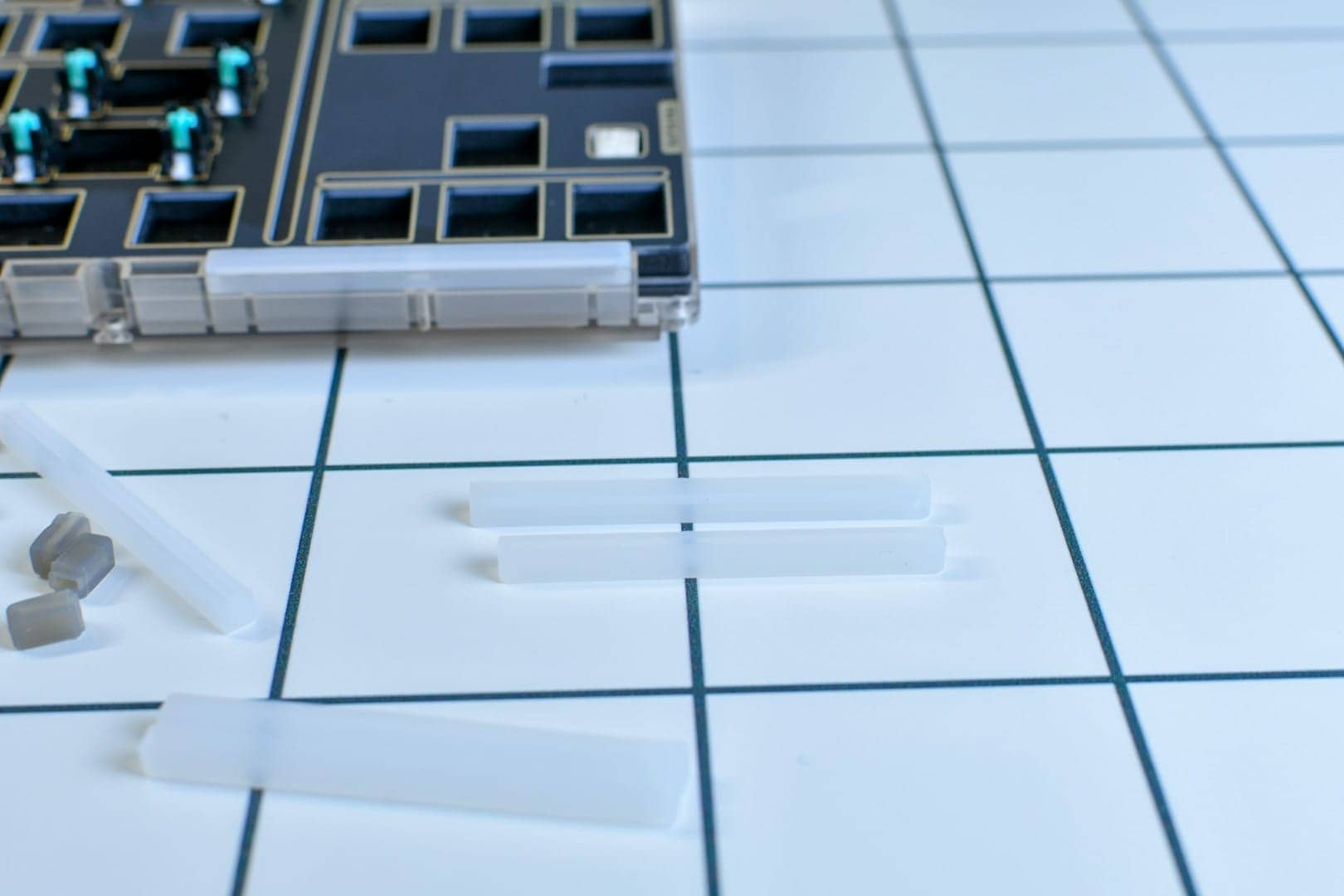

By default, silicone is placed in various places like this, which is sandwiched between the bottom case and the gasket-mounted structure.
You will notice that there is a special cushioning foam under the plate.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 58 NuPhy Gem80 39](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-39.jpg?strip=all&lossy=1&quality=70&ssl=1)
Removing the switch plate reveals one more piece of sound-absorbing material.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 59 NuPhy Gem80 38](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-38.jpg?strip=all&lossy=1&quality=70&ssl=1)
Underneath is a transparent sheet that is supposed to protect the PCB.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 60 NuPhy Gem80 37](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-37.jpg?strip=all&lossy=1&quality=70&ssl=1)
It can be easily removed by hand.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 61 NuPhy Gem80 36](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-36.jpg?strip=all&lossy=1&quality=70&ssl=1)
Lift the PCB to reveal the bottom cushion.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 62 NuPhy Gem80 35 1](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-35-1.jpg?strip=all&lossy=1&quality=70&ssl=1)
Underneath the bottom cushion is a silicone pad with a battery in the center.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 63 4f03125f3213051c559e168a33e8db20](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/4f03125f3213051c559e168a33e8db20.jpg?strip=all&lossy=1&quality=70&ssl=1)
As you can see, a whopping six layers of sound-absorbing material have been incorporated, and this is what makes Gem80’s thumping sound.
How to change the mounting method
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 64 a2be82c364dd884caeb6a8092cc4ae26](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/a2be82c364dd884caeb6a8092cc4ae26.jpg?strip=all&lossy=1&quality=70&ssl=1)
As described in the manual, Gem80 can be modified by selecting your preferred style from among four mounting methods.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 65 NuPhy Gem80 51](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-51.jpg?strip=all&lossy=1&quality=70&ssl=1)
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 66 NuPhy Gem80 32](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-32.jpg?strip=all&lossy=1&quality=70&ssl=1)
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 67 NuPhy Gem80 31](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-31.jpg?strip=all&lossy=1&quality=70&ssl=1)
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 68 NuPhy Gem80 33](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-33.jpg?strip=all&lossy=1&quality=70&ssl=1)
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 69 NuPhy Gem80 34](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-34.jpg?strip=all&lossy=1&quality=70&ssl=1)
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 70 NuPhy Gem80 45 1](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-45-1.jpg?strip=all&lossy=1&quality=70&ssl=1)
To access the plate, the 10 screws on the bottom must be removed with a special screwdriver.
It is advisable to lay down the provided cloth to prevent scratches on the keytops and keyboard.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 71 NuPhy Gem80 44](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-44.jpg?strip=all&lossy=1&quality=70&ssl=1)
Once the screws are removed, the top case can be lifted upward and removed.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 72 NuPhy Gem80 43](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-43.jpg?strip=all&lossy=1&quality=70&ssl=1)
By default, the silicon sock is fitted, but this can be removed and replaced with other parts.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 73 NuPhy Gem80 34](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-34.jpg?strip=all&lossy=1&quality=70&ssl=1)
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 74 NuPhy Gem80 33](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-33.jpg?strip=all&lossy=1&quality=70&ssl=1)
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 75 NuPhy Gem80 30](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-30.jpg?strip=all&lossy=1&quality=70&ssl=1)
However, when using silicone strips, only the upper left portion is shorter in length, so find shorter ones in advance.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 76 NuPhy Gem80 29 1](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-29-1.jpg?strip=all&lossy=1&quality=70&ssl=1)
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 77 NuPhy Gem80 28](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-28.jpg?strip=all&lossy=1&quality=70&ssl=1)
It is also fun to find your favorite key feel by replacing the top-mounted keys if you prefer a harder feel, or by using silicone strips if you prefer a softer feel!
Why I recommend NuPhy Gem80
I recommend Gem80 for the following three reasons.
- Extremely wide range of customization and enjoyment in a single vehicle
- Thocky typing feel is great.
- Beautiful transparent look.
- Independent LED control.
Extremely wide range of customization and enjoyment in a single vehicle
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 31 NuPhy Gem80 27 1](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-27-1.jpg?strip=all&lossy=1&quality=70&ssl=1)
The most attractive feature, after all, is the extremely wide range of customization!
The Omni-Mount System, which allows users to enjoy four different keystroke sensations, is a very rare mechanism in the custom keyboard world, and it is wonderful to be able to experience four different keystroke sensations on this one unit.
In addition to the default FR4 plate, three other types of plates are available, allowing a total of 16 different combinations of plates and combinations to be tried.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 40 6d8935b93f305f1c8b5b86dcb65c9cc0](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/6d8935b93f305f1c8b5b86dcb65c9cc0.jpg?strip=all&lossy=1&quality=70&ssl=1)
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 13 Kawamura top R](https://greenwaves.jp/keys/wp-content/uploads/2022/07/Kawamura-top_R-150x150.jpeg)
The difference in plates makes a big difference in key feel.
Plates made of metal are hard, while those made of resin are soft, and the degree of repulsion differs greatly between the two, so it will be a very good experience to experience the difference.
Thocky typing feel is great.
The Gem80 has a “thocky” finish that sets it apart from the typical custom keyboard typing experience.
There are a great variety of factors that affect keystroke sound, of which I personally believe a large weight is placed on how sound-absorbing materials are incorporated.
I have never encountered a keyboard with six layers of sound-absorbing material in it other than the Gem80.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 63 4f03125f3213051c559e168a33e8db20](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/4f03125f3213051c559e168a33e8db20.jpg?strip=all&lossy=1&quality=70&ssl=1)
This “angular and slightly muted keystroke sound” has a strong ASMR element and will be addictive.
Beautiful transparent look.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 21 NuPhy Gem80 07 1](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-07-1.jpg?strip=all&lossy=1&quality=70&ssl=1)
Gem80 also excels in its design.
The combination of an aluminum top case and a transparent PC bottom case is clean, transparent, and will add color to your desk.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 5 Coupon NuPhy 400](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/06/Coupon-NuPhy-400-200px.jpg?strip=all&lossy=1&quality=70&ssl=1)
Discount Code: ryo10
to save 10% off your purchase.
Japanese users, please click here (technical compliance).
Products only available at NuPhy Official
(Coupon code supported)
Things to keep in mind before buying NuPhy Gem80
- The price is commensurate with the value.
- Barebone kit requires self-assembly
The price is commensurate with the value.
The Gem80 is a keyboard with great mechanisms and looks, but it is still priced accordingly.
The price is 38,280 yen (including tax) in bare-bones form, and 51,040 yen (including tax) with keycaps and keyswitches attached, so you need to be prepared to spend a certain amount of money to purchase it.
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 13 Kawamura top R](https://greenwaves.jp/keys/wp-content/uploads/2022/07/Kawamura-top_R-150x150.jpeg)
There are many different price ranges for keyboards, but the Gem80 is a mid-spec product, so we still think it is a good choice for those who are into mechanical keyboards to some extent, as it is a high hurdle to purchase as a first unit and may not be worth it. If you are into mechanical keyboards and want to buy a second one, you will be more than satisfied with this product.
Barebone kit requires self-assembly
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 71 NuPhy Gem80 44](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-44.jpg?strip=all&lossy=1&quality=70&ssl=1)
The Gem80 is a “barebone kit” and requires self-assembly.
However, assembly is not a difficult task, as all that is required is to install the keyswitch and attach the keycaps.
It will take about 30 minutes to assemble without any problems.
Caution] Firmware Update

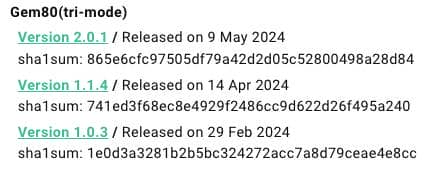

![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 86 a9a698172eda37c45386b4bb0024d158](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/a9a698172eda37c45386b4bb0024d158.jpg?strip=all&lossy=1&quality=70&ssl=1)
As for Gem80, the firmware is being updated and the firmware of the product you received may not be up-to-date.
If the firmware is not up-to-date, keymap changes using VIA will not be reflected or loaded.
There is no way to check the firmware on the surface, but if you are experiencing problems with the VIA after purchase, try updating the firmware.
procedure
Download the “QMK Toolbox” software installation program appropriate for your operating system from this page and install it on your computer.
- Open the QMK Toolbox and from the “Open” section, point to the Gem80 firmware file (.hex/ or .bin) that you downloaded. (If the file is compressed with Zip, decompress it. Make sure you check the extension)
- Hold down the ESC key and connect the Gem80 to the wire.
- When yellow text appears, release the ESC button.
- Press the “Flash” button in the QMK Toolbox.
- The “Complete” message is displayed.
summary
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 87 NuPhy Gem80 08](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/07/NuPhy-Gem80-08.jpg?strip=all&lossy=1&quality=70&ssl=1)
This is my review of the Gem80.
I have reviewed numerous NuPhy products, of which Gem80 is my personal favorite.
The hard, percussive sound of the Halo series is also good, but if you prefer a quiet, thumping sound, this is the one for you.
Gem80 can be purchased at a 10% discount by using the coupon code below through a partnership between GreenKeys and NuPhy Japan.
Please consider this opportunity!
![NuPhy Gem80 Review|Custom keyboard with a variety of keystrokes and ease of use 5 Coupon NuPhy 400](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/06/Coupon-NuPhy-400-200px.jpg?strip=all&lossy=1&quality=70&ssl=1)
Discount Code: ryo10
to save 10% off your purchase.
Japanese users, please click here (technical compliance).
Products only available at NuPhy Official
(Coupon code supported)
