Brand | Keychron®︎ |
Price | high-class |
JIS/US | US |
Keyboard Size | 75% |
Key Profile | Magnetic method (Normal Profile) |
Key Sounds | Choose what you like |
How to Connect | Bluetooth, USB |
Battery | usb-power, rechargeable |
Hotswap | hotswap-available |
Normal or Split | 非分割 |
Comment
- Crowdfunding begins on Kickstarter in December 2023.
- Shipping begins in March 2024.
- Barebone models start at $194.00, fully assembled models start at $214.00
- Originally planned to start crowdfunding in October 2023, ship in December 2023, and complete shipping in January 2024, but the plan appears to have been changed implicitly
- The first Keychron model with magnetic switches
- The base model appears to be the Keychron Q1.
- 75% layout
- Supports wired/wireless connection (wireless function is not available in Japan due to lack of technical qualification at the time of release)
- Possible to change the actuation point
- Equipped with rapid trigger function
- Equipped with double-switch action, which can also change the key to be input by shallow or deep presses
- CNC aluminum body
- Double gasket construction
- Based on QMK but with its own software to change settings
- Hot-swappable
- Click here for more information ▷▷▷
Information reference: https: //www.keychron.com/pages/keychron-q1-he
Where to Buy
- Keychron.jp
- Keychron.com|If you cannot find the product on the Japanese site, click here.
Types of Keychron and how to choose ▷▷▷
仕様詳細
Number of Keys | 82 (75% layout) |
Number of Multimedia Keys | 12 |
Layout | ANSI (US)/ISO |
Hot-Swappable | Yes |
Switch Type | Gateron 2.0 Magnetic Hall Sensor |
Keycap Material | OSA double-shot PBT keycaps (Non-shine-through) |
Switch Face | South-facing RGB |
Rapid Trigger | Yes |
Adjustable Actuation Points | 0.1-4.0 mm |
Sensitivity | 0.1 mm |
Dynamic Keystrokes | 4-in-1 action keys |
Compatible System | Mac/Windows/Linux |
Mode | 2.4GHz/Bluetooth/wired |
Bluetooth Version | 5.1 |
Bluetooth Operating Distance | Within 10 meters (Open space) |
Name of Bluetooth Device | Keychron Q1 HE |
Cable Length | 1.8 m |
Frame Material | Aluminum |
Plate Material | Aluminum |
Anti-ghosting | NKRO |
Polling Rate | 1000 Hz (2.4 GHz and Wired Mode) |
Polling Rate | 90 Hz (Bluetooth Mode) |
Response Time | 2-3 ms (2.4 GHz and Wired Mode) |
Battery Capacity | 4000 mAh |
Battery Type | Rechargeable li-polymer battery |
Backlight | 22 types of RGB backlight options plus endless possibilities |
Backlight Types | Flash/Breathing/Static etc. |
Charging Time | Around 5 hours |
Charging Port | USB type-C |
Dimension | 327.5 mm x 145 mm (12.9 x 5.7 inches) |
Weight (Fully Assembled Version) | About 1735 g / 3.83 lbs |
Height without Keycap (Front) | 21.6 mm (0.85 inches) |
Height without Keycap (Rear) | 34.8 mm (1.37 inches) |
Height incl. Keycap (Front) | 32.2 mm (1.26 inches) |
Height incl. Keycap (Rear) | 44.2 mm (1.74 inches) |
Operating Environment | -10 to 50°C (14 to 122°F) |
Information reference: https: //www.kickstarter.com/projects/keytron/keychron-q1-he-qmk-wireless-custom-magnetic-switch-keyboard?lang=ja
Selectable axis types

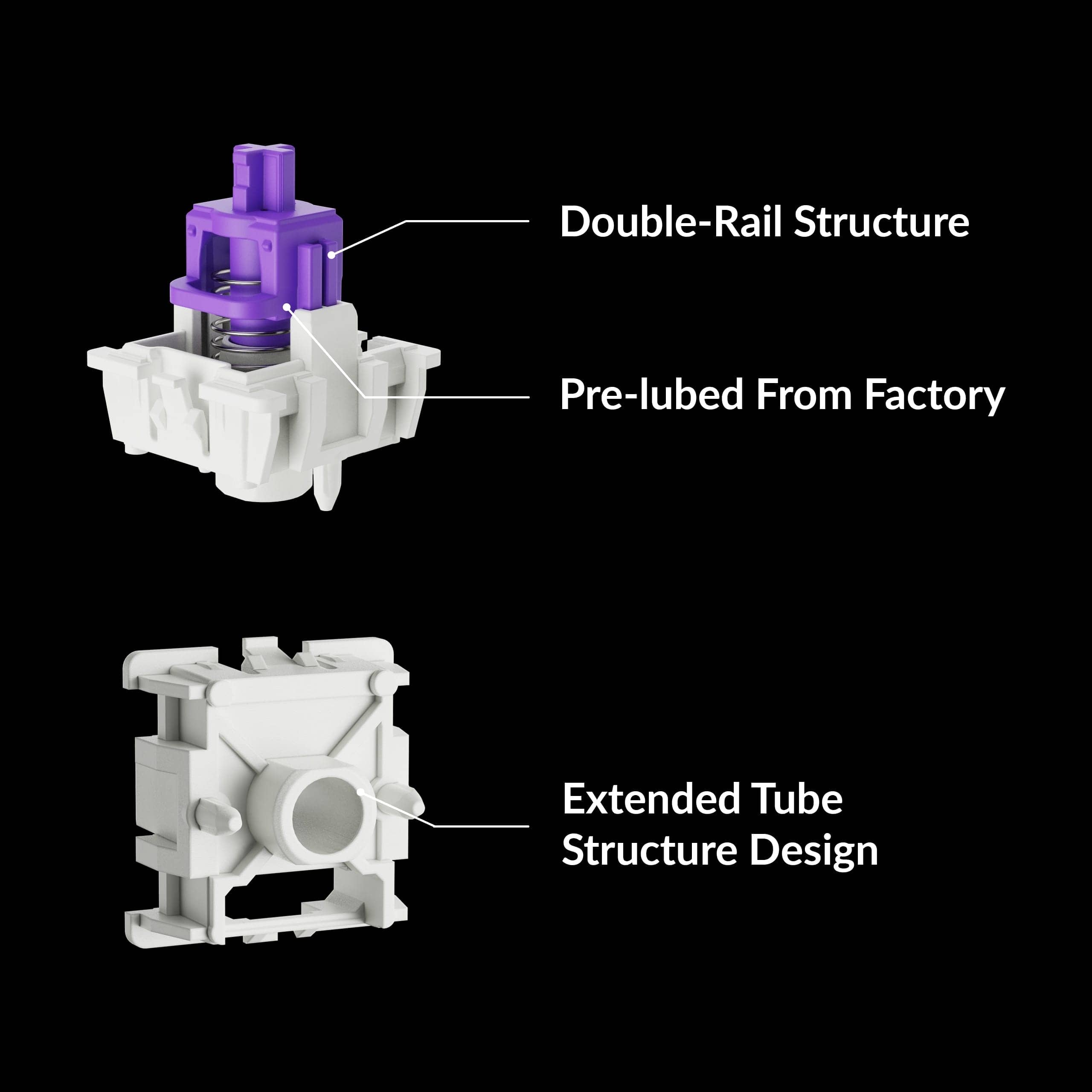

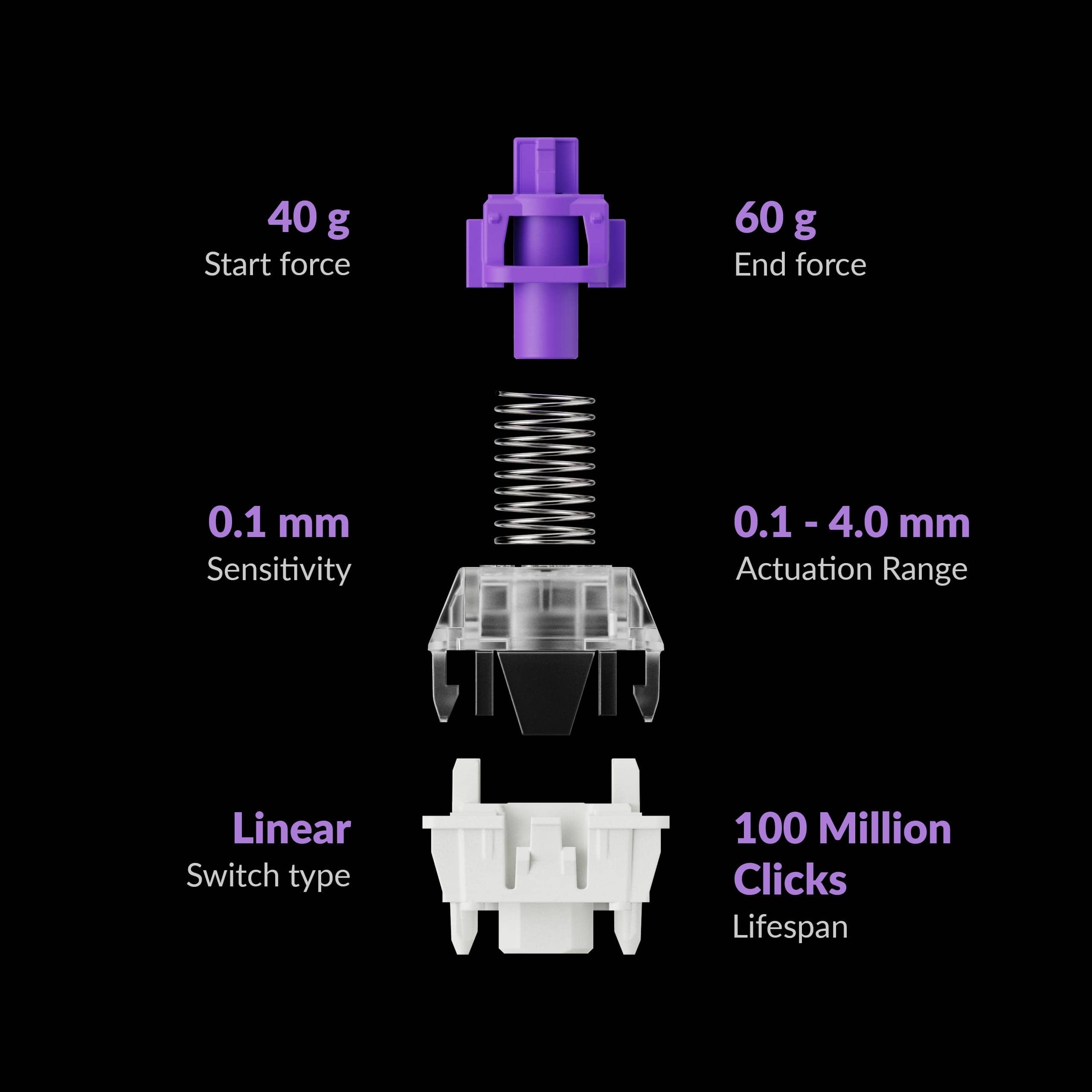

Currently, the only type of keyswitch that can be selected is the Gateron 2.0 Magnetic Switch.
The axis is a linear axis.
![Keychron Q1 HE 1 9eebea1165e277b989846e98d10cd890 original](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2023/12/9eebea1165e277b989846e98d10cd890_original.jpeg?strip=all&lossy=1&quality=70&ssl=1)
![Keychron Q1 HE 2 142e2a662f755e9c7bd8fd9cc214cc7c original](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2023/12/142e2a662f755e9c7bd8fd9cc214cc7c_original.jpeg?strip=all&lossy=1&quality=70&ssl=1)
