NuPhy launches Halo65HE, a 65% sized magnetic keyboard|Sold simultaneously in Japan

当ページのリンクには広告が含まれています。

On November 5, 2024, NuPhy announced the release of the Halo65HE, a 65% layout mechanical keyboard, through various channels.

Also, for the first time ever For the first time ever, the product will be “simultaneously released” with an authorized distributor in Japan.

https://twitter.com/NuPhyHE/statuses/1853739263357014136
https://twitter.com/nuphy_japan_m/statuses/1853755041884299699

現時点ではプレオーダーとなっています。

Halo65HEプレオーダー期間(本国サイト)

  • Reservations begin|November 5, 2024
  • Reservations no longer accepted|December 5, 2024
  • Scheduled to ship sequentially from December 5, 2024

The selling price on the official website of the home country is as follows. (We will add the price at the official distributor in Japan later.)

Halo65HE Sales Price

Price on the official website of the home country (Pre-order price)

  • Magnetic Coral switches model |$99.95 ($89.95)
  • Magnetic Jade Pro switches model|$109.95 ($99.95)

Japan Official Website Price

  • Magnetic Coral switches model
  • Magnetic Jade Pro switches model
Kawamura top RKawamura

Shipping from the official Japanese distributor is probably free for domestic shipments, and coupon codes are available even during the preorder period, making it the lowest price for the Japanese sales price.

Coupon NuPhy 400

Discount Code: ryo10

to save 10% off your purchase.

Japanese users, please click here (technical compliance).

Products only available at NuPhy Official
(Coupon code supported)

Let’s begin with a brief introduction to the specifications.

この記事の著者
Kawamura top R

Representative of GreenEchoes Studio

Ryosuke Kawamura

He launched his own media as a site operator and web writer, and now plans and manages multiple corporate media. He often types heavily in his work, and in his search for greater efficiency, he became addicted to the keyboard swamp and established “GreenKeys”.

タップできる目次

[blog_parts id="41919"]

Amazing selling price! Halo65HE Overview

a45789a6bd3c35bdcee3f57ac043497a

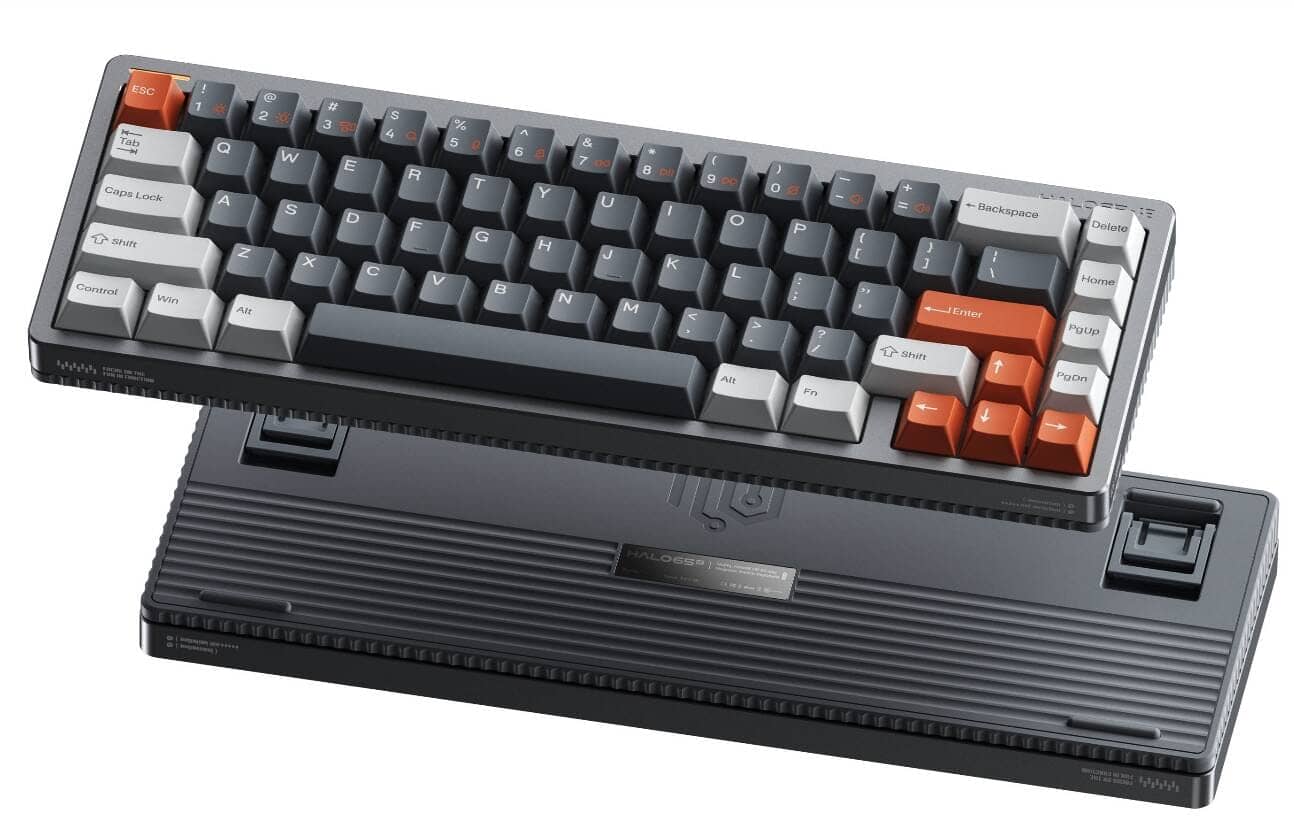

The Halo65HE is NuPhy’s third keyboard with magnetic switches, following the Field75HE and Air60HE.

What is still surprising is its pricing.

What a great deal, you can buy it for about $100.00.

Another feature of this product would be its overwhelmingly low price compared to the two previous magnetic keyboards.

Comparison with official website sales price

  • Halo65HE| $99.95-$109.95
  • Field75HE|$149.95-
  • Air60HE |$119.95-

Catalog Specifications

layoutANSI 65%.
Number of keys67
Switch typeStandard profile magnetic switch
Stabilizer typePlate Mount
Mounting typetop
Hot-swappableYes, sir.
N-key rollover supportYes, sir.
backlightSouth facing RGB-LED
backlight mode20
Supported SystemsmacOS/Windows/Linux/Android/iOS
operating environment-10 to 50°C
Wired Polling Rate8000Hz
PCB scan rate2500Hz
topcasealuminum (Al)
Bottom CaseABS
length318.0 mm (12.50 in.)
range (e.g. of voice)114.5 mm (4.50 in.)
Back Height28.3 mm (1.11 in.)
Front Height18.5 mm (0.73 in.)
weight788 grams (1.73 lbs.)
Type Angle5º/8.5º/12º
Coupon NuPhy 400

Discount Code: ryo10

to save 10% off your purchase.

Japanese users, please click here (technical compliance).

Products only available at NuPhy Official
(Coupon code supported)

Like the Air60HE, the Halo65HE has a “hypertap feature”.

To minimize the time lag between input and reflection, it is designed for wired connection only, and its polling rate is 8000 Hz!

It is eight times faster than the standard 1000 Hz of a normal gaming keyboard.

Also, The addition of the “HyperTap” feature from Air60HE is also a major feature The addition of the “HyperTap” feature, which was introduced in Air60HE, is also a major feature.

As shown in this video, the value of another key is automatically triggered when the preset reset value is exceeded when the key is released.

Specifically, it seems to be intended for use in shooting games, for example, when the button is pressed to shoot in the front direction and the button is released slightly to shoot in the opposite direction.

Halo65HE keystroke sound

While many products have been disappointing when it comes to the sound of magnetic keyswitches, the Halo65HE seems to be a bit different.

The Halo series is known for its percussive percussion sound.

Although the keystroke sound is “high,” I got the impression that it is tuned like the Halo series.

The most important factors affecting keystroke sound are the top plate mounting mechanism, sound-absorbing materials, and bottom case material.

From the specs information and photos, it appears that the bottom case is made of the same ABS material as the Field75HE and the top plate is aluminum.

The mock image does not show the PCB, but I believe the order from top to bottom is aluminum plate, Poron (top), PCB, silicone, and Poron (bottom).

As a trade-off for cost, it does not appear to be constructed with a silicone cap as seen in the Field75HE.

Halo65HE Features

e17ccf85bf76aa7a64d99a5ebfb0d6e0

This section describes the broad features of the Halo65HE.

Functions specific to magnetic keyboards

In addition to hypertap, the following magnetic keyboard-specific effects are available

Halo65HE Effects

  • EX-actuate
  • Rapid Trigger
  • Hyper Tap
  • Dynamic Keystroke

Please refer to the following for other functions introduced on the product page. (Created by Generated AI)

  • Rapid Trigger (RT ) – “Rapid Trigger” refers to a highly sensitive keyswitch technology that responds to the slightest press of a key. This allows players to make fast, continuous keystrokes, increasing their reaction time in the game.
  • Rapid Shift (RS) – “Rapid Shift” technology is the ability to press certain keys to temporarily change the function of other keys. This allows players to quickly execute different commands, making gameplay more efficient.
  • SOCD (Simultaneous Opposing Cardinal D irections) – also called ” Simultaneous Opposing Cardinal D irections” – refers to how the arcade stick, especially used in fighting games, handles inputs when two opposing directions (e.g. left and right) are pressed simultaneously. This refers to how the software handles inputs when two opposing directions (e.g., left and right) are pressed simultaneously, especially on arcade sticks used in fighting games. Usually, the software has specific rules to resolve such inputs to one direction.

KDS/MT/TGL

  • KDS – Depending on the context, this may refer to a feature or system specific to a particular game or device.
  • MT (Mod-Tap) – ” Mod-Tap” is a feature that allows a key to be set to function as a normal key code when pressed briefly and as a modifier key when pressed long. This allows multiple actions to be performed with the same key, increasing the customizability of the keyboard.
  • TGL (Toggle) – A “toggle” is a feature that causes a key to behave in such a way that pressing it once turns it on and again turns it off. This is especially used to turn LEDs on and off or to enable/disable certain functions.
Coupon NuPhy 400

Discount Code: ryo10

to save 10% off your purchase.

Japanese users, please click here (technical compliance).

Products only available at NuPhy Official
(Coupon code supported)

About design and function

a7eb6b4c590d4cb8f8cf4cb738594593

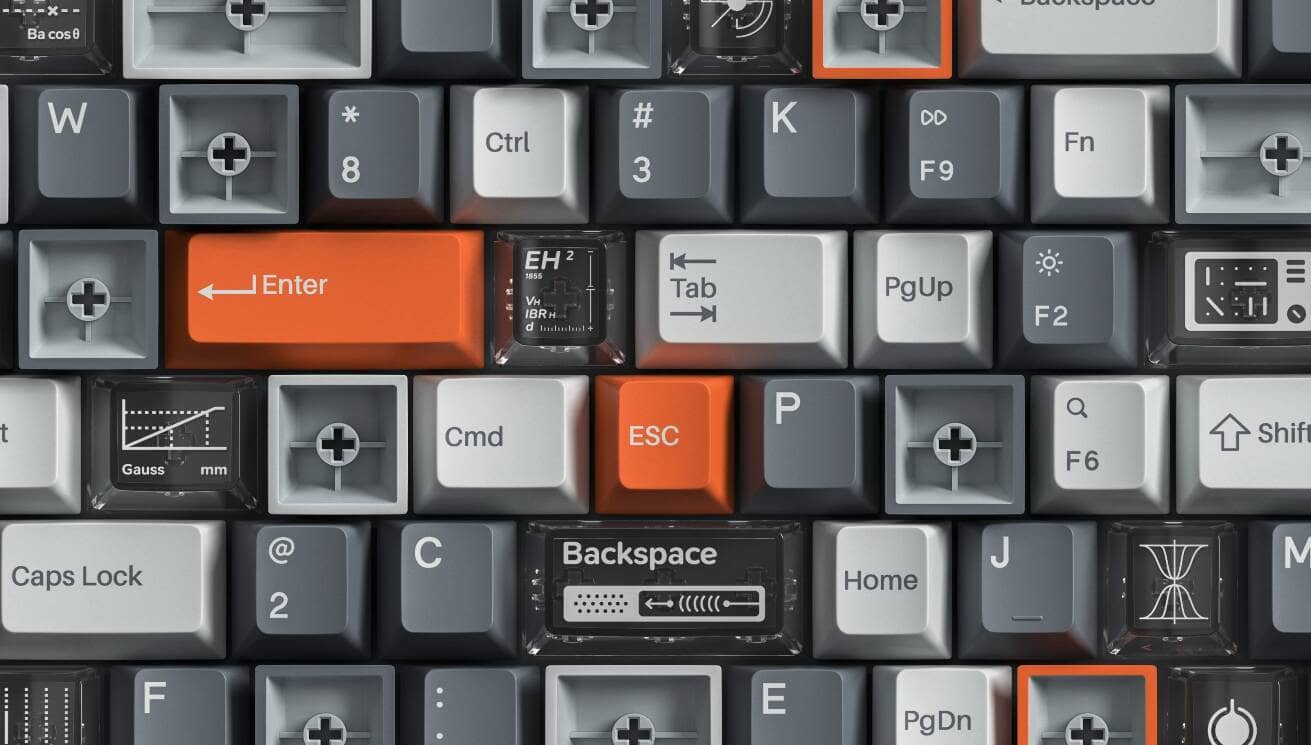

The keycaps use the popular Cherry profile.

The material used is PBT, and the printing method is double shot, which provides excellent oil and abrasion resistance.

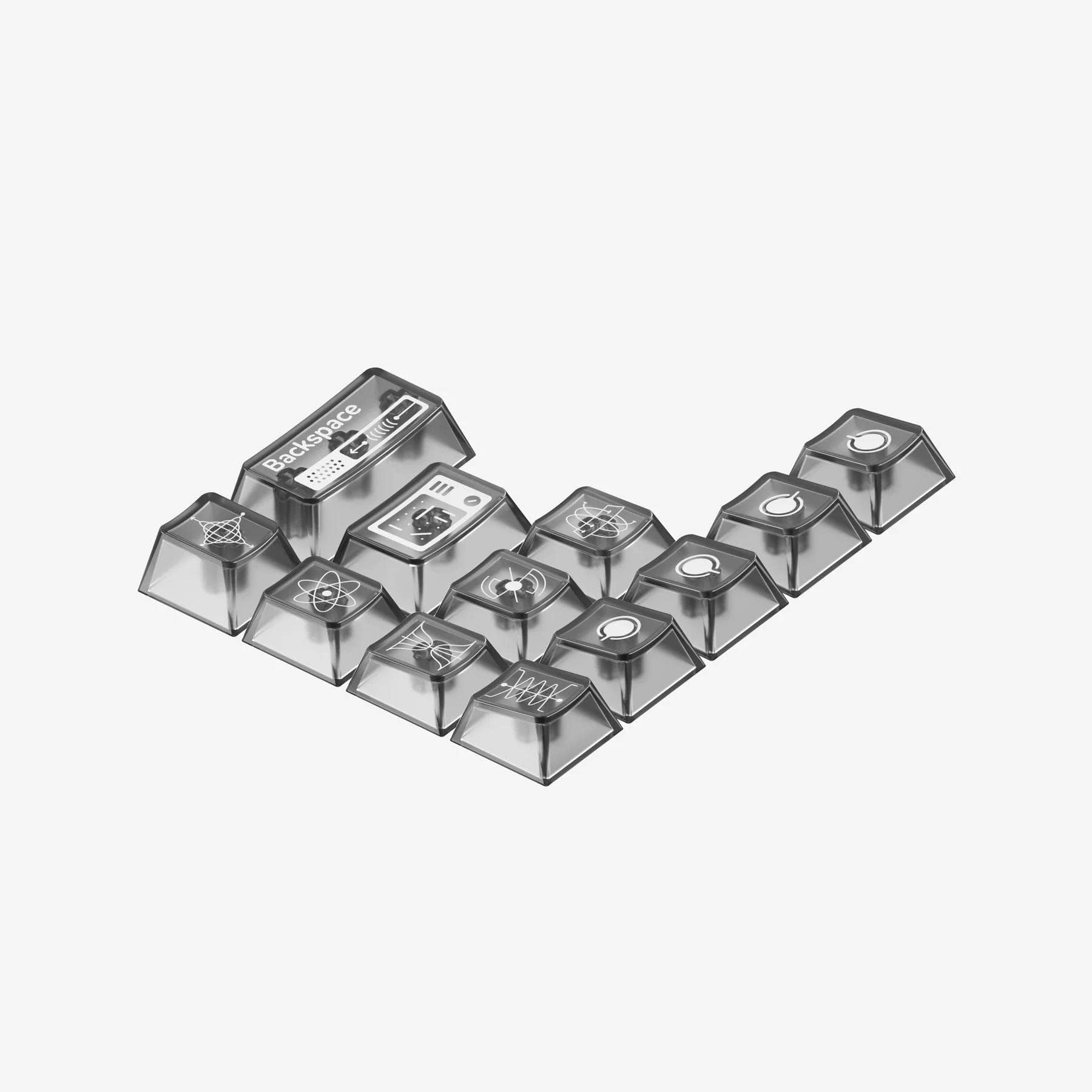

In addition to the default keycap, a clear black accent keycap, Crystal Cherry ($15.00), can be added this time.

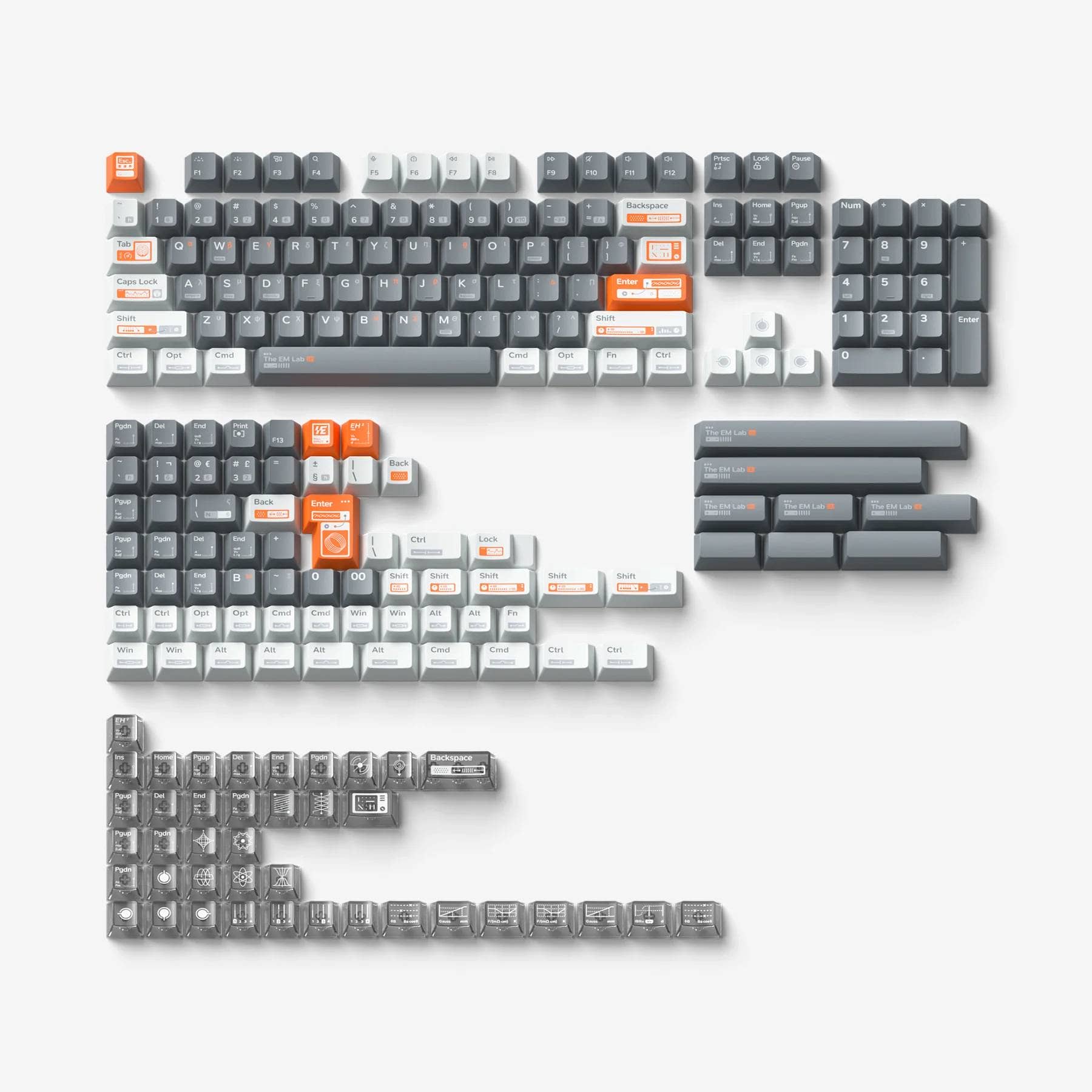

Other sets include EM Lab Cherry ($59.00), a full keycap set with Halo65HE taste.

Of course, the space bar uses Ghostbar, which suppresses the reverberation sound of keystrokes.

bda580856af5afd22193b0bc21c68785

Check carefully that the full keycap set is not identical to the default keycap.

a45789a6bd3c35bdcee3f57ac043497a

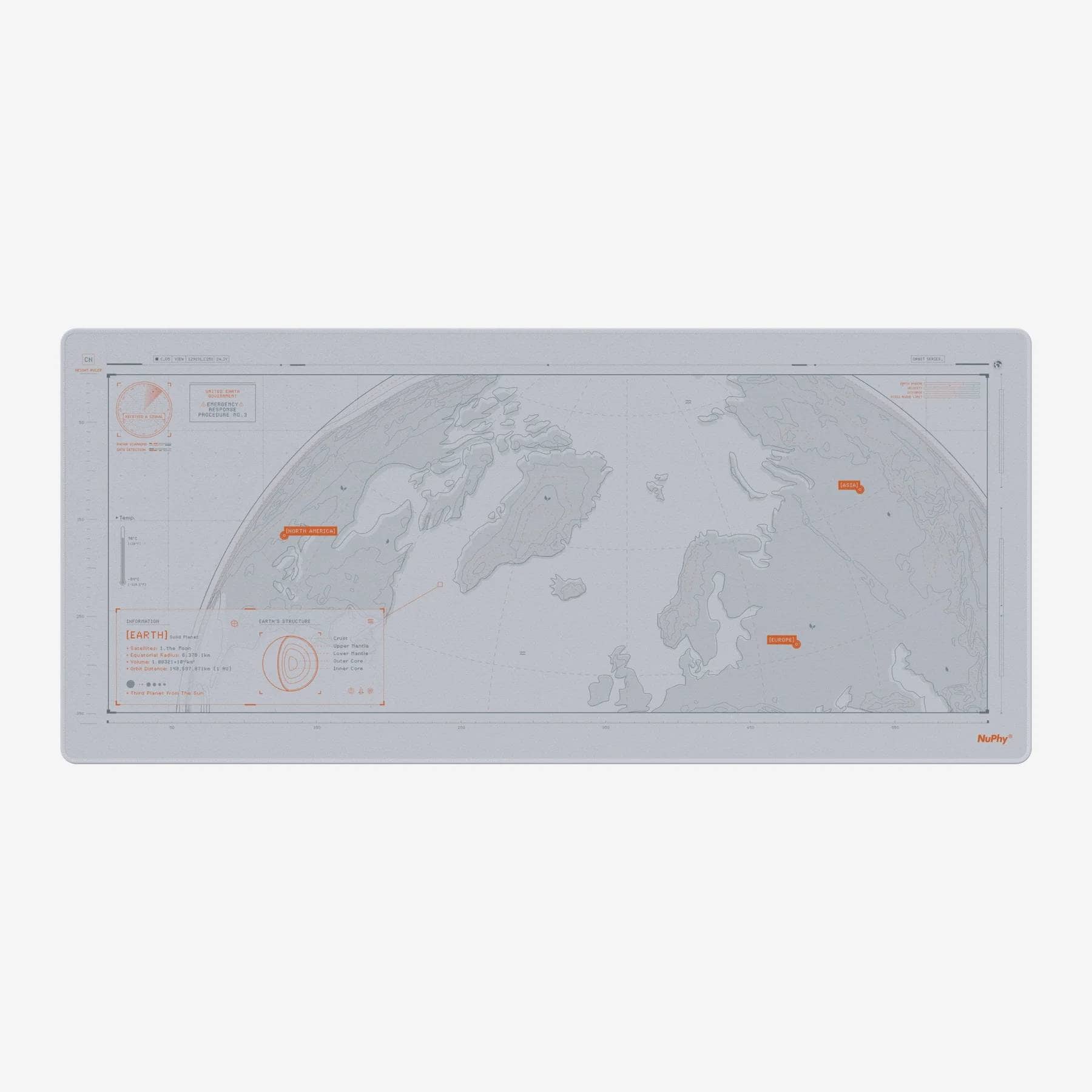

Desk mats in similar colors are also available.

0627ddbd926d271d75574f01146768f ca95fbf9 875d 4d58 ac2f

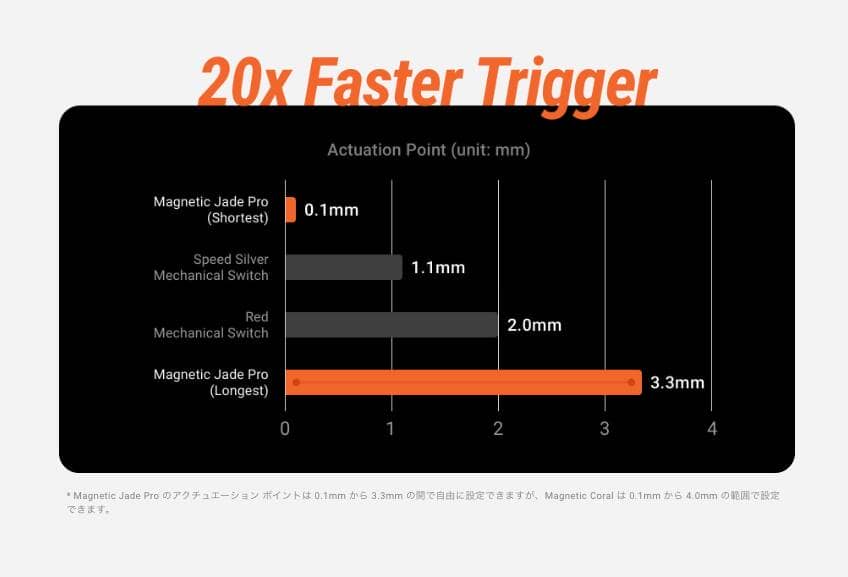

The operating distance from key press to turn on is “0.1mm”, which is very high performance.

5ae49aa3c0cf86ff4183351df41edf24

The polling rate is 8000 Hz with a delay of only 0.25 ms.

f0464aa723b1cac23214798a3321ce37

In addition, the MCU has a unique filtering algorithm to ensure that the sensitivity as a magnetic keyswitch is not compromised even when the RGB backlight effect is maximized.

2c03442cb264272d499568d279f8a20c

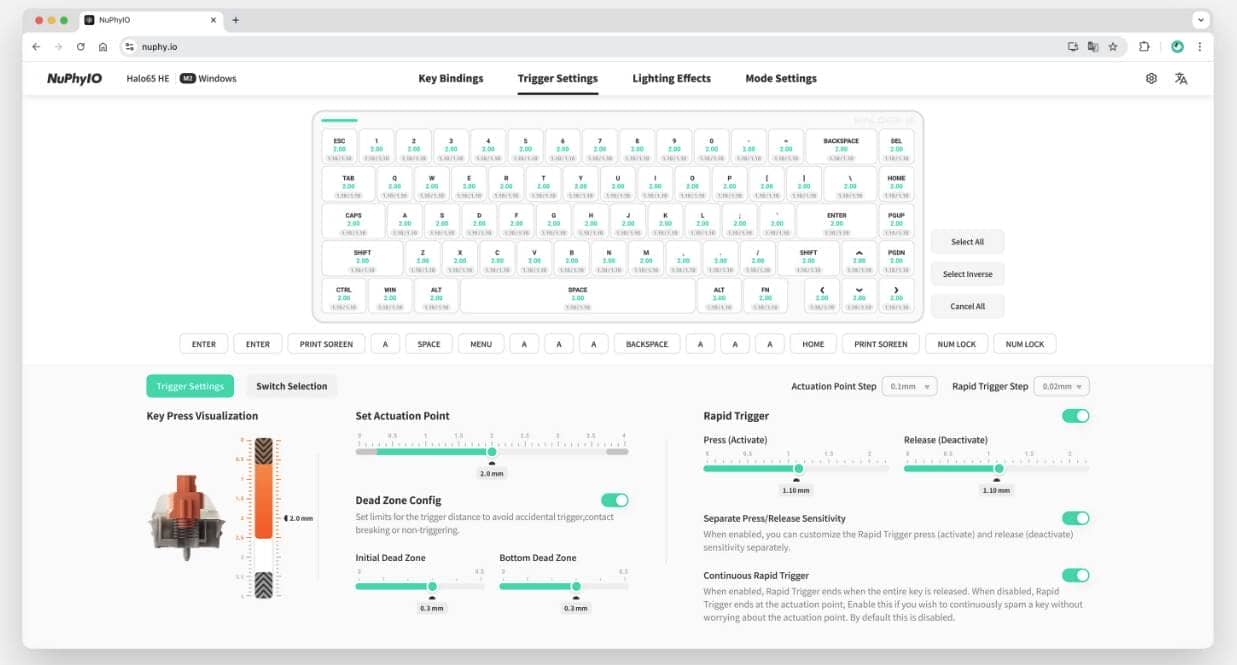

Of course, keymap changes and magnetic effect settings can be completed with NuPhy.io, which runs on a web application.

edaa793f51ad58e0ff9cd293bb0b4f51

Of course, almost all OS platforms are supported.

5dfce59f44088e5aed731b2f3e80f398

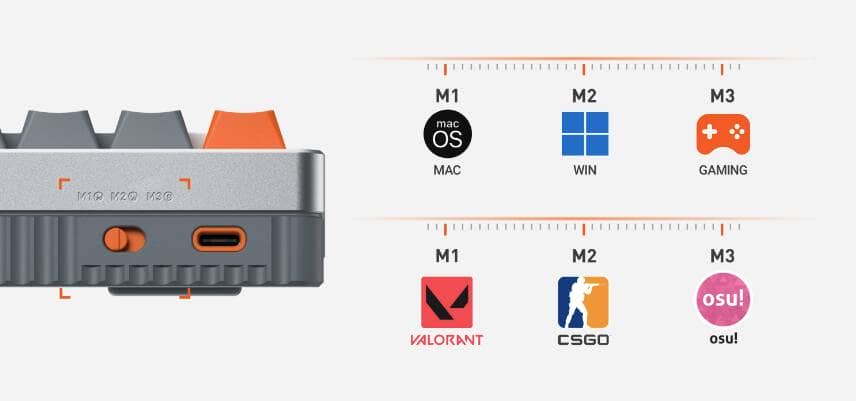

The “mode switching function” that was well received in the Field75HE is now located on the left side of the rear panel, rather than on the front.

0173e90ad0169c481868b1eb1649c5dd

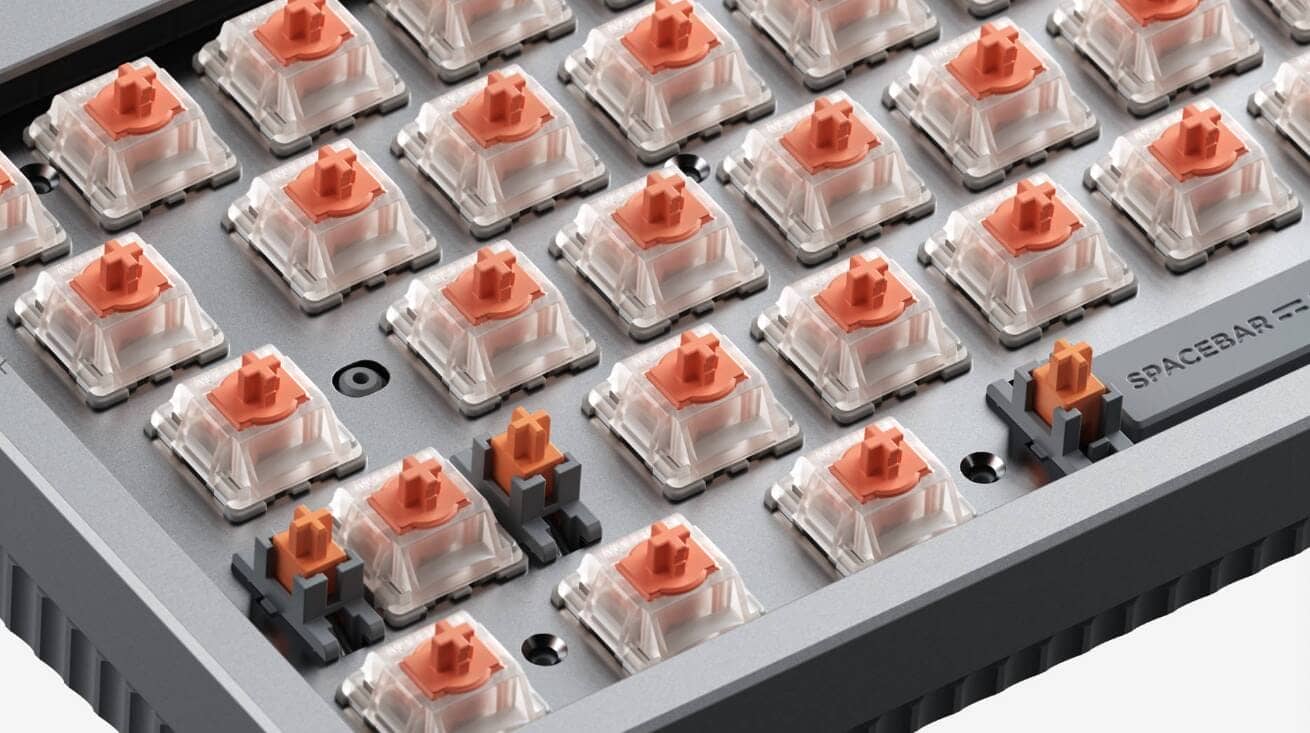

In addition to the existing Gateron Magnetic Jade Pro, the new “Magnetic Coral (linear switch)” with Dual-rail mechanism has been added to the keyswitch lineup.

131fa0c4c0d1902766d3f5115e437235

Magnetic Jade Pro seems to be superior in terms of keystroke sound and performance, while Magnetic Coral, which is equipped with a dual-rail mechanism, seems to be superior in terms of keyswitch operation stability.

d1e1821d171aba2853302aa272dfd84e
Coupon NuPhy 400

Discount Code: ryo10

to save 10% off your purchase.

Japanese users, please click here (technical compliance).

Products only available at NuPhy Official
(Coupon code supported)

summary

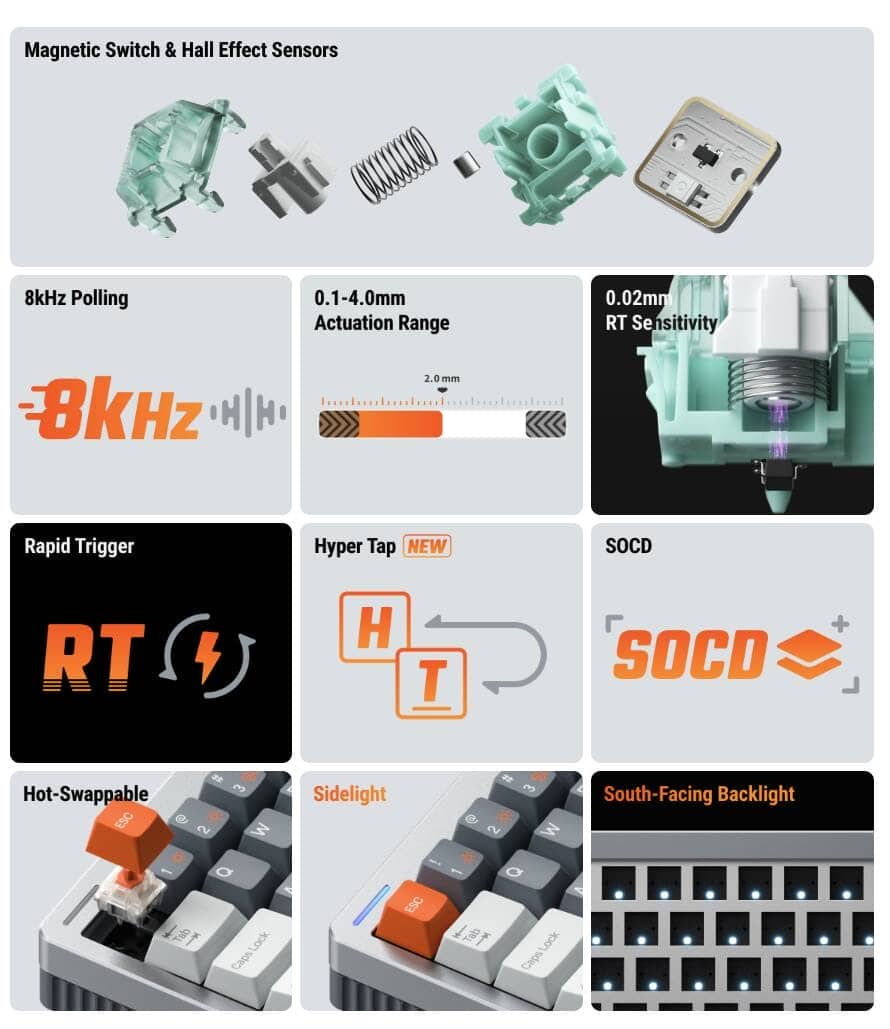

ac61de598783ea3bfc0dbe9e769188a2

This is a brief overview of Halo65HE.

For those who were disappointed with the large size of the Field75HE and the lack of arrow keys on the Air60HE, the Halo65HE is the “perfect” magnetic keyboard.

I personally give high points for the fact that the top case is aluminum, and it seems to have a very high quality finish.

The ultimate factor is the pricing.

It is hard to believe that these specifications can be purchased for around $100.00.

Although other manufacturers have been making progress in lowering the price of keyboards, NuPhy’s cosmetic quality seems to stand out from the crowd.

And I am also happy about the fact that it is being released simultaneously in Japan.

The official online store in Japan offers free shipping to Japan and a 10% discount by using a coupon code affiliated with this site and NuPhy Japan.

Why not take advantage of this opportunity and consider purchasing one?

Coupon NuPhy 400

Discount Code: ryo10

to save 10% off your purchase.

Japanese users, please click here (technical compliance).

Products only available at NuPhy Official
(Coupon code supported)

Image and information reference: NuPhy
