FILCO releases its first split keyboard, the Majestouch Xacro M10SP

当ページのリンクには広告が含まれています。

Image reference: https: //www.diatec.co.jp/shop/xacro/m10sp.php

DiaTech Corporation announced that it will release the Majestouch Xacro M10SP, the first FILCO-branded split keyboard, on October 26, 2023.

This is a very high-profile product because it is a mass-produced split keyboard, which is rare among Japanese manufacturers.

This article provides a brief introduction to the newly released Majestouch Xacro M10SP.

この記事の著者
Kawamura top R

Representative of GreenEchoes Studio

Ryosuke Kawamura

He launched his own media as a site operator and web writer, and now plans and manages multiple corporate media. He often types heavily in his work, and in his search for greater efficiency, he became addicted to the keyboard swamp and established “GreenKeys”.

タップできる目次

Discount Code: ryo10

to save 10% off your purchase.

Discount Code: ryo10

to save 10% off your purchase.

Click here for a list of coupon codes ▷▷▷

Find a keyboard layout you like.

This site is operated on a performance-based compensation advertising basis, and we may receive revenue from product purchases made through this site. Please be aware that some of the keyboards on this site are presented as advertisements (PR). This alert information conforms to the provisions of Article 5, Item 3 of the Revised Act Against Unjustifiable Premiums and Misleading Representations, which came into effect on October 1, 2023.

Majestouch Xacro M10SP Features

https://www.diatec.co.jp/shop/xacro/m10sp.php

Let’s take a look at the features of the Majestouch Xacro M10SP.

summary

  • To be announced on October 26, 2023
  • Prices range from 23,100 yen to 24,200 yen (tax included)
  • 60% layout with macro keys (officially called 70% layout)
  • Supports wired connection
  • Available keyswitches are Cherry Red/Brown/Blue/Silent Red
  • Japanese/English layout lineup
  • QMK/VIA is not supported, and aggressive keymap changes are not possible.
  • Hot-swapping not supported

Areas of Interest

The Majestouch Xacro M10SP features a basic layout based on 60% with the arrow keys eliminated and a macro key in the center, which is called as 70% lewout.

The placement of the 10 macro keys in this central area shows a great deal of effort, including the registration of a design.

m10sp macrokey

This macro key seems to be easily configurable in the software.

Exclusive software: FILCO Assist The connection method is only wired using USB Type-C, and a Type-C cable is also used for the connection between the left and right sides.

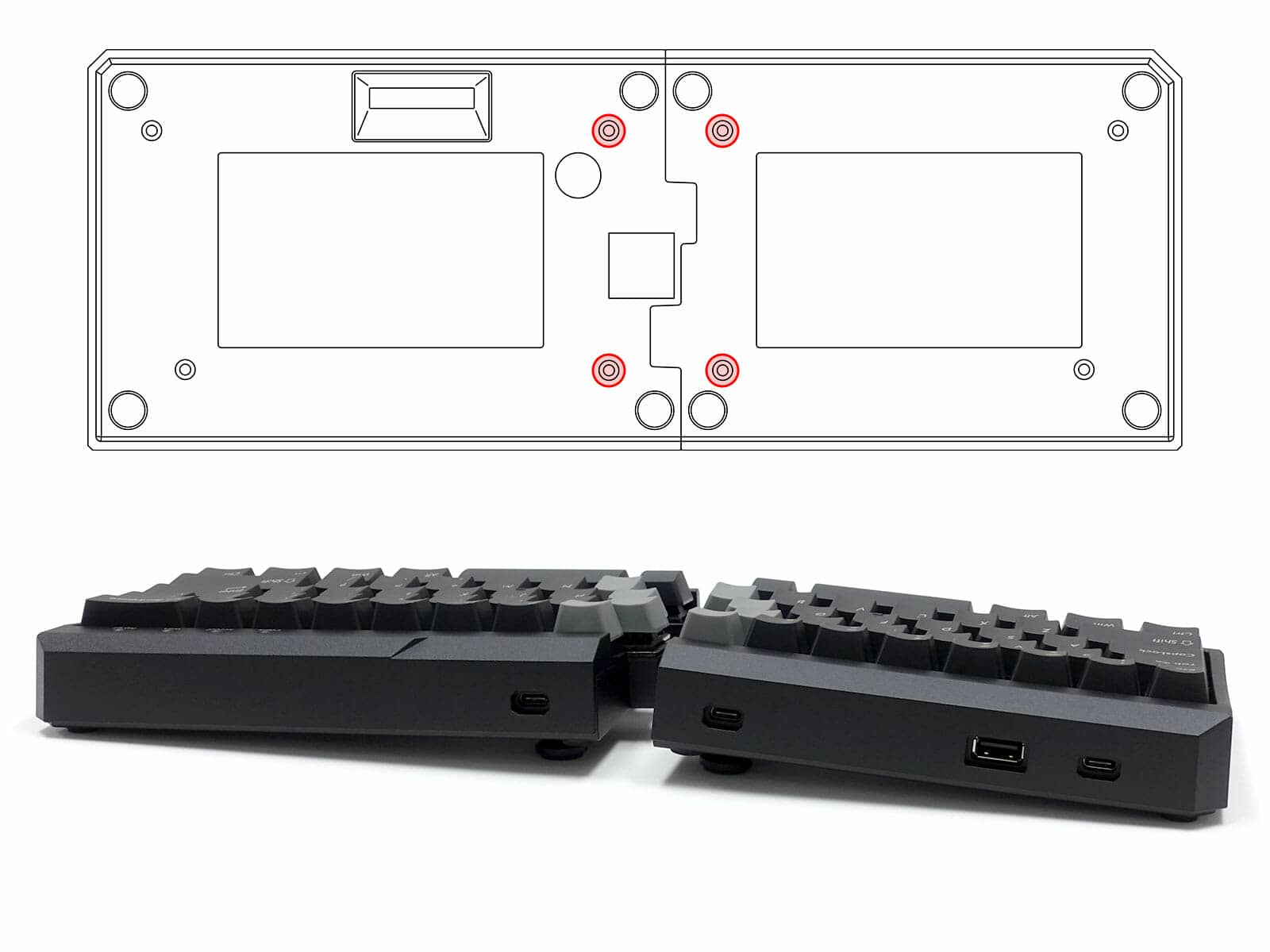

The position of the included tilt feet can be changed as desired, and in addition to the normal tilt that tilts from the back to the front, it can also be used for tenting, which is a tenting position when the unit is split.

m10sp main12

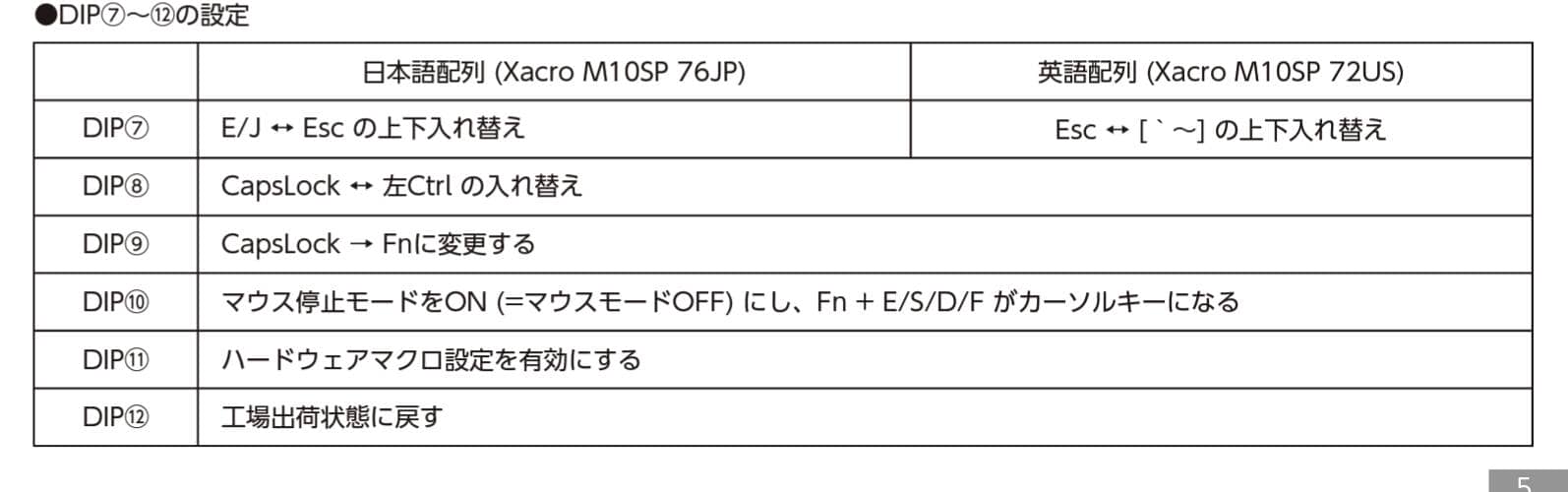

The keymap can be changed by hardware method, such as changing CapsLock to Left CTRL by a combination of DIP switches on the bottom.

c3d53805669938a7af5ce7c6b38b7571
Majestouch Xacro M10SP Manual Data [Xacro_M10SP_Manual_A4 .pdf]

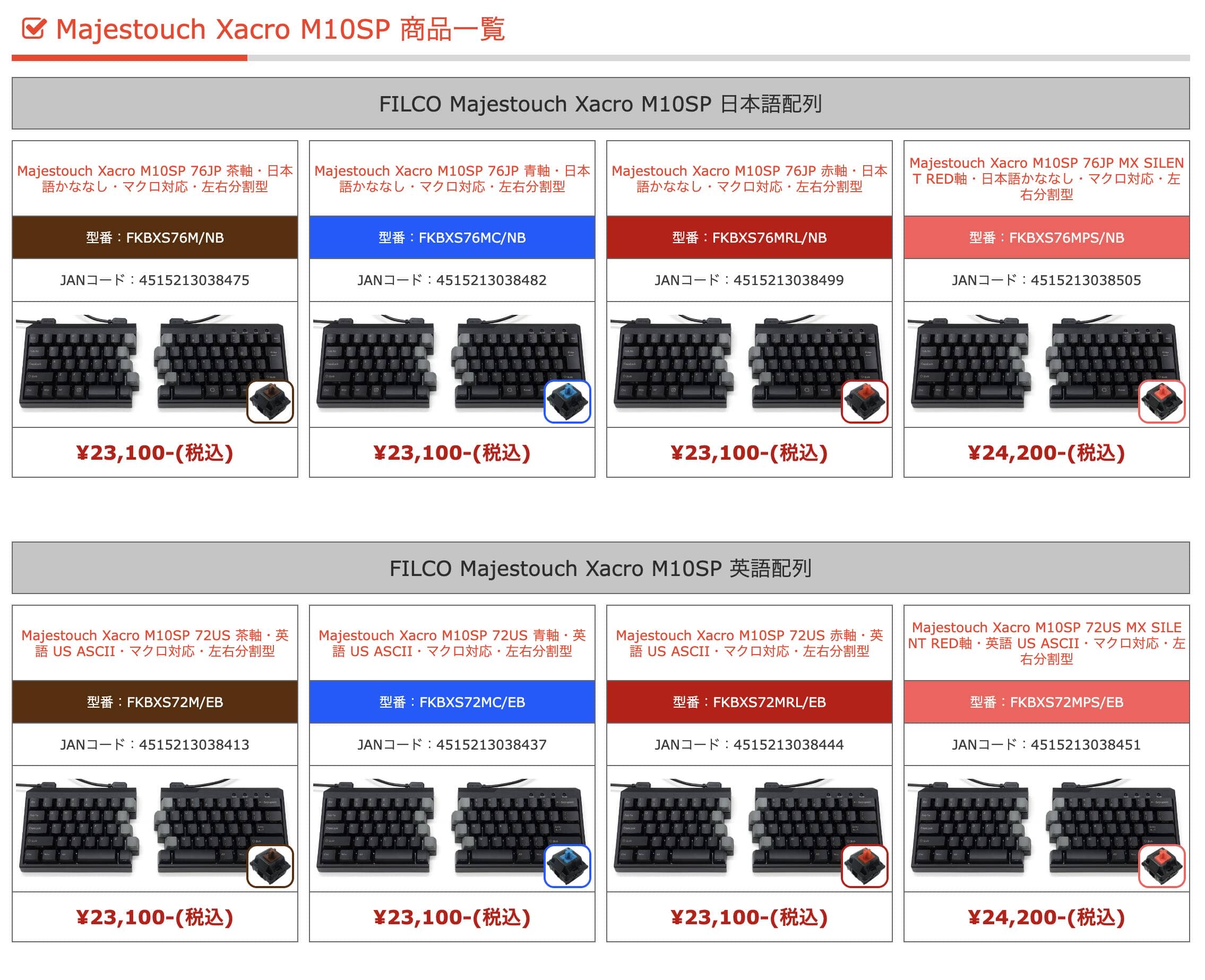

Two models are available in Japanese and English layouts, and in combination with four types of Cherry key switches (red-axis, brown-axis, blue-axis, and silent red-axis), a total of eight different models can be selected to suit your preference.

In addition to the basic QWERTY layout, other layouts can be easily changed by operating DIP switches.

For the dedicated array keycaps, they can be purchased from the official website.

5f3f695101cffa8f9783afa2db38e07c
https://www.diatec.co.jp/shop/xacro/m10sp.php

The hardware has also been carefully designed, with PBT keycaps and silicon sheets inserted to improve the key feel.

points of concern

As this is a split keyboard, which is quite rare for a domestic product sold to the general public, this product has attracted a lot of attention, as it was featured in various media even before its release date, and many people may be considering purchasing it.

I will now tell you what I was concerned about.

Please refer to the following information to check before you buy, which may help you avoid “I wish I had never bought”.

Kawamura top RKawamura

This really depends on your taste, and there is no doubt that this is an attractive product. This is just my opinion, so please use it as a reference.

As a person who usually uses a self-made keyboard, I was most concerned about the lack of flexibility in changing the keymap.

I have not seen the actual machine, so I can’t say for sure, but from the description on the official website, I got the impression that it does not support keymap changes in the GUI.

I had the impression that it is possible to set up an original key arrangement with hardware macros, but as a person who usually uses VIA /Vial /Remap using open source such as QMK, I have the impression that it is a little inflexible in terms of keymap changes.

Frankly speaking, there are more than enough keys, and most of them can be typed on the first layer, so I don’t think many people care about it.

However, special attention should be paid to those who wish to change the position of the arrow key.

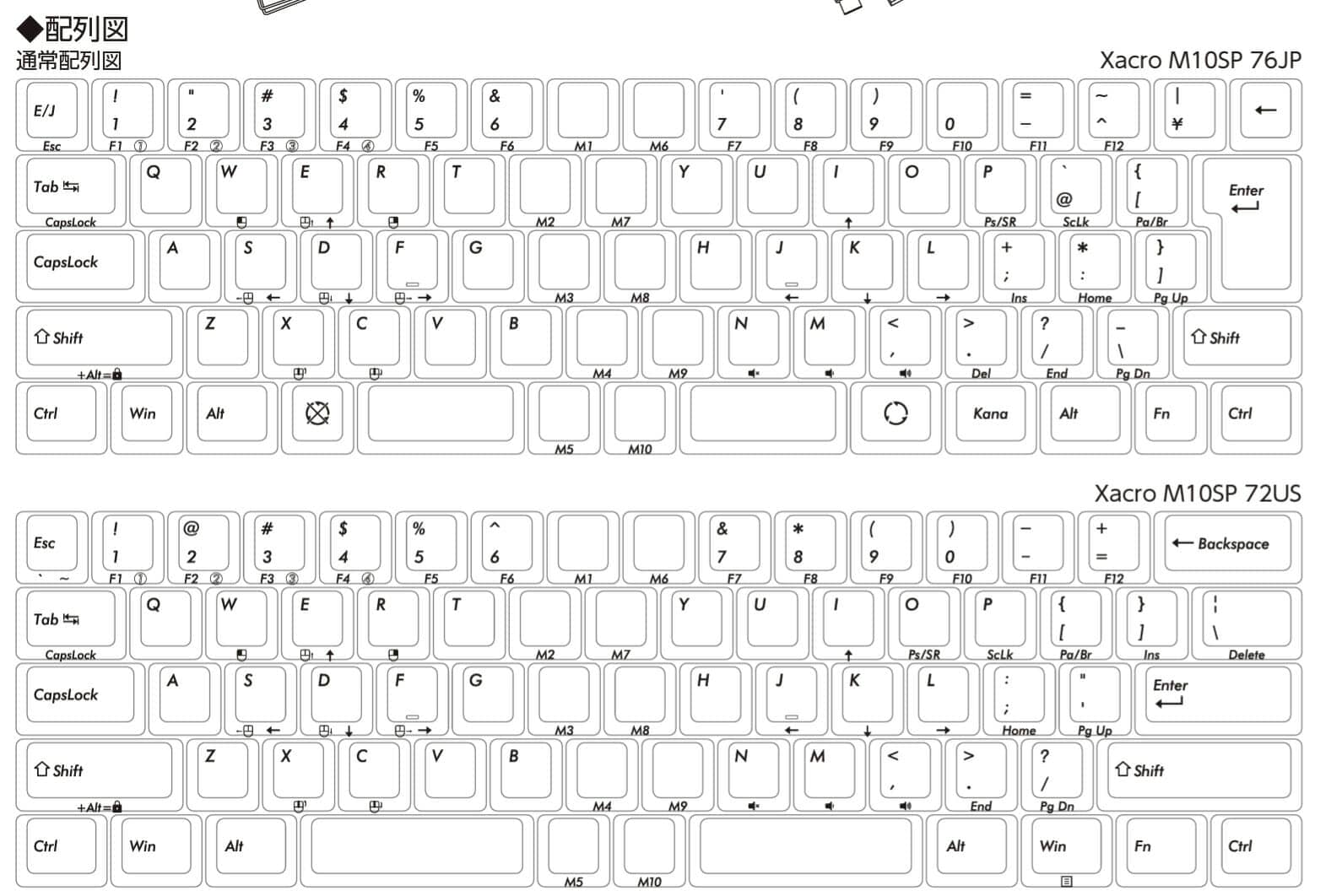

On a normal 60% keyboard, “WASD” is the arrow key, but on this model it is “ESDF” or “IJKL,” which is sensibly a bit off center on the keyboard.

If you can remap this, it does not seem to be that big of a problem, but it does seem a bit difficult, so you should be careful if you are concerned.

2d41a1125697a7d20037a50d7bb6cf0e

As a minor point, I have the impression that it is difficult to change the keyswitches, as hot-swapping is not supported.

As for keycaps, US-array models will be able to accommodate changes to some extent.

For Japanese-language models, Acid Caps may be able to handle this.

summary

This is a brief description of the Majestouch Xacro M10SP.

It is a delightful time to see a domestic manufacturer start selling split keyboards in general sales products.

Speaking of split keyboards, there were few available from overseas manufacturers, and if you were particular about it, the only way was to buy and assemble your own keyboard kit.

We hope that this launch will lead to a greater focus on split keyboards in Japan as well.
