Brand | coffee break keyboard |
Price | high-class |
JIS/US | US |
Keyboard Size | 40% |
Key Profile | normal-profile |
Key Sounds | Choose what you like |

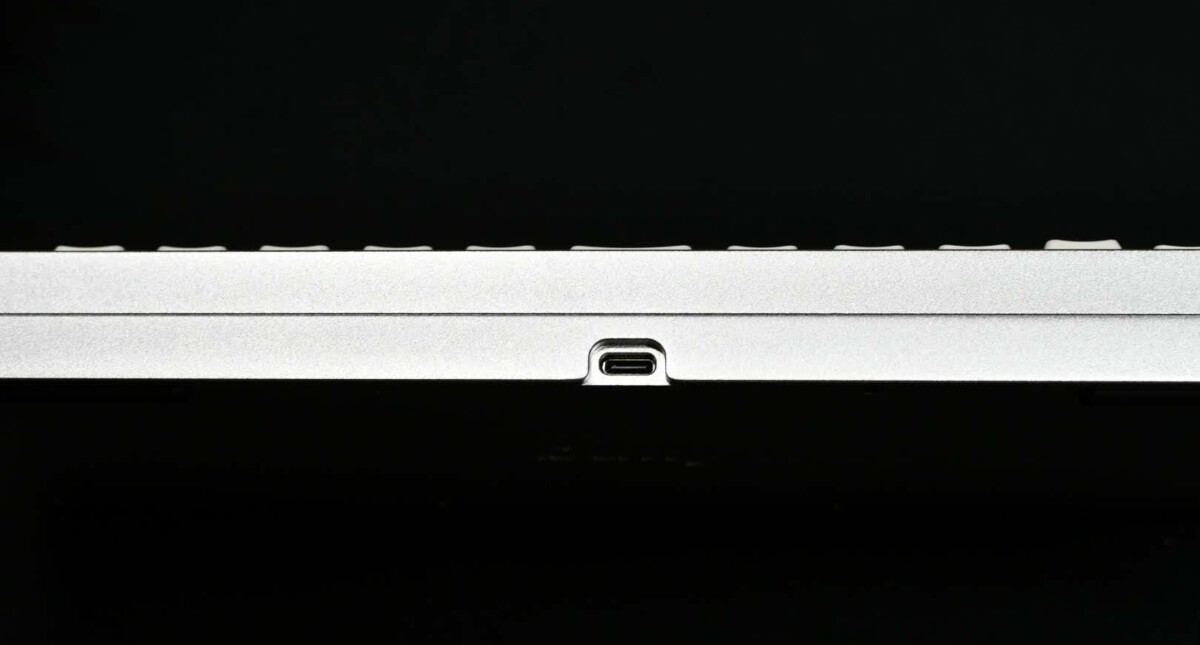

How to Connect | USB |
Battery | usb-power |
Hotswap | out of service |
Normal or Split | 非分割 |
Comment

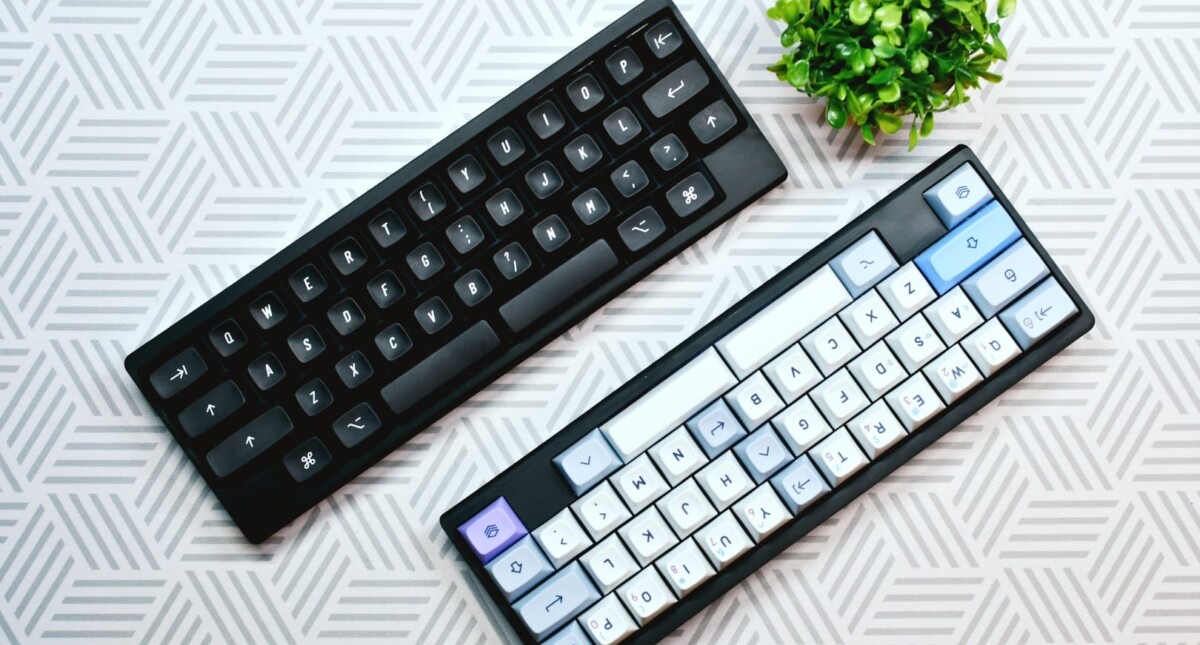

- 40% layout mechanical keyboard kit offered by coffee break keyboard
- Currently, the product is already sold out and is essentially end of sale.
- If you ask the person in the Discord to sell you a case-only B-stock item, they may offer it to you.
- Since the case and substrate data are open source and publicly available, you can use them by ordering them yourself.
- As for PCBs, there are two types: the normal MX /ALPS compatible type and the capacitance non-contact type.
- Case data is available on Github by Zhol0777.

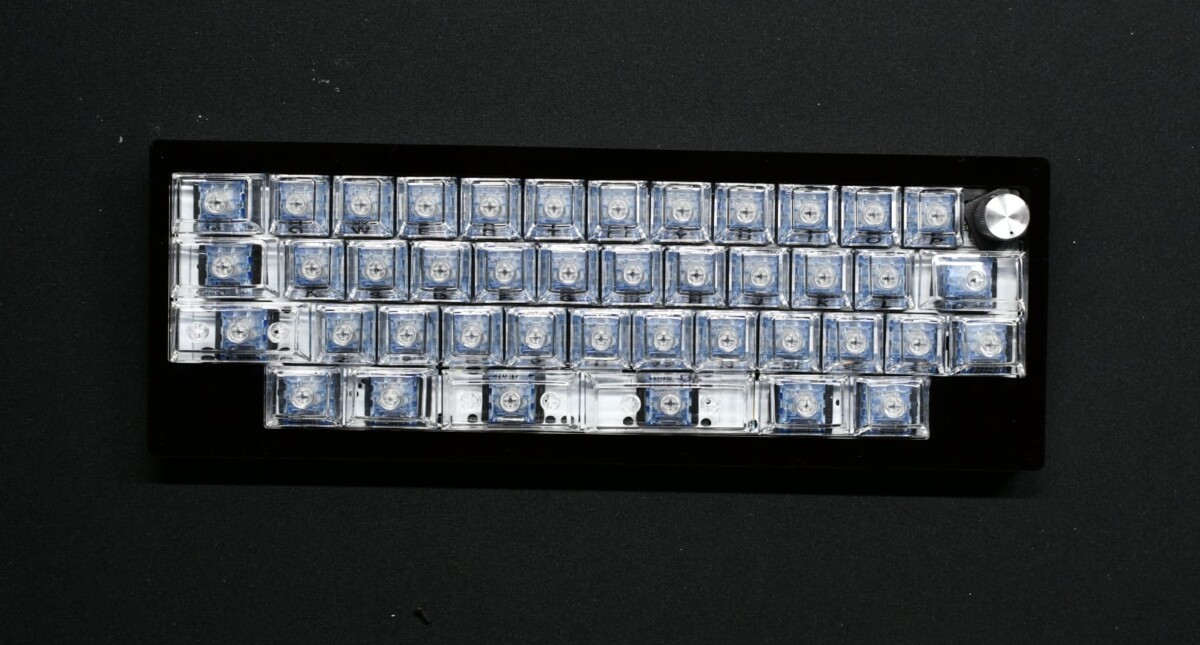

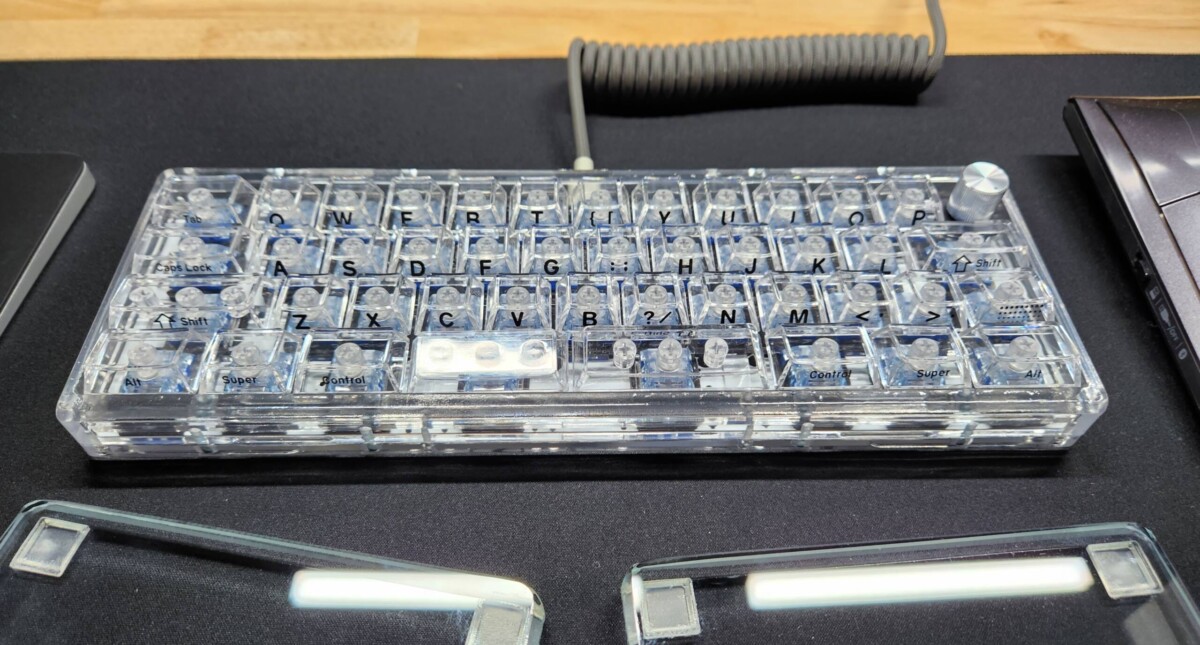

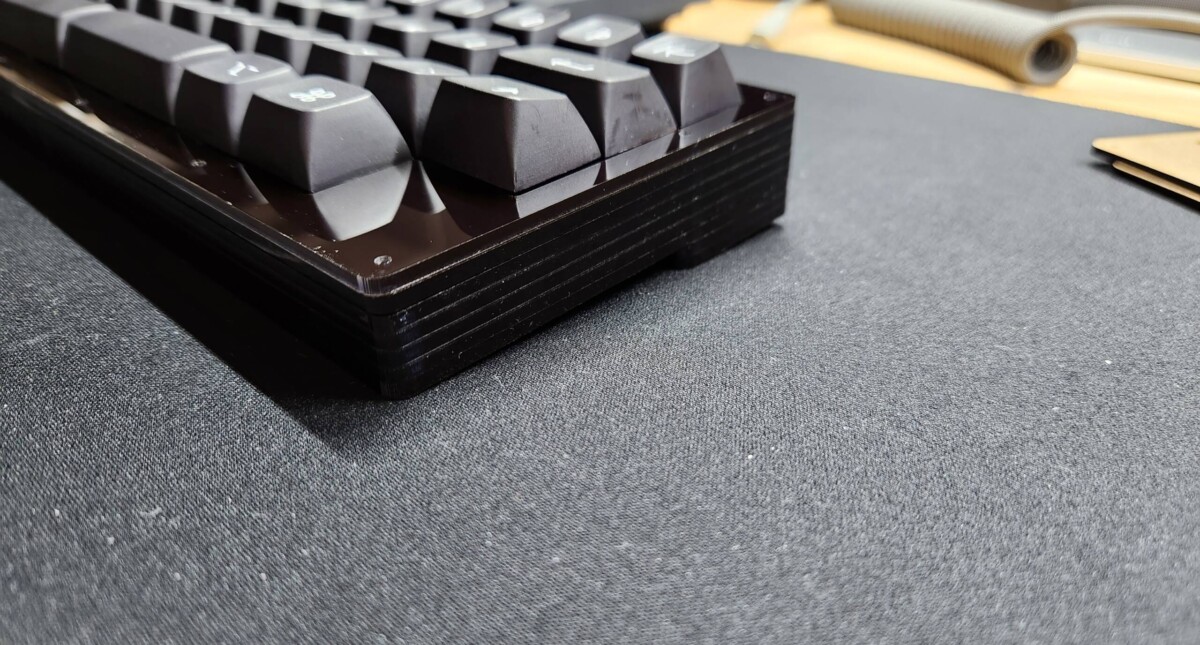

- Acrylic case data is available from Sumiso
- The mounting method is special: a rubber pin called a tadpole is inserted into the PCB and sandwiched between the top and bottom cases to secure the substrate.

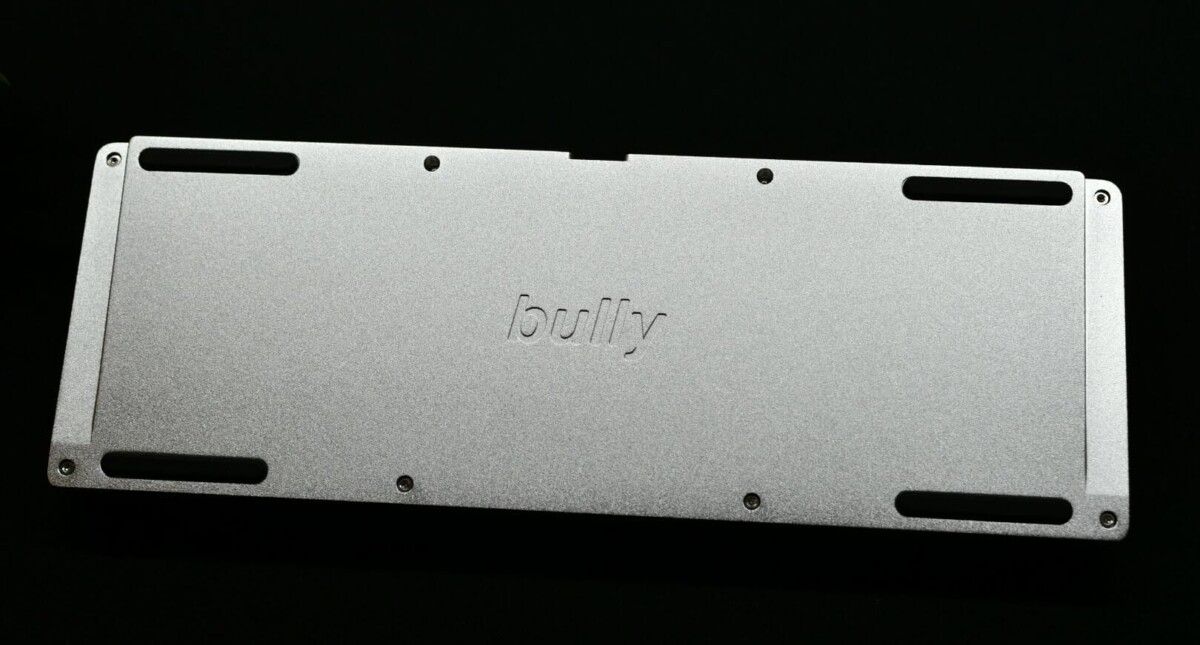

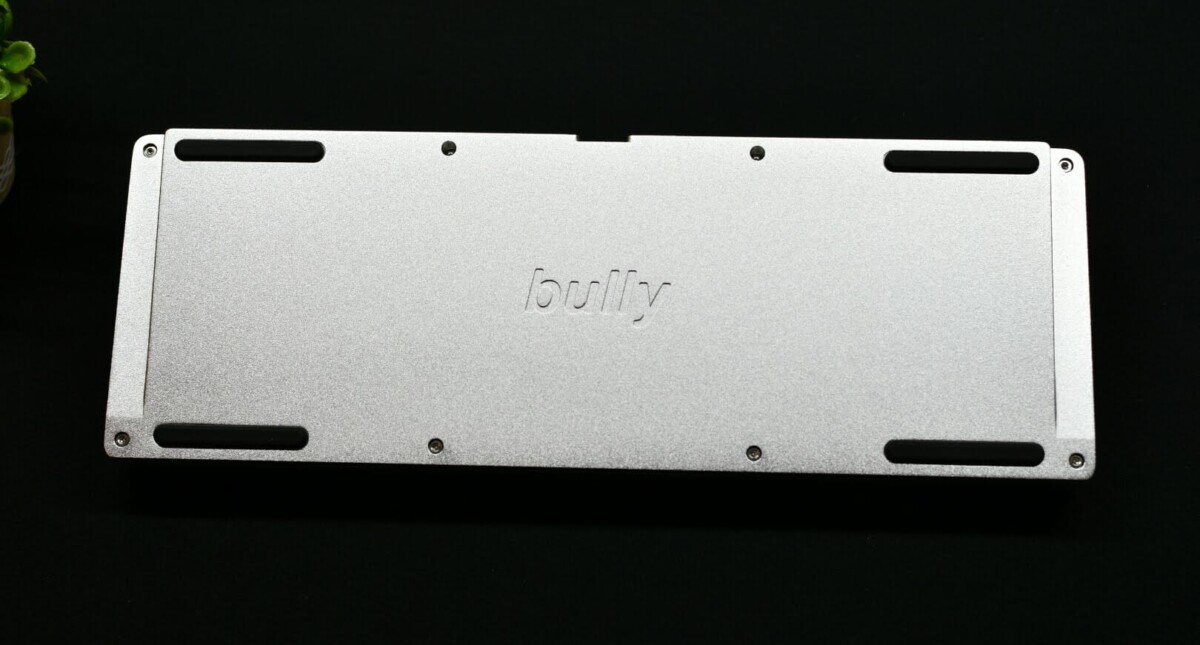

- The main body is made of aluminum alloy and is heavy.
- Price is $199.00 including PCB

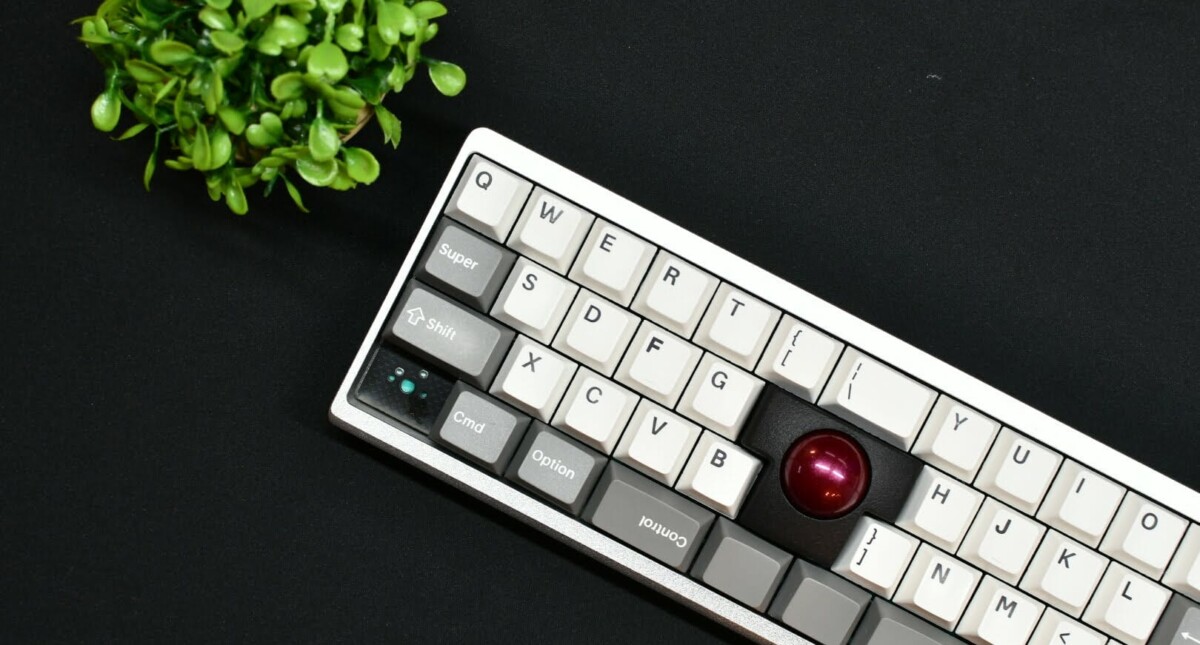

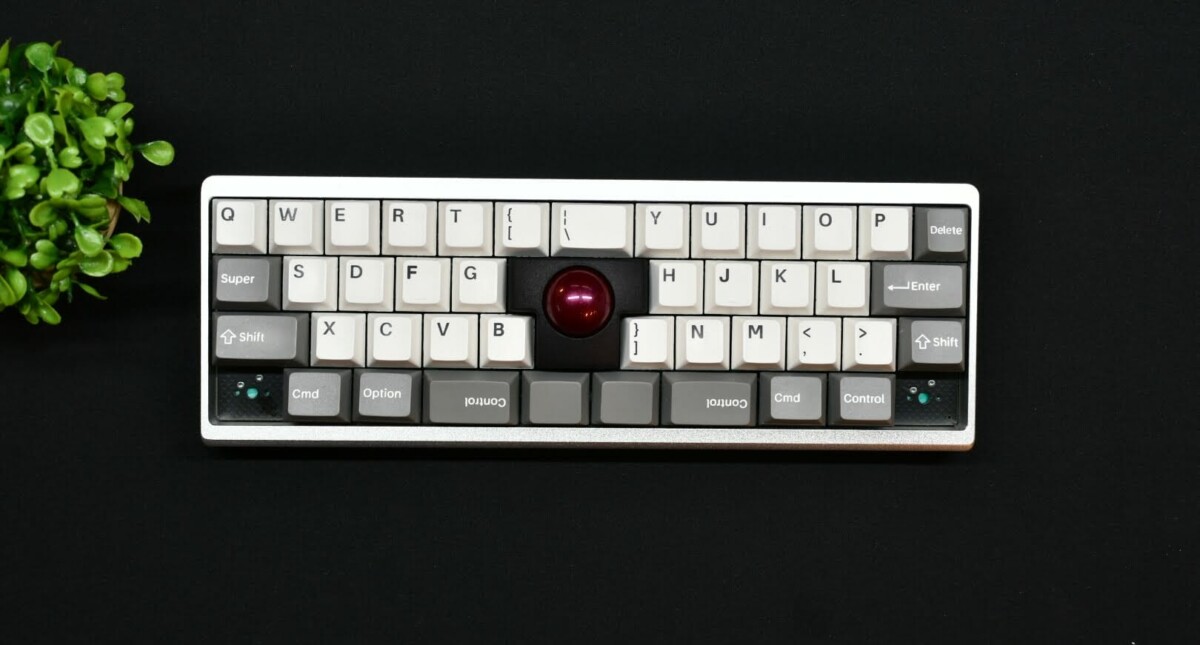

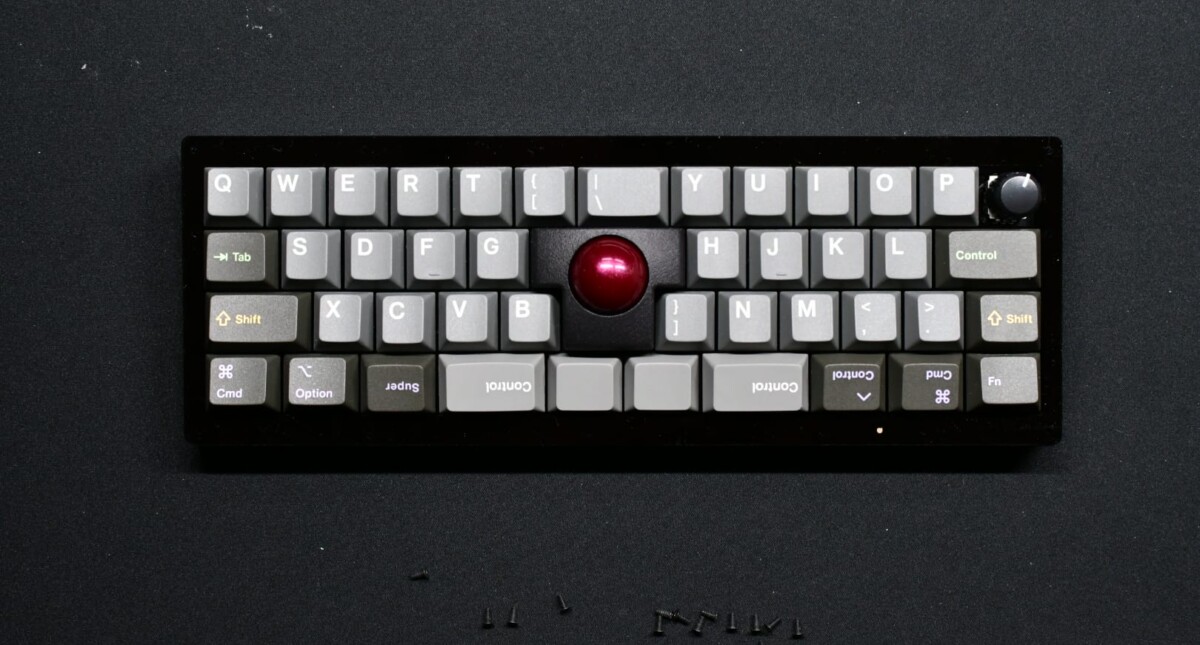

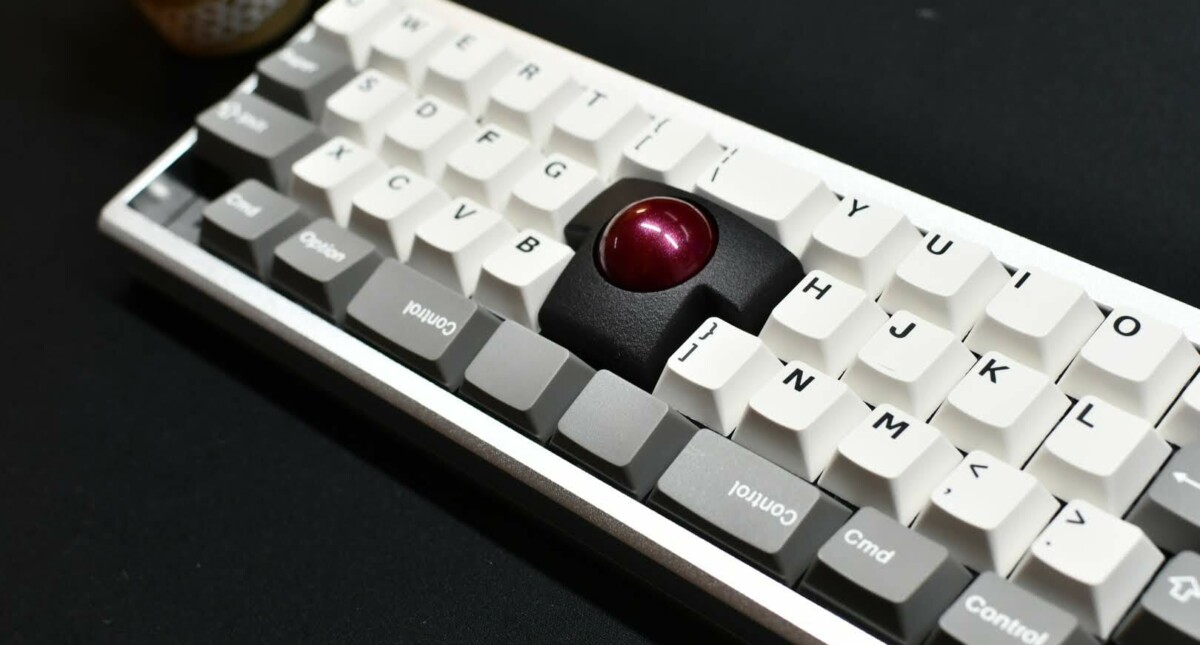

- A third-party PCB (bally) is also available and was designed by aki27. The main feature is that it has a trackball module.
- Click here to purchase ▷▷▷.
仕様詳細
Included in each kit: 1.
* 1 PCB, equipped with an STM32F072-equivalent MCU loaded with QMK/VIAL
* 1 JST-SH, 50mm
* 1 C3 Unified Daughterboard
* 10x 50A durometer Geonworks Tadpoles
* 10x 70A durometer Geonworks Tadpoles
* Top case
* Bottom case
* 0 plates
* 1 plate file
In addition, PCB edge cuts are available in the Discord.
Reference: https: //www.cbkbd.com/product/bully
