NuPhy Gem80

当ページのリンクには広告が含まれています。
このキーボードの概要
Brand
Price
JIS/US
Keyboard Size
Key Profile
Key Sounds
How to Connect ,
Battery ,
Hotswap
Normal or Split

Comment

  • January 4, 2024 Release
  • Available in Japan from NuPhy Japan with technical compliance
  • Priced at $149.95 for the wired-only model and $169.95 for the tri-mode wireless model, they are relatively inexpensive.
  • The Gem80 is NuPhy’s first mechanical keyboard with an 80% tenkeyless size.
  • Since the base is a barebone, the model is much more customizable than previous NuPhy products, requiring the selection of preferred keyswitches and keycaps.

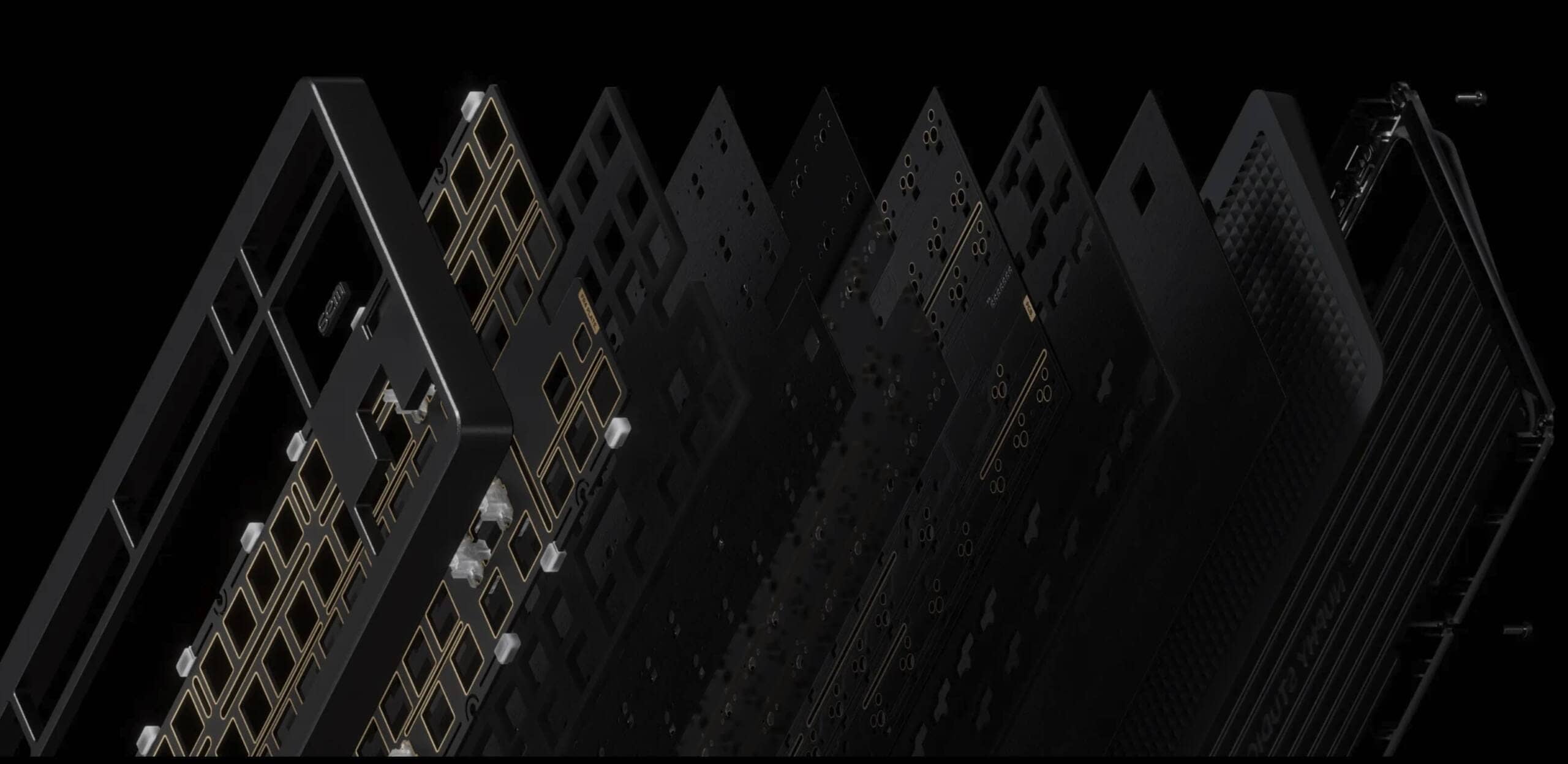

  • Designed for a thocky sound, it is equipped with six layers of sound-absorbing material and four different mounting methods, allowing for a very wide range of user customization.
  • Wired-only models are available in the lineup, so there is no need to worry about technical compliance in Japan.

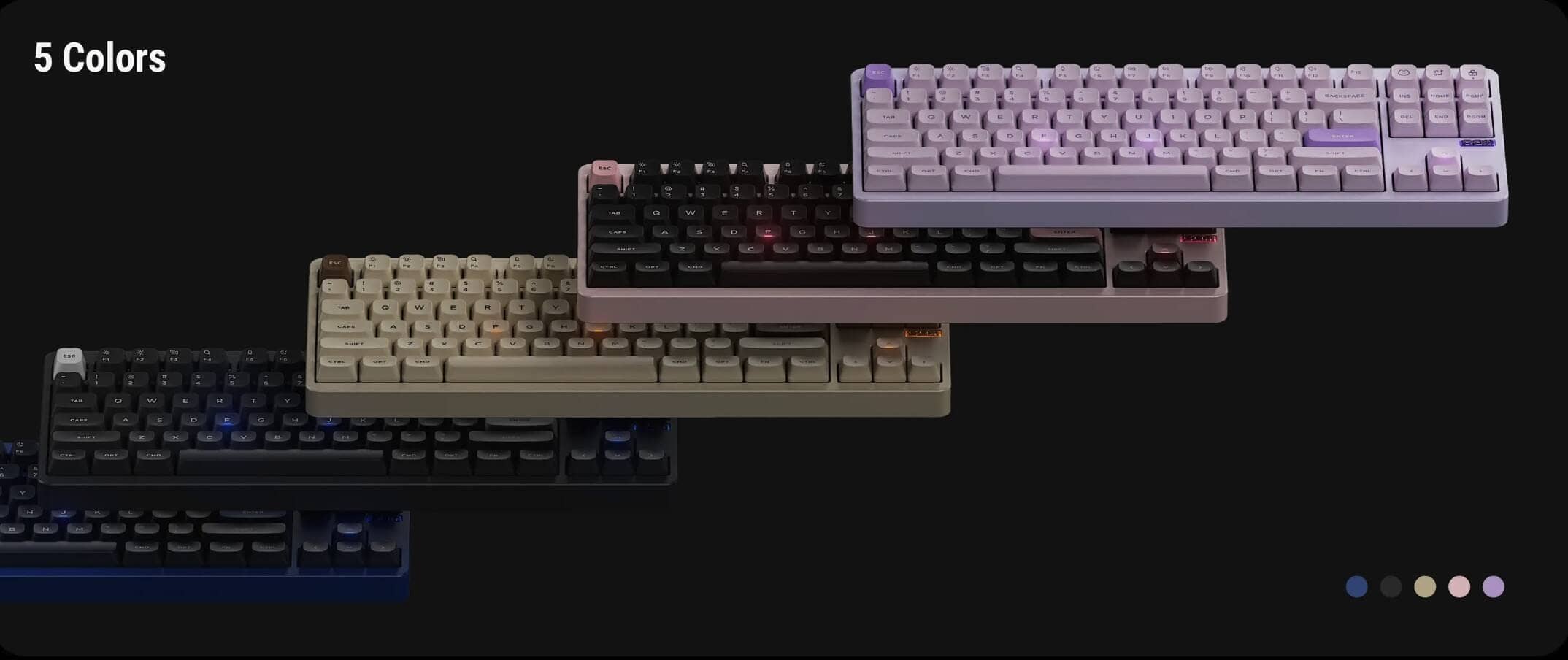

  • Available in five colors: Opsidian Black, Mystic Indigo, Cosmic Mocha, Inca Rose, and Airy Lilac.
  • The base model is a barebone, and switches can be freely selected as options.
  • It may be better to set up a keyswitch set and a keycap set that can be purchased at the same time, since each can be purchased inexpensively.
  • Extra plates are also available for purchase.
  • The frame material is CNC-machined 6063 aluminum, and the back is a polycarbonate material to facilitate wireless connection.
  • The six layers of sound-absorbing material are expected to result in a very thocky keystroke sound.

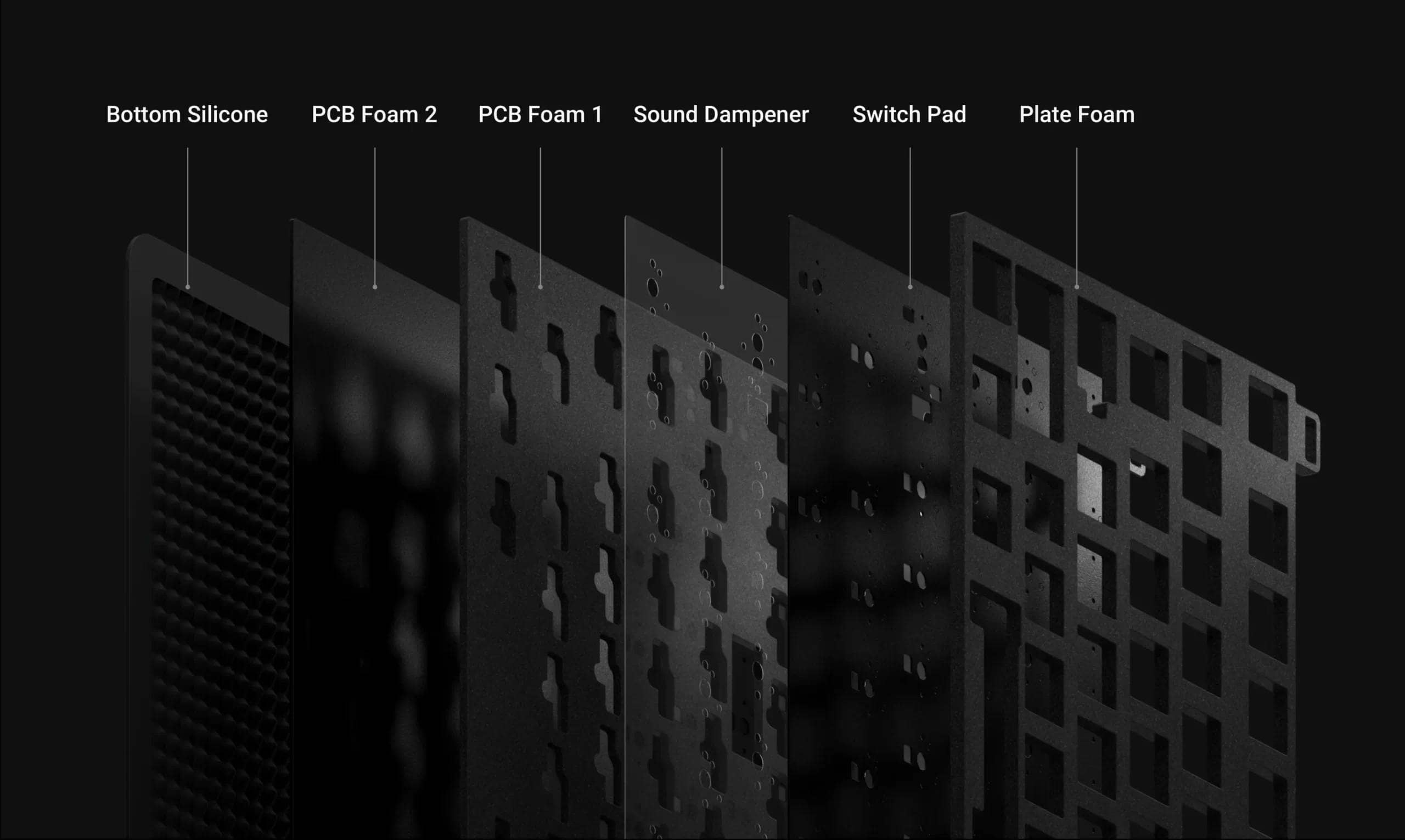

  • The sound-absorbing material installed consists of three layers of Poron sheet, IXPE damper, Xtramer, and silicone sheet, for a total of six layers.

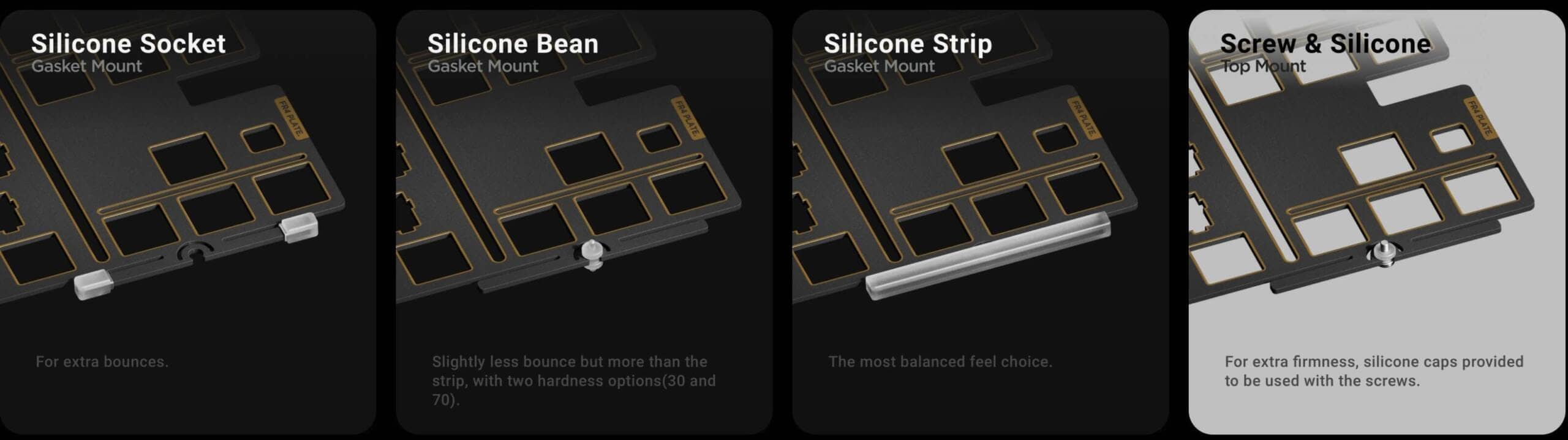

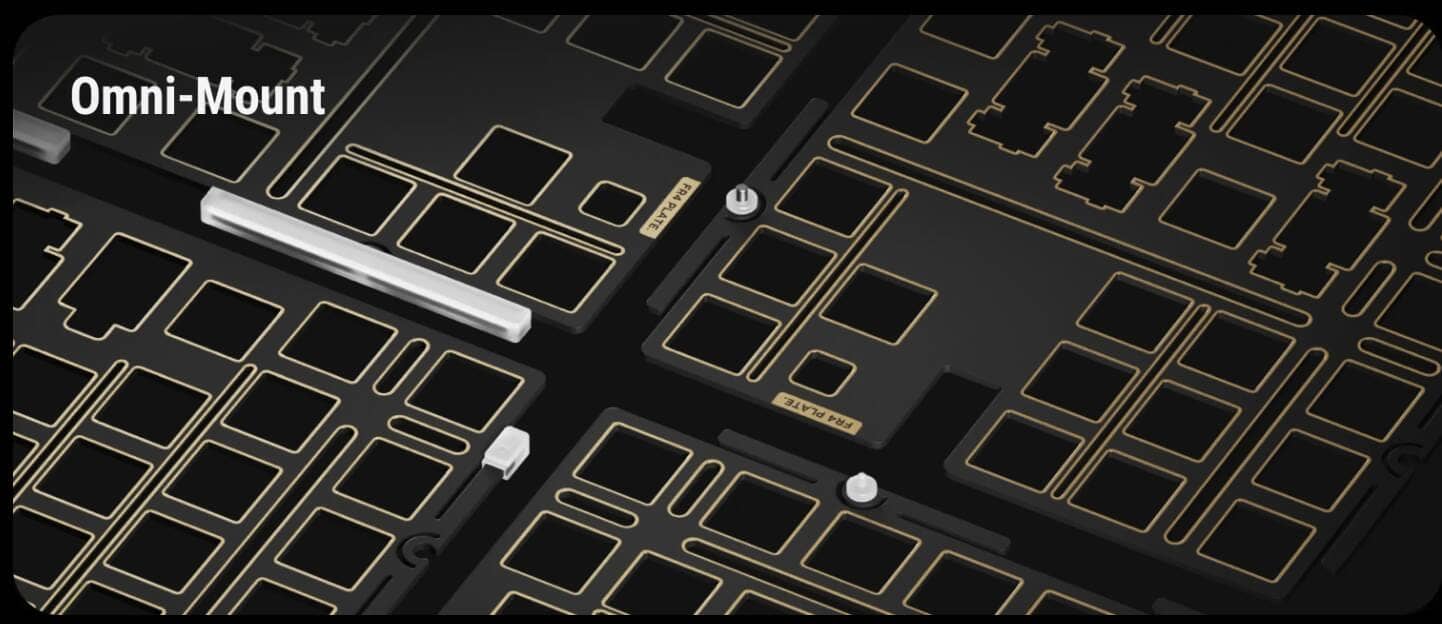

  • The Omini-Mojo mounting system is used, with four mounting types to choose from: silicone socket gasket, silicone bean gasket, silicone strip gasket, and top mount using screws and silicone.

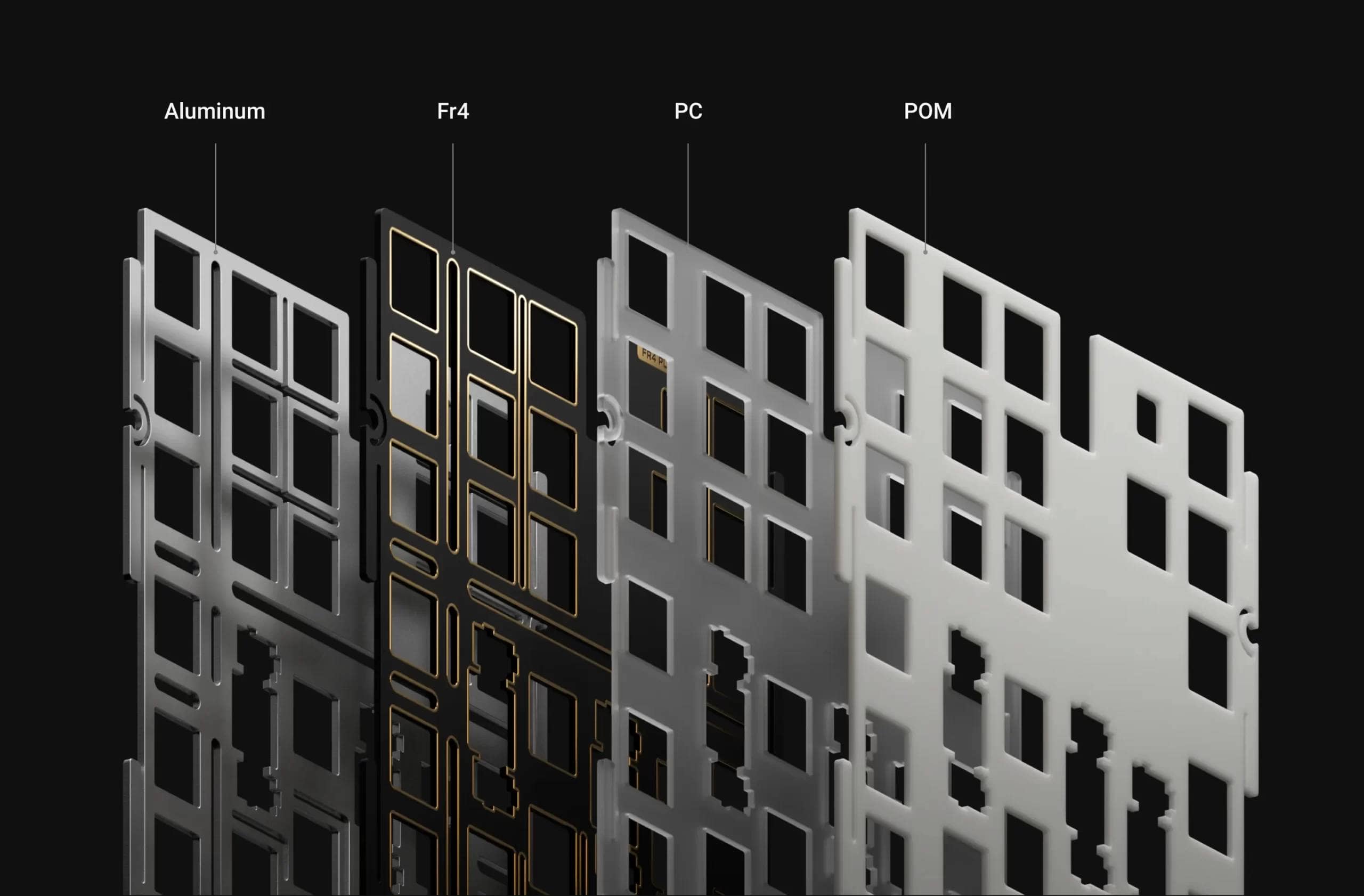

  • The default plate is FR4, but other options include aluminum, polycarbonate, and POM as extra plates.

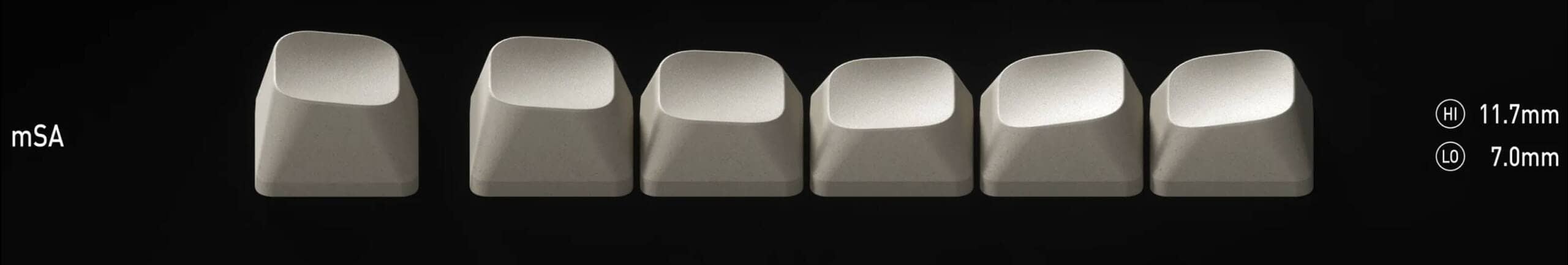

  • The keycaps feature the newly developed mSA profile.
  • The keycaps are Cherry-like with different heights and slopes in different rows, but feature a spherical design with a depressed center.
  • Homing keys such as FJ have a physical protrusion as well as a process that allows LEDs to penetrate.
  • Keycaps will be made of double-shot PBT material
  • The spacebar uses Ghostbar, which has a quiet silicone according to the mSA profile.
  • Two wireless connection methods for tri-mode wireless models: 2.4 GHz using a USB dongle and Bluetooth 5.1
  • In the 2.4 GHz band, the polling rate is 1000 Hz.
  • The wired connection method is USB Type-C as before.
  • Compatible with QMK/VIA

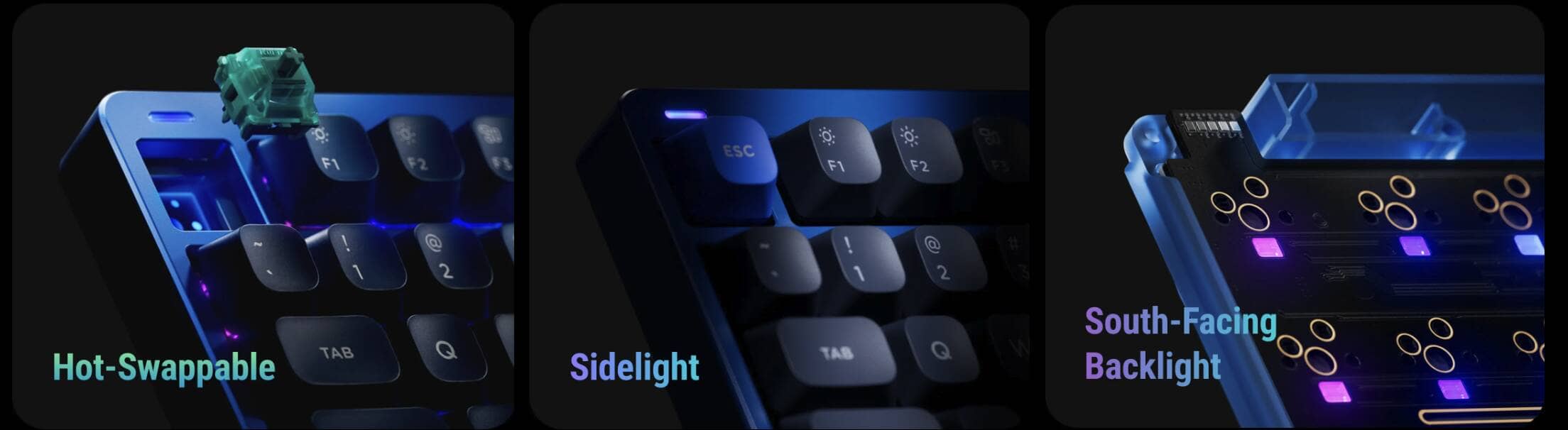

  • Hot-swappable

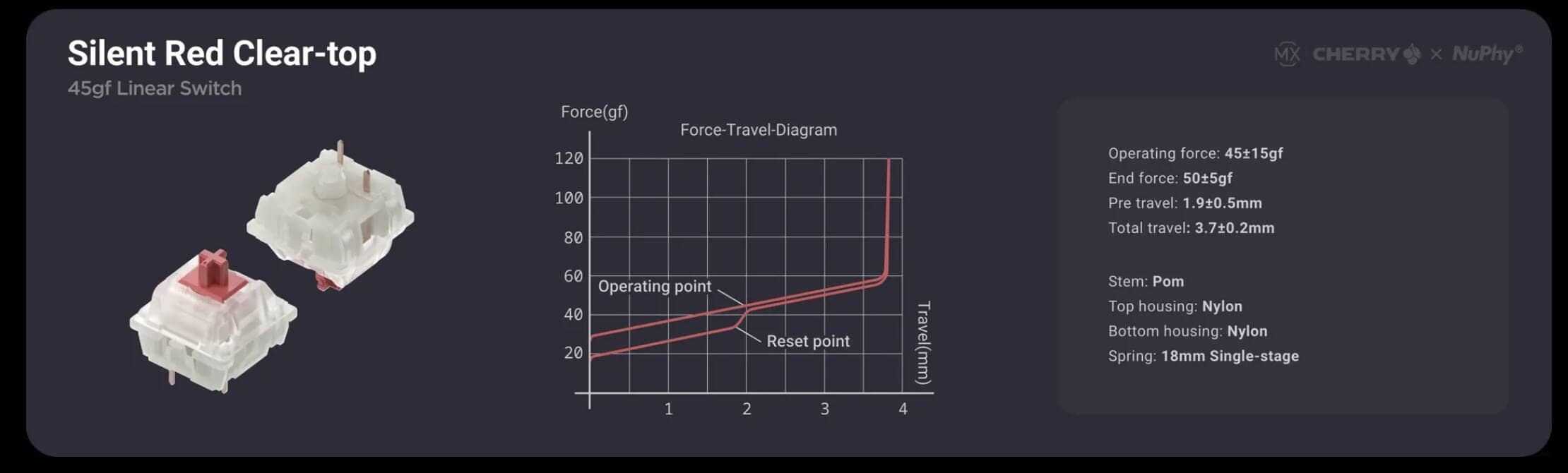

  • In addition to three new keyswitches, the original mint (37gf linear), raspberry (46gf linear), and lemon (55gf tactile), which were jointly developed by NuPhy and Gateron, there is a choice of silent red clear top (45gf silent linear), which was developed with Cherry Available.
  • The Bokeh series desk mats in similar colors are also available in five colors.
  • Click here to purchase ▷▷▷.
Coupon NuPhy 400

Discount Code: ryo10 ryo10

to save 10% off your purchase.

Japanese users, please click here (technical compliance).

Products only available at NuPhy Official
(Coupon code supported)

このキーボードのキー配列・サイズは【】【】です。


似ているキーボードを探す▷▷


キーボードサイズについて知りたい▷▷

仕様詳細
LayoutANSI 80%/TKL
Number of Keys 88
Switch Type Normal-profile
Stabilizer Type Plate Mounted
Mount Type Gasket & Top
Typing Angle
Front Height 21.5 mm (0.85 inch)
Hot-swappable Support Yes (3/5 pin MX-style)
N-key Rollover SupportYes
Backlight South-facing RGB-LED
Backlight Modes 40+
Compatible System macOS/Windows/Linux/Android/iOS
Operating Environment -10 to 50°C
MCU ARM STM32F072
radio frequency (RF) NRF52810 (tri-mode)
Wired Polling Rate
1000Hz
2.4GHz Polling Rate 1000Hz (tri-mode)
Bluetooth 5.0 Polling Rate 125Hz (tri-mode)
Top Case Aluminum
Bottom Case PC
Plate Material Fr4
Size358.1 mm x 141.3 mm x 46.2 mm
Weight1120 grams
タップできる目次

Discount Code: ryo10

to save 10% off your purchase.

Discount Code: ryo10

to save 10% off your purchase.

Click here for a list of coupon codes ▷▷▷

Find a keyboard layout you like.

This site is operated on a performance-based compensation advertising basis, and we may receive revenue from product purchases made through this site. Please be aware that some of the keyboards on this site are presented as advertisements (PR). This alert information conforms to the provisions of Article 5, Item 3 of the Revised Act Against Unjustifiable Premiums and Misleading Representations, which came into effect on October 1, 2023.

Selectable axis types

The keyswitches available for selection are three types of keyswitches: the original mint (37gf linear), raspberry (46gf linear), and lemon (55gf tactile), newly co-developed by NuPhy and Gateron, plus the silent red clear top, developed with Cherry ( (45gf Silent Linear).

NuPhy x Gateron /NuPhy x Cherry Switches

SwitchMintRaspberrylemon (Citrus depressa)Cherry Silent Red Clear-Top
Picture.0d5b2d1efffcc0a95620342a6e144b8ecaa7193fb45d14690c1bb3d19738032612c97907536f959bc1a765667686f9de7d5d44749afc6b25099100b5b48e03a9
ColaboGateron.Gateron.Gateron.Cherry
FeelLinearLinearTactileSilent Linear
ColorMintRedYellowRed/Transparent
Lubed.Pre-LubedPre-LubedPre-LubedPre-Lubed
Operating force37±15gf46±15gf55±10gf46±15gf
Pre-Travel2.0±0.5mm1.2±0.3mm2.0±0.5mm1.9±0.5mm
Total Travel3.6±0.2mm3.4mmMax3.6±0.2mm3.7±0.2mm
Prices are affordable at $19.8 for Silent Linear and $12.6 for everything else.
