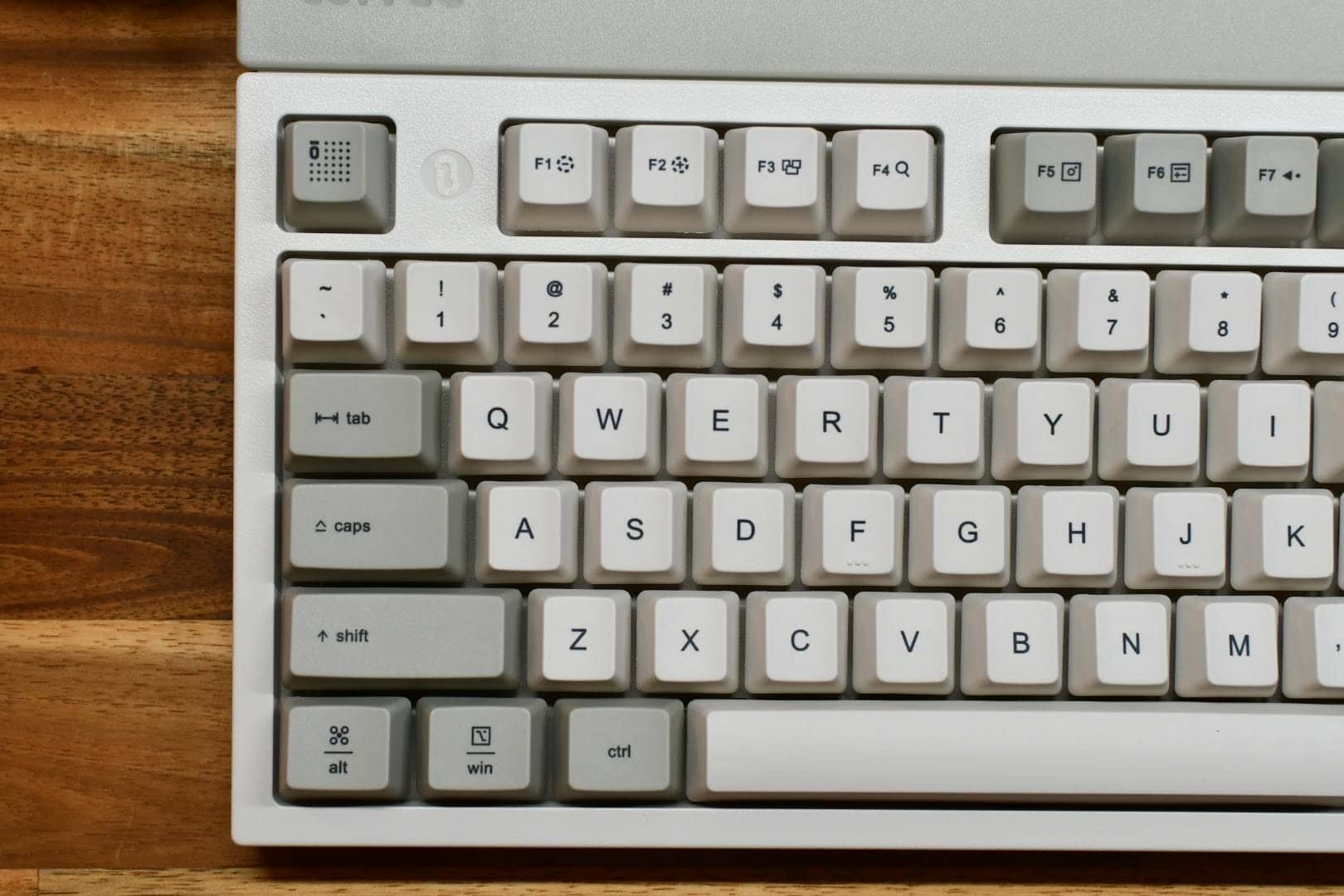

Lofree Block Specifications
Here is a brief overview of Lofree Block.
Less is More, Less is Better” is the design concept.

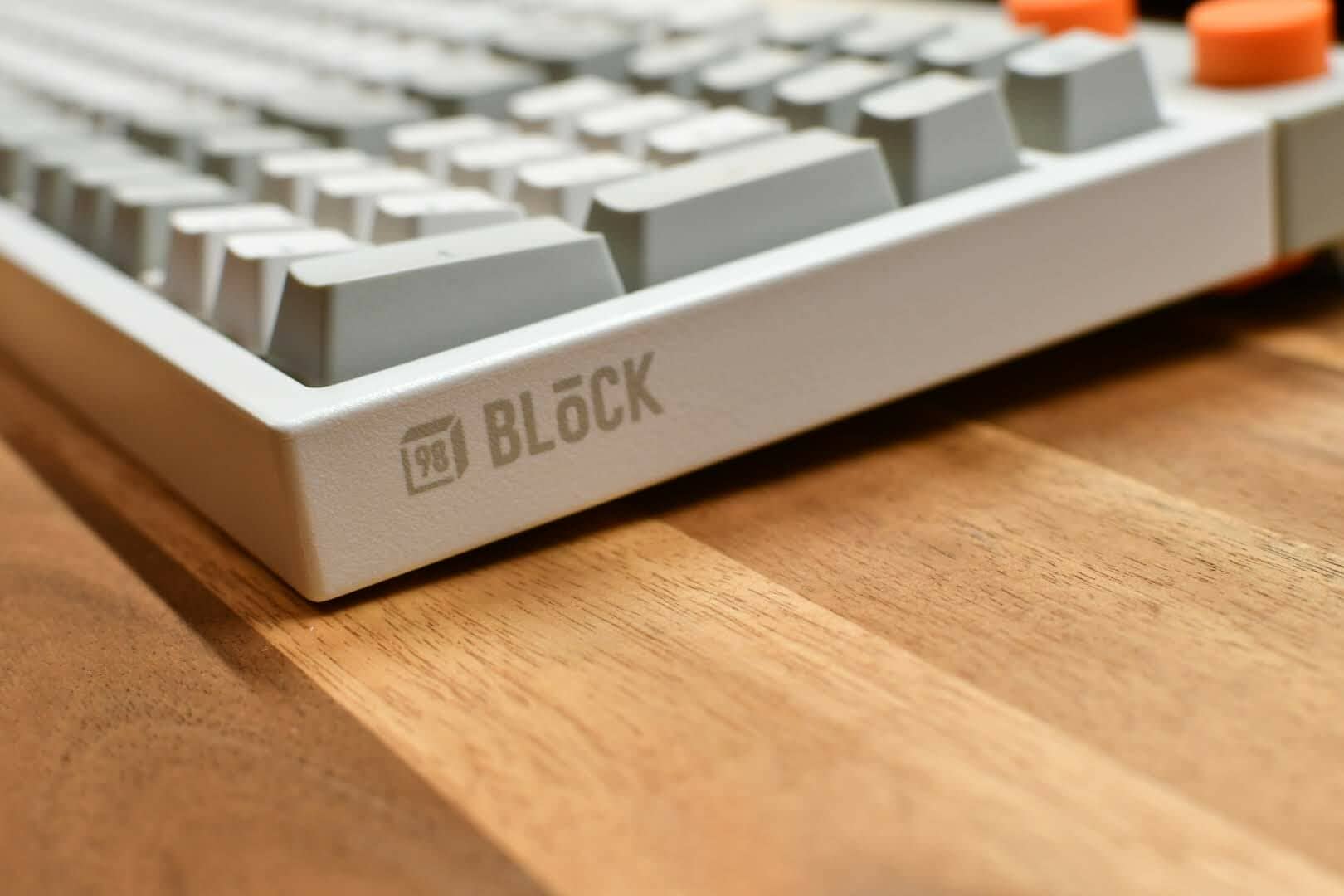

Despite its classic appearance, it features an LED display and a gasket-mounted structure for comfortable keystrokes.
The Hermes orange-colored knob is a volume control and a three-contact power switch/wired/wireless switching mode knob.
LED indicators show battery level, CAPSLOCK status, and where in the BT ch is being used
14 types of backlight effects
Keyswitches are equipped with TTC Full-POM switches
Hot-swappable
QMK/VIA not supported
Supports three connection modes: BT5.0/2.4GHz / wired connection
See below for detailed specifications.
仕様詳細
GENERAL
Switch Type: BLOCK Switch, Full POM by TTC
Structure: Gasket
Number of Keys: 98
Number of Multifunction Keys: 13
Knob: Volume & Connection
Hot-swappable Support: Yes
N-key Rollover Support: Yes
Backlight: White-LED
Backlight Modes: 14
Compatible System: macOS/Windows/Android/iOS

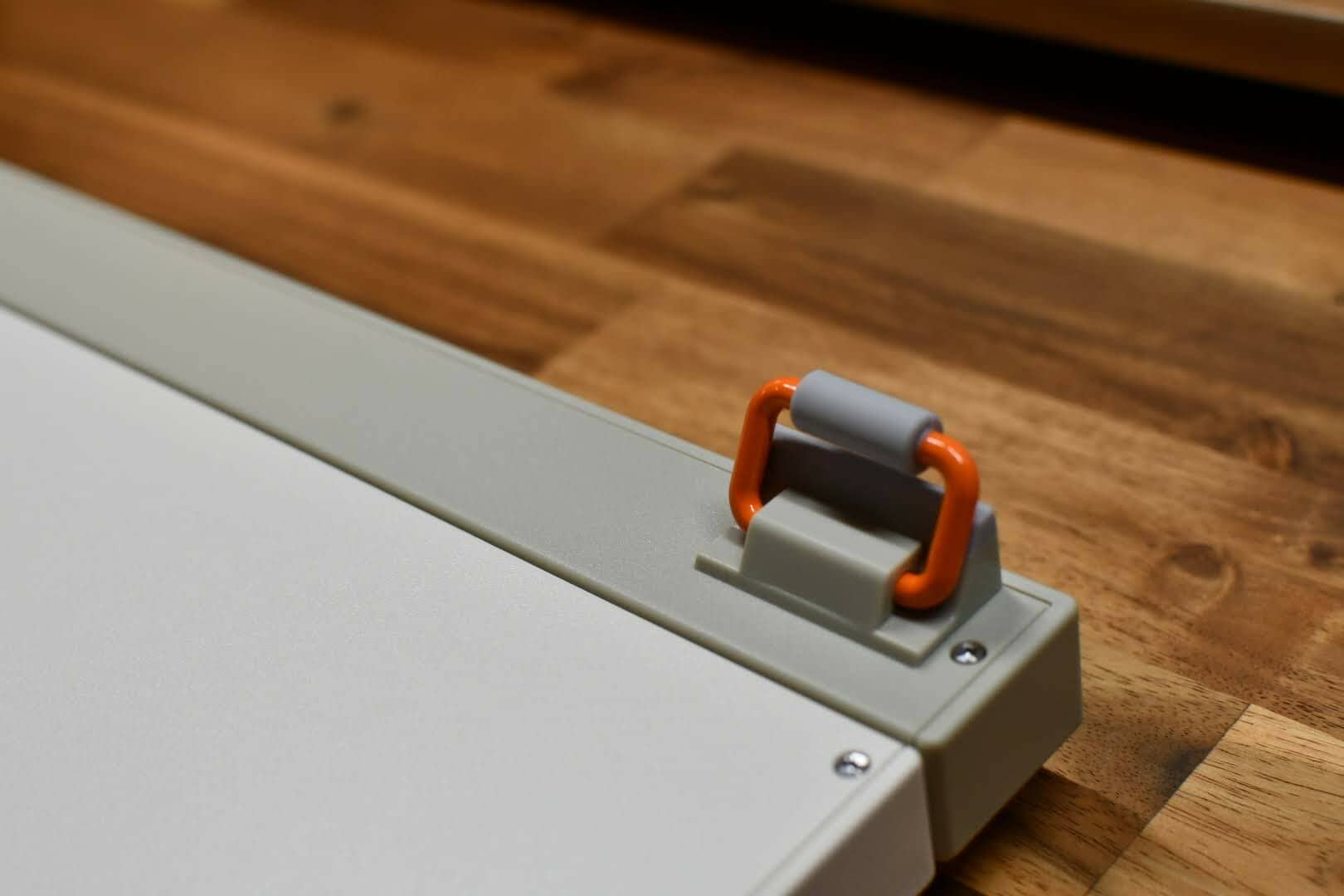

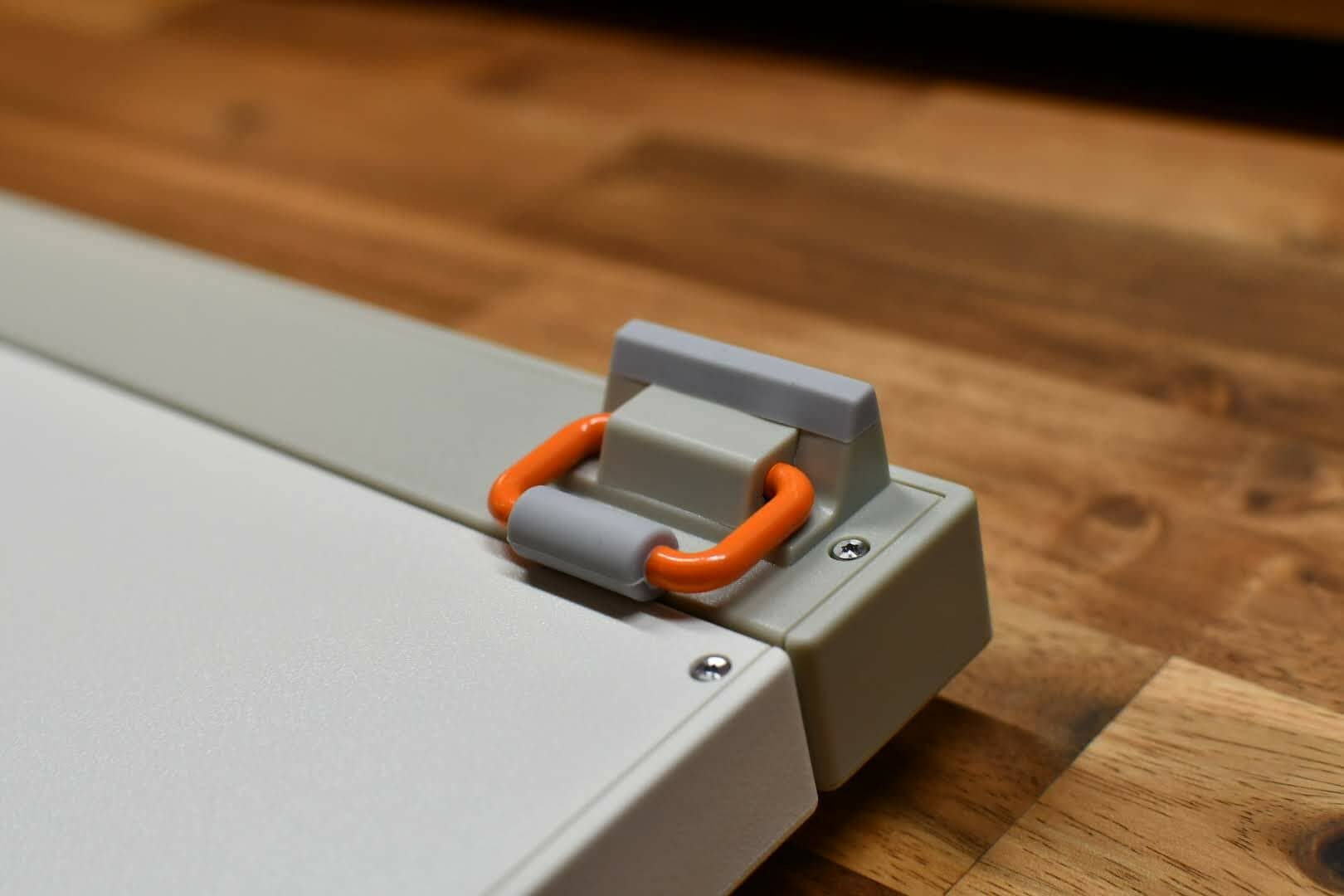

Angle: 4º/ 8º
Connection
Mode: Bluetooth 5.0, 2.4Ghz or Wired(Type C)
Material
Case: ABS
Keycap: Dye-Sub PBT
Battery
Battery Life: 2000mAh
Charging Time: 2.5 hours
Working Time (all lights on): 10 hours (lab test result)
Working Time (all lights off): Up to 80 hours (lab test result)
First, listen to the sound of the keystroke in this video.
You will notice that while the mechanical keyboard’s typical keystroke sound is retained, there is no unnecessary echoing sound or grating high-pitched sound.
This is created by a gasket-mounted structure, proprietary key switches, and key caps.

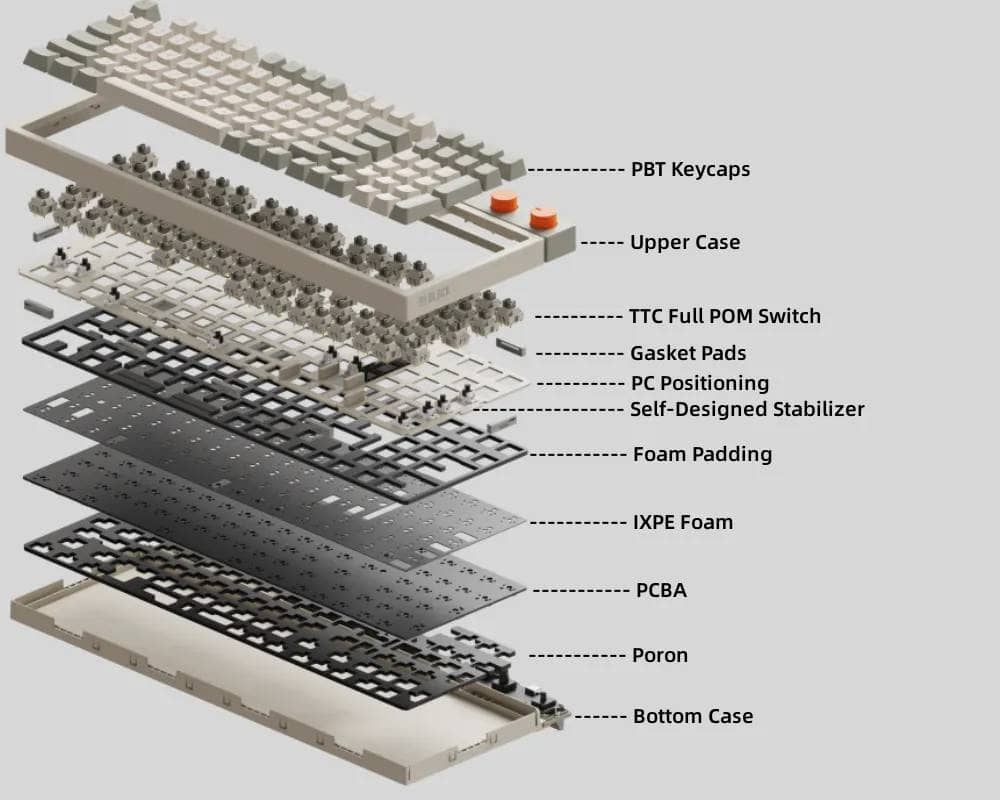

First, look at this structure.
Generally speaking, PBT is said to be a better material for keycaps to suppress the grating high pitch sound, but it is not enough to produce such a “thocky” keystroke sound.
The mute mechanism and gasket-mounted structure are responsible for this strike sound.
As you can see from this structural diagram, the base (PCBA) is sandwiched between several sound-absorbing materials.
A polycarbonate top plate is attached to the substrate, and a gasket pad attached to the top plate (probably made of PORON material) is tightly sandwiched between the case, so that any impact from keystrokes is absorbed by the gasket pad as it moves up and down.
In addition, the quietness of the newly developed FullPOM keyswitch made by TTC is also added to the quietness of the keyswitch, which I consider to produce an exquisite keystroke feel.

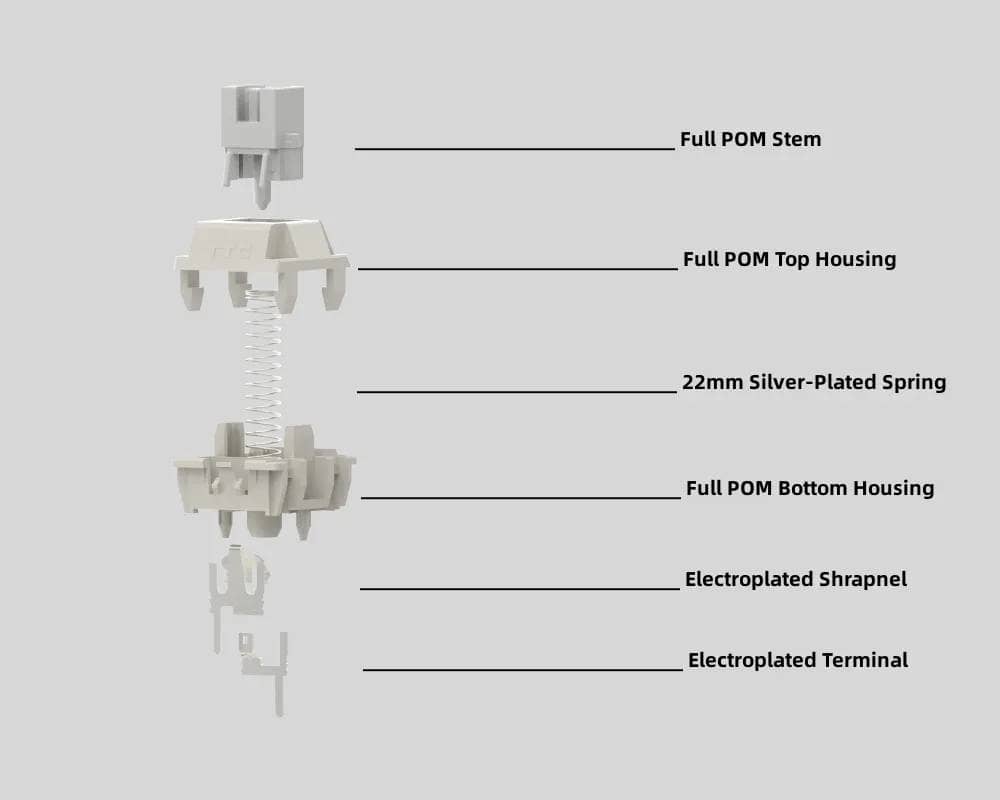

TTC Block Switch
Total travel: 3.8 mm
Pre-travel: 1.6 mm
Actuation force: 43gf
Bottom force: 50gf
Spring length: 22mm
Stem/top housing/bottom house: POM
Equipped with a numeric keypad for easy number entry in Excel

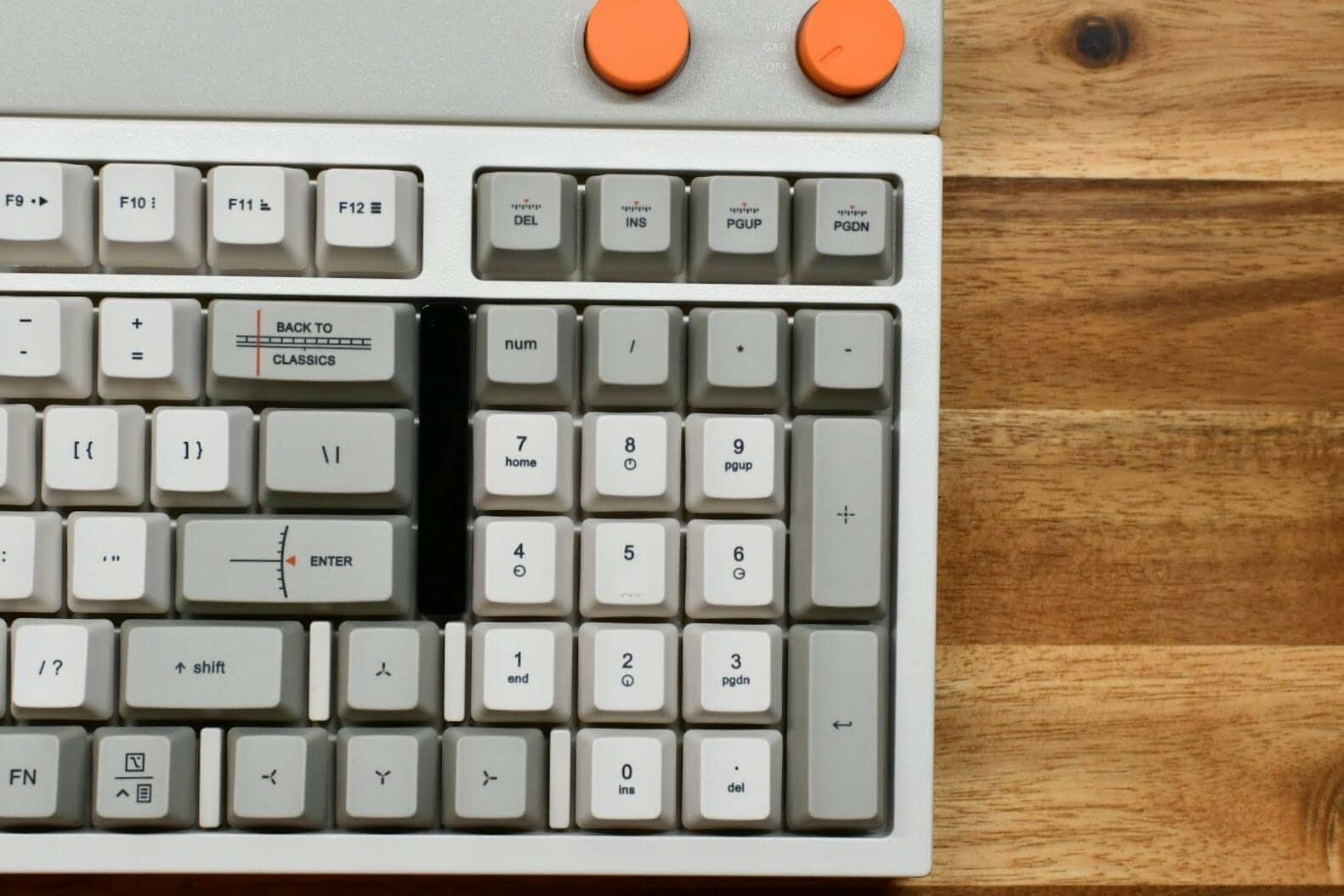

Despite its size, the Lofree Block has a numeric keypad similar to a full-size keyboard.
The basic numeric keypad layout has not changed, although the “0” key is now half the size due to the layout.
It will be very useful for those who often input numbers, such as in Excel.
Easy to see connection status with built-in indicator

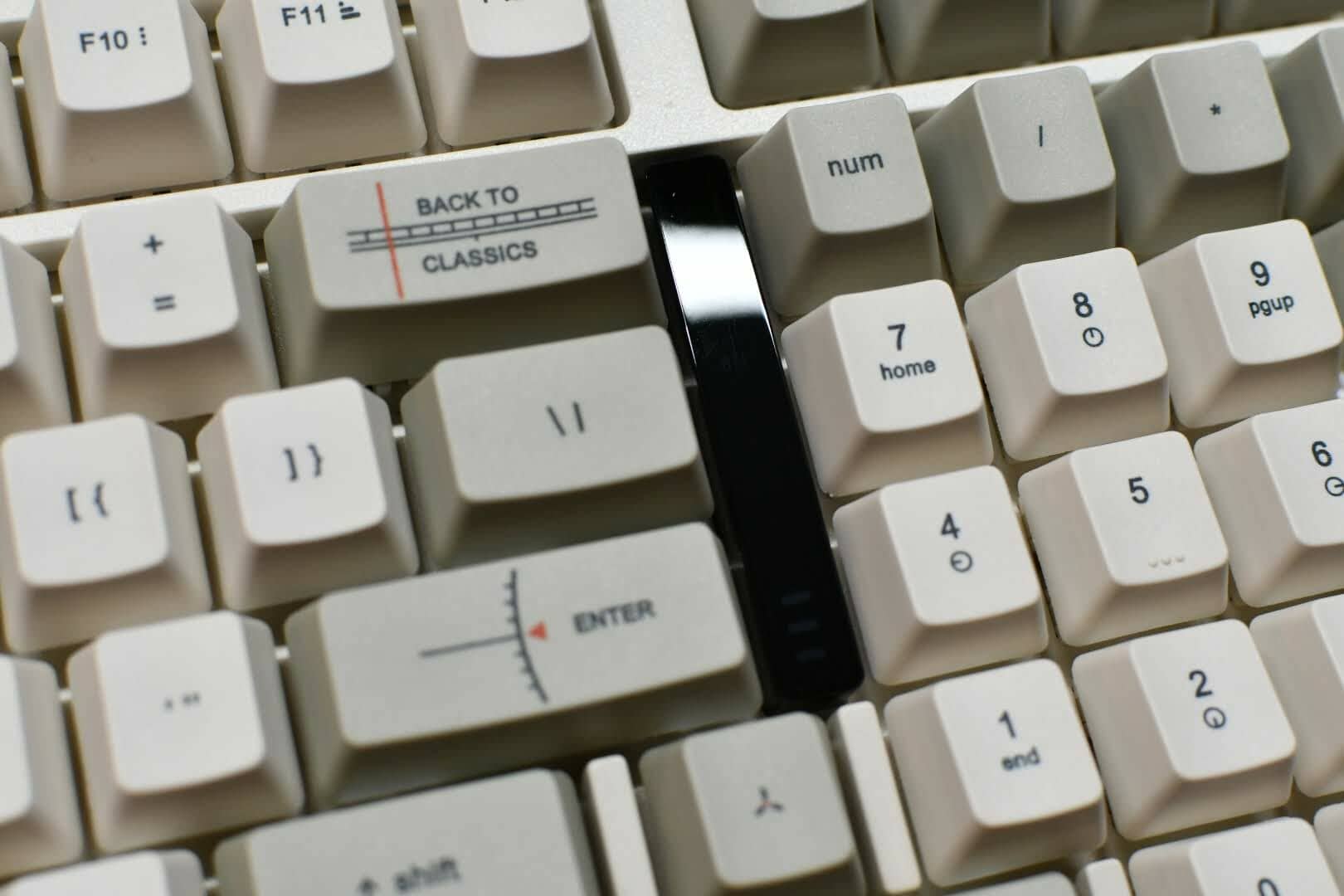

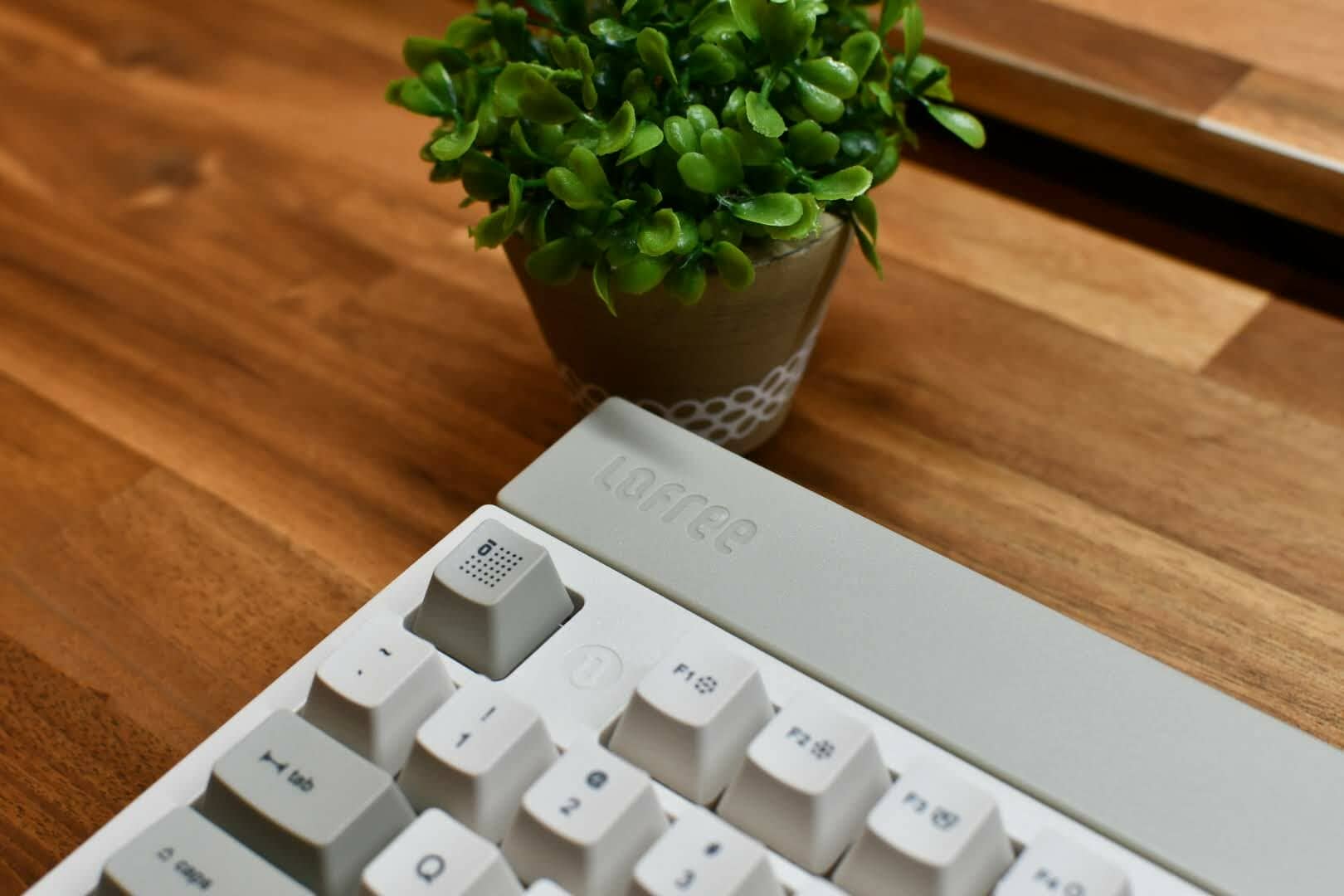

A distinctive feature is this LED indicator.
This indicator shows the remaining battery power, the state of the CAPSLOCK, and where in the BT ch is being used.
At the time of writing, the product has not yet acquired technical qualification, so wireless connection is basically not possible in Japan.
Therefore, the application is likely to be used to check whether the CAPSLOCK condition is present or not.

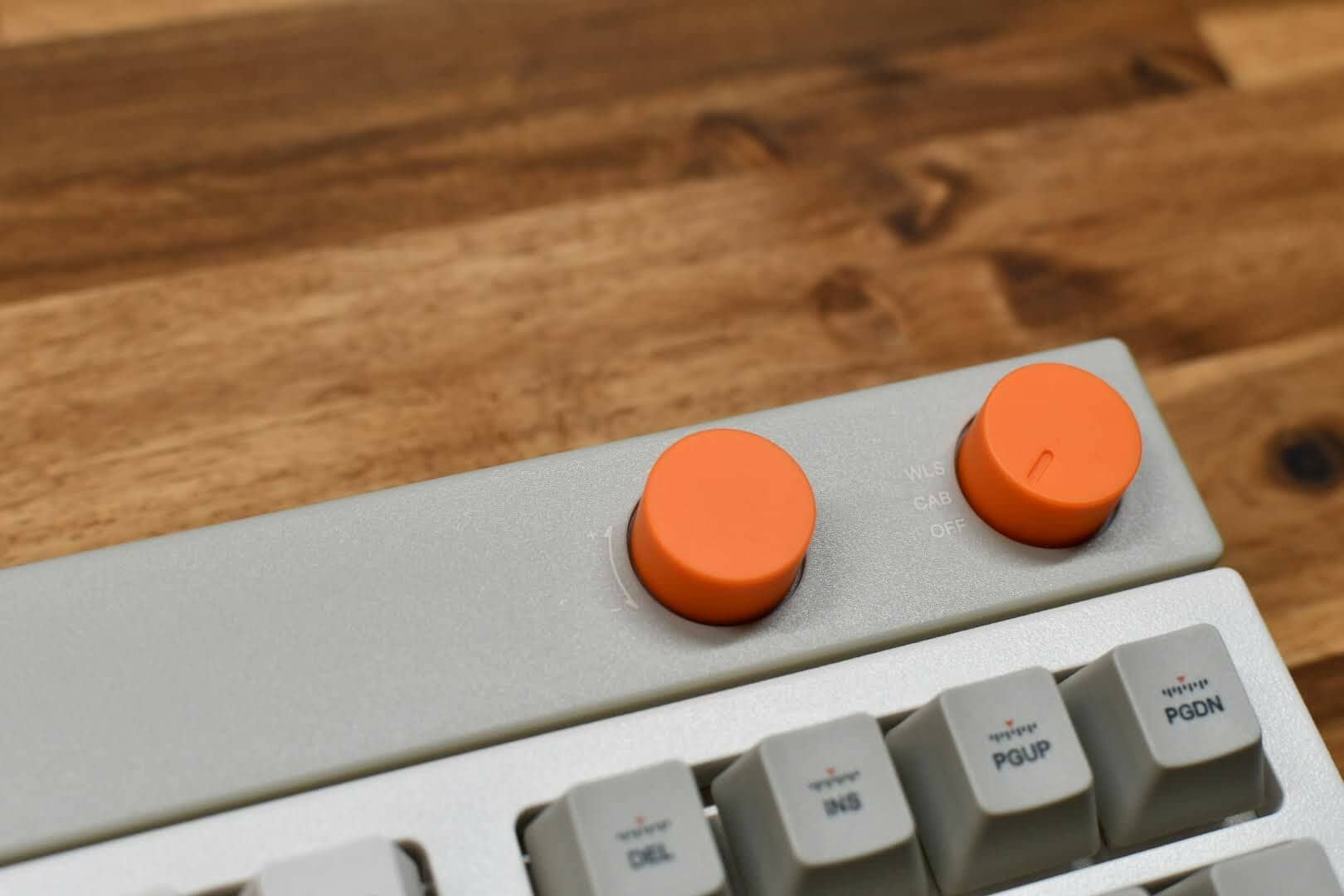

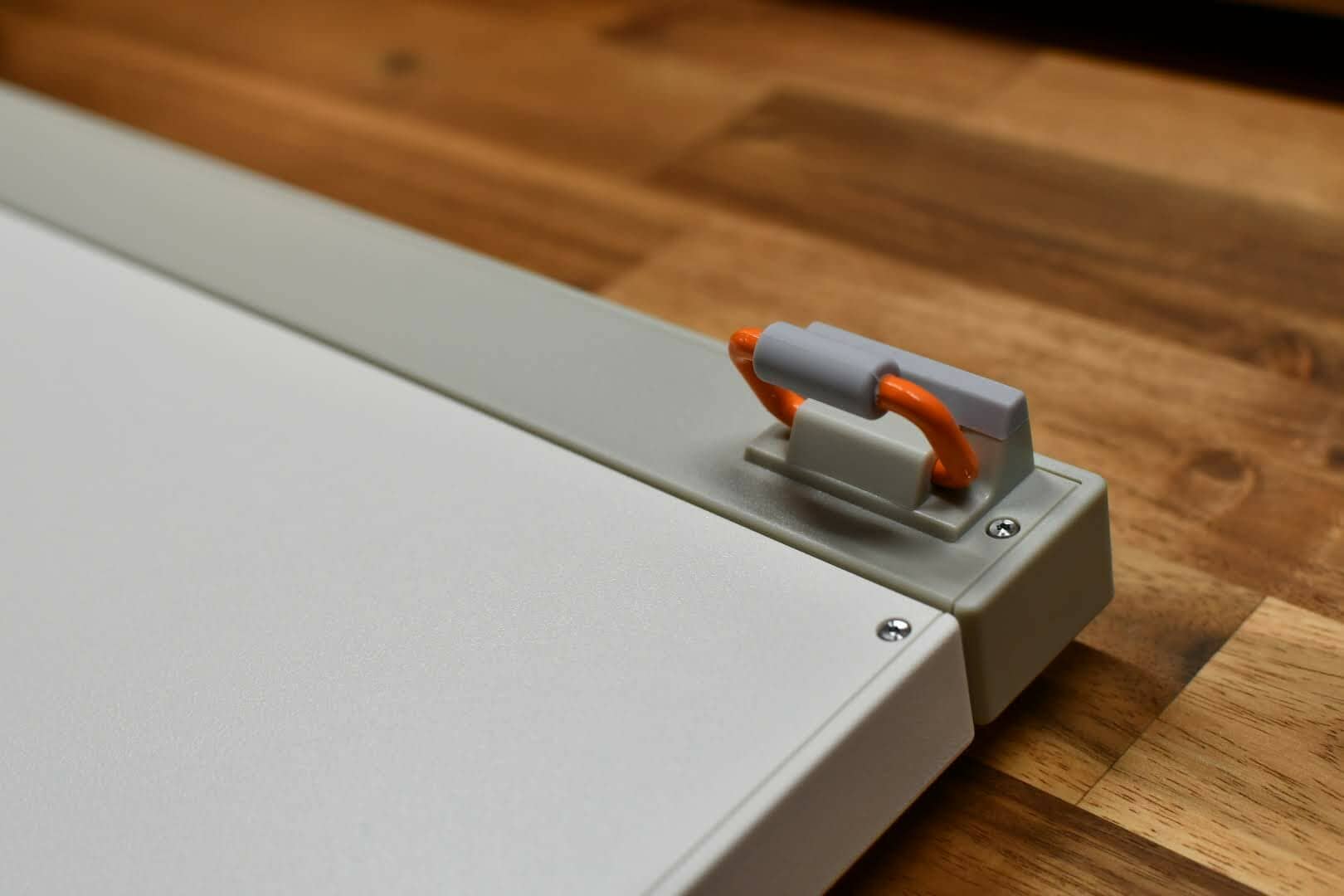

Stylish knobs with an itch.

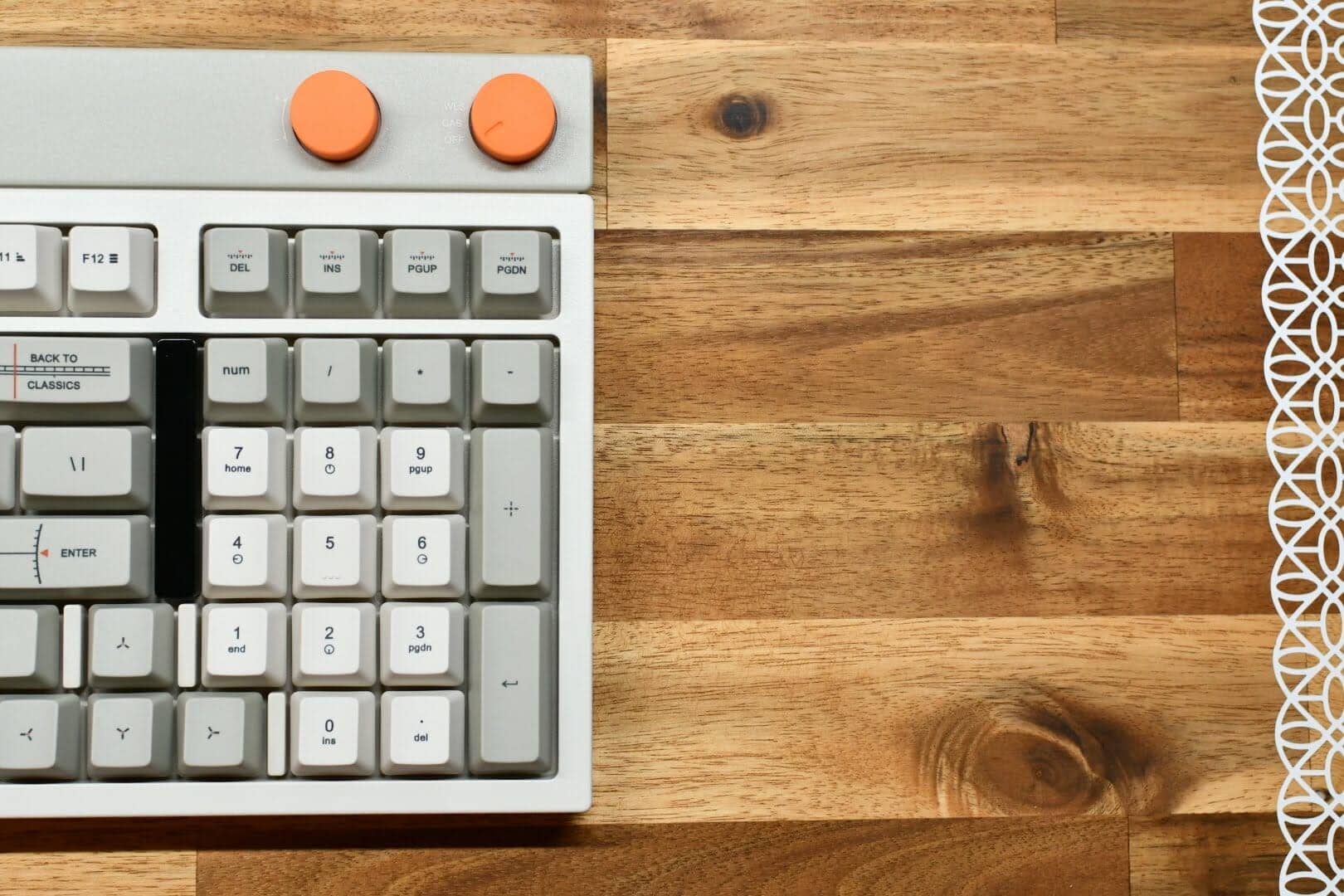

This knob in Hermes orange makes it look all the more gorgeous.
In fact, these knobs are well thought out for practical use, with the left knob serving as the volume control and the right knob as the power switch and mode switching function.
Although the Lofree Block has a very attractive feel and look, it also has its disadvantages.
If you are considering purchasing one, be sure to understand the disadvantages in advance.
Lofree Blockのデメリット
Large size and cannot be placed on a small desk.
Unable to change keymap
Windows/Mac replacement keycap not included.
Not yet technically certified.
Large size and cannot be placed on a small desk.

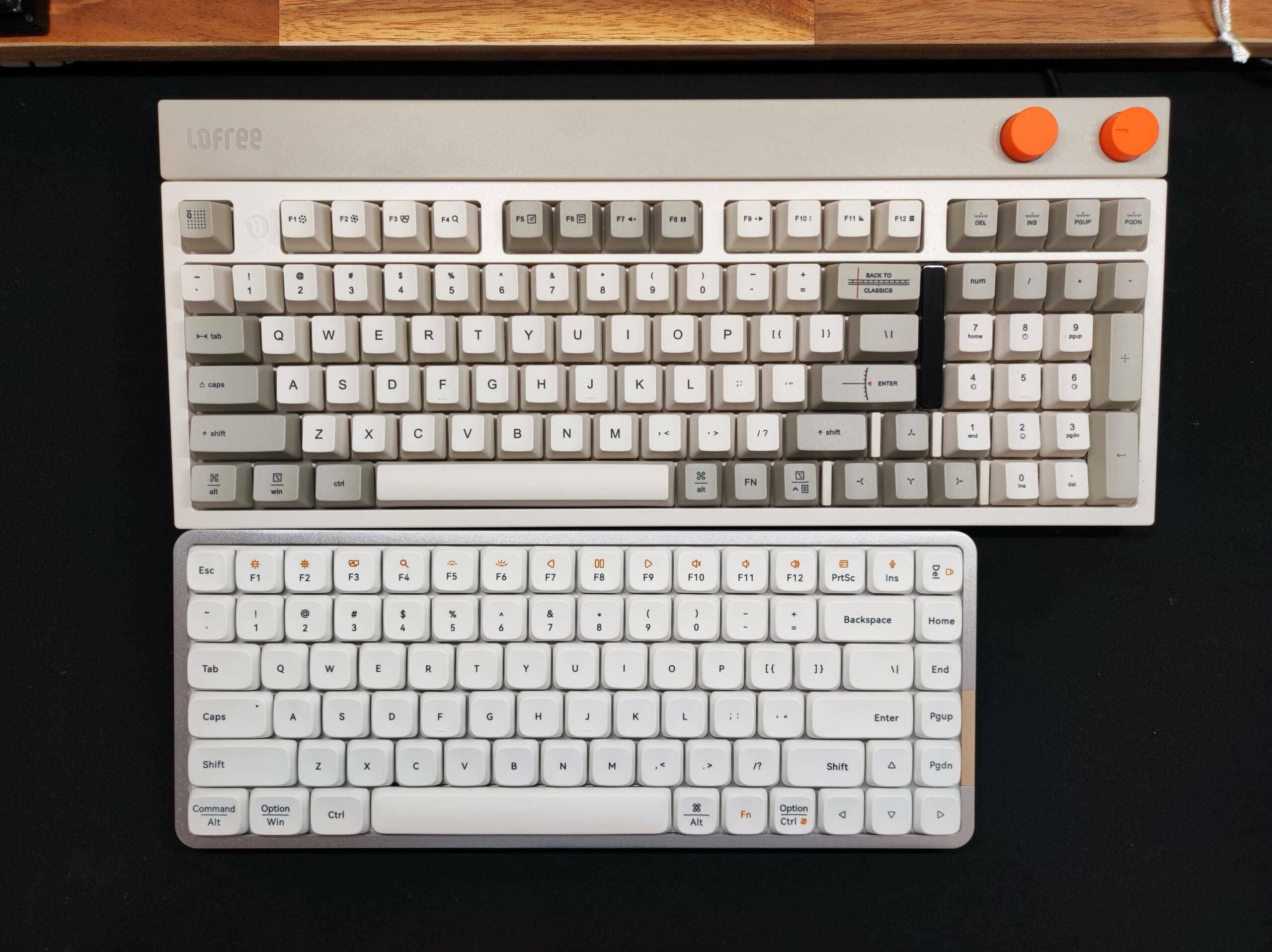

Being a 96% size mechanical keyboard, the Lofree Block is considerably larger than the 75% layout keyboards you may be used to, so it may not fit on a small desk.
Unfortunately, Lofree Block does not allow keymap changes.
As for modern mechanical keyboards, it is possible to change the keymap using proprietary or open source software, but at this time we do not support it.
Expect this to be addressed in future updates.
Windows/Mac replacement keycap not included.
Unfortunately, m and Windows /Mac keycaps are commonly marked, and no replacement keycaps are included.
If it is a type of keyboard where the key tops cannot be removed, this is not an option, but if the key tops can be replaced, replacement keycaps would also be desired.
Although we have not made a full-scale entry into Japan, we are convinced that its appeal is solid.
summary
This is our review of Lofree Block.
Recently, attractive full-size keyboards, such as Mode97, have been appearing in droves, but as far as I know, there is still no product that can match the feel of the Lofree Block.
We are so confident in the keyboard’s key feel that we recommend it.
