このキーボードの概要
| Brand | Keychron®︎ |
| Layout | JIS, US |
| Size | 75% |
| Connection | Bluetooth, USB |
| Hot-Swap | hotswap-available |
| Key Profile | Low Profile |
- Crowdfunding begins October 19, 2022 on Kickstarter.
- Contract signed on November 18, 2022 with nearly $300,000 raised in support → shipping to begin mid-December.
- General sales to begin in February 2023
- New color ” Shell White ” will be available on August 4, 2023
- Price: $94-$104
- Keychron’s first low-profile mechanical keyboard with QMK/VIA support
- Change existing keyswitches to Gateron Low-Profile 2.0 from February 2023.
- Sales of models compliant with technical regulations will begin on May 17, 2023 from the authorized Japanese distributor, Kopec Japan.
Recommended for Mac users
Recommended for Windows users
Where to Buy
【あす楽】 Keychron K3 Pro QMK/VIA Mac日本語配列 有線 / Bluetooth 5.1 ワイヤレス 両対応 テンキーレス Gateron ロープロファイル 赤軸 White LEDライト メカニカルキーボード # K3P-A1-JIS キークロン (Bluetoothキーボード) JIS
Keychron K3 Pro QMK/VIA Mac英語配列 有線 / Bluetooth 5.1 ワイヤレス 両対応 テンキーレス ホットスワップ Gateron ロープロファイル 赤軸 RGBライト メカニカルキーボード # K3P-H1-US キークロン (Bluetoothキーボード) US
Original site (models not yet compliant with technical standards)
- Keychron.jp
- Keychron.com｜If you cannot find the product on the Japanese site, click here.
Types of Keychron and how to choose ▷▷▷
Related Reading
Keychron K3 ProがKickstarterのクラウドファンディングで成約
2022年11月18日、Keychronはクラウドファウンディングサイト 「Kickstarter」で募集していた「Keychron K3 Pro」が成約したことを発表しました。 支援金額の合計は$277,…
仕様詳細
SPECIFICATION

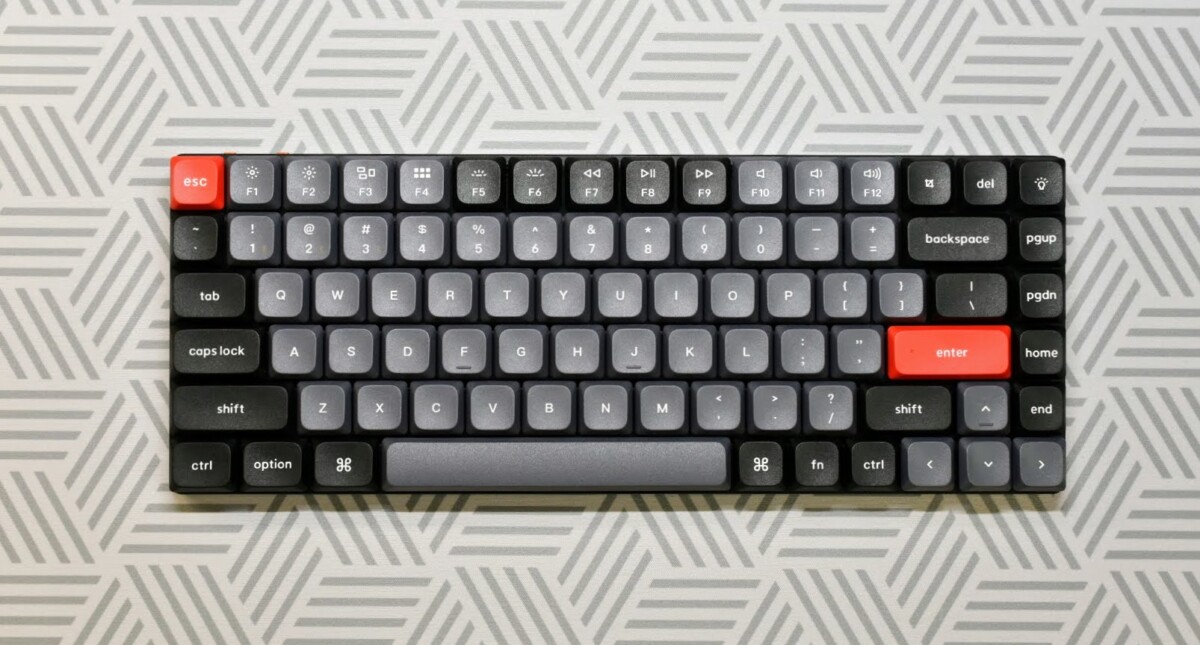

- Number of Keys: 84 (75%)
- Switches: Gateron low-profile mechanical
- Switch Face: North-facing
- Number of Multimedia Keys: 12
- Frame Material: ABS+Aluminum frame

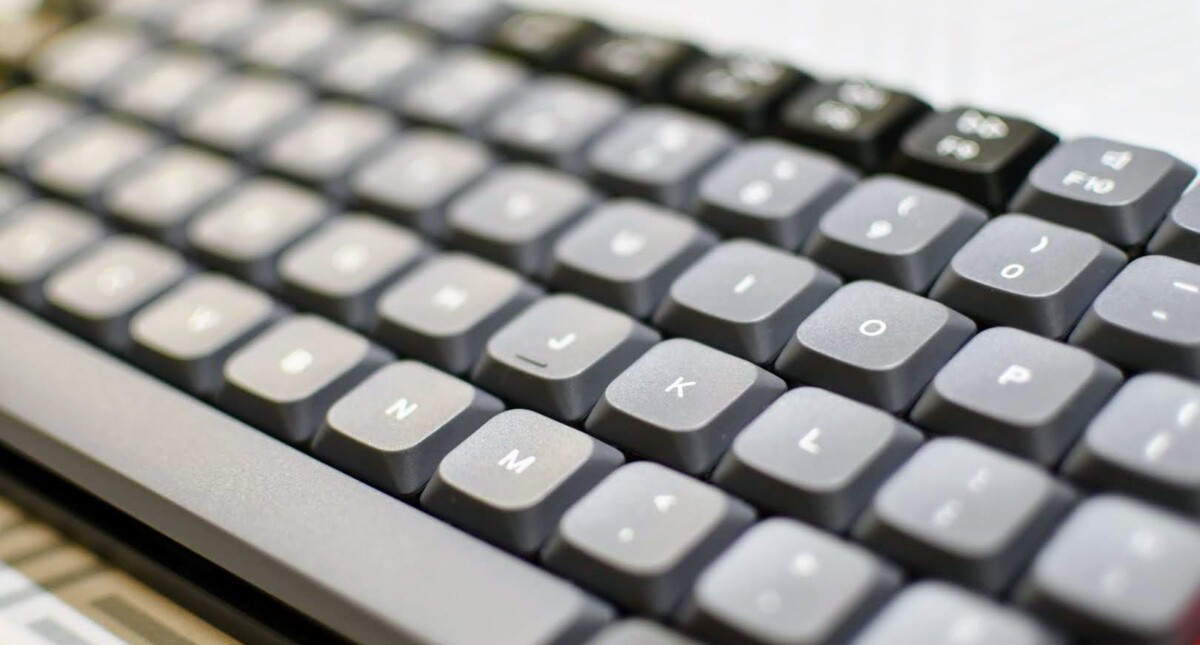

- Keycap Material: Double-shot PBT
- Layout: ANSI
- Polling Rate (Wired Mode): 1000Hz
- Polling Rate (Wireless Mode): 90Hz
- N-Key Rollover (NKRO): Yes for both wireless and wired modes
*The K3 Pro is currently compatible with Gateron low-profile mechanical switches only, as QMK does NOT support low
profile optical switches.
CONNECTIVITY AND POWER
- Backlit: 22 types of RGB backlight options plus endless possibilities
- Battery: 1550 mAh rechargeable li-polymer battery
- BT Working Time (Backlit off): Up to xx hours (Lab test results may vary by actual use)
- BT Working Time (RGB): Up to xx hours (Lowest brightness)

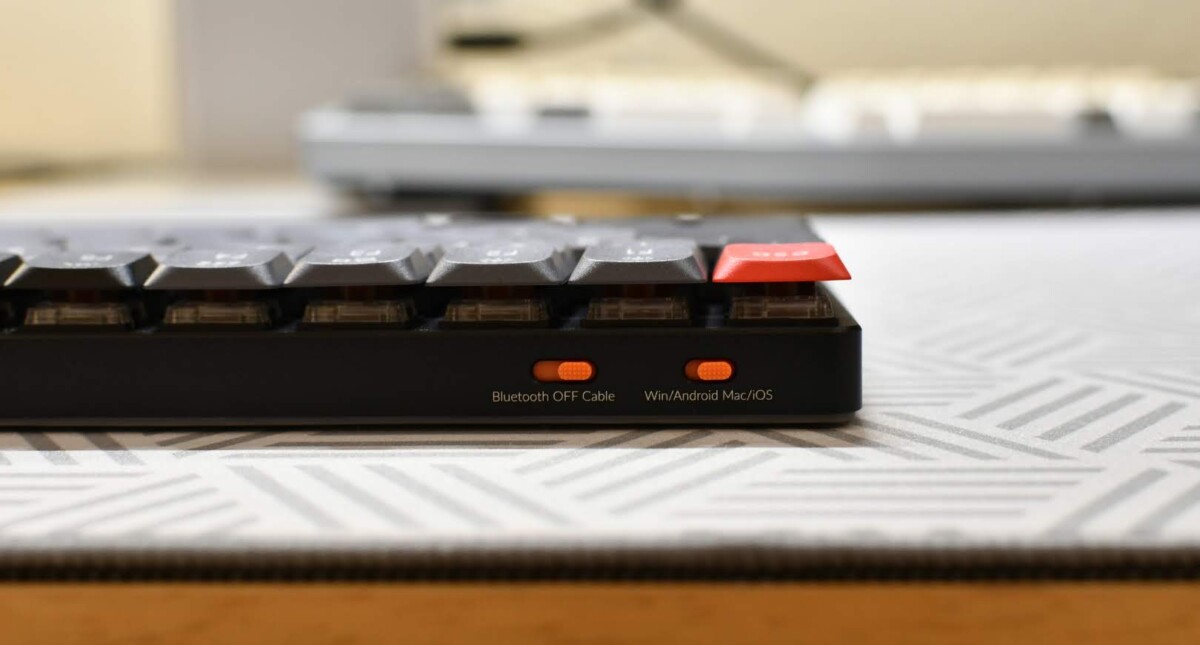

- Connection: Bluetooth and Type-C cable
- Bluetooth version: 5.1
- Bluetooth Device Name: Keychron K3 Pro
- Compatible System: macOS/Windows/Linux
PHYSICAL UNIT
- Dimension: 306 x 116 mm (12.04 x 4.56″)

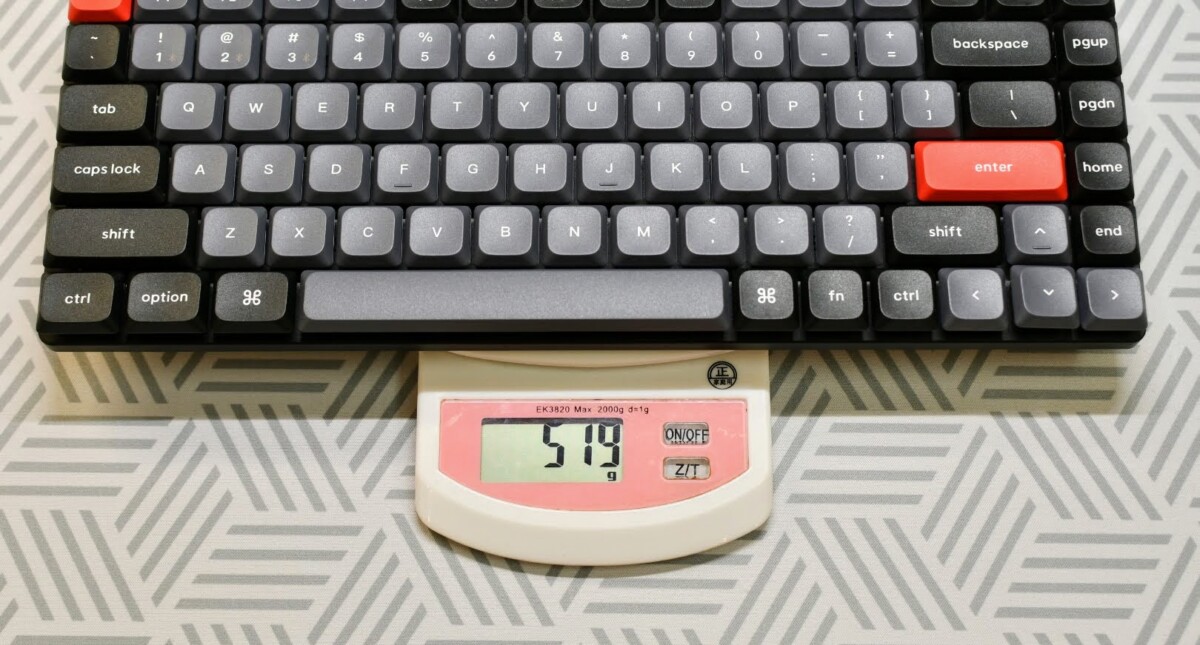

- Weight: 525 g / 1.16 lbs

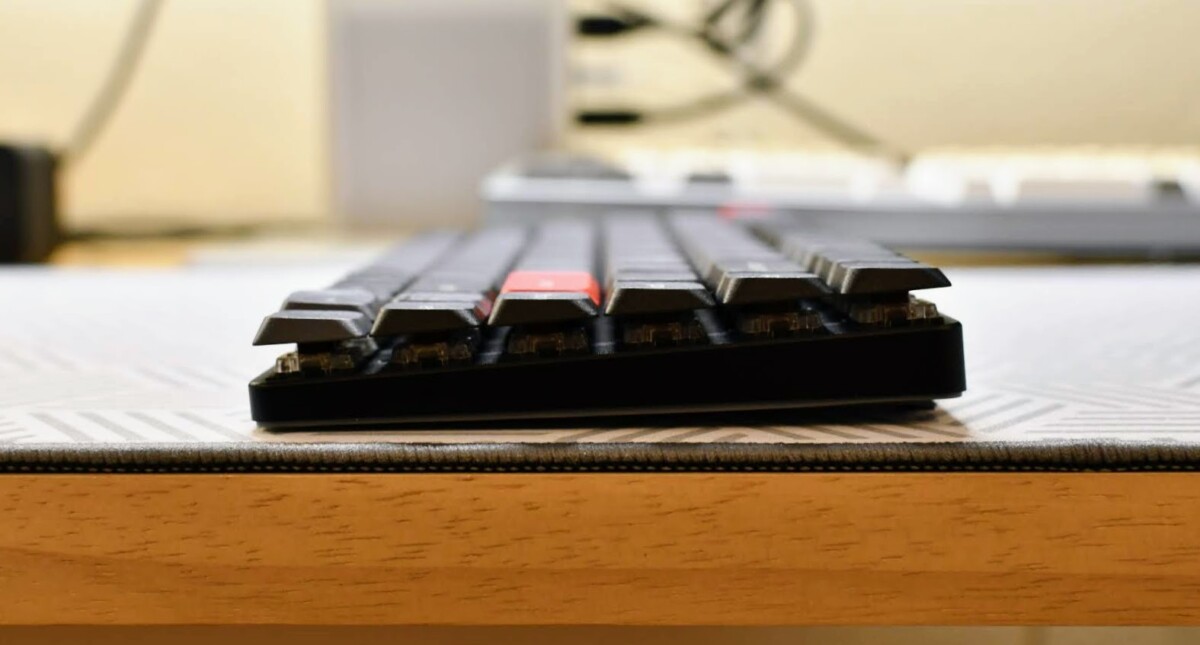

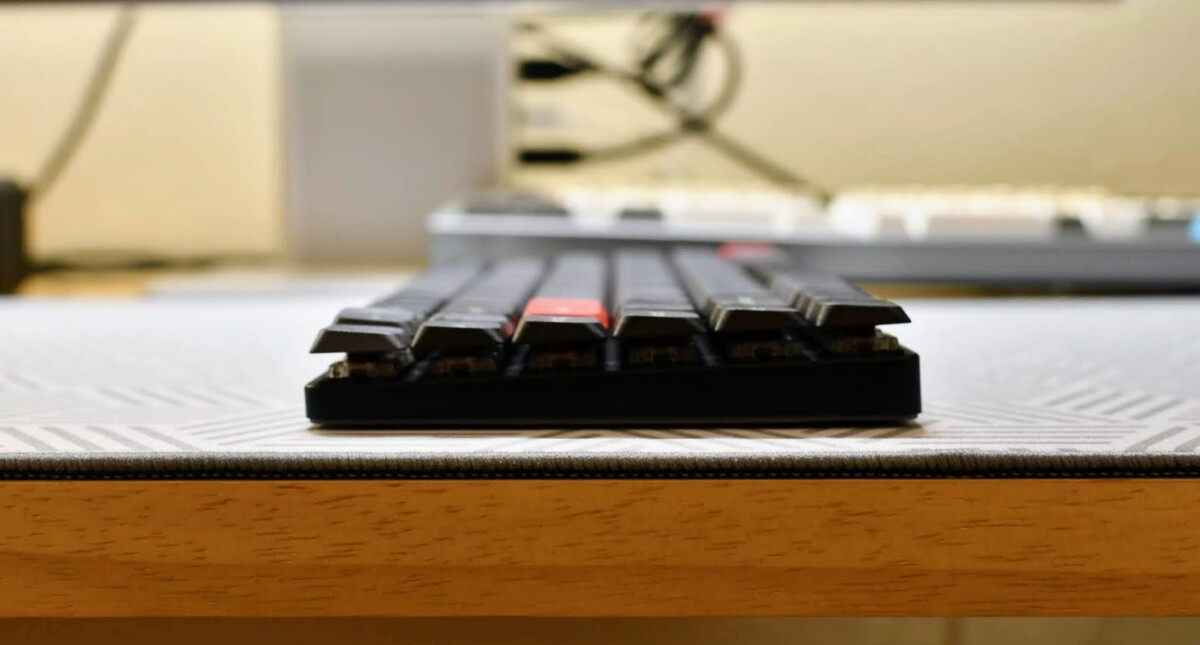

- Height without keycap (front): 11 mm (0.43″)
- Height without keycap (rear): 15 mm (0.59″)
- Height incl. keycap (front): 17 mm (0.66″)
- Height incl. keycap (rear): 22 mm (0.86″)

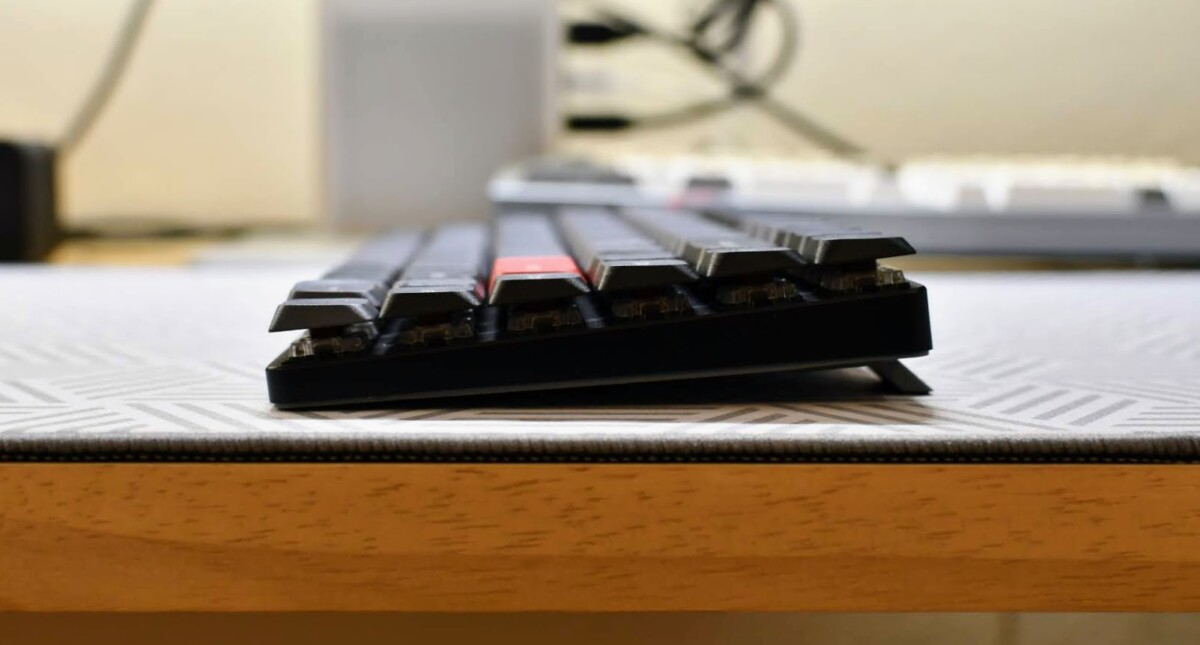

- Typing Angle: 0º, 6º and 9º
- MCU: Ultra-low-power ARM Cortex-M4 32-bit STM32L432 (128KB Flash)
- Operating Environment: -10 to 50°C
Information reference: https: //www.keychron.com/products/keychron-k3-pro-qmk-via-wireless-custom-mechanical-keyboard
Table of Contents
Selectable axis types

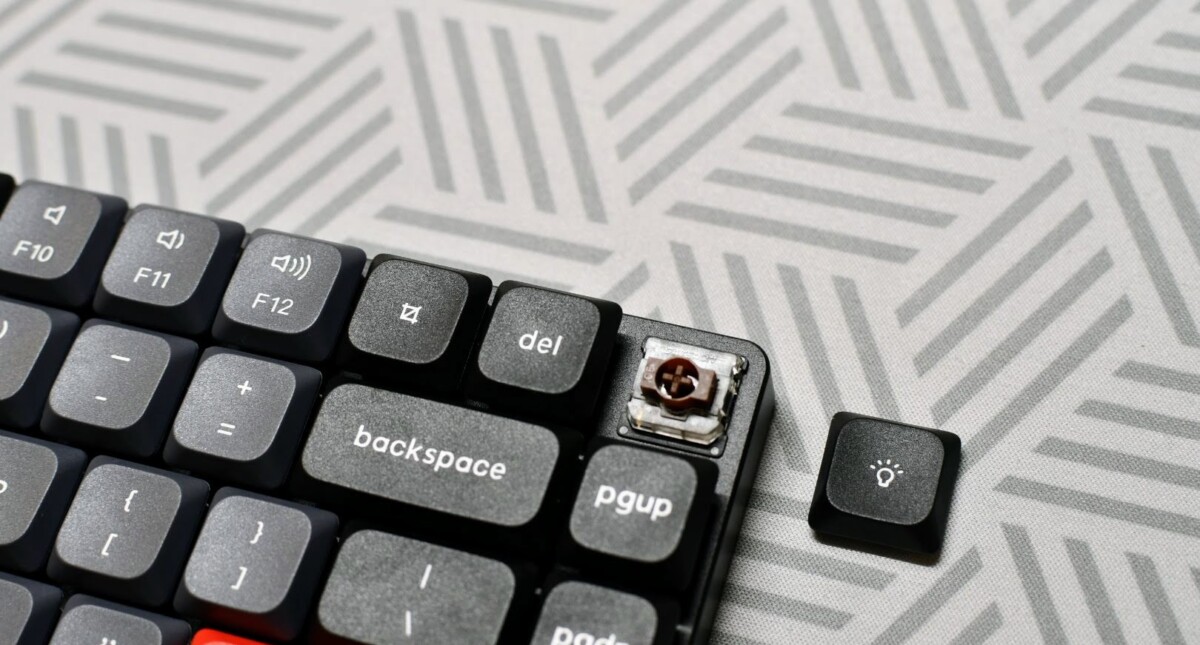

Gateron Low-profile Switches 2.0 (Gateron Official)
| Switch | Red | Brown | Blue | Banana |
|---|---|---|---|---|
| Picture. |  |  |  |  |
| Feel | Linear | Tactile | Clicky. | Tactile |
| Color | Red | Brown | Blue | Yellow |
| Lubed. | Pre-Lubed | Pre-Lubed | Pre-Lubed | Pre-Lubed |
| Pressure | 50gf | 55gf | 65gf | 60gf |
| Operating force | 50±15gf | 55±15gf | 65±15gf | 60±15gf |
| End force | 60±5gf | 60±5gf | 70±5gf | unknown |
| Spring | 13.5mm | 13.5mm | 11.5mm | unknown |
| Pre-Travel | 1.7±0.4mm | 1.7±0.4mm | 1.7±0.4mm | 1.7±0.4mm |
| Total Travel | 3.2±0.2mm | 3.2±0.2mm | 3.2±0.2mm | 3.2±0.2mm |
