このキーボードの概要
| Brand | Keychron®︎ |
| Layout | JIS, US |
| Size | 80%TKL |
| Connection | Bluetooth, USB |
| Hot-Swap | hotswap-available |
Comment
- September 10, 2024 Release

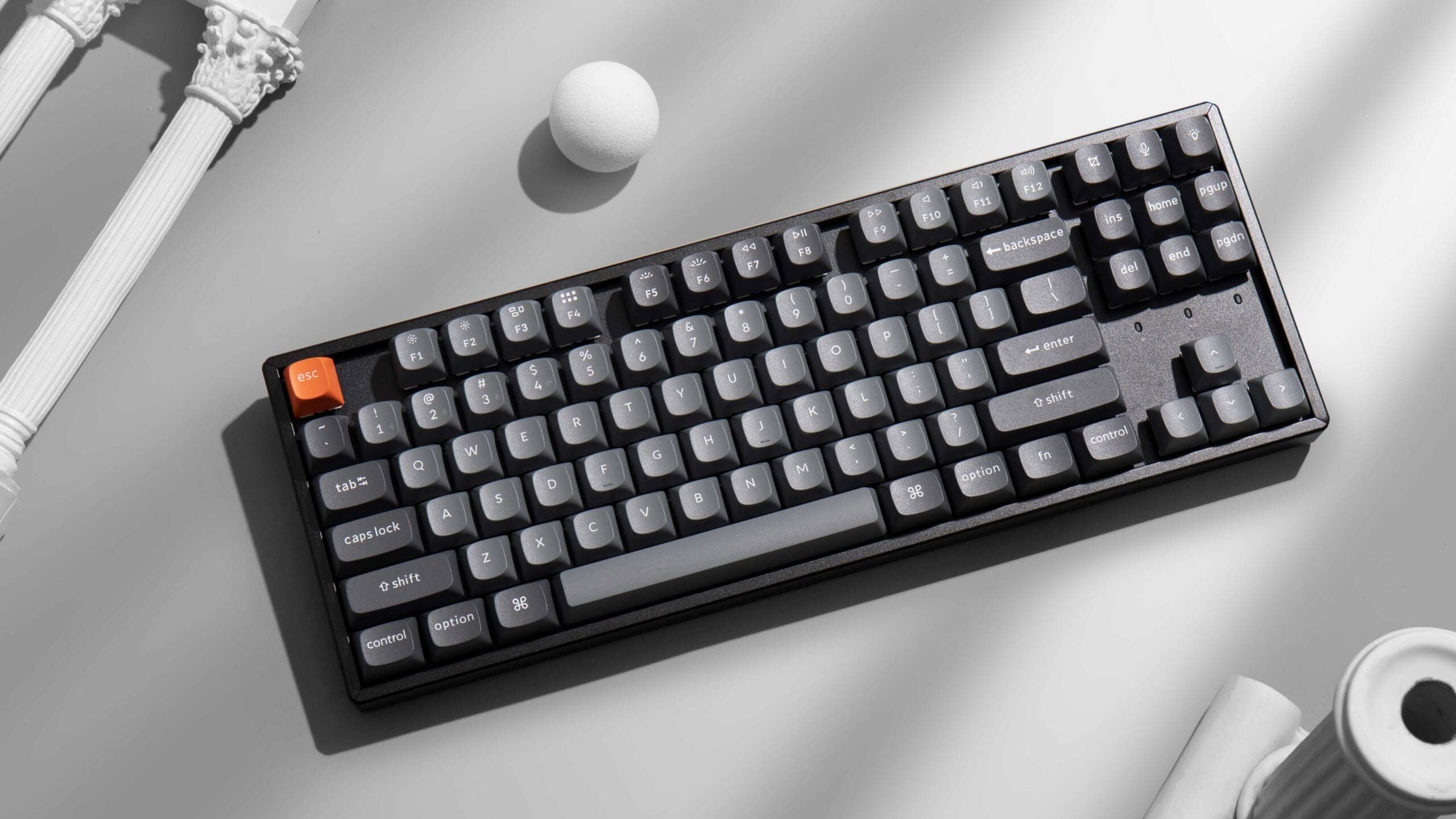

- Mechanical keyboard with 80% TKL layout using CherryMX compatible key switches.
- Compared to the previous Pro, it has been updated with a new polling rate of 1000 Hz for 2.4 GHz connections and more sound absorbing materials.
- The lineup exists in hot-swappable and soldered models.
- Hot-swappable models: RGB backlight/RGB backlight + aluminum frame selectable
- Non-hot-swappable models: only white backlight is selectable
- Key switches can be selected from three types of Keychron Super Red/Super Brown/Super Banana
- Key maps can be changed using the Keychron Launcher web app
- Replacement keycaps for both Windows and Mac included
- Thocky keystroke feel can be expected due to the use of multilayer acoustic foams such as IXPE, PET, and EPDM
- Triple-mode USB Type-C wired/2.4GHz wireless/BT connection
- Changeable between Windows and Mac with physical buttons
- Keycaps are OSA profile, material is PBT and double-shot, so there is no need to worry about the legend disappearing.
- Threaded PCB stabilizer is used.
- South facing RGB mounted
- Tilt angle can be changed up to 3 levels (3.4°/7.7°/10.7°)
- Click here to purchase ▷▷▷.
Where to Buy
- Keychron.com｜Official website with the entire product lineup
- Keychron on Amazon Official｜Amazon Japan’s official store
- Keychron (Rakuten Ichiba)
Types of Keychron and how to choose ▷▷▷
仕様詳細
| Number of Keys | 87 (80%) |
|---|---|
| Switches | Keychron Super mechanical |
| Switch Face | South-facing |
| Number of Multimedia Keys | 12 |
| Frame Material | ABS / ABS+Aluminum frame |
| Keycap Material | Double-shot PBT |
| Keycap Profile | OSA (OEM profile with spherical-angle) |
| Layout | ANSI |
| Polling Rate (2.4GHz and Wired Mode) | 1000Hz |
| Polling Rate (BT Mode) | 90Hz |
| N-Key Rollover (NKRO) | Yes for both wireless and wired modes |
| Backlit | 22 types of RGB backlight options plus endless possibilities |
| Battery | 4000 mAh rechargeable li-polymer battery |
| Wireless Working Time (Backlit off) | Up to 180 hours (Lab test results may vary by actual use) |
| Wireless Working Time (RGB) | Up to 30 hours (Lowest brightness) |
| Connection | 2.4 GHz / Bluetooth / Type-C wired |
| Bluetooth version | 5.1 |
| Bluetooth Device Name | Keychron K8 Max |
| Compatible System | macOS / Windows / Linux |
| Dimension (Plastic frame version) | 354.21 x 124.18mm (13.94 x 4.89″) |
| Weight | 1158 g / 2.55 lbs |
| Dimension (Aluminum frame version) | 359.20 x 129.20 mm (14.14 x 5.09 inches) |
| Weight | 1308g / 2.88 lbs |
| Height incl. keycap (front) | 35.32 mm (1.39″) |
| Height incl. keycap (rear) | 43.09 mm (1.70″) |
| Typing Angle | 3.4º, 7.7º and 10.7º |
| MCU | ARM Cortex-M4 32-bit STM32F402 (256KB Flash) |
| Operating Environment | -10 to 50°C |
Information reference: https: //www.keychron.com/products/keychron-k8-max-qmk-wireless-mechanical-keyboard?variant=41839708733529
タップできる目次
About the keyswitch to be adopted
Keychron Super Switch
| Features | Red | Brown | Banana |
|---|---|---|---|
| Operating force | 45 ±15 gf | 55 ±15 gf | 47 ±8 gf |
| Pre-travel | 2.0 ±0.4 mm | 2.0 ±0.4 mm | 2.0 ±0.4 mm |
| Travel distance | 4.0 ±0.4 mm | 4.0 ±0.4 mm | 3.6 ±0.4 mm |
| Behavior | Linear | Tactile | Tactile (Similar to Panda switches) |
| Pre-lubed | Yes | Yes | Yes |
| Sound level | Quiet | Gentle | Gentle |
| Suitable for | Office/gaming | Midway Office/gaming | Office/gaming |
| Spring length | Double-stage 19 mm | Single-stage 15.2 mm | Double-stage 21.5 mm |
