Keychron Q5 HE QMK Wireless Custom Keyboard

2024年9月29日

当ページのリンクには広告が含まれています。

このキーボードの概要

Brand	Keychron®︎
Price	high-class
JIS/US	US
Keyboard Size	96%Full
Key Profile	Magnetic method (Normal Profile)
Key Sounds	Choose what you like
How to Connect	Bluetooth, USB
Battery	usb-power, rechargeable
Hotswap	hotswap-available
Normal or Split	非分割

Comment

September 27, 2024 Release
96% full-size layout mechanical keyboard with magnetic keyswitches.
Prices start at $229.00
Available in carbon black and shell white
Keyswitch uses Gateron Double-Rail Magnetic Nebula Switch
No barebone models available, only assembled with key switches included
Not compatible with Gateron Magnetic Jade or Gateron KS-20 Magnetic Switch, only Gateron 2.0 Magnetic Switch available
As with the Q3HE released at the same time, the Q3HE features magnetic keyboard-specific actuation point adjustment in 0.1mm increments, dynamic rapid trigger function, One Key Multiple Commands (the ability to perform multiple actions with a single keystroke), and more.
Settings are made using the Keychron Launcher Web application, which is used to change the keymap and adjust various parameters.
Triple-mode wired/2.4GHz/BT connection supported
Polling rate of 1000 Hz for wired/2.4 GHz band
Adopts 6063 aluminum body
Four layers of sound-absorbing material
The double gasket-mounted construction allows for a soft keystroke feel.
Keycaps are OSA profile, double-shot PBT.
Supports hot-swapping, but only supports Gateron 2.0 Magnetic Switch keyswitch
Equipped with RGBLED lights facing south
Equipped with screw-in stabilizer
Click here to purchase ▷▷▷.

このキーボードのキー配列・サイズは【US】【96%Full】です。

Where to Buy

仕様詳細

Width	144.8 mm
Length	408.05 mm
Front Height	20.73 mm (without keycaps)
Back Height	31.8 mm (without keycaps)
Feet Height	2.4 mm
Angle	5.3°
Weight	2187 g ± 10 g (Fully Assembled version)
Body Material	Aluminum
Plate Material	Aluminum
Polling Rate	1000 Hz (Wired and 2.4 GHz) / 90Hz (Bluetooth)
N-Key Rollover (NKRO)	Yes for both wireless and wired modes
Rapid Trigger	Yes
Adjustable Actuation Points	0.2 – 3.8 mm
Dynamic Keystrokes	4-in-1 action keys
Sensitivity	0.1 mm
N-Key Rollover (NKRO)	Yes for both wireless and wired modes
Keycap.	OSA Double-shot keycaps, not shine-through
MCU	ARM Cortex-M4 32-bit STM32F402RC (256KB Flash)
Backlight	South-facing RGB LED
Switch	Gateron double-rail magnetic switch
Hot-swappable Support	Yes, compatible with Gateron double-rail magnetic switch only.
Stabilizer	Screw-in PCB stabilizer
Cable	Type-C cable (1.8 m) + Type-A to Type-C adapter
Connectivity	2.4 GHz / Bluetooth / Type-C wired
Bluetooth Version	5.2
Bluetooth Device Name	Keychron Q5 HE
Battery	4000 mAh Rechargeable li-polymer battery
Operating Environment	-10 to 50°C
Wireless Working Time (Backlit off)	Up to 100 hours

タップできる目次

[blog_parts id="41919"]

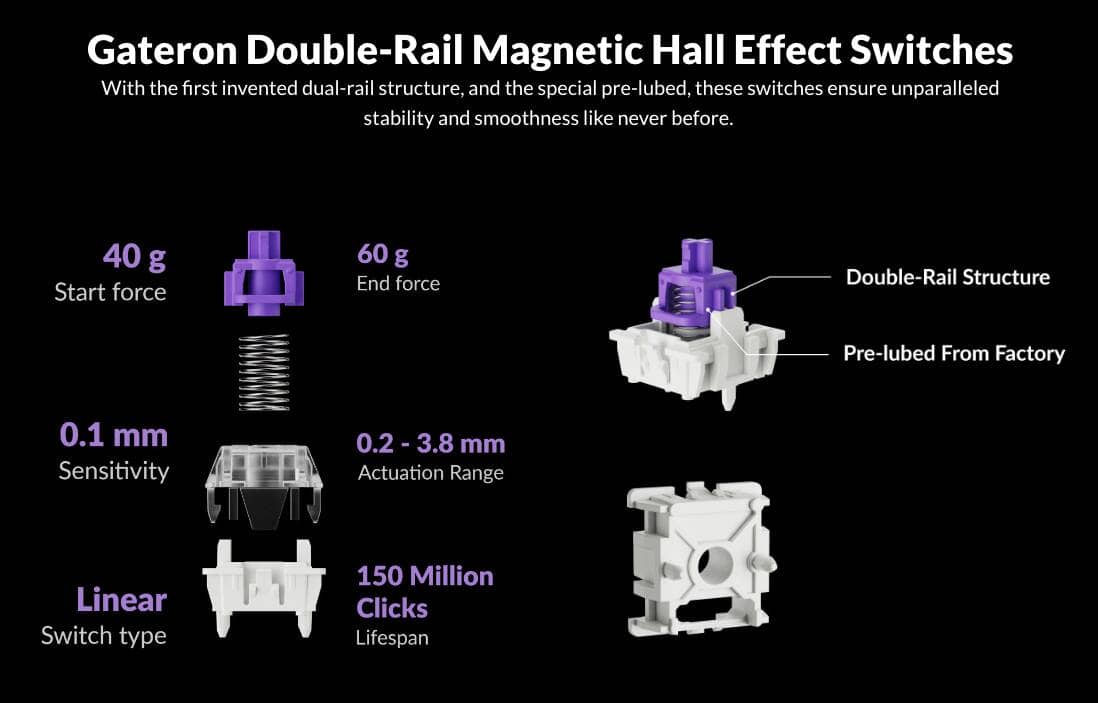

About the keyswitch to be adopted

Thanks to the dual-rail construction and special pre-lubrication, invented for the first time, these switches guarantee unprecedented and unparalleled stability and smoothness.
Optimized magnetic sensor with sensitivity of only 0.1 mm provides more accurate feedback. Customizable actuation points and the ability to assign multiple actions to a single key based on personalized movement depth enhance gameplay and provide a customized typing feel.
