このキーボードの概要
| Brand | DEADLINE Studio |
| Price | high-class |
| JIS/US | US |
| Keyboard Size | 40% |
| Key Profile | normal-profile |
| Key Sounds | Choose what you like |
| How to Connect | Bluetooth, USB |
| Battery | usb-power, rechargeable |
| Hotswap | hotswap-available |
| Normal or Split | 非分割 |
Comment

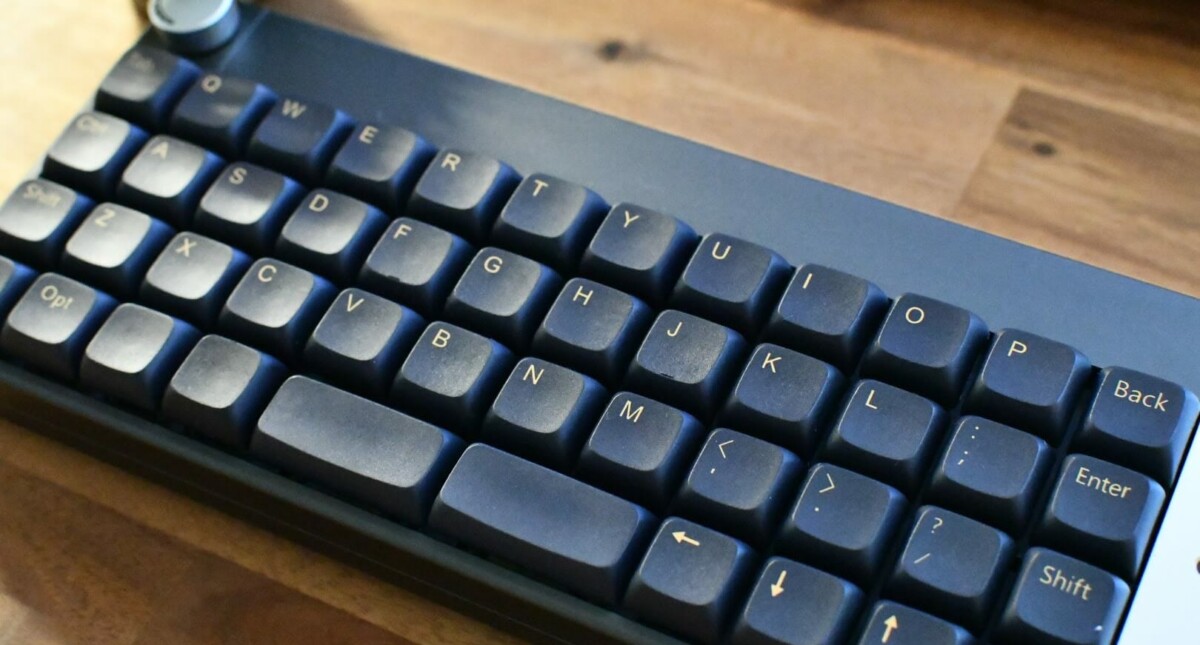

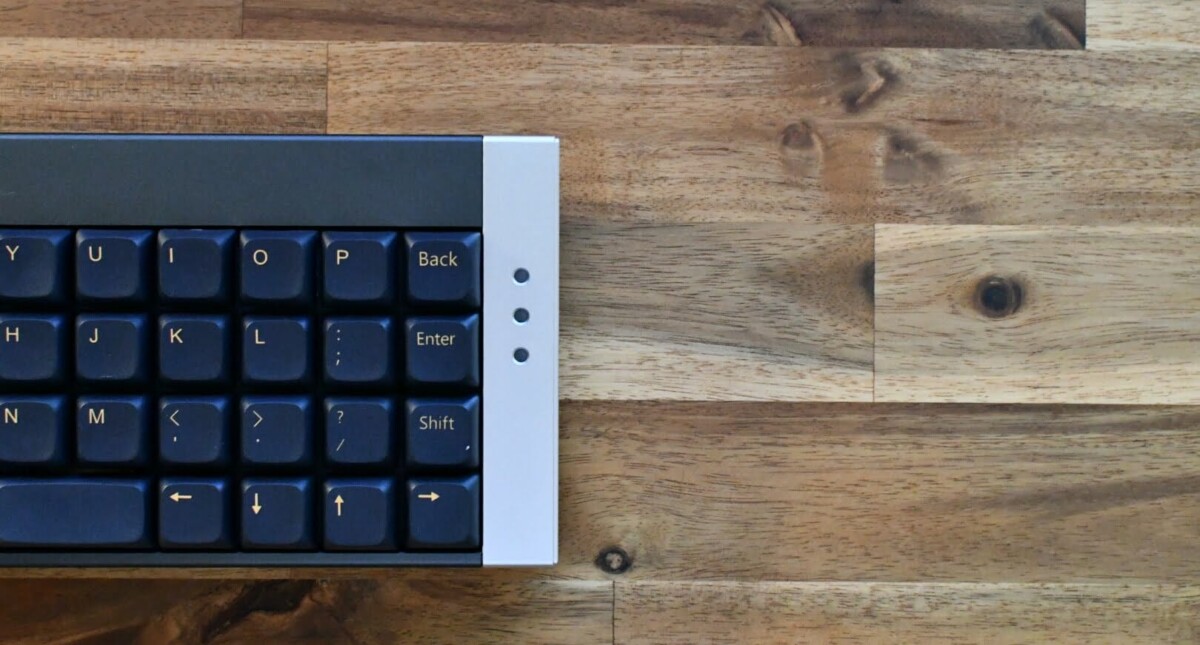

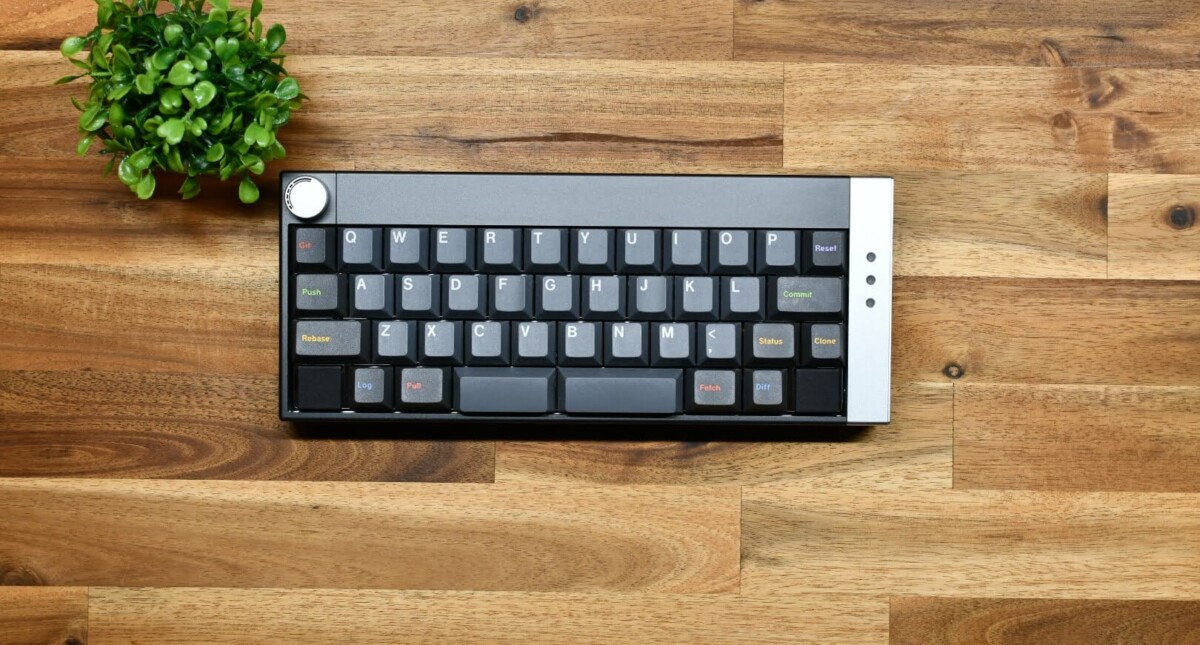

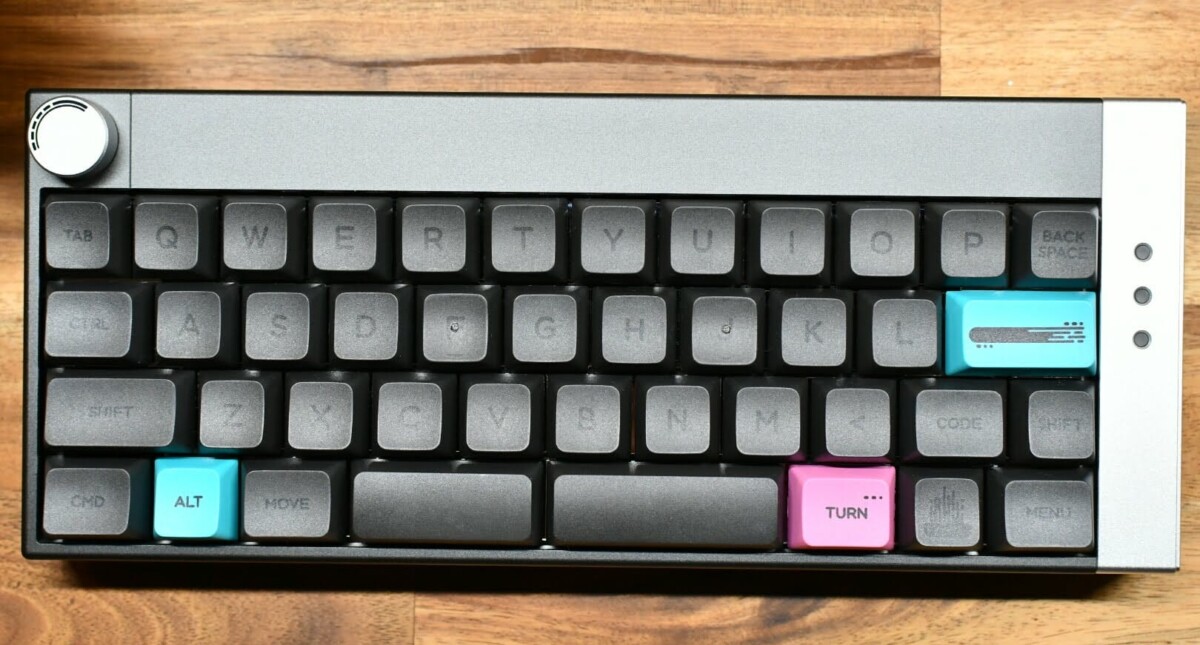

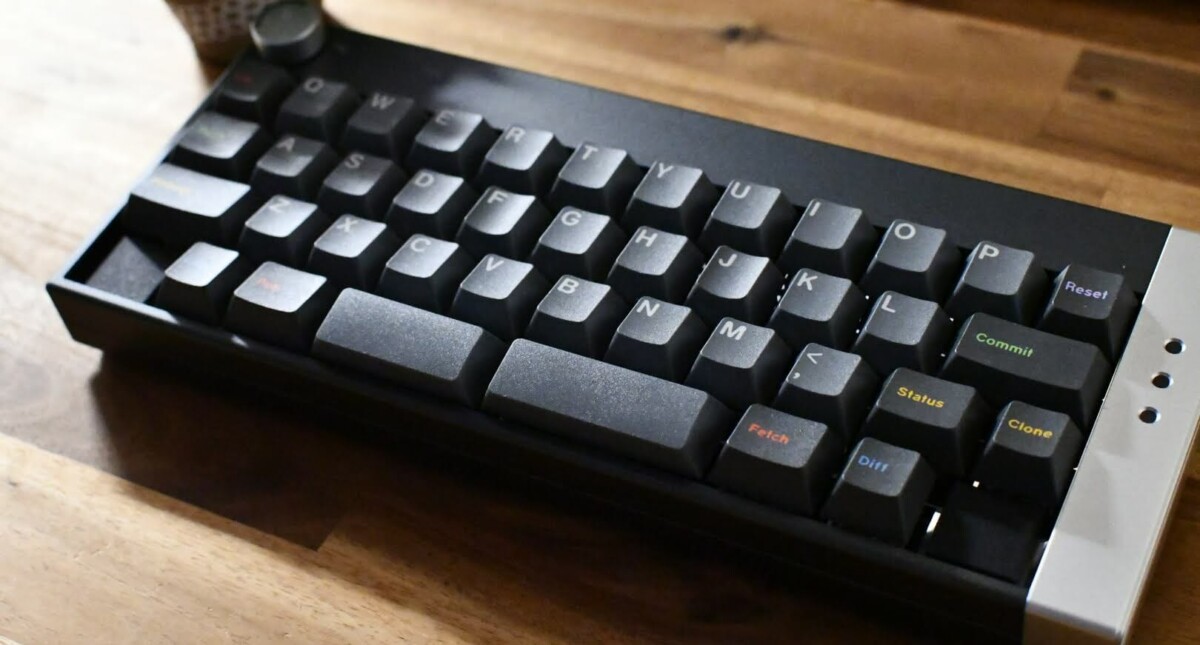

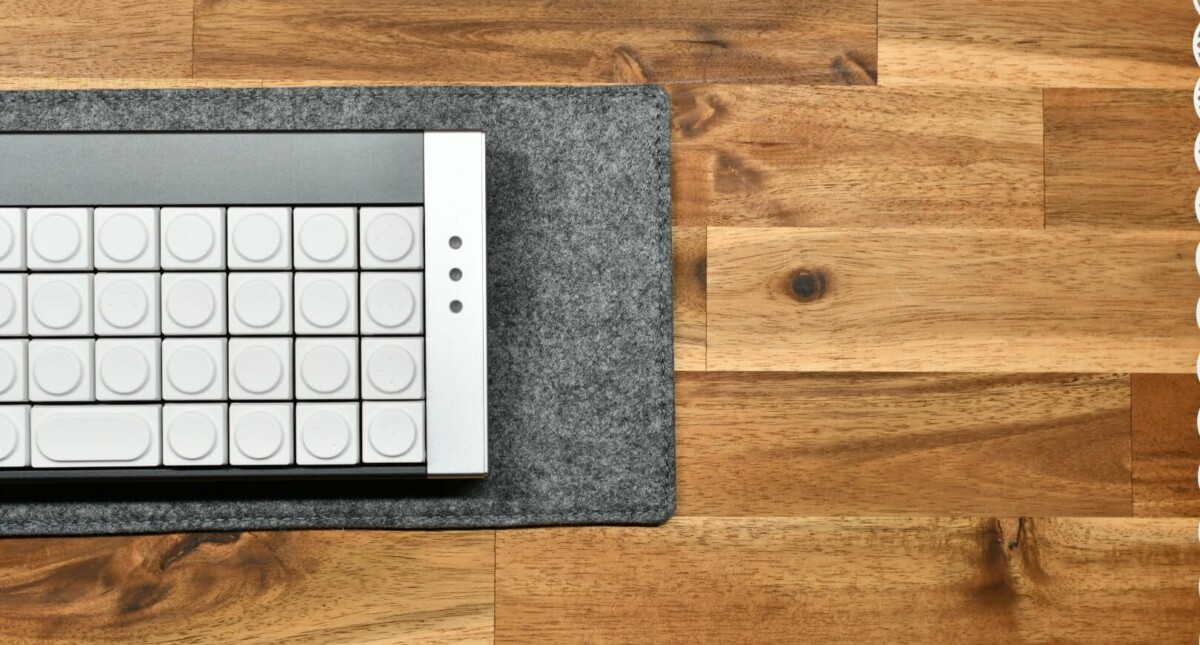

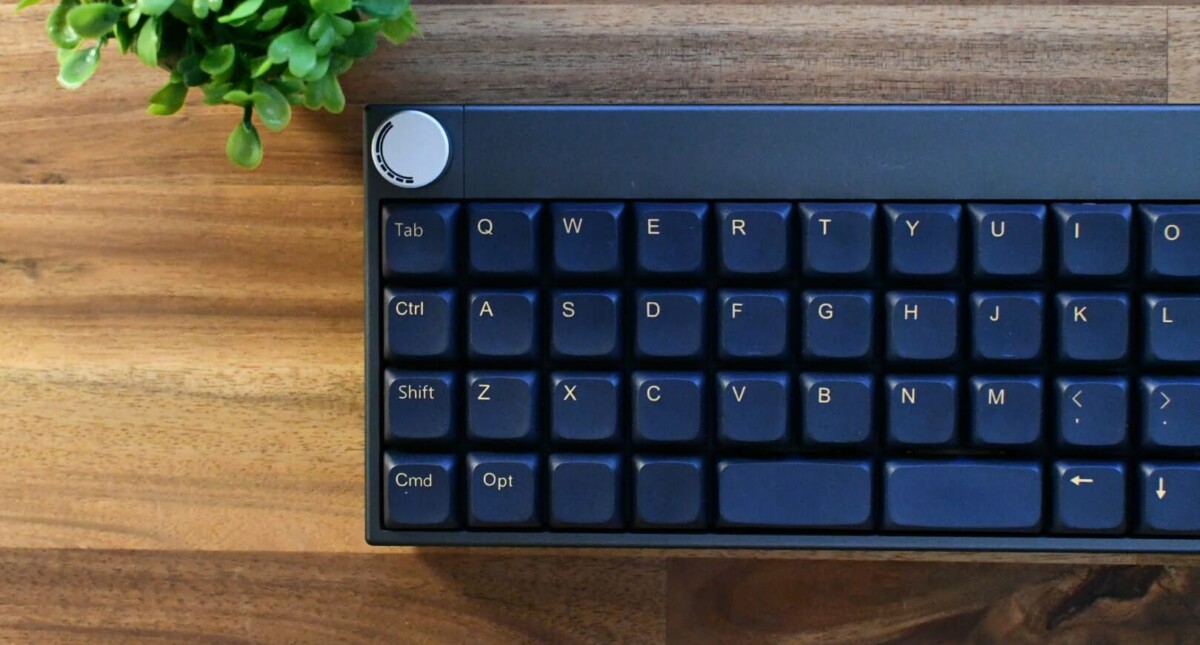

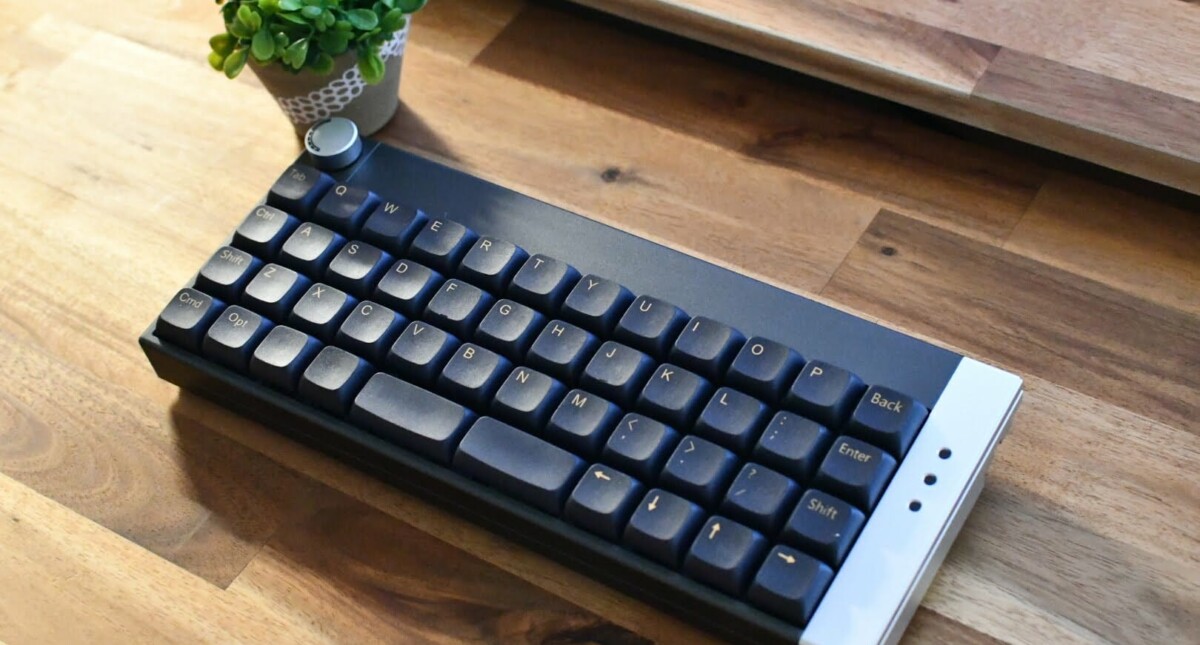

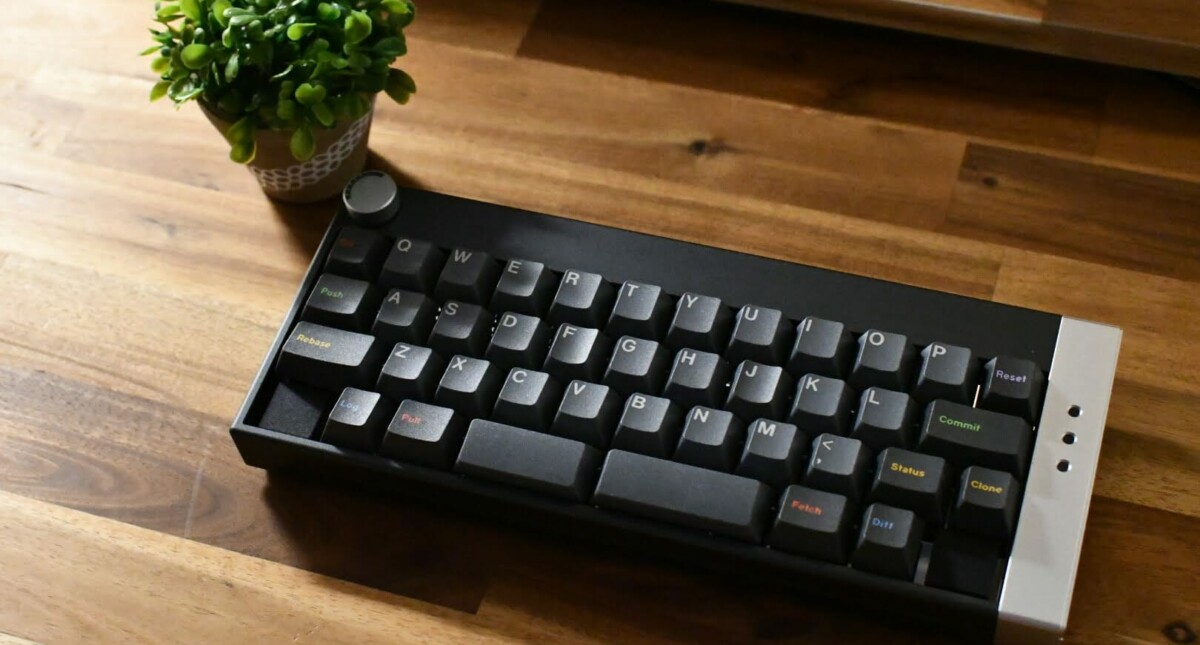

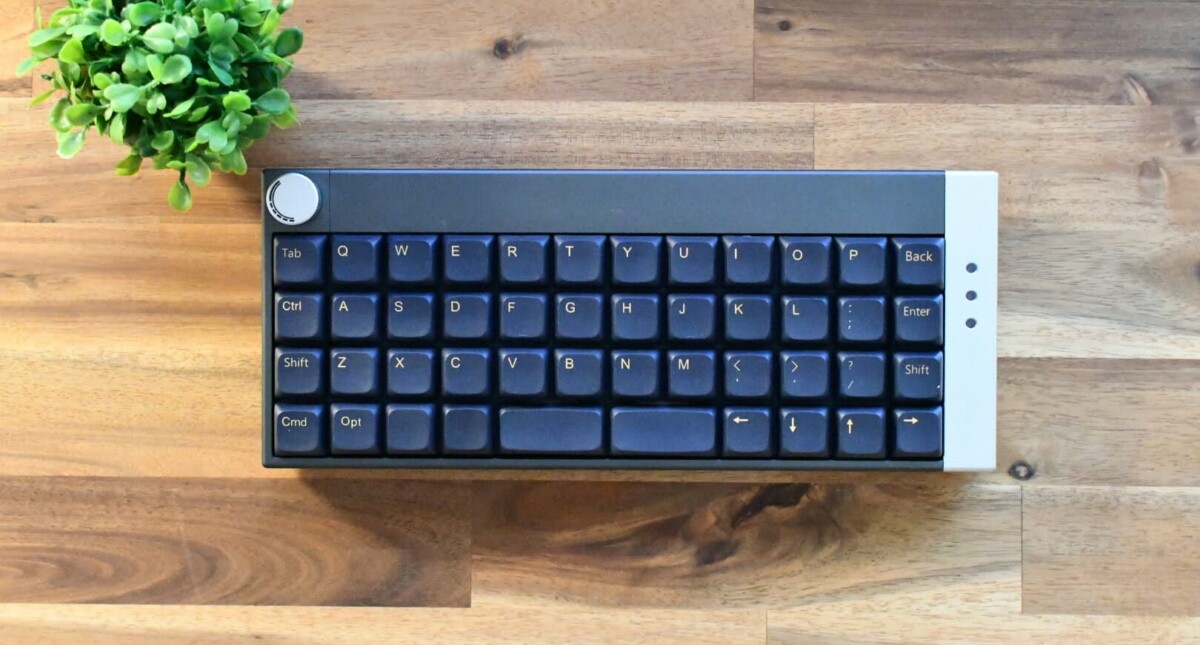

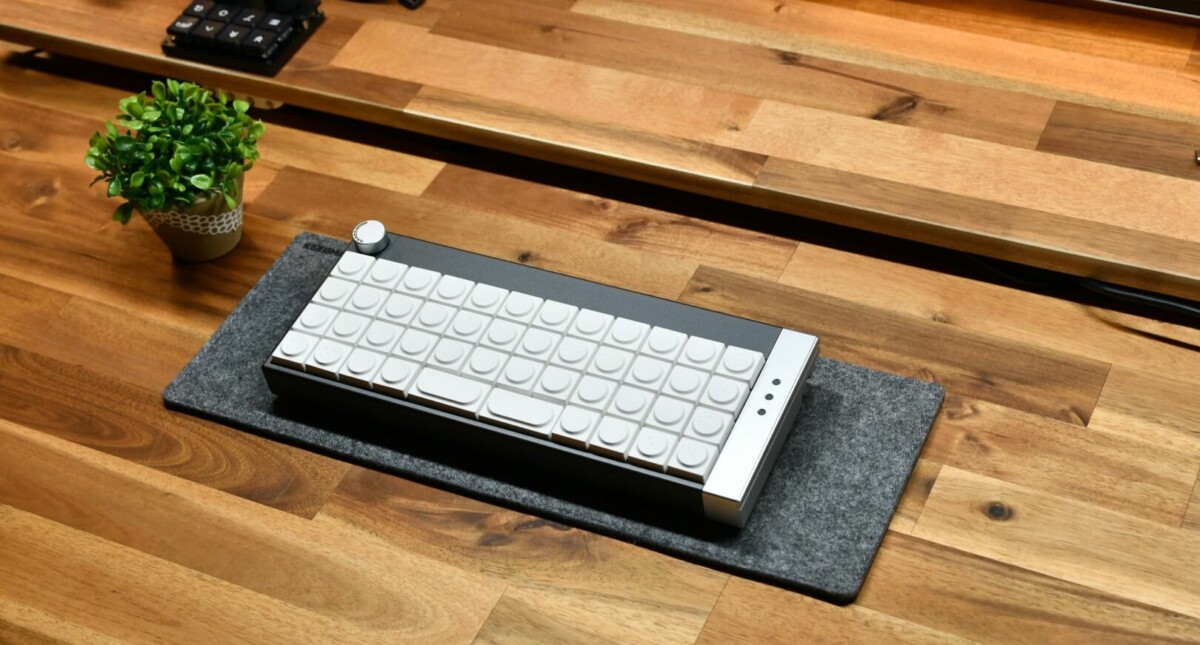

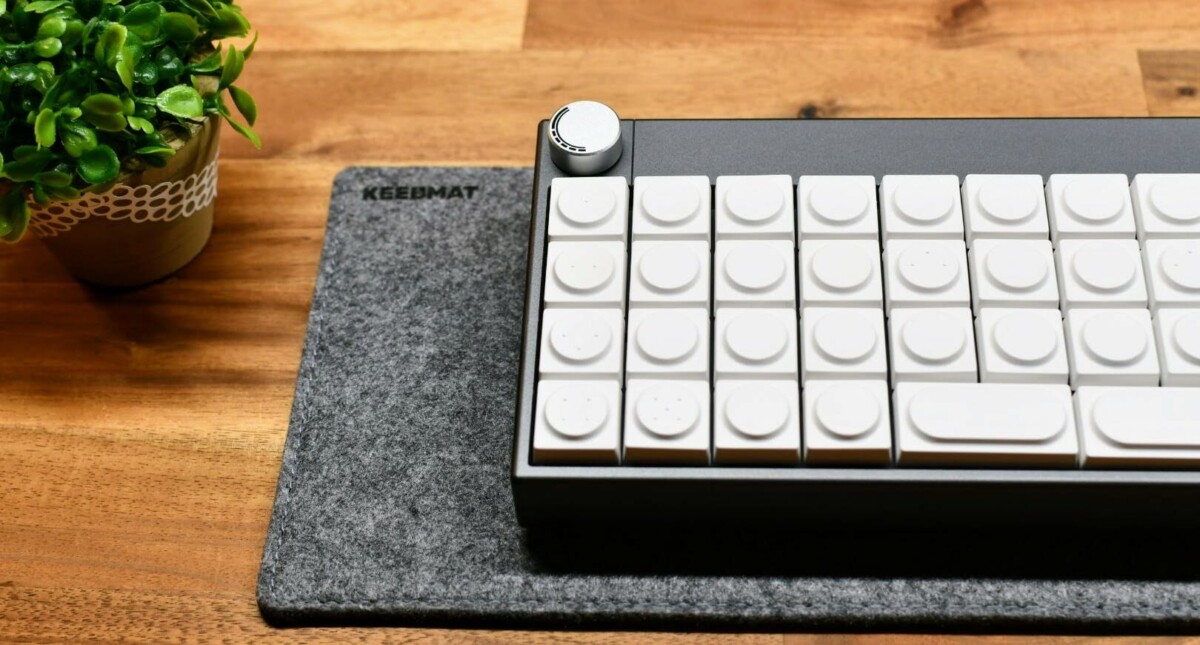

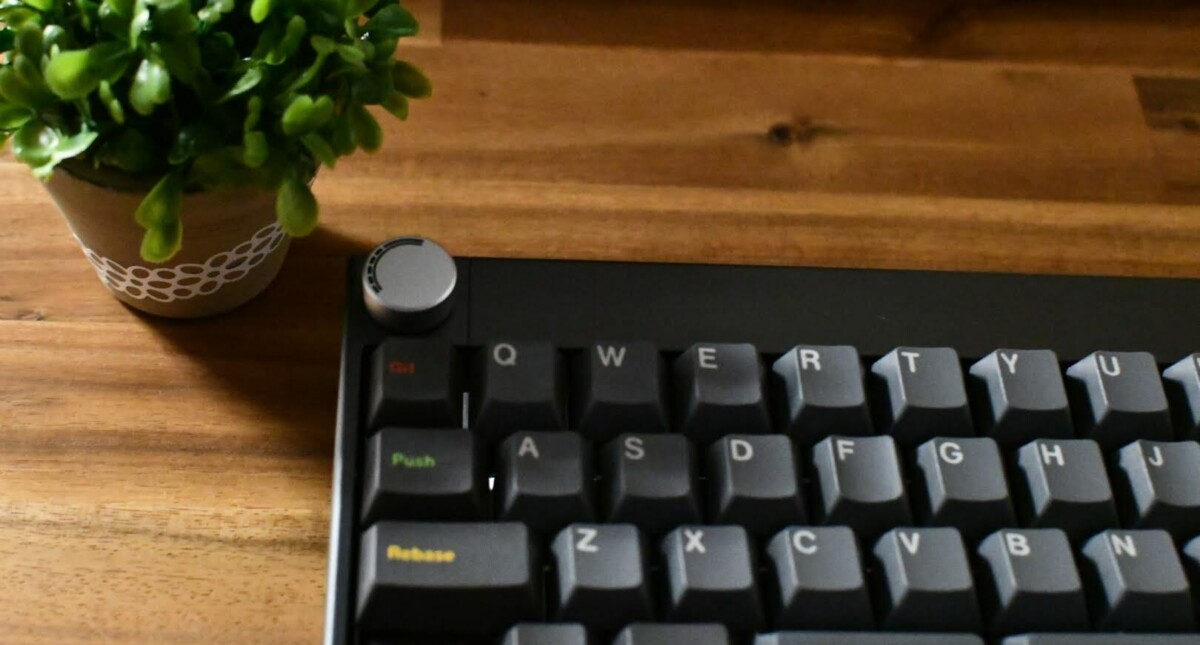

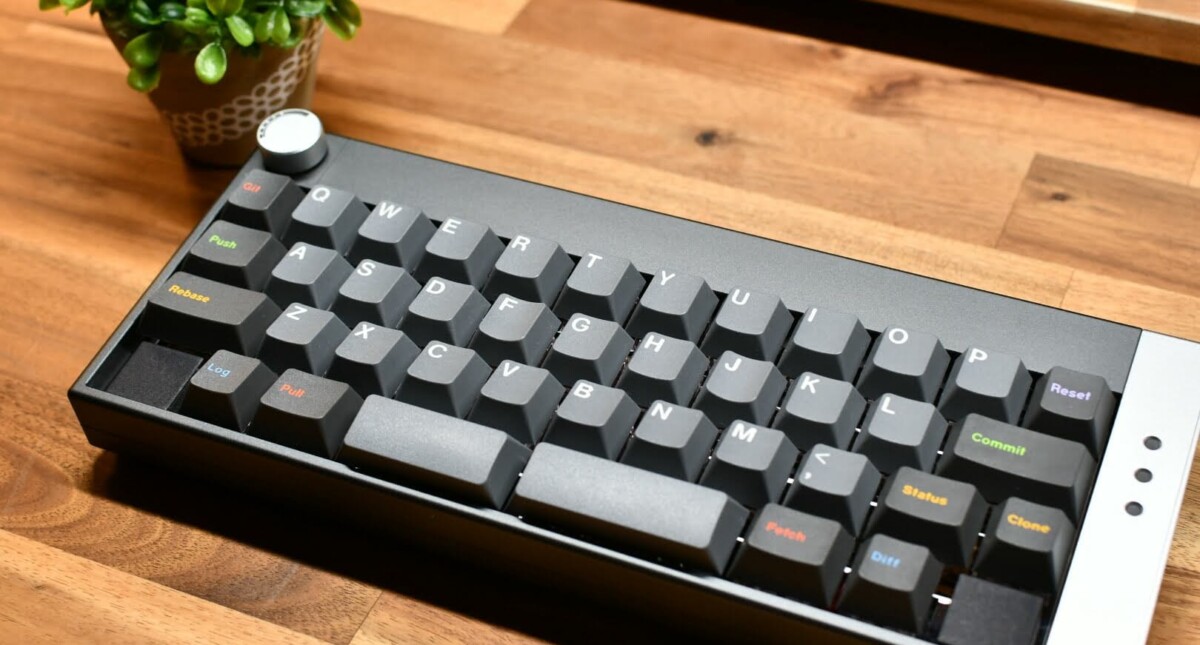

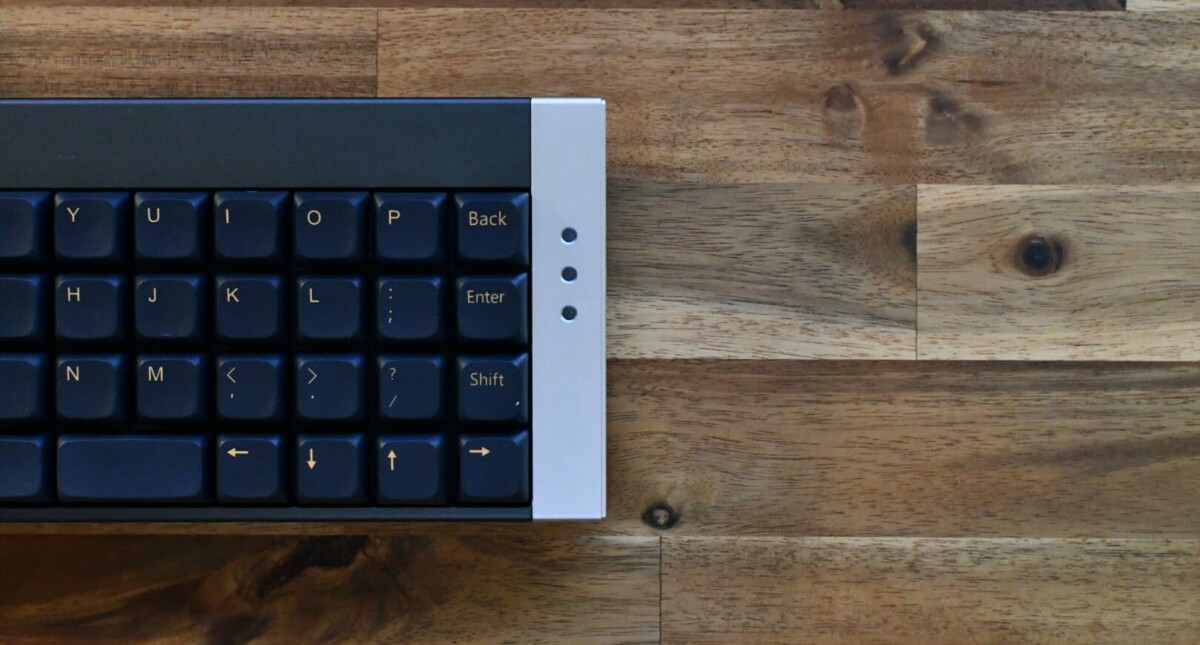

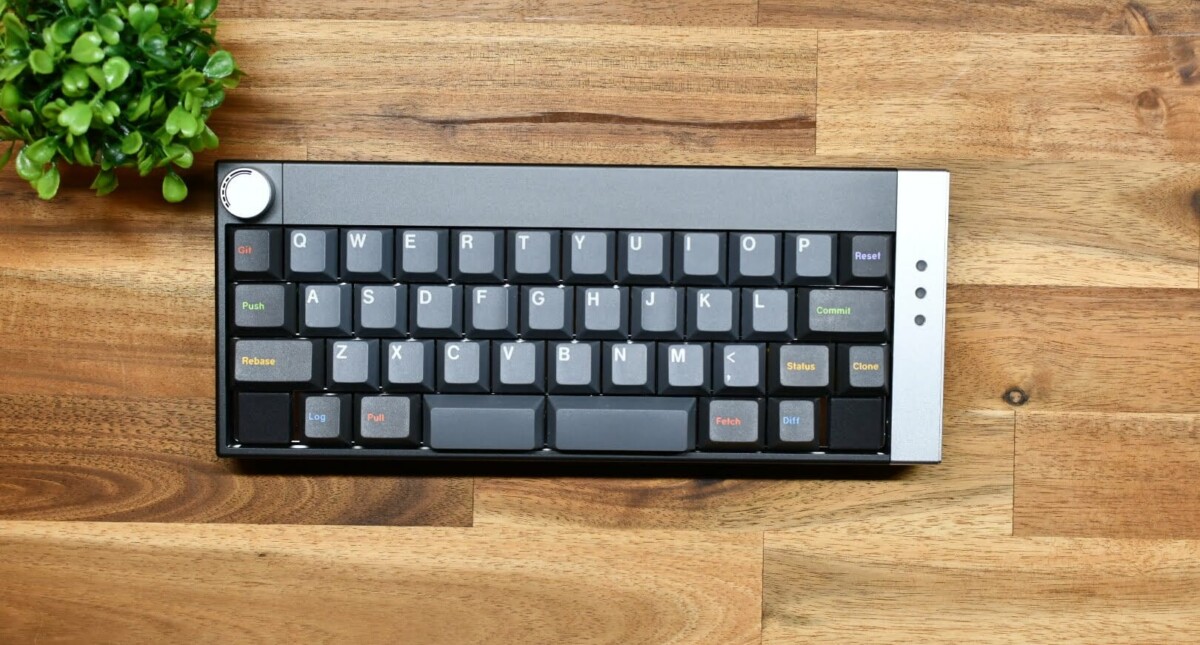

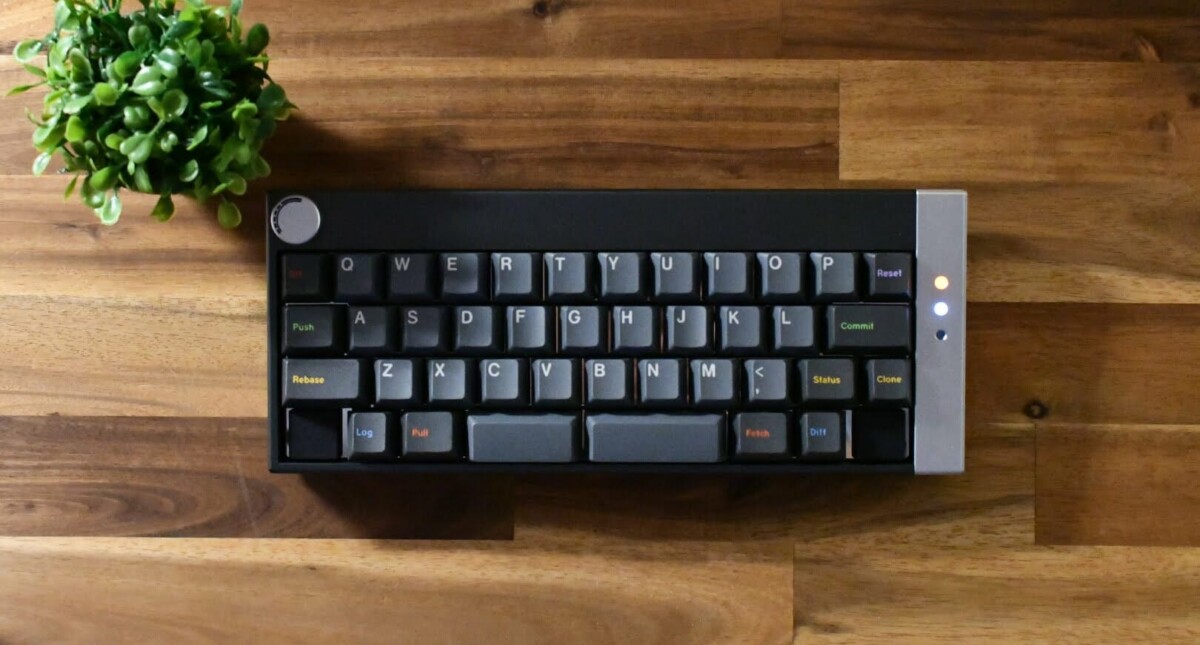

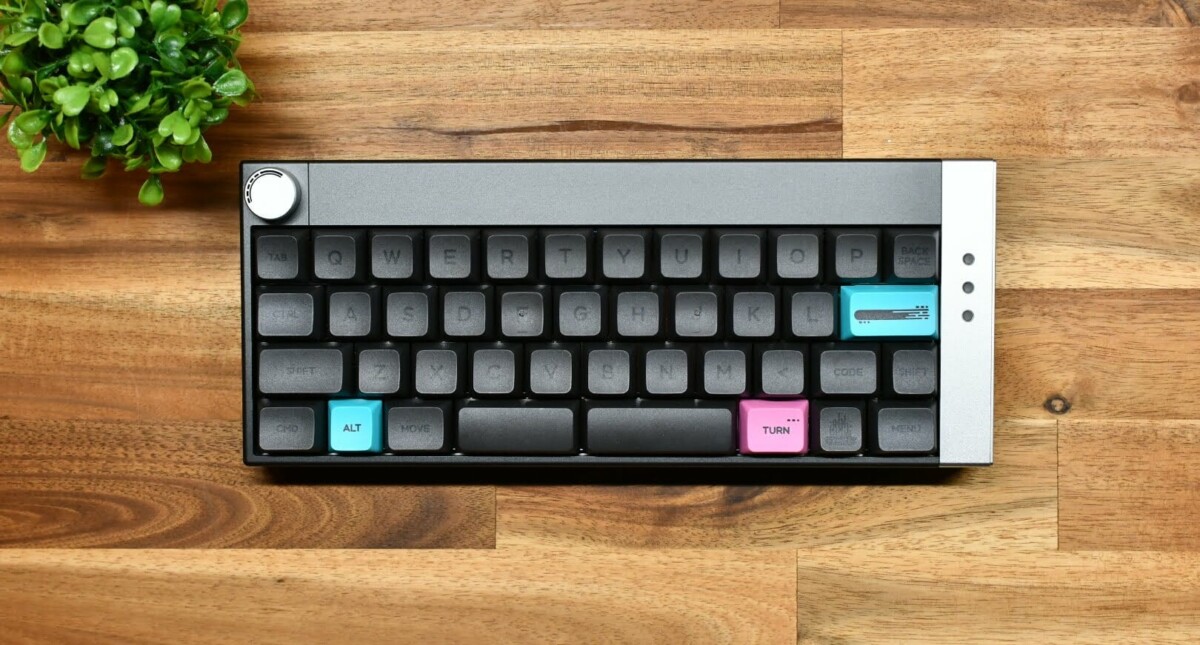

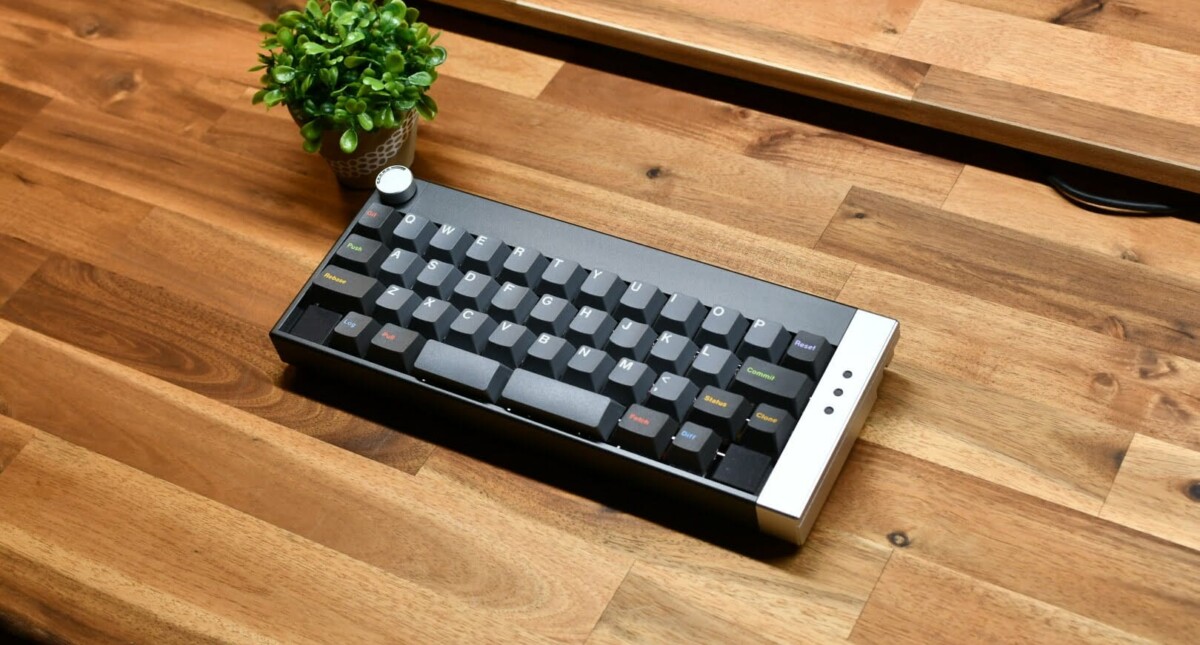

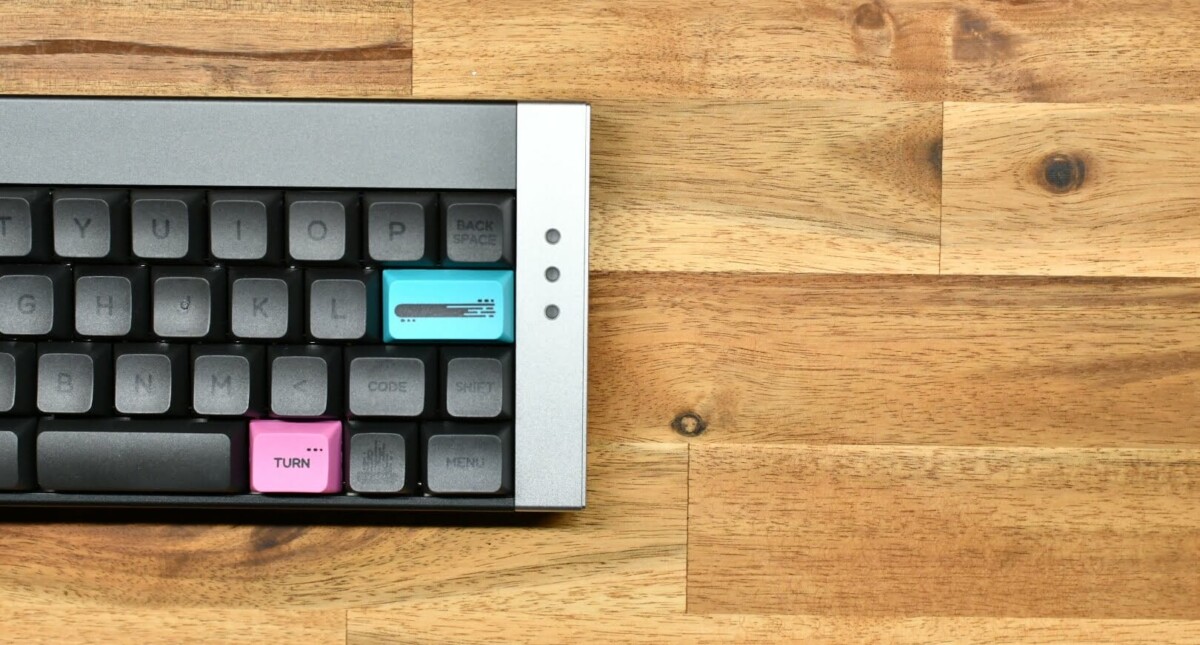

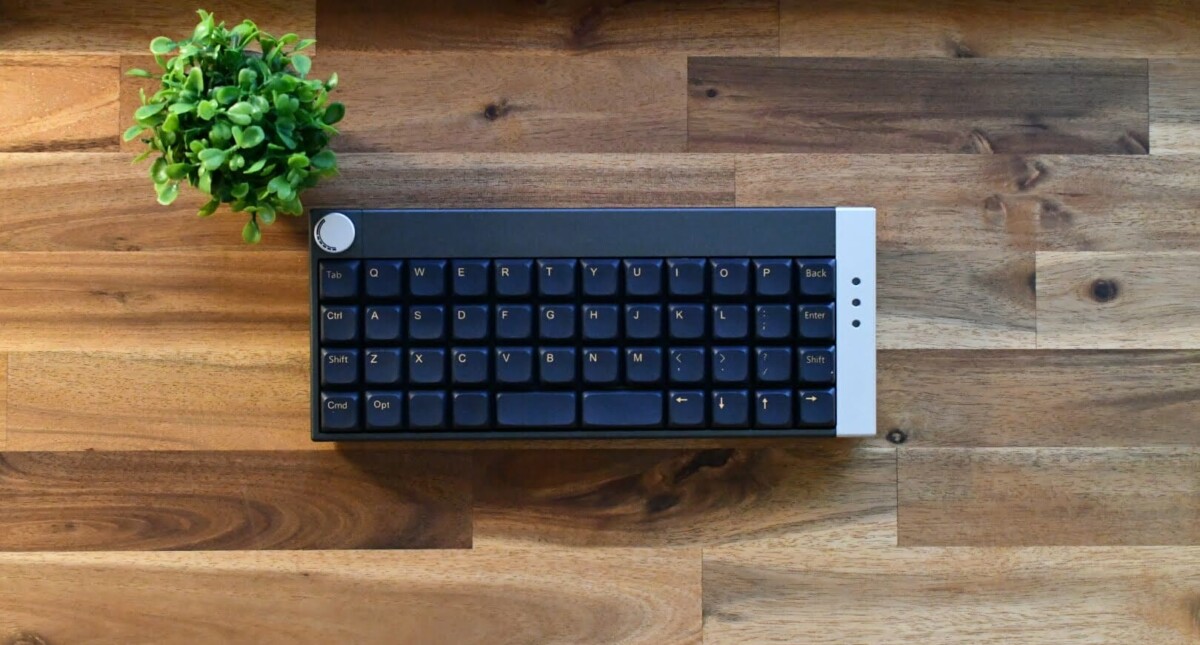

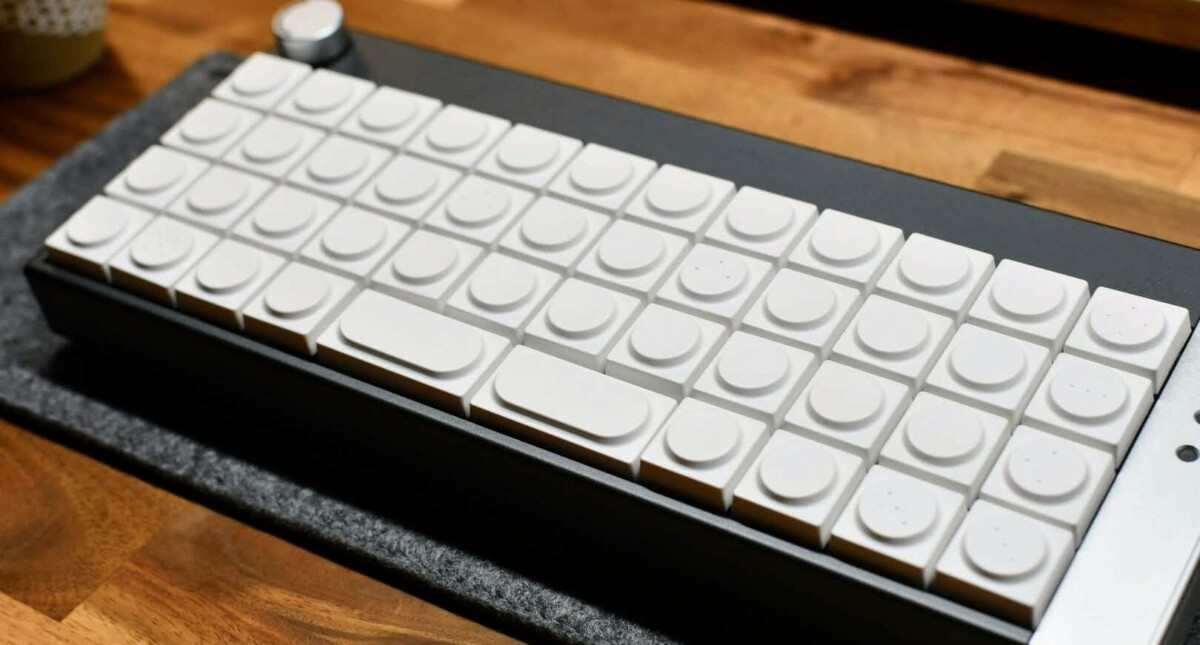

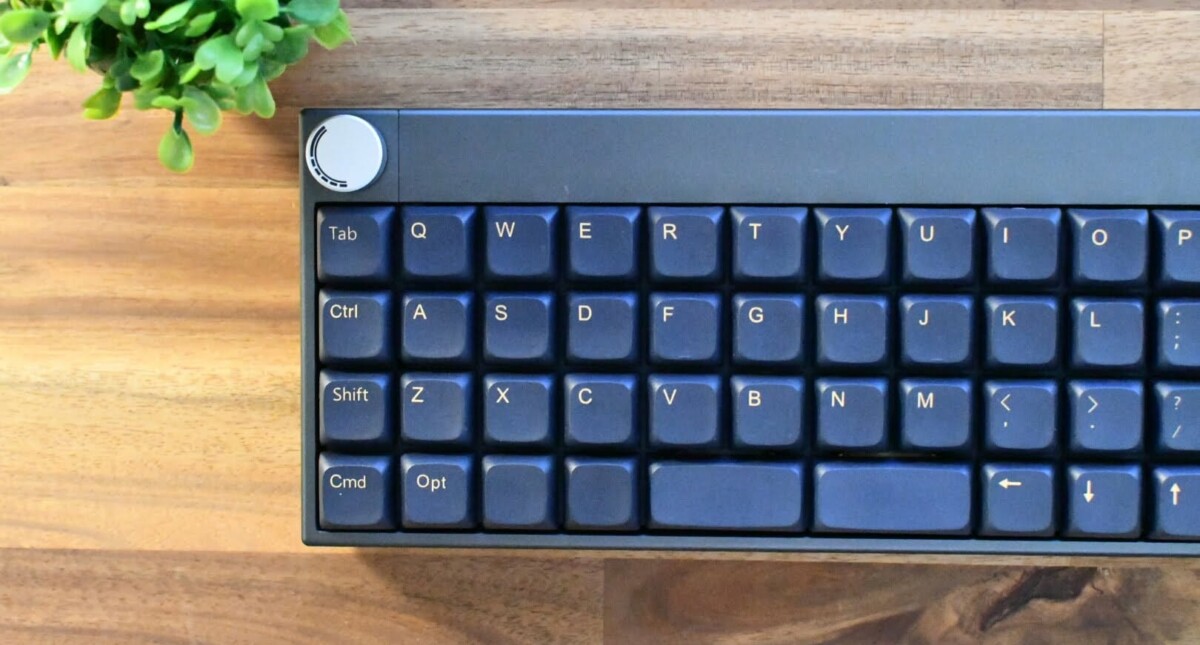

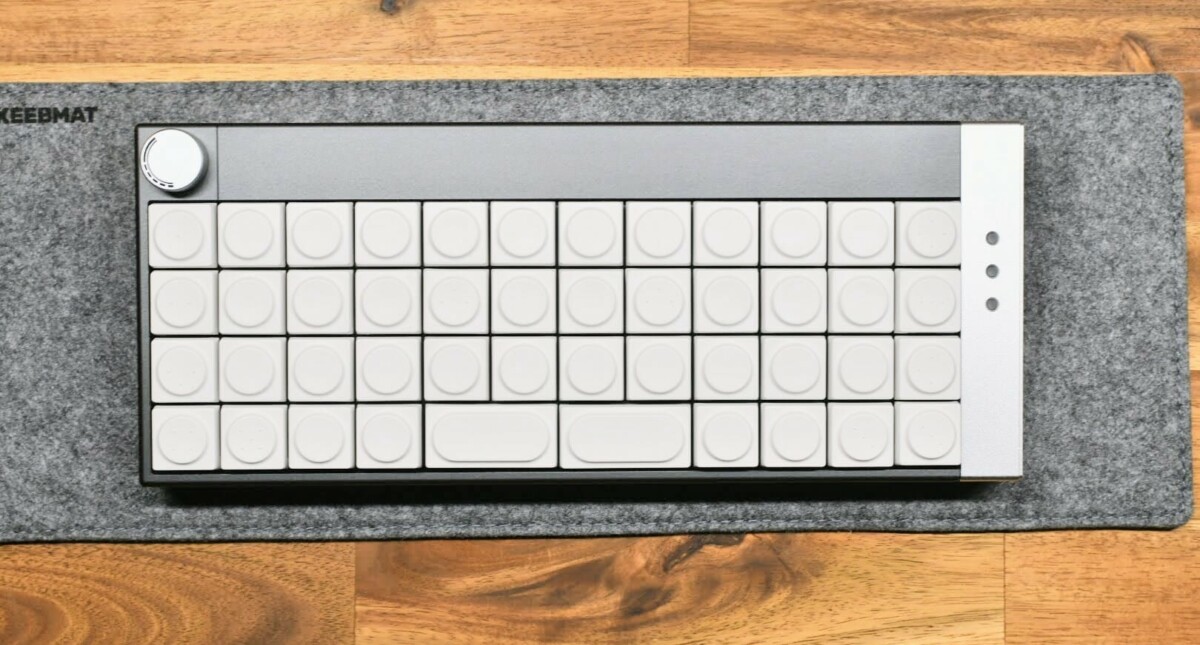

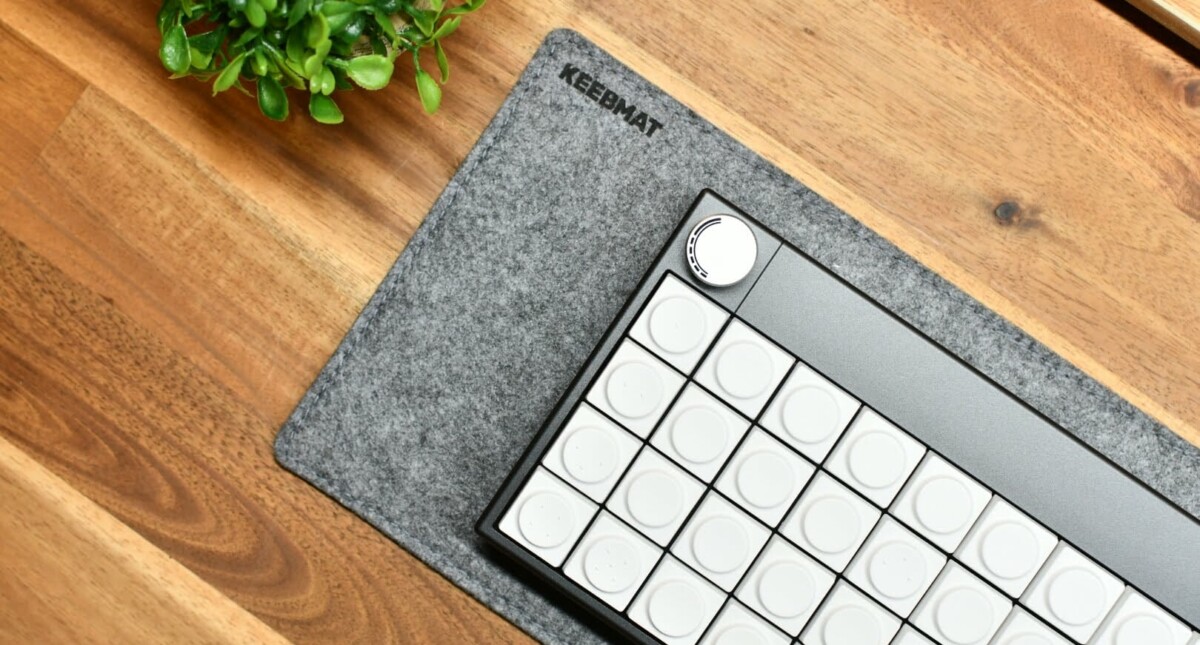

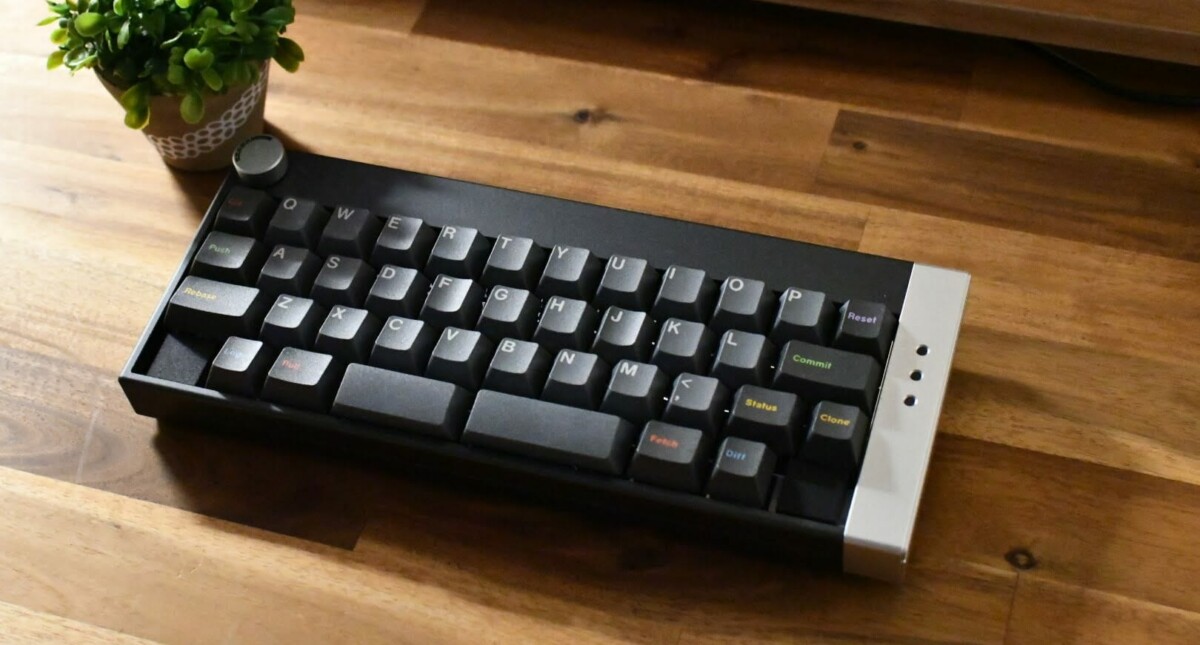

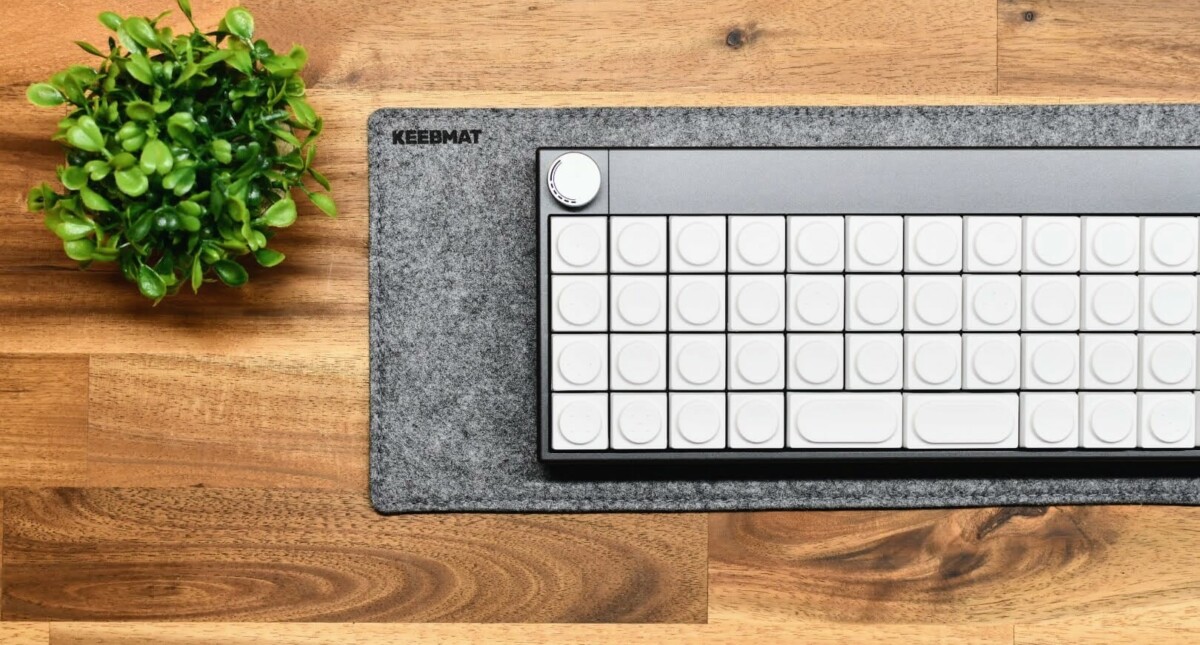

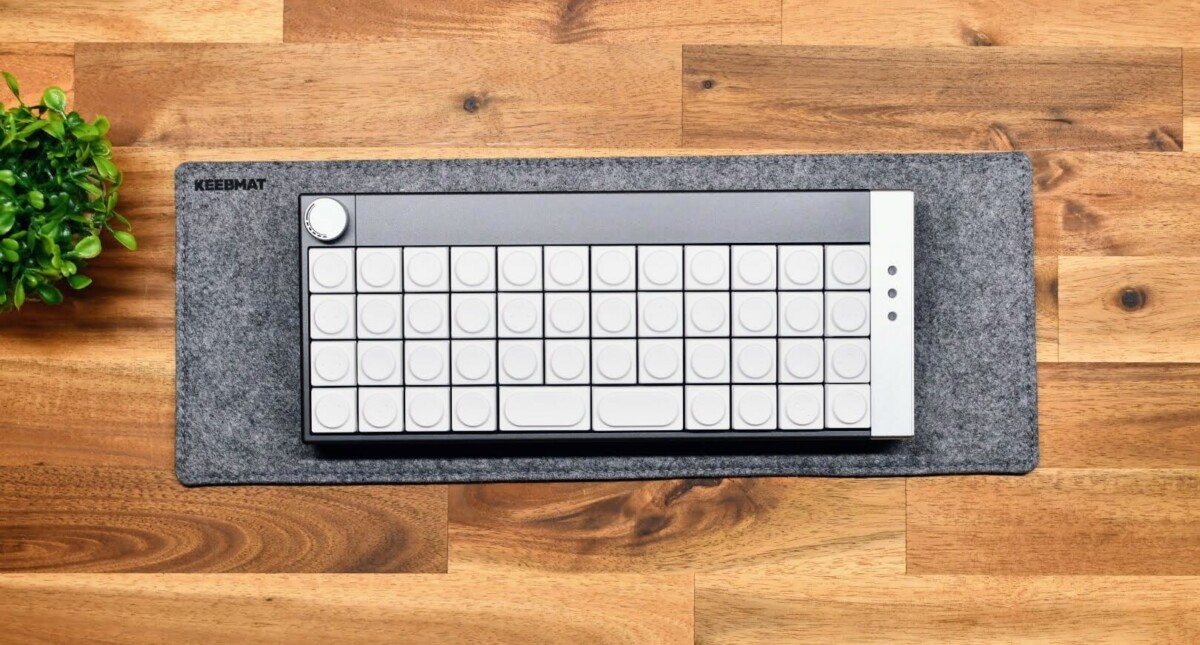

- 40% layout keyboard by DEADLINE STUDIO
- In Japan, Yusha Kobo will be the vendor (until May 21, 2023).
- Daisy and Planck layouts are selectable
- Many reports of problems such as no build guide, no distribution of via.json on the official website, no wireless connection or high latency, etc.
- Here is the via.json that is being pulled on github
- No manual is provided.
- The quality of the product itself is high, but the impression is that the rest of the product is nowhere near as good.
- Click here for the official website
Prev
Next
Buy here: https://deadline.space/products/tps40-keyboard
仕様詳細
Selectable case colors
- WHITE/SILVER
- GREY/SILVER
- SILVER/SILVER
- BLACK/BLACK
- BLUE/SILVER
- CREAM/SILVER
- RED/PVD BRASS SILVER
- PC/SILVER
Selectable arrays
- Daisy.
- Planck.
Kit List
- Top case x 1
- Bottom case x 1
- Right module x 1
- Right inner box x 2
- Right button x 1
- Right light clip x 1
- PC diffuser x 3
- Knob x1
- Titanium stone wash shrapnel x 1 pc.
- PVD brass plate x 1
- Knob board x 1
- Module board x1
- Hot-swappable PCB x 1
- 3000mAh battery x 1
- Poron middle pad x 1
- Poron bottom pad x 1
- Ipex switch pad x 1
- Adhesive for base x several bottles
- Several copper rods
- Several screws
- PCB Liner x 2
Specification Details
- Housing: Aluminum/Brass/PC
- Layout: Daisy/Plank
- Typing angle: 5 degrees
- Typing height: 20.5mm
- Board: Hot-swap / Flex-cut / No RGB / 1.2mm / VIA / Bluetooth 5.0 / Knob
- Mounting: Tray + Spacer
- Retaining ring: default: titanium stonewash / option: carbon fiber
- Plate: Default: PVD brass / Option: PC
- Center pad: PORON
- Switch pad: IXPE
- Base pad: PORON
Information reference: https: //deadline.space/products/tps40-keyboard
