WOBKEY Crush 80 Reboot Pro

  • Copied the URL !
このキーボードの概要
Brand
Layout
Size
Connection ,
Hot-Swap

Comment

  • A mechanical keyboard with 80% TKL layout that inherits the following features most highly acclaimed as the “successor to the Rainy75.”
    • Body made of CNC aluminum alloy
    • Shiny back weights

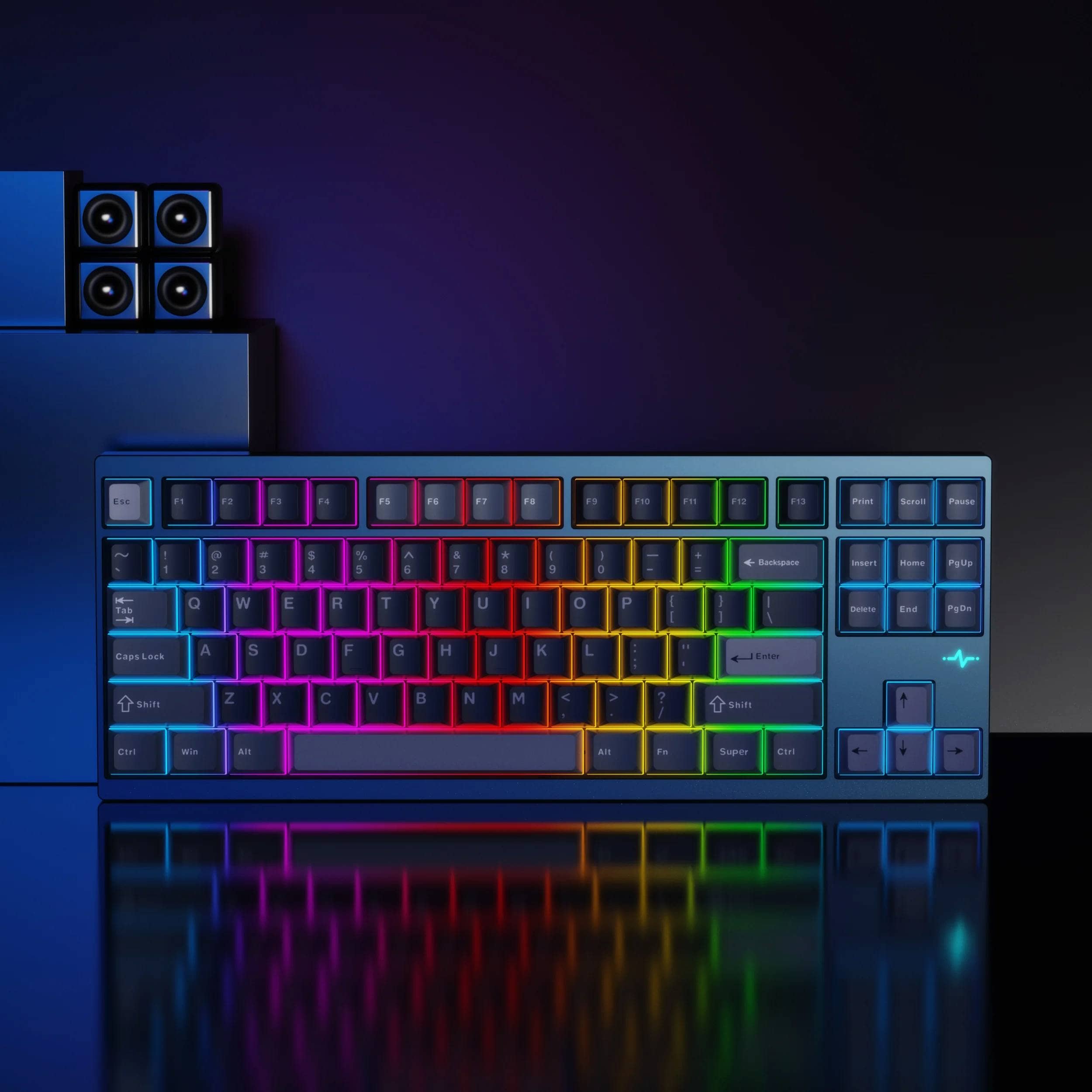

    • RGB backlight and various body colors
    • Multi-layout support (split space/CapsLock key style selection/ISO layout support)
  • A total of 10 coloring options (Black/White/Navy/Silver/WarmSilver/Red/Blue/Pink/Purple/Yellow)

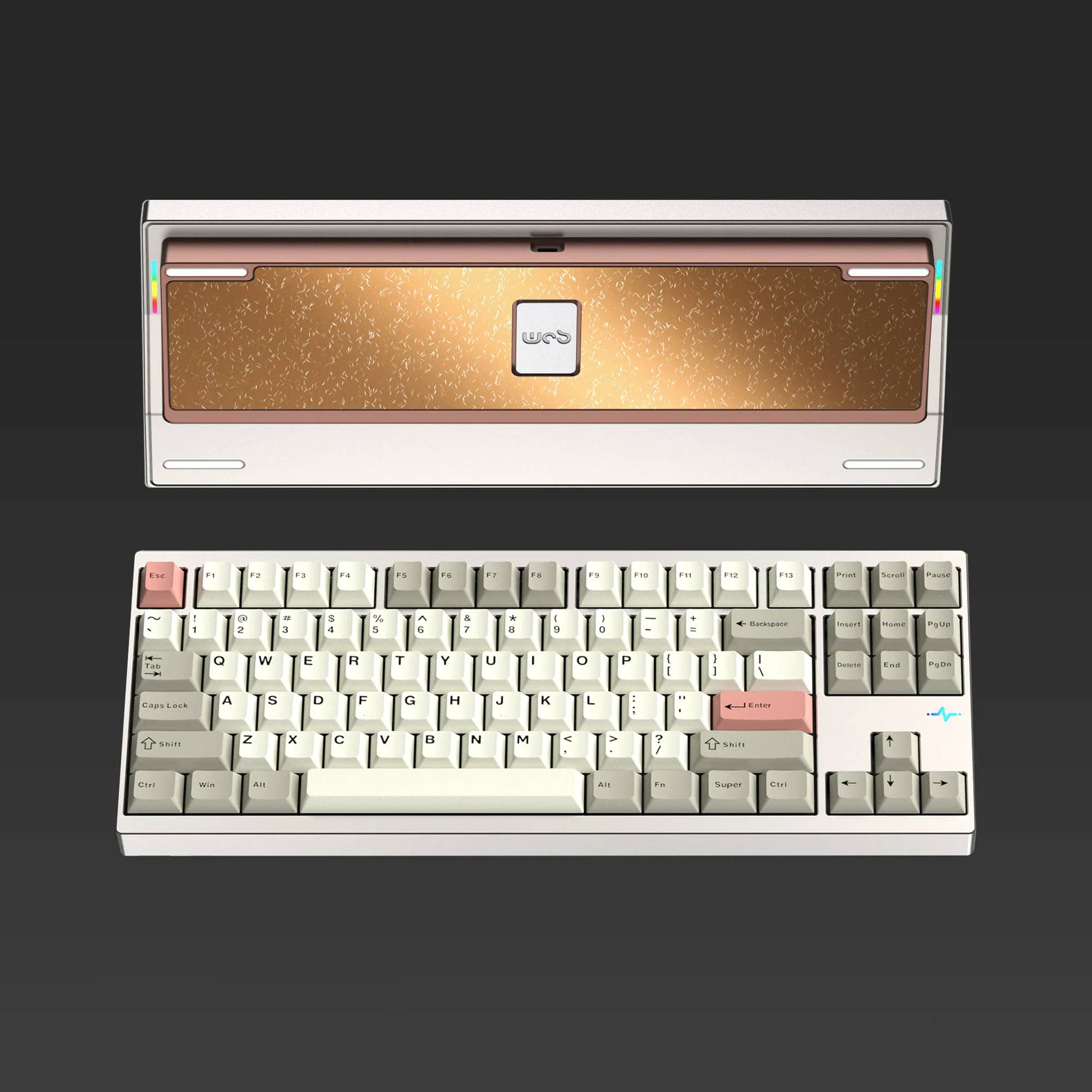

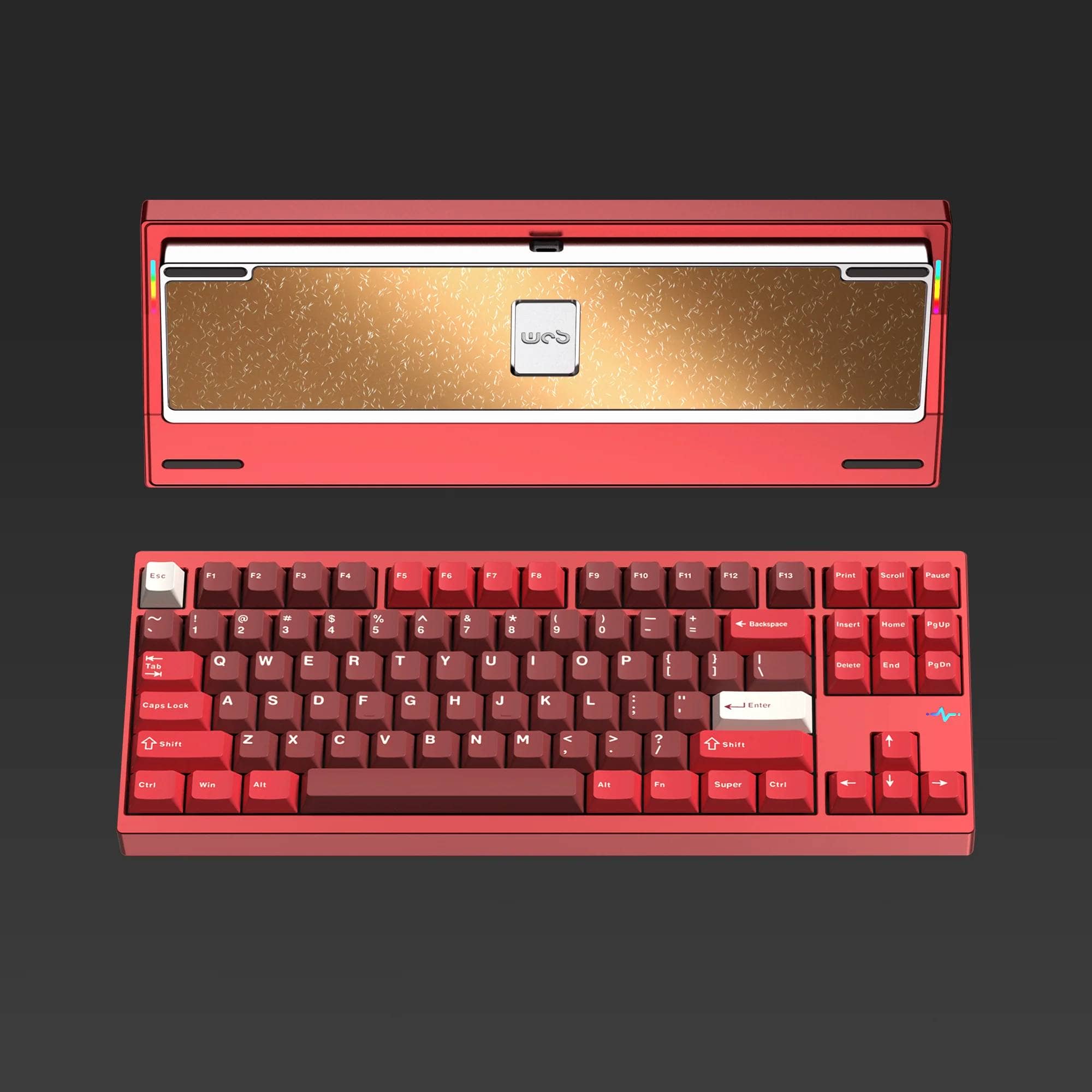

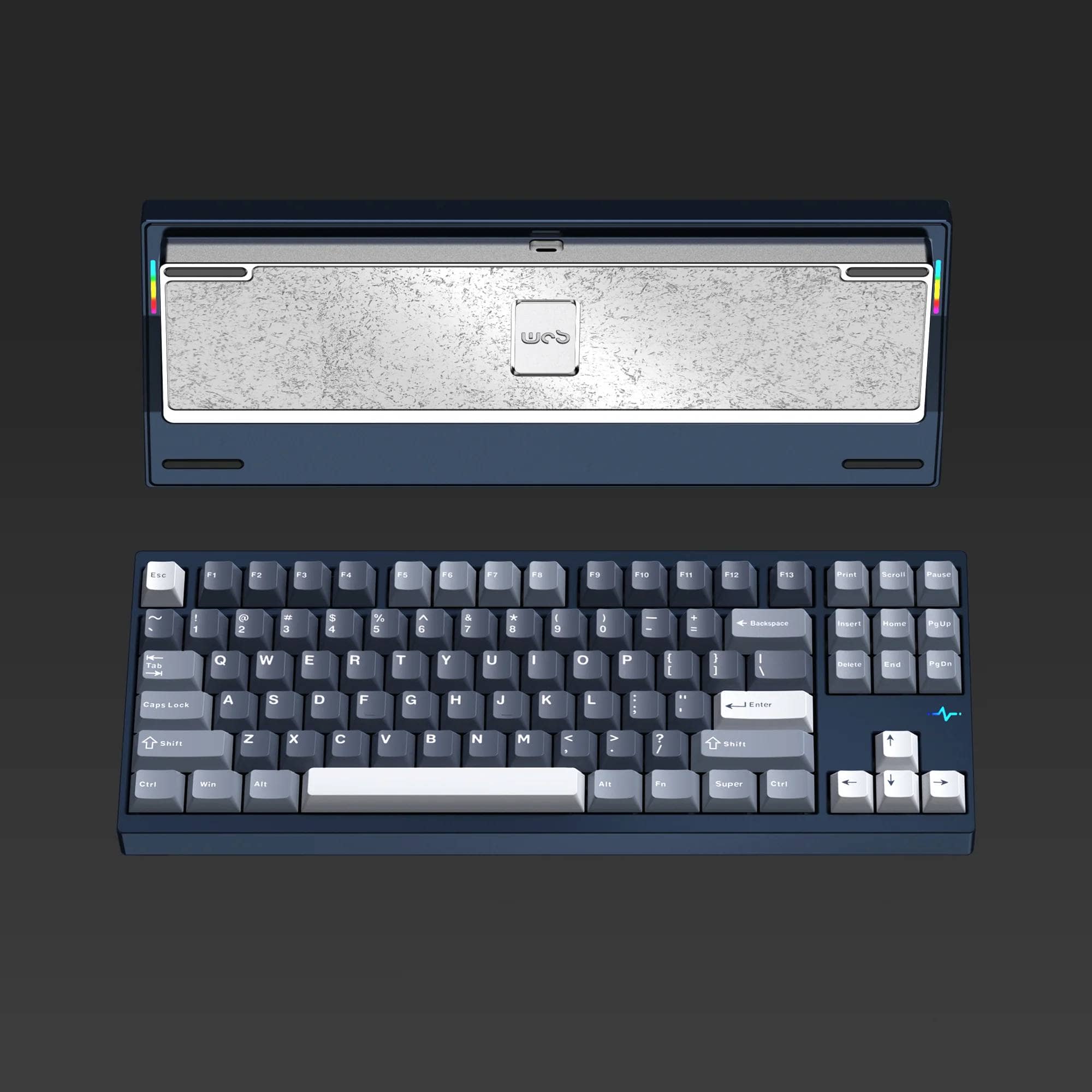

  • Three-piece construction, top case, bottom case, and bottom weight case from top to bottom
  • Bottom Case and Bottom Weight
  • The top frame is not screwed on and is joined to the bottom case using magnets.
  • As for the mounting method, the board comes with a silicone cap that rides on the bottom case via its protrusion

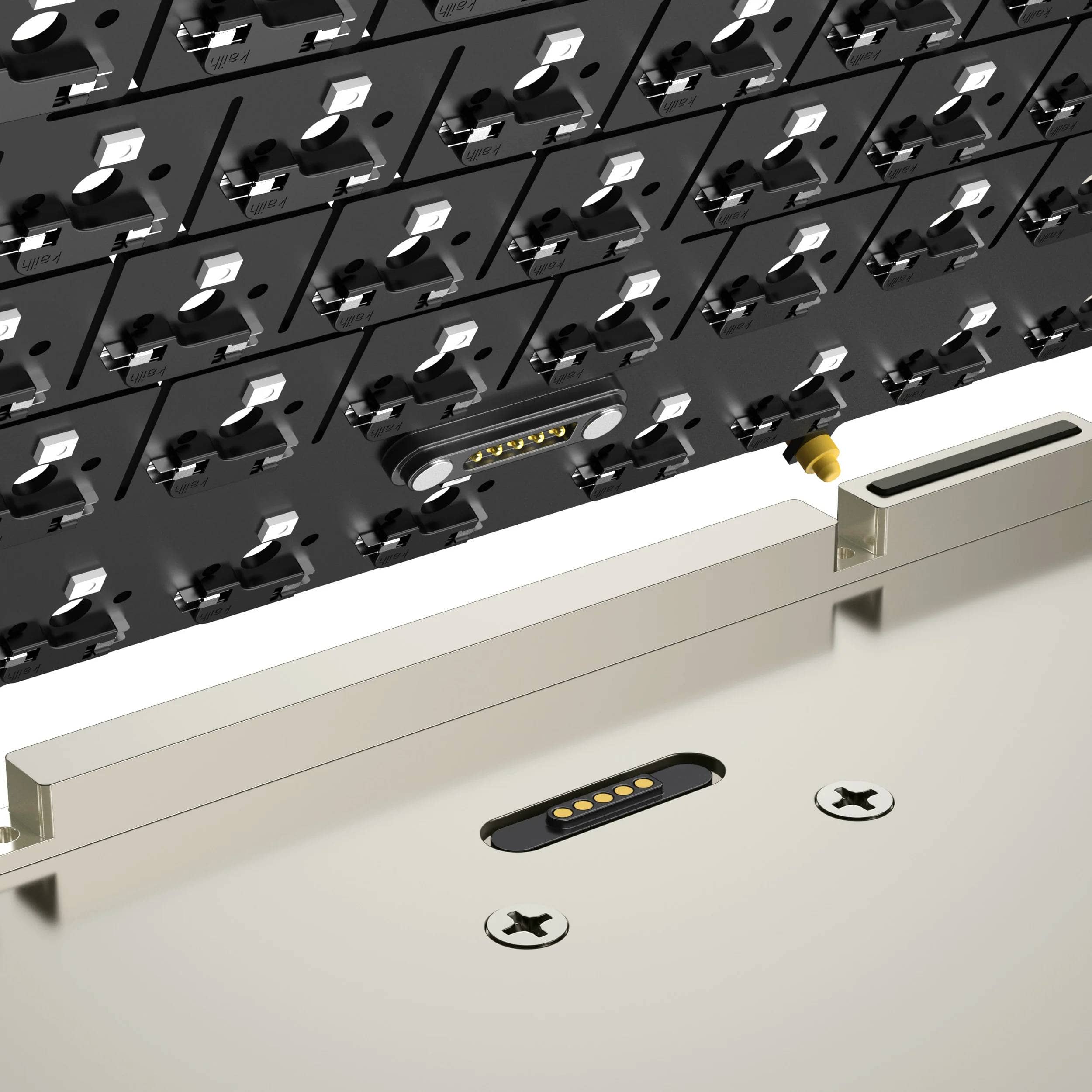

  • Magnetic pogo pins, rather than cables, are used to connect the board to the daughter board, making it easy to replace the board.
  • The bottom case and bottom weight, which is screwed to the bottom case, contain the daughter board and battery, and the battery will not move because a recess has been cut out to fit the size of the battery.
  • The dongle for 2.4GHz connection is tucked into the logoed lid in the center of the bottom weight.
  • The design has a high level of design, and the colored LEDs on the sides are designed to illuminate the desk.
  • With five layers of sound-absorbing material, one can expect a thocky keystroke sound, akin to that of the Rainy75.
  • The keyswitch used is Kailh Cocoa Linear Switch (45g).
  • Keycaps are made of Cherry profile, double shot PBT, and sublimation printing for sublegend etc.
  • VIA support allows keymap changes
6 164888e3 36b7 4921 a5aa d3ed8bf544ee

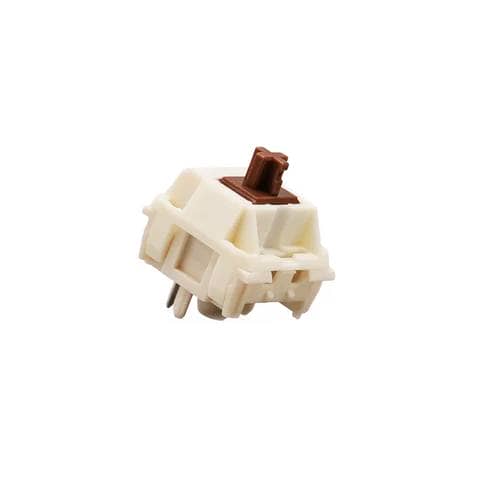

Kailh Cocoa Switch

1 e097ec7f cd20 40db b6ed
NameKailh Cocoa
TypeLinear
Top Housing MaterialPOM
Bottom Housing MaterialPA66
Stem MaterialDuPont POM
Actuation Force45g±5g
Pre Travel2.0±0.4mm
Total Travel3.6±0.4mm
Mount5 pin
Factory LubeYes

このキーボードのキー配列・サイズは【】【】です。


似ているキーボードを探す▷▷


キーボードサイズについて知りたい▷▷


Crash80 Reboot Proのスペック詳細
(data) item(technical) specification

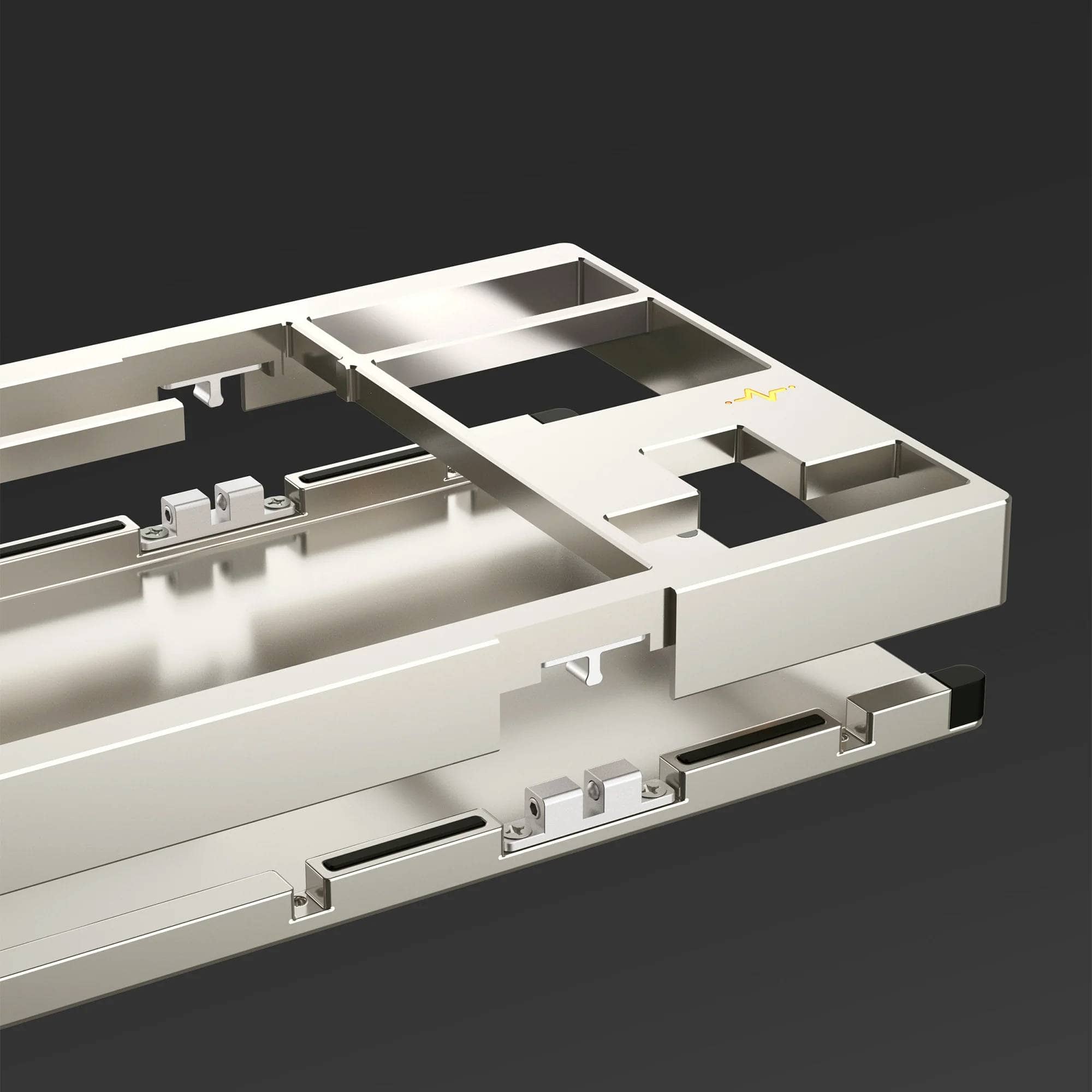

Quick ReleaseGalvanized Ball-Catch Quick Release (4 Pairs)
Battery PinCustomized Magnetic POGO Pin
Frame6063 Aluminium
RGBAvailable only in RGB Pro Version
ColorWhite, Black, Blue, Yellow, Purple, Pink, Silver, Warm Silver, Navy, Red
FinishElectrophoresis (180 Grit) (White, Blue, Yellow, Purple, Pink)
Anodized (220 Grit) (Silver, Warm Silver, Black,Navy, Red)
Battery CompartmentWhite Electrophoresis(Blue, Yellow, Purple, Pink)
Gray Anodized(Silver)
Brown Anodized(Warm Silver)
Silver Anodized(Black,Navy)
Warm Silver Anodized(Red)
BackplateIce Patten Stainless Steel(Blue, Yellow, Purple, Pink)
Gray PVD Stonewash(Silver)
Bronze PVD Stonewash(Warm Silver)
Black PVD Stonewash(Black)
Silver PVD Stonewash(Navy)
Bronze PVD Stonewash(Red)
SwitchesKailh Cocoa Switch (45g)
KeycapsPBT (Double Shot / Dye Sublimation)
BadgeStainless Steel WOB LOGO
ConnectivityWired / 2.4G / BT5.0
RGBSouth Facing A-RGB
Battery Capacity7500mAh
Positioning PlateFR4
Heartbeat LightRGB Heartbeat Light
Acoustic SetPORON Plate Foam
8x IXPE Switch Pad
PET Film
PCB Form (w/ PET Insulation)
Poron Case Foam (w/ PET Insulation)
PCBA1 Black PCB with Extra Film
(Supports – Plate&PCB Stabs/Split space/ISO layout/Stepped Caps)
DriverVIA Support
StabilizersWOB Customized Stabilizers
Weight2380g
PackagingCustomized Carrying Case
AccessoryAlternative Aluminium Positioning Plate * 1, Spare Screws * 8, Silicone Bumper * 2, Silicone Feet * 2, Cable / Manual / Cloth Bag / Switch Puller / IXPE Pad * 1
