このキーボードの概要
Brand | DROP®︎ |
Price | 高級(2万円以上) |
JIS/US | Ortholinear |
Keyboard Size | 50% |
Key Profile | メカニカル方式(Normal Profile) |
Key Sounds | 静音, タクタイル, クリッキー |

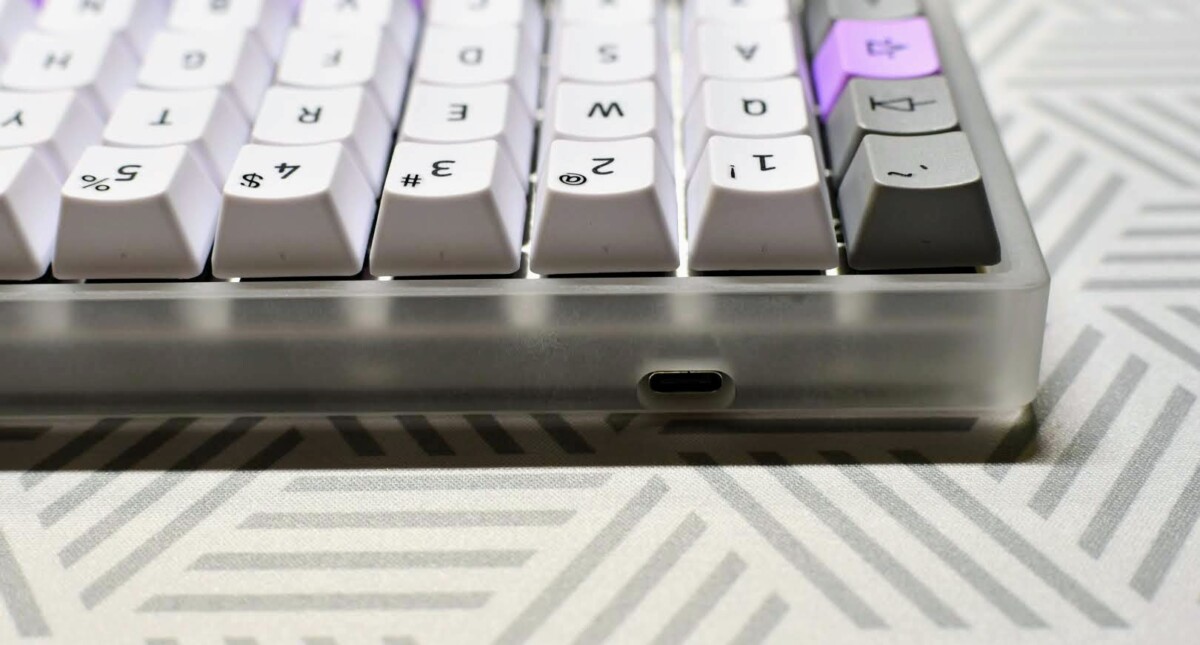

How to Connect | USB |
Battery | USB給電 |
Hotswap | ホットスワップ対応モデルあり |
Normal or Split | 非分割 |
コメント
- MassDropから販売されている格子配列(オーソリニア配列)の自作メカニカルキーボード
- QMK Configurator + QMK ToolBox を用いて配列を自由に決めることが可能
- 超コンパクトサイズ

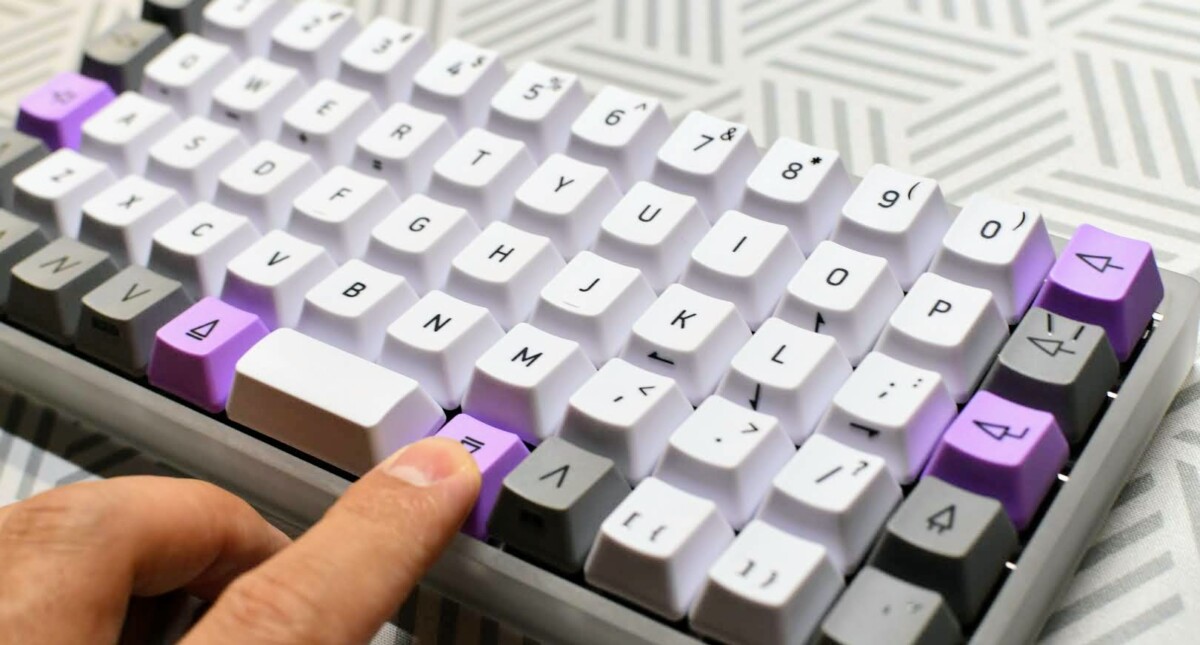

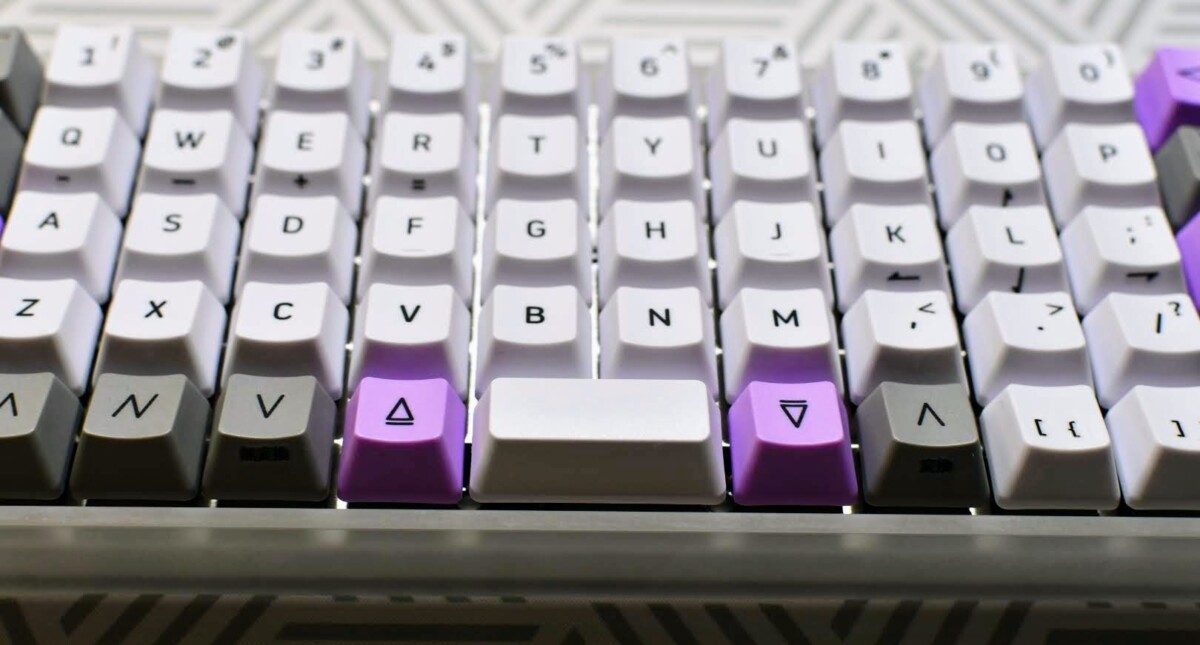

- スペースバー両脇のレイヤー切り替えキーを用いてのコンビネーションタイピングで不足しているキーの入力を補う
- 運指が鍛えられるメリットもあり。
- 見た目が超絶オシャレ。

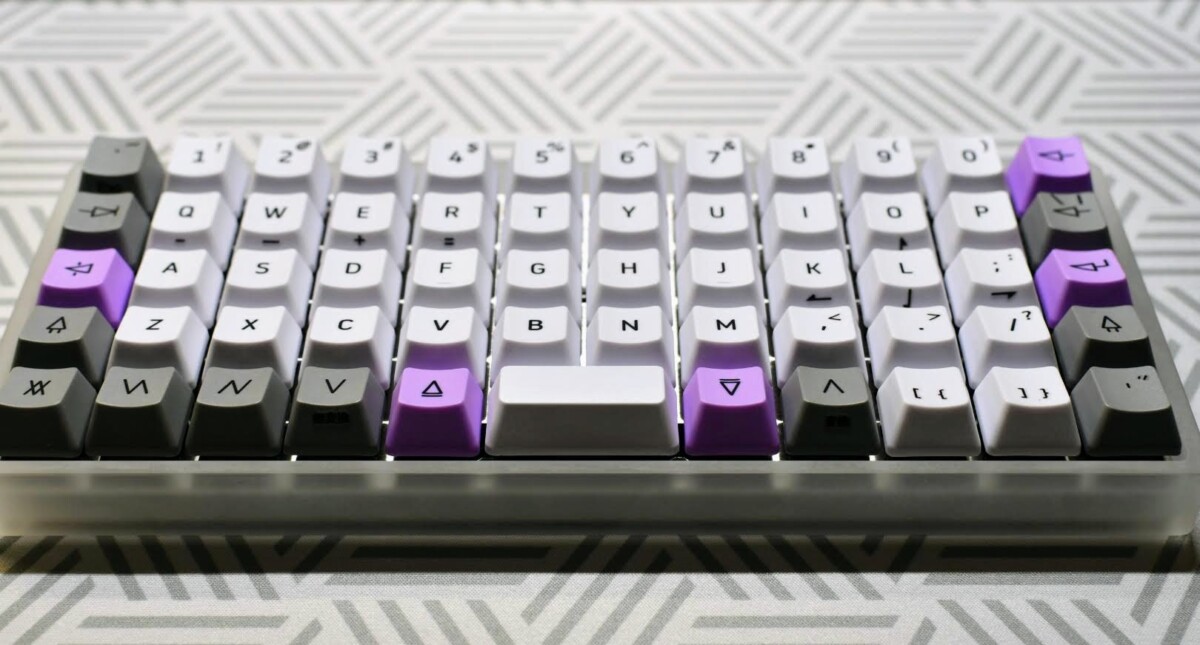

DROP + OLKB PREONIC KEYBOARD MX KIT V3のスペック詳細
SPECS
- Designed by OLKB
- Produced by Drop

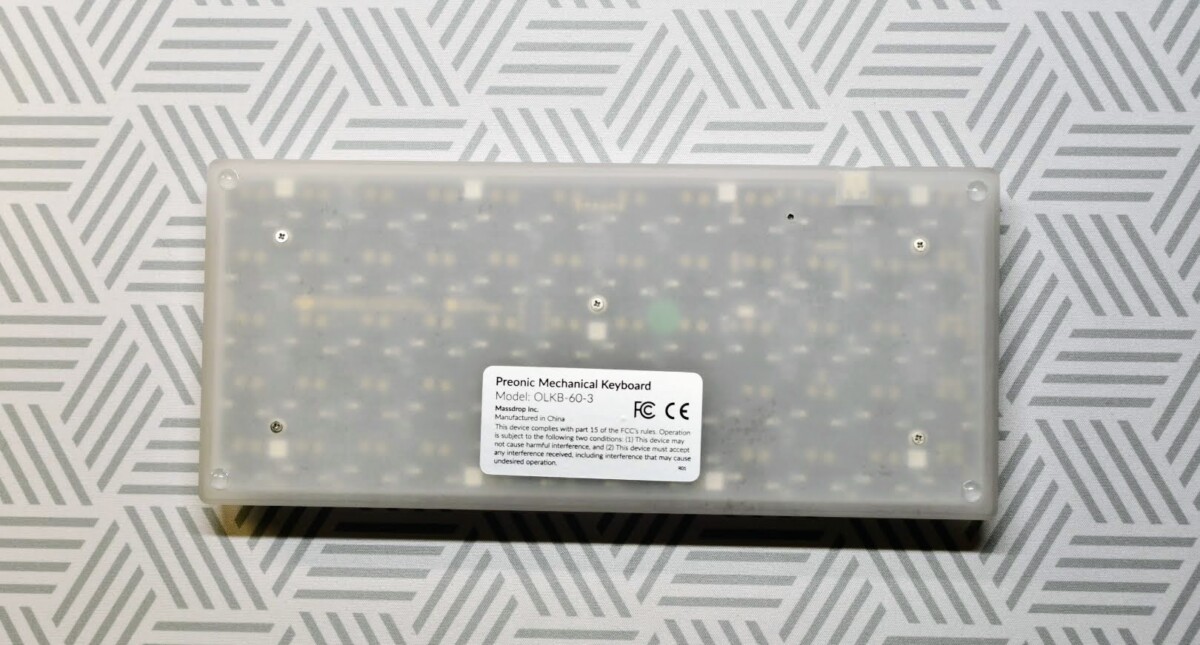

- Anodized CNC aluminum case
- ARM STM32 processor
- Reprogrammable Matias / MX-compatible PCBA
- 304 brushed stainless steel top plate

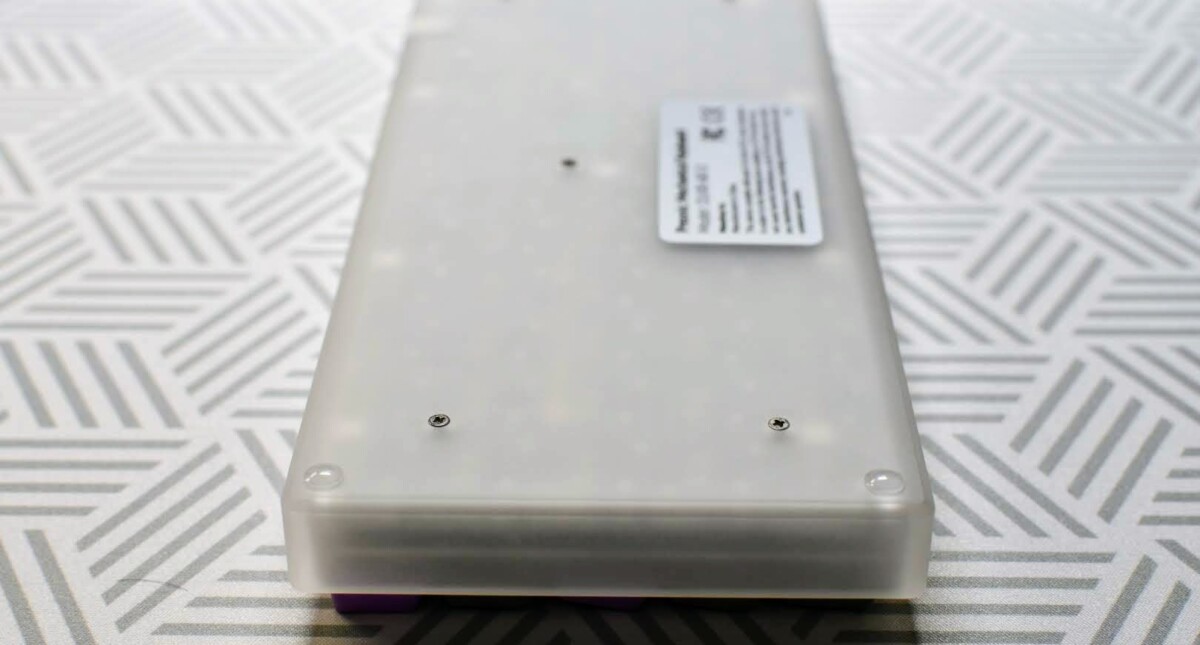

- Rubber feet
- Dimensions, assembled: 9.1 x 4.1 x 0.9 in (23.1 x 10.4 x 2.3 cm)
PCBA
- Pre-soldered
- Pre-programmed

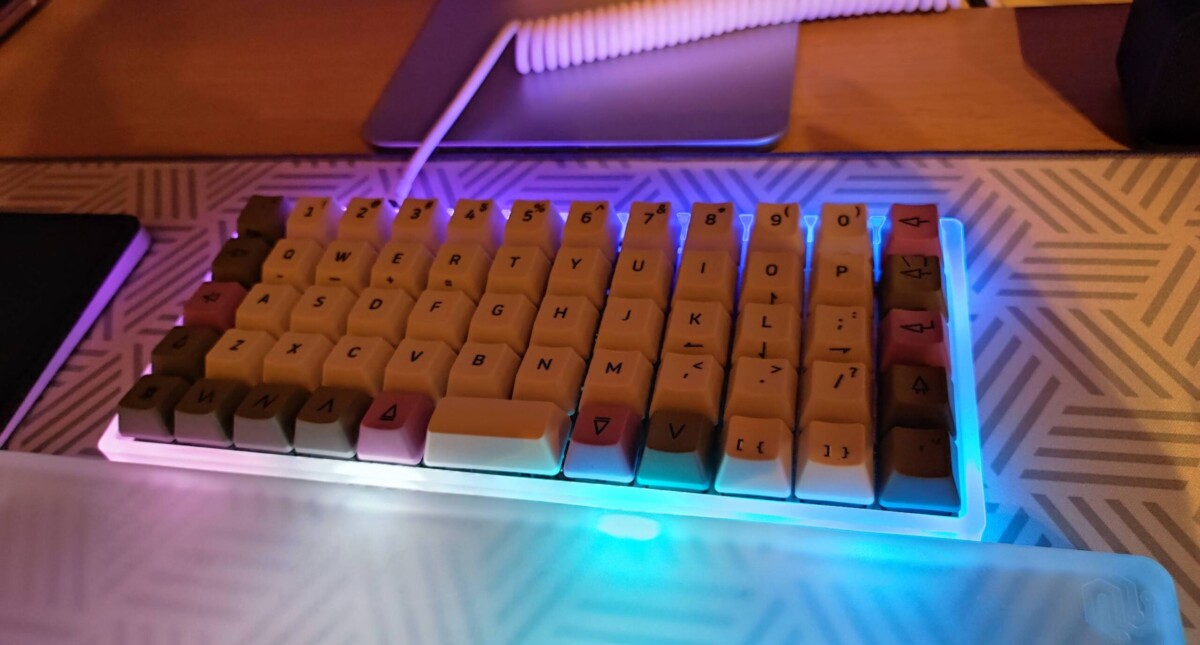

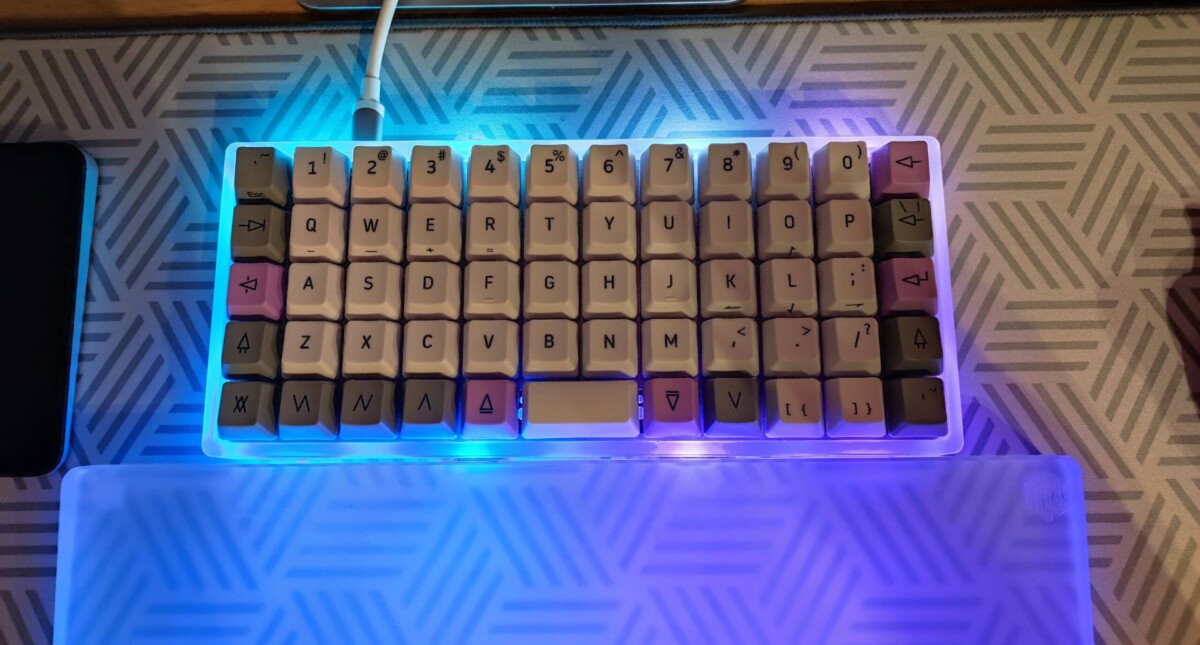

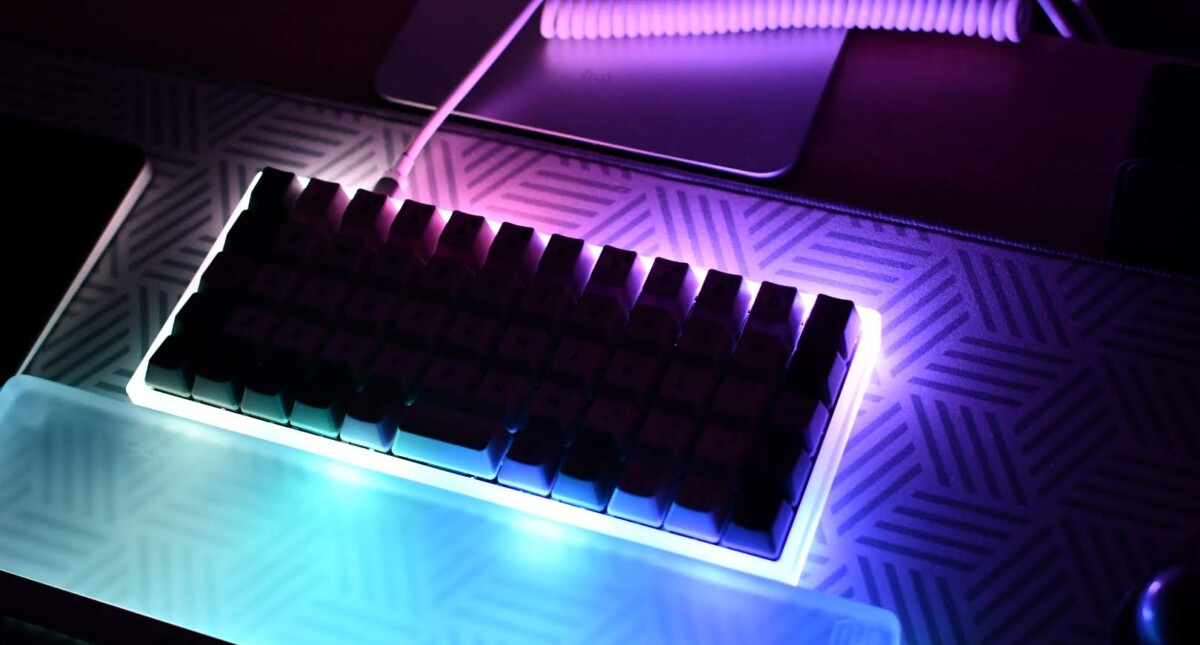

- 9x bottom-lit RGB LEDs: RGB LEDs that glow through the bottom of the case (acrylic cases would be preferred)
- Standard layout
- Cherry MX and Matias/ALPS switch footprints
- LED ready
- Built-in speaker
PCBA Footprints for Extra Capability
- Footprint for a 4-channel DIP switch (210-4ES): A DIP switch is just 4 little switches combined into one (the Poker has one for settings)
- Footprint for a 2-pin JST-PH (PRT-09749): This is a power adapter plug for wireless builds (Bluetooth, etc.)
- Footprint for a 4-pin Qwiic (I2C) JST-SH connector (PRT-14417): Makes it compatible with Sparkfun’s Qwiic system
- Footprint for a clickable (worked into the matrix) rotary encoder (COM-09117, et al): This will spin and click to allow even more customization
- Footprint for a 6-pin male/female header (PRT-09015 or PRT-12590, et al): For development and DIY projects
情報参照元:https://drop.com/buy/preonic-mechanical-keyboard/details?defaultSelectionIds=967849#details
