Corne V4 is the newest addition to the Yousha Kobo lineup.

当ページのリンクには広告が含まれています。

On March 17, 2024, the Corne V4 was newly added to the lineup at the online store of Yusha Kobo, a specialty keyboard store.

d030593ad4b38dc6bd6395bfadde832d
https://shop.yushakobo.jp/products/8961

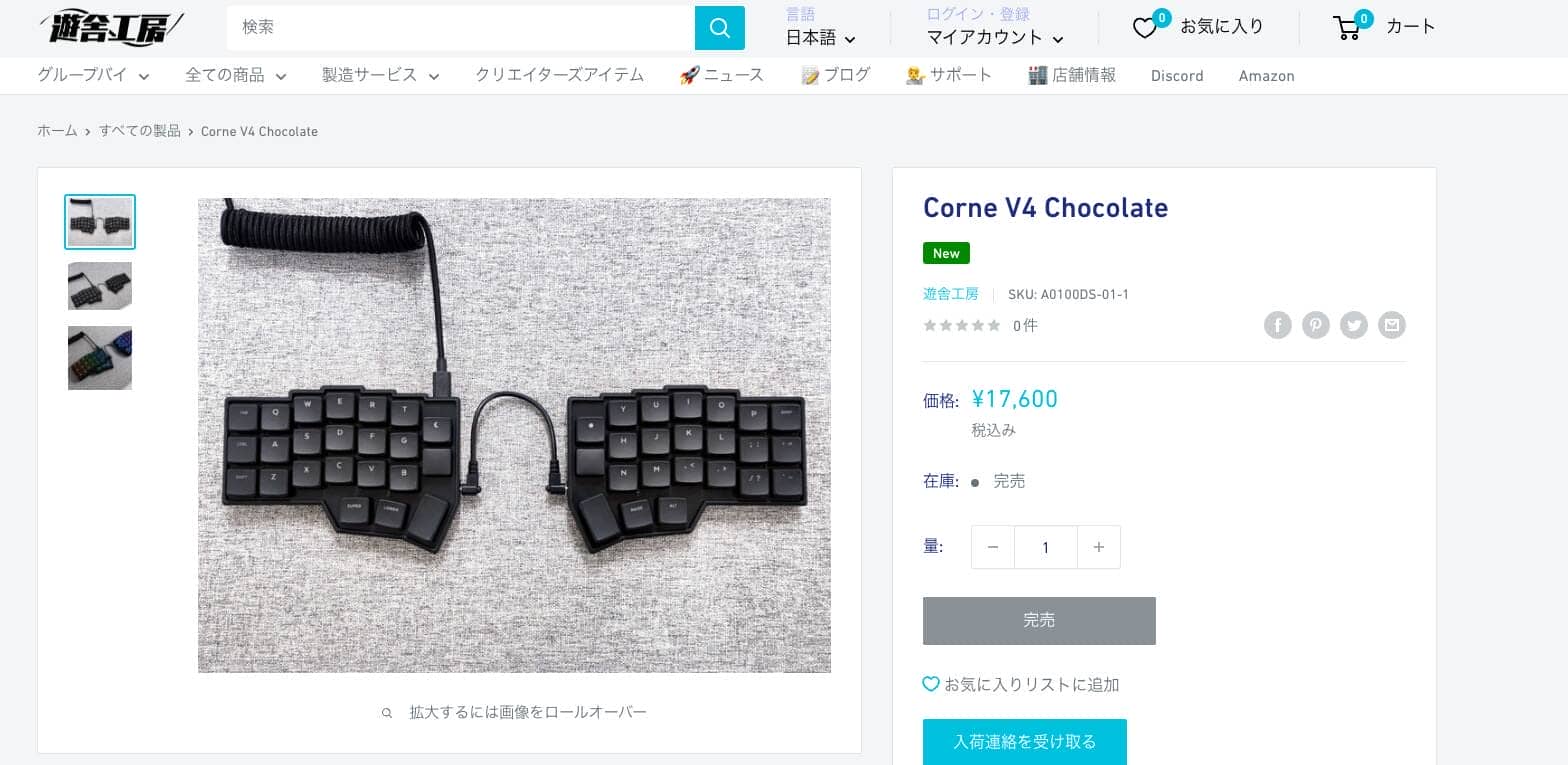

19154f6d0093186ccf30df18861db759
https://shop.yushakobo.jp/products/8962

The lineup includes the Corne V4 Cherry, which uses Cherry MX compatible keyswitches, and the Corne V4 Chocolate, which uses Kailh choc V1/V2 keyswitches.

Note: I was informed by the producer, foostan, that the first lot of corne v4 chocolate is only compatible with Kailh choc v1 and Lofree x Kailh low profile switches. Please consider purchasing the second lot or later if you want to use Kailh choc v2 keyswitches.

Corne chocolate is choc v1/v2 compatible, so key switches such as Lofree x Kailh’s GHOST and PHANTOM can also be used. However, the switch plate may be very tight or may not fit, so please use at your own risk. (This is just a note, as I have not actually tried it.)

Unlike previous models, everything is already implemented, so the new “just buy and assemble” is expected to greatly lower the hurdle for entry into home-built keyboards.

There are several changes from V3, but the most significant change is probably the change in key pitch.

While the distance between keyswitches was 19.00mm until V3, the pitch was changed to the generally adopted 19.05mm pitch in V4.

As a result, backward compatibility with pre-V3 models and cases is no longer possible.

Also, since the microcontroller (RP2040) is mounted directly on the board, soldering at the time of creation has been minimized*, which is another point of improvement that greatly lowers the hurdles to production.

Soldering is not required if you purchase a board case set from Yuusha Kobo.

In V3, the OLED was mounted on top of the microcontroller section, but in V4, two key switches or two rotary encoders can be mounted.

304029701 cda08836 46b7 4833 93fe bcd37a7b9aa7

In addition, a special case is included for a sharper appearance. (3D data may also be made public, so you may be able to order it yourself from JLCPCB, etc.)

Personally, I am also very pleased about the return of the slit for 5 horizontal keys, which was eliminated in V3.

PS: There are plans to release the mini case as well. (Thank you, foostan, for letting us know)

Kawamura top RKawamura

As a regular user of the QAZ layout, I am delighted.

Click here for purchase link ▷▷▷.

(At the time of writing, the stock was not yet available.)

Information from: Yousha Kobo and Github
