このキーボードの概要
| Brand | DROP®︎ |
| Price | high-class |
| JIS/US | Ortholinear |
| Keyboard Size | 50% |
| Key Profile | normal-profile |
| Key Sounds | clicky, tactile, silent |
| How to Connect | USB |
| Battery | usb-power |
| Hotswap | hotswap-available |
| Normal or Split | 非分割 |
Comment
- Homemade mechanical keyboard with grid array (orthogonal array) sold by MassDrop
- Arrangement can be freely determined using QMK Configurator + QMK ToolBox
- Ultra compact size

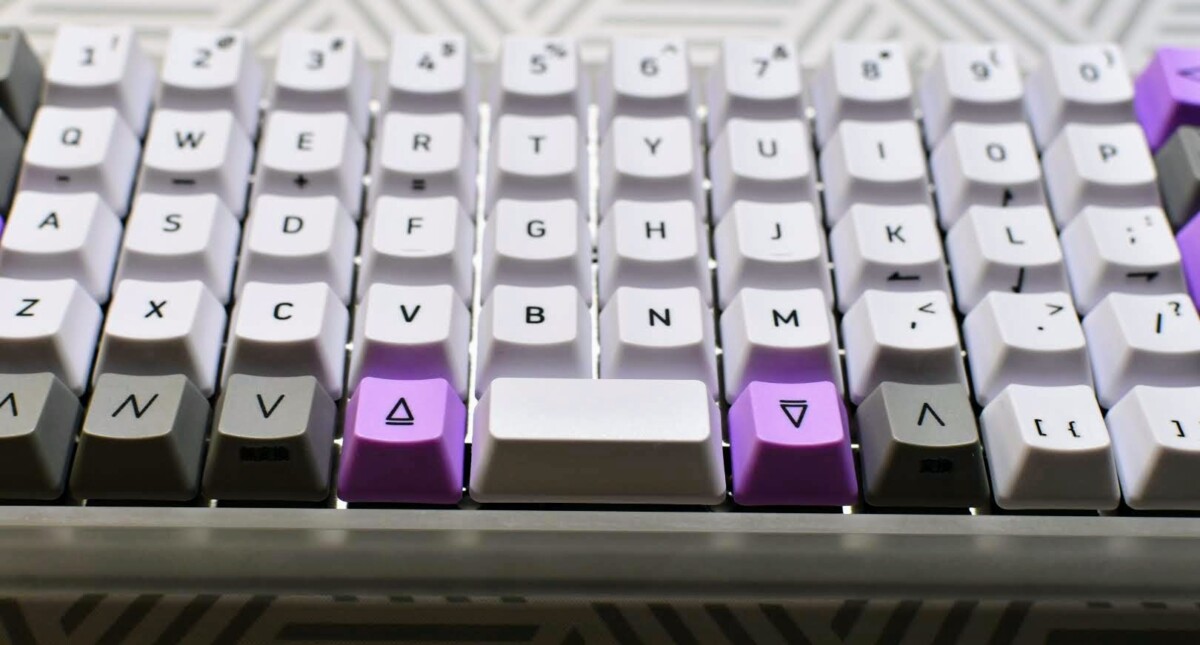

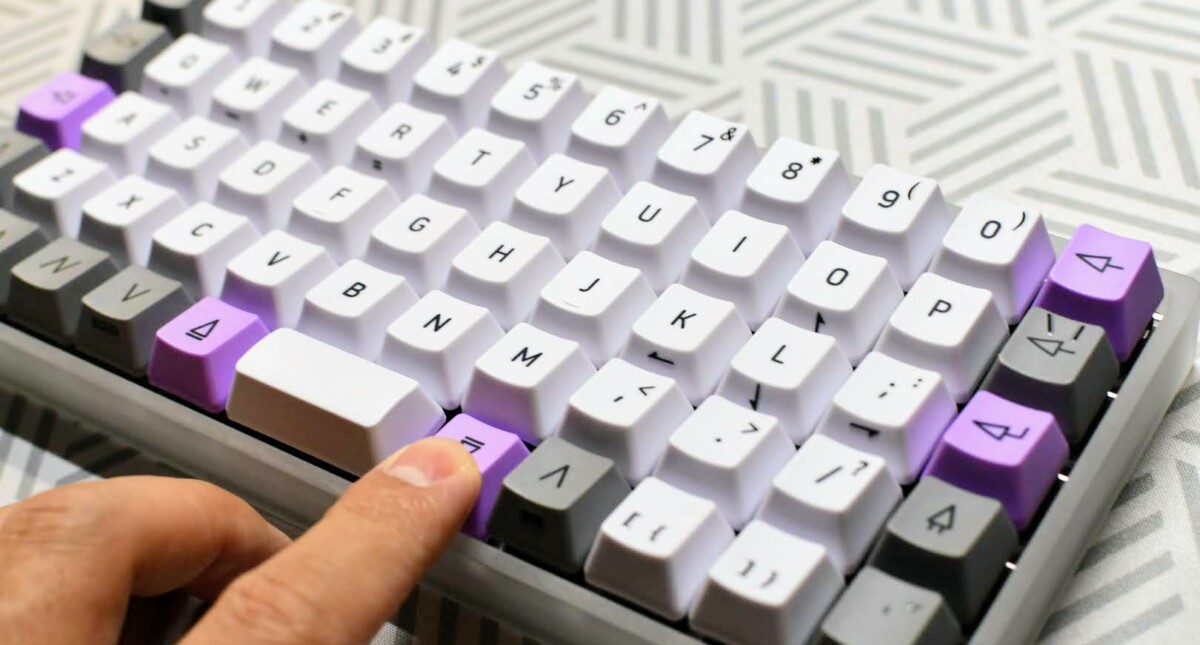

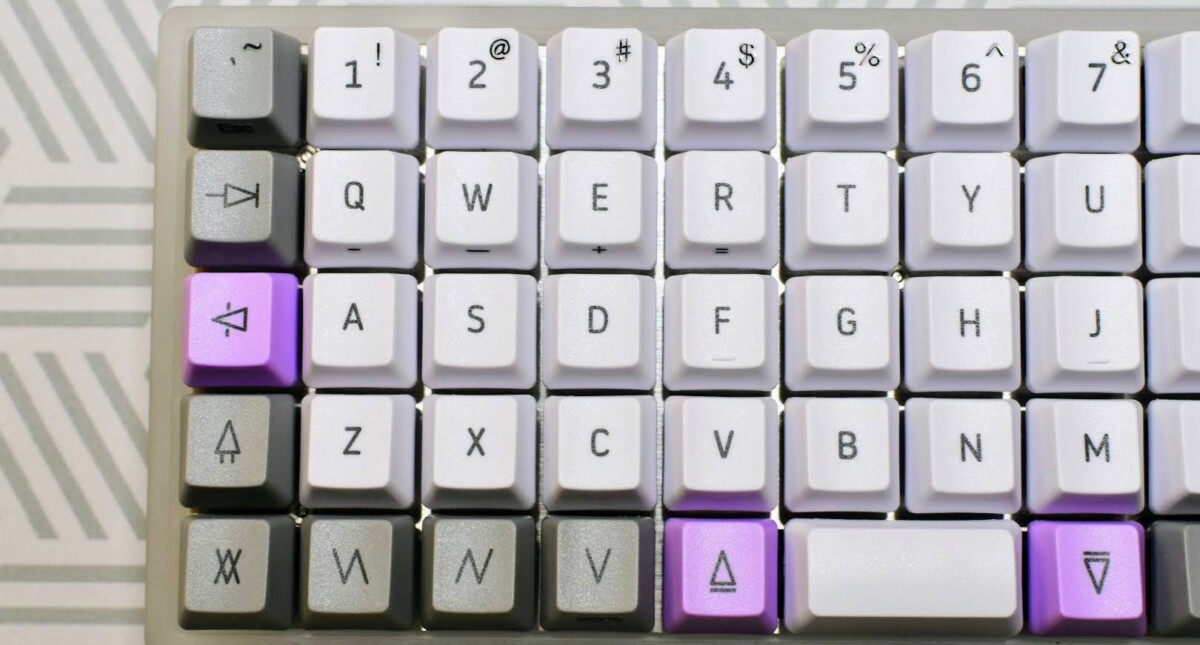

- Combination typing using the layer switching keys on either side of the space bar to supplement input of missing keys.
- It also has the advantage of training the fingering.
- It looks superbly stylish.
Prev
Next

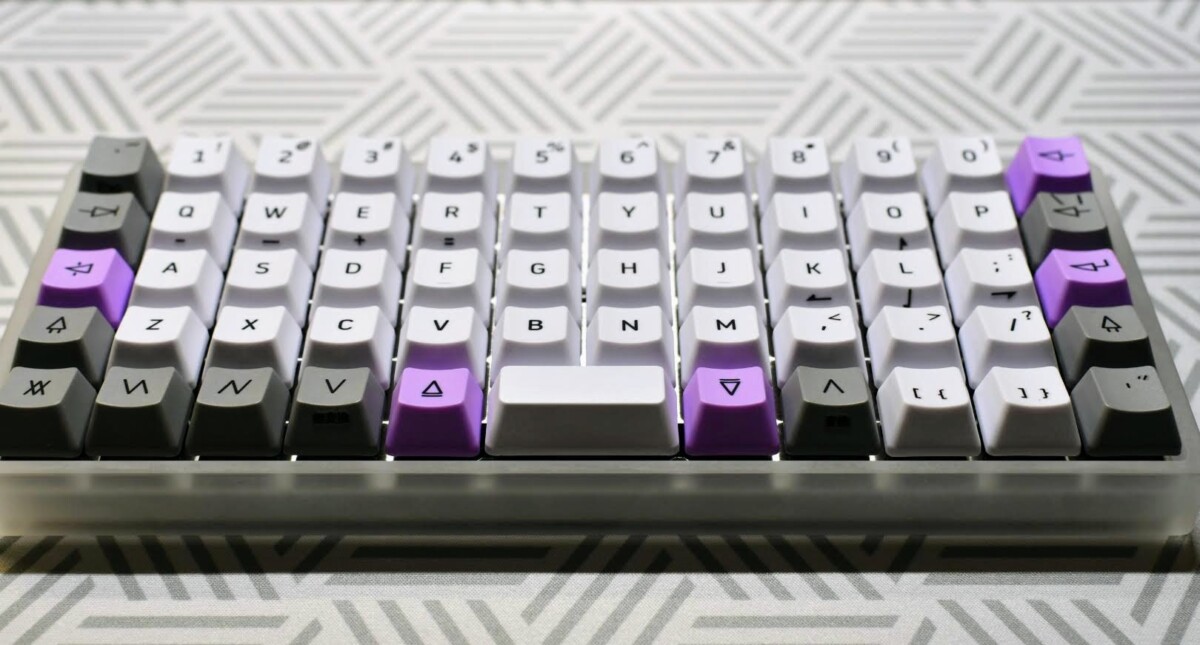

DROP + OLKB PREONIC KEYBOARD MX KIT V3のスペック詳細
SPECS
- Designed by OLKB
- Produced by Drop

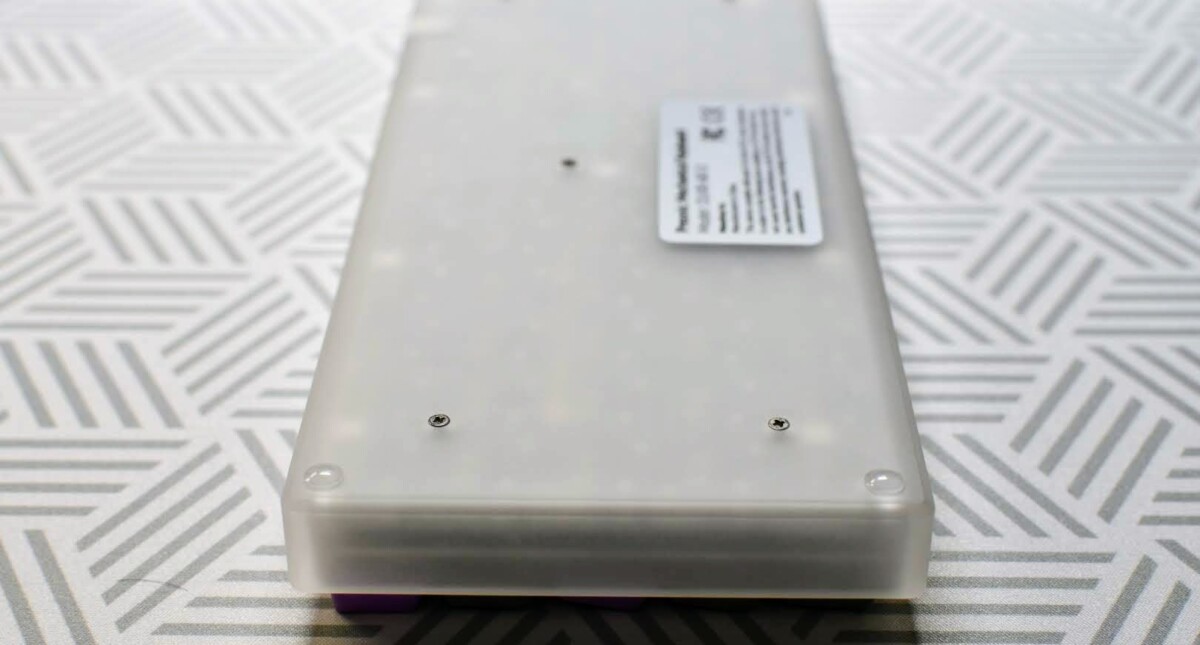

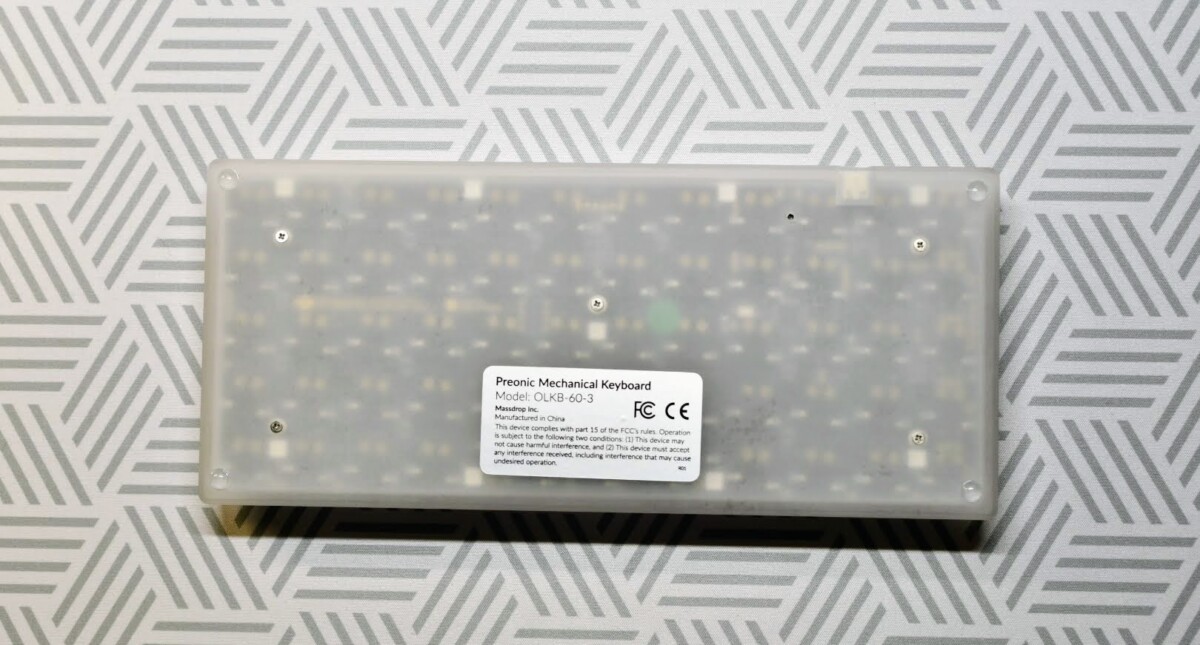

- Anodized CNC aluminum case
- ARM STM32 processor
- Reprogrammable Matias / MX-compatible PCBA
- 304 brushed stainless steel top plate
- Rubber feet
- Dimensions, assembled: 9.1 x 4.1 x 0.9 in (23.1 x 10.4 x 2.3 cm)
PCBA
- Pre-soldered
- Pre-programmed

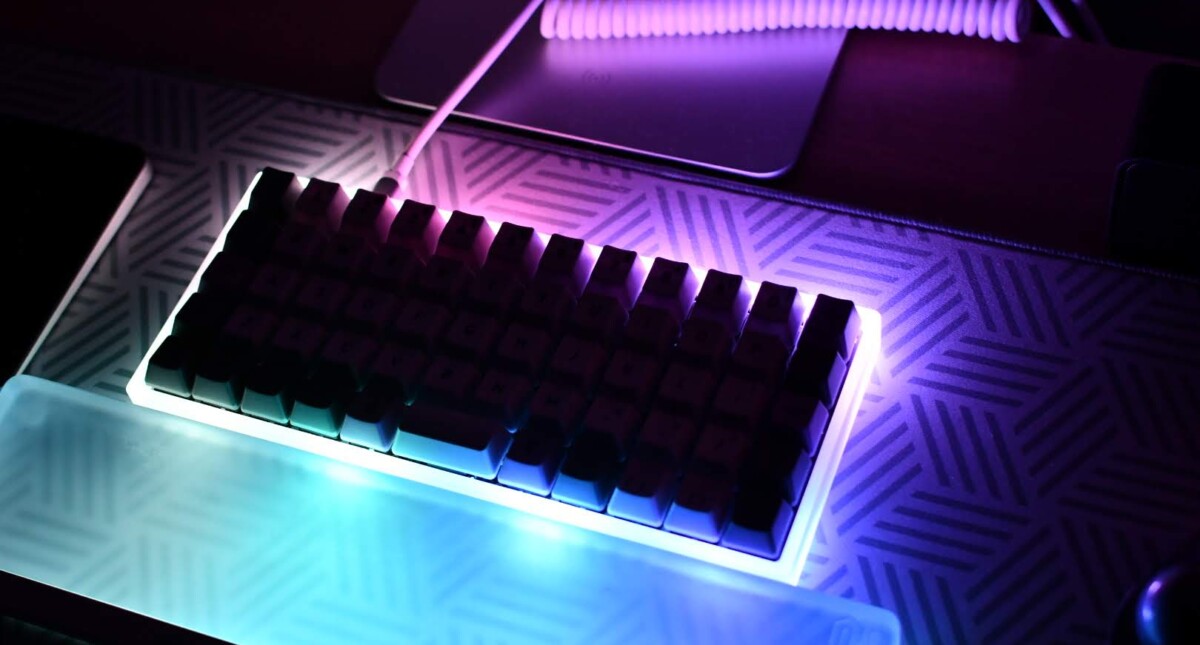

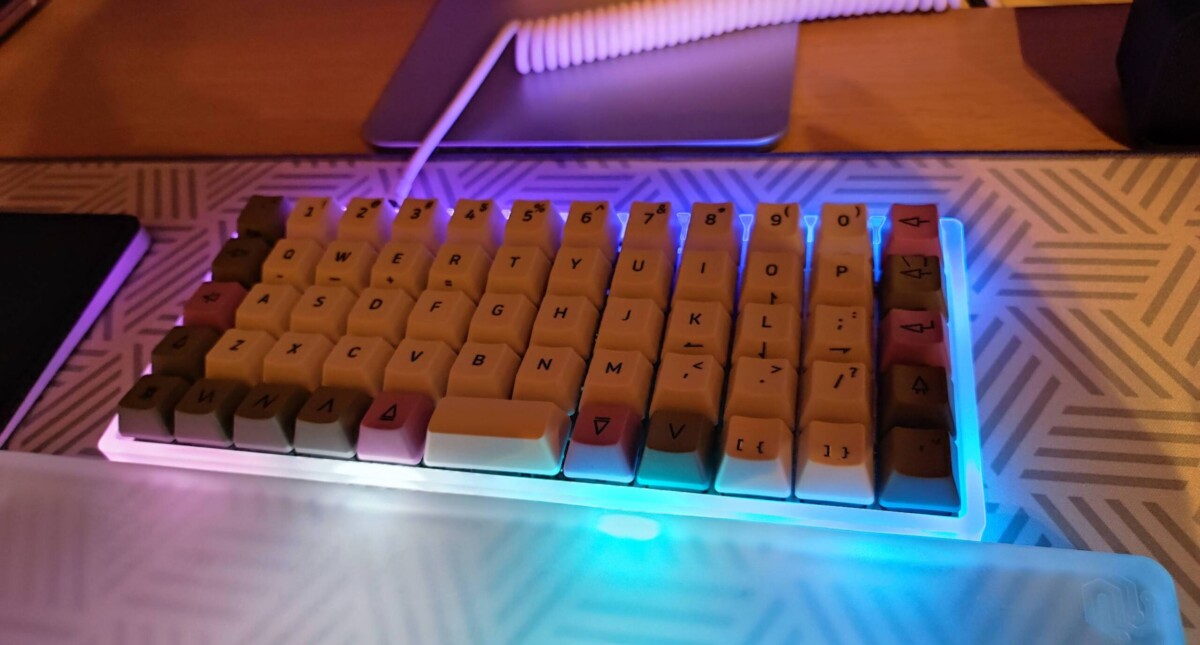

- 9x bottom-lit RGB LEDs: RGB LEDs that glow through the bottom of the case (acrylic cases would be preferred)
- Standard layout
- Cherry MX and Matias/ALPS switch footprints
- LED ready
- Built-in speaker
PCBA Footprints for Extra Capability
- Footprint for a 4-channel DIP switch (210-4ES): A DIP switch is just 4 little switches combined into one (the Poker has one for settings)
- Footprint for a 2-pin JST-PH (PRT-09749): This is a power adapter plug for wireless builds (Bluetooth, etc.)
- Footprint for a 4-pin Qwiic (I2C) JST-SH connector (PRT-14417): Makes it compatible with Sparkfun’s Qwiic system
- Footprint for a clickable (worked into the matrix) rotary encoder (COM-09117, et al): This will spin and click to allow even more customization
- Footprint for a 6-pin male/female header (PRT-09015 or PRT-12590, et al): For development and DIY projects
Information reference: https: //drop.com/buy/preonic-mechanical-keyboard/details?defaultSelectionIds=967849#details
