On August 17, 2025, GreenEchoes Studio (Chuo-ku, Niigata City) began handling new “mounting pins” and “silicone pads” at its own EC store, Greenkeys Shop.
The product is designed and planned by Skeleton Keyboard LLC, and is the first product in the “KeebPlus” series that the company is developing as the “new standard for self-made keyboard parts.
This product will be sold exclusively through Greenkeys Shop.
Prices are as follows
- マウントピン｜500円(税込)
- Silicon pad｜550 yen (tax included)
Both products have been used in the “Gravity45-Aluminum Edition”, which is scheduled to go on sale at the end of August 2025, and we aim to widely promote them as self-made keyboard parts.
In addition, the store has made the following changes to its delivery fee rules for some products in conjunction with the start of handling new products.
Representative of GreenEchoes Studio
He launched his own media as a site operator and web writer, and now plans and manages multiple corporate media. He often types heavily in his work, and in his search for greater efficiency, he became addicted to the keyboard swamp and established “GreenKeys”.
Products
The following two products are newly launched this time.
Both products are part of the KeebPlus series being developed by Skeleton Keyboard, LLC.

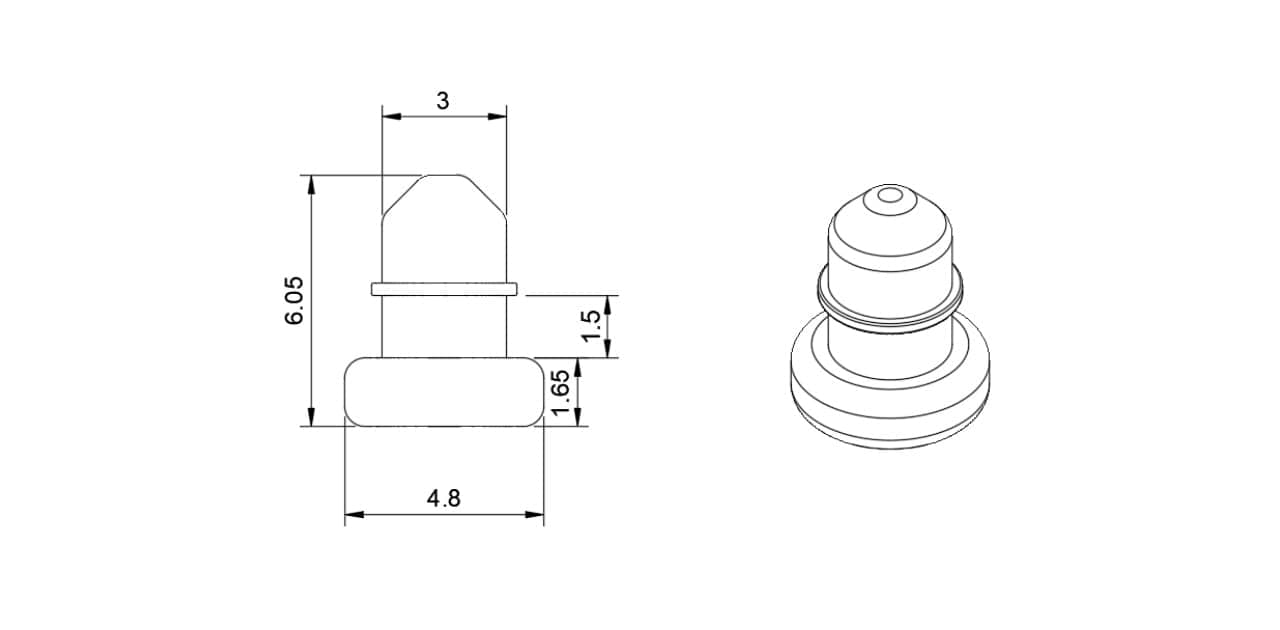

Mounting Pin｜Parts for self-made keyboards to realize floating mounts
The mounting pin is a part to realize floating mounting by attaching to a switch plate, etc.
It is primarily intended for use with home-made keyboards.

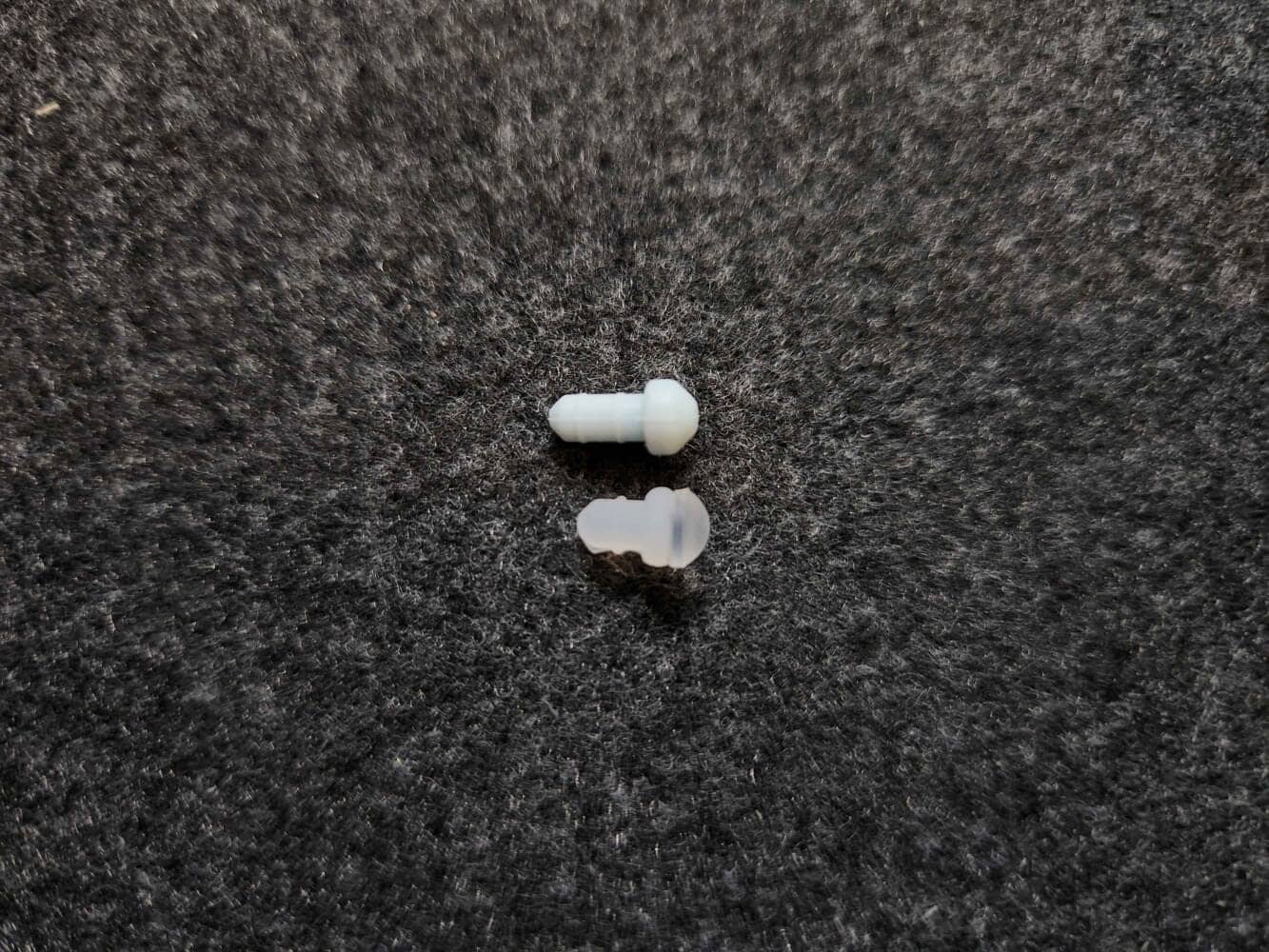

It is slightly shorter than the “tadpole” available at Greenkeys Shop, which allows for floating mounting in thinner cases.
Additionally, by attaching the included rubber feet to the case side, it is possible to function as a tadpole compatible mode, which may be used with keyboards that use a tadpole.
However, compared to tadpole, the length of the top part when the plate is installed is shorter than that of tadpole, so depending on the case shape, it may not fit into the top case hole and cannot be used.

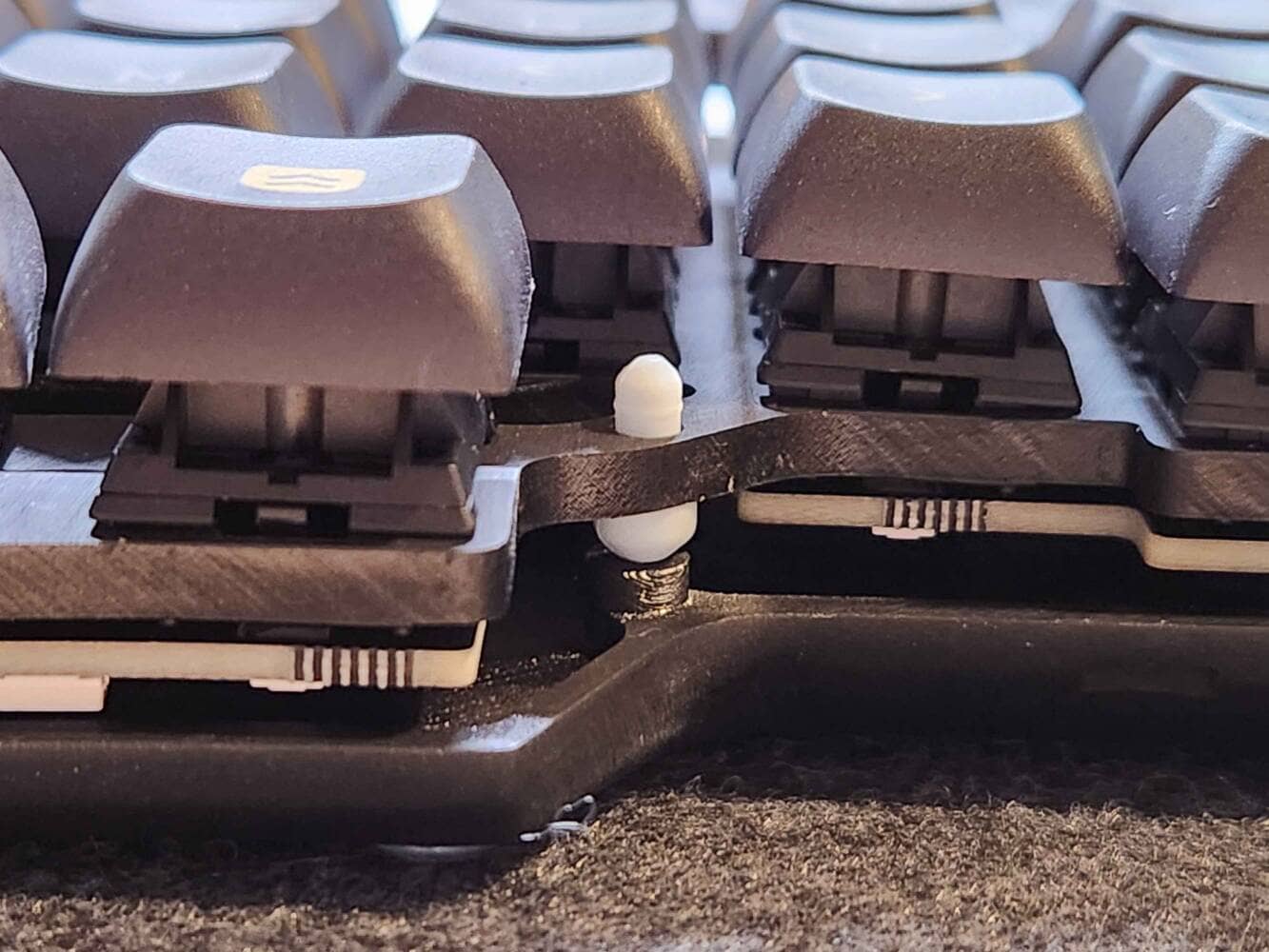

KawamuraThe cocot38mini v2 could not reach the top case hole.
*The original use of the rubber pad is different
It was adopted in Gravity45-Aluminium Edition.
■Precautions for use
Due to its somewhat tight size, please follow the instructions below for installation.
- Press lightly against the hole
- Grab it from the other side by clamping it between your fingernails.
- Pull it through the hole completely.
contents
- Mounting pins (8)
- Rubber foot parts on the dome for tadpole compatible mode (8 pcs)
Price: 500 yen (including tax)｜63 yen per piece
*Special price for simultaneous purchase of 10 packs. (58 yen per piece)
To purchase, please visit Greenkeys Shop.
If you wish to adopt it for your own keyboard, please refer to this document.

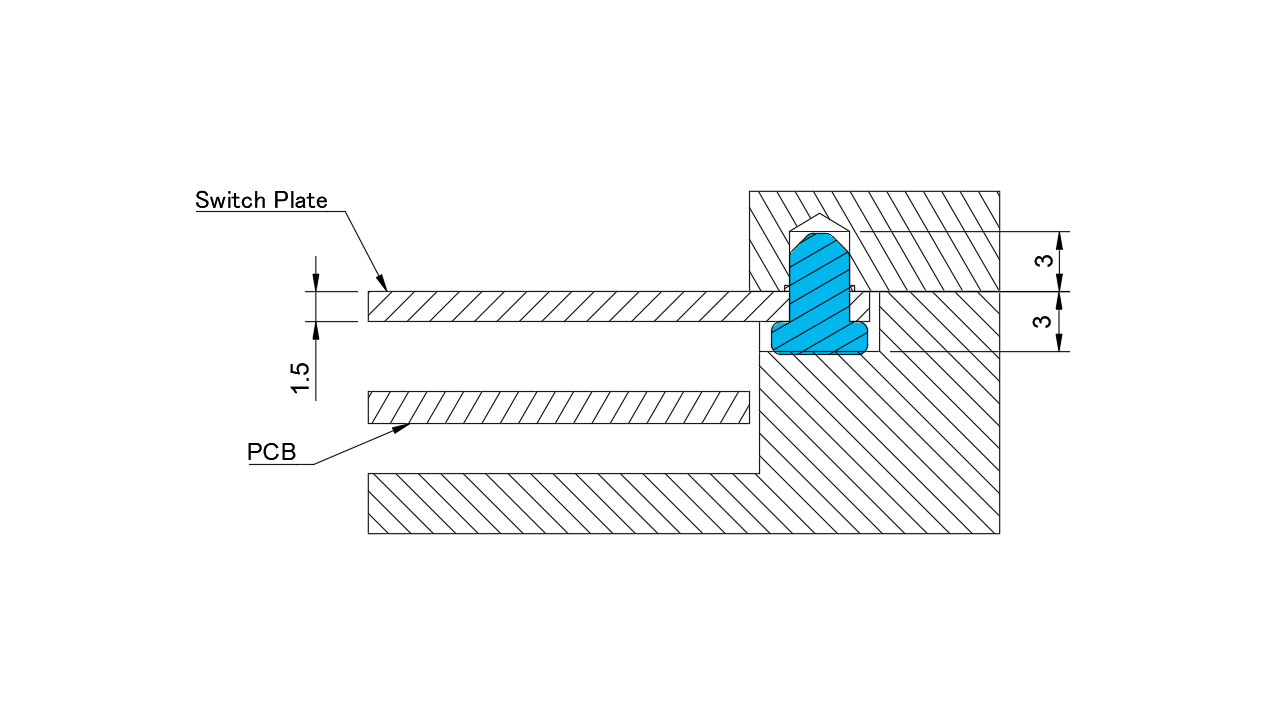

Case design guidelines for mounting pins
https://docs.skeletonkbd.com/ja/mountpin
Silicon pad｜Non-slip rubber feet that enable dedicated design for self-made keyboards

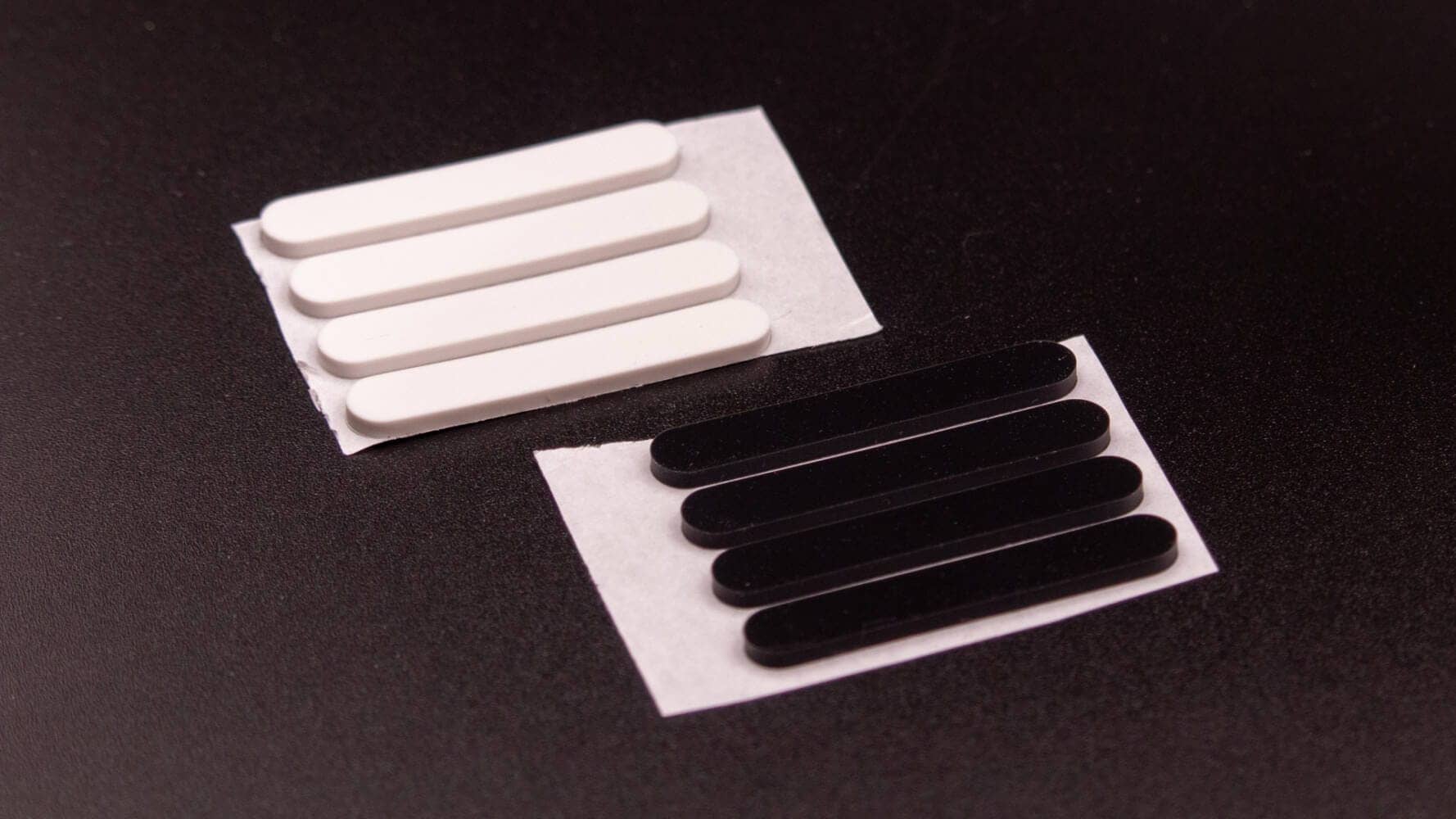

The silicone pad is a non-slip rubber foot specially designed for self-made keyboards.
Since one side has an adhesive finish, it can be easily used by simply peeling it off the sheet and sticking it on.
The color lineup is white and black.
contents
- Silicon pads (4 pcs)
Price: 550 yen (tax included)
It was adopted in Gravity45-Aluminium Edition.

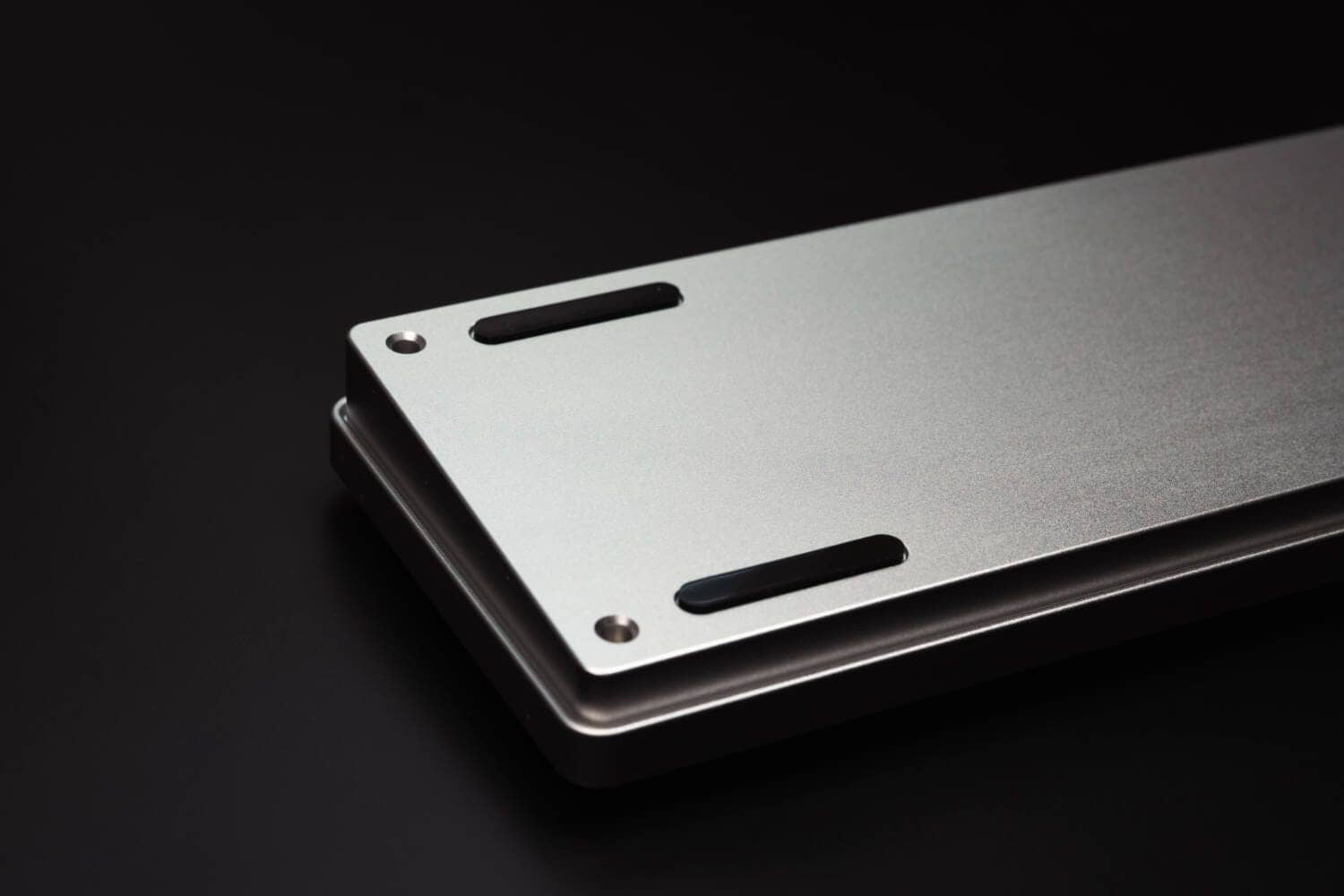

KawamuraThe specially designed rubber feet give a very beautiful, snug fit.
We also have a dedicated design document, which is recommended for those who will be designing their own keyboards.
Case design guidelines for the use of silicone pads
https://docs.skeletonkbd.com/ja/siliconepad
About KeebPlus
KeebPlus is a “parts project exclusively for self-made keyboards” developed by Skeleton Keyboard, LLC.
We design and develop easy-to-use self-made keyboard parts, aiming to set a “new standard” for self-made keyboard parts.
