Brand | Keychron®︎ |
Price | high-class |
JIS/US | US |
Keyboard Size | 75% |
Key Profile | low-profile |
Key Sounds | Choose what you like |
How to Connect | Bluetooth, USB |
Battery | usb-power, rechargeable |
Hotswap | hotswap-available |
Normal or Split | 非分割 |
Comment
- August 22, 2023 Release
- 75% layout version of Keychron K11Pro
- It is a low-profile key switch, which makes it very thin.
- Supports wired/wireless connection (wireless function is not available in Japan due to lack of technical qualification at the time of release)
- Rotary encoder knob is mounted in the upper left corner.
- Keycaps are made of double-shot PBT
- Newly designed stabilizers are used
- Equipped with tilt leg
- Priced at $94.00 for the White Backlight model and $104.00 for the RGB Backlight model
- Compatible with QMK/VIA
- Hot-swappable
- Click here to purchase

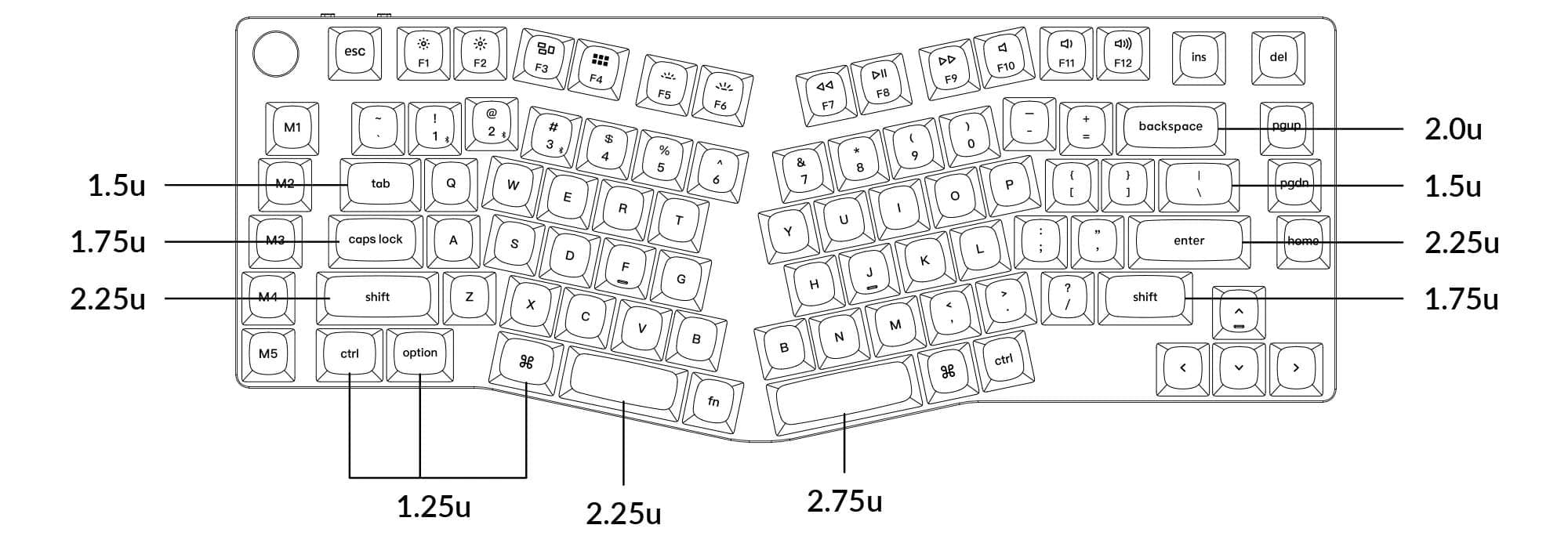

![Keychron K15 Pro 1 K15 Pro keycap size](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2023/08/K15-Pro-keycap-size.webp?strip=all&lossy=1&quality=70&ssl=1)
Where to Buy
- Keychron.jp
- Keychron.com|If you cannot find the product on the Japanese site, click here.
Types of Keychron and how to choose ▷▷▷
仕様詳細
Number of Keys | 89 (75%) |
Switches | Gateron low-profile mechanical |
Switch Face | North-facing |
Number of Multimedia Keys | 12 |
Frame Material | ABS+Aluminum frame |
Keycap Material | Low-profile double-shot PBT |
Layout | ANSI |
Polling Rate (Wired Mode) | 1000Hz |
Polling Rate (Wireless Mode) | 90Hz |
N-Key Rollover (NKRO) | Yes for both wireless and wired modes |
Backlit | 22 types of RGB backlight options plus endless possibilities |
Battery | 2000 mAh rechargeable li-polymer battery |
BT Working Time (Backlit off) | Up to 515 hours (Lab test results may vary by actual use) |
BT Working Time (RGB) | Up to 21 hours (Lowest brightness) |
Connection | Bluetooth and Type-C cable |
Bluetooth version | 5.1 |
Bluetooth Device Name | Keychron K15 Pro |
Compatible System | macOS/Windows/Linux |
Dimension | 370 x 143 mm (14.57 x 5.63″) |
Weight | 696 g / 1.53 lbs |
Height without keycap (front) | 11.5 mm (0.45″) |
Height without keycap (rear) | 16.5 mm (0.65″) |
Height incl. keycap (front) | 21.3 mm (0.84″) |
Height incl. keycap (rear) | 29 mm (1.14″) |
Typing Angle | 2.7º, 3.9º and 6.1º |
MCU | Ultra-low-power ARM Cortex-M4 32-bit STM32L432 (128KB Flash) |
Operating Environment | -10 to 50°C |
*The K15 Pro is currently compatible with Gateron/Keychron low-profile mechanical switches only, as QMK does NOT support low-profile optical switches .
Information reference: https: //www.keychron.com/products/keychron-k15-pro-alice-layout-qmk-via-wireless-custom-mechanical-keyboard
Selectable axis types
The axes available for selection are Gateron LowProfile 2.0 Red/Brown/Blue.
Gateron Low-profile Switches 2.0 (Gateron Official)
Switch | Red | Brown | Blue | Banana |
---|---|---|---|---|
Picture. | ![]() | ![]() | ![]() | ![]() |
Feel | Linear | Tactile | Clicky. | Tactile |
Color | Red | Brown | Blue | Yellow |
Lubed. | Pre-Lubed | Pre-Lubed | Pre-Lubed | Pre-Lubed |
Pressure | 50gf | 55gf | 65gf | 60gf |
Operating force | 50±15gf | 55±15gf | 65±15gf | 60±15gf |
End force | 60±5gf | 60±5gf | 70±5gf | unknown |
Spring | 13.5mm | 13.5mm | 11.5mm | unknown |
Pre-Travel | 1.7±0.4mm | 1.7±0.4mm | 1.7±0.4mm | 1.7±0.4mm |
Total Travel | 3.2±0.2mm | 3.2±0.2mm | 3.2±0.2mm | 3.2±0.2mm |
