このキーボードの概要
Brand
Layout
Size
Connection ,
Hot-Swap
Key Profile

Comment

  • Pre-orders begin August 23, 2023.
  • Shipping starts on October 13, 2023.
  • Prices range from $119.95 to $129.95

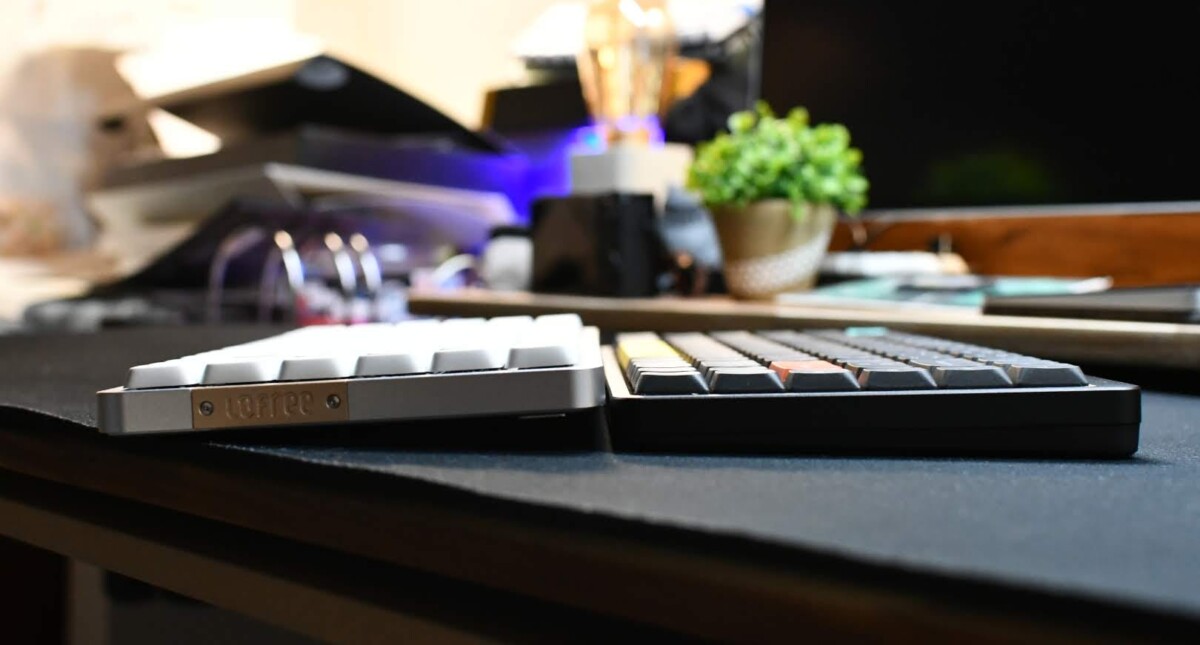

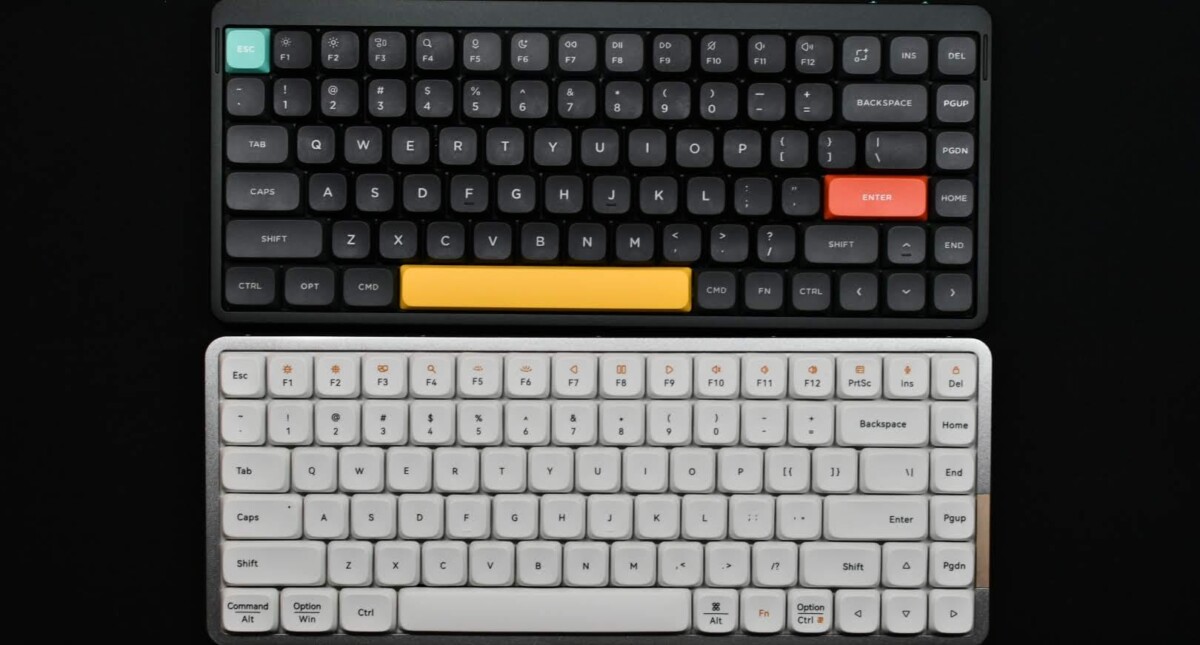

  • It is the successor to Air75

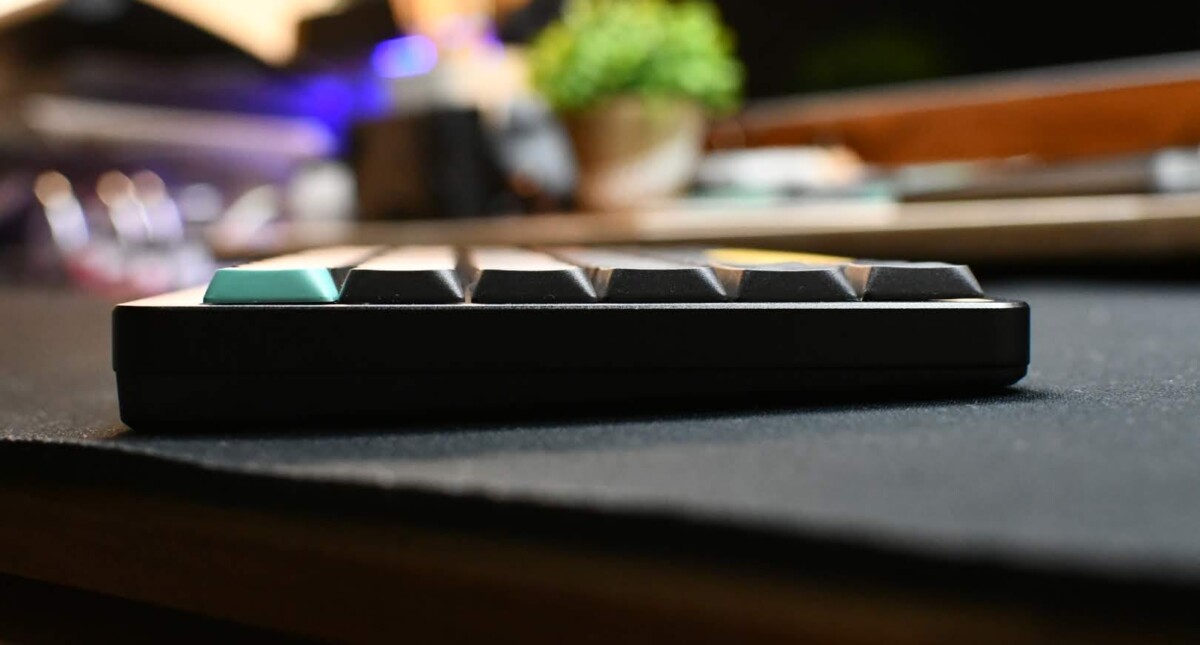

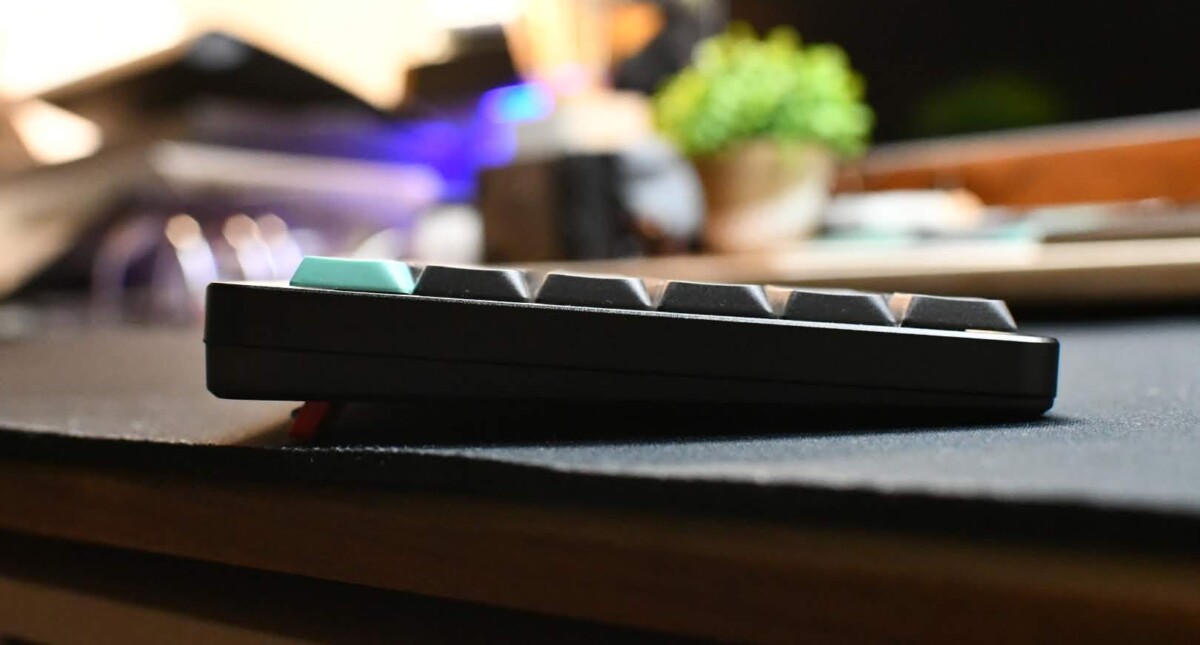

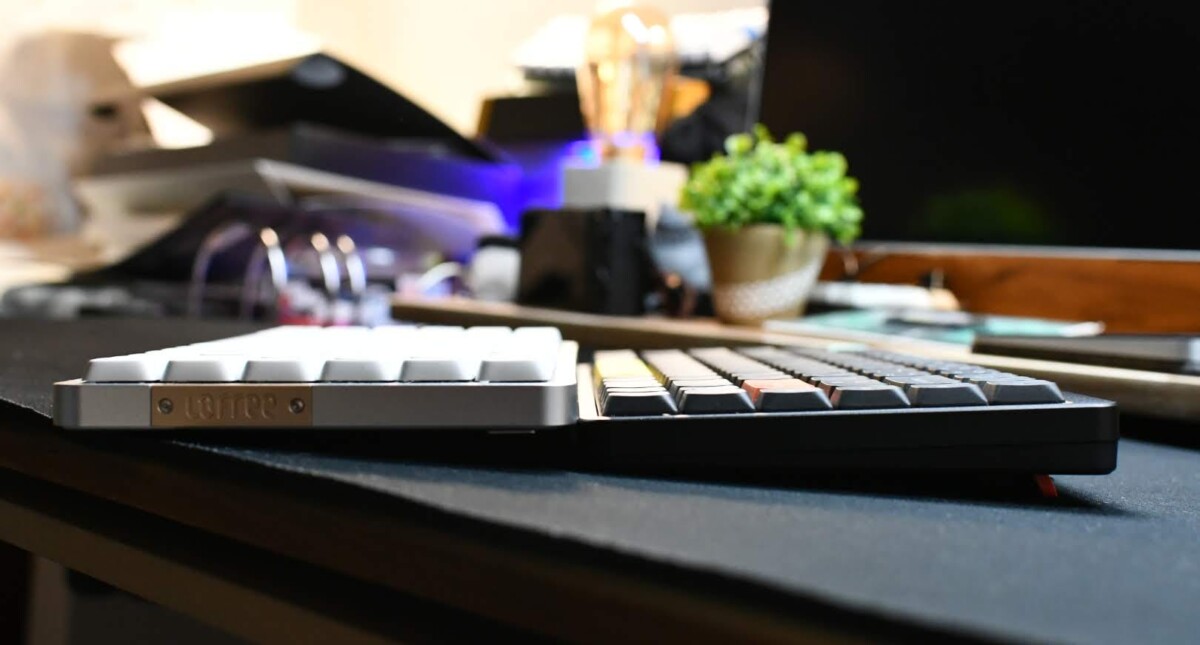

  • It is a low-profile key switch, which makes it very thin.
  • Supports wired/wireless connection (technical compliance is already achieved)
  • Supported keyswitches are Gateron Low Profile 2.0
  • Selectable keyswitches are Red/Brown/Blue/Aloe/Moss/Wisteria/Cowberry
  • Compatible with QMK/VIA
  • Hot-swappable

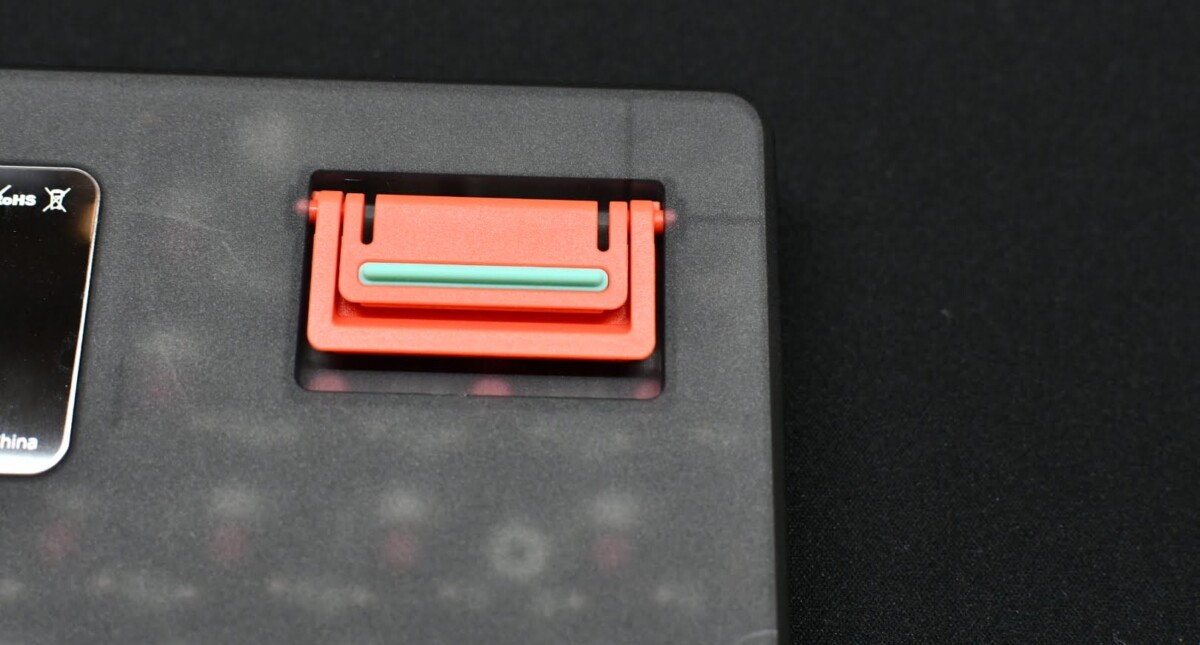

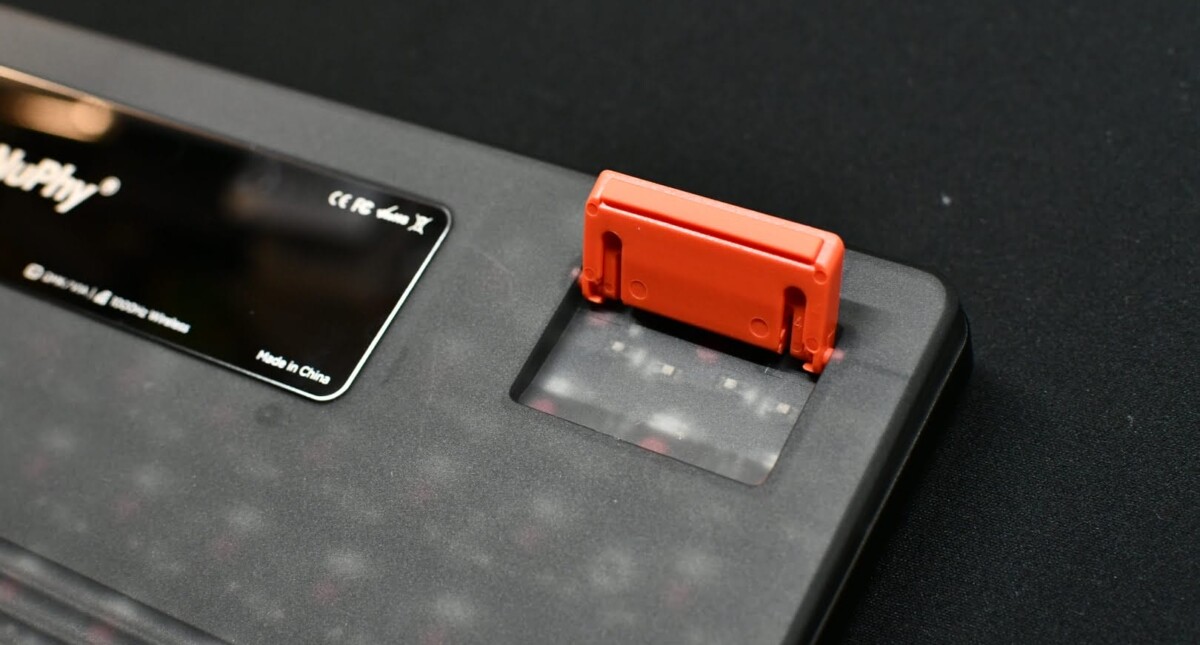

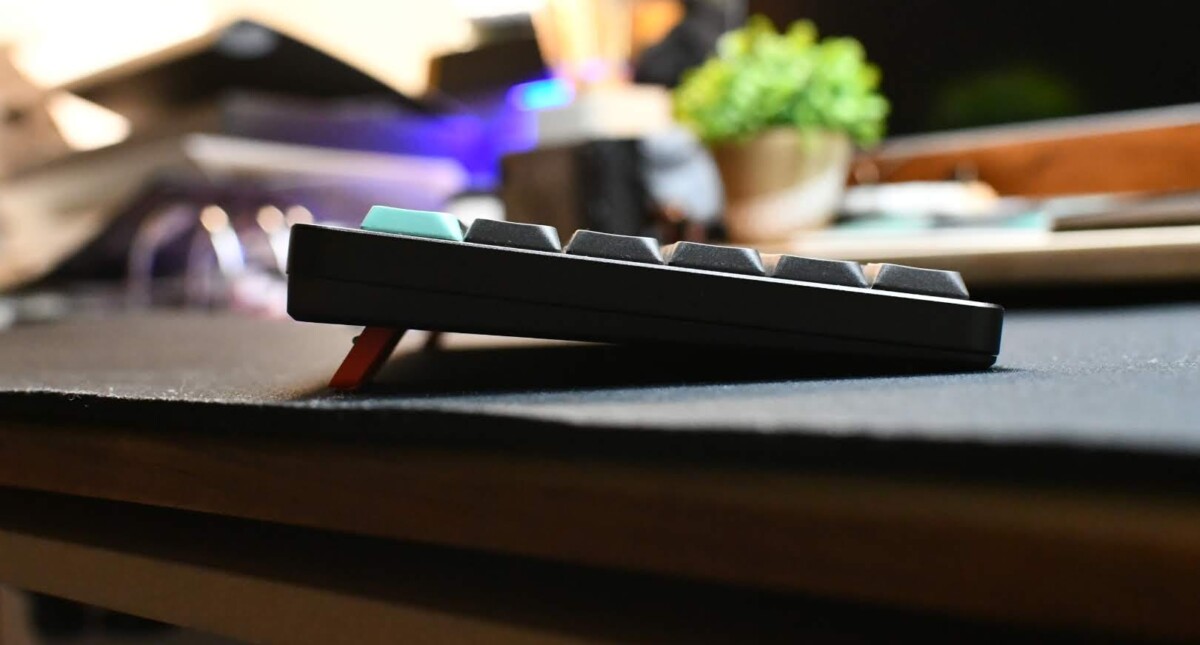

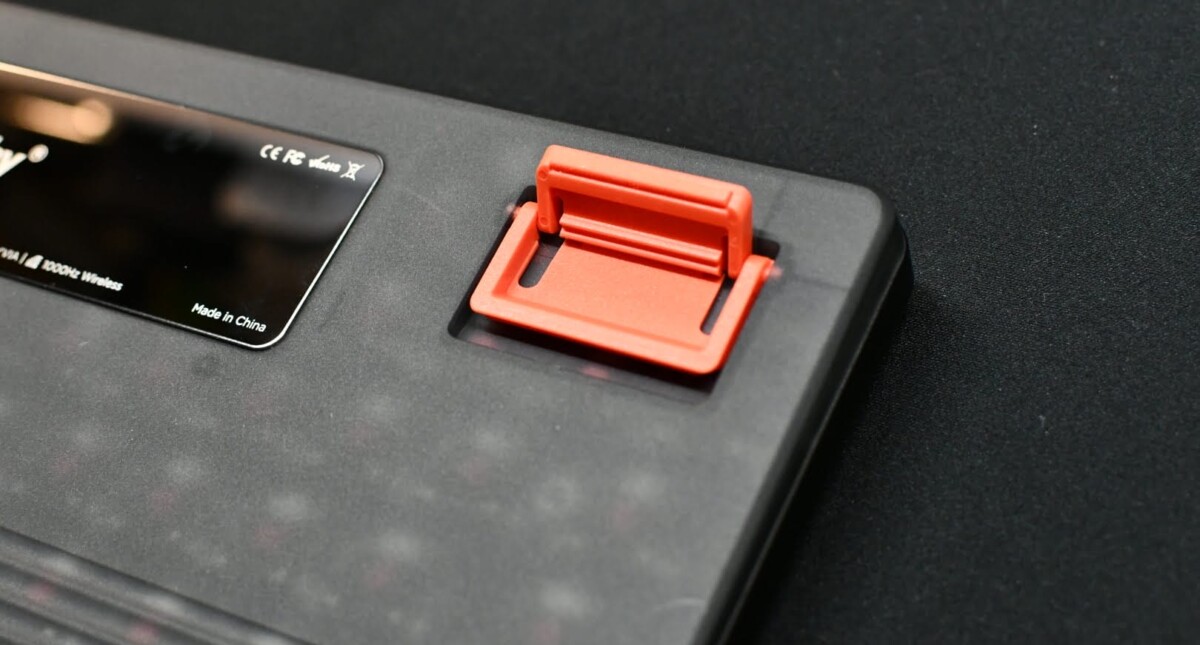

  • Tilt leg changed to built-in type
  • The polling rate for wireless connections using a USB dongle has been upgraded to 1000 Hz.
  • Evolution of sound absorber for more thocky keystroke sound

Use coupon code “ryo10” for 10% off.

Coupon NuPhy 400

Discount Code: ryo10 ryo10

to save 10% off your purchase.

Japanese users, please click here (technical compliance).

Go NuPhy Japan▷▷▷

Products only available at NuPhy Official
(Coupon code supported)

If you are using VIA and cannot change the keymap, download the “.json” file.

Click here to download ▷▷▷.

Air75v2 keymap change procedure

  • Connect Air75v2 to PC /Mac with wired connection mode set
  • Access VIA ( https://usevia.app/#/ ) from your browser
  • Click “AUTHORIZE NEW” and select “Air75v2”, then click the Connect button to allow the browser to load
  • Click on the second “paint brush symbol (Design tab)” from the right
  • Click on “Upload Area.”
  • Select the “nuphy-air75-v2-via.json” file
Related Reading
c6f1eb488039a4373bf66efc28b2587f
NuPhyのVIAを使ったキーマップ変更方法について解説 2023年にリリースされたAir「v2」やHalo「v2」、Gem80などの最新シリーズはQMK/VIAに対応しているため、プログラミングの知識なしでGUI上で簡単にキーマップを変更する…

このキーボードのキー配列・サイズは【】【】です。


似ているキーボードを探す▷▷


キーボードサイズについて知りたい▷▷

Related Reading
Air75v2onsale
NuPhy Air75v2 レビュー｜Air75 v1との違いをふまえて解説 2023年8月23日、NuPhyhは世界的に人気を博している75％レイアウトメカニカルキーボード「Air75」の後継機種である「Air75 v2」の予約販売を開始し、10月22日から通常販…
Related Reading
NuPhy Air 75
NuPhy®︎ Air75 75%コンパクト
メカニカル方式（Low Profile）
US
仕様詳細

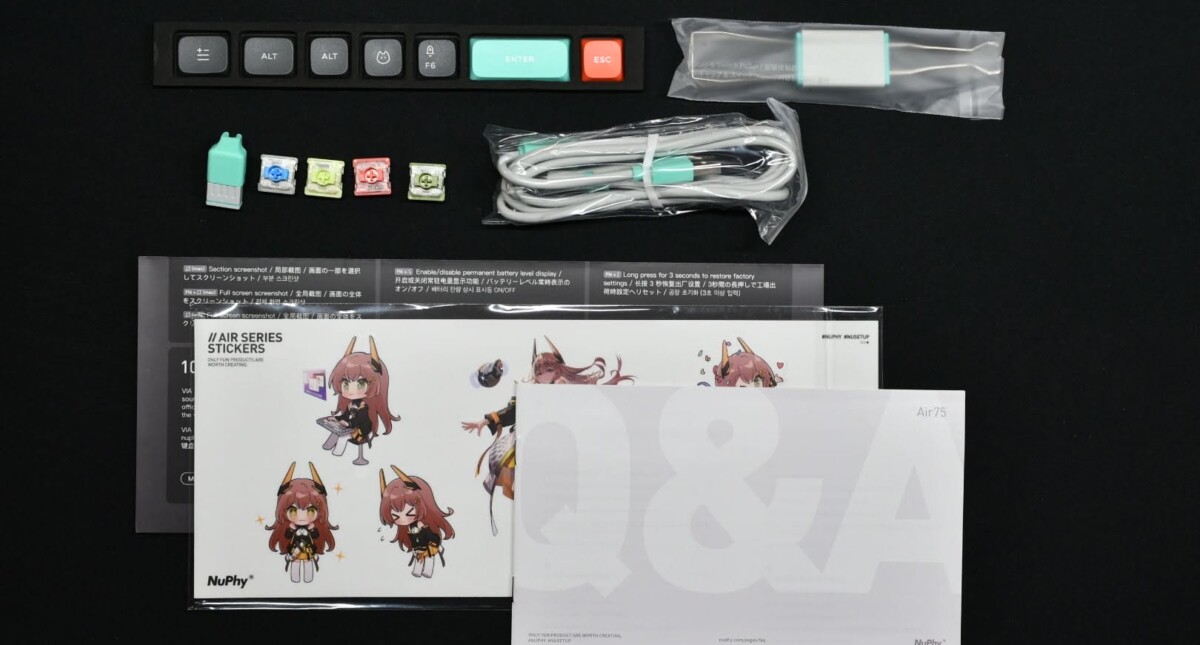

contents

  • 1 x Air75 V2 Wireless Mechanical Keyboard
  • 1 x USB-C to USB-A Cable (1.5 m)
  • 1 x 2.4G Receiver
  • 7 x Extra Keycaps
  • 4 x Extra Switches
  • 1 x Keycap/Switch Puller
  • 1 x Sticker Set
  • 1 x Quick Guide/Poster Download
  • 1 x Q&A Download

Specification Details

SPECIFICATION

  • Switch Type: Gateron Low-profile Mechanical (KS-33)

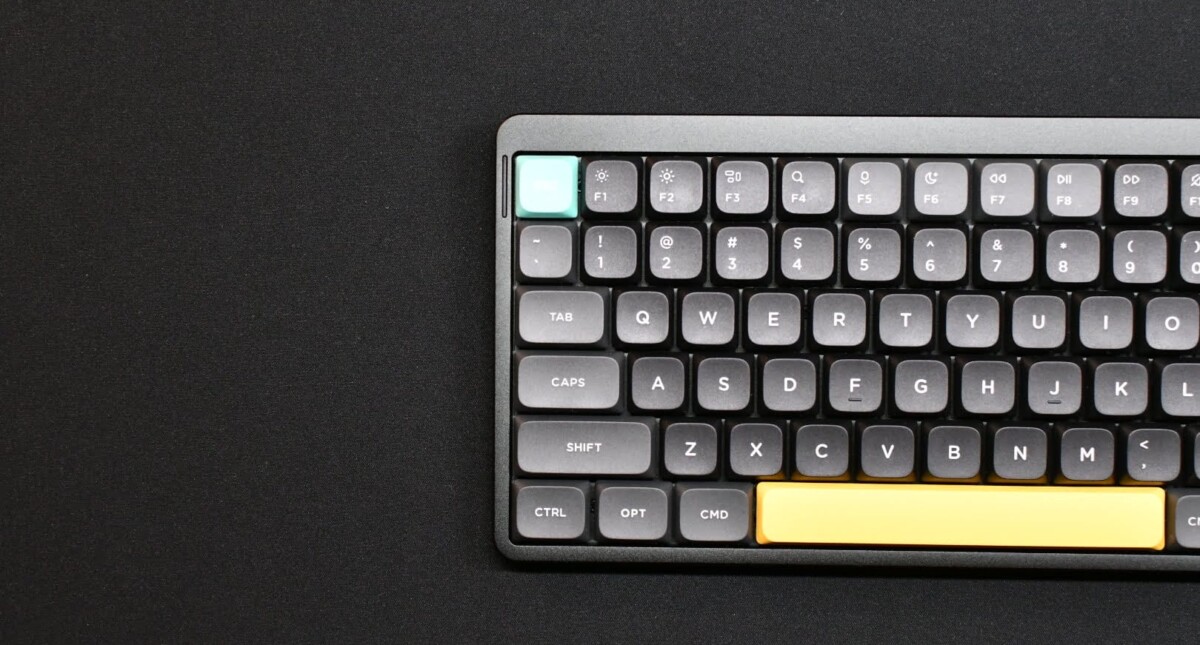

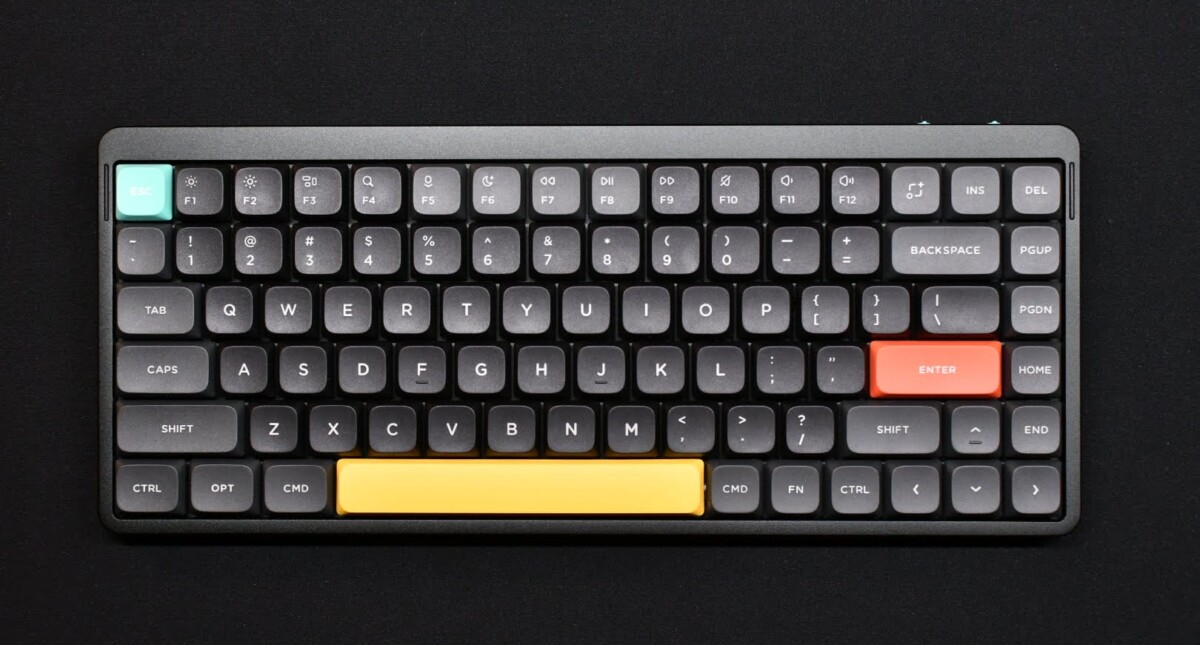

  • Layout: ANSI 75%.
  • Number of Keys: 84
  • Hot-swappable Support: Yes
  • N-key Rollover Support: Yes
  • Backlight: RGB-LED
  • Backlight Modes: 40
  • Compatible System: macOS/Windows/Linux/Android/iOS
  • Angle: 3.5º / 6.5º / 8.5º
  • Operating Environment: -10 to 50°C
  • MCU: STM32F072
  • RF: NRF52810

connection

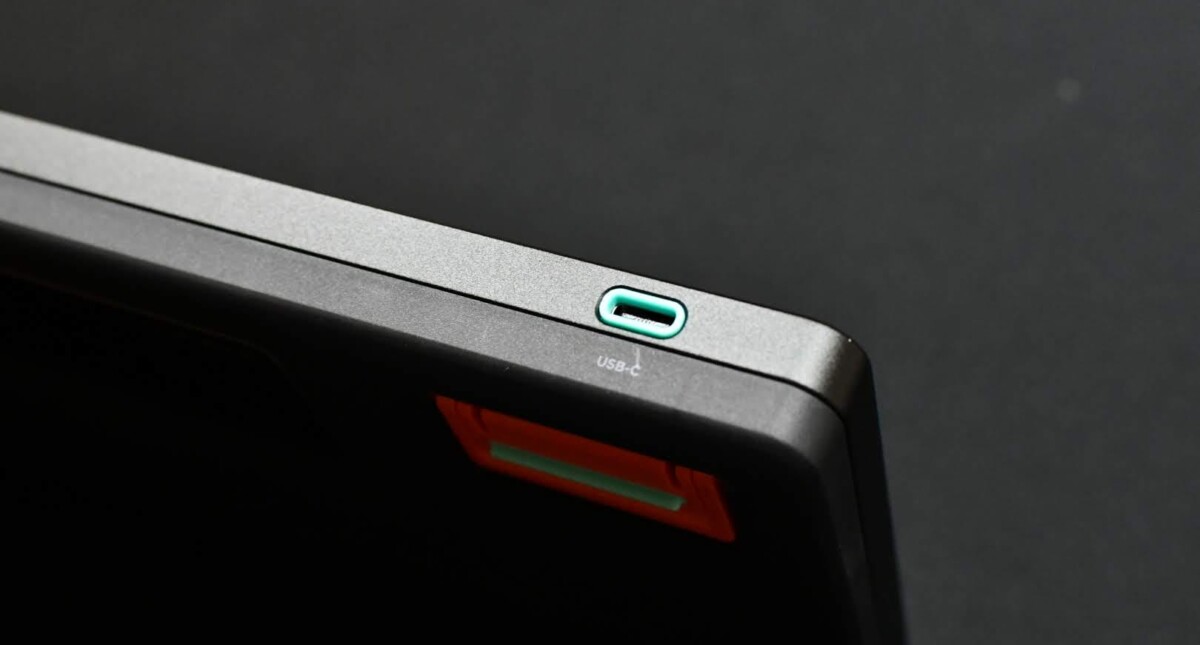

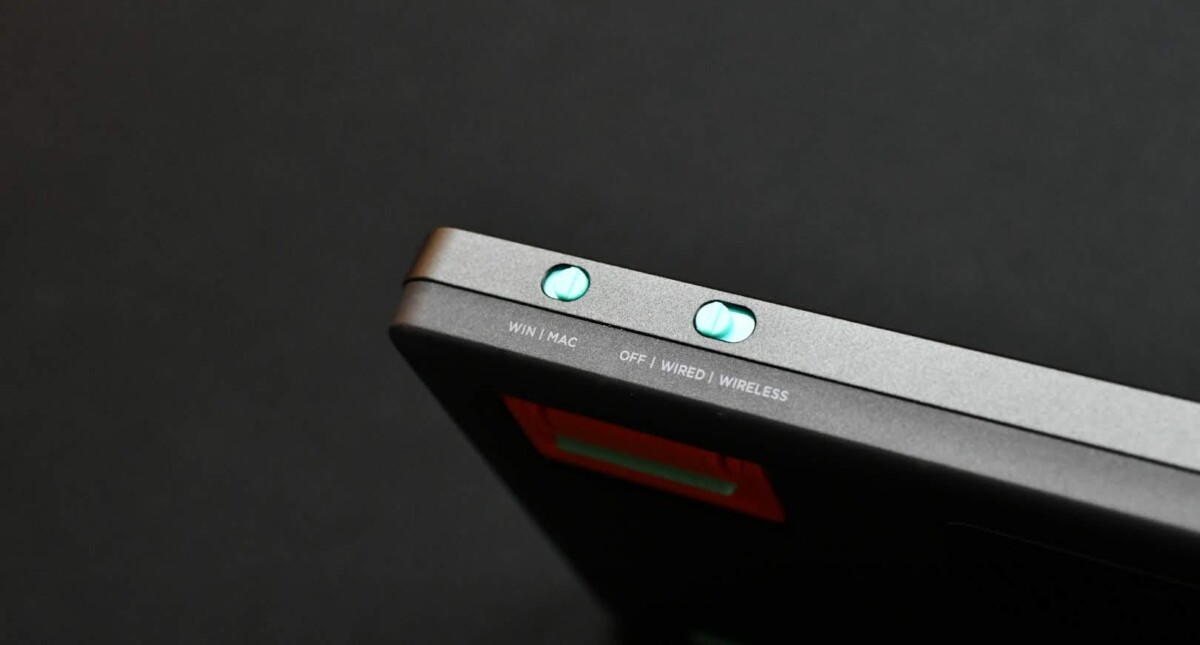

  • Mode: 2.4GHz, Bluetooth 5.0 or Wired (USB-C)
  • 2.4GHz Polling Rate: 1000Hz
  • Bluetooth 5.0 Polling Rate: 125Hz
  • Wired Polling Rate: 1000Hz

POWER AND BATTERY

  • Battery Capacity: 4000mAh
  • Working Time (all lights on): 35~57 hours (lab test result)
  • Working Time (all lights off): Up to 220 hours (lab test result)

MATERIALS

  • Frame: Aluminum
  • Bottom Case: ABS
  • Keycap: Double-shot PBT

SIZE AND WEIGHT

  • 316.4 mm x 132.5 mm x 13.5 mm (12.5 inches x 5.2 inches x 0.593 inch)
  • 598 grams (1.31 pound)
6f8259a3a4c3567d41e4f709cef288ed scaled

Information reference: https: //nuphy.com/collections/keyboards/products/air75-v2

Table of Contents

Selectable axis types

Daisy/Banana is not selectable.

Gateron Low-profile Switches 2.0 (NuPhy)

SwitchCowberryMoss.WisteriaDaisy.Aloe
Picture.cowberrymossWisteriaDaisyAloe
FeelLinearTactileTactileLinearLinear
ColorRedMossGreenLight BlueLight OrangeLight Green
Lubed.Pre-LubedPre-LubedPre-LubedPre-LubedPre-Lubed
Pressure45gf60gf55gf48gf37gf
Operating force45±15gf60±15gf55±15gf48±15gf37±15gf
Spring15mm16.5mm16.5mm16.5mm16.5mm
Pre-Travel1.2±0.3mm1.7±0.4mm1.7±0.4mm1.7±0.4mm1.7±0.4mm
Total Travel3.2mm3.2mm3.2mm3.2mm3.2mm

Gateron Low-profile Switches 2.0 (NuPhy)

SwitchCowberryMoss.WisteriaDaisy.Aloe
Picture.cowberrymossWisteriaDaisyAloe
FeelLinearTactileTactileLinearLinear
ColorRedMossGreenLight BlueLight OrangeLight Green
Lubed.Pre-LubedPre-LubedPre-LubedPre-LubedPre-Lubed
Pressure45gf60gf55gf48gf37gf
Operating force45±15gf60±15gf55±15gf48±15gf37±15gf
Spring15mm16.5mm16.5mm16.5mm16.5mm
Pre-Travel1.2±0.3mm1.7±0.4mm1.7±0.4mm1.7±0.4mm1.7±0.4mm
Total Travel3.2mm3.2mm3.2mm3.2mm3.2mm
