Brand | NuPhy®︎ |
Price | standard |
JIS/US | US |
Keyboard Size | 75% |
Key Profile | normal-profile |
Key Sounds | clicky, tactile, silent |

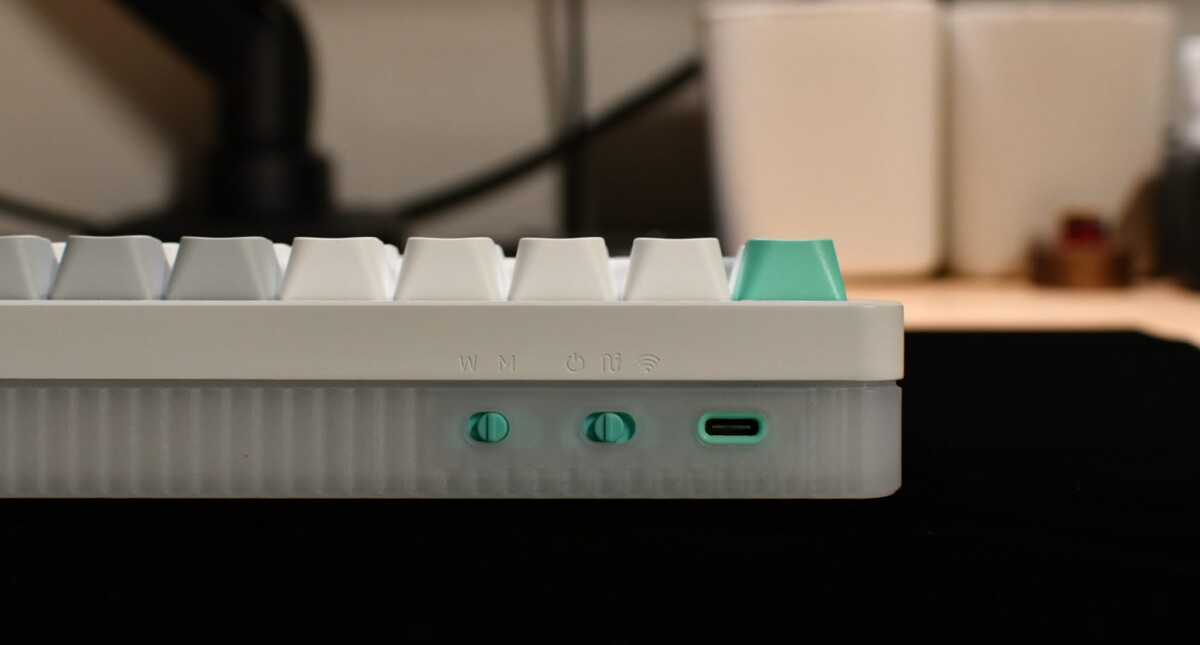

How to Connect | Bluetooth, USB |
Battery | usb-power, rechargeable |
Hotswap | hotswap-available |
Normal or Split | 非分割 |
Comment
- April 2, 2024 Reservations begin
- Official sales start on May 16, 2024.
- Updated version of the first version released in November 2022
- The price is almost unchanged, and it is very cost-effective to purchase it for less than 20,000 Japanese yen.
- Five color lineup (Obsidian Black, Ionic White, Mojito, Blue Lagoon, and Sakura Fizz)
- Selectable keyswitches changed to new ones (mint, raspberry, lemon, silent cherry).

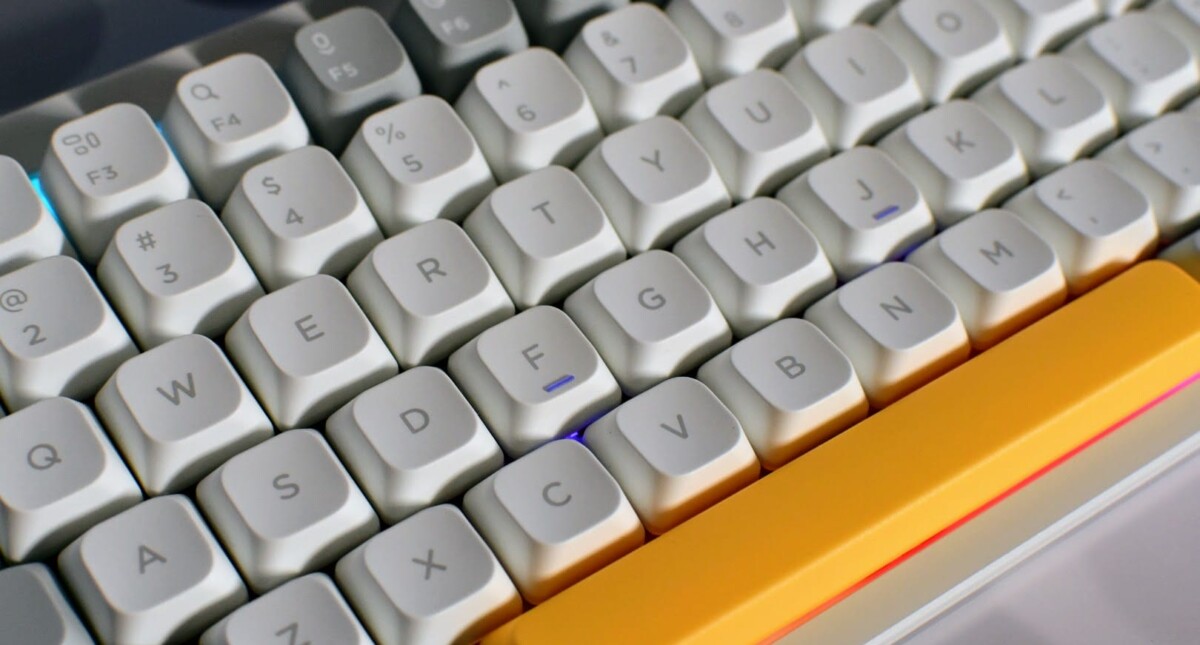

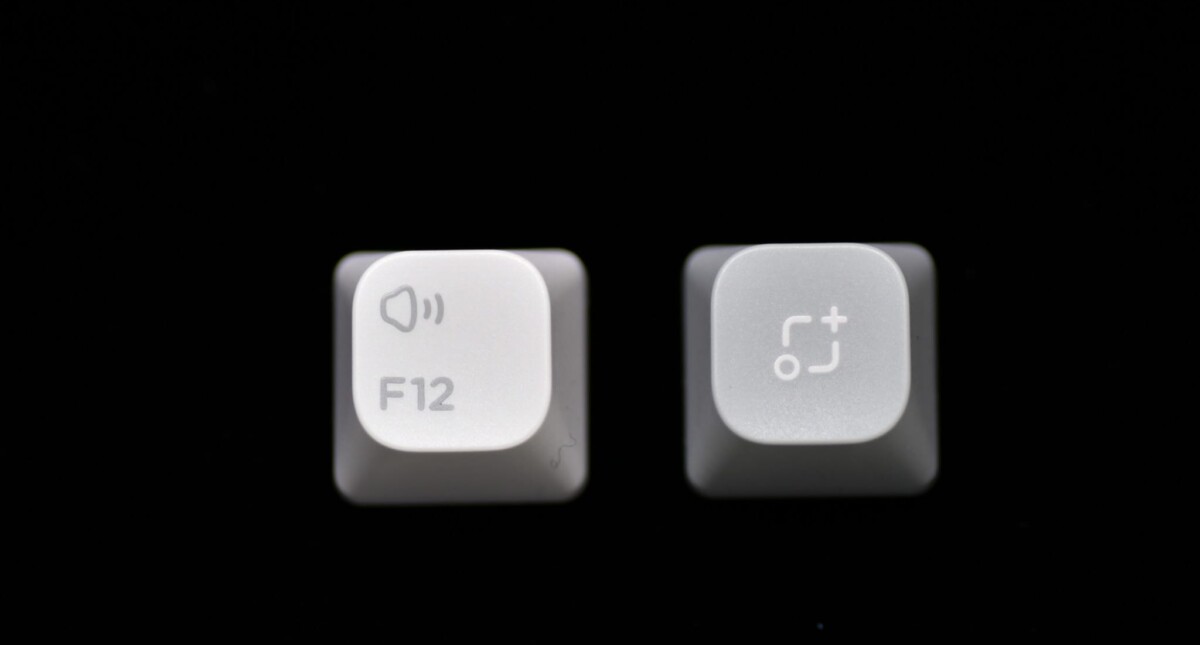

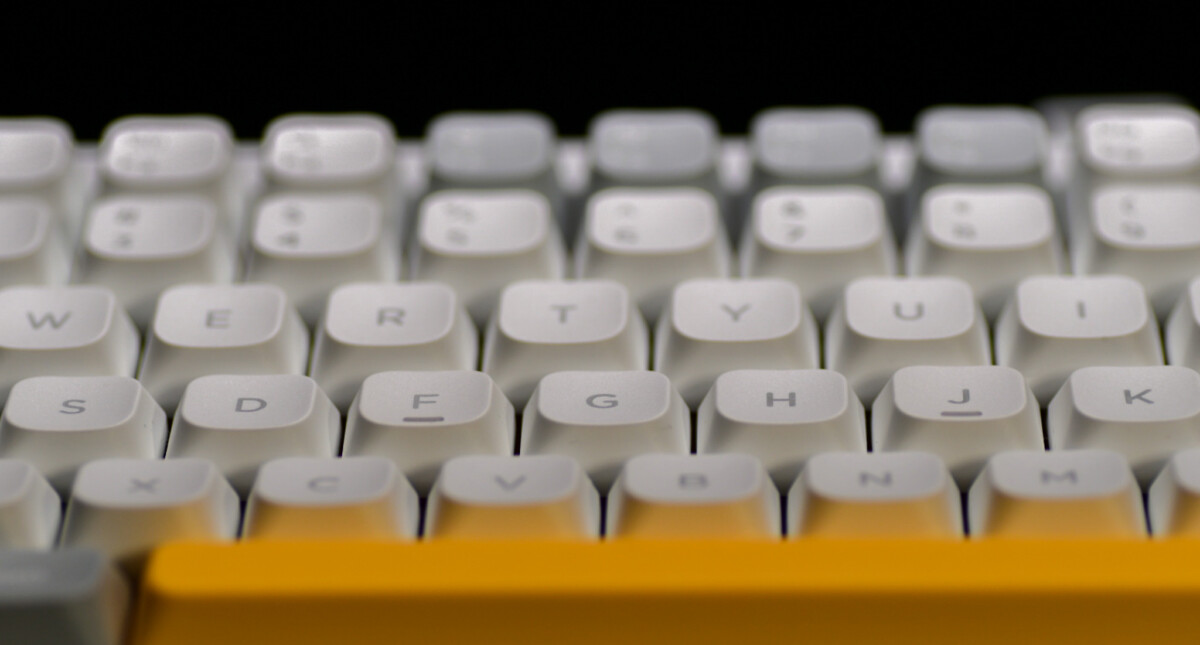

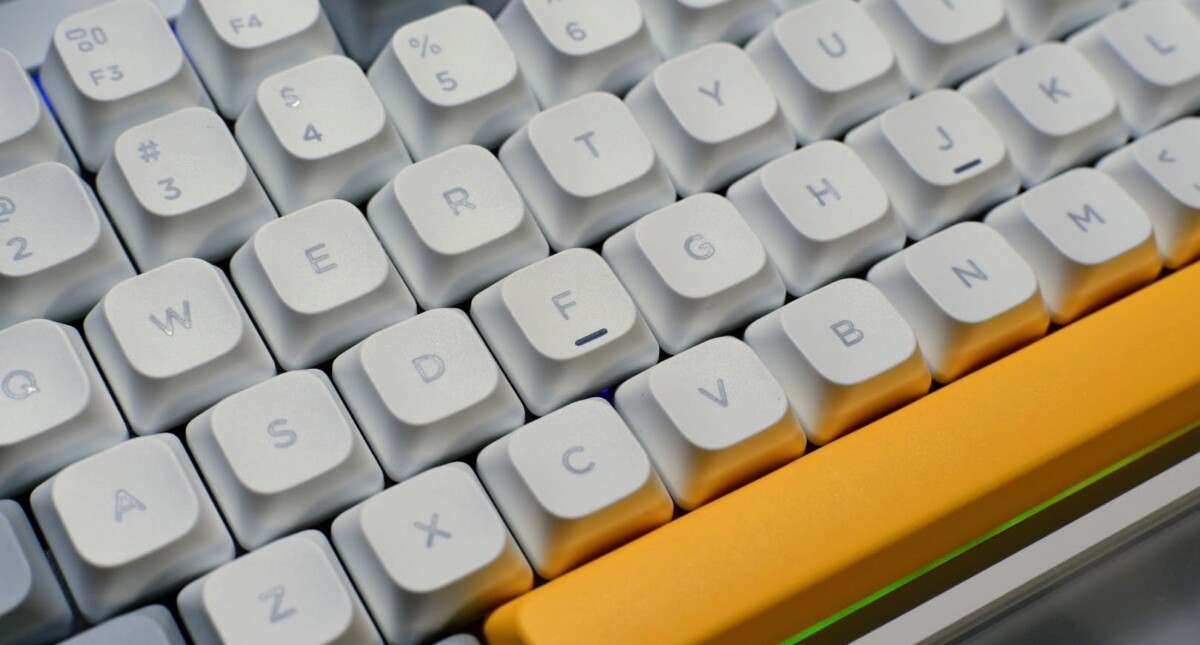

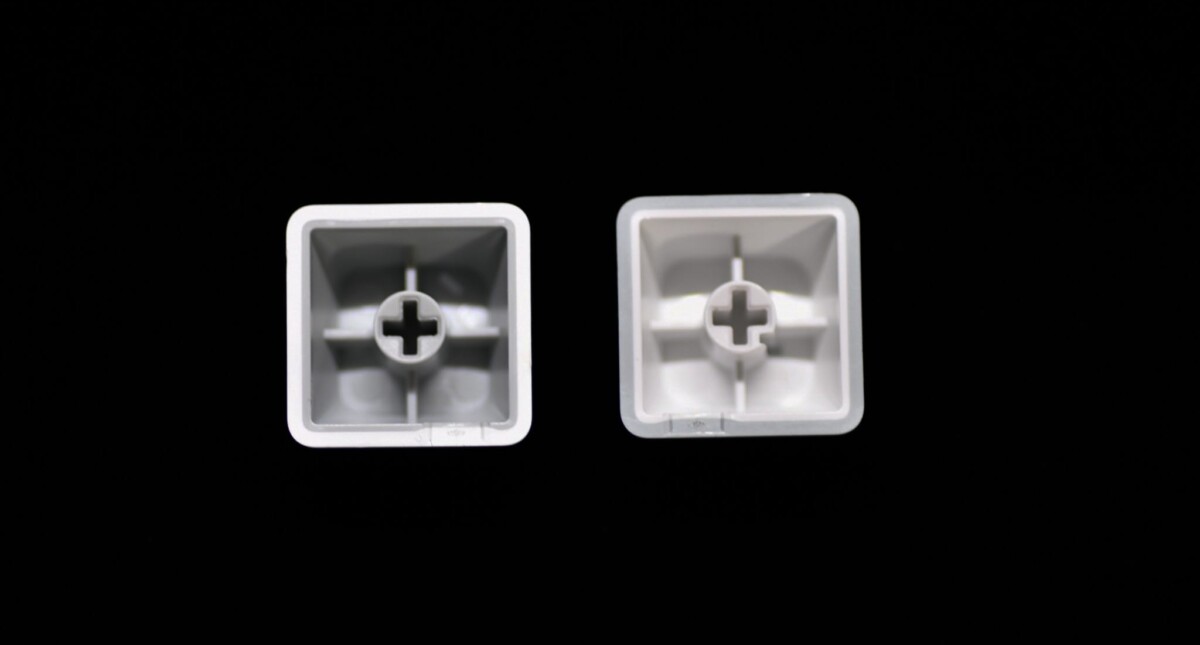

- Keycap profile changed to original mSA as in Gem80
- Supports QMK/VIA and allows keymap changes
- The key feel is softer due to the change from top mount to gasket mount.
- More sound-absorbing material is also installed than the previous model, resulting in thockier keystrokes.
- Click here to purchase ▷▷▷.
10% off with Green Keys coupon code!
We hope you will take advantage of it.
Happy 10% OFF Coupon : [ ryo10 ].
![NuPhy®︎ Halo75v2 29 eb26cb5b4324b6780d0e0c3769ac3658](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2024/04/eb26cb5b4324b6780d0e0c3769ac3658-300x154.jpg?strip=all&fit=320%2C180&lossy=1&quality=70&ssl=1)
![NuPhy®︎ Halo75v2 30 Halo75Release](https://eynmoy2bh9v.exactdn.com/wp-content/uploads/2022/11/Halo75Release-300x185.jpg?strip=all&fit=320%2C180&lossy=1&quality=70&ssl=1)
Halo75のスペック詳細

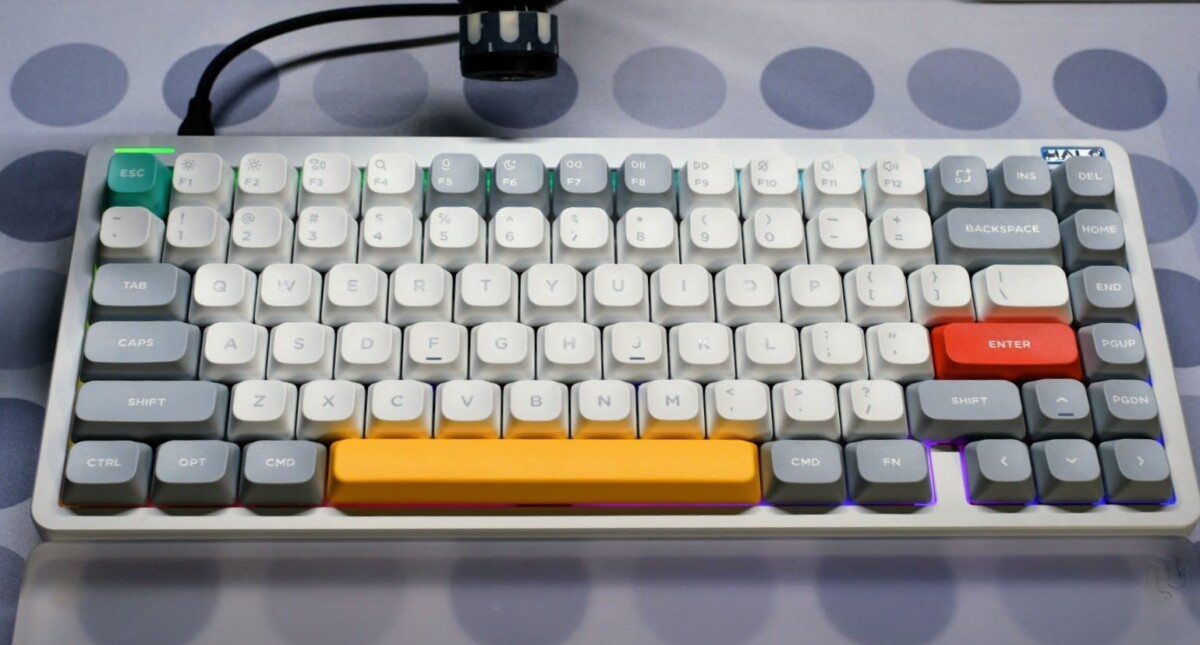

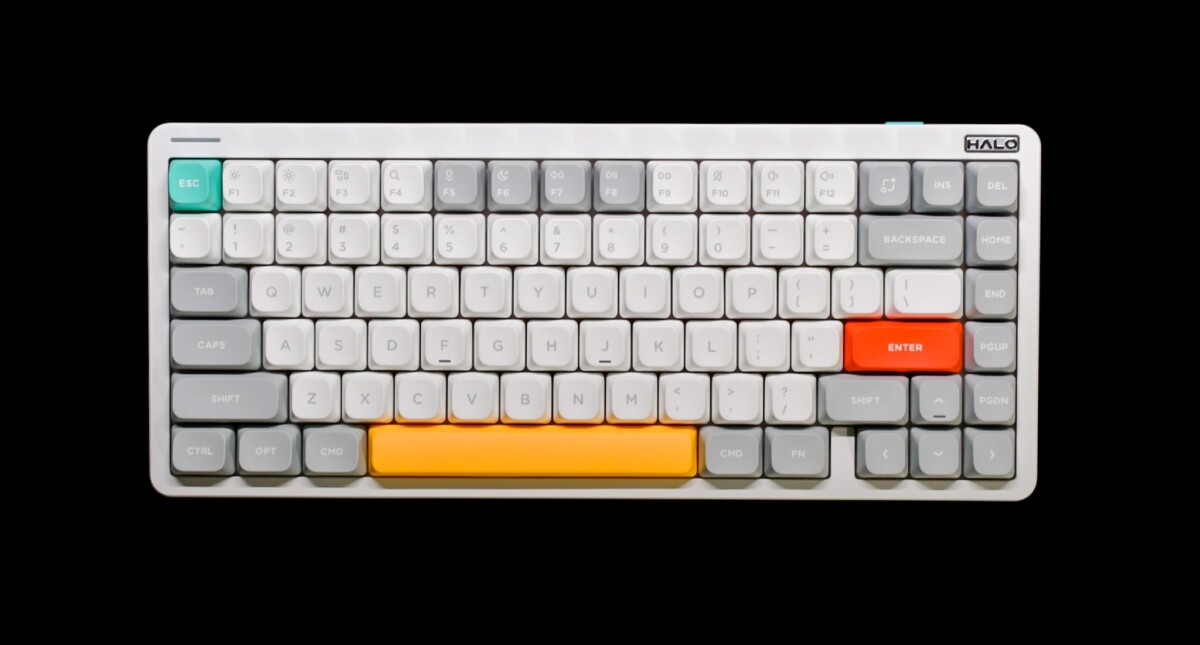

Layout | ANSI 75 |
---|---|
Number of Keys | 83 |
Switch Type | Normal-profile |

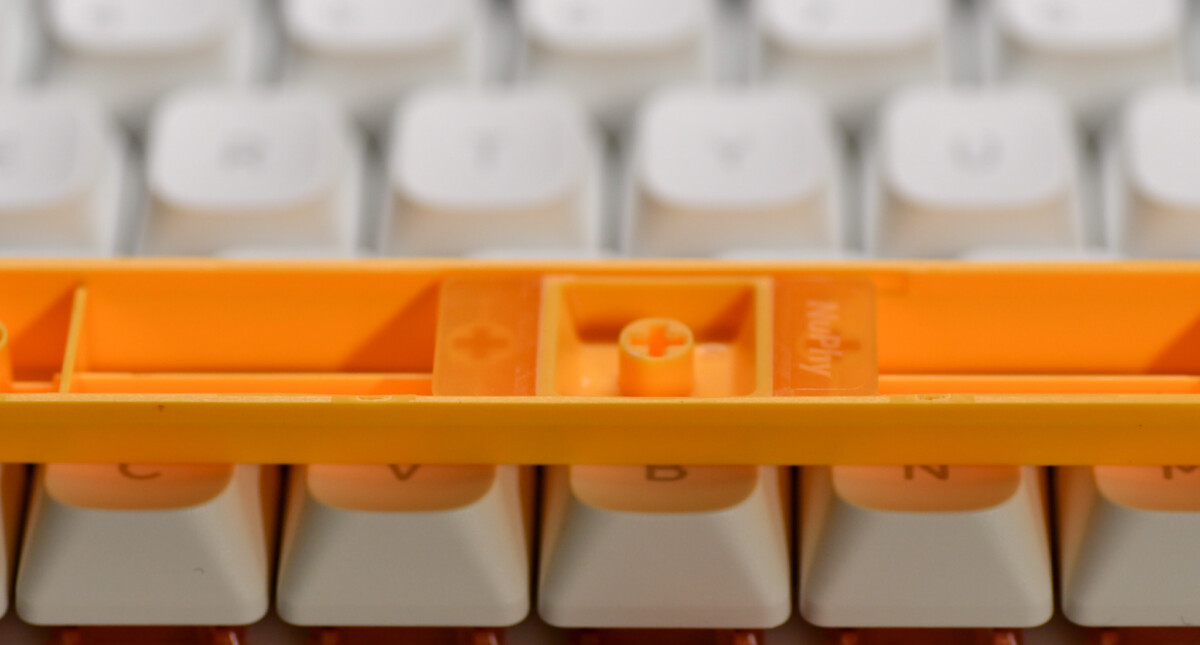

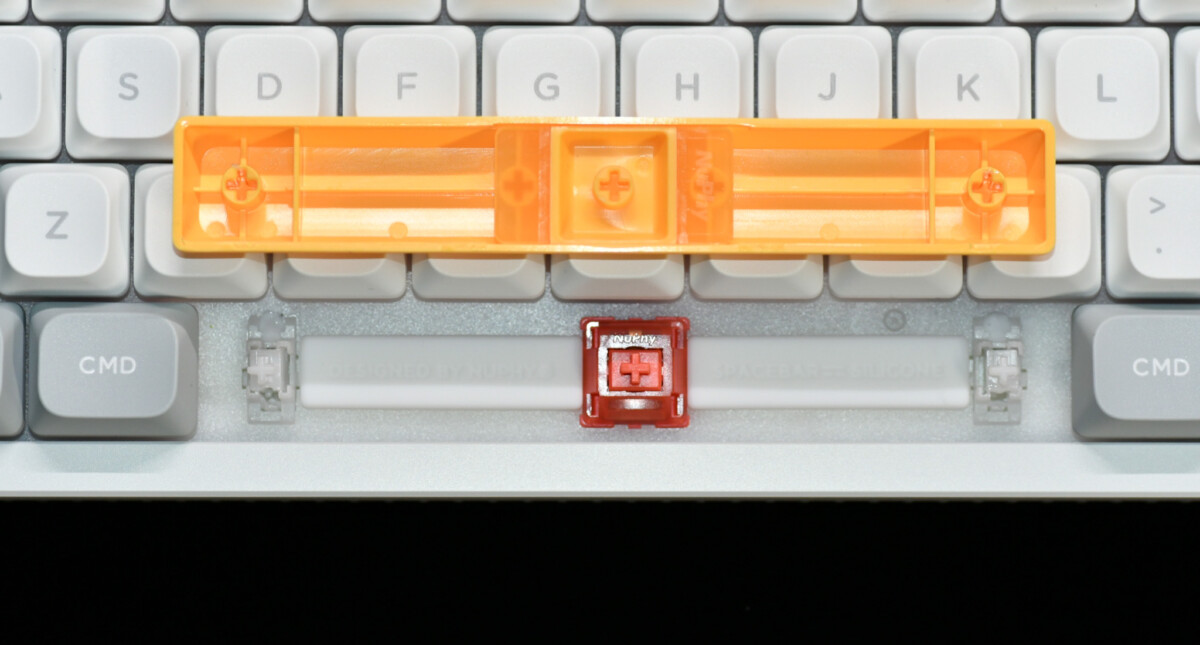

Stabilizer Type | Plate Mounted |
Mount Type | Gasket |

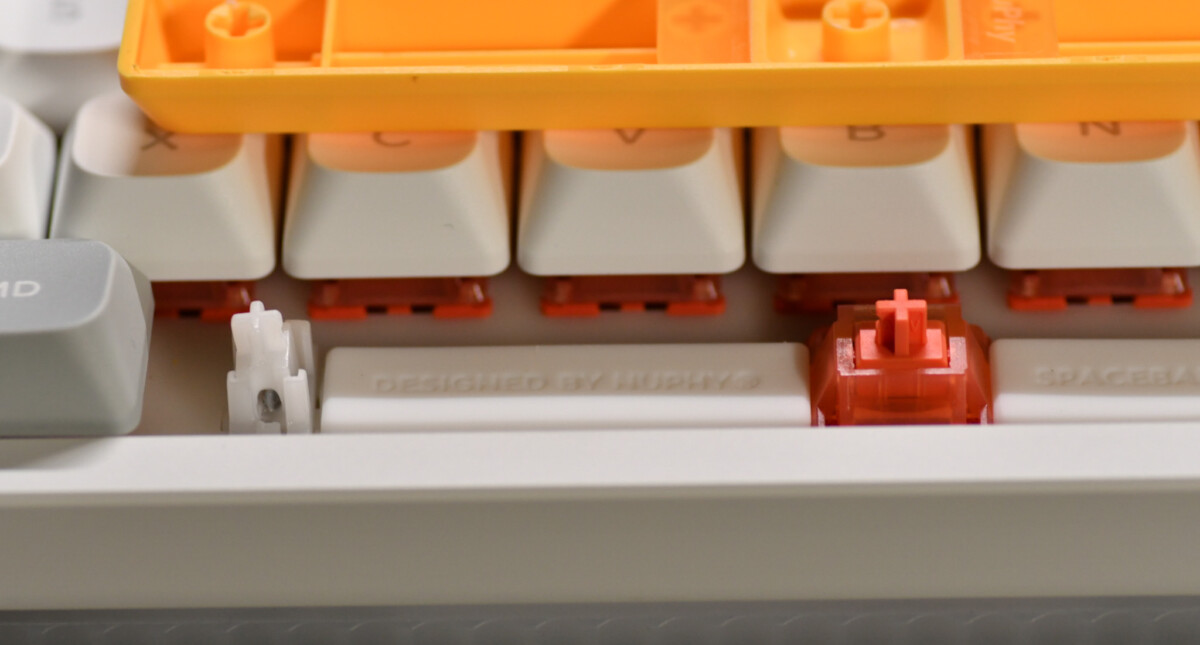

Hot-swappable Support | Yes (3/5 pin MX-style) |
N-key Rollover Support | Yes |

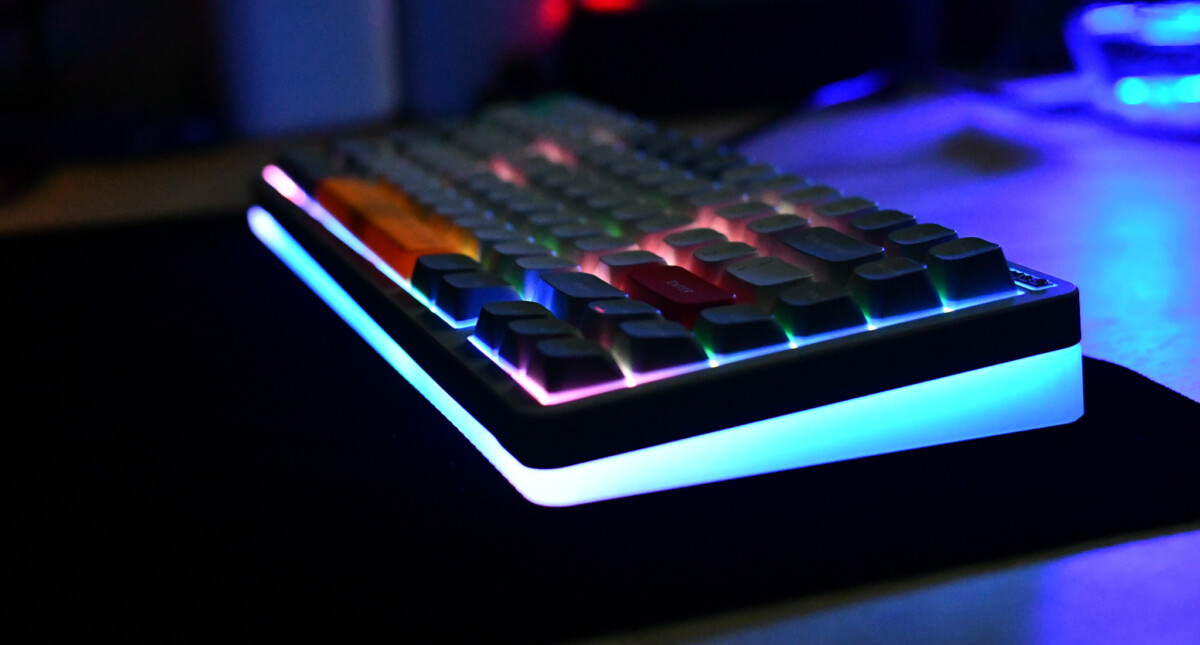

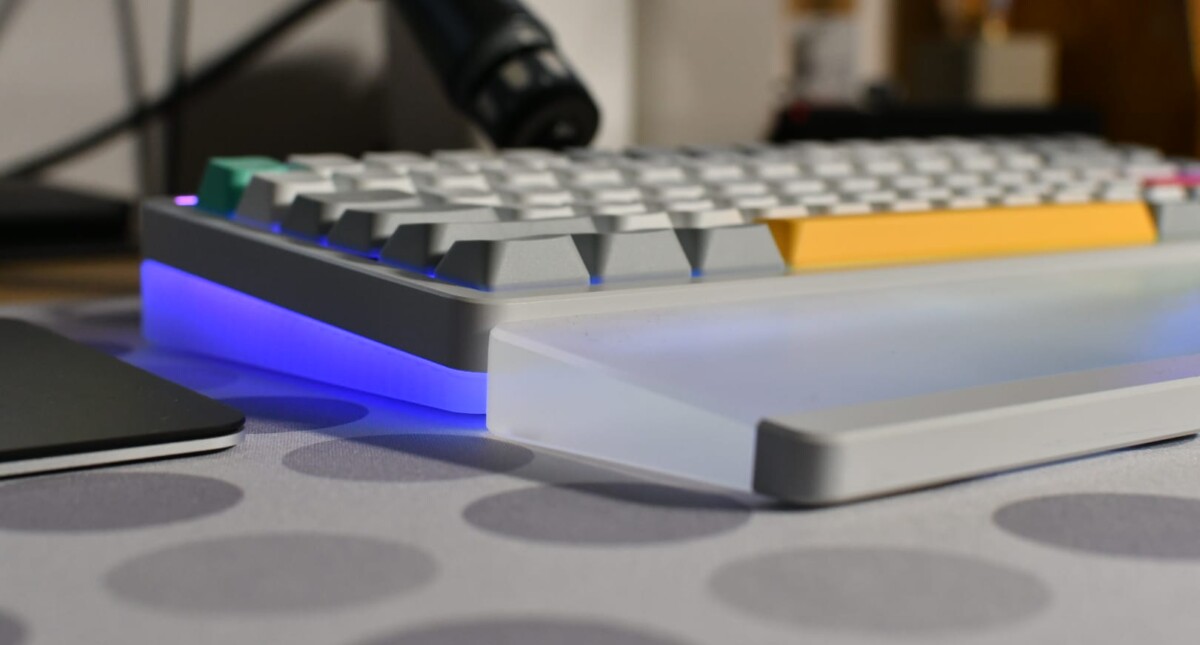

Backlight | South-facing RGB-LED |
Backlight Modes | 40+ |
Compatible System | macOS/Windows/Linux/Android/iOS |
Operating Environment | -10 to 50°C |
MCU | ARM STM32F072 |
Wired Polling Rate | 1000Hz |
2.4GHz Polling Rate | 1000Hz |
Bluetooth 5.0 Polling Rate | 125Hz |
Top Case | Aluminum |
Bottom Case | ABS |
Plate Material | POM |
Long | 135.0 mm (5.31 inches) |
Wide | 320.0 mm (12.60 inches) |
Back Height | 32.9 mm (1.29 inches) |
Front Height | 21.3 mm (0.83 inch) |
Weight | 1020 grams (2.24 pound) |

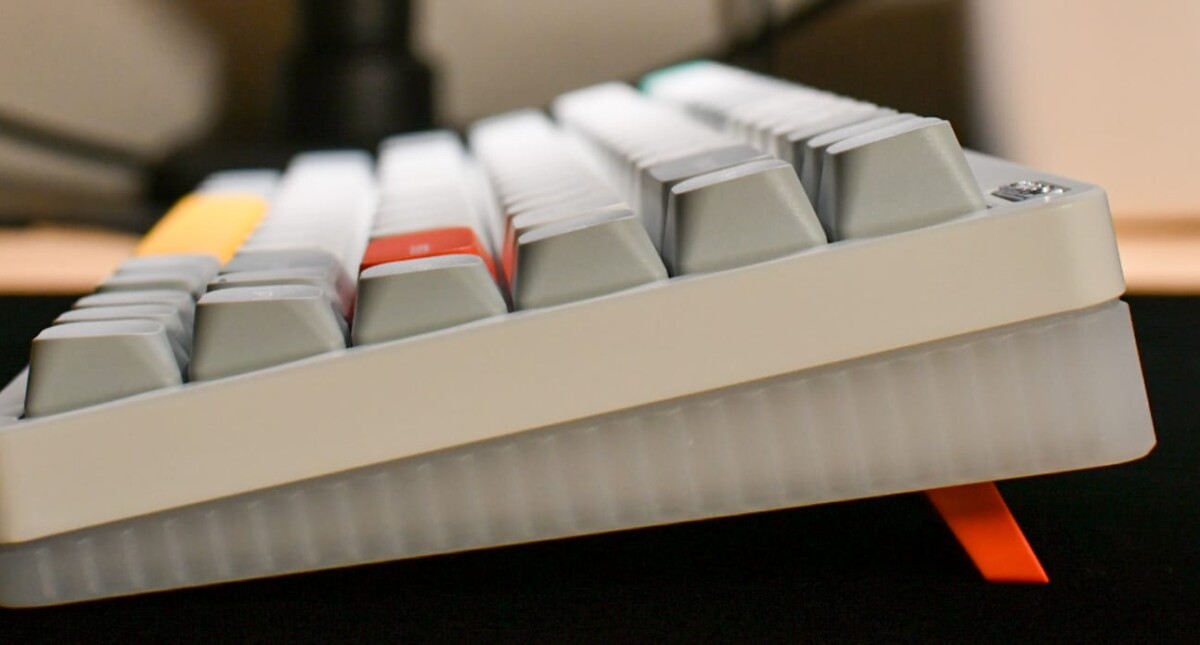

Type Angle 5º/8.5º/12º | 5º/8.5º/12º |
Battery Capacity | 4000mAh |
Working Time (all lights on) | 9~91 hours (lab test result) |
Working Time (homing bars only) | 140~200 hours (lab test result) |
Working Time (all lights off) | Up to 307 hours (lab test result) |
Information reference: https: //nuphy.com/collections/keyboards/products/halo75-v2-qmk-via-wireless-custom-mechanical-keyboard
Selectable axis types
NuPhy x Gateron /NuPhy x Cherry Switches
Switch | Mint | Raspberry | lemon (Citrus depressa) | Cherry Silent Red Clear-Top |
---|---|---|---|---|
Picture. | ![]() | ![]() | ![]() | ![]() |
Colabo | Gateron. | Gateron. | Gateron. | Cherry |
Feel | Linear | Linear | Tactile | Silent Linear |
Color | Mint | Red | Yellow | Red/Transparent |
Lubed. | Pre-Lubed | Pre-Lubed | Pre-Lubed | Pre-Lubed |
Operating force | 37±15gf | 46±15gf | 55±10gf | 46±15gf |
Pre-Travel | 2.0±0.5mm | 1.2±0.3mm | 2.0±0.5mm | 1.9±0.5mm |
Total Travel | 3.6±0.2mm | 3.4mmMax | 3.6±0.2mm | 3.7±0.2mm |
