Topre released REALFORCE R3 as the successor to REALFORCE R2
Starting with this model, fans now support long-awaited wireless connectivity, and all “R3” models now come standard with silent operation.
The REALFORCE R3S was released later than the R3.
The REALFORCE itself has quite a fine variety, and with the release of the R3S, many people may be confused.
This article describes the types and features of each REALFORCE model number.
REALFORCE is a ” high-end keyboard”.
Please read it carefully so that you will not regret your purchase.
Representative of GreenEchoes Studio
He launched his own media as a site operator and web writer, and now plans and manages multiple corporate media. He often types heavily in his work, and in his search for greater efficiency, he became addicted to the keyboard swamp and established “GreenKeys”.
[blog_parts id="41919"]
List of REALFORCE R3 series features
REALFORCE R3 exists in full-size and tenkeyless models.
- Full-size models｜27 types
- Ten-keyless model｜28 types
The following three items are common to all models.
- Capacitance non-contact method
- APC
- full-N key
Based on these factors, they differ in “design,” “color,” “arrangement,” “pressing pressure (load),” “keystroke sound,” and “connection method.
| (data) item | Contents |
|---|---|
| design | R3 Style R2 Style |
| color | Black Super White Black + Dark Silver Super White + Light Silver |
| array (programming, programing) | JIS (Japanese alignment) = ISO US (English alignment) = ANSI JIS-Separate space bar |
| legend | Japanese alignment with kana Japanese alignment without kana (upper left Legend) English sequence (center Legend) |
| Load (Pressing pressure) | 30g 45g Variable load (alphabetical keys only 45g /others 30g) |
| customize | Surface panel changeable |
| keystroke sound | Quiet Normal |
| access method | Wired only Hybrid (wired or wireless) |
To be frank, it would be hard to choose unless you are a “fan” who knows this much.
REALFORCE itself is a pretty core product…
However, it is a really good product, and I would be happy if more people would choose it based on this article.
The above characteristics classify them as such.
Windows-only model
| model number | design | color | array (programming, programing) | load | customize | keystroke sound | access method |
|---|---|---|---|---|---|---|---|
| R3HC52 | R3 Style | ivory | JIS | variable load | ◯ | silent | hybrid |
| R3HC61 | R3 Style | black | JIS | 45 | ◯ | silent | hybrid |
| R3HC71 | R3 Style | super white | JIS | 45 | ◯ | silent | hybrid |
| R3UC11 | R3 Style | black | JIS | 45 | ◯ | silent | communicate by wire |
| R3UC21 | R3 Style | super white | JIS | 45 | ◯ | silent | communicate by wire |
| R3SD11 | R2 Style | black | US | 45 | – | silent | communicate by wire |
| R3SD13 | R2 Style | black | US | 30 | – | silent | communicate by wire |
| R3SD31 | R2 Style | black | US | 45 | – | standard | communicate by wire |
| R3SC11 (Hometown Support) | R2 Style | black | JIS | 45 | – | silent | communicate by wire |
| R3SC21 (Hometown Support) | R2 Style | super white | JIS | 45 | – | silent | communicate by wire |
| R3SC12 (Hometown Support) | R2 Style | black | JIS | variable load | – | silent | communicate by wire |
| R3SC13 (Hometown Support) | R2 Style | black | JIS | 30 | – | silent | communicate by wire |
| R3SC31 (Hometown Support) | R2 Style | black | JIS | 45 | – | standard | communicate by wire |
| R3SC41 (Hometown Support) | R2 Style | super white | JIS | 45 | – | standard | communicate by wire |
| R3HD11 | R3 Style | black | US | 45 | ◯ | silent | hybrid |
| R3HD21 | R3 Style | super white | US | 45 | ◯ | silent | hybrid |
| R3HD13 | R3 Style | black | US | 30 | ◯ | silent | hybrid |
| R3HC11 (Hometown/Rental Support) | R3 Style | black | JIS | 45 | ◯ | silent | hybrid |
| R3HC21 (Hometown Support) | R3 Style | super white | JIS | 45 | ◯ | silent | hybrid |
| R3HC12 (Hometown/Rental Support) | R3 Style | black | JIS | variable load | ◯ | silent | hybrid |
| R3HC22 (Hometown correspondence) | R3 Style | super white | JIS | variable load | ◯ | silent | hybrid |
| R3HC13 (Hometown/Rental Support) | R3 Style | black | JIS | 30 | ◯ | silent | hybrid |
| R3HC23 (Hometown correspondence) | R3 Style | super white | JIS | 30 | ◯ | silent | hybrid |
| R3HC31 (Hometown Support) | R3 Style | black | JIS | 45 | ◯ | standard | hybrid |
Mac Dedicated Model
| model number | design | color | array (programming, programing) | load | customize | keystroke sound | access method |
|---|---|---|---|---|---|---|---|
| R3HG11 | R3 Style | Black + Dark Silver | JIS | 45 | ◯ | silent | hybrid |
| R3HG21 | R3 Style | Super White + Light Silver | JIS | 45 | ◯ | silent | hybrid |
| R3HH11 | R3 Style | Black + Dark Silver | US | 45 | ◯ | silent | hybrid |
| R3HH21 | R3 Style | Super White + Light Silver | US | 45 | ◯ | silent | hybrid |
The differences between REALFORCE R3 and R3S are “design,” “keystroke sound,” and “connection method.
The difference between R3 and R3S would still be of interest.

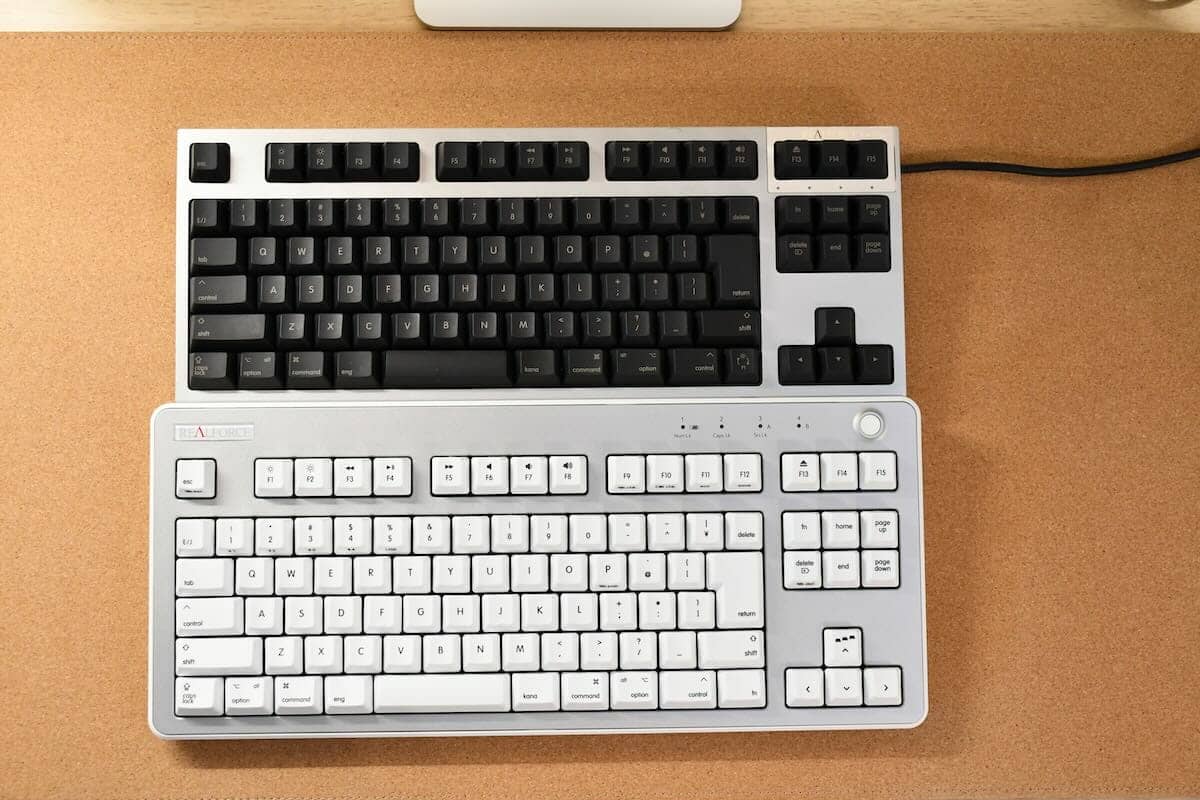

See comparison images above.
The upper row is “R3S” and the lower row is “R3”.
In terms of design, you will notice that the upper model (R3S) has an angular design, almost similar in look to the popular R2, while the lower model (R3) has a slightly more rounded design.
In terms of details, all R3S models are “wired connection” only; wireless connection models do not exist.
Also, a “non-silent model” is available for keystroke noise.
Thus, the R3S can be purchased for less than the R3 if you choose a “wired only” or “non-silent” model.
| R3SD31 | R3HD13 | |
|---|---|---|
 |  | |
| design | R2 Style | R3 Style |
| keycap printing | Laser print (may disappear) | Sublimation printing (indelible) |
| color | black | black |
| array (programming, programing) | US | US |
| load | 45g | 30g |
| customize panel | not fit for | Mountable |
| keystroke sound | non-silent | silent |
| access method | communicate by wire | hybrid |
| Price | 20,900 yen (tax included) | 34,540 yen (including tax) |
| Where to Buy | Amazon | Amazon |
Thus, R3S is up to almost 15,000 yen less expensive.
Although the name is R3, it is effectively like R2 being sold under the “R3” name.
The keycaps on the R3S are not “sublimation printed” but “laser printed,” which means that the printing is easily erased by aging and scuffing.

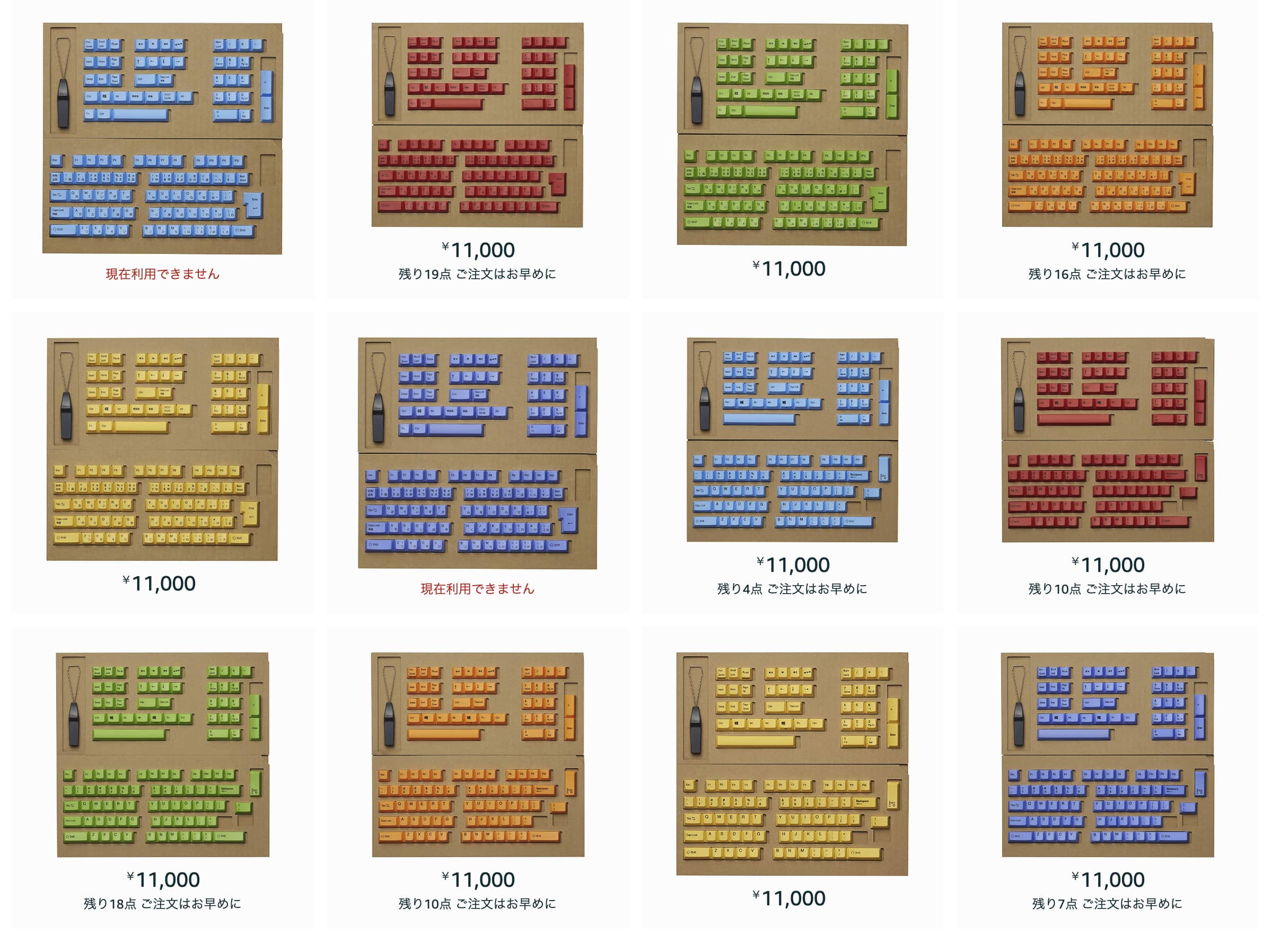

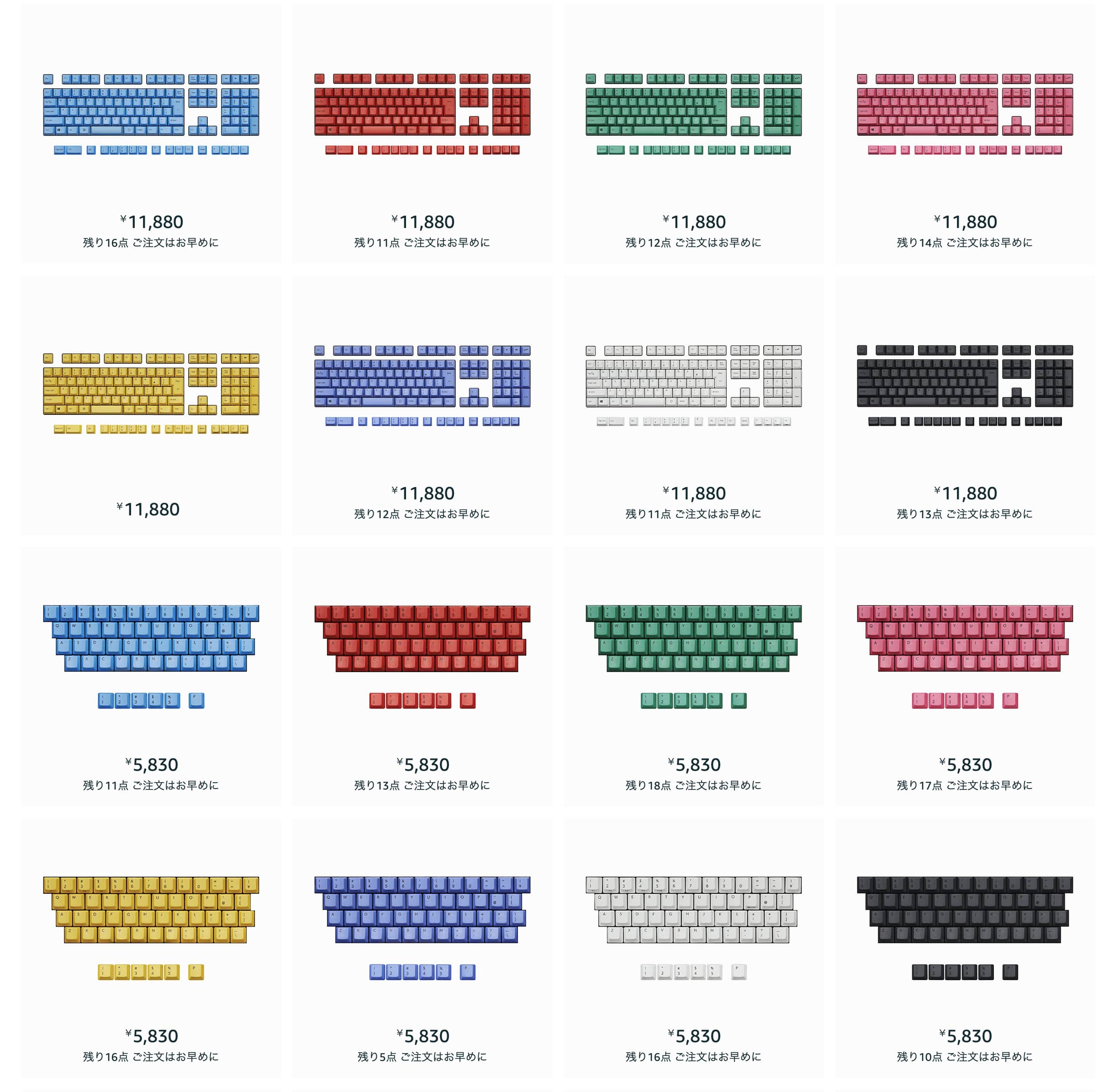

If you prefer sublimation printed keycaps, purchase genuine replacement parts.
Difference between REALFORCE R3S and R2
REALFORCE R3S is the successor to REALFORCE R2 and is a minor change version of REALFORCE R3.
The R3S model follows the design of the R2, but adds the keymap change function and APC function (input point change) using the R3’s exclusive REALFORCE CONNECT software, which will satisfy R2 fans.
Changes from REALFORCE R2
- The ability to change keymaps is now fully supported (R2 is CapsLock/Ctrl key swap only).
- APC function upgraded to 4 levels (0.8/1.5/2.2/3.0mm) (R2 had 3 levels (1.5/2.2/3.0mm))
- Windows -JIS sequence space key shortened (from 4.25u to 3.5u)**.
*Comparing my Mac-array R2/R3, the spacebar on the Windows-array model seems to have lengthened, as the length of the space key has not changed.
This is the recommended model for REALFORCE R3 /R3S!
After all, with such a large lineup, you may be at a loss as to which model to choose.
Here are some recommended models of REALFORCE R3
REALFORCE R3 recommended models are “ten-keyless without kana”, “split-space model”, and “wired model”.
What made REALFORCE famous is the lightness of the “feather touch” key feel.
This feather touch, however, is mainly used to refer to models with a 30g load.
Personally, I have the impression that a pressing pressure of 30g is “too light” and causes many “miss-types”.
I have touched a variety of keyboards, and I believe that a keyboard with a weight of 40g or more is the one that gives you a firm “pressing feeling”.
The 30g weight seems to fit well if you are switching from a pantograph type such as MagicKeyboard, but I personally think it is difficult to get the keystroke feel typical of a mechanical keyboard.
Based on the above, we recommend the following models.
REALFORCE R3 JIS layout
REALFORCE R3 JIS layout
| full size (computer, e.g.) | tenkeyless | |
|---|---|---|
| model number | R3HA11 R3HA21 R3HI17 | R3HA61 R3HA71 |
| design | R3 Style | R3 Style |
| color | Black ( R3HA11/R3HI17 ) Super White ( R3HA21) | Black ( R3HA61 ) Super White ( R3HA71) |
| array (programming, programing) | JIS *Split space bar for R3HI17 only | JIS (Japanese Industrial Standard) (without kana imprint) |
| load | 45g | 45g |
| customize panel | Mountable | Mountable |
| keystroke sound | silent | silent |
| access method | hybrid | hybrid |
If you are looking for a full-size, Japanese-language model, we definitely recommend the Separate Spacebar Model.
This model, newly launched on September 3, 2024, is characterized by a space bar that is split into two separate bars.
In addition to functioning as both spacebars, the keymap change function can be used to change the setting to your preference, such as “spacebar” on the left side and “backspace” on the right side.
KawamuraIf you are a touch typist, you probably use your left thumb to tap the space bar.
Therefore, you can assign any key you like to the right space bar.
By distributing the Layer, Shift, and Enter keys and pressing them with the right thumb, you should have a more efficient typing experience.
In addition, the ten-keyless model is the “Kana-less” model, which was newly released on September 3, 2024.
Compare with conventional models.
As you can see, the absence of the “kana” legend gives a very clean look to the English sequence.
The fact that it is not a center legend like the English alignment model, It also gives a special feeling.
REALFORCE R3 US Array
REALFORCE R3 US Array
| full size (computer, e.g.) | tenkeyless | |
|---|---|---|
| model number | R3HB11 R3HB21 | R3HD11 R3HD21 |
| design | R3 Style | R3 Style |
| color | Black ( R3HB11 ) Super White ( R3HB21) | Black ( R3HD11 ) Super White ( R3HD21) |
| array (programming, programing) | US | US |
| load | 45g | 45g |
| customize panel | Mountable | Mountable |
| keystroke sound | silent | silent |
| access method | hybrid | hybrid |
If you want a 45g load, no kana engraving, and a good center legend, the lineup is only available in US layout.
Choose the one you like according to color and size.
Wired models are also recommended if you want to buy inexpensively.
If you are looking for a less expensive option, you can also choose a wired model.
While both full-size and tenkeyless models are available in JIS layout and 45g load, and the choices are fairly fixed, they can be purchased inexpensively.
REALFORCE R3S Recommended models are 45g load model and cheap non-silent model
For R3S, we also recommend the “45g” load model due to its good key feel.
If you prefer a more angular design than the R3, this is the one for you.
REALFORCE R3S JIS layout
| full size (computer, e.g.) | tenkeyless | |
|---|---|---|
| model number | R3SA11 R3SA21 | R3SC11 R3SC21 |
| design | R2 Style | R2 Style |
| color | Black ( R3SA11 ) Super White ( R3SA21) | Black ( R3SC11 ) Super White ( R3SC21) |
| array (programming, programing) | JIS | JIS |
| load | 45g | 45g |
| customize panel | not fit for | not fit for |
| keystroke sound | silent | silent |
| access method | communicate by wire | communicate by wire |
Note that for the US-sequence model, only black is available.
REALFORCE R3S US Array
If you are looking for a less expensive option, you can also choose a “non-silent” model.
The following is a comparison video of keystroke sounds.
While both full-size and tenkeyless models are available in JIS layout and 45g load, and the choices are fairly fixed, they can be purchased inexpensively.
No R3S lineup as far as Mac users are concerned.
Unfortunately, the R3S with Mac array is not available at this time.
If you prefer the old R2 style model, you will have to look for a used one.
In addition, all models allow only 45 g of load to be selected.
tenkeyless
| model number | design | color | array (programming, programing) | load | customize | keystroke sound | access method |
|---|---|---|---|---|---|---|---|
| R3HG11 | R3 Style | Black + Dark Silver | JIS | 45 | ◯ | silent | hybrid |
| R3HG21 | R3 Style | Super White + Light Silver | JIS | 45 | ◯ | silent | hybrid |
| R3HH11 | R3 Style | Black + Dark Silver | US | 45 | ◯ | silent | hybrid |
| R3HH21 | R3 Style | Super White + Light Silver | US | 45 | ◯ | silent | hybrid |
full size (computer, e.g.)
| model number | design | color | array (programming, programing) | load | customize | keystroke sound | access method |
|---|---|---|---|---|---|---|---|
| R3HE11 | R3 Style | Black + Dark Silver | JIS | 45 | ◯ | silent | hybrid |
| R3HE21 | R3 Style | Super White + Light Silver | JIS | 45 | ◯ | silent | hybrid |
| R3HF11 | R3 Style | Black + Dark Silver | US | 45 | ◯ | silent | hybrid |
| R3HF21 | R3 Style | Super White + Light Silver | US | 45 | ◯ | silent | hybrid |
Points to consider when selecting REALFORCE R3/R3S
We can confidently say that the REALFORCE is a super high-end keyboard that will satisfy you in every way, from the look to the feel of the keys.

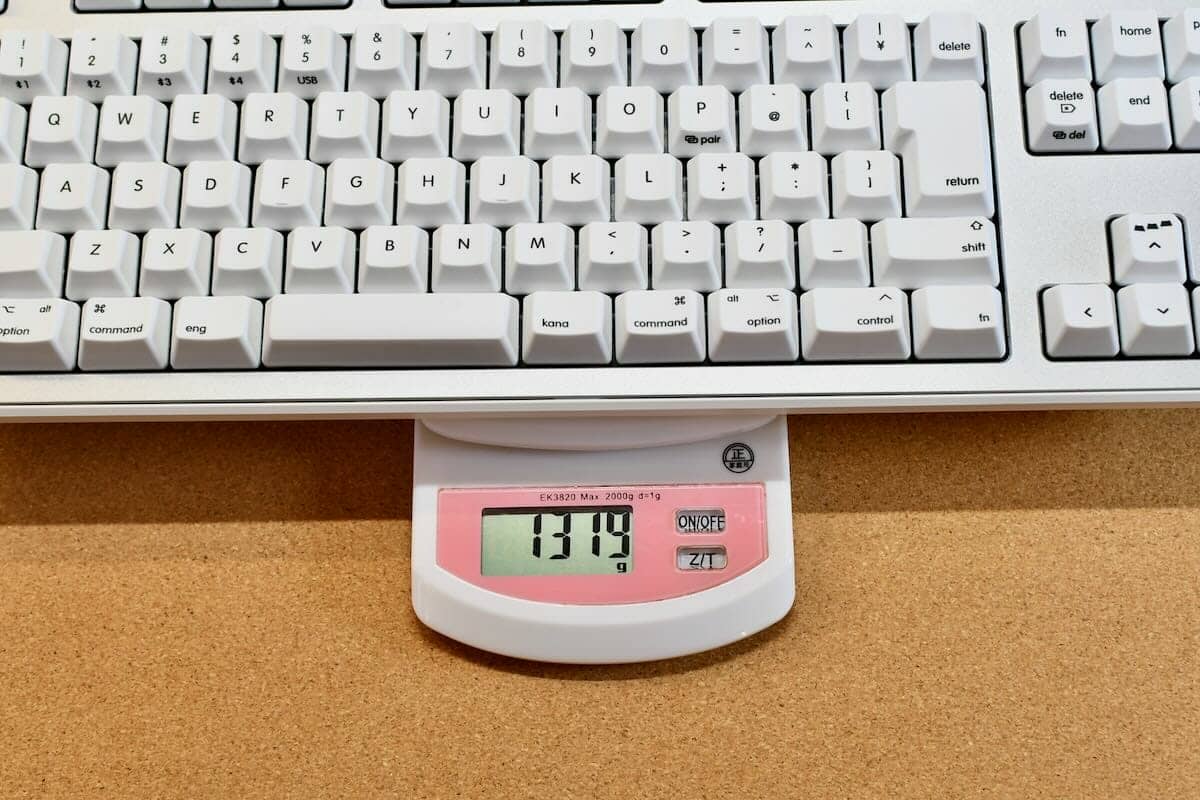

The only drawback is that it is “too big” and “heavy,” so it is definitely not suitable for carrying around.
At the beginning of this video, typing videos of various keyboards are shown, but you can see that only the R3 is of a different size.

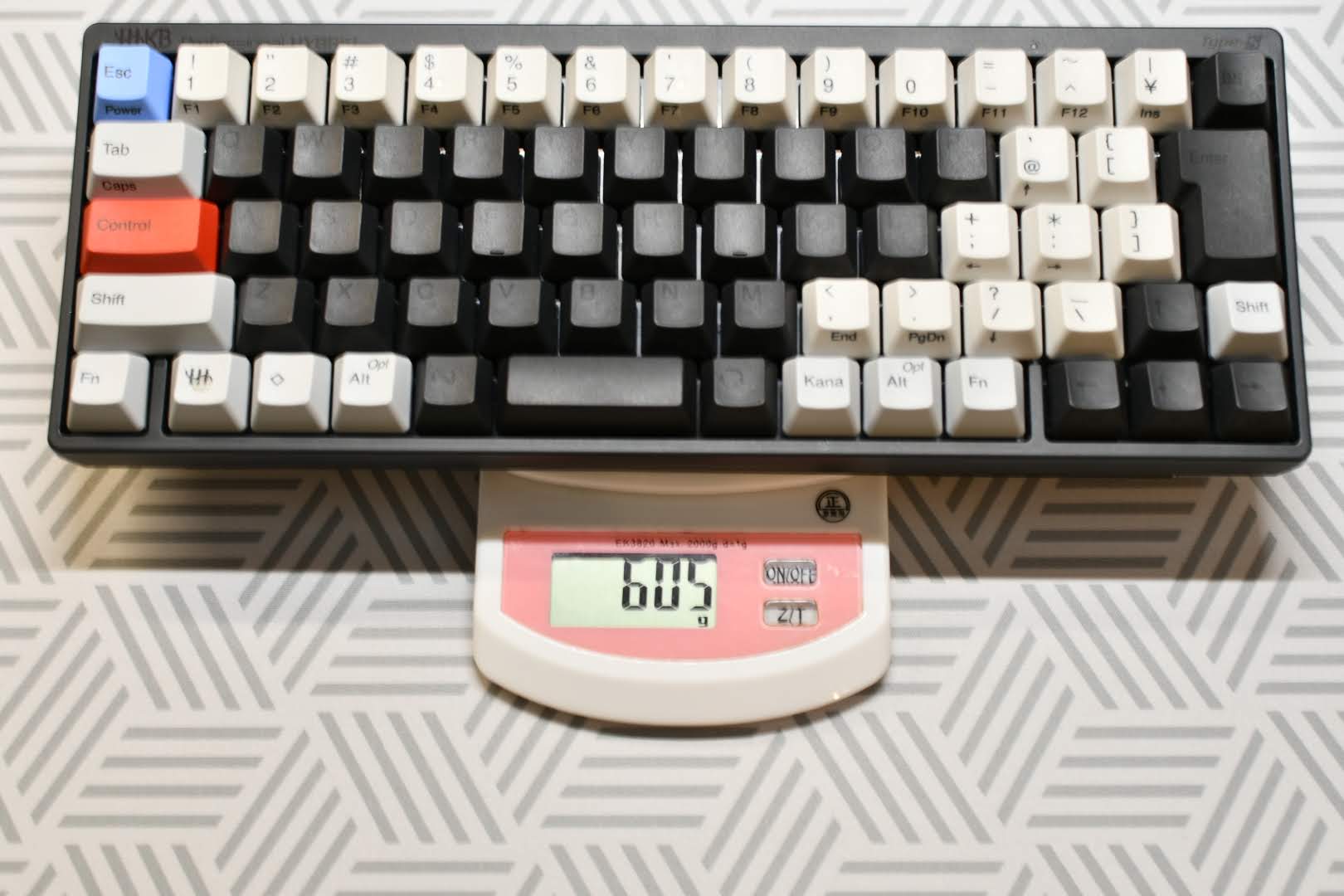

Incidentally, the HHKB, which is often cited as the REALFORCE, is extremely lightweight and compact, weighing about 600g.
If you are considering compactness and portability, we definitely recommend the HHKB because it uses the same “capacitance non-contact method” and has a common pressing pressure of 45g.
HHKB has quite a “plastic feel”, so only “HHKB Snow” can give you a sense of luxury.
The REALFORCE is quite stout, giving it a luxurious feel.
Summary｜Find the right one for you!
These are the differences between REALFORCE R3/R3S and how to choose one.
Keyboards can really “swamp” you when you start obsessing over them.
REALFORCE R3 must have had such a large lineup to meet the expectations of such keyboard swamp users.
Please refer to this article to get one of your choice.
Don’t forget to purchase a wrist rest when you purchase.
