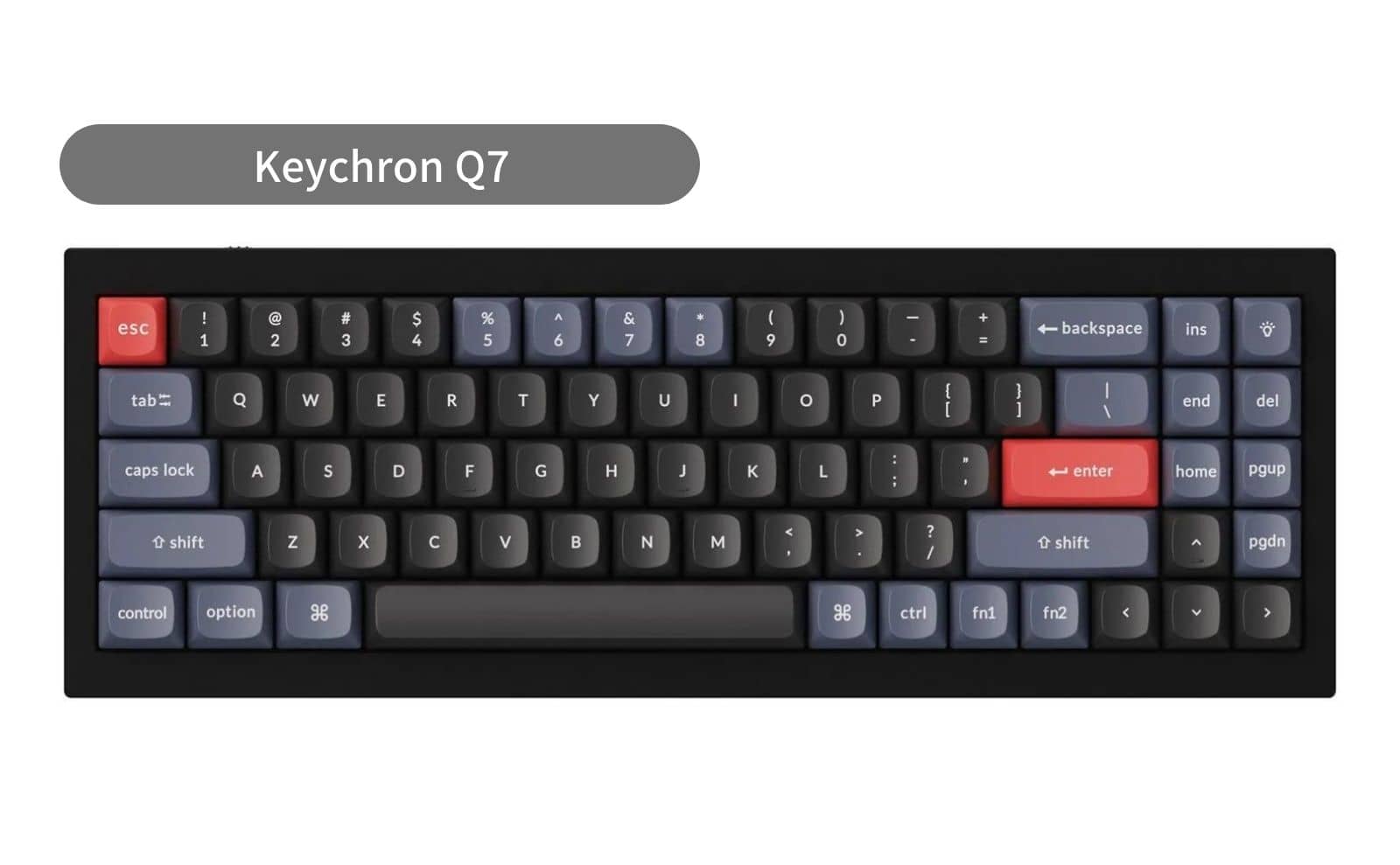

このキーボードの概要
| Brand | Keychron®︎ |
| Layout | ANSI |
| Size | 70% |
| Connection | Wired |
| Hot-Swap | Hot-Swap |
購入先について
- Keychron.jp｜日本語サイトはこちら
- Keychron.com｜日本語サイトに商品がない場合はこちら
仕様詳細
| Width | 121 mm |
|---|---|
| Length | 341.4 mm |
| Front Height | 20.1mm (without keycaps) |
| Back Height | 33.8 mm (without keycaps) |
| Feet Height | 2.7 mm |
| Angle | 5.2° |
| Weight | 1820 g ± 10g (Fully Assembled Version) |
| Body Material | Full CNC machined aluminum |
| Plate Material | Steel |
| Polling Rate | 1000 Hz |
| Keycaps (Fully Assembled Version) | Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape) |
|---|---|
| MCU | Ultra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash) |
| Switches | Gateron G Pro (Fully Assembled Version) |
| Backlight | South-facing RGB LED |
| Switch Support | Hot-swappable (5 pin & 3 pin) |
| Stabs | Screw-in PCB stabs |
| Connectivity | Type-C |
| Cable | Type-C cable + Type-A to Type-C adapter |
| Operating Environment | -10℃ to 50℃ |
情報参照元：https://www.keychron.com/products/keychron-q7-qmk-custom-mechanical-keyboard
Table of Contents
選択できる軸の種類
Gateron G Proメカニカルスイッチ
| Red | Blue | Brown | Yellow | White | Silver | |
| 押下圧 | 45±15gf | 60±15gf | 55±15gf | 50±5gf | 38±15gf | 42±15gf |
| 動作までの動き | 2±0.6mm | 2.3±0.6mm | 2±0.6mm | 2.0±0.6mm | 2.0±0.6mm | 1.2±0.3mm |
| キーストローク | 4.0mm max | 4.0mm max | 4.0mm max | 4.0mm max | 4.0mm max | 3.4+0/-0.4mm |
| 反応 | linear | clicky | tactile | linear | linear | linear |
| サウンド | silent | loud | calm | silent | silent | silent |
