| Brand | NuPhy®︎ |
| Price | high-class |
| JIS/US | US |
| Keyboard Size | 75% |
| Key Profile | normal-profile |
| Key Sounds | clicky, tactile, silent |
| How to Connect | Bluetooth, USB |
| Battery | usb-power, rechargeable |
| Hotswap | hotswap-available |
| Normal or Split | 非分割 |
Comment
- April 15, 2023 Reservations begin

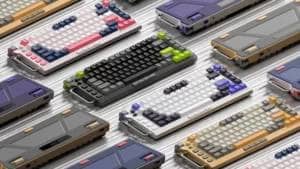

- Space-inspired gaming mechanical keyboard in collaboration with CIY
- This is the second collaboration with CIY since TES68.
- Tight typing sound due to multiple layers of built-in sound-absorbing material
- The new palm rest and desk mat are also available in four colors.
- New NuPhy original “Polaris” and “Fleeting Gold” keyswitches
- Click here to purchase
Click here for other NuPhy Normal Profile Series
Discount Code: ryo10 ryo10
to save 10% off your purchase.
Japanese users, please click here (technical compliance).
Products only available at NuPhy Official
(Coupon code supported)
Plaris/Fleeting Gold keystroke samples
Cherry RGB Speed Silver / Cherry RGB Ergo keystroke samples
Field75のスペック詳細
Technical Specifications
general
- Switch Type: Polaris/Fleeting Gold/Cherry Speed Silver/Cherry Ergo Clear
- Layout: ANSI 75%.
- Number of Keys: 83
- Customizable Buttons: 8
- Knob: Volume & RGB
- Hot-swappable Support: Yes
- N-key Rollover Support: Yes
- Backlight: RGB-LED
- Backlight Modes: 18
- Compatible System: macOS/Windows/Android/iOS
- Angle: 3.5º/ 8.5º
- Operating Environment: -10 to 50°C
access method
- Mode: 2.4GHz, Bluetooth 5.0 or Wired (USB-C)
- 2.4GHz Polling Rate: 1000Hz
- Bluetooth 5.0 Polling Rate: 125Hz
- Wired Polling Rate: 1000Hz
Power Supply and Battery
- Battery Capacity: 4200mAh
- Working Time (all lights on): 25~42 hours (lab test result)
- Working Time (all lights off): Up to 160 hours (lab test result)
Constituent materials
- Case: ABS
- Keycap: Double-shot PBT
Size and Weight
- 14.66 inches x 5.62 inches x 1.59 inches (372.3 mm x 142.8 mm x 40.4 mm)
- 2.81 pounds (1276 grams)
Information reference: https: //nuphy.com/collections/keyboards/products/field75
Selectable axis types
Gateron × NuPhy KeySwiches
| Switch Type | Operating Force | Total Travel | Keystroke | |
|---|---|---|---|---|
| Night Breeze | Linier | 42±5gf | 3.3±0.3mm | soft low tone |
| Rose Glacier | Tactile | 60±5gf | 3.3±0.3mm | soft low tone |
| Gateron Baby Raccoon | Linier | 55±8gf | 3.6±0.2mm | soprano |
| Gateron Baby Kangaroo | Tactile | 59.8±8gf | 3.4mmMax | soprano |
- Polaris / Linear, 46gf
- Pre-travel: 1.2±0.25mm / Total travel: 3.3±0.3mm
- Operating force: 46±5gf / End force: 55±5gf
- Stem: POK / Top housing: PC / Bottom housing: PC
- 21mm One-stage stainless spring
- Factory lubed / Long-pole stem
- Fleeting Gold / Tactile, 55gf
- Pre-travel: 2.0±0.3mm / Total travel: 3.3±0.3mm
- Operating force: 55±5gf / End force: 65±5gf
- Stem: POK / Top housing: PC / Bottom housing: PC
- 21mm One-stage stainless spring
- Factory lubed / Long-pole stem
- Cherry RGB Speed Silver / Linear, 45gf
- Pre-travel: 1.2mm / Total travel: 3.4mm
- Operating force: 45gf
- Stem: POM / Top housing: PA66 / Bottom housing: PA66
- 15mm Two-stage stainless spring
- Cherry RGB Ergo Clear / Tactile, 55gf
- Pre-travel: 2.0mm / Total travel: 4.0mm
- Operating force: 55gf
- Stem: POM / Top housing: PA66 / Bottom housing: PA66
- 16mm One-stage stainless spring
- Factory lubed
Gateron Mechanical Switches
| Red Switches G Pro | Blue Switches G Pro | Brown Switches G Pro | Baby Kangaroo | |
| pressing pressure | 45±15 gf | 60±15 gf | 55±15 gf | 59±8 gf |
| Movement to operation | 2±0.6 mm | 2.3±0.6 mm | 2±0.6 mm | 2.0±0.5 mm |
| keystroke | 4±0.6 mm | 4±0.6 mm | 4±0.6 mm | 3.4 mm |
| reaction | linear | clicky | tactile | tactile |
| sound | quiet | clicky | gentle | gentle |
