Many of you may not be familiar with the brand name NuPhy.

NuPhy is an up-and-coming keyboard brand based in Shenzhen, China. NuPhy is an up-and-coming keyboard brand based in Shenzhen, China.

The company mainly releases mechanical keyboards, and its pop appearance makes it a very popular keyboard brand in Japan.

This article will provide an overview of NuPhy.

Read this and you will surely become a fan of NuPhy.

Please watch to the end!

タップできる目次

[blog_parts id="41919"]

NuPhy is a keyboard brand based in Shenzhen, China

NuPhy is a keyboard manufacturer (brand) located in Shenzhen, China Contry.

Shenzhen is read as “Shenzhen” in Japanese.

In terms of location, the city is located next to Hong Kong and is a designated Special Economic Zone.

Shenzhen is one of China’s leading economic cities, characterized by its modern streets lined with skyscrapers, and is one of the largest cities in Asia along with Hong Kong, Shanghai, and Tokyo.

NuPhy’s typical product lineup

Here is an introduction to the keyboards, accessories, and other products offered by NuPhy.

In addition to its pop coloring, it is characterized by its extremely elaborate construction.

In addition, the price is very inexpensive for a mechanical keyboard, making it very popular.

NuPhy’s Keyboard Lineup

  • Field75
  • Halo 96
  • Halo 75
  • Halo 65
  • Air 96
  • Air 75
  • Air 60
  • TES68 (Discontinued)

NuPhy × CIY Field75

NuPhy Field75

Field75 is a 75% layout keyboard developed in collaboration with NuPhy and CIY.

This is the second collaboration product following TES68.

It will be officially announced on April 11, 2023 and released on April 15, 2023.

Details will be added as soon as they become available.

NuPhy Air 96

NuPhy Air 96 2

The NuPhy Air96 is a low-profile mechanical keyboard with a 96% layout with 100 keys.

Reservations began on January 16, 2023.

Before its release, we thought it was an Air 75 with a numeric keypad, but the evolution from the Air 96 is tremendous, and it even has the potential to update the typing experience itself as a low-profile mechanical keyboard.

The first and most significant evolution is probably the use of Gateron ‘s newly developed ” Gateron Low-profile 2.0″ switches for the keyswitches.

Gateron Low profile 2.0 SW scaled

Compared to previous keyswitches, the key stroke is 0.7mm deeper at 3.2mm, improving the shallow total travel that was the weak point of the low profile.

Gateron Low-profile Switches 2.0 (NuPhy)

SwitchCowberryMoss.WisteriaDaisy.Aloe
Picture.cowberrymossWisteriaDaisyAloe
FeelLinearTactileTactileLinearLinear
ColorRedMossGreenLight BlueLight OrangeLight Green
Lubed.Pre-LubedPre-LubedPre-LubedPre-LubedPre-Lubed
Pressure45gf60gf55gf48gf37gf
Operating force45±15gf60±15gf55±15gf48±15gf37±15gf
Spring15mm16.5mm16.5mm16.5mm16.5mm
Pre-Travel1.2±0.3mm1.7±0.4mm1.7±0.4mm1.7±0.4mm1.7±0.4mm
Total Travel3.2mm3.2mm3.2mm3.2mm3.2mm
NuPhy Air 96 11

In addition, the new double-shot PBT keycap produces a pleasant typing sound.

NuPhy Air 96 2

PORON®︎ and IXPE are used as sound-absorbing materials to reduce noise, and the double-shot PBTnSA keycaps have been adopted from this time, resulting in a completely different keystroke feel and sound.

It is not only compatible with both Windows and Mac OS, but also has a 96% layout and is almost full size, which will satisfy users who use the numeric keypad frequently.

3c84d71b1806b45e0cb5ac0b8a620806

Please refer to the following for the actual keystroke sound.

As expected, the sound and feel of the keystrokes are distinctly different from those of the previous Air series.

In particular, we found NuPhy’s original key switch to be very well done.

I have the impression that the bottoming sound and spring return are very finely set.

NuPhy Air 75|Includes a review of the actual device

NuPhy Air 75

Air75 became an explosive hit when it was introduced on the YouTube channel ” Scatter TV Naoshima ” and Sanyo Godo Kaisha became the distributor for import in Japan, making it available for domestic purchase.

Hot-swappable

Even today, it shows no sign of waning in popularity, as it is featured on numerous YouTubers.

Unlike most mechanical keyboards, the “low-profile method” is used, making it thin, lightweight, and easy to carry.

NuPhy Air75 1

The key layout is US layout only.

The keyboard size is “75% compact,” as the name suggests, and the most popular layout omits the numeric keypad and function keys, making it easy to use for everyone.

keymaps75

Of course, both Windows /Mac OS are supported.

The Gateron Low Profile Mechanical Switches are used for the keyswitches, which are selectable from three types: “Blue Axis” for clicky sound, “Brown Axis” for good tactile feedback, and “Red Axis” for linear and quiet pressing comfort.

Gateron Low-profile Switches 1.0

SwitchBlueRedBrown
FeelClicky.LinearTactile
ColorBlueRedBrown
Lubed.NoneNoneNone
Pressure50±15g45±15g55±15g
Springunknownunknownunknown
Total Travel2.5±0.5mm2.5±0.5mm2.5±0.5mm

sound sample

Gateron Low Profile Red
Gateron Low Profile Blue
Gateron Low Profile Brown

The manual includes instructions for setting up the device in Japanese, so there is no need to worry about Bluetooth pairing or entering function keys.

NuPhy Air75 16

In addition, Air75, like NuPhy’s Nutype F1 keyboard product, is sold by a “domestic distributor” and has obtained “technical compliance (technical standards compliance certification for specified radio equipment),” which is a major advantage.

NuPhy Air75 17
Air75 technical mark

In Japan, it is illegal to use a wireless device “even if it has wireless communication functions” unless the product has obtained a “technical standards conformity certification” as specified by the Ministry of Internal Affairs and Communications.

In this respect, Air75 is the only “NuPhy keyboard with wireless connectivity” in Japan.

Image taken from: https://ayaneo-shop.myshopify.com/products/ayaneo-x-nuphy-rgb-lighting-mechanical-keyboard

We also sell a special version of Air75 in collaboration with AYANEO, an electronics manufacturer in Hong Kong, which has a nice keycap coloring that is different from the official version.

Replacement keycaps are also available, so you can change them out depending on your mood.

Note that the Air75 can also be used on top of a laptop computer keyboard.

The following notebooks will not interfere even without a keyboard bridge because the rubber on the bottom fits perfectly into the keyboard groove ( AirFeet™ ).

対応ラップトップパソコン

Apple
MacBook (2015-2019), MacBook Air (Early 2015-2020), MacBook Pro (Late 2012-2020)
*Air75’s *AirFeet™ does not support M1 Pro/Max MacBook Pro.

Microsoft
Surface Laptop 1/2/3, Surface Pro 4/5/6/7, Surface Book 1/2

Thinkpad
X1, X390, E490, L490/590, E495/595, T470/480s, 13/14s

Lenovo
IdeaPad 720/730, Y9000K, Y7000/P, S145, S940

home page
Spectre Folio, Spectre X360, Envy X360, Zbook 15

Dell
XPS 13.3″/15.6″

Razer
Blade 15/17

Alienware
New Alienware M15/M17

NuPhy Air 75
NuPhy Air75 2
総合評価
( 4 )
メリット
  • 薄型で持ち運びしやすい
  • 配色がおしゃれ
  • 技適対応で日本でも無線接続ができる
デメリット
  • M1 Macbook のキーボードの上において利用することはできない
  • US配列のみでJIS配列がない

NuPhy Air 60|Includes a review of the actual device

NuPhy Air 60

The Air60 is a more compact version of the Air75.

Hot-swappable

Positioned as the successor to the NuType F1, it is a “60% compact” size keyboard that eliminates function keys.

keymaps60

In most cases, the directional keys are pressed simultaneously with the Fn key on many 60% keyboards, including the HHKB (US layout), but the Air60 is firmly independent and easy to use.

As with the Air75, there are three types of axes to choose from: blue, brown, and red.

Gateron Low-profile Switches 1.0

SwitchBlueRedBrown
FeelClicky.LinearTactile
ColorBlueRedBrown
Lubed.NoneNoneNone
Pressure50±15g45±15g55±15g
Springunknownunknownunknown
Total Travel2.5±0.5mm2.5±0.5mm2.5±0.5mm

sound sample

Gateron Low Profile Red
Gateron Low Profile Blue
Gateron Low Profile Brown

Weighing in at around 450g, 100g lighter than the Air75, this keyboard is perfect for those who are thinking mainly of carrying it around.

Air60 is designed to be used in the so-called “takunishi style”.

Nuphy Air60 on MacBook Pro M1Pro
Sonji Style (MacBook Pro M1Pro)

When typing in this style with a tall normal-profile keyboard, the wrist must be forced to bend back, which not only makes typing difficult but also increases the risk of tendonitis.

In addition, the disadvantage of installing a mechanical keyboard on top of a keyboard is that it requires the installation of a keyboard bridge, which simply increases the amount of luggage.

In this respect, the low profile of the Air60 means that typing in this style does not cause wrist pain.

In addition, it is designed to fit perfectly into the “keyboard groove” of many Windows notebooks as well as Macs, so it can be typed on top of existing keyboards without a keyboard bridge.

対応しているノートパソコンを見る▷▷

Supported Notebook PCs

  • Apple|MacBook (2015-2019), MacBook Air (Early 2015-2020), MacBook Pro (Late 2012-2020), M1 Pro/Max MacBook Pro
  • Surface Laptop 1/2/3, Surface Pro 4/5/6/7, Surface Book 1/2
  • Thinkpad|X1, X390, E490, L490/590, E495/595, T470/480s, 13/14s
  • Lenovo|IdeaPad 720/730, Y9000K, Y7000/P, S145, S940
  • HP|Spectre Folio, Spectre X360, Envy X360, Zbook 15
  • Dell|XPS 13.3″/15.6″
  • Razor|Blade 15/17
  • Alienware|New Alienware M15/M17

The NuType F1 had a fatal flaw in that it could not be placed on a keyboard with a different layout because of interference (only the NuType F1 with JIS layout can be placed on a Mac with JIS layout), but this has all been eliminated in the Air60.

Bluetooth connectivity is not available for use in Japan, but the USB Type-C port is located on the side of the keyboard and can be connected to a computer’s USB port over the shortest possible distance with the included cable.

Nuphy Air60 on MacBook Pro M1Pro USB Connect
Kawamura top R河村

I use a shorter, more stylish flat cable.

Of course, as with the Air75, replacement keycaps are also available, so you can replace them as you wish.

Kawamura top R河村

Personally, though, I think Air60 is the perfection of the nobleman’s style.

NuPhy Air60
Nuphy Air60 2
総合評価
( 4 )
メリット
  • コンパクトかつ軽量のため持ち運びに適している
  • キーキャップが非常におしゃれ
  • キーボードブリッジなしでラップトップパソコンのキーボードの上において利用可能
デメリット
  • ファンクションキーがないため慣れが必要
  • 技適未取得のため無線接続ができない

NuPhy Halo 96

Halo96 3

The NuPhy Halo 96 is a 96% layout mechanical keyboard with 99 keys released on November 29, 2022.

Its existence was announced on the official blog when Halo 75 was released, and its release date was announced on the official NuPhy Twitter page on November 26.

Haloシリーズとしては最後発のキーボードであり、Haloシリーズの集大成とも言えます。

アップデートされた静音化されたスペースバー「GhostBar」を標準搭載し、Gateron Baby Kangaroo・Gateron Baby Raccoonの2つの最新キースイッチが選択できるほか、Rose Glacier・Night BreezeといったNuPhyオリジナルのキースイッチも選択できるようになったのもこのモデルからです。

Gateron × NuPhy KeySwiches

Switch TypeOperating ForceTotal TravelKeystroke
Night BreezeLinier42±5gf3.3±0.3mmsoft low tone
Rose GlacierTactile60±5gf3.3±0.3mmsoft low tone
Gateron Baby RaccoonLinier55±8gf3.6±0.2mmsoprano
Gateron Baby KangarooTactile59.8±8gf3.4mmMaxsoprano

もちろん、Windows/macOSに対応するほか、テンキー付きの96%レイアウトとなっているため、万人に使いやすいキーボードと言えるでしょう。

NuPhy Halo 75|75% layout mechanical keyboard

Halo75sc scaled

This mechanical keyboard was released on November 8, 2022.

The key layout is 75%, with an additional row of function keys on the top row compared to the Halo65.

In terms of design, it follows Halo 65, which was introduced as a “wide version for the general public” position.

keymaps75

After all, users are generally more likely to use the function keys more frequently, so the Halo 75 is definitely the easier choice.

NuPhy’s enthusiasm for this appearance is also evident in the addition of three new mechanical key switches.

Gateron × NuPhy KeySwiches

Switch TypeOperating ForceTotal TravelKeystroke
Night BreezeLinier42±5gf3.3±0.3mmsoft low tone
Rose GlacierTactile60±5gf3.3±0.3mmsoft low tone
Gateron Baby RaccoonLinier55±8gf3.6±0.2mmsoprano
Gateron Baby KangarooTactile59.8±8gf3.4mmMaxsoprano

Halo 65ではBBKを選択したため、Halo75では、新たに仲間入りした「Rose Glacier」をチョイスしました。

タクタイルスイッチとしては非常に似通った性質を持つ2つのスイッチですが、BBKの方がやや甲高い打鍵音、Rose Glacierの方がやや低音が際立つ打鍵音となっています。

Rose Glacierの方が若干ではありますが、押し込んだ際の脱力するポイントが遅くなっているため、長時間のタイピングの疲労度としてはBBKの方が少ない印象でした。

本体の反響などを加味した打鍵音そのものについては、Halo65のそれと大きく大差はありません。

相変わらずデッドな音で最高のタイピング体験を提供してくれます。

また、今回のモデルから、静音仕様のスペースバー「Ghostbar」が標準装備となりました。

NuPhy Halo 75
NuPhy Halo 75 6
総合評価
( 4.5 )
メリット
  • ファンクションキー搭載で誰にでも使いやすい
  • 配色がおしゃれ
  • オリジナルキースイッチの打鍵感が素晴らしい
デメリット
  • 重量が1200gと重く、持ち運びには向いていない
  • US配列のみでJIS配列がない

NuPhy Halo 65

NuPhy Halo 65

The Halo65 is NuPhy’s first “Normal Profile” mechanical keyboard since the TES68.

Hot-swappable

The keyboard size is “65% compact” with the function keys omitted, and the directional keys are independent to minimize mis-presses.

keymaps65

Of note is the use of multiple layers of silicone pads.

Halo65 Pad scaled
Image reference: https://nuphy.com/collections/keyboards/products/halo65

This allows for a “very tight” typing sound with little spread and reverberation, even though the lightweight metal material keeps the weight down to about 1000g.

Halo65 weght

In particular, the “kotokoto” type sound is really addictive, especially with Gateron’s new short-stroke tactile switches, ” Baby Kangaroo Switches.

In addition, on October 27, 2022, the company announced an upgrade to the space bar, replacing it with a quieter ” Ghostbar,” further refining its appeal.

In addition to the Baby Kangaroo mentioned above, you can choose from the red, blue, and brown axes of the lubricated Gateron G Pro.

Gateron Mechanical Switches

スクロールできます
Red Switches
G Pro
Blue Switches
G Pro
Brown Switches
G Pro
Baby Kangaroo
pressing pressure45±15 gf60±15 gf55±15 gf59±8 gf
Movement to operation2±0.6 mm2.3±0.6 mm2±0.6 mm2.0±0.5 mm
keystroke4±0.6 mm4±0.6 mm4±0.6 mm3.4 mm
reactionlinearclickytactiletactile
soundquietclickygentlegentle
Kawamura top R河村

PBTダブルショットキーキャップもこの極上タイピングサウンドに一役買っています。

Nuphy Halo 65 44
Baby Kangaroo scaled
Image reference: https://nuphy.com/collections/keyboards/products/halo65

It is also highly customizable, and can be made into an all-white keyboard by combining the included keycaps, or a matte black, austere coloring can be achieved by purchasing keycaps separately.

Keychron K6 13
The photo above shows Keychron K6 with Halo65 keycaps (sold separately).

Combined with the two-tone palm rest (sold separately), you will have a very stylish work environment.

Kawamura top R河村

20台以上のメカニカルキーボードを持っていますが、おそらくトップクラスの打ち心地だと思います。とにかく打ってて気持ちがいいです。

NuPhy Halo65
Nuphy Halo 65 2
総合評価
( 5 )
メリット
  • 複数層のシリコン吸音パッドにより打鍵音が優れている
  • キーキャップがおしゃれでかっこいい
  • 方向キーが独立しているため操作性に優れている
デメリット
  • 技適未取得のため無線接続ができない
  • やや重量があるため持ち運びには不便
  • ファンクションキーがないためコンビネーションタイピングが必要

NuPhy NuType F1|Review based on actual equipment

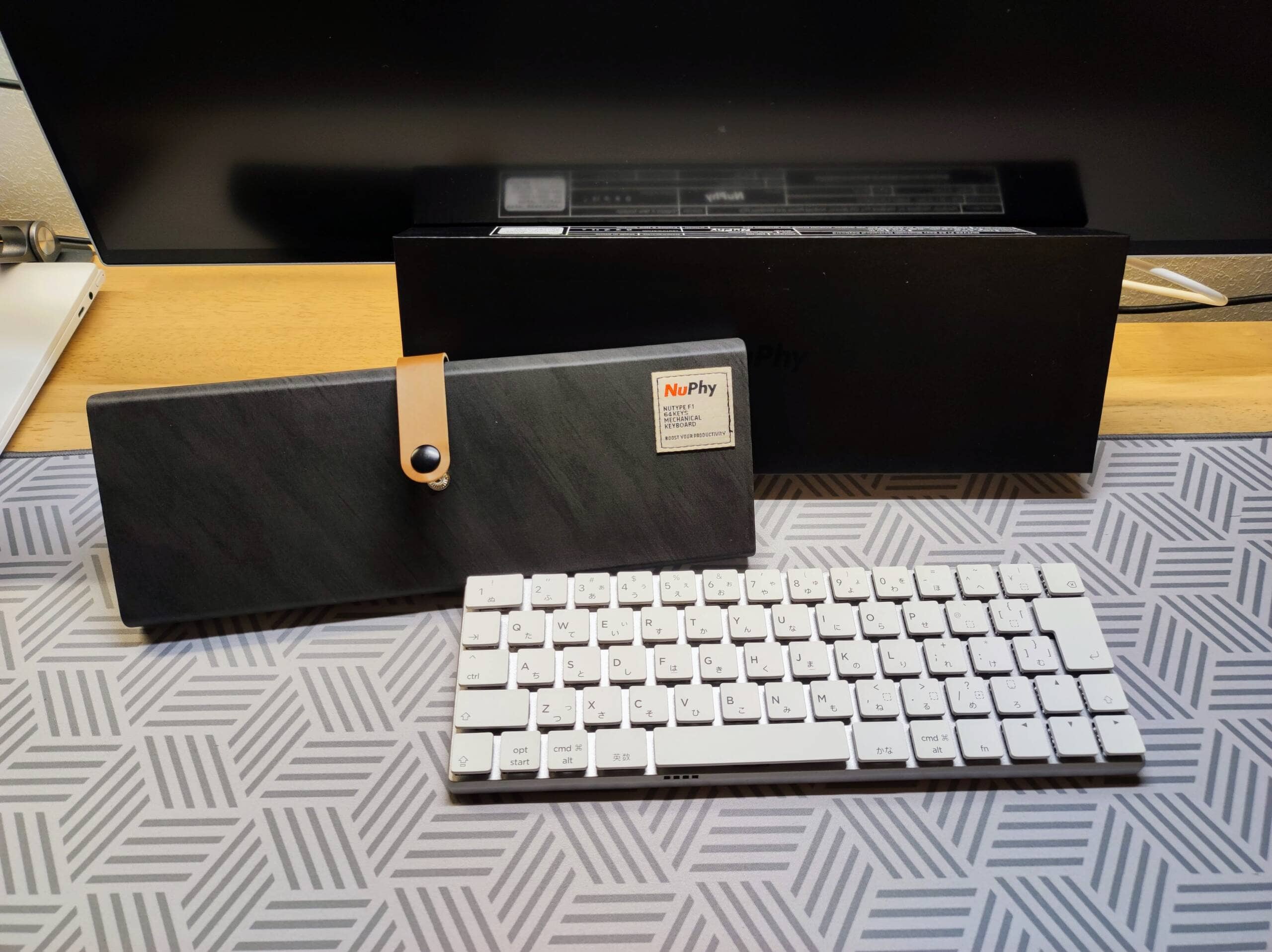

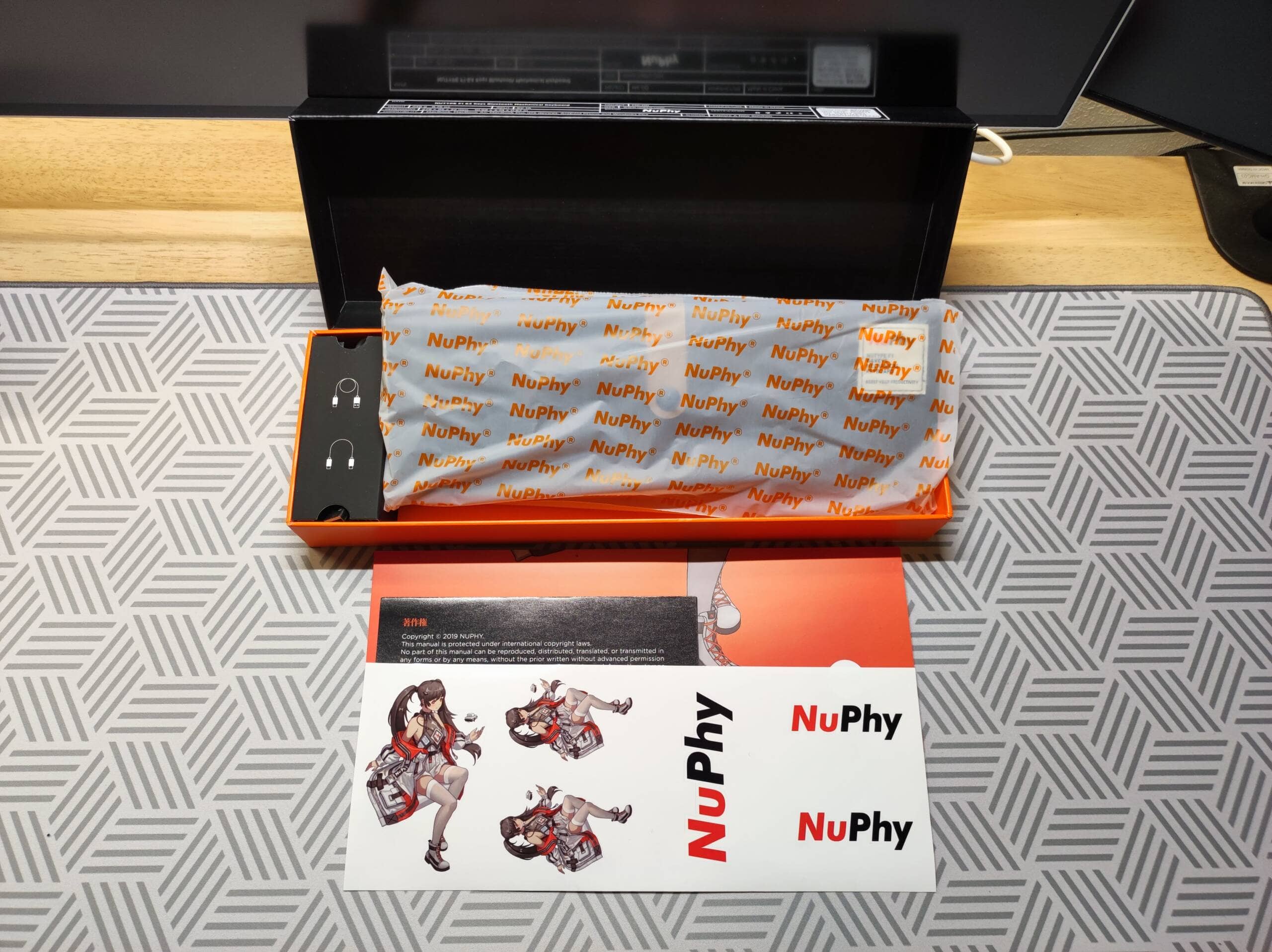

NuPhy NuType F1

Like the Air75, the NuType F1 is imported by Sanyo Godo Kaisha, a distributor in Japan, and can be purchased from Amazon and other stores.

It has a thin and compact design, and like the Air60, it is basically designed to be used “installed on the keyboard of a laptop computer, i.e., in a takunishi style”.

Thus, it does not interfere with existing laptop computer keyboards without a keyboard bridge.

234cc7c85011d7aa30670c093d9fc936
Image reference: NuPhy
対応ノートパソコン一覧を見る▷▷

Supported Notebook PCs

  • Apple|MacBook (2015-2019), MacBook Air (Early 2015-2020), MacBook Pro (Late 2012-2020), M1 Pro/Max MacBook Pro
  • Surface Laptop 1/2/3, Surface Pro 4/5/6/7, Surface Book 1/2
  • Thinkpad|X1, X390, E490, L490/590, E495/595, T470/480s, 13/14s
  • Lenovo|IdeaPad 720/730, Y9000K, Y7000/P, S145, S940
  • HP|Spectre Folio, Spectre X360, Envy X360, Zbook 15
  • Dell|XPS 13.3″/15.6″
  • Razor|Blade 15/17
  • Alienware|New Alienware M15/M17

It is the only NuPhy product that offers a choice of Japanese-language layout, making it highly popular among those who prefer a Japanese-language layout.

Like the Air60, it has the advantage of a 60% layout with no function keys, yet it is easy to operate due to its independent directional keys.

keymaps60

On the other hand, if you do not choose a keyboard with a layout that matches the key layout of the laptop computer you are using, interference will occur. Considering that most laptop computer keyboards distributed in Japan have Japanese layouts, the Japanese layout model is virtually the only choice.

In addition, Amazon reviews are notable for reports of malfunctions and problems.

NuPhy NuType F1の口コミ評判を見る

追記2021/09/08
故障したキーボードを輸送後、約一週間程度で新品のキーボードが届きました

追記2021/08/24
初期不良で無償交換してもらうことになりました

良い点
Bluetoothで3端末まで登録できて切り替え出来るのは便利です
キーボードもコンパクトで場所を取らないのでそれも良い点
ショートカットは覚えるの大変ですが、慣れれば問題なく使えるようになります
LEDピカピカは楽しい
カラーバリエーションや点灯パターンが多いので気分によって変えれます
もちろんオフにすることもできますし、光量の調整も出来ます

悪い点
添付した写真はケースとキーボード本体を磁石で固定する金属プレートなんですが、約半年で剥がれました
基本的にケースに固定しながら冷房が効いている部屋での使用ですが、それでもこうなったので暑いところで使用する場合はもっと早く剥がれると思います

それと有線・オフ・無線の切り替えスイッチの効きが悪くなってます
無線にしてるはずなのに突然オフになり、微妙にスイッチをずらすとまた無線が使える。という感じになってます
あと最近だと端末の接続が悪くなることがあり、2つ目の登録端末に繋いでいるのに勝手にいきなり1に繋がる。ということも起きています

1万円少しのミドル層のキーボードだと思いますが、この値段でこの耐久性か…とがっかりしてます
保証が効くか今から調べるので何かわかったら追記していきます

https://www.amazon.co.jp/gp/customer-reviews/R25DLGOJPPTD1H/ref=cm_cr_dp_d_rvw_ttl?ie=UTF8&ASIN=B08BC7V7LZ

キーキャップの足が折れる。そしてキーキャップが紛失する。強度が明らかに不足している。小さな部品ゆえに、エンジニアリングプラスチックなどを使用するべき。

https://www.amazon.co.jp/gp/customer-reviews/R1SIW6D5Z4MFEG/ref=cm_cr_dp_d_rvw_ttl?ie=UTF8&ASIN=B08BC7V7LZ

コンパクトさと打ち心地はとてもいいのですが、Bluetooth接続時、ctrl+Cなどのショートカットを打つ時、ctrlが上手く反応しない時があり、使えないです。
USB接続時は問題ありません。

https://www.amazon.co.jp/gp/customer-reviews/R31FD691ZZLI5B/ref=cm_cr_dp_d_rvw_ttl?ie=UTF8&ASIN=B08BC7V7LZ

購入して2週間で、後ろの金属板が剥がれました。
どうやらケースの磁力が強すぎて、負けてしまったようです。

サポートに連絡すると「不良品のため交換します」と言われ、交換を依頼したのですが、届いたのはなんと中古品…
取扱説明書が入っておらず、内袋にも穴が。
更には届いた時点でまたも後の金属板が浮いている状態でした。

こちらも使い続ければ剥がれしまいそうだったので、仕方なく返品しました。

https://www.amazon.co.jp/gp/customer-reviews/R1HKPV0O6UNEPI/ref=cm_cr_dp_d_rvw_ttl?ie=UTF8&ASIN=B08BC7V7LZ



As for the axes, there are three types to choose from, but they are not hot-swappable and use proprietary switches, so they cannot be replaced in the event of a problem such as “not being able to press a certain key” as described in the above review.

815UAf2xU8L. AC SL1500 e1664361564987
Image reference: Amazon

Since I actually purchased the product, I checked its use.

The key pitch is slightly wider at 19.5 mm, which also meant that we had to spread our hands somewhat wider.

As for the key feel, it is still quite different from the Gateron low-profile switches used in the Air75/60, and the “return” after hitting is slow, and personally, the feeling that the keys do not follow the fingers is very noticeable.

Although there were no problems as mentioned in the reviews, there were some inferiorities in key feel, so we recommend the successor, Air60, if you are thinking of using it in a priest style.

Kawamura top RKawamura

プロダクトとしての「若さ」を感じました。アルミニウムボディでフレームレスのスタイリッシュさは群を抜いていますが、やはりキースイッチや剛性に関しては私の中では及第点には達しませんでした。

NuPhy NuType F1
NuPhy NuType F1
総合評価
( 1.5 )
メリット
  • コンパクトかつ軽量のため持ち運びに便利
  • JIS配列・US配列から選べる
デメリット
  • 壊れやすい
  • ホットスワップ非対応でキースイッチの交換ができない
  • キーボードの上に乗せて使う場合、ラップトップ側の配列と同じにしないと干渉する
  • ファンクションキーがないためコンビネーションタイピングが必要

NuPhy Key Cap

Keycaps can also be purchased separately at the official NuPhy store.

Excluding limited editions, the product lineup currently available for purchase is as follows

  • Cherry Profile Shine-through ABS Keycaps (Halo65 / Halo75 / Halo96)
  • nSA Shine-through ABS Keycaps (Air75 / Air60)
  • COAST Twilight nSA Dye-sub PBT Keycaps (Air75 / Air60)
  • GhostBar(6.25u size,Quiet Sound Spacebar)

注目すべきは、2023年2月28日に追加された「GhostBar」でしょう。

汎用性の高い6.25uサイズとなっているため、Keychronなどの幅広いメカニカルキーボードに換装可能です。

シリコンプレートが埋め込まれたスペースバーは、空洞が大きいことに起因するスタビライザーやキースイッチの不快な反響音を低減してくれる効果があります。

汎用性が非常に高いため、Haloシリーズ以外のキーボードでももちろん使用できます。

単一販売ラインナップ外のキーキャップ

→Air96の販売オプションとして選択可能

Dye-sub nSA PBT キーキャップ

  • COAST Twilight
  • COAST Dawn

また、期間限定のキーキャップとして、下記の4種類が登場しています。(すべて96%サイズ)

特に、ハロウィーン限定クリスマス限定モデルに関しては、本当に短い期間しか販売されていませんので、お求めの場合はお早めにどうぞ。

View NuPhy keycap ▷▷▷

Although nominally a “NuPhy-specific keycap,” it is a keycap compatible with the Cherry MX axis, so it can be replaced on any keyboard that uses Cherry MX standard key switches, such as Keychron.

Keychron K6 12
Above: Keychron K6 with Halo65-specific keycaps
Bottom: Halo65

This will be especially useful since there are very few options for low-profile type replacement keycaps.

Also available for Keychron K3 /K7 US array models.

Please note, however, that not all keycaps are interchangeable, as they are only available for US layout models.

In the meantime, it can be used for Logitech MX Mechanical Mini for Mac, etc., but the position of the keyswitch hole for the space bar is slightly different, so it could not be used.

また、通常のMX MECHANICAL MINIは日本語配列モデルとなっており、日本語配列モデルと英字配列モデルはキートップの表記が異なるため、日本語配列モデルへの流用は難しいかも知れません。

GreenKeys Coupon code

Other NuPhy products

bbk test
Gateron Baby Kangaroo Mechanical Switches

In addition to keyboards and keycaps, key switches and other optional products can also be purchased from the official NuPhy store.

Replacement key switch

  • G Pro Red 2.0
  • G Pro Brown 2.0
  • G Pro Blue 2.0
  • G Pro Yellow 2.0
  • G Pro White 2.0
  • G Pro Silver 2.0
  • Baby Kangaroo

Haloシリーズのデフォルトキースイッチとして選択できる「Night Breeze Switches」「Rose Glacier Switches」「Gateron Baby Raccoon Switches」については、単体購入は現時点ではできません。

Air96で選択できるGateron Low-profile 2.0 に関しても、単体販売はしておりません。

Other accessories available for purchase

Mono Wrist Rest(Acrylic Noir)はAir96の購入オプションとして選択可能です。

65%/75%レイアウトサイズのパームレストに関しては、既存のアイコニックホワイト、ブラックに加えて、2023年2月に10色が追加され、全部で12色展開となりました。

パームレストを見る▷▷

The “NuFollio V2” case will be very useful for carrying the Air75 and Air60.

It not only protects the key tops, but also functions as a simple stand when connected to an iPad or iPhone for typing.

air75 nufolio open 5aa645dc 1862 45eb 8189

The see-through palm rest is also quite an outstanding product.

Generally, “wood” or “urethane foam” is the material of choice for palm rests, but NuPhy’s own palm rests are made of “resin.

In addition to its cool touch, the see-through design allows the LED lights of the keyboard to shine through, making your work environment more stylish.

Nuphy Halo 65-lighting
Keychron Q2 with palm rest
Keychron K6 1
IMG 20220925 172031 scaled
66lo0z

Image reference: https://nuphy.com/

NuPhy Keyboard Instruction Manual (Manual)

There is currently no secondary distribution of NuPhy product instruction manuals on the official website.

Please refer to the following description of the contents of the instruction manual.

NuPhy®️ Air96の取扱説明書(マニュアル)

順次追加予定!

NuPhy®︎ Air75の取扱説明書(マニュアル)
STEP
モード選択
  • Winモード:側面のスイッチを「Win」にする
  • Macモード:側面のスイッチを「Mac」にする
STEP
接続方法の選択
  • スイッチ右:電源を切る
  • スイッチ中央:有線モード
  • スイッチ左|ワイヤレスモード
STEP
ワイヤレス接続方法

FN+ 1(!) / 2(@) / 3(#) / 4($)

= Bluetooth1 / Bluetooth2 / Bluetooth2/ 2.4GHz (receiver connection)

Each device channel can be switched by pressing the above key briefly.

Press and hold the above command for at least 3 seconds to enter pairing mode.

To make a connection in the 2.4 GHz band, insert the receiver into the USB port.

STEP
バックライト設定
  • FN + :バックライトモードの切り替え
  • FN + :バックライトカラーの切り替え
  • FN + ↑↓:バックライトを明るく/暗く
STEP
サイドライト設定
  • FN + ? + :サイドライトモードを切り替える
  • FN + ? + :サイドライトのカラーを切り替える
  • FN + ? +↑↓:サイドライトを明るく/暗く
STEP
バッテリーチェックライト設定
  • FN + |(縦線):電池残量を確認
  • FN + ]:電池残量を右側のライトで常時点灯
  • FN + |(縦線):電池残量の常時点灯をキャンセル
STEP
その他ファンクションキー
  • ハサミ(Macのみ):画面の一部を選択してスクリーンショット(Shift + ⌘ + 4と同様)
  • FN + ハサミ(Macのみ):画面全体をスクリーンショット(Shift + ⌘ + 3と同様)
  • ハサミ(WInのみ):画面全体をスクリーンショット(PrintScreenボタンと同様)
  • ネコ:Siri / コルタナの起動
STEP
スリープモード設定
  • FN + TAB + S:スリープモードをオフにする
  • FN + TAB + W:スリープモードをオンにする
STEP
工場出荷時の状態に復元する(ファクトリーリセット)
NuPhy®︎ Air60の取扱説明書(マニュアル)
STEP
モード選択
  • Winモード:側面のスイッチを「Win」にする
  • Macモード:側面のスイッチを「Mac」にする
STEP
接続方法の選択
  • スイッチ右:電源を切る
  • スイッチ中央:有線モード
  • スイッチ左|ワイヤレスモード
STEP
ワイヤレス接続方法

FN+ Q / W / E / R

= Bluetooth1 / Bluetooth2 / Bluetooth2/ 2.4GHz (receiver connection)

Each device channel can be switched by pressing the above key briefly.

Press and hold the above command for at least 3 seconds to enter pairing mode.

To make a connection in the 2.4 GHz band, insert the receiver into the USB port.

STEP
バックライト設定
  • FN + :バックライトモードの切り替え
  • FN + :バックライトカラーの切り替え
  • FN + ↑↓:バックライトを明るく/暗く
  • FN + , or .:ライトスピードの増加/減少
STEP
サイドライト設定
  • FN + ? + :サイドライトモードを切り替える
  • FN + ? + :サイドライトのカラーを切り替える
  • FN + ? +↑↓:サイドライトを明るく/暗く
STEP
スリープモード設定
  • FN + TAB + X:スリープモードをオフにする
  • FN + TAB + C:スリープモードをオンにする
STEP
ファンクションキーとマルチメディアキーを切り替える

For Mac

FN +/- 1 2 3 1 / 2 / 3 …: Operates as a multimedia function key. (Default)

FN +F TAB + … F FN +1 / 2 / 3 function as F1 / F2 / F3 … keys, respectively, instead of the multimedia function keys. (Switching between function keys and multimedia keys)

For Windows

FN +/- 1 2 3 1 / 2 / 3 …: Works as F1 / F2 / F3 (Default)

FN +F TAB + F FN +1 / 2 / 3 function as multimedia function keys instead of function keys, respectively. (Switching between function keys and multimedia keys)

STEP
バッテリーチェックライト設定
  • FN + |(縦線):電池残量を確認
  • FN + ]:電池残量を右側のライトで常時点灯
  • FN + |(縦線):電池残量の常時点灯をキャンセル
STEP
工場出荷時の状態に復元する(ファクトリーリセット)
NuPhy®️ Halo96の取扱説明書(マニュアル)

順次追加予定!

NuPhy®︎ Halo75の取扱説明書(マニュアル)
IMG 20221122 141954
STEP
モード選択
  • Winモード:本体上部のスライダーを「Win」に合わせる
  • Macモード:本体上部のスライダーを「Mac」に合わせる
STEP
接続方法の選択
  • スイッチ右:電源を切る
  • スイッチ中央:有線モード
  • スイッチ左|ワイヤレスモード
STEP
ワイヤレス接続方法

FN+ Q / W / E / R

= Bluetooth1 / Bluetooth2 / Bluetooth2/ 2.4GHz (receiver connection)

Each device channel can be switched by pressing the above key briefly.

Press and hold the above command for at least 3 seconds to enter pairing mode.

To make a connection in the 2.4 GHz band, insert the receiver into the USB port.

STEP
バックライト設定
  • FN + :バックライトモードの切り替え
  • FN + :バックライトカラーの切り替え
  • FN + ↑↓:バックライトを明るく/暗く
  • FN + , or .:ライトスピードの増加/減少
STEP
リングライト設定
  • FN + H + :リングライトモードの切り替え
  • FN + H + :リングライトカラーの切り替え
  • FN + H + ↑↓:リングライトを明るく/暗く
  • FN + H + , or .:リングライトスピードの調整
STEP
サイドライト設定
  • FN + ? + :サイドライトモードを切り替える
  • FN + ? + :サイドライトのカラーを切り替える
  • FN + ? +↑↓:サイドライトを明るく/暗く
  • FN + ? + , or .:サイドライトスピードの調整
STEP
ファンクションキーとマルチメディアキーを切り替える

For Mac

ハサミ:画面の一部を選択してスクリーンショット

FN + ハサミ :画面全体をスクリーンショット

For Windows

ハサミ :画面全体をスクリーンショット

STEP
バッテリーチェックライト設定
  • FN + |(縦線):電池残量を確認
  • FN + ]:電池残量を右側のライトで常時点灯
  • FN + |(縦線):電池残量の常時点灯をキャンセル
STEP
工場出荷時の状態に復元する(ファクトリーリセット)
NuPhy®︎ Halo65の取扱説明書(マニュアル)
STEP
モード選択
  • FN + X + S:Winモード
  • FN + X + A:Macモード
STEP
接続方法の選択
  • スイッチ右:電源を切る
  • スイッチ中央:有線モード
  • スイッチ左|ワイヤレスモード
STEP
ワイヤレス接続方法

FN+ Q / W / E / R

= Bluetooth1 / Bluetooth2 / Bluetooth2/ 2.4GHz (receiver connection)

Each device channel can be switched by pressing the above key briefly.

Press and hold the above command for at least 3 seconds to enter pairing mode.

To make a connection in the 2.4 GHz band, insert the receiver into the USB port.

STEP
バックライト設定
  • FN + :バックライトモードの切り替え
  • FN + :バックライトカラーの切り替え
  • FN + ↑↓:バックライトを明るく/暗く
  • FN + , or .:ライトスピードの増加/減少
STEP
リングライト設定
  • FN + H + :リングライトモードの切り替え
  • FN + H + :リングライトカラーの切り替え
  • FN + H + ↑↓:リングライトを明るく/暗く
  • FN + H + , or .:リングライトスピードの調整
STEP
サイドライト設定
  • FN + ? + :サイドライトモードを切り替える
  • FN + ? + :サイドライトのカラーを切り替える
  • FN + ? +↑↓:サイドライトを明るく/暗く
  • FN + ? + , or .:サイドライトスピードの調整
STEP
ファンクションキーとマルチメディアキーを切り替える

For Mac

FN +/- 1 2 3 1 / 2 / 3 …: Operates as a multimedia function key. (Default)

FN + X + … F FN +1 / 2 / 3 function as F1 / F2 / F3 … keys, respectively, instead of the multimedia function keys. (Switching between function keys and multimedia keys)

For Windows

FN +/- 1 2 3 1 / 2 / 3 …: Works as F1 / F2 / F3 (Default)

FN + X + F FN +1 / 2 / 3 function as multimedia function keys instead of function keys, respectively. (Switching between function keys and multimedia keys)

STEP
バッテリーチェックライト設定
  • FN + |(縦線):電池残量を確認
  • FN + ]:電池残量を右側のライトで常時点灯
  • FN + |(縦線):電池残量の常時点灯をキャンセル
STEP
工場出荷時の状態に復元する(ファクトリーリセット)

How to Buy NuPhy

NuPhy is available at different locations depending on the product you wish to purchase.

  • NuPhy Air75 ワイヤレスメカニカルキーボード
  • NuPhy Nutype F1(日本語配列・英語配列)
  • ゲーミングキーボードAir75 専用折りたたみケース Foldable Case V2(NuFollio V2)
  • Air75専用交換キーキャップ
  • NuType F1専用キーキャップ
  • Gateronロープロファイルメカニカルスイッチ(青軸・赤軸・茶軸)

→Amazon / Rakuten Market / Yahoo Shopping, etc.

→ Available on the official website

Thus, products not handled by domestic distributors must be purchased from the official website.

The site is outside Japan (shipping from Hong Kong), but can be easily purchased.

Please see below for the purchase method presented.

To purchase NuPhy products on the official website

STEP
公式サイトへアクセスする

First, access the official NuPhy website.

https://nuphy.com/

STEP
希望の商品のページまでジャンプします。

Jump to the page of the desired product.

STEP
カラーやキースイッチの種類・オプションなどを選択して「ADD TO CART」→「CHECK OUT」をタップ

Tap “ADD TO CART” after selecting the color and keyswitch type of the product so that it is the keyboard of your choice.

Check the contents of the items in the cart and tap “CHECK OUT” if there is nothing else to purchase.

STEP
住所などの必要情報を入力する

*This step is not required if you have selected Express Checkout.

Express Checkout is a system that automatically handles payment and shipping to your registered address when you have one of the following payment methods: shop Pay / PayPal / Google Pay. If you have the relevant payment method, this will be faster.

  • Mail:受信できるメールアドレスを入力
  • Country / Region:Japanを選択
  • Last Name:名前をローマ字で入力
  • First Name:名字をローマ字で入力
  • Postal Code:ハイフンなしでお住まいの郵便番号を入力する(郵便番号検索はこちら)
  • Prefecture:お住まいの県を選択する
  • City:ご自身がお住まいの「市名」をローマ字で入力する。(新潟市→Niigata-Shi)
  • Address:こちらのサイトで日本語住所を入力したのちに、市名以外をコピーして貼り付ける
  • Phone:お使いの携帯電話番号の頭の「0」を「81」に置き換えて80-XXXX-XXXXの形式で入力します。
    例|080-1234-5678 →818012345678
STEP
メールアドレス、住所と送料を確認する

On the next screen, confirm your email address, mailing address, and shipping charges.

Dedicated Line” means “Dedicated Shipping.”

Shipping costs vary depending on the weight of the package, but from Hong Kong to Japan, a keyswitch will cost $4.85, or about $27 if you add the Halo65 and accessories.

Once confirmed, tap “Continue to payment.

STEP
クーポンコードを入力する

Through a partnership between NuPhy®︎ and our site, we have received a special coupon code for 10% off all products.

Enter the coupon code below in the “Gift card or discount code” field to receive a 10% discount off your purchase.

Please make use of this service.

NuPhy discount code

ryo10

STEP
決済方法を選んで入力する

Finally, enter the payment method.

We recommend credit cards.

Payments are made in U.S. dollars, but are automatically converted to yen and billed at the rate of the credit card billing cutoff date, so no special procedures are required.

Supported Credit Cards

JCB / VISA / Mastercard / AMEX / DISCOVER

The “Billing address” at the end is the billing address.

Select “Same as shipping address” if it is the same as your shipping address.

STEP
購入を完了される

Finally, tap “Pay now” to finish.

Thank you for your hard work.

NuPhy公式サイトで注文した場合、日本まで商品が届くまでにはどれくらいかかるの?

Approximately, it takes about 10 days to arrive.

First, it takes about 3 days from order completion to shipment, and about 7 days from shipment to Hong Kong to arrival at home, for a total of about 10 days.

The service also supports package tracking, so you can receive your package with peace of mind.

I have the impression that Sagawa or Japan Post are the domestic delivery service providers in most cases.

About NuPhy’s distributors in Japan

NuPhy is distributed in Japan by Sanyo Godo Kaisha in Tokyo, Japan.

Company name: Sanyo Godo Kaisha

(English company name: SANYO.LLC)

2F, 2-1-4 Kiyokawa, Tokyo 111-0022, Japan

Representative: Yu Kasei

Established: October 2019

Business description: Development, manufacturing and sales of digital products (Japanese subsidiary of Soban brand), domestic distribution, authorized agency business (exclusive agency in Japan for HardCiderLabs, Snapnator, NuPhy and impoi brands), crowdfunding

Quote: Sanyo Godo Kaisha

NuPhy’s Technical Qualification (Technical Regulations Conformity Certification)

NuPhy Air75 17

The Radio Law requires that any wireless communication device used in Japan must be approved by the Ministry of Internal Affairs and Communications.

With regard to NuPhy, except for the following keyboards sold and officially distributed in Japan by Sanyo Godo Kaisha (Soban), the following keyboards have not obtained the technical qualification and cannot be used for wireless connection (under Japanese domestic law).

Keyboard with technical certification for wireless connection in Japan

  • Air75
  • NuType F1

However, there are no restrictions regarding wired connections, so when using NuPhy products, consider a USB connection as a prerequisite.

Personally, I recommend a stylish connection with a curled cord.

66lo0z
q? encoding=UTF8&ASIN=B09KH14B3S&Format= SL250 &ID=AsinImage&MarketPlace=JP&ServiceVersion=20070822&WS=1&tag=hottyhottea 22&language=ja JPir?t=hottyhottea 22&language=ja JP&l=li3&o=9&a=B09KH14B3S
q? encoding=UTF8&ASIN=B0B5CN23M9&Format= SL250 &ID=AsinImage&MarketPlace=JP&ServiceVersion=20070822&WS=1&tag=hottyhottea 22&language=ja JPir?t=hottyhottea 22&language=ja JP&l=li3&o=9&a=B0B5CN23M9

About NuPhy Console

ff2daa4ee141fb5c98ecb446871f7aa0 e1664289429662
Image reference: https://nuphy.com/pages/nuphy-console

NuPhy offers a key remapping tool, the NuPhy Console.

This is a tool that modifies the keymap of existing NuPhy products in hardware, a feature that will be a hit with the experts.

Note, however, that while you can change the mapping of normal character keys, you can only change keys with special functions, such as replacing the Shift key with a command key, in the form of combination shortcuts such as “00 + 00”.

Another drawback is that the NuPhy Console software is only compatible with Windows, and the keymap cannot be changed on a Mac.

If you have Windows, you can change the keymap for both Mac and Win, so please try it out.

NuPhy Console|Download

summary

This is a description of the up-and-coming keyboard brand NuPhy®︎.

Even taking into account the current depreciation of the yen, this manufacturer produces very cost-effective, high-quality keyboards, and can be highly recommended for those who prefer fashionable, pop-style keyboards.

Generally, mechanical keyboards have a strong image of being “for gamers,” but that is not true.

I do not play any games, but I am one of those people who use numerous mechanical keyboards simply because they increase my typing speed and feel good to type on.

It is not widely known that mechanical keyboards can actually increase business efficiency at the same time.

Why not take this opportunity to try NuPhy’s keyboards?
