MX KEYS MINI for Mac KX700MPG is now available in Japanese!
This may be easier to use than the stock Apple Magic Keyboard.
パンタグラフ方式
JIS
On July 29, 2022, Logitech announced the MX KEYS MINI for Mac (KX700MPG), a new Mac-specific keyboard.
The price is 15,950 yen (including tax) on the direct sales site, which is rather expensive for a pantograph keyboard.
The MX KEYS MINI, a line of tenkeyless compact keyboards bearing Logitech’s flagship hallmark “MX,” is available in November 2021.
The full-size “MX KEYS” model has been available in the “MX KEYS for Mac” lineup for some time, but the ten-keyless “MX KEYS MINI” model does not have a dedicated Mac model, and many minimalist fans have been eagerly waiting for this release. I am sure that there are many minimalist fans who have been looking forward to this release.
Some of them wanted US layout, so they imported the US layout of MX Keys Mini and used it. (Only JIS model is sold in Japan)
The rough specifications are equivalent to those of the MX KEYS KX700, which has been on the market for some time.
パンタグラフ方式
JIS
Logitech has been vigorously introducing new products since June 2022 and has been quite aggressive.
メカニカル方式(Low Profile)
JIS
メカニカル方式(Low Profile)
US配列
In this article, we will review the MX KEYS MINI for Mac with our actual use of the KX700.
Representative of GreenEchoes Studio
He launched his own media as a site operator and web writer, and now plans and manages multiple corporate media. He often types heavily in his work, and in his search for greater efficiency, he became addicted to the keyboard swamp and established “GreenKeys”.
- Macユーザーでファンの多いUS配列
- 約500g程度と軽量で持ち運びに便利
- WindowsとMacとの間でデータ移行がドラッグ&ドロップで利用可能
- 満充電で5ヶ月間利用可能
- 押下圧が純正キーボードよりも重くミスタッチが少ない
- USB Type-C接続
- 「PageUp」「PageDown」などの特殊キーがないため困るケースもある
- 純正キーボードより重量感がある
[blog_parts id="41919"]
Long-awaited Mac-specific model lined up for MX KEYS MINI
Many will say, “I’ m tired of waiting.”
Finally, the MX KEYS MINI will have a “US layout” model with Mac-specific keytops.
Unlike Windows, many Mac users use the US layout.
Since the MX KEYS was announced and the “for Mac” model was lined up after CRAFT’s appearance, the ” MX KEYS for Mac” is a very popular model, partly due to the limited availability of third-party Mac-sequenced keyboards.
パンタグラフ方式
US
However, the It is true that many people say that a “full-size keyboard” with a numeric keypad attached is difficult to use because it is long and takes up a lot of desk space. It is true.
The “MX KEYS MINI” was introduced in response to such requests MX KEYS MINI became popular in the blink of an eye.
MX KEYS for Mac is going to be a hit!
Changes from the standard model|Differences in key layout
change from the regular model is still The most distinctive difference is in the key layout. The most notable change from the standard model is that the key layout is different from the standard model.
Mac Dedicated Model | Normal model |
---|---|
~ | Halfwidth/Fullwidth Kanji |
Fn | Ctrl |
Control | Fn |
Option | Option |
Command⌘ | Command⌘ |
long vowel mark (usually only used in katakana) | ASCII coding |
space | space |
long vowel mark (usually only used in katakana) | (at sentence end) should I? |
Command⌘ | Katakana/Hiragana |
Option | Command⌘ |
Sleep/Lock | del/Lock |
In Japan, the regular model is “JIS layout only”, so when compared to the Mac-only US layout model released this time, the key layout of the bottom row is significantly different.
Changes from the standard model|Customized Bluetooth connection
Also, although it is a point not visible from the surface, the Bluetooth connection seems to have been customized to improve stability on Macs. (Reference: Mynavi News)
The author also uses MX Keys Mini regularly on his Mac, but sometimes had problems such as input problems that could not be resolved until the connection was disconnected once, or the device was recognized as a US layout even though it is a JIS layout.
Glad these could be eliminated!
Changes from the standard model|Accessory USB cable has been changed.
In addition, the included USB cable has been changed from a conventional USB Type A – USB Type C cable to a USB Type C – USB Type C cable.
This is probably in line with the USB Type C specifications of most current Apple silicon-equipped Macs.
Logitech FLOW is of course available
The Logitech MX series includes a feature called “Logitech FLOW ” that allows users to share a mouse and keyboard as well as transfer data between multiple devices.
Of course, this functionality is carried over to the MX Keys MINI for Mac.
Long life specification that can be used for up to 5 months on a full charge
MX Keys MINI for Mac can be used for up to 5 months on a single full charge The MX Keys MINI for Mac can be used for up to 5 months on a single full charge.
Note that if the backlight function is turned on, the period is reduced to 10 days.

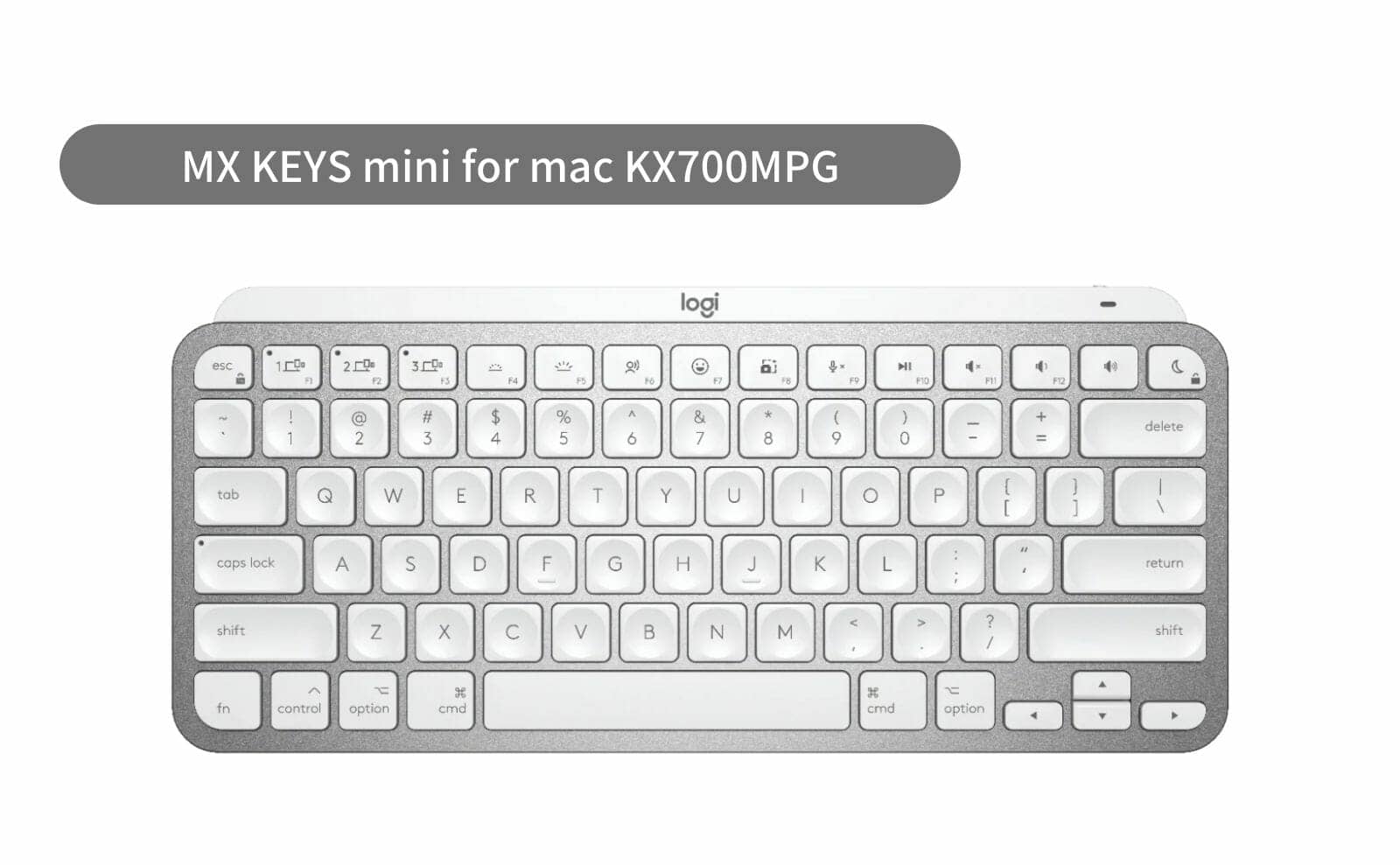

MX KEYS MINI for Mac KX700MPG|Specifications
Body size
- MX Keys Mini (for Mac) Keyboard
- Height: 131.95mm
- Width: 295.99mm
- Depth: 20.97mm
- Height: 506.4g
- Key pitch: 19mm
Technical Specifications
- Minimalist Wireless Illuminated Keyboard (English Array)
- Connect via Bluetooth Low Energy technology
- Easy-switch key to connect up to three devices and easily switch between them
- 10-meter wireless coverage 5Wireless coverage may vary depending on the operating environment and PC setup.
- Backlight turned on by proximity sensor that detects hands
- Ambient light sensor to adjust backlight brightness
- USB-C rechargeable. Up to 10 days of use after full charge or 5 months with backlight off 6Battery life may vary depending on usage conditions.
- ON/OFF power switch
- Caps Lock and battery indicator light
- Compatible with Logitech Flow-enabled mice
Note: FILEVAULT
- FileVault is an encryption system available on some Mac computers. Enabling it may prevent Bluetooth devices from connecting to your computer if you are not already logged in; it is recommended that you purchase a compatible Logi Bolt USB receiver if you wish to enable FileVault.
Warranty Information
- 2-year free warranty
model number
- KX700MPG
system requirement
- Internet connection (for software download)
- Logi Options+ software on macOS/Windows
- Bluetooth Low Energy enabled devices that support keyboards
- Bluetooth
- Required: Bluetooth Low Energy
- macOS 10.15 or later
- iOS 13.4 or later 7 device basic functionality works without software on iOS and iPadOS
- iPadOS 14 or later 8 Basic device functionality works without software on iOS and iPadOS
compatibility
- Compatible with Logi Bolt USB receiver (sold separately)
- Logi Bolt wireless products cannot be paired with other Logitech USB receivers
included thing
- Keyboard with key layout for Mac
- USB-C charging cable (USB-C to USB-C)
- Instruction Manual, Warranty Policy
パンタグラフ方式
US
Note|I recommend using Logi BOLT when using on Mac.
The Mac has a storage encryption feature called “FILEVAULT” that prevents password entry at the login screen except for USB-connected keyboards and Apple’s genuine wireless Bluetooth keyboards.
FileVault is an encryption system available on some Mac computers. Enabling it may prevent Bluetooth devices from connecting to your computer if you are not already logged in; it is recommended that you purchase a compatible Logi Bolt USB receiver if you wish to enable FileVault.
Citation: Logitech
Therefore, to log in using MX KEYS MINI on a Mac, one of the following three methods must be used.
- Turn off FileVault functionality
- Connect with Logi Bolt USB receiver
- Log in with a wired keyboard or Apple Genuine Wireless Keyboard before use.
I have the FileVault feature turned off because I have multiple keyboards connected to my Mac.
However, if you do not connect multiple keyboards, the safest method is to “use a wired keyboard or a genuine Apple wireless keyboard after logging in.
If you only want to guarantee the connection of the MX KEYS MINI, it would be easiest to use the Logi Bolt.
MX KEYS MINI Keystroke Sound|Review Video
Typing video by the author.
At this volume, even a quiet office will have no problem.
Features of MX KEYS MINI
The MX KEYS MINI has four main features.
- Comfort with full key pitch, isolation design, and spherical key top
- Heavier than usual pressing pressure and deeper keystrokes
- Improved visibility with backlighting
- Expandability with Logi Options
Comfort with full key pitch, isolation design, and spherical key top

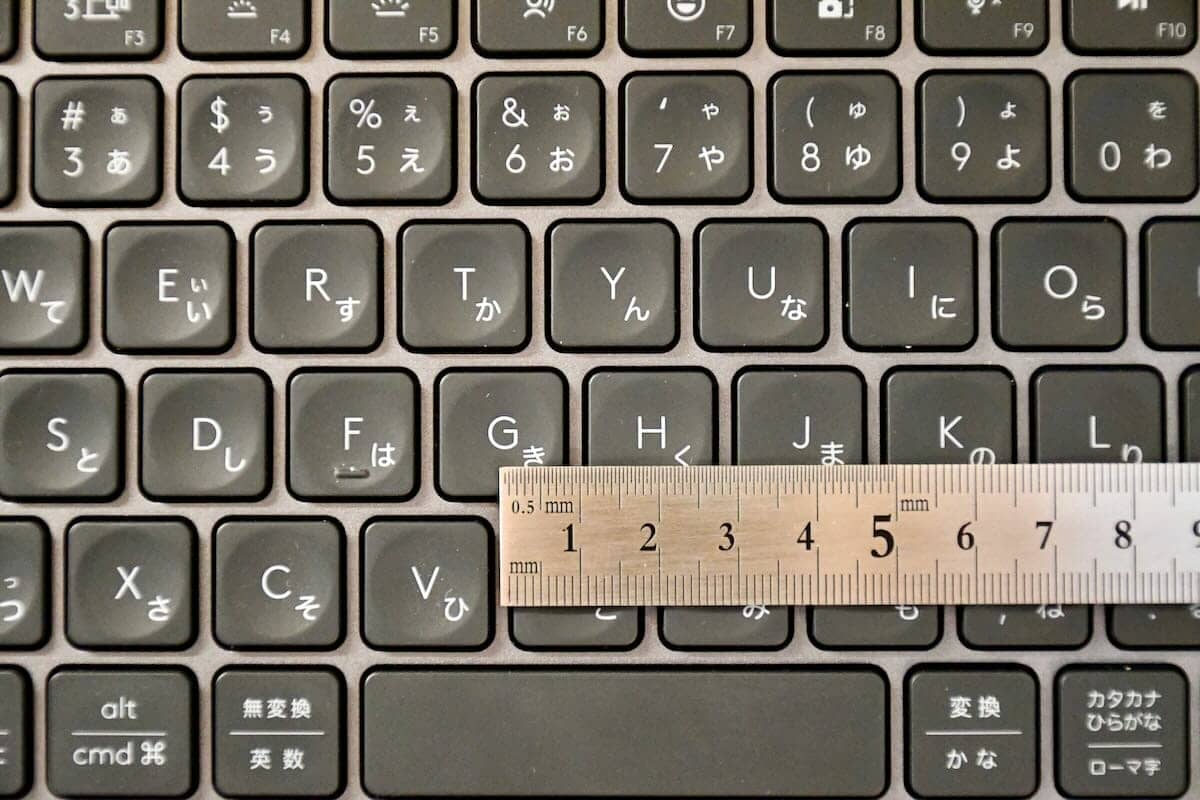

The MX KEYS MINI has a full-size key pitch of 19 mm, which allows typing with the same feel as a regular full-size keyboard, resulting in fewer typing errors.
In addition, the ” isolation design ” with independent keys and the “spherical design ” with the depressed center of the key tops also contribute to ease of typing.

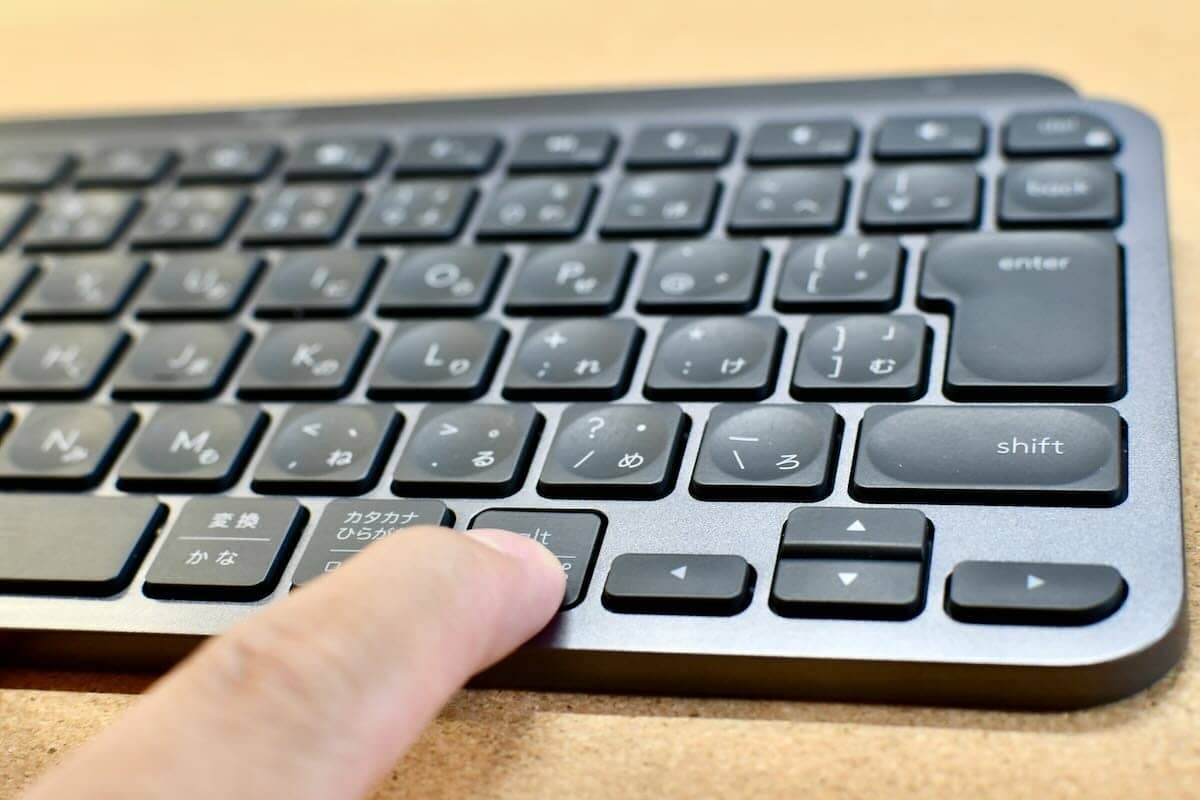

Heavier than usual pressing pressure and deeper keystrokes
In addition, the pressing pressure (strength when pressing down) is set slightly “heavier” than that of a normal pantograph keyboard, which is closer to the image of “pressing in” rather than “inputting by touch,” so it can be recommended for users who prefer more accuracy rather than feather touch.
Improved visibility with backlighting
The key tops and backs of the keys are illuminated by a white backlight for excellent visibility in the dark.
The backlight has seven brightness levels to choose from, and it also has excellent sensor functions, such as glowing when the hand is in close proximity or in response to ambient light.

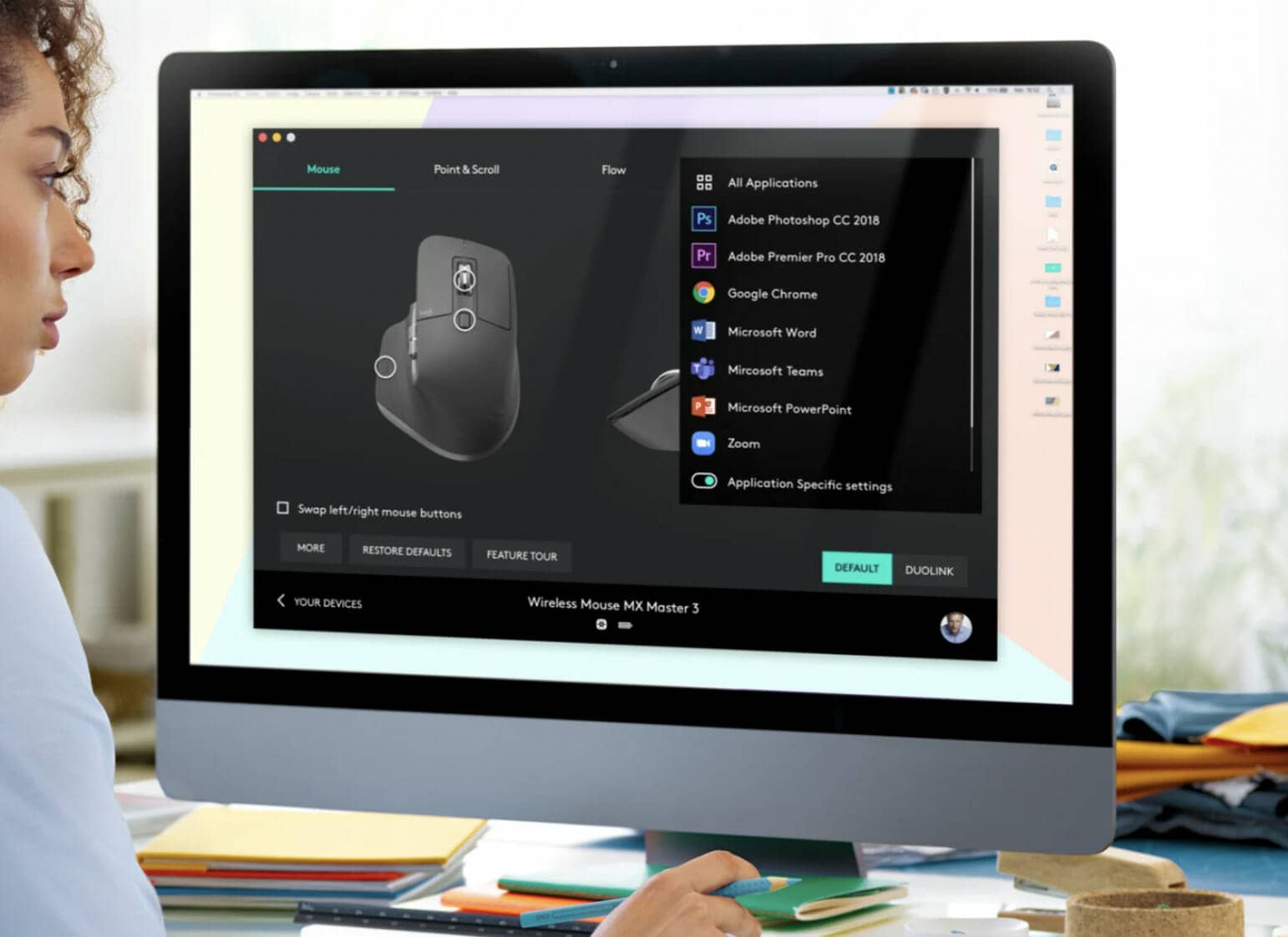

Expandability with Logi Options/Logi Options +
The MX KEYS MINI can be configured with various user settings through the dedicated application “Logi Options/Logi Options +”.
- Available in Options+.
- Fn key customization
- Notification and Status
- Easy-Switch Status
- App-specific settings
- Logitech FLOW
Summary|Mac users should definitely choose MX KEYS MINI for Mac for their “New Ronin Style”!
The above has been explained about the MX KEYS MINI for Mac KX700MPG with Mac specifications.

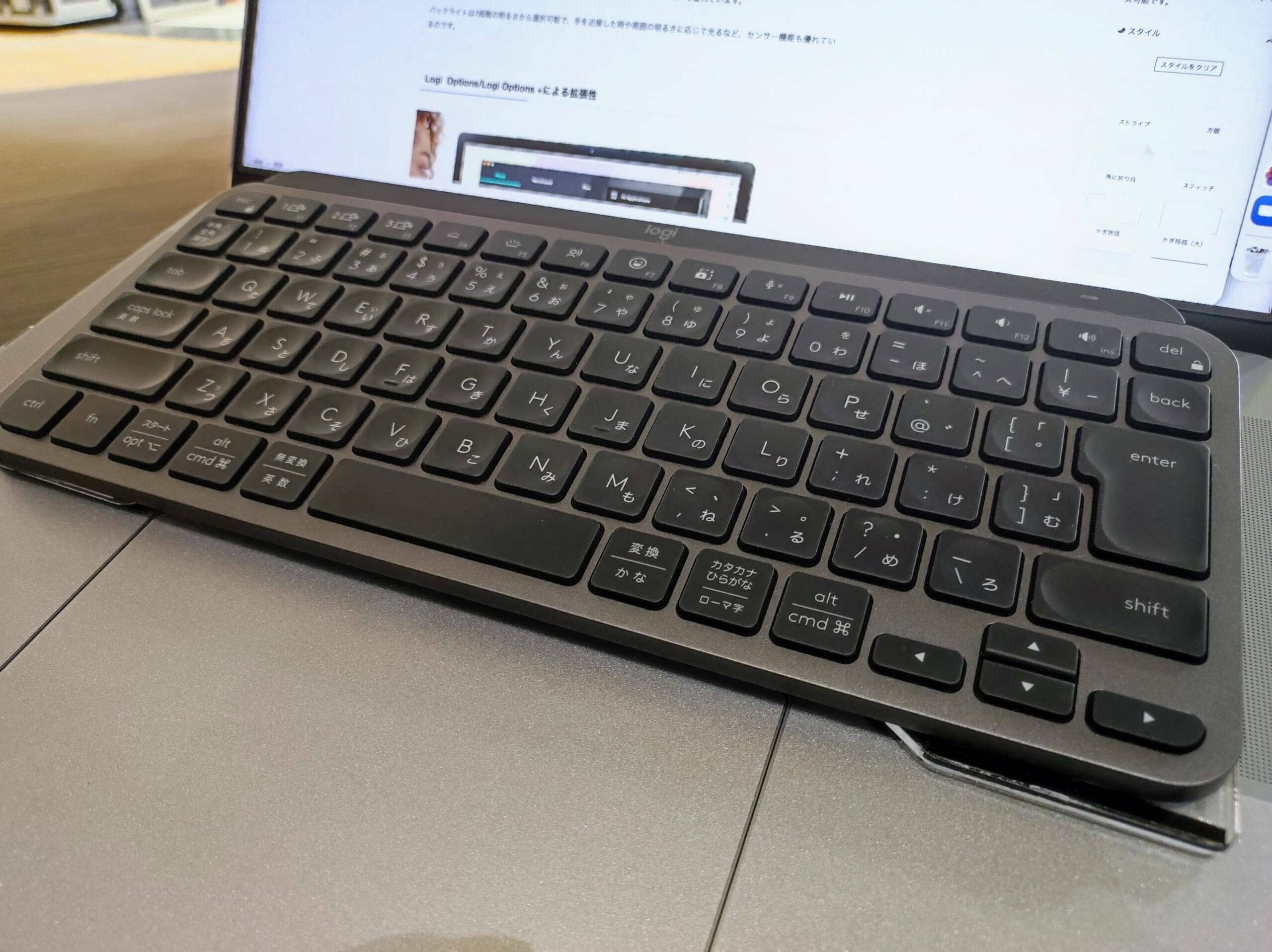

If it is this thin and more solid than conventional Macbook typing, we recommend the “Tongshi Style” for carrying it around and using it on a Macbook.
The style in which an acrylic plate called a ” keyboard bridge ” is placed over the Macbook keyboard, and your favorite keyboard is placed on top of it, is called the “Tongshi style.
Although it is proper etiquette to place the “HHKB” in the takanshi style, I personally believe that a thin keyboard with fewer steps is more suitable for this purpose.
You will have more luggage, but you will definitely work more efficiently.
We hope it will be a great addition to your creative endeavors! Consider buying the MX KEYS MINI for Mac!
