このキーボードの概要
| Brand | Keychron®︎ |
| Price | high-class |
| JIS/US | US |
| Keyboard Size | 75% |
| Key Profile | normal-profile |
| Key Sounds | clicky, tactile, silent |
| How to Connect | USB |
| Battery | usb-power |
| Hotswap | hotswap-available |
| Normal or Split | 非分割 |
- Release date: October 27, 2022
- Price: $215 (full version)/$195 (barebone)
- Keyboard with Alice layout after Keychron Q8.
- Since it is a 75% array, the general popularity is better here.
Where to Buy
- Keychron.jp
- Keychron.com｜If you cannot find the product on the Japanese site, click here.
Types of Keychron and how to choose ▷▷▷
仕様詳細
| Width | 156.9 mm |
| Length | 385.3 mm |
| Front Height | 19.8 mm (without keycaps) |
| Back Height | 33.4 mm (without keycaps) |
| Feet Height | 2.7 mm |
| Angle | 5°. |
| Weight | 2460 g ± 10 g (Fully Assembled Version) |
| Body Material | Full CNC machined aluminum |
| Plate Material | Steel |
| Polling Rate | 1000 Hz |
| Keycaps (Fully Assembled Version) | Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape) |
| MCU | Ultra-low-power ARM Cortex-M4 32-bit STM32L432 (128KB Flash) |
| Switches | Gateron G Pro (Fully Assembled Version) |
| Backlight | South-facing RGB LED |
| Switch Support | Hot-swappable (5 pin & 3 pin) |
| Stabs. | Screw-in PCB stabs |
| Connectivity | Type-C |
| Cable | Type-C cable + Type-A to Type-C adapter |
| Operating Environment | -10°C to 50°C |
Information reference: https: //www.keychron.com/pages/keychron-q10-customizable-mechanical-keyboard
タップできる目次
[blog_parts id="41919"]
Selectable axis types

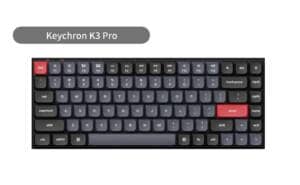

Keychron K Pro Mechanical Switches
| Red Switches | Blue Switches | Brown Switches | |
| pressing pressure | 45±10gf | 60±10gf | 55±10gf |
| Movement to operation | 2±0.3mm | 2±0.3mm | 2±0.3mm |
| keystroke | 4±0.4mm | 4±0.4mm | 4±0.4mm |
| reaction | linear | clicky | tactile |
| sound | quiet | clicky | gentle |
| sample |
sound sample
