NuPhy Air75v2 Review|Explanation in light of differences from Air75 v1

当ページのリンクには広告が含まれています。

On August 23, 2023, NuPhyh began pre-orders for the Air75 v2, the successor to the globally popular Air75 75% layout mechanical keyboard, which went on regular sale on October 22.

Based on the fact that the release was made within a few days of the interest check conducted in August, it appears that the release was prepared long in advance.

Almost two years have passed since the launch of the Air75v1, and with the introduction of attractive low-profile mechanical keyboards such as Keychron and Lofree, how has the oldest male evolved?

Let’s take a closer look at the new Air75, comparing it to the previous model.

この記事の著者
Kawamura top R

Representative of GreenEchoes Studio

Ryosuke Kawamura

He launched his own media as a site operator and web writer, and now plans and manages multiple corporate media. He often types heavily in his work, and in his search for greater efficiency, he became addicted to the keyboard swamp and established “GreenKeys”.

NuPhy Air75v2
NuPhy Air75v2 2
総合評価
( 4.5 )
メリット
  • 打鍵感が大きく改善された
  • キーマップの変更ができる
  • 軽量で持ち運びに便利
  • デザインが洗練されている
  • 尊師スタイルでキーボードブリッジなしで使用可能
デメリット
  • 打鍵音の本体への反響音が大きい
  • アルミニウム素材なのはフレームのみで本体はv1と同じプラスチック製
タップできる目次

[blog_parts id="41919"]

NuPhy Air75v2 Review

IMG 20231020 055007 scaled

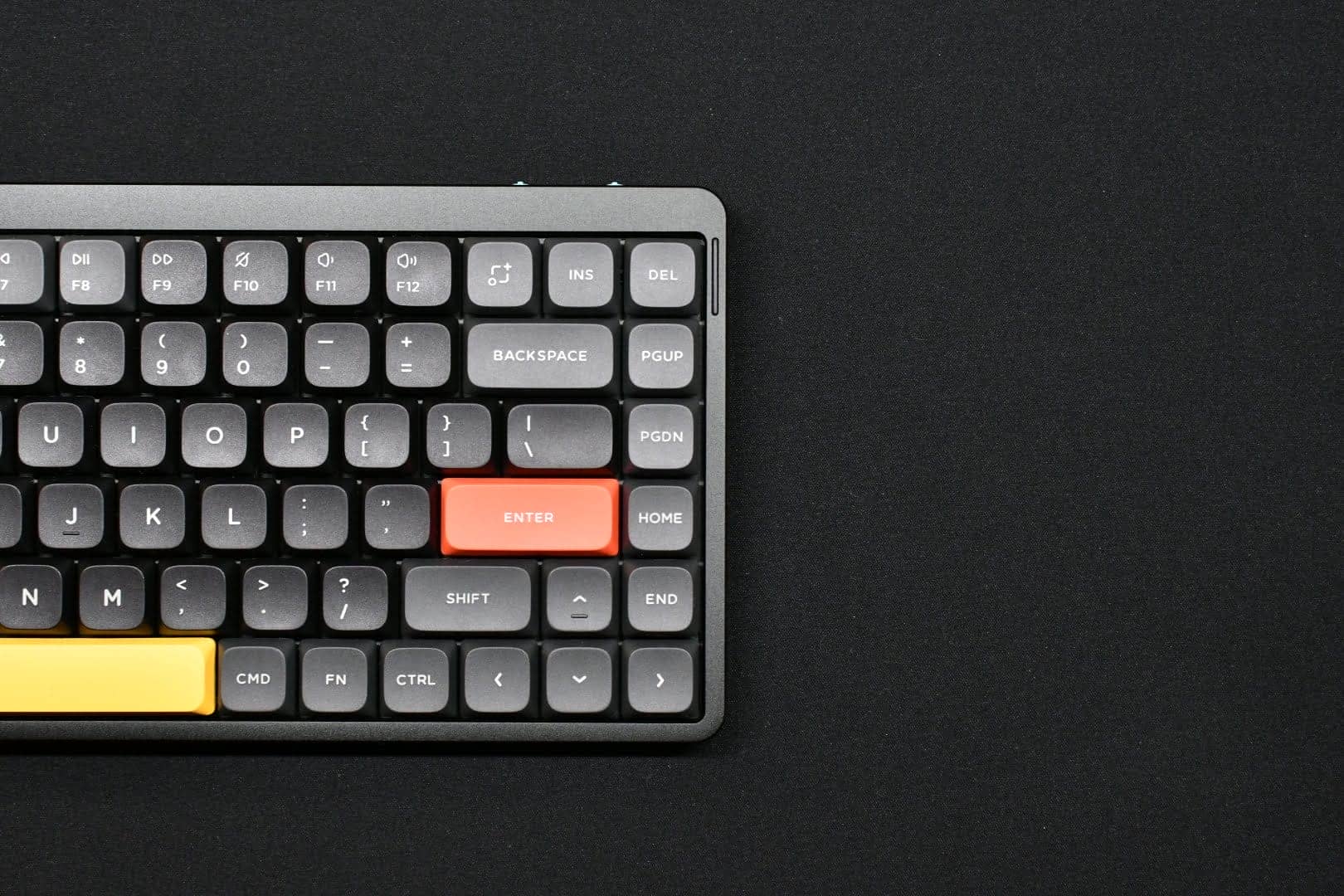

Let’s take a look at the Air75v2 using photos of the actual device.

Coupon NuPhy 400

Discount Code: ryo10

to save 10% off your purchase.

Japanese users, please click here (technical compliance).

Products only available at NuPhy Official
(Coupon code supported)

Advantages of Air75v2

Air75v2のメリット
  • Greatly improved keystroke feel
  • Can change the keymap.
  • Lightweight and easy to carry
  • Sophisticated design
  • Available without keyboard bridge in noble style
  • Tilt angle can be adjusted

Greatly improved keystroke feel

The biggest improvement from the previous model is still the better key feel.

Please watch this video first.

(Cowberry keyswitch is used)

Thus, with the addition of sound-absorbing foam, excess treble is suppressed, resulting in a pleasant bandwidth of typing sound.

Can change the keymap.

c6f1eb488039a4373bf66efc28b2587f

Another advantage is the ability to change keymaps.

The keyboard has a 75% layout, so it may not be necessary to change the keymap that aggressively, but standard customizations such as changing CAPSLOCK to CONTROL will be useful for Windows users as well as Mac users.

In addition, the typos on the right-hand single row keys, which are common on 75% layout keyboards, can be disabled on the keymap without having to physically remove the keyswitch.

NuPhy Air75v2 22
Kawamura top RKawamura

Lightweight and easy to carry

NuPhy Air75v2 5

Continuing from the previous model, the main unit weighs less than 500g (463g), so it does not feel that heavy even when placed in a bag.

By using the dedicated NuFollio V3 case, it can also function as a tablet stand and protect the main unit.

Kawamura top RKawamura

NuFollio V3 is only available for set purchase at this time.

Sophisticated design

The design did not change significantly compared to the previous version, but the number of color variations to choose from has increased.

As for Basalt Black in particular, it is a recommended color for any desk.

Available without keyboard bridge in noble style

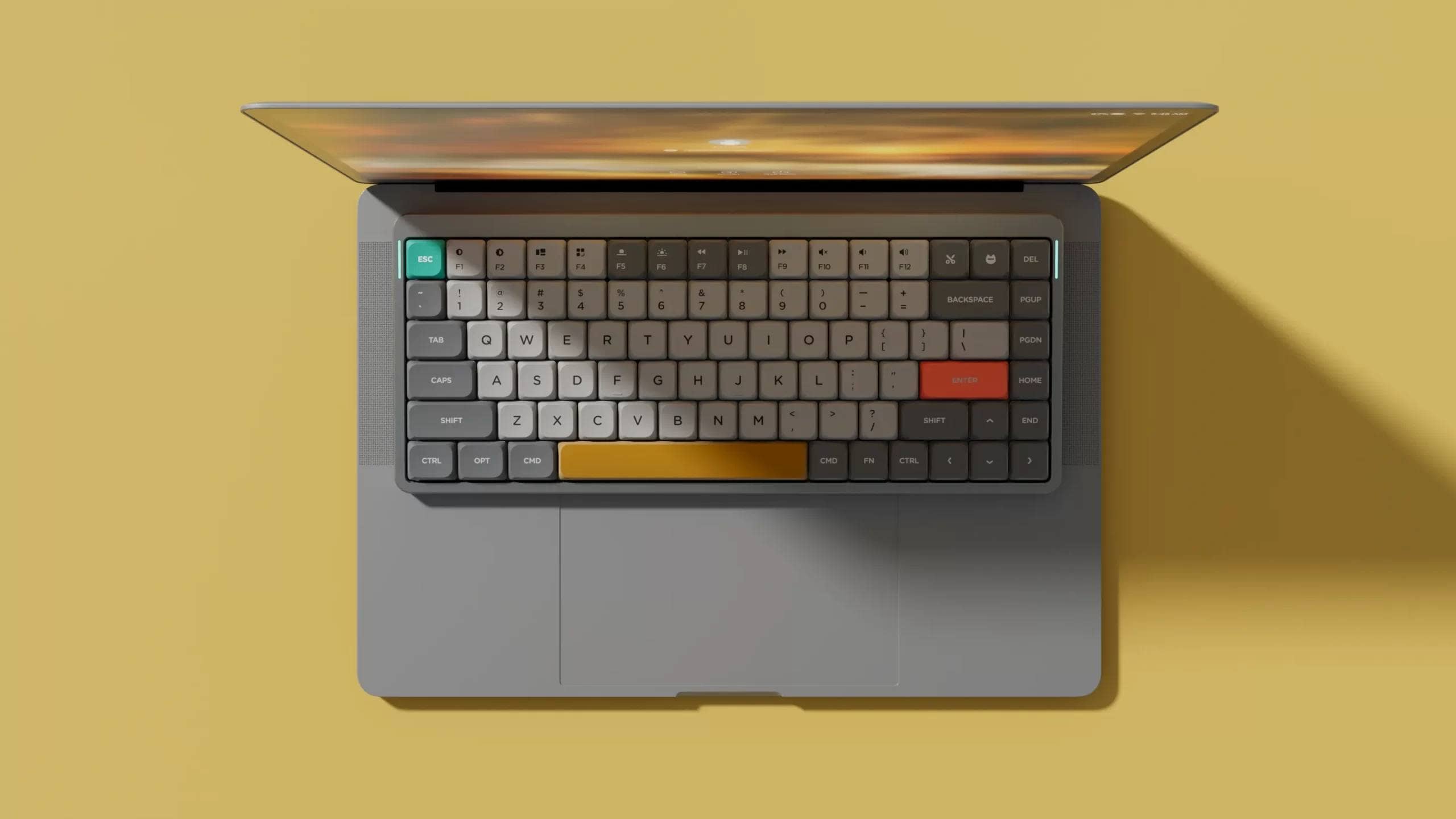

The AirFEET®️ mechanism, which does not interfere with laptop keyboards without a keyboard bridge, was retained from the previous model.

Furthermore, it is now possible to coexist with the tilt-leg, making it even more accessible.

f81fd2e4c52864042852c112ce927ae2 1 scaled

conformance list

  • Apple: MacBook (2015-2019), MacBook Air (Early 2015-2023), MacBook Pro (Late 2012-2023)
  • Microsoft: Surface Laptop 1/2/3, Surface Pro 4/5/6/7, Surface Book 1/2
  • Thinkpad: X1, X390, E490, L490/590, E495/595, T470/480s
  • Lenovo: IdeaPad 720/730, Y9000K, Y7000/P, S145, S940
  • HP: Spectre Folio, Spectre X360, Envy X360, Zbook 15
  • Dell: XPS 13.3-inch/15.6-inch
  • Razer: Blade 15/17
  • Alienware: New Alienware M15/M17

Tilt angle can be adjusted

The tilt leg is built in this time, so there are three typing angles to choose from.

This is a significant evolution, as the previous model had removable rubber tilt-legs, which were not very flattering to use because of weak adhesion and little range of adjustment.

Disadvantages of Air75v2

Air75v2のデメリット
  • Loud reverberation of keystroke sound to the body
  • Aluminum material is used only for the frame, and the body is made of the same plastic as v1.

Loud reverberation of keystroke sound to the body

Although it is a matter of taste, the Air75v2 is louder to hit than the recently released Lofree FLOW.

Please see the comparison video.

Kawamura top RKawamura

As expected, FLOW, which uses a gasket-mounted mechanism, has a more muted percussion sound with less echo.

Aluminum material is used only for the frame, and the body is made of the same plastic as v1.

Although it is a trade-off between weight and key feel, the plastic material of the body is likely to appeal to different tastes.

The plastic body is one of the elements that gives the Air75v2 character, but if you are looking for rigidity and a more muted typing feel, you may be more satisfied with the FLOW.

NuPhy Air75v2 20
Coupon NuPhy 400

Discount Code: ryo10

to save 10% off your purchase.

Japanese users, please click here (technical compliance).

Products only available at NuPhy Official
(Coupon code supported)

In-depth comparison of NuPhy Air75v2 and Air75v1! What are the evolutionary points?

The following table summarizes the major changes that have resulted from the evolution to Air75v2.

Changes from Air75v1 to v2

Air75 V2Air75 V1
QMK/VIA Support×
2.4GHz polling rate1000Hz500Hz
Battery capacity4000mAh2500mAh
tilt legbuilt-inMagnet adhesive type
keycapDouble-shot PBTSublimation printing ABS
Selectable key switchesGateron LP 2.0 Red/Brown/Blue
NuPhy Aloe/Wisteria/Cowberry/Moss
Gateron LP 2.0 Red/Brown/Blue
Sound-absorbing foamequipped (with)not equipped (with)
Available ColorsLunar Grey (color, colour)
passalt black
ionic white
Lunar gray only
Price$119.95-129.95$99.95
Venerable style support
NuPhy Air75v2の仕様詳細

contents

NuPhy Air75v2 21
  • 1 x Air75 V2 Wireless Mechanical Keyboard
  • 1 x USB-C to USB-A Cable (1.5 m)
  • 1 x 2.4G Receiver
  • 7 x Extra Keycaps
  • 4 x Extra Switches
  • 1 x Keycap/Switch Puller
  • 1 x Sticker Set
  • 1 x Quick Guide/Poster Download
  • 1 x Q&A Download

Specification Details

SPECIFICATION

  • Switch Type: Gateron Low-profile Mechanical (KS-33)
  • Layout: ANSI 75%.
  • Number of Keys: 84
  • Hot-swappable Support: Yes
  • N-key Rollover Support: Yes
  • Backlight: RGB-LED
  • Backlight Modes: 40
  • Compatible System: macOS/Windows/Linux/Android/iOS
  • Angle: 3.5º / 6.5º / 8.5º
  • Operating Environment: -10 to 50°C
  • MCU: STM32F072
  • RF: NRF52810

connection

  • Mode: 2.4GHz, Bluetooth 5.0 or Wired (USB-C)
  • 2.4GHz Polling Rate: 1000Hz
  • Bluetooth 5.0 Polling Rate: 125Hz
  • Wired Polling Rate: 1000Hz

POWER AND BATTERY

  • Battery Capacity: 4000mAh
  • Working Time (all lights on): 35~57 hours (lab test result)
  • Working Time (all lights off): Up to 220 hours (lab test result)

MATERIALS

  • Frame: Aluminum
  • Bottom Case: ABS
  • Keycap: Double-shot PBT

SIZE AND WEIGHT

  • 316.4 mm x 132.5 mm x 13.5 mm (12.5 inches x 5.2 inches x 0.593 inch)
  • 598 grams (1.31 pound)
6f8259a3a4c3567d41e4f709cef288ed scaled

Information reference: https: //nuphy.com/collections/keyboards/products/air75-v2

Not many major changes have been seen in terms of the exterior, but when looking at the contents, there are updates in various areas.

Let’s take a quick look.

Coupon NuPhy 400

Discount Code: ryo10

to save 10% off your purchase.

Japanese users, please click here (technical compliance).

Products only available at NuPhy Official
(Coupon code supported)

Theme colors increased to 3 types

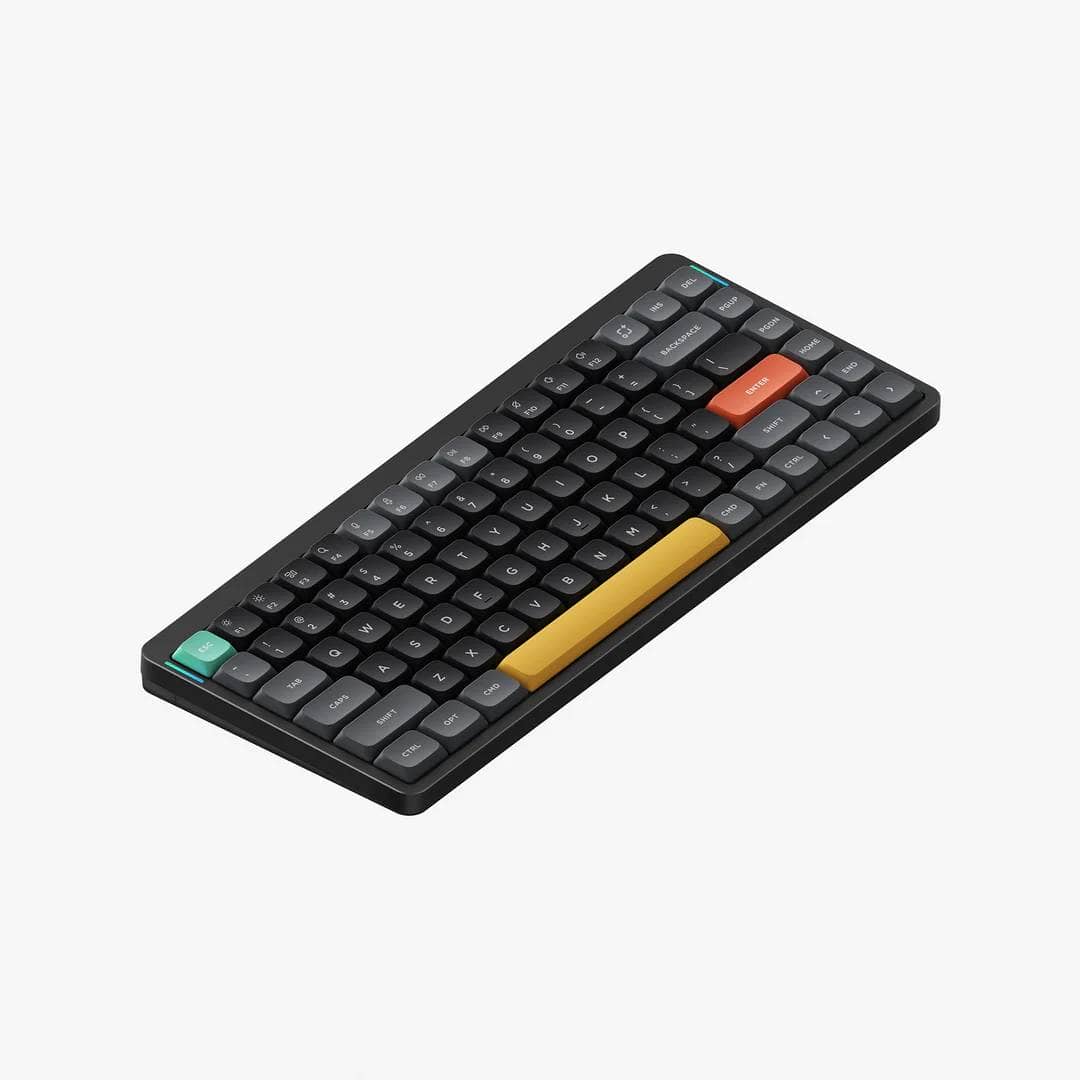

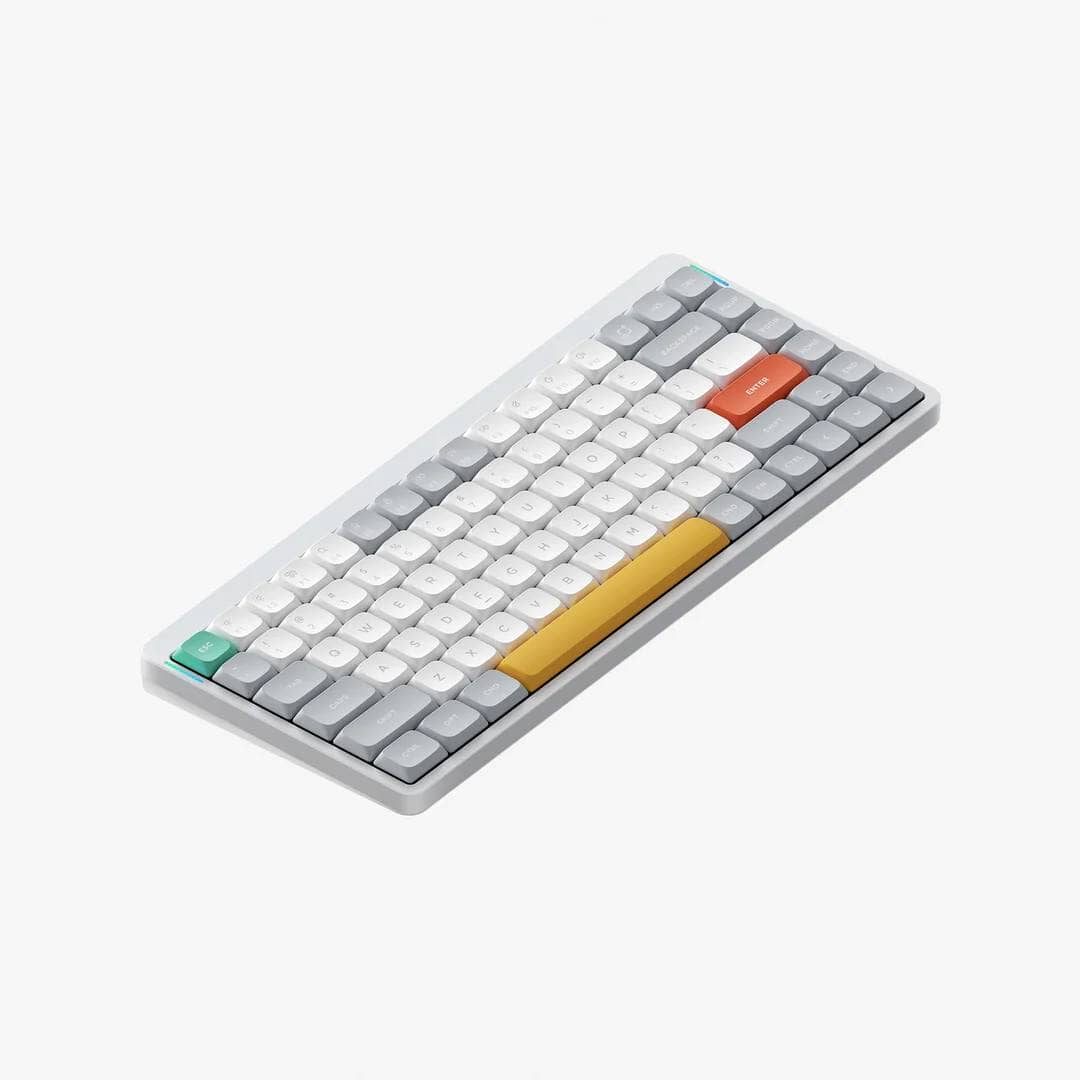

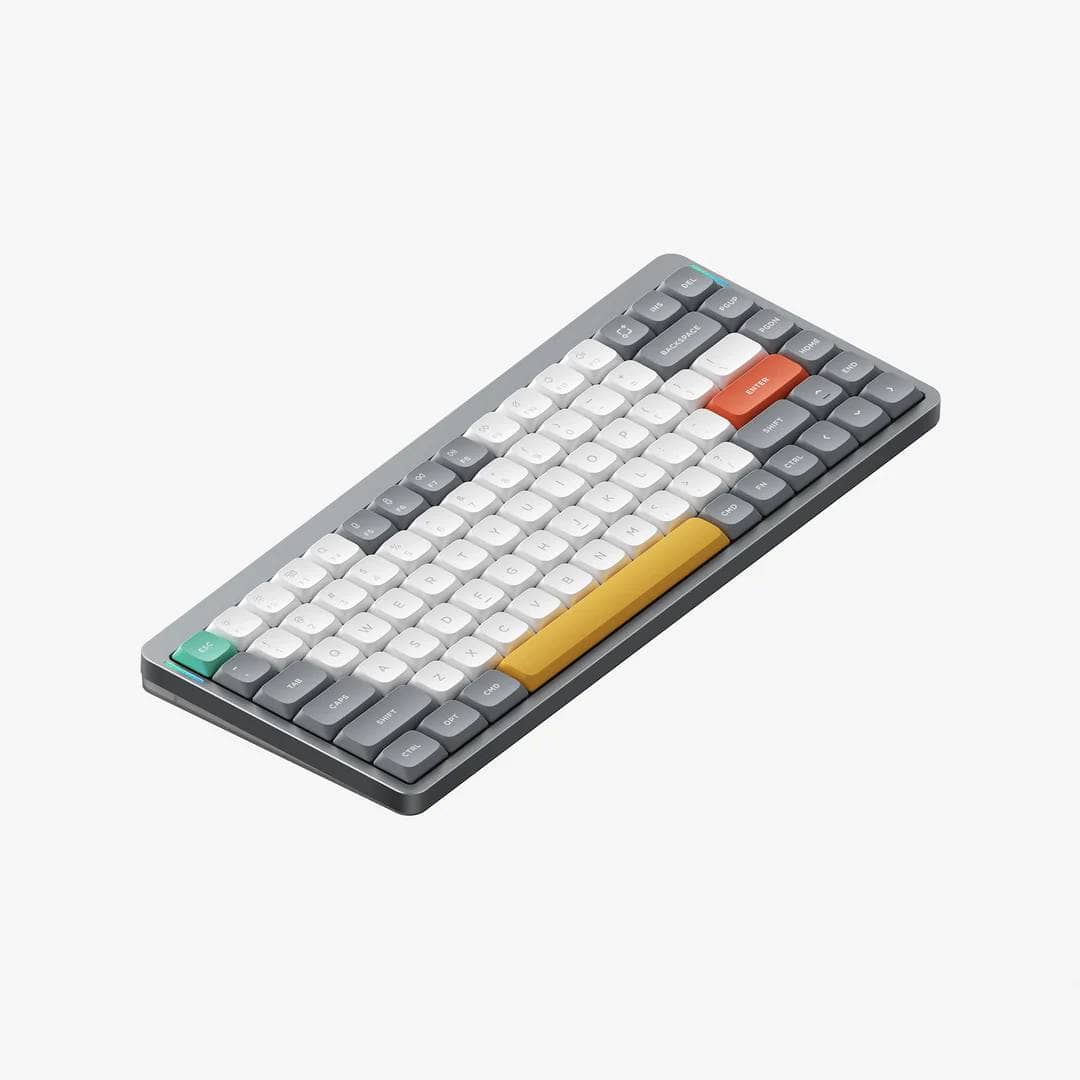

In addition to the existing Lunar Gray color, Air75v2 now includes the new black-based “Passalt Black” and white-based “Ionic White” colors.

You will be glad to know that you can now choose your favorite coloring according to your own desk color.

Ionic White will be especially popular with Mac users.

QMK/VIA support allows keymap changes

d099d886ed65ef765625779e628d2c5f scaled

Perhaps the most significant evolution from v1 is the addition of QMK/VIA support.

QMK/VIA is an open source keymap modification system and is the most major player in the keyboard community.

The original keymap modification software was also provided in v1, but it was not as easy to use as VIA.

This is a very significant evolution in terms of VIA support for drag-and-drop key changes.

Kawamura top RKawamura

For the QMK/VIA, it is possible to set the keys to act as different keys depending on the length of the press (mod tap), so you can build your own keymap with even more flexibility.

What to do if the Air75v2 keymap change does not work or cannot be done with VIA

If you are using VIA and cannot change the keymap, download the “.json” file.

Click here to download ▷▷▷.

Air75v2 keymap change procedure

  • Connect Air75v2 to PC /Mac with wired connection mode set
  • Access VIA ( https://usevia.app/#/ ) from your browser
  • Click “AUTHORIZE NEW” and select “Air75v2”, then click the Connect button to allow the browser to load
  • Click on the second “paint brush symbol (Design tab)” from the right
  • Click on “Upload Area.”
  • Select the “nuphy-air75-v2-via.json” file

Doubled polling rate for wireless connections using USB dongle

For gamers, the smallest input latency due to the connection method is very significant in determining the winner.

The magnitude of that delay is indicated by a smaller number called the polling rate, which indicates a larger delay.

The polling rate of the Air75v2 is 1000 Hz, close to that of a wired connection, so even avid gamers will be able to play games to their heart’s content wirelessly.

Also, in BT mode and wired connection mode, the latency is very low compared to other keyboards.

Battery capacity changed 1.6 times

f8c0e571dab690ac46849eae796fa188

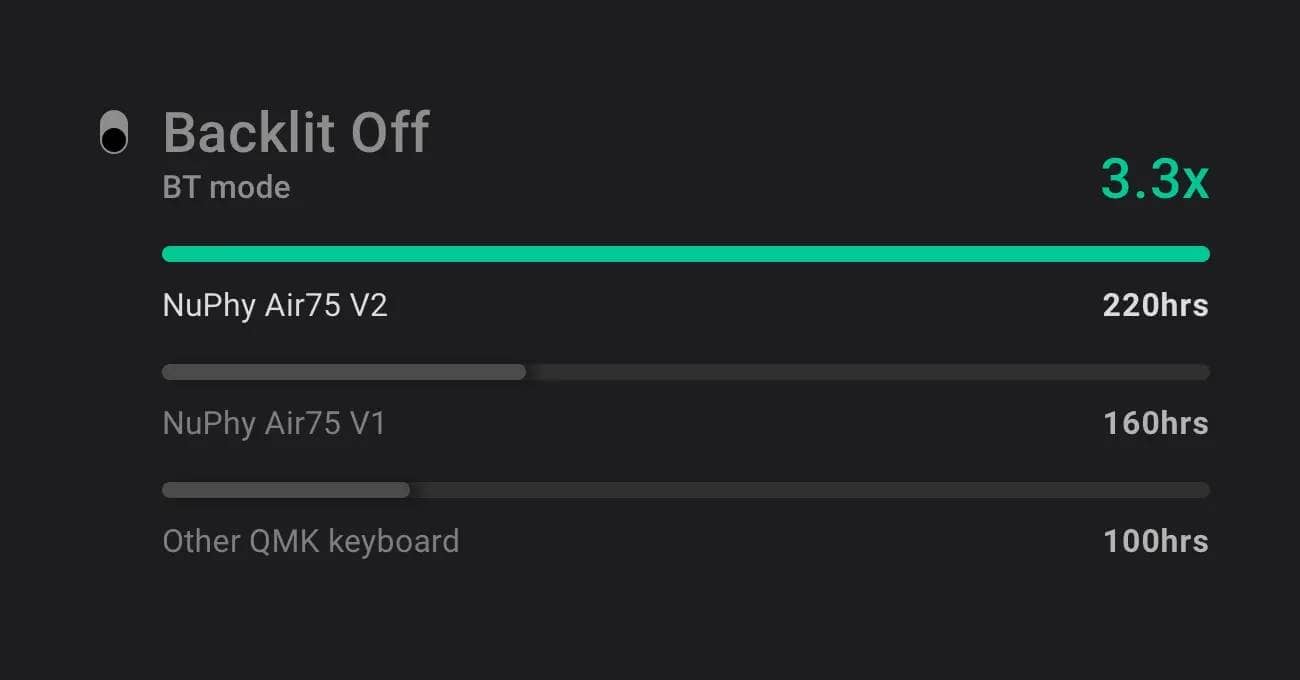

The Air75v2’s battery capacity is now 4000mAh, 1.6 times that of its predecessor, allowing for up to 220 hours of continuous operation with the backlight off.

Considering that the maximum operating time of the previous model was 160 hours, the new model can be used for 60 hours longer.

Tilt leg changed to built-in type

8e4e1f84989271c4d8a1d8719e5118cc

Although it is a minor change, the tilt leg has been changed to a built-in type.

The conventional tilt legs were magnetic and removable, but to be honest, they were very inconvenient to use, as the rubber legs at the connection point would come off and disappear, or the tilt legs themselves would disappear.

I am a little relieved to finally see the change to a basic, built-in system.

Keycaps changed to higher quality double-shot PBT

d5be2711f68c091e63bde674859a9795

As with the Air96, the default keycap has been changed to a double-shot PBT for the Air75v2.

Compared to conventional keycaps made of ABS material with sublimation printing, the keycaps have a solid thickness and provide a pleasant, low-pitched keystroke feel.

The matte material also follows the recent trend.

New keyswitches have been added and there are 7 to choose from

b9715c03e9ffef1809c71d0994de241e

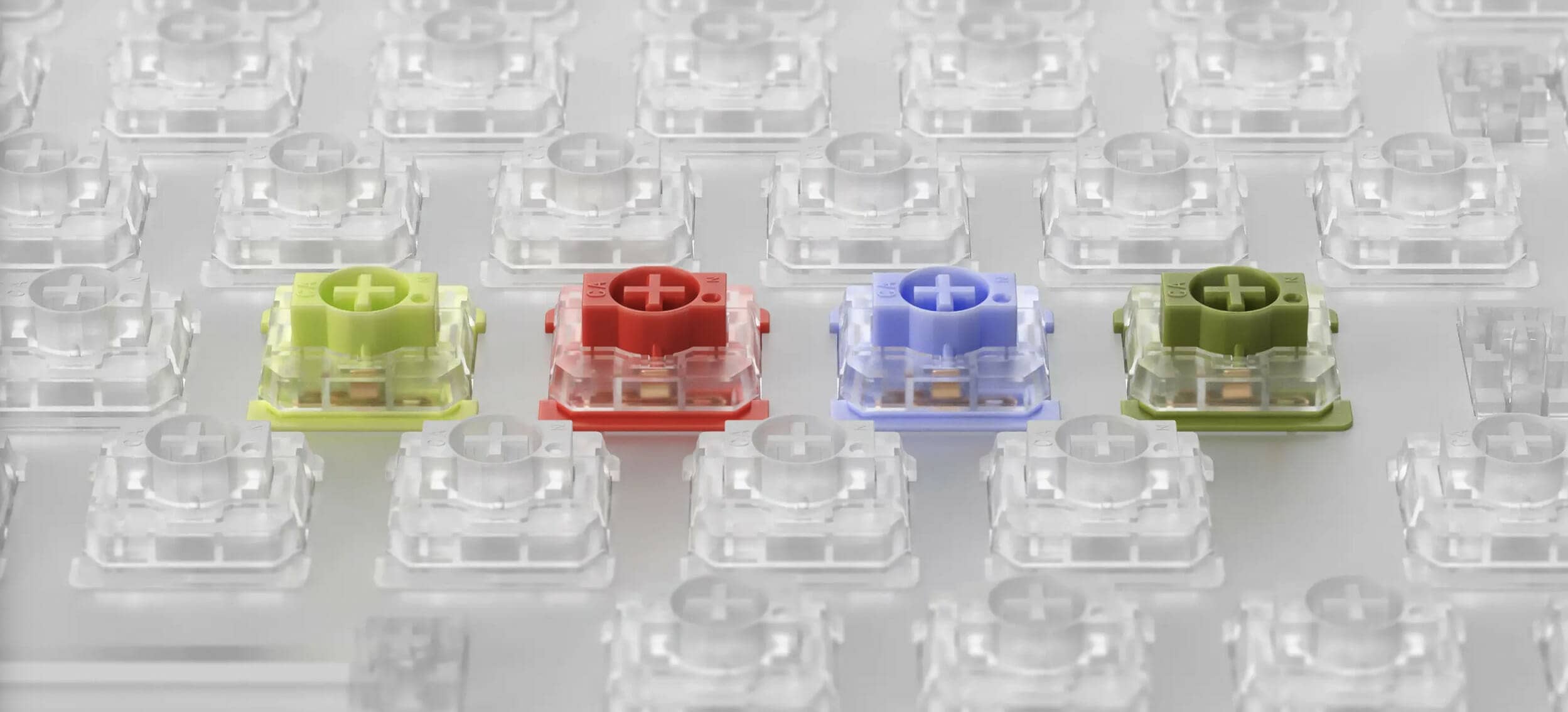

Previously, only three types of Gateron LP2.0 keyswitches could be selected, but from Air75v2, users can now choose from a total of seven types, including the two new “Cowberry” and “Moss” types.

Kawamura top RKawamura

I don’t see Daisy as an option this time, perhaps because of the character clash with Cowberry.

Gateron Low-profile Switches 2.0 (Gateron Official)

SwitchRedBrownBlueBanana
Picture.332a3a412ea1b0f46820f74a1cdec0d9b340712af3017cb5f5cbfa5a0843d51d21c768ac78a6ce52e2a14e3e3fe0e85ce8810c66bee19109908b0e741efdc880
FeelLinearTactileClicky.Tactile
ColorRedBrownBlueYellow
Lubed.Pre-LubedPre-LubedPre-LubedPre-Lubed
Pressure50gf55gf65gf60gf
Operating force50±15gf55±15gf65±15gf60±15gf
End force60±5gf60±5gf70±5gfunknown
Spring13.5mm13.5mm11.5mmunknown
Pre-Travel1.7±0.4mm1.7±0.4mm1.7±0.4mm1.7±0.4mm
Total Travel3.2±0.2mm3.2±0.2mm3.2±0.2mm3.2±0.2mm

Gateron Low-profile Switches 2.0 (NuPhy)

SwitchCowberryMoss.WisteriaDaisy.Aloe
Picture.cowberrymossWisteriaDaisyAloe
FeelLinearTactileTactileLinearLinear
ColorRedMossGreenLight BlueLight OrangeLight Green
Lubed.Pre-LubedPre-LubedPre-LubedPre-LubedPre-Lubed
Pressure45gf60gf55gf48gf37gf
Operating force45±15gf60±15gf55±15gf48±15gf37±15gf
Spring15mm16.5mm16.5mm16.5mm16.5mm
Pre-Travel1.2±0.3mm1.7±0.4mm1.7±0.4mm1.7±0.4mm1.7±0.4mm
Total Travel3.2mm3.2mm3.2mm3.2mm3.2mm

The addition of sound-absorbing foam takes the keystroke feel to the next level.

754634a1e6f9450359c59a636d77e876
fcf20fdfb6501cfbc41a68f16b42c2dd

The recent trend in the keyboard community is often to favor a so-called “thocky” sound feel with minimal excess echo.

As a way to achieve this, keyboards with various sound-absorbing materials placed inside the case are gaining prominence.

For the Air75 v2, three layers of sound-absorbing material (PORON /IXPE) were placed on top of the PCB board to improve keystroke sound.

Furthermore, using the silicon sound shaping technology developed for Ghostbar, the low-profile mechanical keyboard also seems to be equipped with a sound-absorbing material made of silicon.

When we hear a comparison of the keystroke sound with the conventional model, we can certainly hear that the Air75v2 has a less reverberant and more thocky sound.

Please take advantage of this opportunity.

Summary|Air75v1 users can use the transfer coupon code to save money!

The above is an overview of the Air75v2, with comparisons to previous models.

Recently, the competition in the low-profile area has been intensifying, with Keychron competing with its ergo array and variations, and Lofree with its supreme keystroke feel with gasket construction.

In this context, we were very interested to see in which areas Air75v2 would find distinction with other companies’ products.

In general, it seems that they are competing with a “pop and catchy appearance” as in the past and raising the average score for the contents as well.

In terms of key feel, it is somewhat inferior to Lofree FLOW and does not match Keychron’s ergonomic layout for its unusualness, but it is a product that has firmly captured the attention of its previous fans.

Since the price increase is not so drastic compared to the previous model, there is no harm in purchasing one if you are a fan.

As for Mac users in particular, we can say that this product is highly recommended because it is compatible with the “Tongshi style” used on Macbooks, so you will always be able to type on your favorite keyboard.

Please consider this opportunity!

Don’t forget to enter the 10% off coupon code, ryo10, when you make your purchase.

Coupon NuPhy 400

Discount Code: ryo10

to save 10% off your purchase.

Japanese users, please click here (technical compliance).

Products only available at NuPhy Official
(Coupon code supported)

[blog_parts id="67890"]
気に入ったらシェアしてね!

GreenKeys著者情報

河村 亮介のアバター 河村 亮介 GreenKeys運営責任者/事業代表

WEBサイト運営事業GreenEchoes Studio代表をしています。他社法人メディアの運営ほかキーボードメディアや通信系メディアへの寄稿を行うなど、ウェブライターとしても活動しています。今年はオリジナルキーキャップセットを作る予定。

タップできる目次
